Lithium-ion batteries (LIBs), based on their high energy density, long lifespan and environmental benignity, are widely dominant among various energy storage systems [1-3]. However, the limited lithium resources restrict their future large-scale applications in electric vehicles and power grids [4]. Here, sodium-ion batteries (SIBs) are gaining substantial attention as a promising substitute for LIBs based on the vast abundance and affordable cost of sodium resources [5-7]. Despite the promising performance, the use of commercial graphite anode in SIBs suffers from sluggish reaction kinetics due to poor Na-ion insertion ability compared to small-radii Li-ions [7, 8]. Thus, the development of an engineered anode with stable kinetics is a necessity before SIBs could be advanced for the commercial market.

The SnO₂, based on its alloying/dealloying sodium storage mechanism, is considered a promising anode material for SIBs with a theoretical capacity reach of 1369 mAh/g [9, 10]. However, the low electrical conductivity and sizeable volume variations during charge-discharge cycles limit its practical applicability in SIBs [11-13]. Among the efficient solution, the integration of SnO₂ with conductive materials, e.g., carbon [14] and graphene [15], configured as hybrid composite has proven effective in improving the inherent electrochemical characteristics of SnO₂. For example, Qin et al. integrated SnO₂ with carbon in a sandwiched configuration to construct C@SnO₂@C hollow nanostructures. The presence of carbon as shell and core substantially improved cycling stability and rate capability of C@SnO₂@C-based anode in SIBs [16].

In this study, we propose a unique pomegranate-like SnO₂/reduced graphene oxide (rGO)/Se composite spheres, i.e., p-SnO₂/rGO/Se, as an efficient anode material for SIBs. The p-SnO₂/rGO/Se spheres were fabricated using simple one-pot spray pyrolysis of a mixture containing SnCl₂, graphene oxide (GO) and SeO₂. The pyrolytic conversion of SeO₂ into Se in the presence of rGO constructed a pomegranate-like rGO architecture that could support fast charge-transfer besides alleviating the large volume changes of SnO₂. The unique architectures enabled improved sodium storage performance with a capacitive reach of 506.7 mAh/g at 30 mA/g, a cycle performance of 397 mAh/g after 100 cycles at 50 mA/g, and a rate performance of 188.9 mAh/g at 10 A/g.

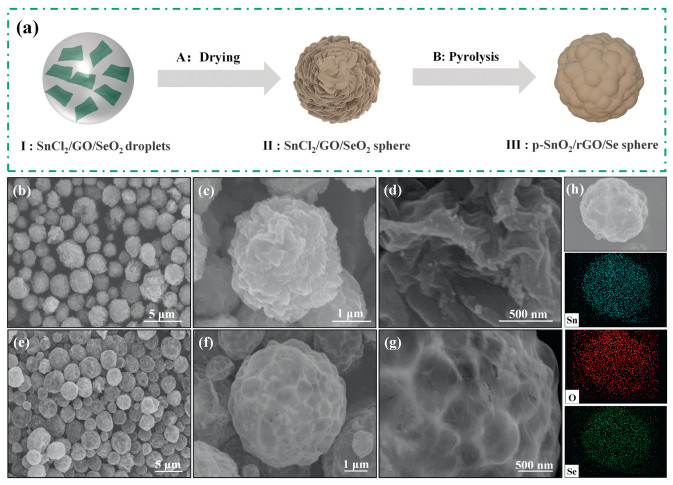

The facile synthesis of the p-SnO₂/rGO/Se spheres using the spray pyrolysis method is illustrated in Fig. 1a and Fig. S1 (Supporting information). The mixed solution of SnCl₂, GO and SeO₂ was treated in an ultrasonic bath to atomize the large droplets into a fine aerosol. This aerosol, when entered a quartz tube, maintained at 800 ℃, immediately dried, resulting in the formation of SnCl₂/GO/SeO₂ composite spheres. Then the composite spheres passed through the pyrolytic region, SnCl₂ decomposed into SnO₂, and thermal reduction of GO to rGO was occurred at the high temperature of 800 ℃. Moreover, the reduction of SeO₂ to elemental Se with the assistance of rGO could be defined according to the following reaction: SeO₂ + C = Se + CO₂, which facilitate the formation of a pomegranate-like rGO architecture. For analytical comparison, SnO₂/rGO spheres (denote as f-SnO₂/rGO) were also prepared using the same method without the addition of SeO₂.

The morphologies of the p-SnO₂/rGO/Se spheres and f-SnO₂/rGO spheres were investigated using a scanning electron microscope (SEM). As seen, the f-SnO₂/rGO spheres possess a flower-like structure subsequent to the intertangling of rGO nanosheets (Figs. 1b–d), which could effectively enhance the electron transfer as well as alleviate the volume variation of SnO₂ during cycling. In contrast, the p-SnO₂/rGO/Se spheres possess pomegranate-like structure (Figs. 1e–g), which could be attributed to the formation of elemental Se reduced by the rGO. The transmission electron microscope (TEM) image of the p-SnO₂/rGO/Se sphere (Fig. S2 in Supporting information) also reveals a pomegranate-like structure formed by the intertwined rGO nanosheets. These architectures, based on their unique structural configuration, could drastically prevent the aggregation of SnO₂ particles while buffering their volume expansion during charge-discharge cycles, resulting in a more stable cycle performance in reference to the f-SnO₂/rGO spheres. The EDS mapping of p-SnO₂/rGO/Se spheres further confirmed the uniform distribution of Sn, O and Se (Fig. 1h) in the formed pomegranate-like structure.

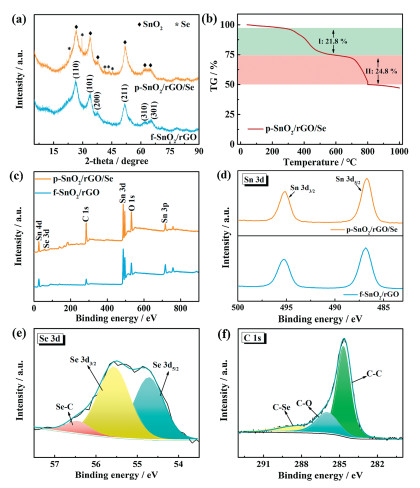

The XRD pattern of the p-SnO₂/rGO/Se spheres in reference to f-SnO₂/rGO is shown in Fig. 2a. In addition to the typical (110), (101), (200), (211), (310) and (301) diffraction peaks of SnO₂, the presence of diffraction peaks attributed to Se confirms the reduction of SeO₂ to elemental Se post completion of spray pyrolysis [17-19]. The content of the SnO₂, rGO and Se in the p-SnO₂/rGO/Se spheres were determined using TG analysis under the air atmosphere (Fig. 2b). The weight loss of the p-SnO₂/rGO/Se spheres mainly occurs in the two-stage process. The initial weight loss of 21.8% from 300 ℃ to 540 ℃ could be ascribed to the removal of rGO, while the weight loss at 670-800 ℃ corresponds to the sublimation of elemental Se. Thus, the mass ratio of SnO₂ in the p-SnO₂/rGO/Se sphere was approximately determined to be 50.0%.

The chemical state of the p-SnO₂/rGO/Se and f-SnO₂/rGO spheres was studied using XPS analysis. Unlike the f-SnO₂/rGO spheres, the XPS survey spectrum of the p-SnO₂/rGO/Se spheres shows the presence of additional Se 3d, Se 3p and Se LMM Auger bands at 59.4, 165.4 and 184.4 eV, respectively, besides typical C and Sn bands (Fig. 2c) [20]. The high-resolution Sn 3d spectra profile for p-SnO₂/rGO/Se sphere and f-SnO₂/rGO sphere (Fig. 2d) consists of two bands centered at 495.1 and 486.7 eV, which could be attributed to the Sn 3d_3/2 and Sn 3d_5/2 orbitals. As no change in peak position was noted, it is safe to assume that no structural alteration occurred in the Sn atoms present in SnO₂ [17, 21]. Fig. 2e shows the high-resolution XPS spectra profile of Se 3d for the p-SnO₂/rGO/Se sphere, with typical bands at 54.7, 55.6 and 56.4 eV attributed to Se 3d_5/2, Se 3d_3/2 and Se—C bonds, respectively [22, 23]. The C 1s XPS spectra (Fig. 2f) could be divided into three components centered at 284.6, 285.9 and 288.7 eV for C—C, C—O and C—Se bonds, respectively [24, 25].

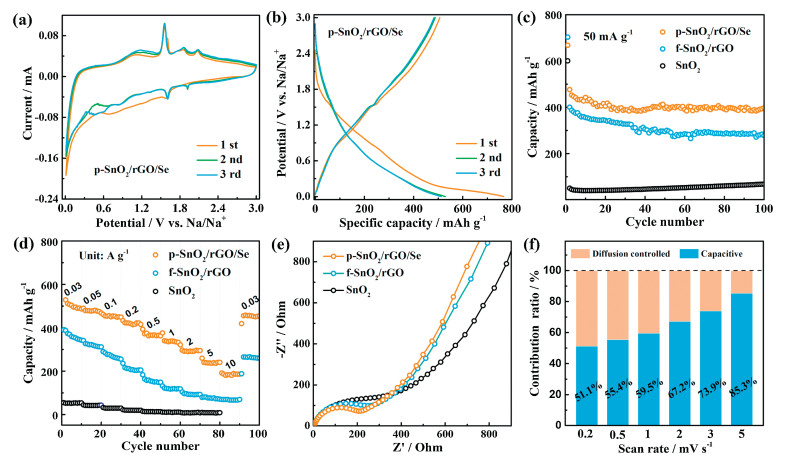

The electrochemical behavior and sodium storage performance of the p-SnO₂/rGO/Se spheres were measured by integrating the material in a coin-type half cell configuration with NaClO₄/EC + DEC + FEC as an electrolyte. For comparison, the f-SnO₂/rGO spheres and SnO₂ were devised as competitive anodes for SIBs. Fig. 3a shows the initial three CV scans of p-SnO₂/rGO/Se spheres recorded at 0.2 mV/s. A broad peak in the range of 0.6–1.6 V is evident in the initial cathodic scan, which could be ascribed to the formation of solid electrolyte interface (SEI) and the conversion reaction of SnO₂ to metallic Sn (Eq. S1 in Supporting information). Furthermore, the peaks located in the range of 0.01-0.6 V could be assigned to the reversible alloying process of Sn ↔ Na_xSn (Eq. S2 in Supporting information). Correspondingly, the peaks at 0.46 and 1.13 V in the anodic scan are associated with the dealloying reaction of Na_xSn to Sn [26-28]. In comparison to the f-SnO₂/rGO and SnO₂ electrode (Fig. S3 in Supporting information), several distinct peaks were observed for the p-SnO₂/rGO/Se spheres based electrode, including major peaks at 1.6 and 1.9 V (cathodic scan) and 1.56, 1.87 and 2.1 V (anodic scan). These peaks are related to the conversion reactions of Se ↔ Na₂Se_x [29, 30]. Fig. 3b and Fig. S4 (Supporting information) show the galvanostatic charge/discharge curves for the p-SnO₂/rGO/Se referenced against f-SnO₂/rGO spheres and SnO₂ at a current density of 30 mA/g. In the case of p-SnO₂/rGO/Se, the presence of Se provides extra capacity storage sites during the sodiation/de-sodiation process. This enabled the p-SnO₂/rGO/Se spheres to exhibit initial charge and discharge capacities of 506.7 and 766.8 mAh/g, respectively, with an initial coulombic efficiency of 66.1%, much higher than the f-SnO₂/rGO spheres (59.8%) and SnO₂ (11.4%) based electrodes. Fig. 3c shows the cycle performance of p-SnO₂/rGO/Se spheres in comparison to its compositional counterparts. As seen, the p-SnO₂/rGO/Se spheres retain a high discharge capacity of 397 mAh/g after 100 cycles at a current density of 50 mA/g. In comparison, the f-SnO₂/rGO spheres and SnO₂ retained only 278.2 mAh/g and 67.9 mAh/g, respectively. This confirmed the superior structural stability of p-SnO₂/rGO/Se with the capability to accommodate sizeable volume changes of SnO₂ during continuous cycling. The p-SnO₂/rGO/Se spheres, based on their pomegranate-like structures, are expected to promote rapid electron transfer, and therefore an improved rate performance of the devised electrode could be anticipated. Fig. 3d shows the rate capability of the p-SnO₂/rGO/Se spheres in reference to the f-SnO₂/rGO spheres and SnO₂. The p-SnO₂/rGO/Se spheres exhibit high specific capacities of 506.7, 478.5, 455.1, 421.7, 363.1, 335.5, 291.1 and 237.6 mAh/g at current densities of 0.03, 0.05, 0.1, 0.2, 0.5, 1, 2 and 5 A/g, respectively. The structural configuration enables the p-SnO₂/rGO/Se spheres to maintain a capacity of 186.1 mAh/g even at a high current density of 10 A/g, which is almost 3 times that of the f-SnO₂/rGO spheres. In addition, when the current density is relaxed back to 0.03 A/g, the p-SnO₂/rGO/Se spheres retained a capacity of 458.2 mAh/g, indicating its excellent reversibility and structural stability compared to f-SnO₂/rGO spheres.

The EIS spectra (Fig. 3e) confirms the lower charge-transfer resistance (R_ct) for p-SnO₂/rGO/Se spheres (206 Ω) in comparison to the f-SnO₂/rGO (248 Ω) and SnO₂ (388 Ω). Fig. S5 (Supporting information) further shows the EIS spectra of the p-SnO₂/rGO/Se sphere after continuous charge-discharge cycles. The decline of R_ct, observed after the initial 30 cycles, reflects the improved sodium diffusion efficiency due to the electrochemical activation process of the p-SnO₂/rGO/Se sphere electrode. To further understand the electrochemical kinetics of the p-SnO₂/rGO/Se spheres, CV scans were recorded at various scan rates from 0.2 mV/s to 5 mV/s (Fig. S6a in Supporting information). The kinetic charge storage mechanism of the electrode could be deduced from the relationship between current (i) and scan rate (v) according to the following equation: i=av^b, where b could have a value range from 0.5 to 1. The b value of 0.5 means a diffusion-controlled process, while b = 1 signifies a non-diffusion dominant process with no diffusion limitations. The b value of the p-SnO₂/rGO/Se spheres was estimated to be 0.9069, indicating fast reaction kinetics driven by a non-diffusion behavior (Fig. S6b in Supporting information). Futhermore, the contribution of the diffusion-controlled and non-diffusion dominant process in the total capacity could be divided using the equation: i(V)=k₁v+k₂v^1/2, where the k₁v and k₂v^1/2 represent for the non-diffusion dominant and diffusion-controlled currents, respectively. Fig. 3f shows the contribution of capacitive and diffusion controlled current with a gradual increase of scan rates from 0.2 mV/s to 5 mV/s [31-33]. As seen, the non-diffusion controlled current occupies a portion of 51.1% at a low scan rate of 0.2 mV/s, signifying that the diffusion controlled and non-diffusion dominated current give equivalent contribution to the total capacity of the p-SnO₂/rGO/Se sphere. The contribution of non-diffusion dominated current increased to 85.3% as the scan rate reached 5 mV/s, which could be attributed to the better dynamics of non-diffusion behavior, resulting in superior rate capability of p-SnO₂/rGO/Se spheres.

In summary, p-SnO₂/rGO/Se spheres with unique pomegranate-like structures were synthesized using one-pot spray pyrolysis of the SnCl₂/GO/SeO₂ mixture. The pomegranate-like architectures formed due to the intertwined rGO nanosheets could effectively enhance the rapid electron transfer as well as alleviate the large volume changes of SnO₂ during the repeated cycles. When devised as an anode material for SIBs, the p-SnO₂/rGO/Se spheres deliver a high capacity of 506.7 mAh/g at 30 mA/g, with a maintained capacity of 188.9 mAh/g at an ultrahigh current density of 10 A/g. The provided experimental results demonstrate the practical working ability of p-SnO₂/rGO/Se spheres for advanced SIBs.
