Two isostructural Ni(Ⅱ)/Co(Ⅱ)-based metal-organic frameworks for selective dye adsorption and catalytic cycloaddition of CO2 with epoxides
收藏切换
PDF
Hui Hua, 1, Dashuai Zhanga, 1, Huiling Liua, Yaoqiang Jina, c, Jun Gaod, Yongzheng Zhanga, Zhongmin Liua, Xiuling Zhanga, c, **, Longlong Genga, **, Suijun Liub, *, Ranhui Zhanga, c
Chinese Chemical Letters | 2021, 32(1) : 557 - 560
Less
收藏切换
Chinese Chemical Letters | 2021, 32(1): 557-560
• Communication •
Two isostructural Ni(Ⅱ)/Co(Ⅱ)-based metal-organic frameworks for selective dye adsorption and catalytic cycloaddition of CO2 with epoxides
Full
Hui Hua, 1, Dashuai Zhanga, 1, Huiling Liua, Yaoqiang Jina, c, Jun Gaod, Yongzheng Zhanga, Zhongmin Liua, Xiuling Zhanga, c, **, Longlong Genga, **, Suijun Liub, *, Ranhui Zhanga, c
Affiliations
  • a College of Chemistry and Chemical Engineering, Dezhou University, Dezhou 253023, China
  • b School of Chemistry and Chemical Engineering, Jiangxi University of Science and Technology, Ganzhou 341000, China
  • c College of Chemical Engineering, Qingdao University of Science and Technology, Qingdao 266000, China
  • d College of Chemical and Environmental Engineering, Shandong University of Science and Technology, Qingdao 266590, China
Published: 2021-01-15 doi: 10.1016/j.cclet.2020.02.028
Outline
收藏切换

Two isostructural Ni(Ⅱ)/Co(Ⅱ)-based metal-organic frameworks (MOFs), namely {[M3(L)2(bpb)3(H2O)4]·2DMF·2H2O}n [M = Ni (HL-5, HL is short for Hui-Ling Liu); M = Co (HL-6); H3L = 2', 6'-dimethyl-[1, 1'-biphenyl]-3, 4', 5-tricarboxylic acid; bpb = 1, 4-bis(pyrid-4-yl)benzene], have been hydrothermally syn-thesized and structurally characterized. Both HL-5 and HL-6, which have the same three-interpenetrated 3D pillared-layer framework with sqc306 type topology, present good selective methyl orange (MO) adsorption over rhodamine B (RhB). Moreover, the catalytic CO2 cycloaddition properties with epoxides of the two MOFs have also been studied at ambient pressure and temperature.

Metal-organic frameworks  /  Dye separation  /  Heterogeneous catalysis  /  CO2 cycloaddition  /  Coordination polymers
Hui Hu, Dashuai Zhang, Huiling Liu, Yaoqiang Jin, Jun Gao, Yongzheng Zhang, Zhongmin Liu, Xiuling Zhang, Longlong Geng, Suijun Liu, Ranhui Zhang. Two isostructural Ni(Ⅱ)/Co(Ⅱ)-based metal-organic frameworks for selective dye adsorption and catalytic cycloaddition of CO2 with epoxides[J]. Chinese Chemical Letters, 2021 , 32 (1) : 557 -560 . DOI: 10.1016/j.cclet.2020.02.028
Full Text
Less
Nowadays, the environment deterioration has been one of the biggest issues which is unable to avoid. For example, the release of toxic organic compounds or harmful gases have seriously endangered the ecological balance and brought a variety of disasters and diseases to human beings. To solve these problems, many ideas have been developed, based on the keywords of degradation, adsorption or conversion [1-3]. Therefore, how to degrade, adsorb, separate or convert these hazardous wastes is of great significance and challenge, and to realize this purpose, one of the important directions is exploit relative materials that could efficiently deal with these pollutants.
Recently, porous metal-organic frameworks (MOFs), which are composed of inorganic metal centers and organic ligands, have received great attention since this kind of materials entered the sight of human. Compared with many traditional materials, MOFs have presented many unique physical and chemical properties, and showed potential applications in lots of areas (e.g., storage, separation, catalysis and sensing) [4-21]. The micro/mesoporosity of MOFs make them very suitable for the adsorption of specific molecules (e.g., gas or organics) [22-26]; through the modulation of ligands and/or metal centers, the pores of MOFs could be easily functionalized and size/shape-modulated, which further brought excellent performances such as molecule sieving and selective catalysis [27-33]. All these features confirm that MOFs are well in line with the concept mentioned above in this area, and some success have also been achieved in designing MOFs with excellent performances for pollutant removal and transformation [34-38]. However, some non-ignored problems also need to be solved, for example, the framework stability towards hard conditions (many MOFs lost their porosity when degassed, exposed in water or under high temperature due to their weak coordination bonds). Therefore, there is still a long way to go for the studies of this field.
In this work, our focus lies on the dye adsorption and CO2 conversion. Here, we present two isostructural Ni(Ⅱ)/Co(Ⅱ)-based MOFs, namely {[M3(L)2(bpb)3(H2O)4]·2DMF·2H2O}n [M = Ni (HL-5); M = Co (HL-6)], with a three-fold interpenetrated sqc306 type topology. Due to their interpenetrated features, both the two MOFs exhibit excellent hydrothermal stabilities. Moreover, HL-5 and HL-6 shows good bifunctions in selective dye adsorptions and catalytic cycloaddition of CO2 with epoxides.

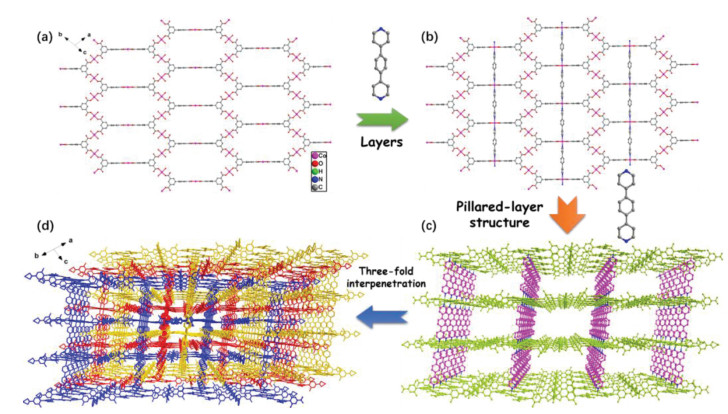

Single-crystal diffraction analysis reveals the two MOFs are isostructural in spite of their different metal centers and space groups (HL-5: Ni2+, C2/m; HL-6: Co2+, P1). Therefore, in the following description, HL-6 is selected to show their structures. As illustrated in Fig. S1b (Supporting information), the asymmetric unit of HL-6 contains three Co(Ⅱ) centers (Co1, Co2, and Co3), one L3- ligand, three bpb ligands and two water molecules. All Co(Ⅱ) ions are six-coordinated (two N atoms and four O atoms) with octahedral geometry (Table S2 in Supporting information) calculated by SHAPE 2.1 [39] and two vertexes of the octahedron are occupied by the two N atoms from different bpb ligands with four O atoms forming the equatorial plane. However, for Co1 and Co2, coordinated O atoms are from two isophthalate groups of L3- ligands and two water molecules, while for Co3, the four O atoms are all from the third carboxylate groups of two different L3- ligands. The Co—O bond distances are from 2.081(2) Å to 2.140(2) Å, and the Co—N bonds range from 2.102(3) Å to 2.159(3) Å. In addition, the coordination angles around Co(Ⅱ) ions are in the range of 61.33(10)°–180.0° (Table S3 in Supporting information). Each L3- ligand acting as a 3-connected linker in a μ3-η1: η1: η2 coordination mode (two monodentate and one chelate, Fig. S1c in Supporting information), connects three Co(Ⅱ) ions, resulting in the formation of a two-dimensional (2D) honeycomb layer structure (Fig. 1a), which is further partitioned by the coordination between 1/3 of the bpb ligands and Co3 centers (Fig. 1b). Then, the rest 2/3 bip ligands, which coordinate with Co1 and Co2 centers, respectively, link the 2D layers together to form a three-dimensional (3D) "pillaredlayer" framework (Fig. 1c). Moreover, since the large voids in one single framework, three identical and independent single frameworks are entangled with each other to generate the final three-fold interpenetrated framework of HL-6 (Fig. 1d). The solvent accessible volume is 23.6% (526.8 Å3 per unit cell volume), as estimated by PLATON [40]. Finally, topology of the framework of HL-6 is also analyzed, and it reveals a (3, 4, 4)- connected 3-nodal sqc306 type 3D net with a point symbol of {6·72}2{64·7·8}2{74·10·11} (Fig. S1d in Supporting information) by considering L3-, Co1 or Co2, and Co3 as three-, four-, fourconnected nodes, respectively.
Before property studies, the framework stability of HL-5 and HL-6 were further confirmed by PXRD and TGA analysis. On one hand, the PXRD patterns of the samples for both HL-5 and HL-6 after various treatments (solvents exchanged, dyes solution and even immersed in boiling water) agree well with the experimental and simulated ones, indicating their good phase purity and excellent framework stability against different solvents and solutions (Fig. S2 in Supporting information). On the other hand, TGA curves (Fig. S3 in Supporting information) reveal that both the two frameworks show good thermal stabilities with relatively high decomposing temperatures (HL-5: 400 ℃; HL-6: 379 ℃). In particular, for HL-5, the first step 8.7% weight loss at 30–189 ℃ corresponds to the departure of two free DMF molecules (calcd. 8.5 wt%), while the second loss of 6.3% at 293–343 ℃ means the removal of two free and four coordinated H2O molecules (calcd. 6.2 wt%); for HL-6, the first obvious weight loss of 10.2% is observed at 30–169 ℃, which is caused by the removal of two free H2O and two free DMF (calcd.10.8 wt%), and further weight loss of 4.7% was observed from 277–379 ℃, which is consistent with the loss of four coordinated water molecules (calcd. 4.6 wt%). The excellent framework stability of the two MOFs provides powerful guarantee for further property studies.
Using porous materials to adsorb dyes from aqueous solutions is one of the effective methods for dyes pollutant collection. Given their hydrothermal stability, the dyes adsorption properties of the two MOFs were measured by immersing a certain amount of the samples (10 mg) in aqueous solution of dyes (MO or RhB, 5 mL, 20 mg/L). As shown in Fig. 2a, after 90 min, the orange solution of MO shaded off into colorless in the presence of HL-6, indicating the efficient MO adsorption of HL-6. Meanwhile, the absorbance peak of MO at 462 nm decreases a lot with time, and about 96.3% of total MO is adsorbed (capacity: 9.63 mg/g). However, as for RhB uptake (Fig. 2b), the solution color has almost unchanged with the absorbance peak (552 nm) slightly declined. Investigation for HL-5 (Figs. 2d and e) reveals that it has similar dyes adsorption behaviors with HL-6 and the MO uptake capacity is 8.0 mg/g. Moreover, a pseudo-first-order kinetic model (Fig. S5 in Supporting information) is evaluated for better comprehending the reaction kinetics behavior of the dye adsorption [41] and the apparent rate constants (Ka) for MO is calculated to be 1.79 × 10-2 min-1 for HL-5 and 4.04 ×10-2 min-1 for HL-6.

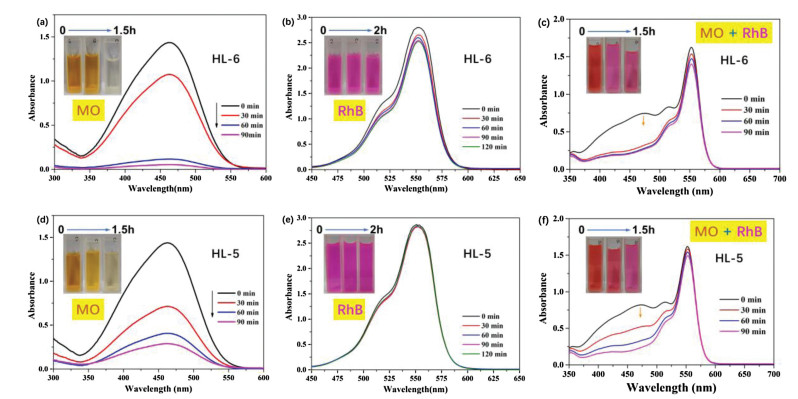

Due to the obvious difference for MO and RhB adsorptions, dyes separation properties of HL-5 and HL-6 were further studied in a mixed solution (v/v = 2.5/2.5, 5 mL) as well. As shown in Figs. 2c and f, both HL-5 and HL-6 present good selective MO uptake over RhB. The orange red mixture gradually turns to pink which is the color of RhB, suggesting the removal of MO from the solution. Moreover, the UV–vis absorption spectra could also demonstrate that the peaks of MO at 462 nm quickly decrease with time, while the peaks of RhB at 552 nm are only slightly change. The selective MO uptake properties of the two MOFs might be attributed to the size-based sieve effect (molecular size: RhB > MO), which are caused by framework interpenetration of HL-5 and HL-6.
Epoxy carbonates are widely used as reaction intermediate or solvent in some fine chemical synthesis processes. The key factor for this transformation is the adsorption and activation of the greenhouse gas CO2. The unique features of pore structure and acidic metals have made MOFs potentially excellent catalysts. Considering the high solution stability as well as the outstanding adsorption property, catalytic transformation of CO2 into value-added epoxy carbonates via cycloaddition with epoxides over the obtained MOFs were further carried out as an expand application.

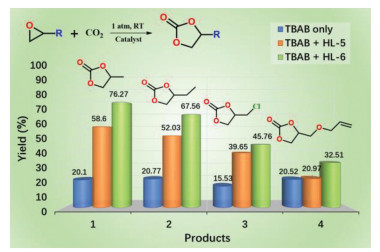

The reaction was carried out under mild conditions (room temperature and 1 atm pressure). Fig. 3 shows the catalytic performance of cycloaddition of CO2 with various epoxides over HL-5 and HL-6. No product was detected without the addition of any catalysts, and about 20% yield of epoxy carbonates were obtained when adding tetrabutylammonium bromide (TBAB) as catalyst, which is consistent with the results in previous literatures. However, when adding MOFs into the reaction system in the presence of TBAB, it clearly showed an enhanced catalytic conversion rates of the products. Apparently, HL-6 exhibited superior catalytic performance than HL-5 under the same conditions, which should be connected with the different intensity of acidic metal site. The yield of propylene carbonate over HL-6 is 76.27%, which is obvious higher than that of HL-5 and some reported catalysts (for example, the yield of propylene carbonate is 49.20%, 48% and 47.5% over HKUST-1, MOF- 505 and Cu(tactmb), respectively) [42, 43]. Some high yield of propylene carbonate (>80%) was also reported over some MOFs, however, excessive TBAB and/or high temperature are required during the reaction process [44, 45]. In addition, the yield of epoxy carbonate decreased over both HL-5 and HL-6 with the increase of molecular size of epoxides substrates, which should be possibly caused by the limited diffusion of epoxides with large-sized molecules into the micropores of the MOFs. These results further indicate that the obtained MOFs could potentially be used as molecular size selective catalysts in some chemical transformations.
In summary, two isostructural Ni(Ⅱ)/Co(Ⅱ)-based MOFs, showing 3D (3,4,4)-connected 3-nodal sqc306 type topology, have been synthesized and characterized. The two MOFs which are hydrothermally stable, both exhibit good selective dye adsorption of MO over RhB. Further studies reveal that both the two MOFs also show certain catalytic activity in CO2 cycloaddition with epoxides at ambient conditions.
