MUC1 vaccines using β-cyclodextrin grafted chitosan (CS-g-CD) as carrier via host-guest interaction elicit robust immune responses
收藏切换
PDF
Hangyan Yua, Han Lina, Yuntian Xiea, Mengyuan Qua, Min Jianga, Jie Shia, Haofei Honga, Hongrui Xub, Ling Lib, Guochao Liaoc, Zhimeng Wua, Zhifang Zhoua, *
Chinese Chemical Letters | 2022, 33(11) : 4882 - 4885
Less
收藏切换
Chinese Chemical Letters | 2022, 33(11): 4882-4885
• Communication •
MUC1 vaccines using β-cyclodextrin grafted chitosan (CS-g-CD) as carrier via host-guest interaction elicit robust immune responses
Full
Hangyan Yua, Han Lina, Yuntian Xiea, Mengyuan Qua, Min Jianga, Jie Shia, Haofei Honga, Hongrui Xub, Ling Lib, Guochao Liaoc, Zhimeng Wua, Zhifang Zhoua, *
Affiliations
  • a The Key Laboratory of Carbohydrate Chemistry & Biotechnology, Ministry of Education, School of Biotechnology, Jiangnan University, Wuxi 214122, China
  • b Suzhou Municipal Center for Disease Control and Prevention, Suzhou 215004, China
  • c Joint Laboratory for Translational Cancer Research of Chinese Medicine of the Ministry of Education of the People's Republic of China, International Institute for Translational Chinese Medicine, Guangzhou University of Chinese Medicine, Guangzhou 510006, China
Published: 2022-11-15 doi: 10.1016/j.cclet.2022.02.072
Outline
收藏切换

We construct MUC1 vaccines using β-cyclodextrin grafted chitosan (CS-g-CD) as carrier via host-guest interaction. These vaccines based on non-covalent assembling can provoke robust immune responses, including high level of specific antibodies and cytokines. The induced antibodies can specifically recognize tumor cells and mediate cytotoxicity against tumor cells. These results indicate that CS-g-CD with strong immunostimulatory activities can be a straightforward platform for peptide-based vaccine construction.

β-Cyclodextrin grafted chitosan  /  MUC1 antigen  /  Cancer vaccine  /  Host-guest interaction  /  Vaccine carrier  /  Tn antigen
Hangyan Yu, Han Lin, Yuntian Xie, Mengyuan Qu, Min Jiang, Jie Shi, Haofei Hong, Hongrui Xu, Ling Li, Guochao Liao, Zhimeng Wu, Zhifang Zhou. MUC1 vaccines using β-cyclodextrin grafted chitosan (CS-g-CD) as carrier via host-guest interaction elicit robust immune responses[J]. Chinese Chemical Letters, 2022 , 33 (11) : 4882 -4885 . DOI: 10.1016/j.cclet.2022.02.072
Full Text
Less
Tumor-associated antigens (TAAs) abundantly expressed on tumor cells are important targets for the development of anti-cancer vaccine [1]. Among the TAAs, mucin 1 (MUC1) of tumor cells, a glycosylated protein, has been ranked as the second ideal target for the development of therapeutically vaccines [2, 3]. The extracellular moiety of tumor-associated MUC1 has variable number tandem repeat region (VNTR) of a core sequence of 20 amino acids (HGVTSAPDTRPAPGSTAPPA) with truncated glycosylation, such as T, Tn and sTn antigens [4, 5]. Due to its poor immunogenicity and T cell-independent properties, synthetic MUC1 peptides are usually conjugated to carrier protein to improve the immunogenicity. Recently, some novel biomaterials and nanoparticles were developed for constructing MUC1-based vaccines and showed promising results [4, 6-14]. However, it is still a challenge to develop an effective MUC1-based vaccine.
Chitosan (CS), a cationic polysaccharide comprising β (1–4)-linked glucosamine and N-acetyl-glucosamine, is derived from chitin that is one of the most abundant polymers in nature. Due to its biocompatible and biodegradable, chitosan has been widely used in medicine, food, chemical industry, cosmetics and so on [15, 16]. Chitosan is also considered as a potential vaccine adjuvant because of its abilities to enhance humoral and cellular immunity [17]. Depending on the deacetylation degree, chitosan has various amount of –NH2 exposure which leads to rich positive charge. This cationic polysaccharide has the superiority to easily attach the cell surface that is negative charged by electrostatic interaction, which may play an important role during the antigen uptake and presentation [18]. The positive charge of chitosan can also improve the adjuvanticity including antigen protection and depot formation when the chitosan mixed with antigens. Besides, the protonation of the –NH2 group at C-2 position of the d-glucosamine repeat unit also improves the solubility of chitosan which is critical for an adjuvant [19]. In addition to these advantages as a delivery cargo, chitosan has specific immunostimulatory activities. It has been proved that chitosan induces type Ⅰ interferon (IFNs) secretion following with dendritic cells (DCs) activation and Th1 cellular immunity through the cGAS-STING pathway and NLRP3 inflammasome [17]. Moreover, after the chitosan capsulated into the lysosome, the protonation of amino groups causes proton sponge effect that may induce endosomal escape and promote the cross-presentation of antigens. It is especially important for provoking CD8+ killer T cells after interacting with major histocompatibility complex (MHC) class Ⅰ molecules [20]. Given the potential adjuvant property of chitosan, it is an excellent candidate for constructing MUC1-based vaccine to improve the immunogenicity of MUC1 peptide.
However, chitosan is only soluble under acidic condition but weakly soluble in neutral pH or physiological conditions which hampers its biomedical applications. To overcome the problem, chitosan derivatives or chitosan-based powder, gel or nanoparticles are developed and used for carrying antigen. Assembling the antigen to chitosan in a more stable and orderly manner is still needed for vaccine construct. Here, we developed a novel strategy to construct vaccine by assembling MUC1 peptide to chitosan derivatives via the host-guest interaction [21]. A β-cyclodextrin grafted chitosan (CS-g-CD) was prepared, in which the hydrophobic central cavities of β-CD were used for assembling the MUC1 peptide with adamantane (ada) modification (Fig. 1) [22]. This host-guest interaction between CS-g-CD and peptide antigens has the potential to form a complex with high stability for better in vivo delivery and antigen-depot. Based on the adequate -NH2 groups of CS, the inclusion supramolecule can be further prepared as nanoparticles to increase the cellular uptake.
To prove our concept, we synthesized CS-g-CD at first. Chitosan with a deacetylation degree of higher than 90% and a MW of about 100 kDa was employed in our study. Compound 6-OTs-β-CD derived from β-CD was grafted to the amino group of CS under acidic conditions (Scheme S2 in Supporting information). To improve the degree of substitution (DS) of β-CD, 6-OTs-β-CD was added twice to a raw CS-g-CD product to afford CS-g-CD with a high DS of 15.6% (Fig. S11 in Supporting information) [23]. The solubility of CS-g-CD was significantly improved (Fig. S3 in Supporting information) [9].

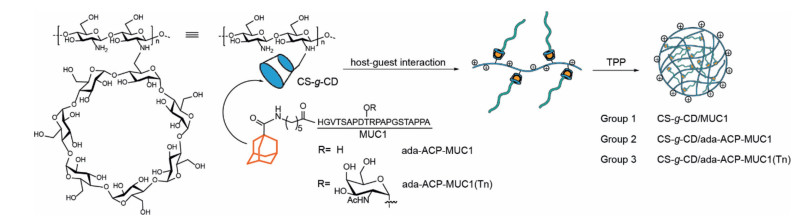

Subsequently, three groups of MUC1-based vaccines were designed and prepared. The MUC1 peptide without adamantane modification was mixed with CS-g-CD directly as group 1 (Table 1). Group 2 was CS-g-CD including MUC1 antigen with adamantane modification at the N terminal through the aminocaproic acid (ACP) linker (ada-ACP-MUC1), and group 3 was the one including ada-ACP-MUC1(Tn) which had a Tn modification on the residue of threonine to mimic a glycosylated MUC1 antigen (Fig. 1). MUC1 peptides were prepared by Fmoc-based solid-phase peptide synthesis (SPPS) strategy. After being deprotected and cleaved from the resin by using a solution of TFA/TIS/H2O (95:2.5:2.5, v/v/v) and purified by HPLC, MUC1 antigens were obtained and identified by mass spectrometry (Fig. S13). The MUC1antigens were then used for vaccine construct. Generally, the CS-g-CD was dissolved in 1% acetic acid solution and then adjusted to pH 4.5. Then the solution of peptide (1.5:1 equiv. to β-CD) was added to the CS-g-CD solution and stirred overnight to form complex. The sodium tripolyphosphate (TPP) was added dropwise to the complex with stirring at 800 rpm for 30 min. The formed nanoparticles were dialyzed with deionized water for 3 days to remove free peptides. The loading of peptide was analyzed according to the amount of free MUC1 antigens in the solution by HPLC determination (Table 1). The host-guest interaction was evaluated by isothermal titration calorimeter (ITC) and the KD value was about 26.6 × 10−6 (Fig. S4 in Supporting information).
The nanoparticles were characterized by transmission electron microscope (TEM) and dynamic light scattering (DLS). According to the result of DLS, the sizes of the nanoparticles for groups 1, 2 and 3, were 91.28 nm, 97.79 nm and 129.0 nm, respectively (Fig. S2 in Supporting information). Compared with the size of CS-g-CD nanoparticle without MUC1 that was 80.71 nm, these sizes were obviously increased. The zeta-potential of CS-g-CD nanoparticle was 23.7 mV which was mainly caused by the protonation of amino group of CS, while the zeta-potentials of groups 1-3 were all positive as well. This result indicated that the nanoparticles could be stably distributed in solution. The morphology of nanoparticle was further confirmed by TEM which suggested that the size of nanoparticle was about 100 nm and the morphology was irregular sphere (Fig. S1 in Supporting information). These nanoparticles were suitable for the uptake by antigen presenting cells (APCs) according to the report [24] that nanoparticles with the size ranges between 20 to 200 nm were easily swallowed by resident dendritic cells (DC) and could directly target lymph nodes.

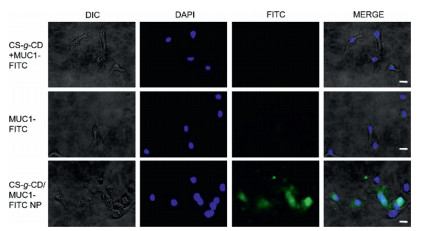

Subsequently, the uptake of CS-g-CD nanoparticles by APCs was characterized by using FITC-modified MUC1 peptide. The bone marrow-derived dendritic cells (BMDCs) were incubated with MUC1-FITC peptide, a solution form of CS-g-CD mixed with MUC1-FITC peptide, and CS-g-CD/MUC1-FITC nanoparticle, respectively. The fluorescence of BMDC was then detected by fluorescence microscope and flow cytometry. As shown in Fig. 2, only the nanoparticle form of CS-g-CD/MUC1-FITC could be taken in by BMDC efficiently and quickly which was represented by the strong fluorescence around the cell nucleus. The result of flow cytometry (Fig. S5 in Supporting information) also indicated that CS-g-CD/MUC1-FITC nanoparticle had the strongest fluorescent intensity and the phagocytic effect was enhanced with increasing incubation time. Therefore, the nanoparticle form was important for a cellular uptake of vaccine candidate. The in vitro cytotoxicity of nanoparticles was evaluated in BMDCs as well (Fig. S6 in Supporting information). Up to a concentration of 80 µg/mL, no significant cytotoxicity was observed which indicated that the nanoparticle was biocompatible and safe for in vivo application.
To explore the immunogenicity of vaccine candidates with CS-g-CD in vivo, three groups of C57BL/6J mice were employed for the study of humoral and cellular immunity. The CS-g-CD nanoparticles with MUC1 antigens prepared above were further emulsified with Freund's complete adjuvant as vaccine formulation for mice immunization. Each mouse was inoculated with 100 µL emulsion of 15 nmol of MUC1 antigen on day 1, 7, 14, 21 and 28 through subcutaneous (s.c.) injection. The antisera were prepared from the blood of mice collected through the thigh vein on day 0, 7, 14, 21, 28 and 35 for the analysis of antibodies and cytokines. The MUC1-specific antibody titers were determined by enzyme-linked immunosorbent assays (ELISA) using the corresponding peptide as capture reagents. Generally, the antigen coated ELISA plates were treated with blocking buffer and then incubated with half-log serially diluted mouse antisera from 1:300 to 1:218700 in PBS. HRP-linked second antibodies were used to react with TMB substrate solution and then the plates were detected by colorimetric readout at 450 nm wavelength. Antibody titers were calculated from the curves of optical density (OD) against the serum dilution numbers and were defined as the dilution value when OD value reached 0.2 [25].

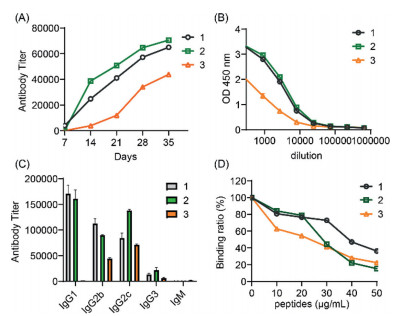

The antibody titers of antisera collected from mice of group 1-3 on different days were exhibited in Fig. 3. As shown in Fig. 3A, the antibody titers increased when the immunization boosts increased and reached the highest level after the fifth boost. The antibody titers of group 2 were higher than that of group 1 which indicated that the host-guest interaction could improve the immunogenicity of MUC1 peptide. The antibody titer of group 3 was slightly lower than the other two groups which may be caused by the Tn glycosylation on MUC1 [26]. The value of OD 450 nm reached 3.0 when the antisera of groups 1 and 2 were 1:300 diluted (Fig. 3B). Interestingly, the subclasses of antibodies in groups 1-3 were different (Fig. 3C). IgG1 was the main type in group 1, IgG1 and IgG2c were both abundant in group 2. However, in group 3, IgG2c was the highest subclass. This result suggested that the host-guest interaction based on CS-g-CD might regulate the type of immune responses. The T cell immunity may be provoked by the CS-g-CD carrier which had the potential to elicit STING immune activity and induce sufficient cross presentation when the antigens were presented by APCs. To further confirm the specificity of antibodies, the competitive ELISA was performed using the corresponding MUC1 peptide as inhibitor against the antigen coated on plates. The result in Fig. 3D suggested that the antibodies in groups 1-3 could successfully recognize MUC1 antigens and could be inhibited by peptides.

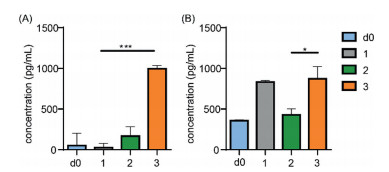

To further investigate the T cell-mediated immune responses, the expression levels of IFN-γ and IL-6 in the serum were analyzed by cytokine ELISA assay. Usually, IFN-γ indicates a Th1 type cytokine with critical immunoregulatory properties, which can proliferate and differentiate lymphocyte populations, activate NK cells and enhance antigen presentation. While IL-6 is a Th2-type cytokine that can improve the innate and adaptive immunity, mediate various aspects of B cell and T cell responses, and promote antibody production. As shown in Fig. 4A, group 3 produced the highest level of IFN-γ compared to groups 1 and 2 which indicated that the vaccine construct of group 3 has the strongest Th1 type immune responses. This may be caused by the specific inclusion construct between antigen and CS-g-CD in group 3 and the Tn glycosylation on MUC1 antigen. Hence, CS-g-CD/ada-ACP-MUC1(Tn) nanoparticle has the potential to elicit strong T cell immune response. In Fig. 4B, the level of IL-6 in groups 1 and 3 was similar but higher than that of group 2. This may be generally impacted by several factors including the CFA adjuvant, antigens and CS-g-CD carrier.
The properties of antibodies in groups 1-3 to recognize and bind to cancer cells were evaluated by using human breast cancer cells, MCF-7 and MDA-MB-468, that can express MUC1 antigen. HEK-293, the human embryonic kidney cells with low MUC1 expression was used as negative control. After treated with antisera, the cells were labeled with FITC-conjugate goat anti-mouse IgG antibody and finally analyzed by flow cytometry. As shown in Fig. S8 (Supporting information), compared with the non-immunized mouse serum of day 0, the fluorescence intensities of antisera of groups 1-3 incubated with MCF-7 and MDA-MB-468 were significantly increased which revealed that the antibodies produced in mice of groups 1-3 could successfully recognize the MUC1 antigen expressed by tumor cells. As expected, the enhancement of fluorescence intensity had positive correlation with the level of MUC1 expression. Additionally, the antisera of group 3 has the highest fluorescence intensity in both MCF-7 and MDA-MB-468 cells which indicated that the Tn glycosylation may be important for the vaccine construct to achieve higher specificity.
The complement-dependent cytotoxicity (CDC) assay was recruited to investigate the capability of antibodies to mediate cytotoxicity against tumor cells. MCF-7 cells were incubated with antisera following with rabbit complement. The cell lysis of tumor cells was determined by commercial CCK8 kit. As presented in Fig. 5, the antisera of each group can effectively activate the complements and induce the death of cancer cells. This result revealed that the vaccines used in groups 1-3 had the potential to elicit robust immune responses against MUC1-expressed tumor cells and the CS-g-CD was a promising carrier for the vaccine construct through host-guest interaction.
In summary, we constructed MUC1 peptide vaccines using CS-g-CD as carrier via host-guest interaction between the adamantane moiety of MUC1 peptide and β-CD of CS-g-CD. These novel vaccines based on non-covalent assembling could provoke strong immune responses and the induced antibodies could successfully recognize tumor cells and mediate cytotoxicity against tumor cells. The immunological studies indicated that the host-guest interaction could be employed for vaccine construct based on chitosan as carrier. Differing from a covalent conjugation, this simple manipulation of non-covalent assembling provides easier and higher loading ability and also a straightforward platform for other vaccine construction. Additionally, the β-CD modified on chitosan can provide cavities for assembling antigens or other molecules, such as T help epitopes and the TLR agonists which could further improve the immune responses [27]. Moreover, the β-CD modification improves the solubility of chitosan which is critical for its application in medicines. Overall, the CS-g-CD is a promising carrier for vaccine construction.
Declaration of competing interest
Less
The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.
Acknowledgments
Less
This work was supported by the National Natural Science Foundation of China (Nos. 21907038 and 32000904), Natural Science Foundation of Jiangsu Province (No. BK20200601), National Postdoctoral Program for Innovative Talents of China (No. BX20200153), China Postdoctoral Science Foundation (Nos. 2018M632227 and 2021M691293), the Social Development Key Project of Jiangsu Province (No. BE2019632), the Health and Family Planning Commission of Wuxi, China (No. Z202005), Suzhou People's Livelihood Science and Technology Project, China (No. SYS2018100). This research was partly supported by the 111 Project (No. 111-2-06).
Supplementary materials
Less
Supplementary material associated with this article can be found, in the online version, at doi:10.1016/j.cclet.2022.02.072
References
Less
[1]
Z. Zhou, H. Lin, C. Li, Z. Wu, Chin. Chem. Lett. 29 (2018) 19–26.
[2]
M.K. Hossain, A. Vartak, S.J. Sucheck, K.A. Wall, Molecules 25 (2020) 3137.
[3]
X. Wu, Z. Yin, C. McKay, et al., J. Am. Chem. Soc. 140 (2018) 16596–16609.
[4]
H. Cai, M.S. Chen, Z.Y. Sun, et al., Angew. Chem. Int. Ed. 52 (2013) 6106–6110.
[5]
N. Gaidzik, U. Westerlind, H. Kunz, Chem. Soc. Rev. 42 (2013) 4421–4442.
[6]
H. Wang, B. Yang, Y. Wang, et al., Chem. Commun. 55 (2018) 253–256.
[7]
Z. Wang, Q.H. Chen, H. Zhu, et al., Chin. Chem. Lett. 32 (2021) 1888–1892.
[8]
Y.H. Liu, M.J. Li, H.M. Zhu, et al., Chin. Chem. Lett. 32 (2021) 1963–1966.
[9]
P.G. Chen, Z.H. Huang, Z.Y. Sun, et al., Pure Appl. Chem. 89 (2017) 931–939.
[10]
G. Chen, Y. Yang, Q. Xu, et al., Nano Lett. 20 (2020) 8141–8150.
[11]
M. He, L. Yu, Y. Yang, et al., Chin. Chem. Lett. 31 (2020) 3178–3182.
[12]
Y. Yang, Y. Yu, H. Chen, et al., ACS Nano 14 (2020) 13536–13547.
[13]
Y. Yang, X. Liu, W. Ma, et al., Biomaterials 265 (2021) 120456.
[14]
L. Yu, Z. Wang, Z. Mo, et al., Acta Pharm. Sin. B 11 (2021) 2004–2015.
[15]
J. Li, C. Cai, J. Li, et al., Molecules 23 (2018) 2661.
[16]
C.Q. Lou, X.Z. Tian, H.B. Deng, Y.X. Wang, X. Jiang, Carbohyd. Polym. 231 (2020) 115678.
[17]
E.C. Carroll, L. Jin, A. Mori, et al., Immunity 44 (2016) 597–608.
[18]
X.M. Li, R.E. Xing, C.J. Xu, et al., Carbohyd. Polym. 264 (2021) 118050.
[19]
Y.F. Xia, Q.Z. Fan, D.X. Hao, et al., Vaccine 33 (2015) 5997–6010.
[20]
H.B.T. Moran, J.L. Turley, M. Andersson, E.C. Lavelle, Biomaterials 184 (2018) 1–9.
[21]
Y.M. Zhang, Y.H. Liu, Y. Liu, Adv. Mater. 32 (2020) e1806158.
[22]
L.M. Zeng, Z.L. Liao, W.W. Li, et al., Chin. Chem. Lett. 31 (2020) 1162–1164.
[23]
P. Gonil, W. Sajomsang, U.R. Ruktanonchai, et al., Carbohyd. Polym. 83 (2011) 905–913.
[24]
Y. Chen, S. De Koker, B.G. De Geest, Acc. Chem. Res. 53 (2020) 2055–2067.
[25]
H. Lin, H. Hong, J. Wang, et al., Chem. Commun. 56 (2020) 13959–13962.
[26]
Y. Liu, W. Zhang, Q. He, et al., Chem. Commun. 52 (2016) 10886–10889.
[27]
C.B. Rodell, S.P. Arlauckas, M.F. Cuccarese, et al., Nat. Biomed. Eng. 2 (2018) 578–588.
