Selective recognition of methyl viologen by an <i>endo</i>-functionalized naphthobox

Selective recognition of methyl viologen by an endo-functionalized naphthobox

PDF

Weier Liu^a^,^b, Linghui Kong^b, Mao Quan^a, Huan Yao^a, Liupan Yang^*^,^a, Ho Yu Au-Yeung^*^,^b, Wei Jiang^*^,^a

Chinese Chemical Letters | 2022, 33(11) : 4896 - 4899

Less

Chinese Chemical Letters | 2022, 33(11): 4896-4899

• Communication •

Selective recognition of methyl viologen by an endo-functionalized naphthobox

Full

Weier Liu^a^,^b, Linghui Kong^b, Mao Quan^a, Huan Yao^a, Liupan Yang^*^,^a, Ho Yu Au-Yeung^*^,^b, Wei Jiang^*^,^a

Affiliations

^a Guangdong Provincial Key Laboratory of Catalysis and Department of Chemistry, Shenzhen Grubbs Institute, Southern University of Science and Technology, Shenzhen 518055, China

^b Department of Chemistry, The University of Hong Kong, Hong Kong, China

Published: 2022-11-15 doi: 10.1016/j.cclet.2022.02.076

Outline

Abstract

Less

Highly selective binding of structurally similar substrates is common for biomolecular recognition, but is often challenging to realize in synthetic hosts. Herein, we report highly selective binding of methyl viologen over other analogues by an endo-functionalized naphthobox. X-ray single crystal structure and Density Functional Theory (DFT) calculations revealed that the endo-functionalized groups in the cavity of the naphthobox is important for the high binding selectivity through the formation of multiple C–H…N, C–H…π, and π…π interactions with methyl viologen.

Key words

Molecular recognition / Host-guest chemistry / Endo-functionalized cavity / Hydrogen bond / Naphthobox

Cite this Article

Weier Liu, Linghui Kong, Mao Quan, Huan Yao, Liupan Yang, Ho Yu Au-Yeung, Wei Jiang. Selective recognition of methyl viologen by an endo-functionalized naphthobox[J]. Chinese Chemical Letters, 2022 , 33 (11) : 4896 -4899 . DOI: 10.1016/j.cclet.2022.02.076

Full Text

Less

Biological receptors can selectively recognize specific substrate and distinguish minor differences of substituent groups, which lays a foundation on a variety of biological function. These natural receptors usually feature a deep cavity with inward-pointing functional groups which are essential for the high binding selectivity and/or affinity [1]. One well-known example is the unerring precision of substrate specificity of enzymes [2], such as urease which catalyzes only the hydrolysis of urea to NH₃ and CO₂, but cannot catalyze the hydrolysis of methyl urea [3]. High selectivity is also a most important goal of the synthetic host [4]. However, for synthetic hosts, it is often challenging to achieve highly selective molecular recognition of guest molecules with similar structures [5]. In order to distinguish the guests with minor structural differences, for example, with the differences in only one atom or one group, it would require directional noncovalent interactions, for example, hydrogen bonding, to be involved together with a rigid cavity. Nevertheless, it is still claimed to be difficult to construct a rigid cavity with functional groups pointing inwards [6].

Molecular boxes such as "blue box" [7-9], "Texas-sized molecular box" [10, 11] and others [12-16] are one class of box-like hosts which possess rigid structures and well-defined cavities. They have relatively good guest-binding properties and have a wide range of applications in supramolecular chemistry and related areas [7, 10-15]. However, their binding selectivity is often not high for structurally similar guests, which may be due to the lack of functional groups inside the deep cavity.

Over the past years, we reported several naphthol-based macrocyclic hosts [17, 18]. Among them, endo-functionalized naphthotubes [19-26] were found to be really effective in the selective recognition of organic molecules due to the inward-directed functional groups. Recently, we have reported a naphthobox consisting of π-electron-rich naphthalene subunits, which is able to recognize planar aromatic cations [27]. However, the binding selectivity is not high. We anticipated that the binding selectivity of naphthobox may be greatly improved when functional groups are appropriately introduced in their internal cavities. This may be realized by the naphthobox 1 (Fig. 1a) with inward-pointing nitrogen atoms from naphthyridine pillars which was reported by Katz and co-workers [28]. This naphthobox has been used to recognize neutral aromatic compounds, such as toluene, benzonitrile, phenol, benzoic acid, and o-salicylic acid. The association constant to o-salicylic acid is only 306 L/mol (dichloromethane), and binding affinities for other guests have not been reported, and the role of the endo-functionalized groups has not been clearly demonstrated. In this research, we report the highly selective binding of this endo-functionalized naphthobox to methyl viologen over other analogues through involvement of the endo-functionalized groups.

The crystal structure (Fig. 1b) of naphthobox 1 reveals the following properties of this naphthobox: a) it has a relatively rigid and well pre-organized structure consisting of two naphthyl groups and two naphthyridinyl groups bonded by four ether linkages; b) it has an endo-functionalized structure with two naphthalene walls and four inward directing nitrogen atoms, which could form π-π stacking and C—H…N hydrogen bonding with guest molecules; c) the two electron-rich naphthalene walls are co-planar and the distance between them is 7 Å, thus the cavity is suitable for planar organic cations such as viologen derivatives.

Initially, the host-guest chemistry of naphthobox 1 and a series of viologen derivatives were studied by ¹H NMR spectroscopy. The noncoordinating tetrakis[3, 5-bis(trifluoromethyl)phenyl]-borate anion (BArF⁻) is used as the counterion [29]. A mixed solvent of CDCl₃/CD₃CN (1:1, v/v) was chosen to perform ¹H NMR experiment to ensure both the host and guest are fully dissolved. Indeed, for all the studied guests, obvious complexation-induced shifts of NMR signals on both host and the guests were observed (Fig. 2 and Figs. S1–S8 in Supporting information), indicating that all these guests can be encapsulated in the cavity of 1. However, careful analysis indicates that the binding modes are quite different for different guests. Taking the complex with methyl viologen 2²⁺ as an example (Fig. 2b), the ¹H NMR spectra of a 1:1 mixture of 1 and 2²⁺ show that the proton signals of 6 and 8 on 2²⁺ and naphthalene protons (3 and 4) of the host are upfield shifted (Δδ: 0.22 to 0.32 ppm), indicating 2²⁺ is encapsulated in the cavity of host 1, and both 2²⁺ and 1 experience the mutual anisotropic shielding effect of each other's π electron clouds. Moreover, the downfield shifts observed for the proton signals of 7 on 2²⁺ and naphthyridine rings (1 and 2) of the host suggests the formation of C—H…N hydrogen bonds between the naphthyridinyl groups of 1 and 2²⁺. Surprisingly, a slightly altering of the N-substituent of the guest is found to have a great influence on the binding behavior. For example, the binding of ethyl viologen 3²⁺ to 1 has resulted in only very tiny shifts (Δδ: 0.01 to 0.02 ppm) of the protons of 3²⁺ (Fig. 2d). Similar phenomena were also observed for benzyl viologen 4²⁺. This indicates that 1 has a rather high binding selectivity toward methyl viologen over similar analogues.

Moreover, the ability of naphthobox 1 to differentiate minor structural differences of viologen derivatives was also demonstrated by viologens with two different substituents (5²⁺−7²⁺, Fig. 3, Figs. S2 and S3 in Supporting information). As shown in Fig. 3, protons 6–8 of the methyl pyridinium of 5²⁺ undergo greater shifts (Δδ: 0.28 to 0.66 ppm) than proton 6′, 7′ and 8′ of the ethyl pyridinium of 5²⁺ (Δδ: 0.03 to 0.04 ppm) in the 1:1 mixture of 1 and 5²⁺. This indicates that methyl pyridinium is preferentially encapsulated in the cavity of 1 over the ethyl pyridinium, thus experiencing a stronger shielding effect from the two naphthalenes and forming C—H…N hydrogen bonds with two naphthyrides. Similar site preference on a single guest was also observed for guests 6²⁺ and 7²⁺.

In order to quantify these bindings and understand the selectivity of 1, association constants were determined by NMR titration experiments (Figs. S9–S41 in Supporting Information) and are listed in Table 1. Job plot and molar ratio curves suggest a 2:1 binding stoichiometry for the binding of 1 with 2²⁺ (Fig. S9). Since the Job plot method cannot offers the accurate stoichiometry [30, 31], our result was further supported by the X-ray crystal structure (Fig. 4). A 1:1 binding stoichiometry was found for all other guests (Figs. S10–S19). In the titration experiments, the stock guest solutions were prepared with host solution (0.5 mmol/L), so the concentration of host is kept constant upon the titration. As expected, the largest association constant (1.7 × 10⁴ L/mol) was observed for the formation of the binary complex of methyl viologen 2²⁺ with 1. However, the association constant for ethyl viologen 3²⁺ is only 2.9 × 10² L/mol, and for benzyl viologen 4²⁺ is even lower (0.7 × 10² L/mol). The selectivity (S) for methyl viologen and ethyl/benzyl viologen (S_2/3 and S_2/4) are 59 and 250, respectively, which are much higher than those reported in other studies [32, 33]. Additionally, the selectivity of 1 to methyl and ethyl pyridinium could be further revealed by its association constants with 8⁺ and 9⁺, which are 3.4 × 10³ and 2.9 × 10² L/mol, respectively. Moreover, naphthobox 1 also shows a clear preference for 2²⁺ over 12²⁺, in which the latter is another commonly used pyridinium-based herbicide.

In addition, the association constant for binding the second macrocycle (K₂) is 6.4 × 10² L/mol as determined by NMR titration experiment (Fig. S21). A negative cooperative effect is clearly demonstrated (α = 4K₂/K₁ = 0.16) [34], which is probably due to the reduced electron deficiency of unbounded pyridinium and steric hindrance between the first and second macrocycles [35-37].

Single crystals of the ternary complex 2²⁺@1₂ were obtained by slow evaporation of a solution of 2²⁺@1₂ in 1:1 mixture of CH₂Cl₂/CH₃CN. The X-ray structure clearly shows that one methyl viologen is wrapped by two box molecules with host-guest-host sandwich structure (Fig. 4). The two box molecules are arranged in back to back fashion, with the adjacent naphthalenes being nearly coplanar and sit close with each other, which might account for the aforementioned negative cooperativity. Multiple noncovalent interactions are observed between 2²⁺ and 1 in the complex 2²⁺@1₂. Each of the methyl pyridinium moieties is surrounded by four inner-cavity nitrogen atoms of naphthyridine so that they can form eight intramolecular C–H…N hydrogen bonds ranging from 2.4 Å to 2.9 Å. In addition, π…π stacking, C—H…π and cation…π interactions are also observed between the naphthalene panels of the host and guest molecules. These multiple noncovalent forces revealed from the X-ray structure work cooperatively that leading to the formation of the ternary complex.

To understand the high binding selectivity of 1 to methyl viologen and the origin of the host's ability in differentiating methyl and ethyl groups, molecular modeling of complexes 8⁺@1 and 9⁺@1 was performed. As shown in Fig. 5a, the calculated structure of 8⁺@1 is similar to the crystal structure of 2²⁺@1₂, in which the methyl pyridinium fits snuggly into the cavity of 1, and C–H…N hydrogen bonds, π…π stacking, C—H…π and cation…π interactions are observed between the host and guest. For the complex with the ethyl viologen 9⁺, the host cavity of 1 is slightly enlarged and twisted, as shown by the obvious increase of the angle (~2°) of four ether bonds after binding the guest (Fig. 5b). Thus, steric effects of bulky substituent groups have certainly been one reason for the high selectivity.

In addition to steric effects, electronic effects of substituent group also play an important role in the binding between 1 and pyridinium guests. This could be revealed by the binding affinities of 1 with guests 8⁺, 10⁺, 11⁺. Guest 10⁺ and 11⁺ are derivatives of 8⁺ with an electron donating phenyl group or an electron withdrawing pyridyl group, respectively. As a result, the association constant of 1 to 11⁺ is twice than that of 8⁺, while the association constant of 10⁺ is only half of that of 8⁺. Guest 5²⁺, 6²⁺ and 7²⁺ also show a similar trend, in which the bipyridinium guests with one ethyl, phenyl or di‑tert-butylphenyl group have generally decreasing association constants (6.5 × 10³, 3.6 × 10³ and 2.1 × 10³ L/mol). The reason may be that the increase in electron density of the guests could weaken the C–H…N hydrogen bonds and π…π stacking, thus affect the binding strength.

Furthermore, although the steric and electronic properties of methyl viologen 2²⁺ are similar to that of 11⁺, and even the DFT results show that the binding modes of 1 to the methyl pyridinium side of 2²⁺, 10⁺, 11⁺ are similar (Figs. S42–S44 in Supporting Information), the association constant of 2²⁺ is much higher than that of 11⁺. This phenomenon could be explained as followed: the strong binding of 1 to 2²⁺ could occurred at both sides of the methyl viologen molecule (Fig. 6a) and statistically more favourable binding will lead to a stronger binding affinity [38]. In contrast, 1 could only have a very weak binding to the pyridyl group of 11⁺, and even repel the phenyl group of 10⁺ (Fig. 6b). As a result, methyl viologen 2²⁺ could still be selectively recognized by naphthobox 1 over 10⁺ and 11⁺.

In summary, we report an endo-functionalized naphthobox that is capable of binding viologen derivatives. Based on the relatively rigid structure and inner-cavity nitrogen atoms, this naphthobox shows a stronger binding affinity to methyl viologen over other pyridinium derivatives. The selectivity for methyl viologen and ethyl viologen is 59, which is the highest among the hosts reported in the literature. The single-crystal structure and DFT calculations reveal that the multiple C—H…N hydrogen bonds, C—H…π, and π…π interactions are essential for the binding affinity and selectivity. The present research first presented the concept of endo-functionalized cavity to a box-like molecular host and showcases again that inward-directed functional groups can endow the corresponding host with unique recognition abilities [17, 39-44].

Declaration of competing interest

Less

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Acknowledgments

Less

This research was financially supported by the National Natural Science Foundation of China (No. 22125105), the Shenzhen Science and Technology Innovation Committee (No. JCYJ20180504165810828), Guangdong Provincial Key Laboratory of Catalysis (No. 2020B121201002), Shenzhen "Pengcheng Scholar", Guangdong High-Level Personnel of Special Support Program (No. 2019TX05C157) and the Croucher Foundation. We thank SUSTech CRF and the Center for Computational Science and Engineering for the technical support. We also thank Bonnie Yan, and Dr. Kam-Hung Low at the Department of Chemistry, the University of Hong Kong for their help with NMR, and XRD measurements.

Supplementary materials

Less

Supplementary material associated with this article can be found, in the online version, at doi:10.1016/j.cclet.2022.02.076

References

Less

[1]

P.C. Weber, D.H. Ohlendorf, J.J. Wendoloski, et al., Science 243 (1989) 85–88.

[2]

D.E. Koshland, Proc. Natl. Acad. Sci. U. S. A. 44 (1958) 98–104.

[3]

P.A. Karplus, M.A. Pearson, R.P. Hausinger, Acc. Chem. Res. 30 (1997) 330–337.

[4]

H.J. Schneider, A.K. Yatsimirsky, Chem. Soc. Rev. 37 (2008) 263–277.

[5]

R.A. Tromans, T.S. Carter, L. Chabanne, et al., Nat. Chem. 11 (2019) 52–56.

[6]

P.S. Cremer, A.H. Flood, B.C. Gibb, D.L. Mobley, Nat. Chem. 10 (2018) 8–16.

[7]

B. Odell, M.V. Reddington, A.M.Z. Slawin, et al., Angew. Chem. Int. Ed. 27 (1988) 1547–1550.

[8]

A.C. Fahrenbach, C.J. Bruns, D. Cao, J.F. Stoddart, Acc. Chem. Res. 45 (2012) 1581–1592.

[9]

V. Balzani, M. Gómez-López, J.F. Stoddart, Acc. Chem. Res. 31 (1998) 405–414.

[10]

H.Y. Gong, B.M. Rambo, E. Karnas, et al., Nat. Chem. 2 (2010) 406–409.

[11]

B.M. Rambo, H.Y. Gong, M. Oh, J.L. Sessler, Acc. Chem. Res. 45 (2012) 1390–1401.

[12]

E.T. Jarvi, H.W. Whitlock, J. Am. Chem. Soc. 104 (1982) 7196–7204.

[13]

B.J. Whitlock, E.T. Jarvi, H.W. Whitlock, J. Org. Chem. 46 (1981) 1832–1835.

[14]

P. Spenst, F. Würthner, Angew. Chem. Int. Ed. 127 (2015) 10303–10306.

[15]

P. Spenst, R.M. Young, B.T. Phelan, et al., J. Am. Chem. Soc. 139 (2017) 2014–2021.

[16]

M.H. Ding, J. Liao, L.L. Tang, et al., Chin. Chem. Lett. 32 (2021) 1665–1668.

[17]

L.P. Yang, X. Wang, H. Yao, W. Jiang, Acc. Chem. Res. 53 (2020) 198–208.

[18]

L.P. Yang, W.E. Liu, W. Jiang, Tetrahedron Lett. 57 (2016) 3978–3985.

[19]

L.P. Yang, H. Ke, H. Yao, W. Jiang, Angew. Chem. Int. Ed. 60 (2021) 21404–21411.

[20]

Y.L. Ma, M. Quan, X.L. Lin, et al., CCS Chem. 3 (2021) 1078–1092.

[21]

Q.C. Huang, M. Quan, H. Yao, et al., Chin. J. Chem. 39 (2021) 1593–1598.

[22]

H. Chai, Z. Chen, S.H. Wang, et al., CCS Chem. 2 (2020) 440–452.

[23]

L.P. Yang, L. Zhang, M. Quan, et al., Nat. Commun. 11 (2020) 2740.

[24]

L.L. Wang, Y.K. Tu, A. Valkonen, K. Rissanen, W. Jiang, Chin. J. Chem. 37 (2019) 892–896.

[25]

G.B. Huang, W.E. Liu, A. Valkonen, et al., Chin. Chem. Lett. 29 (2018) 91–94.

[26]

L.M. Bai, H. Yao, L.P. Yang, et al., Chin. Chem. Lett. 30 (2019) 881–884.

[27]

X.Y. Pang, H. Zhou, H. Yao, W. Jiang, Org. Chem. Front. 8 (2021) 5265–5270.

[28]

J.L. Katz, B.J. Geller, P.D. Foster, Chem. Commun. (2007) 1026–1028.

[29]

D.A. Dougherty, Acc. Chem. Res. 46 (2013) 885–893.

[30]

D.B. Hibberta, P. Thordarson, Chem. Commun. 52 (2016) 12792–12805.

[31]

F. Ulatowski, K. Dąbrowa, T. Bałakier, J. Jurczak, J. Org. Chem. 81 (2016) 1746–1756.

[32]

J.M. Zhao, T. Han, J.F. Xiang, C.F. Chen, J. Org. Chem. 8 (2008) 6800–6806.

[33]

Y. Han, J. Cao, P.F. Li, et al., J. Org. Chem. 78 (2013) 3235–3242.

[34]

Y.L. Ma, H. Ke, A. Valkonen, et al., Angew. Chem. Int. Ed. 57 (2018) 709–713.

[35]

X. Li, X. Yuan, P. Deng, et al., Chem. Sci. 8 (2017) 2091–2100.

[36]

Z. Ye, J. Wang, S.S.K. Kothapalli, et al., Chem. Commun. 56 (2020) 1066–1069.

[37]

Y. Sakata, T. Ogura, S. Akine, Chem. Commun. 56 (2020) 8735–8738.

[38]

H. Ke, L.P. Yang, M. Xie, et al., Nat. Chem. 11 (2019) 470–477.

[39]

L. Adriaenssens, P. Ballester, Chem. Soc. Rev. 42 (2013) 3261–3277.

[40]

N.K. Beyeh, I. Díez, S.M. Taimoory, et al., Chem. Sci. 9 (2018) 1358–1367.

[41]

R. Ning, H. Zhou, S.X. Nie, et al., Angew. Chem. Int. Ed. 59 (2020) 10894–10898.

[42]

H. Guo, L.W. Zhang, H. Zhou, et al., Angew. Chem. Int. Ed. 59 (2020) 2623–2627.

[43]

J. Dong, A.P. Davis, Angew. Chem. Int. Ed. 60 (2021) 8035–8048.

[44]

Y. Li, X. Li, L. Li, et al., Chin. Chem. Lett. 32 (2021) 735–739.

Appendix

Less

Year 2022 volume 33 Issue 11

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1016/j.cclet.2022.02.076

Receive Date：2021-12-24
Online Date：2025-12-24
Published：2022-11-15

Article Data

Affiliations

History

Received：2021-12-24
Revised：2022-02-23
Accepted：2022-02-26

Affiliations

^a Guangdong Provincial Key Laboratory of Catalysis and Department of Chemistry, Shenzhen Grubbs Institute, Southern University of Science and Technology, Shenzhen 518055, China

^b Department of Chemistry, The University of Hong Kong, Hong Kong, China

References

Share

https://castjournals.cast.org.cn/joweb/ccl/EN/10.1016/j.cclet.2022.02.076

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

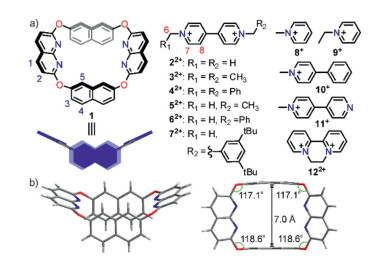

Fig. 1 (a) Chemical structures and cartoons of naphthobox and methyl viologen and several pyridinium derivatives. (b) X-ray single crystal structure of 1.

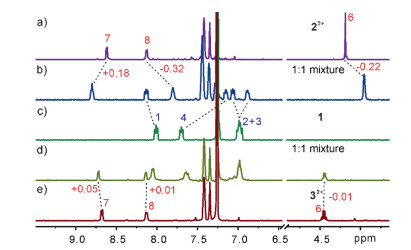

Fig. 2 Partial ¹H NMR spectra (0.5 mmol/L, 500 MHz, CDCl₃ + CD₃CN (1:1, v/v), 25 ℃) of (a) 2²⁺, (c) 1, (e) 3²⁺, and the equimolar mixture of (b) 1 and 2²⁺, and (d) 1 and 3²⁺.

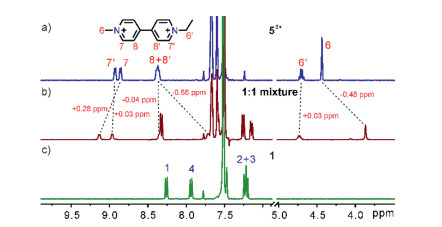

Fig. 3 Partial ¹H NMR spectra (0.5 mmol/L, 400 MHz, CDCl₃+CD₃CN (1:1, v/v), 25 ℃) of (a) 5²⁺, (c) 1, and (b) their equimolar mixture.

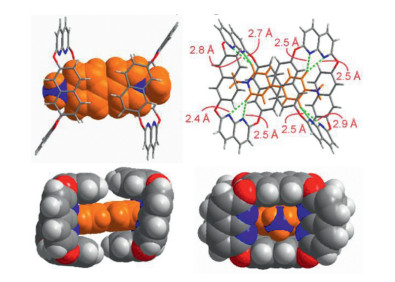

Fig. 4 X-ray single crystal structure of 2²⁺@1₂. Green dotted lines represent the C–H…N hydrogen bonds.

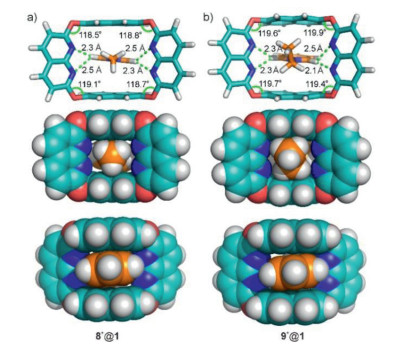

Fig. 5 Energy favourable orientational isomers of 8⁺@1 and 9⁺@1 as calculated by DFT (wB97XD/6–31G(d)) with the SMD solution model in CH₂Cl₂ at 298 K.

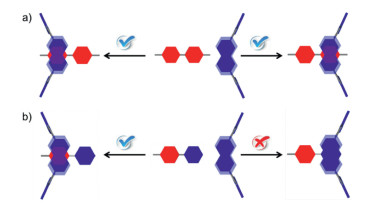

Fig. 6 Cartoon representation of the binding of 1 to (a) both sides of 2²⁺ and (b) the methyl pyridinium side of 10⁺ and 11⁺.
