High sensitivity ratiometric fluorescence temperature sensing using the microencapsulation of CsPbBr3 and K2SiF6: Mn4+ phosphor
Full
Jingwen Jina, Jie Lina, Yipeng Huanga, Linchun Zhanga, Yaqi Jianga, Dongjie Tiana, Fangyuan Lina, Yiru Wanga, Xi Chen*, a, b, c
Affiliations
  • aDepartment of Chemistry and the MOE Key Laboratory of Spectrochemical Analysis & Instrumentation, College of Chemistry and Chemical Engineering, Xiamen University, Xiamen 361005, China
  • bState Key Laboratory of Marine Environmental Science, Xiamen University, Xiamen 361005, China
  • cShenzhen Research Institute of Xiamen University, Shenzhen 518000, China
Published: 2022-11-15 doi: 10.1016/j.cclet.2022.01.017
Outline
收藏切换

A dual emission sensing film has been prepared for colorimetric temperature sensing using CsPbBr3 perovskite nanocrystals (CsPbBr3 NCs) and manganese doped potassium fluorosilicate (K2SiF6: Mn4+, KSF) encapsulated in polystyrene by a microencapsulation strategy. The CsPbBr3-KSF-PS film shows good temperature sensing response from 30 ℃ to 70 ℃, with a relative temperature sensitivity (Sr) up to 10.31% ℃−1 at 45 ℃. Meanwhile, the film maintains more than 95% intensity after 6 heating-cooling cycles and keeps its fluorescence characteristics after 3 months. The film can be used to monitor temperature change by naked eye under a UV lamp. In particular, the temperature discoloration point of the sensing film can be controlled by the ratio change of CsPbBr3: KSF to expand its applications. The study of the CsPbBr3-KSF-PS sensing mechanism in this work is helpful to provide effective strategies for the design of reliable, high sensitivity and stable temperature sensing system using CsPbBr3 NCs.

Ratiometric fluorescence sensing  /  High sensitivity  /  Perovskite nanocrystals  /  Temperature  /  Microencapsulation
Jingwen Jin, Jie Lin, Yipeng Huang, Linchun Zhang, Yaqi Jiang, Dongjie Tian, Fangyuan Lin, Yiru Wang, Xi Chen. High sensitivity ratiometric fluorescence temperature sensing using the microencapsulation of CsPbBr3 and K2SiF6: Mn4+ phosphor[J]. Chinese Chemical Letters, 2022 , 33 (11) : 4798 -4802 . DOI: 10.1016/j.cclet.2022.01.017
Full Text
Less
As one of the earliest developed and most frequently used sensors, temperature sensors have been applied in scientific research, industrial and agricultural production, life medical care and diagnosis [1, 2]. Currently, the mainstream temperature sensors include contact thermocouples and non-contact infrared modes. In particular, optical based non-contact thermometers have attracted immense intention [3] because of its characteristics of fast-response and real-time temperature sensing. At present, the optical temperature sensors have been developed by using various luminescent materials such as rare earth phosphors [4-7], metal-organic framework (MOF) [8], and quantum dots (QDs) [9]. However, the relative temperature sensitivity (Sr) of these thermal probes, which is the most critical parameter for evaluating the sensing performance of an optical thermometer, remains no more than 2% for per kelvin [10]. It is still necessary and urgent to develop feasible strategies or novel thermal probes for the sensitivity enhancement.
Several sensing modes such as fluorescence intensity [11], emission spectral shift [12], fluorescence lifetime [13] or fluorescence intensity ratio (FIR) [14, 15] could be employed for optical sensors. Among them, FIR is a superior technique for the optical temperature sensing. Compared with the single-emission fluorescence probe, the double-emission mode has the advantages of high precision, high sensitivity and visualization due to its self-calibration and color changeable features [16], which is convenient for on-site sensing applications. Generally, the photoluminescence (PL) color change is easier to be recognized by human eyes than those based on the single emission intensity change, which is conducive to the practical application of visualization. Although there have been reports on the two-dimensional thermal imaging using a reversible colorimetric temperature nanosensor by encapsulating two color luminescence dyes [15, 17], it is still unsatisfactory to accurately identify the color change of the luminescent composite materials with blue-emission since the human eyes are sensitive to red and green lights.
All-inorganic CsPbX3 perovskite nanocrystals (CsPbX3 NCs, X = Cl−, Br−, I−) have attracted tremendous research interests in the fields of solar cells [18], light-emitting diodes (LEDs) [19], photoelectric detectors [20], temperature sensing [14, 21], etc. Recently, because of their excellent optical properties, such as high photoluminescence quantum yield (PLQY, nearly 100%), narrow full width at half maximum (FWHM), high defect tolerance, tunable band gap throughout the visible spectrum by halogen composition or dimension manipulation, etc. [22-24]. The green or red emitting emissive CsPbX3 NCs can be easily synthesized for high-efficient colorimetric sensing using the emission-tunable property. In addition, the narrow FWHM of CsPbX3 NCs is in favor of introducing additional phosphors for FIR sensing. In contrast with traditional quantum dots, CsPbX3 perovskite NCs have extraordinary defect-tolerant properties [22]. Recently, several strategies for in-situ confined growth of ligand-free and highly stable CsPbX3 NCs in mesoporous silicon templates [23, 25], glass [26] or polymer matrix [27] have been developed. Generally, the preparation of mesoporous silica templates for the confined formation of CsPbX3 NCs is time-consuming, and the synthesis of glass stabilized CsPbX3 NCs should be operated at high temperature. In order to realize the facile synthesis, the simple and room temperature [28] in-situ growth of CsPbX3 NCs in polymer matrix is suitable choice to construct an optical temperature sensing film with high stability.
Herein, CsPbBr3 NCs with green emission were selected as the temperature responsive material, and K2SiF6 with bright red emission was selected as the reference material for the construction of FIR temperature sensing film. The as prepared film shows good stability and high sensitivity towards the temperature change.
As the report, CsPbX3 NCs show a great linear relationship with the temperature change [29]. Compared with those of CsPbX3 NCs, CsPbBr3 NCs has a large quenching degree and the best thermal stability, which can provide durable green light with strong PL and high color purity. As an all-inorganic perovskite, the poor water resistance of CsPbBr3 NCs greatly impedes their applications. In this work, CsPbBr3 NCs are directly grown in the PS layer to form a uniform temperature sensing film. As shown in Fig. S1 (Supporting information), the in-situ grown CsPbBr3 NCs presented obvious difference PL responses towards the temperature change, and a good linear relationship between the PL intensity and the temperature change could be found. Due to the dense PS film and its good hydrophobicity, CsPbBr3 NCs are isolated from the external environment in the PS film, and the sensing film reveals excellent anti-water characteristics.
In the preparation of the temperature sensing film, KSF, a kind of commercialized phosphor used in LED industry, was selected as a reference probe since it is of high stable quality and giving bright red light with narrow half peak width (Fig. S1). In order to compare the sensing characteristics of the CsPbBr3-KSF-PS film, a film without KSF was prepared using the same method. PL spectra of two films at 30 ℃, 50 ℃ and 70 ℃ were collected under the same test conditions. As shown in Fig. 1b, the PL intensity of CsPbBr3-PS film was decreased by 64% when the temperature increased from 30 ℃ to 70 ℃. Comparatively, the CsPbBr3-KSF-PS film presented greater quenching degree with the same temperature change (Fig. 1c). Under the excitation of 365 nm, the color changed from bright green to dark gradually for the CsPbBr3-PS film with the temperature increase, while more significant color change from green to yellow and finally to red could be observed for the CsPbBr3-KSF-PS film. Obviously, the addition of KSF into the CsPbBr3-PS film resulted in higher sensitivity and color discrimination. Since the PL intensity of the introduced red-emitting KSF was basically unchanged during the temperature sensing, the thermal quenching of CsPbBr3 caused its green PL intensity decrease. The combination of these two factors made a significant color change of the CsPbBr3-KSF-PS film.

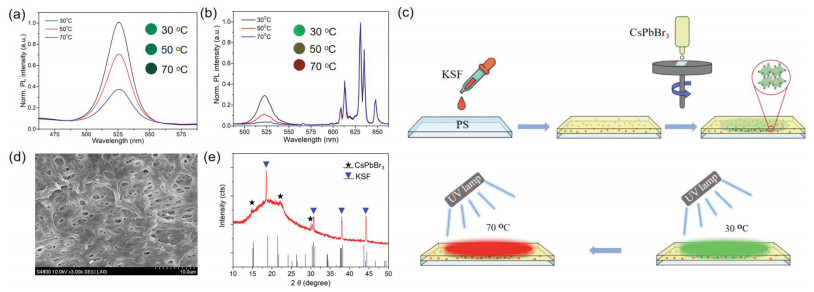

As illustrated in Fig. 1c, the CsPbBr3-KSF-PS film was prepared using the swelling–deswelling microencapsulation strategy developed by Shin-Tson Wu et al. [25]. In this study, the KSF-PS film was fabricated prior to the in-situ growth of CsPbBr3 NCs. Compared with the flat surface of pristine PS film, the surface of KSF-PS film shows apparent humped particles (Fig. S2 in Supporting information) due to the addition of KSF phosphors. After the spin-coating of CsPbBr3 precursor solution on KSF-PS film, the solvent (DMF) causes the swelling of PS, then the CsPbBr3 precursor solution penetrates into the PS. With the subsequent vacuum drying, the evaporation of DMF generates a myriad of nano-/micro-pores as shown in Fig. 1d, providing excellent templates for the in-situ space confinement of CsPbBr3 NCs. The XRD pattern of CsPbBr3-KSF-PS film shows the diffraction peaks at 15.081°, 21.498° and 30.378° belonging to the crystal plane of (001), (110) and (002) for the orthorhombic CsPbBr3 (Fig. 1e) (black line, pentacle), while the existence of diffraction peaks of KSF (Fig. 1e) (blue line, triangle) further confirms the KSF phosphors has been embedded into the PS matrix. The result confirms the formation of CsPbBr3 NCs in the film.

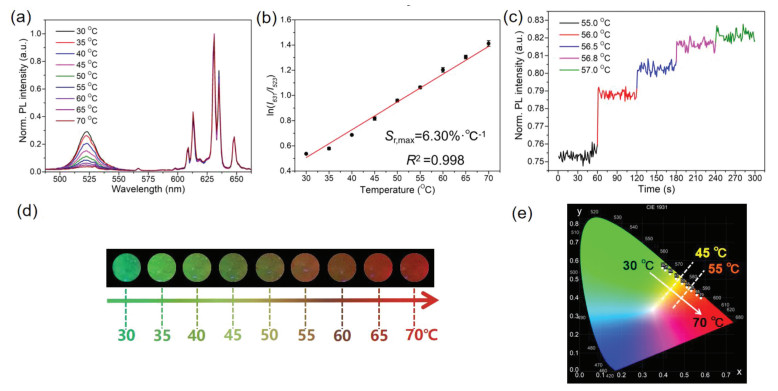

The as-prepared CsPbBr3-KSF-PS film shows a PL peak of CsPbBr3 NCs at 523 nm with a narrow half peak width (17 nm) and the PL peak of KSF centered at 631 nm (Fig. 2a). With the temperature increased from 30 ℃ to 70 ℃, the KSF PL intensity kept constant almost. The PL intensity (I) remained over 95% of its original intensity (Io) (Fig. S1). However, the PL intensity of CsPbBr3 NCs at 523 nm emission substantially decreased by 86.9% under the same temperature increase process. Based on the fluorescence characteristics, a FIR mode could be constituted for self-calibration temperature sensing using CsPbBr3 NCs and KSF phosphors. The PL intensity of CsPbBr3 NCs as a temperature function can be described by the following equation (Eq. 1) [30]:
where I(T) and I0 are the PL intensities at temperature T and temperature close to 0 K (in absolute temperature), respectively. A is a pre-exponential factor, kB is the Boltzmann constant and Eb is the exciton binding energy. For the FIR system, the temperature-dependent FIR value can be described as follows (Eq. 2),
where I523 and I631 are the emission intensities of the CsPbBr3 NCs and KSF, respectively. B and C are constants determined by the intrinsic properties of the material, and ΔE is the thermal quenching activation energy for the CsPbBr3-KSF film. Herein, as the temperature increases, the logarithm value of FIR for the CsPbBr3-KSF-PS film shows a great linear relationship with the temperature (Fig. 2b), and the result can be well fitted by the equation: y = 0.01742x − 0.2046 (x is temperature, y is ln(FIR)) with a correlation coefficient of 0.998. The relative temperature sensitivity (Sr) of the film can be expressed by the following equation (Eq. 3):
The maximal Sr value for the CsPbBr3-KSF-PS film is 6.30% K−1 at 318 K, which is two times higher than that of CsPbBr3-PS film (the Sr value for the CsPbBr3-PS film is 2.61% K−1 at 318 K), and is much higher than most reported data (Table S1 in Supporting information). As shown in Fig. 2c, the resolution of the film is estimated to be 0.2 ℃.
The high sensitivity of CsPbBr3-KSF-PS film to temperature change also endows it with good potential for colorimetric temperature sensing. The PL color of the film (Fig. 2d) shows obvious change from green to yellowish brown then to red as the temperature increases from 30 ℃ to 70 ℃, which can be readily recognized by naked eyes under an excitation of 365 nm UV light. The Commission International Ed'Eclairage 1931 (CIE 1931) diagram (Fig. 2e) clearly illustrates the change of PL color from green at 30 ℃ to yellow at 45 ℃. The PL color turns to orange at 55 ℃, then to red at higher temperature. In addition, the color transition of the film can be regulated by the mass ratio of CsPbBr3: KSF, which is beneficial to the temperature sensing requirements in different situations. As discussed before, in Fig. 2e, apparent PL color change occurred at 45 ℃ (from green to yellow) and 55 ℃ (from yellow to red) when the mass ratio of CsPbBr3: KSF was 3:8, which provides two visual signal for the detection system using one film. When the ratio of CsPbBr3: KSF was 2:7 (Fig. S3 in Supporting information), apparent PL color change occurred at 40 ℃ (from green to yellow) and 50 ℃ (from yellow to red). Similarly, apparent PL color changed at different temperature can be achieved by controlling the mass ratio of CsPbBr3: KSF equaled to 6:7 and 5:2. By calculation, the maximal Sr value for the CsPbBr3-KSF-PS film is 10.31% K−1 at 318 K with the mass ratio of CsPbBr3: KSF equaled to 5:2. The results demonstrate that the CsPbBr3-KSF-PS film can meet the demand for the colorimetric temperature sensing in different scenes.

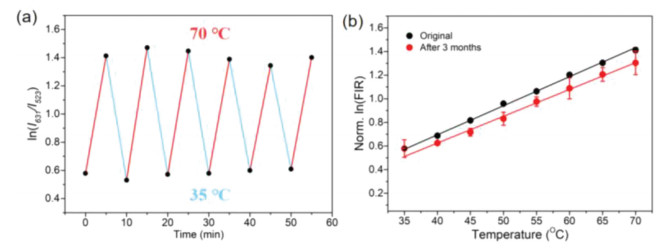

The thermal stability of the CsPbBr3-KSF-PS sensing film was tested by heating up to a higher temperature and then cooling back to room temperature while monitoring the PL spectra. As shown in Fig. 3a, the film maintained acceptable thermal stability and repeatability during 6 heating-cooling cycles (from 30 ℃ to 70 ℃), and still retained 95% of initial intensity when the temperature was back to room temperature. In addition, in the test of long-term stability for the CsPbBr3-KSF-PS sensing film, the film was exposure to ambient air at room temperature for 3 months, and the fluorescence spectra at different temperature were collected (Fig. 3b). The FIR of the film remained its initial value basically, indicating no obvious degradation occurred.

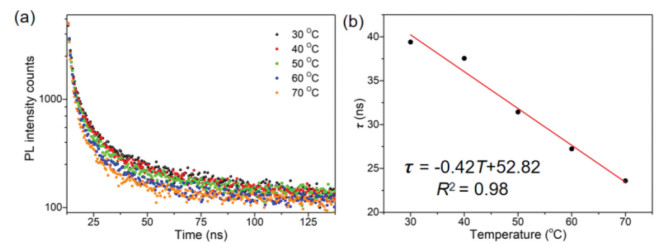

In order to explore the sensing mechanism of the CsPbBr3-KSF-PS film with the higher temperature sensitivity, the time-resolved PL spectra of the film at different temperatures were collected. With the increase of temperature, the PL lifetime of the sensing film decreased significantly (Fig. 4a), and the PL lifetime at 70 ℃ was less than 60% of that at 30 ℃ (Table S2 in Supporting information). There is a good linear relationship between PL lifetime and temperature (Fig. 4b), and the correlation coefficient is 0.98. The reduced PL lifetime indicates the increase of trapping which is consistent with the previous reports [26]. According to the previous reports, the reversible PL loss at elevated temperature is probably caused by halide vacancies related to thermal-assisted trapping. As the temperature increases, the optical phonon vibration frequency increases, and the carrier-phonon coupling is more likely to occur, which can be interpreted by the increase of the ratio of short-lived component τ1 from 21.6% at 30 ℃ to 36.7% at 70 ℃.
In summary, we successfully prepared a dual emission sensing film of CsPbBr3 NCs and KSF encapsulated in polystyrene to construct a reversible visual temperature sensing system. The as-prepared CsPbBr3-KSF-PS film shows a great temperature sensing performance in the temperature range from 30 ℃ to 70 ℃ with a relative temperature sensitivity (Sr) up to 10.31% ℃−1 at 45 ℃ and a temperature resolution of about 0.2 ℃. The temperature change can be identified by the naked eye. The temperature discoloration point of the sensing film could be adjusted by changing the ratio of CsPbBr3: KSF to adapt the different temperature sensing range, which provides an essential strategy for highly sensitive temperature sensing using CsPbBr3 NCs in biological fermentation and other fields.
