Glycosylation and phosphorylation are two crucial protein processing modes and protein post-translational modifications (PTMs) [1], which exert significant impacts on regulating cell differentiation and proliferation [2], intracellular communication [3], immune response [4], and transcriptional activation [5]. Numerous reports have revealed glycosylation and phosphorylation not only independently perform their own duties but also cooperatively regulate diverse biologic and pathogenic processes [6-8]. For instance, the glycosylation and phosphorylation of tau protein and β-amyloid precursor protein are considered to modulate Alzheimer's disease via accumulation and aggregation [9, 10]. Endogenous glycopeptides and phosphopeptides, as important products of the two PTMs, are sensitive biomarkers for the prediction, diagnosis, and monitoring of many diseases [11, 12]. Serum glycopeptidome can be used to assess the risk of hepatitis B virus-related liver diseases [13]. Major histocompatibility complex class Ⅰ-associated phosphopeptides are thought to be the hallmarks of malignant transformation [14]. Therefore, integrative analysis of endogenous glycopeptides and phosphopeptides is anticipated to promote the discovery of biomarker and increase knowledge of the two PTMs mechanisms.

Mass spectrometry (MS) technique with high speed, high throughput and high sensitivity has become a prevalent and reliable tool for varied research fields especially in proteomics [15]. However, direct analysis of endogenous glycopeptides and phosphopeptides is often hindered by their low abundance and ionization, and especially complex interferences. Therefore, many strategies have been developed for the enrichment of glycopeptides and phosphopeptides. Among them, hydrophilic interaction liquid chromatography (HILIC) and metal oxide affinity chromatography (MOAC) are common strategies. The former provides unbiased binding to glycopeptides and the latter possesses pH-controlled strong affinity to phosphopeptides [16-18]. Thus, the combination of HILIC and MOAC has been considered as a great idea for the simultaneous enrichment of glycopeptides and phosphopeptides. Lu et al. proposed the PNI-co-ATBA_0.2@SiO₂ material and identified 631 phosphopeptides and 120 glycopeptides from 50 µg HeLa cell lysates [19]. Sun et al. designed a hydrophilic iminodiacetic acid-modified magnetic titanium dioxide and simultaneously enriched 550 phosphopeptides and 330 glycopeptides from tryptic digestion of 100 µg mouse brain extracts [20]. However, there are few reports regarding the simultaneous analysis of endogenous glycopeptidome and phosphopeptidome due to the high dynamic range of body fluid and the trace amounts of endogenous glycopeptides and phosphopeptides, making it a very challenging task. Therefore, it is encouraging to explore novel functionalized material to resolve this challenge.

In this work, we constructed a magnetic metal oxide nanocomposite coupled with inherently hydrophilic mesoporous channels (denoted as Fe₃O₄@TiO₂@mSiO₂-TSG). The Fe₃O₄ core undertook the self-assembly of TiO₂ layer, and hydrophilic mesoporous silica layer containing abundant gluconamide was further modified onto TiO₂ layer via a facile one-pot method. Generally, superparamagnetism of innermost Fe₃O₄ core allowed rapid sample separation. The middle TiO₂ layer could chelate with phosphoryl oxygens of phosphopeptides [21]. The outermost hydrophilic mesoporous silica layer not only provided intense hydrophilic attraction for glycopeptides [22], but also provided large specific surface area for accommodating glyco-/phosphopeptides and restrained large-sized proteins from entering into the perpendicular mesochannels [23, 24]. Based on above features, Fe₃O₄@TiO₂@mSiO₂-TSG revealed satisfactory co-enrichment efficiency in both standard samples and complex saliva samples. It is noteworthy that our material intelligently integrates HILIC and MOAC with a comparatively convenient manner for endogenous glycopeptidomics and phosphopeptidomics research.

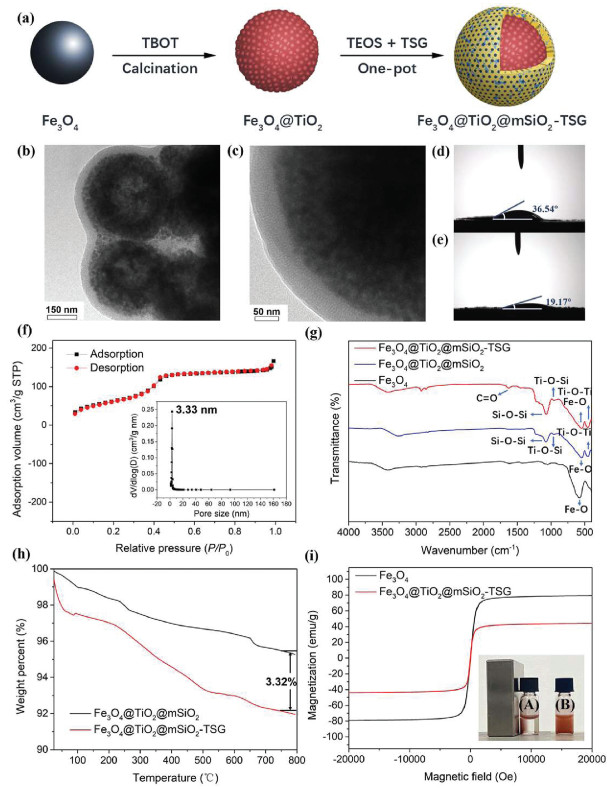

The synthesis approach of Fe₃O₄@TiO₂@mSiO₂-TSG is illustrated in Fig. 1a. Briefly, the Fe₃O₄ sphere was firstly synthesized via a renowned solvothermal approach [25]. Fe₃O₄@TiO₂ was obtained by the hydrolysis and condensation of titania precursor (tetrabutyl titanate) on the magnetic nanoparticles. Subsequently, hydrophilic silica layer was coated on TiO₂ shell through a facile one-pot sol-gel spontaneous growth method, for which tetraethyl orthosilicate (TEOS) and N-(3-triethoxysilylpropyl)gluconamide (TSG) were adopted as silica source, and cetyltrimethylammonium bromide (CTAB) served as surfactant template. Finally, after refluxing to remove CTAB, Fe₃O₄@TiO₂@mSiO₂-TSG nanomaterial was obtained. Transmission electron microscope (TEM) images of Fe₃O₄@TiO₂@mSiO₂-TSG illustrate the core-shell structure and perpendicularly aligned mesoporous channels (Figs. 1b and c). The hydrophilicity was evaluated through measuring the water contact angle of Fe₃O₄@TiO₂@mSiO₂ and Fe₃O₄@TiO₂@mSiO₂-TSG (Figs. 1d and e). The obvious decrease from 36.54° to 19.17° confirms that the introduction of gluconamide considerably enhance the material hydrophilicity. The nitrogen adsorption-desorption measurements of Fe₃O₄@TiO₂@mSiO₂-TSG indicate the surface area is around 229.7 m²/g and the pore size is about 3.33 nm (Fig. 1f), which endows the material with size-exclusion effect. Scanning electron microscope (SEM) images with the corresponding EDX elemental mapping images (Figs. S1 and S2 in Supporting information) distinctly display that C, N, O, Fe and Si elements are homogeneously distributed, implying the successful modification of TiO₂ and gluconamide functionalized silica layer. Moreover, Fourier-transform infrared spectroscopy (FT-IR) analysis of different materials is displayed in Fig. 1g. The absorption peaks at 450–700 cm⁻¹ are ascribed to Ti−O−Ti, at 1640 cm⁻¹, 1080 cm⁻¹, 910 cm⁻¹ and 582 cm⁻¹ belonged to C=O, Si−O−Si, Ti−O−Si and Fe−O, respectively. Thermo-gravimetric analysis (TGA, Fig. 1h) shows weight loss between Fe₃O₄@TiO₂@mSiO₂-TSG and Fe₃O₄@TiO₂@mSiO₂ is about 3.32%, revealing the high content of gluconamide moiety. Besides, the saturation magnetic (Ms) values of Fe₃O₄ and Fe₃O₄@TiO₂@mSiO₂-TSG are measured as 79.15 emu/g and 44.12 emu/g, respectively (Fig. 1i), and as shown in inset of Fig. 1i, the uniformly dispersed Fe₃O₄@TiO₂@mSiO₂-TSG in solution could be separated sufficiently with the aid of a magnet, demonstrating the Ms value of Fe₃O₄@TiO₂@mSiO₂-TSG is sufficient for high-efficient magnetic separation.

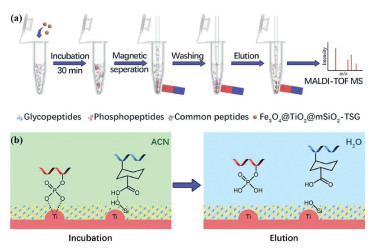

The enrichment procedure for glycopeptides and phosphopeptides by Fe₃O₄@TiO₂@mSiO₂-TSG mainly includes incubation, washing, elution and MS analysis (Fig. 2a). The potential binding modes between Fe₃O₄@TiO₂@mSiO₂-TSG and glyco- and phosphopeptides are briefly manifested in Fig. 2b. In enrichment condition, TiO₂ can coordinate with phosphate groups on the phosphopeptides [26], the hydroxyl groups on mSiO₂-TSG and glycopeptides could form an intricate network of hydrogen bonding and electrostatic interaction. While in eluting condition, the interaction can be broken, thus realizing the enrichment of glyco- and phosphopeptides. The enrichment performance of Fe₃O₄@TiO₂@mSiO₂-TSG was first investigated by capturing glycopeptides from 100 nmol/L horseradish peroxidase (HRP) tryptic digests. Herein, under optimized condition (Fig. S3 in Supporting information), HRP digests, β-casein digests and Fe₃O₄@TiO₂@mSiO₂-TSG were respectively dispersed in loading buffer. After incubation, washing and elution, the eluent was analyzed by MALDI-TOF MS. Detailed information of enrichment procedure could be found in the Supporting information. As shown in Figs. 3a and b, the intensity of glycopeptides is extremely low as a result of suffering from interferences when conducting direct analysis. While after enrichment, 8 glycopeptides and 10 glycopeptide fragments dominate the spectrum, the detailed information of the identified glycopeptides is listed at Table S1 (Supporting information). Besides, 100 nmol/L tryptic digests of human immunoglobulin G (IgG) were also applied, as shown in Figs. 3c and d, impurity peaks are removed, 5 glycopeptides and 14 glycopeptide fragments could be clearly observed after enrichment, the detailed information of the identified glycopeptides is listed in Table S2 (Supporting information). The phosphopeptide enrichment capacity of Fe₃O₄@TiO₂@mSiO₂-TSG was evaluated by 100 nmol/L β-casein tryptic digests (containing 2% α-casein), as shown in Figs. 3e and f, 6 phosphopeptide peaks and 10 fragment peaks are distinctly detected, the detailed information of the identified phosphopeptides is listed in Table S3 (Supporting information). Furthermore, when using the mixture of 100 nmol/L HRP tryptic digests and β-casein tryptic digests as sample (Figs. 3g and h), after enrichment, the spectrum is occupied by 8 glycopeptide peaks and 6 phosphopeptide peaks, as well as their corresponding 15 fragment peaks. It can be seen the number of the detected glycopeptides and phosphopeptides by co-enrichment is consistent with that of respective enrichment. While the production of fragment peaks is associated with the ionization degree of the analytes, the matrix effect caused by ion suppression affects the ionization of co-eluting analytes, influencing the precision and accuracy of fragment peaks [27]. This result indicates our method is great in co-enrichment.

The reusability of Fe₃O₄@TiO₂@mSiO₂-TSG for simultaneous enrichment was investigated, the nanomaterial was recycled by washing with loading buffer and eluents. Even when the regenerated Fe₃O₄@TiO₂@mSiO₂-TSG was reused for six enrichment experiments, the number of identified peptides and relative intensity are nearly identical to that obtained for the first use (Fig. S4 in Supporting information), which confirms the reusability of the Fe₃O₄@TiO₂@mSiO₂-TSG. Furthermore, the concentration of HRP digests and β-casein digests were diluted to 1 nmol/L and 0.1 nmol/L, as shown in Fig. S5 (Supporting information), glyco- and phosphopeptide peaks still occupy the spectra after enrichment by Fe₃O₄@TiO₂@mSiO₂-TSG, indicating the excellent sensitivity for co-enrichment.

The selectivity of Fe₃O₄@TiO₂@mSiO₂-TSG for glyco- and phosphopeptide enrichment was tested as well. HRP or β-casein tryptic digests were mixed respectively with BSA tryptic digests. When molar ratio reaches 1:200, the signals of glyocopeptide or phosphopeptide peaks are significantly suppressed. However, glycopeptide peaks and phosphopeptide peaks take a predominant position in the spectrum after enrichment with Fe₃O₄@TiO₂@mSiO₂-TSG (Fig. S6 in Supporting information). Furthermore, considering the numerous variables with regard to the composition of complex biological samples, the size-exclusion effect of Fe₃O₄@TiO₂@mSiO₂-TSG nanomaterial was assessed (Fig. S7 in Supporting information). HRP tryptic digests and β-casein tryptic digests were mixed with bovine albumin protein respectively with the ratio of 1:5000 (w/w). The signals of glycopeptide and phosphopeptide are suppressed significantly and BSA protein peaks could be detected before enrichment. While after enrichment, the peaks of glycopeptides and phosphopeptides occupy the spectrum and no BSA protein peak could be detected. The comparisons indicate the remarkable size-exclusion property of Fe₃O₄@TiO₂@mSiO₂-TSG.

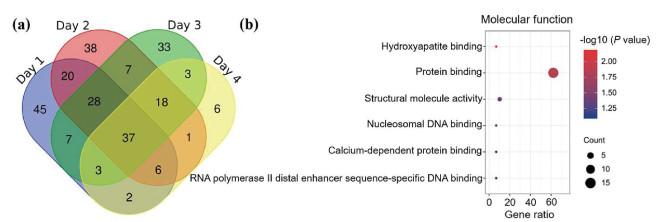

Inspired by the excellent enrichment performance above, the Fe₃O₄@TiO₂@mSiO₂-TSG nanocomposites were applied to the enrichment of glycopeptides and phosphopeptides from non-digested human saliva within four days in succession, the eluent was desalted by SepPak C18 cartridges, deglycosylated by PNGaseF and lyophilized for nano-LC-MS/MS analysis. 31, 63, 53, 39 glycopeptides and 132, 105, 87, 39 phosphopeptides were identified in four days, the selectivity reached 12.2%. The detailed information is listed in Tables S4 and S5 (Supporting information). As shown in Fig. 4a and Fig. S8 (Supporting information), a total of 94 endogenous glycopeptides and 164 endogenous phosphopeptides are enriched from a total of 2 µL human saliva. A brief comparison concerning reported strategies for endogenous glycopeptide and phosphopeptide enrichment in human saliva is listed in Table S6 (Supporting information) [28-44]. The comparison of these methods manifests that the Fe₃O₄@TiO₂@mSiO₂-TSG nanomaterial possesses competitive efficiency in endogenous glyco- and phosphopeptide enrichment. Moreover, the gene ontology analysis was conducted. The salivary glyco- and phosphopeptides are inclined to localize at extracellular region, extracellular exosome and extracellular space (Fig. S9 in Supporting information). As shown in Fig. 4b, the salivary glyco- and phosphopeptides play crucial roles in protein binding and DNA binding. Besides, the identified endogenous peptides derived from basic salivary proline-rich protein tend to undergo both phosphorylation and glycosylation, as shown in Fig. S10 (Supporting information), they are associated with a series of biological processes including induction of bacterial agglutination, platelet degranulation and defense response to bacterium, which contribute to the anti-bacteria property of saliva.

In summary, a facile synthesis method of constructing a novel hydrophilic magnetic titanium dioxide mesoporous silica material for glycopeptidomics and phosphopeptidomics analysis was proposed. TiO₂ was deposited facilely on the magnetic sphere, and the gluconamide-functionalized mesoporous silica was synthesized via one-pot synthetic approach, which significantly simplify the synthetic method compared to conventional hydrophilic material based on post-synthetic functionalization. Owing to the enhanced hydrophilicity, abundant metal oxide site, suitable mesoporous structure, large specific surface area and considerable magnetic responsiveness, Fe₃O₄@TiO₂@mSiO₂-TSG exhibited outstanding sensitivity, reusability and size-exclusion effect towards glycophopeptide and phosphopeptide enrichment. Remarkably, a total of 94 endogenous glycopeptides and 164 endogenous phosphopeptides were captured from a total of 2 µL non-digested human saliva with the aid of Fe₃O₄@TiO₂@mSiO₂-TSG. Gene ontology analysis revealed the identified salivary glyco- and phosphopeptides exert influence on diverse biological processes. The high simultaneous enrichment capacity makes the Fe₃O₄@TiO₂@mSiO₂-TSG a potent tool for glycoproteomics and phosphoproteomics analysis and suggests a huge potential in comprehensive post-translational modifications research.
