Porcine circovirus type 2 (PCV2), a member of genus circovirus in the family Circoviridae, has been identified as the pathogen of porcine circovirus-associated disease, such as post-weaning multi-systemic wasting syndrome, porcine dermatitis and nephropathy syndrome, respiratory distress, and acute pulmonary edema [1]. With increasing frequency of swine flu outbreaks in most swine-producing countries, PCV2 is regarded as a potential emerging pathogen that poses a global threat to livestock and human public health [2]. Therefore, it is urgently required to have a deep understanding of the virus invasion mechanism, which can subsequently afford new insight into the development of novel vaccines.

Recently, great efforts have been made to explore the mechanisms of virus invasion process [3]. These researches are mainly focusing on ensemble spectroscopic measurements or fixed cell imaging [4-6], which can only provide global information about the average states of the whole population of viruses, ignoring differences between single virus and the dynamics in the infection process. It is worth mentioning that there are multiple steps involved in the infection process. For example, virus invading into host cells is the first step of infection, which is a crucial target for therapeutic intervention. However, less is known about the detailed mechanism of the whole entry process.

Single-particle tracking (SPT) in living cells not only contributes to visualize the entry process at the single-virus level, but also facilitates to elucidate the dynamic virus-host cell interaction in vivo [7-9]. Nowadays, with the development of protein extraction technology, self-assembled virus-like particles (VLPs) with features of uniform size, excellent biocompatibility and easy functionalization have been widely employed as drug carriers in gene therapies and other fields [10]. However, in biological systems, VLPs are not stable due to their hollow nanostructure. Thanks to the development of nanometer-sized materials, rigid nanoparticles are available as carriers to overcome above shortcomings [11, 12]. Among these nanocargos, fluorescent nanoparticles are generally used as labeling agents [13-15]. For instance, with SPT, Sun et al. marked influenza virus with inorganic semiconductor nanocrystal quantum dots (QDs) and successfully revealed the endocytic pathway in detail [13]. In general, the endocytosis pathway for virus uptaken can be classified into macropinocytosis, clathrin- and caveolin-mediated endocytosis, but relevant mechanisms have not been clearly elucidated [16, 17]. As for PCV2, G. Misinzo et al. found that the movement of PCV2/VLPs was significantly inhibited in cells lacking of chondroitin sulfate B or heparan sulfate receptors [18]. However, in 3D4/31 mononuclear cell lines, PCV2 binds to clathrin protein and then invades the cell [19]. The above studies indicate that the impregnation mechanisms may vary in different cell lines. Therefore, a comprehensive diagram of PCV2 entry process remains to be depicted. In order to dissect the capability of long-time tracking PCV2 infection process, fluorescent nanoparticles with good photo-stability and stronger light emission are required when adopted as the labeling agents. Compared with QDs, upconversion fluorescent nanoparticles (UCNPs) with good photo-stability have drawn great attentions. Besides, UCNPs also possess large anti-Stokes shift, sharp emission bandwidth, low cytotoxicity, and high chemical stability [20-24]. Particularly, compared with the noble metal nanoparticles, the deep near-infrared (NIR) light excitation enables the effective reduction of background noise from biological samples, which makes UCNPs good candidates for single-particle imaging in complex biological environment.

Herein, we dissected the cellular translocation process of PCV2 viral capsid proteins (with or without nuclear localization ability) functionalized UCNPs (P₁-UCNPs and P₂-UCNPs, respectively) in HepG2 cells. With SPT, the invasion process was investigated by analyzing the behaviors of individual particles within living cell. According to the SPT results, three steps were observed for P₁-UCNPs, while only two phases were found for P₂-UCNPs. Noticeably, the study on the mechanism of PCV2 invading human cells contributes a deep understanding on the pathogenic mechanism of PCV2, and has a great significance in the development and application of corresponding vaccines.

The synthetic procedures of VCPs-UCNPs and other experimental sections were described in Supporting information.

Firstly, we characterized the spectroscopy and microscopy of UCNPs. Recently, a variety of strategies for lanthanide-doped UCNPs fabrication have been reported [25, 26]. Among these strategies, thermolysis is widely employed to prepare high quality UCNPs with narrow size distribution, excellent optical properties, and good crystallinity [27]. UCNPs prepared by thermolysis are coated with OA which is insoluble in water. Therefore, ligand exchange is required for the phase transfer. In this work, hydrophilic PAA was employed to modify the outer surface of UCNPs. OA on the surface of UCNPs could be readily replaced by PAA with carboxyl groups under ultrasonication [28]. The size of the as-prepared UCNPs is around 50 nm with a desirable uniformity in morphology as shown in the TEM image (Fig. 1a). The particles display good water dispersibility and narrow size distribution, and have an average hydrodynamic size of ~58 nm as confirmed by DLS measurement. In addition, Yb³⁺ and Er³⁺ are sensitizer and activator, and account for 18% and 2% of doping ratio in the UCNPs, respectively. Therefore, UCNPs can emit ~550 nm green fluorescence under 980 nm cw laser irradiation (Fig. 1b).

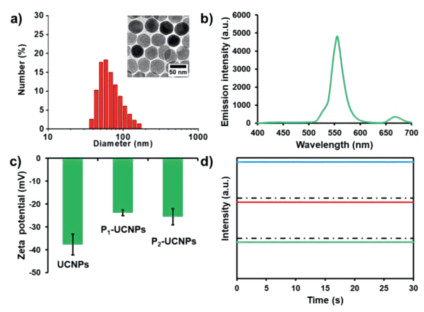

Since the surface of UCNPs is modified with PAA while there are lots of positively charged arginine in PCV2, successful conjugation of PCV2 VCPs onto the UCNPs surface should increase the surface charge on UCNPs. As expected, after the conjugation process, zeta potential of P₁-UCNPs and P₂-UCNPs increased to −23.82 ± 1.22 and −25.48 ± 3.57 mV, respectively, which is much higher over the particles without protein modification (−37.70 ± 4.58 mV) (Fig. 1c). In order to further assess the long-time tracking ability of these UCNPs, single-particle fluorescence imaging experiments were carried out at a home-built fluorescence microscope to evaluate the optical properties of these UCNPs at the single-particle level. As shown in Fig. 1d, there is no photo-bleaching or photo-blinking taking place within 30 s from those UCNPs. Inspired by the above optical merits, UCNPs designed herein should have promising potentials for long-time SPT.

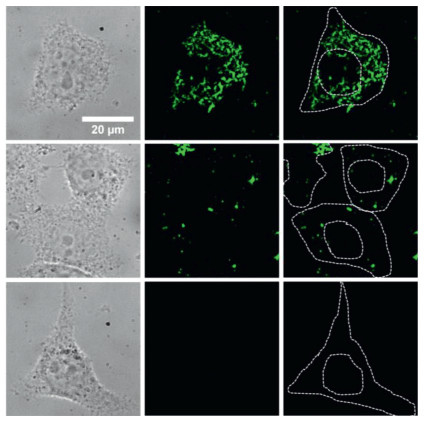

Secondly, we investigated the dynamic distributions of VCPs-UCNPs in living cells. The functions of these two VCPs-UCNPs were further evaluated through quantitatively analyzing the dynamic distributions of these particles in living cells. VCPs-UCNPs were co-cultured with HepG2 cells for 6 h and then imaged with fluorescence microscope under the excitation at 980 nm. As shown in Fig. 2, obvious fluorescent signals are found from the cells co-cultured with P₁-UCNPs. Fluorescent signals from P₁-UCNPs with nuclear localization tags were not only present in the cytoplasm, but also partially present near or around the nucleus. However, signals from P₂-UCNPs without nuclear localization tags only existed in the cytoplasm. In contrast to above two samples, very few UCNPs without the conjugation of VCPs existed in the cells and could be almost ignored. These results suggested that, with the same co-culture time, VCPs can facilitate particles entering cells. Besides, P₁-UCNPs with nuclear localization tags can target the nucleus and lead to a remarkably faster internalization rate than that of P₂-UCNPs.

Afterward, we investigated the uptake efficiency of VCPs-UCNPs by HepG2 cells at different time points. HepG2 cells were co-cultured with the same concentration of P₁-UCNPs, P₂-UCNPs and UCNPs at 37 ℃ for 2, 4 and 6 h, respectively, Figs. S1a–c (Supporting information). By using the mean fluorescence intensity of single UCNP as the reference, the number of UCNPs uptake by the cell under different co-culture time could be calculated roughly. The statistical results are shown in Fig. S1d (Supporting information). As time went on, the number of fluorescent particles within the cell increased significantly. Initially, the particles located at the cell surface. Over time, P₁-UCNPs and P₂-UCNPs started to appear in the cytoplasm, while the fluorescent signals of UCNPs were mostly locating at the boundary of cell membrane. In addition, by comparing the uptake process from these samples, one thing that deserved our attention was that the cellular uptake rate of P₁-UCNPs was significantly faster than that of P₂-UCNPs, while the rate of UCNPs is the lowest, which indicates that VCPs facilitate particles internalization.

Then, we explored the clathrin-dependent endocytosis of VCPs-UCNPs. Early studies have shown that viruses can enter cells by endocytosis, which may occur via several mechanisms, such as clathrin-mediated, caveolae-mediated, clathrin- and caveolae-independent endocytosis, and macropinocytosis [29]. To disclose the cellular uptake mechanism, we monitored the cellular uptake process of VCPs-UCNPs through the addition of endocytosis inhibitors. At 37 ℃, cells were co-cultured directly with P₁- and P₂-UCNPs, respectively. After 6 h, their fluorescence and bright-field images were recorded and shown in Fig. S2a (Supporting information). For comparison, HepG2 cells were treated with dynasore (an inhibitor of dynamin for clathrin-mediated endocytosis) and genistein (an inhibitor of tyrosine protein kinase for caveolae-mediated endocytosis) for 1 h, respectively, and then were co-cultured with the samples under the same conditions for 6 h. The optical images are shown in Figs. S2b and c (Supporting information), respectively. By comparing the fluorescent images with and without inhibitors, it was found that the cells treated with dynasore had significantly reduced uptake efficiency while the uptake efficiency of the cells treated with genistein did not change significantly. In order to further explain the results quantitatively, the fluorescence intensity changes with and without the inhibitor treatment were statistically analyzed in the same way as described above, and the results were shown in Fig. S2d (Supporting information). According to the statistical results, the cells treated with dynasore had significantly lower uptake efficiency than those treated with genistein or without the inhibitor. Consistent with the aforementioned results, the main way of VCPs-UCNPs entering cells was clathrin-mediated endocytosis, whilst, weak green fluorescent signal could be detected in HepG2 cells when treated with dynasore, suggesting that other mechanisms should be involved in this process.

Finally, we tracked VCPs-UCNPs entry into cells with SPT in real time. To dissect the cellular uptake process in detail, SPT was performed to visualize the internalization process from single VCPs-UCNP, starting with their attachment to the cell membrane, followed by the uptake process, as well as intracellular trafficking, etc. In the acquired image sequences, the fluorescent particles can be identified as green spots on a dark background. Each frame in the video is a representative position of the particles at a certain time point. By extracting the corresponding x and y coordinates from all frames, the trajectories of particles were revealed.

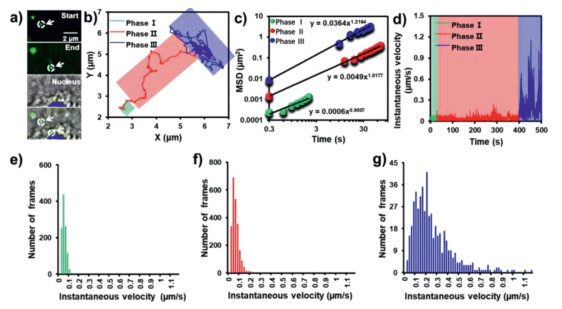

Fig. 3a shows the real-time fluorescence images of P₁-UCNPs entering into the cell. The particles quickly assembled and attached to the cell membrane during the initial invasion process, penetrated across the membrane and finally targeted the vicinity of the nucleus. To dissect the infection pathway unambiguously, the trajectories of different phases are marked with different colors in Fig. 3b. In these figures, three phases can be clearly distinguished. Qualitatively, P₁-UCNPs first adsorbed on the membrane, then targeted the vicinity of the nucleus by directional movement, and finally moved near the nucleus. In order to quantitatively explain the motion of P₁-UCNPs, mean squared displacement (MSD) was calculated and fitted with the equation of MSD = 4Dt^α, where D is the diffusion coefficient, α is diffusion exponent and t is the lag time, respectively (Fig. 3c). Consistent with the result of the trajectory diagram, the exponent α calculated from the three stages of P₁-UCNPs dynamic invasion is 0.90, 1.02 and 1.22, respectively. The results meant that the initial binding movement of particles on the cytomembrane was subdiffusion, demonstrating that the nanocargos were confined on the cell membrane initially. Besides, the movement of the next two stages behaved similarly to superdiffusion, especially the last process [30]. Subsequently, we investigated the mechanisms associated with the transport quantitatively. It was found that the rate of directional movement and diffusion around the nucleus of P₁-UCNPs was significantly accelerated, which can be quantitatively illustrated by combining the instantaneous velocities in Fig. 3d with their statistics in Figs. 3e–g. It was found that the average velocities of the three invasion stages were 0.04 ± 0.02, 0.05 ± 0.04, and 0.24 ± 0.18 µm/s, respectively. The movement in phase Ⅰ was slowest and characterized by a narrower velocity distribution, which could be speculated that the particles were blocked by the cell membrane and interacting with the cytomembrane. Besides, the results in Fig. S2 (Supporting information) suggested that the movement was mainly clathrin-mediated. As for phase Ⅱ, the velocity distribution was broader than that of phase Ⅰ. Combined with the fact that α calculated from the phase Ⅱ was 1.02, it can be deduced that the particles displayed active and directional transport along microtubules. In the phase Ⅲ, the particles showed the highest instantaneous velocity with a quite broad distribution. From these data, we concluded that the velocity of P₁-UCNPs migration gradually increased during the process of cell invasion, demonstrating that P₁-UCNPs entered HepG2 cells by means of active transport, and eventually accumulated in the perinuclear area with a fast and random diffusion.

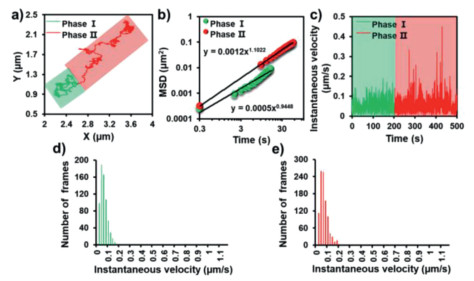

The typical trajectory of P₂-UCNPs is shown in Fig. 4a. From the trajectory, we found that there were only two stages of dynamic invasion process for P₂-UCNPs, namely adsorption on the cytomembrane and directional migration within the cell, while the third stage was not observed as P₁-UCNPs did. The MSD calculated from the trajectory is shown in Fig. 4b. As we can see, the MSD exhibits a linear relationship with lag time in the double logarithmic plot, and the exponent values of these two stages are 0.94 and 1.10, respectively. It was demonstrated that the migration rule of P₂-UCNPs in the cell was similar to that of P₁-UCNPs, whereas there was no nuclear localization signal in comparison with P₁ protein. The instantaneous rate and velocity statistics of P₂-UCNPs were further calculated (Figs. 4c–e). As shown in Figs. 4d and e, the instantaneous rate increased after entering the cytoplasm. Combined with Fig. S2d, it was proved that the mechanism of P₂-UCNPs entering HepG2 cells by active transport was mainly clathrin-mediated. Based on the findings in this study, VCPs-UCNPs enter HepG2 cells through clathrin-mediated endocytosis. Following endocytosis, the particles move into the cytoplasm and then behave directionally along microtubes. In addition, P₁-UCNPs can target the nucleus, but P₂-UCNPs can not, as illustrated in Fig. S3 (Supporting information). Therefore, our study may aid in the investigation of virus invasion mechanisms and the development of inhibitors to block the PCV2 invading HepG2 cells.

In summary, in this work, by taking the advantage of the unique optical properties of UCNPs, the cellular migration behavior of VCPs-UCNPs was systematically studied. The distribution and location of VCPs-UCNPs in HepG2 cells were revealed by single-particle fluorescence imaging. The intracellular translocation process is strongly affected by the functionality of VCPs. With the modification of nuclear localization signal in VCPs, P₁-UCNPs accumulated near the nucleus after 2 h of incubation. However, P₂-UCNPs did not show noticeable nuclear targeting capability even with similar directional movement within the cell as that of P₁-UCNPs. These results would provide new insight into the intracellular dynamics of PCV2 VCPs and also afford deep understanding on virus pathogenesis.
