Recent advance of fluorescent probes for detection of drug-induced liver injury markers

Full

Dongqin Sun^a, Zhenzhen Chen^a, Jiali Hu^a, Huajin Zeng^a^,^*, Lingbo Qu^b, Ran Yang^b^,^*

Affiliations

^a School of Pharmaceutical Sciences, Zhengzhou University, Zhengzhou 450001, China

^b The College of Chemistry, Zhengzhou University, Zhengzhou 450001, China

Published: 2022-10-15 doi: 10.1016/j.cclet.2021.12.043

Outline

Abstract

Less

Drug-induced liver injury (DILI) is a common and serious adverse drug reaction. At present, DILI is perfectly diagnozed in clinical settings using Roussel Uclaf causality assessment method (RUCAM) in its original version published 1993 and its updated version published 2016, well established worldwide as a diagnostic algorithm with a high sensitivity and specificity. Nevertheless, the search for additional detection methods supporting RUCAM continues. In recent years, with the development of optical imaging technology, fluorescent probes have gradually shown great advantages in the detection and diagnosis of DILI markers such as high sensitivity, anti-interference, real-time monitoring and non-invasive measurement. In this review, the recent advances of fluorescent probes for evaluation of DILI in experimental studies were summarized according to various markers of DILI. We believe that learning about the design and practical application of these probes will contribute to the further development of detection sensors for DILI markers.

Key words

Fluorescent probe / Drug-induced liver injury (DILI) / Roussel uclaf causality assessment method (RUCAM) / Clinical markers / Imaging

Cite this Article

Dongqin Sun, Zhenzhen Chen, Jiali Hu, Huajin Zeng, Lingbo Qu, Ran Yang. Recent advance of fluorescent probes for detection of drug-induced liver injury markers[J]. Chinese Chemical Letters, 2022 , 33 (10) : 4478 -4494 . DOI: 10.1016/j.cclet.2021.12.043

Full Text

Less

1 Introduction

Less

Drug toxicity is not only a critical evaluation index of medicinal safety in the process of drug development, but also the main reason for drug withdrawal from the market. As one of the main metabolic organs, liver not only precisely coordinates with almost all organs in the body to maintain homeostasis, but also transforms drugs into various metabolites [1, 2]. Therefore, when taking toxic drugs or overdose drugs, the liver is very vulnerable to drug injury. Drug-induced liver injury (DILI) refers to the liver injury caused by the drug itself and/or its metabolites in the course of medication. Nowadays, DILI is regarded as an important public health problem due to its unpredicatability and severity degree. In clinical practice, DILI is mainly judged according to the updated Roussel Uclaf causality assessment method (RUCAM) evaluation causality published in 2016, and the relationship between alanine aminotransferase (ALT), alkaline phosphatase (ALP) and their upper limit of normal (ULN) in serum is regarded as the gold standard marker for the diagnosis and evaluation of DILI [3-5]. However, these enzyme markers often can not reflect the abnormal state of DILI in real-time, because only a few patients showed abnormal enzyme level in early DILI. Moreover, rotavirus infection and skeletal muscle injury can also cause the increase of ALT [6, 7]. Therefore, it is urgent to develop a method to monitor other markers directly related to DILI in real time.

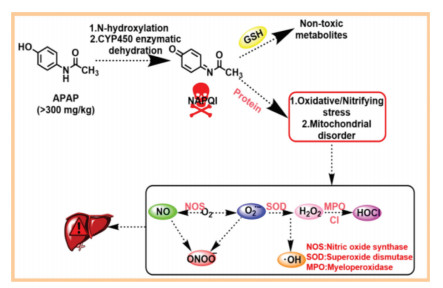

Generally, the metabolism of drugs in the liver is divided into two stages: phase Ⅰ reaction and phase Ⅱ reaction [8]. In phase Ⅰ, the main reactions are oxidation, reduction and hydrolysis, resulting in a serious of hepatotoxic products, such as electrophilic radicals and hydroxyl radicals. While, in phase Ⅱ, binding reaction is the main metabolic process, which is a detoxification process of drugs [9, 10]. If the process can not be carried out smoothly or untimely, it may cause liver injury. In order to explain the metabolism of drugs in liver more clearly, acetaminophen (APAP) can be used as a typical example of drug injury. As shown in Scheme 1, the overdose of APAP is N-hydroxylated first and then hydrolyzed by the CYP450 enzyme to form toxic N-acetyl-p-benzoquinone imine (NAPQI) [11, 12]. Some NAPQI will combine with glutathione (GSH) to form nontoxic metabolies, while the remaining NAPQI will bind to the proteins in the body and release a large number of active substances, such as reactive nitrogen species (RNS), reactive oxygen species (ROS), reactive sulfur species (RSS), enzyme. These released active substances covalently bind to cellular proteins, which leads to cell peroxidation and apoptosis [13, 14]. Meanwhile, various active substances may produce more active substances under the catalysis of enzymes, resulting in serious liver injury. Therefore, compared with the levels of enzymes in vivo, these active substances can more accurately reflect DILI in real time, even in the early stage of DILI. Recently, with the development of optical imaging technology, more and more small molecule probes have been designed for detection of these active substances, including peroxynitrite (ONOO⁻), nitric oxide (NO), superoxide anion (O₂^•−), hypochlorous acid (HCIO), hydrogen peroxide (H₂O₂), hydroxyl radical (^•OH), GSH, hydrogen sulfide (H₂S) and enzymes.

To better design novel probes for diagnosis of DILI, different types of probes were summarized according to the various markers of DILI. We believe that these reported probes will promote the further development of DILI detection sensors.

2 Small molecule probes for detecting various DILI markers

Less

2.1 Detection of ONOO⁻

As a member of RNS, peroxynitrite (ONOO⁻) possesses a strong ability of oxidation and nitrification and is produced by the reaction of nitric oxide (NO) with superoxide anion (O₂^•−) in vivo. It is reported that excessive ONOO⁻ will react with various biological molecules and cause the destruction of cell structure and function, even apoptosis and necrosis [15, 16]. Compared to other ROS and RNS, ONOO⁻ is more attractive and regarded as a direct marker of DILI. Recently, a lot of small molecule probes have been developed for detection of ONOO⁻ in vitro and in vivo based on different reaction mechanisms.

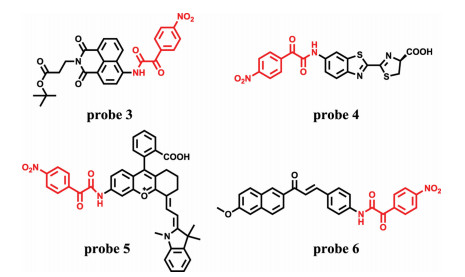

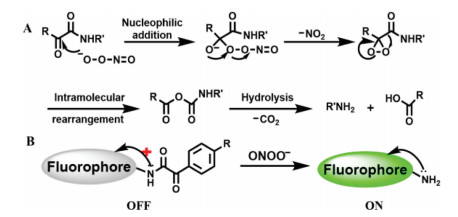

(1) Decomposition of α-keto amide group. Previous studies have shown that under physiological conditions the α-keto esters can react with ONOO⁻ [17] (Scheme 2A). According to this reaction mechanism, Yang's team proposed that deprotection of the α-keto caged fluorophore might produce a particular "turn-on" probe for ONOO⁻ [16], and the detailed reaction mechanism was shown in Scheme 2B. The amino group on the fluorophore was protected by phenylglyoxylic acid on the α-keto caged structure, thereby inhibiting the intramolecular charge transfer (ICT) and promoting photo-induced electron transfer (PET) effects which made the fluorescence quenching. When the probes reacted with ONOO⁻, the α-keto site was first subjected to nucleophilic attack and released NO₂ and generated highly reactive epoxide. After that, an anhydride was yielded by intramolecular rearrangement. Finally, the anhydride hydrolyzed to dissociate into amino groups and carboxylic acid which made the fluorescence status of probes change from "turn-off" to "turn-on".

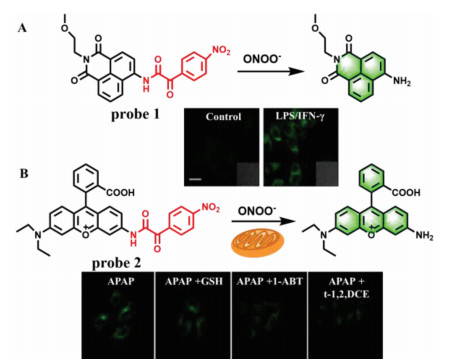

To test this proposal, Cheng et al. designed two fluorescence probes by linking an α-keto amide to aminonaphthalimide (Naph-ONOO⁻ probe, probe 1) (Fig. 1A) and rhodamine (Rhod-ONOO⁻ probe, probe 2) (Fig. 1B), respectively [18]. Both of probes could specifically and sensitively detect ONOO⁻ in living cells in real time. More importantly, probe 2 could accumulate and react in mitochondria with a substantial high sensitivity of 43 nmol/L. Subsequently, several fluorescence probes with similar α-keto caged structures were developed, such as probes 3–6 (Fig. 2) [18-22]. Details of these probes were summarized in Table 1.

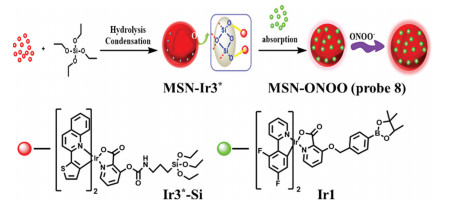

(2) Transformation of phenylborate to phenol. Compared with the visible and the first near-infrared regions (NIR-I), recently the second near-infrared regions (NIR-Ⅱ, 900–1700 nm) has been attracted great attention because of its deep penetration into biological tissues (5–20 mm), the reduction of background auto-fluorescence and the improvement of signal-to-noise ratio (SNR) [23]. In 2019, Li group designed an NIR-Ⅱ fluorescence probe (IRBTP, probe 7), which combined the phenyl borate group and benzothiopyrylium cyanines skeleton for monitoring of ONOO⁻ [24]. When ONOO⁻ is present, the phenyl borate group was removed and fluorescence at 950 nm will appear (Fig. 3A), which the fluorescence intensity enhanced with the increase of ONOO⁻ concentrations ranged from 0 µmol/L to 11 µmol/L (LOD = 55.9 nmol/L). Tissue imaging demonstrated that the liver of mouse appeared obvious fluorescence after APAP treatment, even the penetration depth reached 5 mm (Figs. 3B and C), which laid a foundation for effectively detecting the fluctuation of ONOO⁻ in preclinical model of DILI.

Recently, due to its good photostability and high luminescent quantum efficiency, phosphorescent transition metal complex has attracted researchers' interest in bioluminescence probes. In 2018, Chen et al. developed a dual-emission phosphorescent peroxynitrite nanoprobe (MSN–ONOO, probe 8, Fig. 4) by modifying two long-lived phosphorescent iridium(Ⅲ) complexes (Ir1 and Ir3^*) with peroxynitrite activity and inertness into mesoporous silica nanoparticles (MSN) [25]. Due to fast response and high sensitivity, as well as good selectivity, probe 8 was used to the determination of ONOO⁻ in living cells, zebrafishes and mice via ratiometric photoluminescence imaging. What is more important, by virtue of long-lived phosphorescence, probe 8 imaged the elevated ONOO⁻ during DILI in vivo while reducing spontaneous fluorescence and improving SNR.

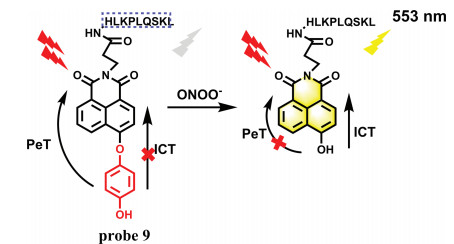

(3) Oxidation of phenol. The results of probe 7 and 8 suggested that it is an efficient strategy to develop fluorescence probe by masking hydroxyl functionalized reaction sites with a trigger of ONOO⁻. In order to further improve the targeting of the probe, Zhou's team constructed a peroxisome-targeting two-photon (TP) fluorescence probe (PX-1, probe 9) for detection of peroxisomal ONOO⁻ [26]. In the structure of probe 9, the 1,8-naphthalene was served as fluorophore, while the nonapeptide (HLKPLQSKL) was regarded as a peroxisome-targeting group. After reacting with ONOO⁻, the 1,4-dihydroxybenzene of probe 9 was removed, resulting in a 300-fold fluorescence enhancement (LOD = 6.2 nmol/L) at 553 nm (Fig. 5). The imaging results demonstrated that probe 9 could significantly detect and map ONOO⁻ in SMMC-7721 cells when they pre-treated with sydnonumine hydrochloride (SIN-1, an ONOO⁻ donor). However, when these stimulated cells were incubated with uric acid (an ONOO⁻ scavenger), their red fluorescence was remarkably inhibited, demonstrating that probe 9 can sensitively identify the fluctuations of ONOO⁻ in living cells. The results were further confirmed in the livers of CCl₄-treated mice. However, due to the limitation of targeting, the incubation time of 30 min may not be suitable for real-time monitoring of DILI.

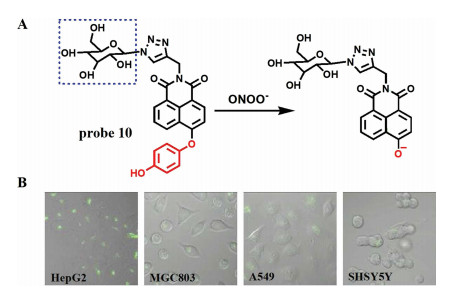

Several studies have shown that the asialoglycoprotein receptor on hepatoma cells can specifically recognize galactose [27, 28]. According to this characteristic, Liu team designed and synthesized a galactose-based hepatoma-specific fluorescence probe (Gal-NHP, probe 10) for imaging endogenous ONOO⁻ in HepG2 cells [29]. As expected, due to the ICT effect, the fluorescence of fluorophore 4–hydroxy-1,8-naphthlimide on probe 10 was suppressed by 1,4-dihydroxybenzene. However, after reacting with ONOO⁻, a remarkable emission peak at 555 nm was observed and a good linear relationship between the fluorescence intensity and ONOO⁻ concentrations was obtained with a LOD of 20 nmol/L (Fig. 6A). The imaging results from four kinds of living cells including HepG2, MGC803, A549 and SHSY5Y showed that the probe exhibited excellent specificity towards ONOO⁻ in HepG2 cells over others (Fig. 6B), which confirmed that probe 10 could specifically target hepatoma cells and use in the study of ONOO⁻-related liver diseases. More recently, Jin's team designed a novel fluorescent probe (probe 11) for detection of ONOO⁻ during acute liver injury through a phenol oxidation mechanism similar to the probe 10 [30]. The probe is essentially non-fluorescent, however, after rapid reaction with ONOO⁻ (< 25 s), the phenol structure falls off and forms conjugation, showing obvious fluorescence at 560 nm (Fig. 7A). With the increase of ONOO⁻ concentration from 0 μmol/L to 10 μmol/L, a linear relationship was obtained between fluorescence intensity and concentrations and the LOD is detected to be 0.13 μmol/L without any interference by other substances. In addition, When LX-2 cells were stimulated by SIN-1, LPS and PMA, the fluorescence increased, while the fluorescence decreased after N-acetylcysteine (NAC) and FeTMPyP pretreatment, which proved that probe 11 could not only detect endogenous and exogenous ONOO⁻, but also monitor the remediation of DILI (Fig. 7B). Most importantly, when APAP induced acute liver injury in mice (Fig. 7C), the fluorescence of mouse liver region was significantly enhanced, which was consistent with the results at the cell level. At the same time, immunohistochemistry and imaging examination further verified the degree of drug-induced liver injury, which laid a solid foundation for the probe to monitor ONOO⁻ in the process of DILI.

(4) Breakage of unsaturated double bond. Generally, ONOO⁻ and HCIO can break the unsaturated double bond simultaneously. Due to many excellent characteristics, such as high photostability and high SNR, nanoparticles have been applied in many fields, including nanoprobe. In 2017, Peng et al. developed a multilayered lanthanide-doped upconversion nanoparticles (UCNPs) modified with polyethylenimine and a fluorophore cyanine (Cy7) as a nanoprobe (Cy7-PEI-UCNPs, probe 12) for detection of ONOO⁻ (Fig. 8A) [31]. As expected, with the increase of ONOO⁻ concentrations from 3.5 µmol/L to 17.5 µmol/L, the fluorescence intensity of probe 12 was enhanced gradually, which resulted from the breaking of the double bond of Cy7. Moreover, probe 12 offered a low LOD down to 0.08 µmol/L and a fast response toward ONOO⁻ less than 1 s. Imaging results of APAP-induced mice demonstrated that probe 12 was primarily concentrated in the liver, which was suitable for monitoring ONOO⁻ generated in the model of acute hepatotoxicity (Fig. 8B). Subsequently, in 2019, Lei et al. constructed three double bond bridge fluorescence dyes (CX-1, CX-2 and CX-3) with a tunable wavelength at NIR-Ⅱ (Fig. 9A) [32], and developed a novel probe (probe 13) by loading CX-1 and CX-3 to micelle. According to this property, these dyes could be used for multicolor imaging in vivo at a tissue depth of up to 4 mm (Fig. 9B). Moreover, with the addition of ONOO⁻, the FRET effect between CX-1 and CX-3 is destroyed, resulting in the opposite trend between the emission of CX-1 and CX-3. Therefore, probe 13 can detect ONOO⁻ in ratio. Meanwhile, a credible method was successfully designed to monitor ONOO⁻ levels in vivo and used to the assessment of APAP-induced liver injury. As shown in Fig. 9C, the fluorescence intensity of mouse liver treated with APAP was much higher than that of control group and NAC treatment group.

(5) Pyryllum oxidation. Due to the strong electron-withdrawing ability of oxonium, the carbon atom on pyryllum is to nucleophilic attack, which is often regarded as a breakthrough point for preparing ONOO⁻ specific fluorescence probes. Based on this reaction characteristic, Jiang's group developed a NIR ratiometric fluorescence probe (probe 14) for detecting ONOO⁻ in living cells and mice [33]. Probe 14 structurally takes a coumarin-benzopyrylium group as a fluorophore and a galactose moiety as hepatocyte-targeting unit (Fig. 10). Due to the extended π-conjugation, probe 14 displayed NIR emission at 720 nm when excited at 440 nm. However, when ONOO⁻ was added, the strong fluorescence of probe 14 diminished at 720 nm and increased at 500 nm, which was emitted by coumarin 343 acquired from oxidation and cleavage of probe 14. Therefore, a ratio fluorescence response to ONOO⁻ could be achieved by a large stokes shift (220 nm), which made probe 14 highly sensitive (LOD = 0.17 µmol/L) and selective. Like probe 10, probe 14 could specifically target hepatoma cells because of its galactose group. The imaging results in living cells and mice showed that probe 14 could use for assessment of hepatotoxicity induced by APAP and its remediation by using hepatoprotective drugs.

Since some bioactive substance, such as HCIO and SO₃²⁻ could bleach the cyanine dyes, leading to a poor selectivity of cyanine dyes to ONOO⁻. To overcome the problem, Liu et al. designed two nanoprobes (probe 15 and probe 16) by modifying the above UCNPs with pyrylium based small molecular fluorescent probe E-CC and H-CC, respectively (Fig. 11A) [34]. The typical emission of UCNPs at 540 nm, 660 nm and 810 nm of probe 15 and probe 16 could be activated by ONOO⁻, and the ratio of three emissions (I₅₄₀/I₆₆₀ or I₆₆₀/I₈₁₀) could be employed for quantitative measurement (Fig. 11B). Both of the two UCNPs-based probes showed high selectivity toward ONOO⁻ without interference from HClO and SO₃²⁻. The LODs of probe 15 and 16 were estimated to be 154 nmol/L and 241 nmol/L, respectively. More importantly, the liver region of mice showed strong fluorescence after CCl₄ treatment (Fig. 11C), which indicated the probe 16 can detect ONOO⁻ in CCl₄-induced acute hepatotoxicity of mice.

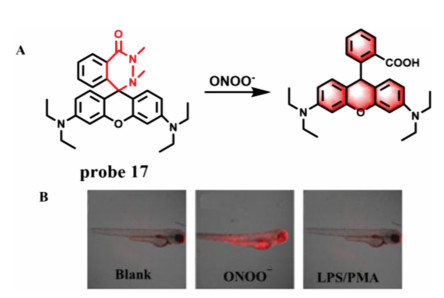

(6) Others. Liu et al. developed a fluorescence chemodosimeter (probe 17) in 2019, in which rhodamine B is used as fluorophore and 1,2-dimethylhydrazine is regarded as a reaction site of ONOO⁻ (Fig. 12A) [35]. The 1,2-dimethylhydrazine was introduced into the fluorophore to form a spirocyclic ring, which quenched the fluorescence of probe 17. After the addition of ONOO⁻, the ring was opened and the fluorescence recovered at 585 nm. Experimental results indicated that compared with other relevant active substances, probe 17 not only had significant specificity for ONOO⁻, but also could precisely determine nanomolar concentrations of ONOO⁻ (0–100 nmol/L) with a LOD of 0.68 nmol/L and a fast response time of less than 3 s. Moreover, good biocompatibility enabled probe 17 to monitor intracellular basal and fluctuations of ONOO⁻ in living cells and zebrafish (Fig. 12B).

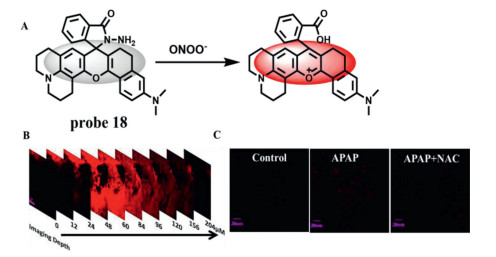

Based on the advantages of deep penetration depth and high resolution of two-photon and NIR, Mao et al. developed a two-photon probe (probe 18) with NIR-emission for the detection of ONOO⁻ in 2021 [36]. Probe 18 took rhodamine as the fluorophore and amide structure as the recognition site (Fig. 13A). When reacted with ONOO⁻, the probe changed from spirolactam structure to ring opening structure, accompanied by fluorescence from quenching to enhancement at 660 nm. With the concentration of ONOO⁻ ranging from 50 nmol/L to 10 µmol/L, the fluorescence intensity increased 340 times, and the LOD was 15 nmol/L. Meanwhile, probe 18 was not disturbed by related molecules, indicating that the probe has high sensitivity and selectivity. In addition, probe 18 can detect not only endogenous and exogenous ONOO⁻ at the cellular level, but also ONOO⁻ produced by inflammation at the animal level. Confocal scanning imaging of mouse liver tissue showed that the penetration depth of the probe was 204 µm (Fig. 13B). Most importantly, the fluorescence of HepG2 cells increased significantly after APAP treatment, while the fluorescence decreased significantly after APAP pretreatment and trans-1,2-dichloroethylene (t-1,2-DCE), t-1,2-DCE and NAC treatment, indicating that the probe can detect DILI and its repair process (Fig. 13C).

2.2 Detection of NO

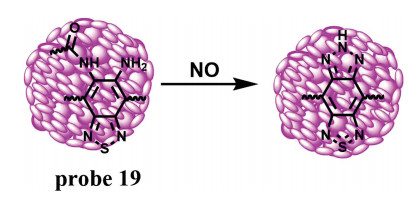

As a redox substance, NO is generated in the body under the catalysis of nitric oxide synthase (NOS). Generally, there are three isoforms of NOS, namely neuronal NOS (nNOS), endothelial NOS (eNOS) and inducible NOS (iNOS) [37]. Among them, iNOS only expressed when the cells and/or organ were damaged. Therefore, NO is considered to be another unified, direct and critical biomarker in the early stage of DILI. In 2019, Tang et al. developed an activatable organic semiconducting nanoprobe (AOSNP) (probe 19) [38]. When probe 19 was stimulated by NO, the phenylenediamine derivative was converted to a benzotriazole derivative and its fluorescence red-shifted to NIR-Ⅱ region (Fig. 14). Probe 19 showed negligible absorption at 808 nm and an insignificant NIR-Ⅱ fluorescence emission at the wavelength from 900 nm to 1150 nm. However, a remarkable absorption peak at 680 nm appeared and the fluorescence intensity increased about 35-fold in NIR-Ⅱ with the addition of NO. Meanwhile, the color of the solution changed from yellow to blue-green under natural light. The ratio of emission intensity of probe 19 was positively correlated with the NO concentrations ranging from 0 µmol/L to 35 µmol/L and the LOD was 0.35 µmol/L. Moreover, probe 19 showed no apparent toxicity when it co-incubated with 3T3 cells and HepG2 cells. Animal DILI studies have shown that probe 19 showed excellent passive target to liver and the fluorescence of mouse liver region increased continuously with the extension of time, which proved that the probe could detect NO activity in APAP-induced DILI mice via a time-dependent manner.

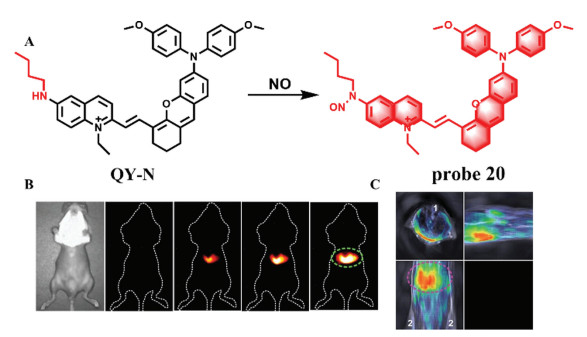

In 2021, Sun's team constructed a NO-activated nanoprobe (probe 20) containing d-π-A structure, in which bimethoxyphenyl-amine-containing dihydroxanthene was used as electron donor, quinoline as receptor and butylamine as recognition group (Fig. 15A) [39]. When NO reacts with butylamine, the absorption peak of the probe red-shifts to 700–850 nm, which can be used for photoacoustic imaging (3D MOST imaging), and the strong emission peak of 910–1110 nm can be used for NIR-Ⅱ imaging. Probe 20 was used to detect the dynamic changes of NO level in the model of liver injury induced by Triptolide in mice. After Triptolide treatment, the fluorescence of liver region increased gradually with the extension of time (Fig. 15B). Meanwhile, 3D MOST imaging can accurately locate the position and size of the liver in spatial distribution. With the combination of 3D imaging and near-infrared imaging (Fig. 15C), probe 20 can not only monitor the process of liver injury induced by Triptolide, but also monitor the remediation of liver injury, which lays a solid foundation for the clinical detection of liver injury caused by Chinese herbal medicine.

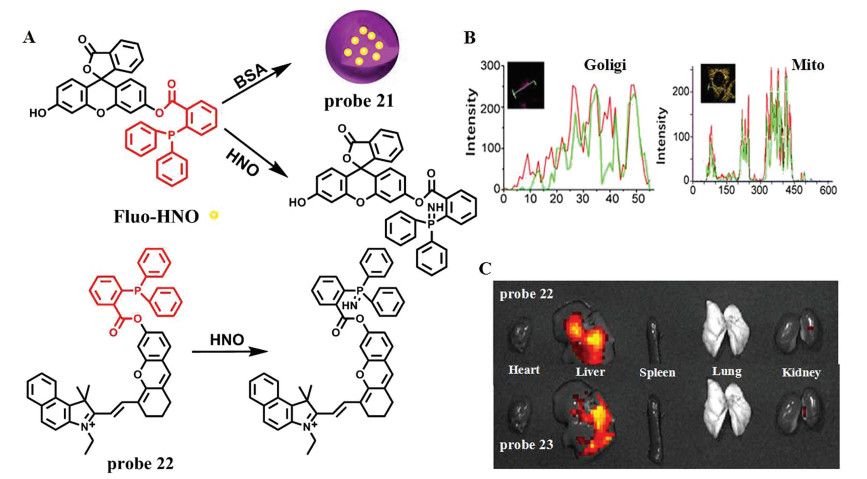

2.3 Detection of nitroxyl (HNO)

When acute liver injury occurs, the level of NOS in Golgi and Mitochondria rises sharply, during which will produce a large amount of NO. Since nitroxyl (HNO) is a reductive NO substance, therefore, Wang et al. first investigated the relationship between the level of HNO and DILI [40]. In order to overcome the false positive results, they constructed two kinds of targeted fluorescence probes, Golgi-HNO (probe 21) and Mito-HNO (probe 22) to image endogenous HNO in living systems, so as to monitor DILI (Figs. 16A and B). In structure, probe 21 and 22 take 2-(diphenylphosphino)-benzoate as the reaction site of HNO and fluorescein and hemicyanine as fluorophores, respectively. In order to achieve Glogi targeting, probe 21 takes bovine serum albumin (BSA) as a Golgi-targeting moiety. When HNO reacted with the probe, ICT effect was caused by inter-molecular attack between adjacent ester molecules, and probe 21 and 22 showed strong fluorescence at 520 nm and 725 nm, respectively. With the concentration of HNO precursor from 0 µmol/L to 30 µmol/L, the LOD of two probes were calculated to be 130 nmol/L and 160 nmol/L, respectively. In addition, animal experiments also confirmed that fluorescence in the mouse liver region was enhanced with the increase of APAP concentration (Fig. 16C), thus revealing a positive correlation between HNO level and DILI degree. Meanwhile, mice injected with the anticancer drug bleomycin showed the same phenomena, suggesting that probe 21 and probe 22 provide double assurance for the diagnosis of DILI.

2.4 Detection of O₂^•−

As a member of ROS family, O₂^•− is produced during cell respiration and plays a fundamental role in cell proliferation and migration. Moreover, O₂⁻ has the function of immunity and conduction in organism. However, excessive O₂⁻ level could destroy homeostasis and lead to the occurrence of related disease, such as liver damage and oxidative stress. As an important membrane-bound organelle, endoplasmic reticulum (ER) widely exists in eukaryotic cells and plays an important role in biosynthesis [41-45]. However, in pathological state, ER stress usually occurs as the cells are disturbed, during which a variety of ROS can be formed, such as O₂^•− [46]. Current biomedical researches have shown that ER is involved in DILI [47]. Therefore, it is of great significance to trace O₂^•− level changes in vivo.

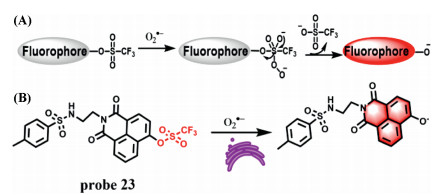

Trifluoromethanesulfonate (TFMS) group showed good reactivity and selectivity to O₂^•− [48], which has been widely employed in the design of O₂^•− responsive fluorescent probes by combination with the protection and de-protection strategy and hydroxyl functioned fluorophores [49, 50]. As shown in Fig. 17A, the hydroxyl group of the 1,8-naphthalimide fluorophores was protected by TFMS group, leading to the quenched fluorescence due to the decrease of ICT effect of the probe. After reaction with O₂^•−, the hydroxyl group of 1,8-naphthalimide fluorophore was deprotected, which resulted in strong ICT effect and restoring the strong fluorescence. Based on this reaction mechanism, Zuo et al. first developed an ER-targeted TPE probe (probe 23) for detection of O₂^•− (Fig. 17B) [51]. In the structure of probe 23, the group of naphthlimide is used as an ER-targeted unit, and the fluorophore naphthlimide containing hydroxyl group is selected as fluorescence reporter. Probe 23 itself shows weak fluorescence at 554 nm, while the fluorescence intensity at the same wavelength increased remarkably with the increase of O₂^•− concentrations (0–60 µmol/L). The LOD was determined to be 0.33 µmol/L. Moreover, the probe presents high selectivity to O₂^•− and low cytotoxicity. Cell experiments demonstrated that probe 23 could be used to image ER O₂^•− in living cells visualize the change of O₂^•− levels in DILI diseases.

2.5 Detection of HClO

HClO, a member of the highly ROS family, is generated from the myeloperoxidase (MPO) catalyzed the oxidation reaction between chloride and H₂O₂ _.[52] Typically, HClO regulates the basic functions for immune response in human being during pathogen invasion [53]. However, dysregulation of HCIO in vivo can cause tissue and organ injury, and even some diseases related to neurodegenerative diseases, inflammatory diseases and cancer [54-56]. Therefore, monitoring the fluctuation of HCIO is vital. Generally, selenide can be easily oxidized by HCIO to form selenoxide, which makes the selenide-containing probe display turn-on fluorescence change [57, 58]. Subsequently, the selenoxide can undergo a self-generated syn elimination to produce α, β-unsaturated ketone. Nowadays, this oxidation/elimination tandem reaction has been used to restore the fluorescence of coumarin in HCIO probes [59, 60]. According to this reaction mechanism, Xie's group first designed a two-photon ratio type fluorescence probe Coum-Se (probe 24) for monitoring HCIO [61]. In structure, probe 24 consisted of a coumarin fluorophore and an α-phenylseleno carbonyl moiety, and emitted green fluorescence at 495 nm (Fig. 18). With the addition of HCIO, the initial emission band of probe 24 reduced progressively and a new emission peak emerged at around 618 nm, which was caused by the conversion of probe structure from Coum-Se to Coum-NIR. The fluorescence ratio of I₆₁₈/I₄₉₅ increased with the increasing concentrations of HCIO and gave a good linear relationship between the ratio and HCIO concentrations (0–20 µmol/L, LOD = 4.6 nmol/L). Moreover, probe 24 could be used to visualize of HCIO fluctuation in both live cells and animals.

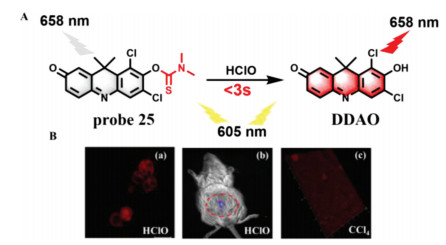

Recently, Deng and co-workers used DDAO (6,8-dichloro-7-hydroxy-9,9-dimethylacridin-2(9H)-one) as a NIR fluorophore and developed a new colorimetric NIR probe (DDAO-CIO) (probe 25) for detection of HClO (Fig. 19A) [62]. Probe 25 itself has almost no fluorescence when the excitation wavelength was set at 605 nm. However, upon reaction with HClO, probe 25 was converted to DDAO, which could emit obvious NIR fluorescence at 658 nm and could selectively image HCIO in biological systems with fast response (less than 3 s) and high sensitivity (LOD = 7.3 nmol/L). As shown in Fig. 19B, probe 25 could real-time monitor the change of HCIO levels in MCF-7 cells and mice. Meanwhile, 3D imaging showed that the fluorescence of mouse liver tissues was significantly enhanced after they treated with CCI₄.

2.6 Detection of H₂O₂

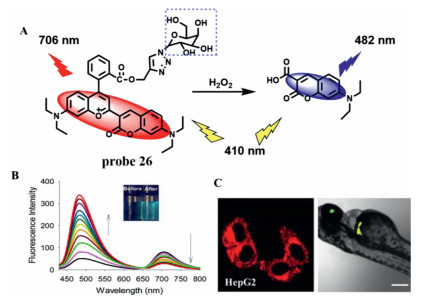

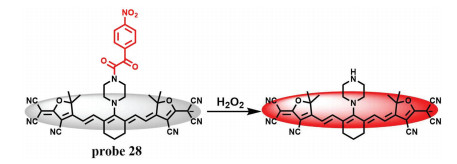

As one of the importance of ROS, H₂O₂ regulates the redox signal in many physiological processes, such as oxidative stress and angiogenesis [63, 64]. In vivo, H₂O₂ is mainly produced in liver by O₂⁻ under the action of peroxidase [65]. The increase of H₂O₂ level will lead to liver damage and necrosis [66]. Therefore, H₂O₂ is often used as an important indicator for evaluation of DILI. In 2020, Jiang's team synthesize a ratio type NIR fluorescence probe (probe 26) for H₂O₂ with galactose as a hepatocyte-targeting group and coumarin pyran as a fluorophore [67]. As expected, probe 26 exhibited NIR emission at 706 nm. With the addition of H₂O₂, the oxidative cracking of probe 26 reduces π-conjugation of the structure, which was accompanied by a blue-shift of fluorescence emission from 706 nm to 482 nm (Fig. 20A). Therefore, a ratiometric fluorescence response toward H₂O₂ (F₄₈₂/F₇₀₆) could obtain large emission shift (224 nm) (Fig. 20B), which led to excellent selectivity and sensitivity. A good linear relationship between the ratio and H₂O₂ concentrations from 1.0 µmol/L to 50.0 µmol/L was obtained and the LOD was estimated to be about 0.33 µmol/L. In addition, probe 26 was used to monitor the up regulation of H₂O₂ during drug-induced hepatotoxicity in HepG2 cells. What's more, probe 26 could precisely target the zebrafish liver and accurately detect the level of H₂O₂ in liver (Fig. 20C).

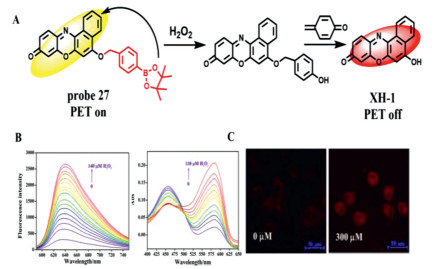

In 2021, Xu's team used borate as the recognition group and XH-1 as the fluorophore to develop a new probe (probe 27) for detecting H₂O₂ with dual signals of fluorescence and colorimetry for the first time (Fig. 21A) [68]. After adding H₂O₂, the strong absorption peak at 455 nm red-shifted to 585 nm, and could be judged by naked eye colorimetry. At the same time, the probe had a weak emission peak at 638 nm (Fig. 21B). With the addition of hydrogen peroxide concentration from 0 µmol/L to 140 µmol/L, the borate group fell off, the PET effect was inhibited, the fluorescence at 638 nm was gradually enhanced, and the LOD was 91 nmol/L. Probe 27 further confirmed its universality by detecting H₂O₂ in serum by spiked recovery experiment and indirectly detecting glucose by fluorescence method. Moreover, probe 27 can not only detect endogenous and exogenous H₂O₂ in HepG2 cells, but also effectively monitor H₂O₂ level during DILI in HepG2 cells (Fig. 21C).

Optoacoustic (OA) imaging can avoid the photon scattering of biological tissue, while NIR imaging has a certain penetration depth and low fluorescence background. The combination of these two imaging methods can better realize the monitoring in vivo. Chen et al. combined photoacoustic imaging and near infrared imaging, and developed a probe (probe 28) for monitoring the changes of H₂O₂ level in the process of DILI induced by isoniazid (INH) [69]. Probe 28 was mainly composed of a tricyanofuran-containing heptamethine as the chromophore and a nitrophenoxyacetamide as the recognition group (Fig. 22). Due to the PET effect between the recognition group and heptamethylamine, probe 28 itself was weak. In the presence of H₂O₂, the absorption peak shifted red from 680 nm to 755 nm, and the fluorescence was enhanced 10 folds at 920 nm. Meanwhile, probe 28 had high sensitivity to H₂O₂ and was not disturbed by related substances. Most importantly, probe 28 can effectively monitor the level of H₂O₂ in the process of INH induced liver injury in mice through NIR imaging and OA imaging, and verify the authenticity and effectiveness of the probe in the monitoring of DILI through histological experiments.

2.7 Detection of ^•OH

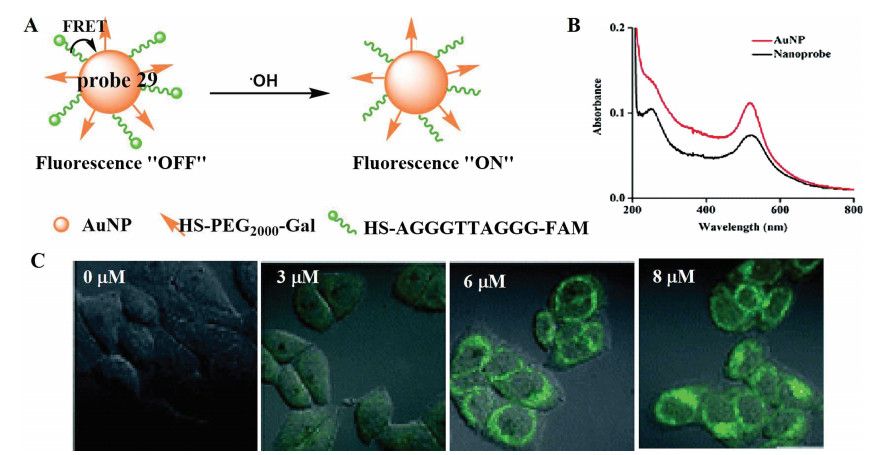

The hydroxyl radical (^•OH) is the strongest oxidant agent among ROS, and excessive exposure of ^•OH not only causes lipid peroxidation and cell membrane damages, but also interacts with different proteins to destroy the functions of receptors and enzymes [70]. More importantly, excessive ^•OH can cause irreversible oxidative damage to DNA [71]. Therefore, it is of clinical significance for preventing the further development of liver injury to detect timely and accurately the level of ^•OH in the process of DILI. Based on FRET effect, Ma et al. combined thiolated single DNA strand labelled with carboxyfuorescein and thiolpoly(ethylene glycol)₂₀₀₀-galactose onto the surface of gold nanoparticles (AuNPs) to develop an ^•OH-responsive and hepatocyte-targeted nanoprobe (probe 29) (Fig. 23A) [72]. Due to FRET effect, the fluorescence of probe 29 at 520 nm was quenched by AuNPs completely. However, when ^•OH was added, the Thymine-Thymine (TT) sequence in DNA strand could be cleaved by ^•OH and then the FAM was released from probe 29, resulting in strong emission at 520 nm (Fig. 23B). Meanwhile, owing to the strong affinity of PEG₂₀₀₀-GAL with asialoglycoprotein receptor (ASGPR)-rich hepatocyte, the fluorescence intensity on hepatocyte membrane increased progressively with the increase of APAP concentrations, as well as incubation time (Fig. 23C). A similar result can be seen in triptolide-induced liver injury. These results demonstrated that probe 29 could be applied to visualize the level of ^•OH during DILI.

2.8 Detection of GSH

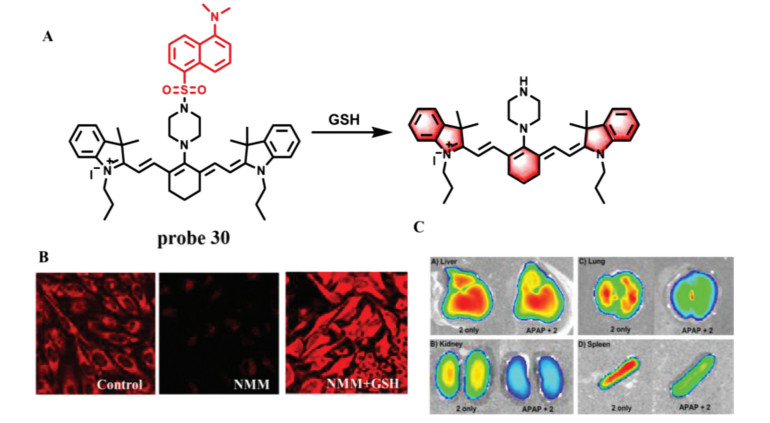

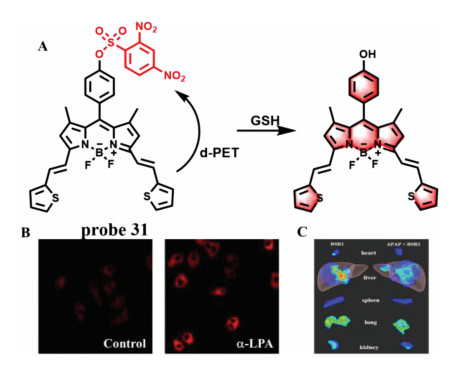

GSH is an important thiol in the organism, which plays a critical role in maintaining redox balance of body. When GSH can not timely combine with a large number of active metabolites generated by overdose of drugs in liver, it will cause serious DILI. Therefore, GSH plays an important role in detoxification. In 2014, Yin group developed a cyanine-based NIR fluorescence probe (probe 30) with high selectivity for GSH and good permeability (Fig. 24A) [73]. The fluorescence was significantly decreased after Hela cells were incubated with N-methylmaleimide (NMM) and probe 30. However, the fluorescence recovered when the cells were treated with GSH. Meanwhile, probe 30 can detect the GSH level in various tissues directly. The fluorescence intensity decreased remarkably in some tissues (such as liver, lung, kidney and spleen) under the stimulation of excessive APAP, indicating that the GSH level in the injured tissues induced by APAP decreased significantly (Figs. 24B and C). Subsequently, Chen's team made a breakthrough in the previous design of probes for detecting GSH based on the strong nucleophilicity of mercaptan. They synthesized successfully a NIR GSH specific fluorescence probe 31 by theoretical calculation [74]. As shown in Fig. 25A, the fluorescence of fluorophore BODIPY derivative was masked by PET effect. However, when probe 31 reacted with GSH, the recognition group was converted to phenol, and thus the fluorescence of probe 31 was restored and enhanced about 45-fold at 663 nm. From titration experiment, the fluorescence intensity of probe 31 had a good linear relationship with GSH concentrations (0–100 µmol/L, LOD = 83 nmol/L). Moreover, the imaging results suggested that probe 31 could not only effectively detect the change of GSH level in NCI-H1975 cells before and after α-LPA treatment (Fig. 25B), but remarkably decreased the fluorescence intensity in the tissues of mice treated with APAP (Fig. 25C), indicating that design concept of probe 31 could not only visually detect GSH fluctuations in cells and tissues, but pave the way for future "trial-and-error" method. However, the response time (20 min) was not conducive to real-time detection of DILI samples.

2.9 Detection of enzymes

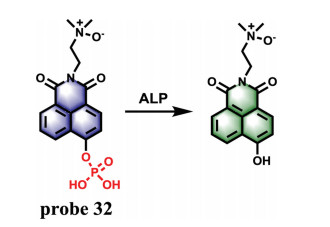

As an essential hydrolase, ALP can hydrolyze specifically phosphate groups. Recent studies have shown that the ALP activity increases dramatically with the emergence of DILI. Although detection of ALP level may cause some inaccuracy in clinical, ALP is still regarded as one of the important markers to evaluate DILI. In 2015, a ratiometric fluorescence probe (probe 32), which was synthesized by adding a phosphate group and an amine-N-oxide group to a 1,8-naphthalimide derivative, was developed for detection of ALP by Hou team (Fig. 26) [75]. Without ALP, probe 32 itself shows a typical emission peak at 468 nm for the naphthalimide substituted with phosphate group. With the addition of ALP, the phosphate group was cleaved into a-OH with stronger electron donating ability, accompanied by a new emission peak at around 554 nm, which was corresponded to the emission of naphthalimide derivatives substituted by −OH at the 4th position. Meanwhile, the emission intensity ratio (F₅₅₄/F₄₆₈) increased with the increase of ALP amount and showed a linear relationship between 0.5 U/L and 5.0 U/L with a LOD of 0.38 U/L. In vivo imaging experiments of zebrafish showed that the fluorescence intensity of probe 32 reached a stable state after incubation of 1 h, and probe 32 was gradually excreted from zebrafish without accumulation after 24 h, indicating that probe 32 had good biocompatibility. The results of drug-induced experiment in zebrafish showed that with the increase of APAP concentration and incubation time, the blue fluorescence intensity decreased progressively and the green fluorescence increased at the same time, suggesting that APAP could obviously give rise to the elevation of ALP level, which resulted from drug-induced organ injury. A similar result can be found in carbon tetrachloride (CCI₄)-induced zebrafish larvae.

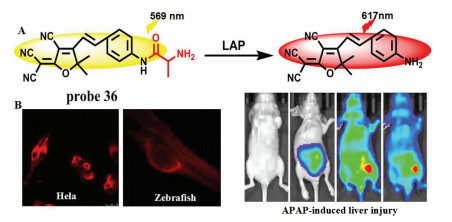

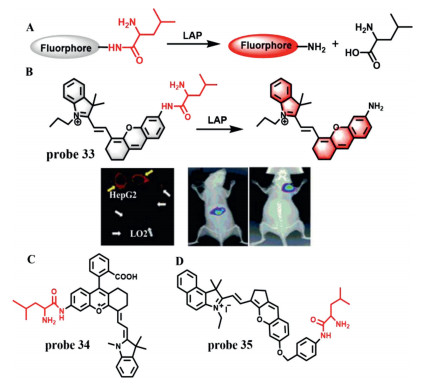

LAP is an essential metallopeptidase, which is closely related to many diseases, such as tumor, kidney injury and liver injury. In recent years, a series of LAP-specific fluorescence probes have been developed for assessment of DILI. According to the ability of LAP to hydrolyze N-terminal leucyl groups (Fig. 27A), He et al. developed a LAP-specific fluorescence probe (HCAL, probe 33), which is synthesized by conjugation of amino group of a NIR hemicyanine (HCA) with carboxyl group of leucine (Fig. 27B) [76]. Probe 33 itself displays a strong absorption peak at 598 nm and rather weak fluorescence. However, after addition of LAP, the absorption peak of probe 33 is red-shifted from 598 nm to 670 nm and fluorescence enhancement appears at 705 nm. There exists a good linear relationship between the fluorescence intensity and LAP concentrations ranging from 1 U/L to 50 U/L. The LOD is found to be 0.19 U/L. Probe 33 can enhance the fluorescence in LO2 and HepG2 cells pre-treated with Ace in a dose- and time-dependent manner, while this enhancement can be inhibited remarkably by bestatin, which indicates that the LAP level is up-regulated in the DILI model. Moreover, the same results were also found in Ace-induced mice and HepG2 tumor xenografted mice. Subsequently, several fluorescence probes with similar reaction mechanism were developed for detection of LAP in DILI, such as probe 34 (Fig. 27C) [21] and probe 35 (Fig. 27D) [77].

In 2021, Yang's team developed a highly selective red fluorescence probe (probe 36) using alanine as the reactive group of LAP for the first time (Fig. 28A) [78]. Probe 36 had strong emission peak at 569 nm. With the addition of LAP concentration from 0 U/L to 50 U/L, the fluorescence intensity at 617 nm gradually increased, and the concentrations of LAP were proportional to the ratio of F_{617 nm}/F_569nm with a LOD of 0.2 U/L. Meanwhile, with good water solubility and cell membrane penetration, probe 36 had been successfully applied to the biological imaging of cells and zebrafish (Fig. 28B), which indicated that probe 36 could monitor the changes of ALP in mouse liver injury model in real time, and become a promising ALP tracer tool.

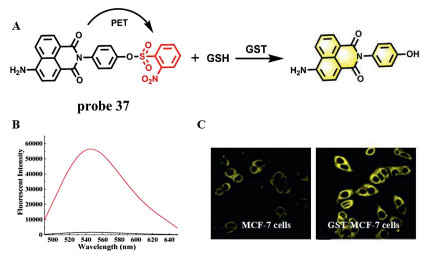

Glutathione S-transferase (GST) mainly exists in the cytoplasm of liver. It can reduce toxicity and promote urinary excretion by catalyzing the binding of GSH with reactive metabolites in liver [79, 80]. When the liver is seriously damaged, GST and GSH will be released from the liver cytosol, resulting in the decrease of the GST activity in liver cytosol [81]. In 2017, Zhang et al. used naphthalimide derivative with efficient TP property as a fluorophore and a 2,4-dinitrobenzenesulfonate group as GST recognition group and fluorescence quencher to synthesize a GST-specific TP fluorescence probe (P-GST, probe 37) (Fig. 29A) [82]. In the absence of GST, the emission of the fluorophore is quenched by 2,4-dinitrobenzenesulfonate group due to PET effect. However, when GST and GSH were present, the GST promoted the sulfhydryl group of GSH to attack the electrophilic moiety on the recognition group, thereby removing the recognition unit from probe 37 and releasing the TP fluorophore, accompanied by a 40-fold fluorescence enhancement at 550 nm (Fig. 29B). The application of probe 37 in living cells and animal model of liver injury showed that probe 37 could be used as a tool for detecting and imaging GST level in cells and DILI samples (Fig. 29C).

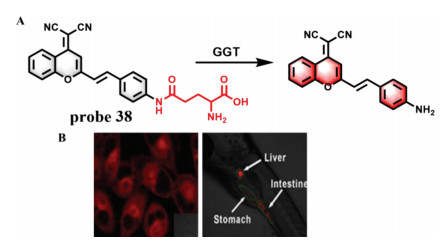

GGT is a kind of protease that binds to cell membrane and regulates intracellular GSH homeostasis. It is reported that the endogenous GGT level can accurately reflect the state of the liver. Therefore, GGT is generally regarded as a preclinical and clinical indicator of DILI and has been attracted great attention [83]. Zhang group designed a TP fluorescence probe 38 by connecting a glutamic acid with a dicyanomethylene-4H-pyran derivative to detect GGT in biological samples with a LOD of 0.057 U/L (Fig. 30A) [84]. The γ-glutamyl amide moiety could be cleaved in the presence of GGT, which led to a large fluorescence enhancement at 635 nm. Interestingly, probe 38 could be used as a potential tool to evaluate the overexpressed level of GGT in DILI samples (Fig. 30B). In addition, considering that carboxylesterase plays a critical role in metabolism of various endogenous substances and detoxification of clinical drugs, two fluorescence probes including probe 39 [85] and probe 40 [86] have been synthesized for detection of carboxylesterase 2 (CES2) and carboxylesterase 1A (CES1A) to evaluate DILI, respectively (Fig. 31).

2.10 Detection of ATP

ATP, as an endogenous danger signal, automatically initiates immune and inflammatory responses when cells are under stress. Based on the advantages of high signal-to-noise ratio and deep penetration of near-infrared two-region fluorescent probe, Ren et al. designed a novel cyanine fluorescent dye (Fig. 32A) [87], which has better photostability and chemical stability than commercial IR1061 and indocyanine green, and has a large stokes shift and anti-solvation effect. At the same time, Ren's team introduced carboxylic acid groups to construct fluorescent dye NIRⅡ-RT4, and rationally designed a series of activated fluorescent probes (probes 41/42/43) by switching structure of spiral rings (Fig. 32B), which are the responses to adenosine triphosphate (ATP), pH and mercury. Here, probe 41 was selected to monitor the process of drug-induced liver injury in real time. The fluorescence intensity of probe 41 at 918 nm increased continuously with the increase of ATP content from 0 mmol/L to 2 mmol/L, and showed a good linear relationship. In addition, probe 41 has high selectivity for ATP. Moreover, when mice were given probe 41 after liver injury induced by APAP, the liver showed obvious fluorescence with the extension of time (Fig. 32C). At the same time, the liver injury induced by CCl₄ is consistent with the above phenomenon. The above phenomena not only confirm that probe 41 can monitor the process of drug liver damage in real time, but also reflect the fluctuation of ATP in the process.

2.11 Detection of two markers

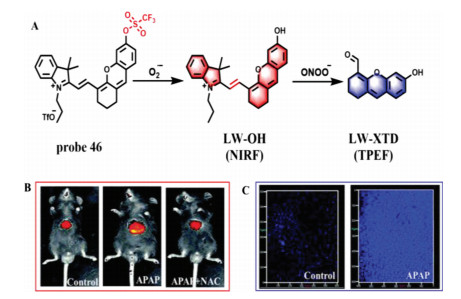

Due to the complexity of sample environment, detection of single marker for evaluation of DILI often results in inevitable errors. To improve the accuracy of DILI detection, a probe to detect multiple markers at the same time is a main direction of DILI probe design. Recently, several probes designed for two markers were developed for evaluation of DILI.

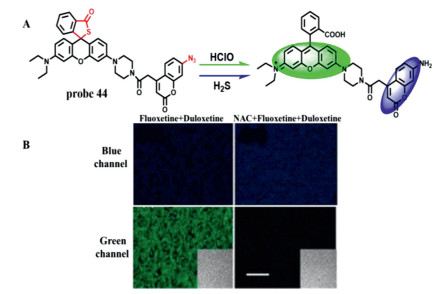

As a kind of ROS, HCIO can remove pathogens in the body and avoid the invasion of external bacteria under normal conditions [88]. However, excessive HCIO will injury organism and tissue damages. Meanwhile, NAC can promote the production of H₂S, which plays an important role in liver injury repair [89]. Therefore, it is of great significance for further investigation of the mechanism of DILI to simultaneously detect HCIO and H₂S. In 2018, a two-photon and double-response fluorescence probe (probe 44) was developed for simultaneous discrimination and imaging of HClO and H₂S based on the reaction mechanism of recognition groups which thiolactone and azido were used to recognize HCIO and H₂S, respectively, as well as to act as fluorescence quenchers [90]. Structurally, a fluorophore rhodamine B had a strong fluorescence emission peak at 580 nm when excited at 545 nm, while the other fluorophore 7-amino coumarin emitted a remarkable fluorescence at 445 nm after being excited with a wavelength of 360 nm, indicating that the signals of H₂S and HCIO did not interfere with each other (Fig. 33A). Probe 44 exhibited excellent selectivity and sensitivity (LOD = 19.8 nmol/L for HCIO and 192.1 nmol/L for H₂S). The imaging results in DILI cells and animal models induced by two drugs (fluoxetine and duloxetine) showed that HCIO was an appropriate indicator of hepatotoxicity induced by antidepressants, and H₂S played a critical role in the detoxification by supplementing NAC (Fig. 33B).

Epidemiological statistics show that liver injury is an early symptom of inflammation and hepatic failure, manifested by excessive oxidative stress and apoptosis. However, DILI is the most common and unpredictable symptom of liver injury. In 2019, Cheng et al. reported a duplex optical probe (probe 45) which possessed two independent optical channels for sensitive and specific detection of O₂^•− and caspase-3 through chemiluminescence (CHL) and NIR fluorescence channels, respectively (Fig. 34A) [91]. With the addition of O₂^•−, the trifluoromethanesulfonate (TFMS) group on probe 45 was cleaved and a CHL dioxetane was released. The CHL intensity was about 40,000-fold stronger than background and the LOD was as low as about 10 nmol/L. After incubation of probe 45 with caspase-3, the peptide segment (Asp-Glu-Val-Asp) was cleaved and a hemicyanine unit (CyU) was generated at the same time, which resulted in about 12-fold NIRF enhancement at 710 nm. In vivo and in vitro imaging results not only confirmed the feasibility of probe 45 imaging of O₂^•− and caspase-3 in living biological samples (Figs. 34B and C), but also revealed the up-regulation of O₂^•− before caspase-3 activation after valproic acid stimulation. However, compared with the high sensitivity of detecting O₂^•−, the sensitivity of probe 45 to detect caspase-3 is relatively low.

Recently, based on the reaction mechanisms that O₂^•− can cleave TFMS, while ONOO⁻ can oxidize the C=C linker of hemicyanine, Wu et al. designed and synthesized a dual-response probe (LW-OTf, probe 46) for in situ imaging of O₂^•− and ONOO⁻ in living cells and mice for the first time (Fig. 35A) [92]. In the presence of O₂^•−, the TFMS group was cleaved from probe 46 to form LW-OH (NIR fluorescence, NIRF) and a 15.6-fold fluorescence enhancement at 710 nm appeared when excited at 675 nm, which resulted in the LOD of 46.5 nmol/L for O₂^•−. Subsequently, with the addition of ONOO⁻, the C=C bond was oxidized to form LW-XTD (two-photon fluorescence, TPEF), which exhibited a strong fluorescence intensity at 461 nm at the excitation of 360 nm. The LOD for ONOO⁻ was calculated to be 38.2 nmol/L. The imaging results of APAP-induced cells showed that probe 46 could monitor the changes of O₂^•− and ONOO⁻ concentration in DILI by NIRF and TPEF, respectively, while both fluorescence channels could be inhibited by tert-butylhydroxyanisole (BHA, a ROS and RNS scavenger). The same results were also obtained in APAP-induced mice, which were confirmed by H & E staining of the liver tissues (Figs. 35B and C).

3 Discussion

Less

It has been reported that since the original version of RUCAM was published in 1993, a total of 95,885 cases (from 1993 to June 30, 2020) with liver injury from all over the world, including 81,856 cases of idiosyncratic DILI and 14,029 cases of herb induced liver injury (HILI), have been evaluated by RUCAM [93]. Nowadays, RUCAM is undoubtedly considered as the most widely used method in clinical to assess causality in idiosyncratic DILI and HILI. However, neither the original version nor the updated version of RUCAM is suitable for the assessment of chronic DILI and HILI, and they were also not applicable to the evaluation of suspected DILI and HILI in patients with existing liver disease. In these two cases, the evaluation of DILI often needs more accurate discussion and assessment by the liver disease expert group, especially in the time of onset and the exclusion of other causes of liver injury. Therefore, it is necessary to develop a more efficient and accurate method to diagnose liver injury directly or as an auxiliary RUCAM evaluation.

Generally, DILI is divided into intrinsic DILI and idiosyncratic DILI. Idiosyncratic DILI is a typical human disease, which can hardly be reproducible in animals [94]. Moreover, the mechanism and key biomarkers of idiosyncratic DILI and HILI are still unclear. Although a few fluorescence probes were designed and applied to detect some markers used in RUCAM, such as ALP and GGT, fluorescent probes for the direct diagnosis of idiosyncratic DILI and HILI have not been reported. Intrinsic DILI is mainly caused by the direct toxicity of drugs or their intermediate metabolites to the liver, which is drug dose-dependent and easy to predict in clinical. More importantly, intrinsic DILI can usually be replicated by taking excessive drugs in animals. In the process of taking drugs, a large number of active substances will be released from the liver. By designing fluorescent probes with high sensitivity and specificity to detect these active substances, intrinsic DILI can be assessed or diagnosed. Therefore, compared with idiosyncratic DILI, fluorescent probe technology is more suitable for clinical evaluation and diagnosis of intrinsic DILI. However, unfortunately, because the pharmaceutical and toxicological studies of these reported probes remain largely undisclosed, the evaluation of intrinsic DILI by these probes has been investigated only in cells and animals, but not in DILI/HILI patients. Of course, we believe that with the further unveiling of DILI/HILI formation mechanism and the continuous maturity of fluorescent probe technology, it is very possible to assess DILI (including idiosyncratic DILI and intrinsic DILI) and HILI with safe, efficient and specific fluorescent probe.

4 Conclusion and perspectives

Less

This review summarized the research advances of fluorescent probes for detection of DILI in experimental studies according to various markers of DILI. We believe that these reported fluorescent probes will promote the further development of DILI detection sensors. However, DILI is a very complex disease. Although the reported fluorescent probes can effectively detect the bioactive markers related to DILI, the research on the detection of DILI by fluorescent probes is still in its infancy. For the subsequent development of DILI labeled fluorescent probes, we would like to put forward the following suggestions: (1) at present, most of fluorescent probes for DILI are single indicator imaging, while development of multi-response probes will be an important research direction in the future; (2) it is very necessary to develop newly fluorescent probes with the characteristics of near infrared, good biocompatibility, excellent photostability, high sensitivity and selectivity, fast response and long imaging time; (3) fluorescent probe should be closely combined with clinical diagnosis, preferably integrated with RUCAM method for the evaluation and diagnosis of DILI and HILI; (4) the probes should be able to investigate the mechanism of DILI and its repair, and provide another platform for screening liver protectors or antidotes; (5) specific ligands or related DNA can be introduced into a new probe to make it easy to internalize in hepatocytes and specifically target a certain organelle, which is more conducive to understanding the occurrence and development of DILI; (6) based on the principle of interorgan network interaction, it is necessary to speed up the development of an early warning probe for DILI; (7) in the detection of markers of DILI, more new imaging technologies, such as fluorescence lifetime imaging, super-resolution imaging and 3D photo-acoustic imaging, can be used.

Declaration of competing interest

Less

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Acknowledgment

Less

This work was supported by National Natural Science Foundation of China (No. U1804136).
