Chlospicenes A and B, cyclopropane cracked lindenane sesquiterpenoid dimers with anti-nonalcoholic steatohepatitis activity from <i>Chloranthus henryi</i>

Chlospicenes A and B, cyclopropane cracked lindenane sesquiterpenoid dimers with anti-nonalcoholic steatohepatitis activity from Chloranthus henryi

PDF

Jixin Li^a^,^b, Zhirong Cui^a, Yongyi Li^a, Chunhua Han^a, Yanqiu Zhang^a, Pengfei Tang^a, Letian Cui^a, Hao Zhang^a, Jun Luo^a^,^*, Lingyi Kong^a^,^*

Chinese Chemical Letters | 2022, 33(9) : 4257 - 4260

Less

Chinese Chemical Letters | 2022, 33(9): 4257-4260

• Communication •

Chlospicenes A and B, cyclopropane cracked lindenane sesquiterpenoid dimers with anti-nonalcoholic steatohepatitis activity from Chloranthus henryi

Full

Jixin Li^a^,^b, Zhirong Cui^a, Yongyi Li^a, Chunhua Han^a, Yanqiu Zhang^a, Pengfei Tang^a, Letian Cui^a, Hao Zhang^a, Jun Luo^a^,^*, Lingyi Kong^a^,^*

Affiliations

^a Jiangsu Key Laboratory of Bioactive Natural Product Research and State Key Laboratory of Natural Medicines, School of Traditional Chinese Pharmacy, China Pharmaceutical University, Nanjing 210009, China

^b School of Pharmacy, Guizhou University of Traditional Chinese Medicine, Guiyang 550025, China

Published: 2022-09-15 doi: 10.1016/j.cclet.2022.01.084

Outline

Abstract

Less

Guided by MS/MS molecular networks strategy, chlospicenes A and B (1 and 2), the first example of cyclopropane moiety cracked lindenane sesquiterpene Michael addition dimers, along with their biogenetic analogues (3 and 4), were targetedly discovered from the roots of Chloranthus henryi. Their structures including absolute configurations were characterized by NMR, ECD and X-ray diffraction analysis. The plausible biogenic pathway speculation indicated that cyclopropylcarbinyl rearrangement may dominate the key crack of cyclopropane moiety. In addition, compounds 1 and 2 showed significant anti-nonalcoholic steatohepatitis (NASH) activity in free fatty acid (FFA)-induced HepG2 cells by decreasing intracellular lipid accumulation.

Key words

Chloranthus henryi. / Lindenane sesquiterpenoid dimer / Molecular networks / Cyclopropylcarbinyl rearrangement / Anti-nonalcoholic steatohepatitis

Cite this Article

Jixin Li, Zhirong Cui, Yongyi Li, Chunhua Han, Yanqiu Zhang, Pengfei Tang, Letian Cui, Hao Zhang, Jun Luo, Lingyi Kong. Chlospicenes A and B, cyclopropane cracked lindenane sesquiterpenoid dimers with anti-nonalcoholic steatohepatitis activity from Chloranthus henryi[J]. Chinese Chemical Letters, 2022 , 33 (9) : 4257 -4260 . DOI: 10.1016/j.cclet.2022.01.084

Full Text

Less

In China, many plants of the genus Chloranthus are used as folk herbal medicines for the treatment of rheumatic arthralgia, traumatic injuries, fractures, neurasthenia, and pulmonary tuberculosis [1]. Lindenane sesquiterpenoids and their polymers, recognized as the characteristic taxonomic symbol of the Chloranthaceae family [2], were the research hotspot of natural products discovery and synthesis [3-6]. An overview of the molecular structures of lindenane sesquiterpenoid dimers (LSDs) reveals that the intermolecular Diels-Alder reaction between Δ^{15(4), 5(6)} and Δ^9′(8′) was the main polymerization mode, and other [4 + 2] cycloaddition, [2 + 2] cycloaddition, [6 + 6] Michael addition or acetalization also lead the diverse carbon skeletons [7]. The highly conjugated lindenane sesquiterpenoids moiety and unique polycyclic structural skeletons of polymers lead to various physiological activities, such as inhibition of tyrosinase [8], inhibition of the expression of cell adhesion molecules [9], rectifier K⁺ current [10]. Our recent experience in the field of LSDs [11-14], discovering unique structures and significant biological activity, indicated that plants from the Chloranthaceae family were the treasury for molecules with unprecedented architectures and interesting biological properties, but must be under the guidance of certain strategies.

With the growing technological advances, molecular networks (MNs) have been becoming a useful strategy that can facilitate the isolation of low-abundant bioactive natural products with specific structural features [15, 16]. Under the guidance of this strategy, the efficient discovery of four lindenane-monoterpene heterodimers from Sarcandra glabra were achieved in our group [13]. Thus, the searching of novel LSDs in Chloranthus henryi [17], was targeted conducted based on MNs. Consequently, chlospicenes A (1) and B (2), two novel lindenane sesquiterpenoid Michael addition dimers with 2, 3-secolindenane moiety, were distinguished from an MNs cluster and targetedly discovered (Figs. 1 and 2). Biogenetically, cyclopropylcarbinyl rearrangement may dominate the key crack of the between C-2 and C-3 bond of cyclopropane moiety. Herein, we report the targeted isolation by MNs, structural elucidation, possible biogenetic pathway, and anti-nonalcoholic steatohepatitis activity of these two novel LSDs.

An MS/MS molecular networking strategy was used to find the potential novel LSDs as our previous research [13, 14]. The portion of CH₂Cl₂ of air-dried roots of C. henryi (4.9 kg) was subjected to silica gel column chromatography to yield six fractions (Fr. A–F), respectively. Then all fractions were profiled by HPLC-HRESI-MS/MS (positive-ion mode) with a full scan and processed on the Global Natural Product Social Molecular Networking (GNPS; www.gnps.ucsd.edu) platform [15, 16]. The metabolites of two nodes of a cluster in fraction B (Fig. 2 and Fig. S5 in Supporting information) were identified as LSDs with Michael addition skeleton cycloshizukaol A (3) and japonicone B (4) by using our isolated references [18, 19]. The above analysis indicated that another two nodes with higher m/z (611.285 and 597.270) may be with attractive structures. Then, the first example of cyclopropane cracked LSDs, chlospicenes A and B (1 and 2), were targeted purified and identified from fraction B.

Chlospicene A (1) was obtained as a triclinic crystal. Its molecular formula of C₃₄H₄₂O₁₀ was established by positive HRESIMS at m/z 633.2675 [M + Na]⁺ (calcd. for 633.2670) and indicated 14 indices of hydrogen deficiency (IHDs). From 1D NMR data (Table 1), two obvious methoxyl signals at δ_H 3.36 and 3.62, key carbonyl signals at δ_C 176.0 and 175.4 and keto-carbonyl signals at δ_C 198.9 and 198.5, along with two oxymethylenes at δ_H 3.70 and 3.58 and two olefin proton at δ_H 7.04 and 6.73 were observed. Combing the above NMR evidence and MS/MS molecular networks implied that compound 1 was possibly an LSD dimer as that of cycloshizukaol A and japonicone B [18-20].

The planar structure of compound 1 was established by interpretation of its 2D NMR spectroscopic data, which resolved the detailed assignments of two lindenane sesquiterpene units (A and B) in the aforementioned. The units A and B were linked via C-15/C-11′ and C-15′/C-11 and forming a 12-membered ring core like cycloshizukaol A was fixed by the key HMBC correlations from H₂-15 to C-11′/C-12′, from H₂-15′ to C-11/C-12, from H₃-13 to C-15′, from H₃-13′ to C-15. Thus, the basic lindenane sesquiterpenoid [6 + 6] Michael addition dimeric skeleton in a 12-membered ring was determined. Interpretation of its ¹H-¹H COSY spectrums revealed three spin-coupling systems of H-1/H₂-2/H-3, H-1′/H₂-2′/H-3′, H₂-1′′/H₃-2′′, as drawn with bold bonds (Fig. 3), including a pairs of specific upfield protons at δ_H 0.31 (H-2′β, q, J = 4.5 Hz)/0.89 (H-2′α, td, J = 8.6, 5.3 Hz) of unit B. The absence of characteristic cyclopropane proton signals for unit A indicated that the structural differences may occur at this moiety. Observed HMBC correlations (Fig. 3) from olefinic H-3 (δ_H 5.90) to C-1 (δ_C 50.1), C-2 (δ_C 67.2), C-4 (δ_C 142.4), C-5 (δ_C 83.9), indicated that the cyclopropane was cracked between C-2 and C-3, and forming ethylated hydroxymethyl branch by the HMBC correlations from H₂-1′′ (δ_H 3.49) to C-2 (δ_C 67.2), and Δ³⁽⁴⁾ double bond. At this stage, the cyclopropane cracked lindenane sesquiterpene Michael addition dimer skeleton of 1 was constructed.

Similar ROESY correlations as those of cycloshizukaol A [18], such as H-1/H-9, H-1′/H-9′, H-2′α/H-3′, indicated that these protons were co-facial and α-oriented. In contrast, the ROESY cross-peaks of H₃-14/H-2 and H₃-14′/H-2′β revealed that CH₃-14 and CH₃-14′ were β-configuration. In conclusion, newly ethylated hydroxymethyl branch (C-2) was adopted as β-orientation. To conform the structure and establish the stereochemistry, the single crystals of 1 were obtained in methanol/water (9:1) system and subjected to an X-ray diffraction experiment with Mu Kα radiation [CCDC number: 2019872, Flack parameter: 0.0(2)]. However, the quality of the crystals is insufficient to determine its absolute configurations, but the ethylated hydroxymethyl branch (C-2) from cracked cyclopropane moiety of unit A was very clear. (Fig. S1 in Supporting information). Subsequently, the absolute configuration of 1 was confirmed as 1R, 5R, 9R, 10S, 11R, 1ʹR, 3ʹS, 9ʹR, 10ʹS, 11ʹR by consistent electronic circular dichroism (ECD) curves between experiment and theoretical calculation (Fig. 4) [21]. Hence, the novel structure of 1 was depicted as shown in Fig. 1.

Chlospicene B (2), a white amorphous powder, was assigned to a molecular formula of C₃₃H₄₀O₁₀ by positive HRESIMS m/z 619.2511 [M + Na]⁺ (calcd. for 619.2514). The MS/MS molecular networks and 1D NMR data (Table 1) displayed that 2 also possesses a 12-membered ring core closely related to 1, together with a cyclopropane cracked. Comparison of the NMR data of 2 with those of 1, the noticeable differences in that the replacement of the ethoxy C-1ʹʹ (δ_C 66.9) and C-2ʹʹ (δ_C 14.7) in 1 with a methoxy C-1ʹʹ (δ_C 58.9) of 2, which was verified by HMBC correlation (Fig. S2 in Supporting information) from H₃–1ʹʹ (δ_H 3.32) to C-2 (δ_C 69.3). The relative configurations of 2 were determined based on analysis of the ROESY spectrum, which is highly similar to 1 (Figs. S1 and S2). The absolute configuration of 2 was also determined as 1R, 5R, 9R, 10S, 11R, 1ʹR, 3ʹS, 9ʹR, 10ʹS, 11ʹR based on the ECD theoretical calculations (Fig. S3 in Supporting information), and completely consistent experimental ECD curves of 1 and 2 (Fig. S4 in Supporting information).

A plausible biogenetic pathway for the formation of cyclopropane cracked sesquiterpenoid dimers 1 and 2 was proposed as shown in Scheme 1. Given the abundant sesquiterpenoid monomer in this genus, chloranthalactone A was considered as the monomeric precursor. First, oxidation of chloranthalactone A initials the biogenetic pathway and affords the intermediates Ⅰ. Subsequently, an intramolecular [6 + 6] cyclization reaction [18, 19] of two molecules Ⅰ produce the 12-membered ring of 3. Alternately, compound 4 might be also derived biogenetically from 3 through oxidation. After the O-cyclization of Δ^{4, 5} in 3, the epoxide cleavage process occurs thus delivering the intermediate Ⅲ, and Ⅲ then undergoes a facile acid-catalyzed dehydration process leading to the unstable intermediate Ⅳ. Finally, a key cyclopropylcarbinyl rearrangement [22] of Ⅳ gives rise to the sesquiterpenoid dimers 1 and 2.

Numerous pieces of evidence have supported the beneficial role of diverse molecular frameworks in treating NASH [23]. Given that these compounds had no cytotoxic activities (Fig. S6 in Supporting information), the anti-NASH (Nonalcoholic steatohepatitis) activities of these compounds were evaluated in free fatty acid (FFA)-induced HepG2 cells model [24]. Oil red O staining was used to detect lipid content in the cells. Quantitative analysis of the staining showed that compounds 1 and 2 might have significant activities at a concentration of 50 µmol/L while compounds 3 and 4 had no effects (Fig. 5A). Furthermore, Bodipy staining showed that lipid droplets deeply decreased in FFA-exposed HepG2 cells after treating with compounds 1 and 2 for 48 h (Fig. 5B). The combined data revealed that chlospicenes A and B (1 and 2) are worthy of further study as potential protective agents against NASH.

In summary, guided by a molecular networking-based strategy, chlospicenes A and B (1 and 2), the first example of cyclopropane cracked sesquiterpenoid dimers fused by a 12-membered ring were rapidly discovered and isolated from the roots of C. henryi. This successful discovery demonstrates the high efficiency of rapidly finding specific novel skeleton natural products through molecular networking-based strategy. The appealing anti-NASH (Nonalcoholic steatohepatitis) activities of chlospicenes A and B (1 and 2) indicated that these kinds of LSDs are worthy of further study as potential protective agents against NASH.

Declaration of competing interest

Less

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Acknowledgments

Less

The authors acknowledge supports from the National Natural Science Foundation of China (No. 32070389), and the "Double First-Class" University Project (No. CPU2018GY08).

References

Less

[1]

Nanjing University of Chinese Medicine, Chinese Traditional Medicine (Zhong Yao Da Ci Dian), Shanghai Science and Technology Press, Shanghai, 1986, pp. 2169–2173.

[2]

Y.H. Ma, X.X. Dou, X.H. Tian, Phytochem. Rev. 19 (2020) 983–1043.

[3]

J.S. Zhou, Q.F. Liu, F.M. Zimbres, et al., Org. Chem. Front. 8 (2021) 1795–1801.

[4]

B. Du, Z.S. Huang, X. Wang, et al., Nat. Commun. 10 (2019) 1892.

[5]

J.L. Wu, Y.S. Lu, B. Tang, X.S. Peng, Nat. Commun. 9 (2018) 4040.

[6]

C.C. Yuan, B. Du, H.P. Deng, Y. Man, B. Liu, Angew. Chem. Int. Ed. 56 (2017) 637–640.

[7]

Y.H. Ma, X.X. Dou, X.H. Tian, Phytochem. Rev. 19 (2020) 983–1043.

[8]

B. Wu, J. Chen, H.B. Qu, Y.Y. Cheng, J. Nat. Prod. 71 (2008) 877–880.

[9]

O.E. Kwon, H.S. Lee, S.W. Lee, et al., J. Ethnopharmacol. 104 (2006) 270–277.

[10]

S.P. Yang, Z.B. Gao, F.D. Wang, et al., Org. Lett. 9 (2007) 903–906.

[11]

J. Chi, W.J. Xu, S.S. Wei, et al., Org. Lett. 21 (2019) 789–792.

[12]

J. Chi, S.S. Wei, H.L. Gao, et al., J. Org. Chem. 84 (2019) 9117–9126.

[13]

Y.Y. Wang, Z.R. Cui, J. Chi, et al., Chin. J. Chem. 39 (2021) 129–136.

[14]

P. Wang, R.J. Li, R.H. Liu, et al., Org. Lett. 18 (2016) 832–835.

[15]

F. Olivon, P.M. Allard, A. Koval, et al., ACS Chem. Biol. 12 (2017) 2644–2651.

[16]

Q.F. He, Z.L. Wu, L.R. Li, et al., Angew. Chem. Int. Ed. 60 (2021) 19609–19613.

[17]

Z.Y. Wu, X.W. Li, Flora of China, Science Press, Beijing, 1982, pp. 83–84.

[18]

J. Kawabata, E. Fukushi, J. Mizutani, Phytochemistry 32 (1993) 1347–1349.

[19]

S.S. Wei, J. Chi, M.M. Zhou, et al., Ind. Crop. Prod. 137 (2019) 367–376.

[20]

H. Yan, X.J. Qin, X.H. Li, et al., Tetrahedron Lett. 60 (2019) 713–717.

[21]

B. Zhen, X.Y. Suo, J. Dang, et al., Chin. Chem. Lett. 32 (2021) 2338–2341.

[22]

J.E. Baldwin. Chem. Rev. 103 (2003) 1197–1212.

[23]

Y.R. Leng, M.H. Zhang, J.G. Luo, H. Zhang, Chin. J. Nat. Med. 19 (2021) 12–27.

[24]

W.L. Wang, X.Q. Liu, M.H. Zhang, et al., Chem. Commun. 56 (2020) 3329–3332.

Appendix

Less

Year 2022 volume 33 Issue 9

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1016/j.cclet.2022.01.084

Receive Date：2021-10-17
Online Date：2025-12-24
Published：2022-09-15

Article Data

Affiliations

History

Received：2021-10-17
Revised：2022-01-25
Accepted：2022-01-27

Affiliations

^b School of Pharmacy, Guizhou University of Traditional Chinese Medicine, Guiyang 550025, China

References

Share

https://castjournals.cast.org.cn/joweb/ccl/EN/10.1016/j.cclet.2022.01.084

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

Fig. 1 The structures of compounds 1–4.

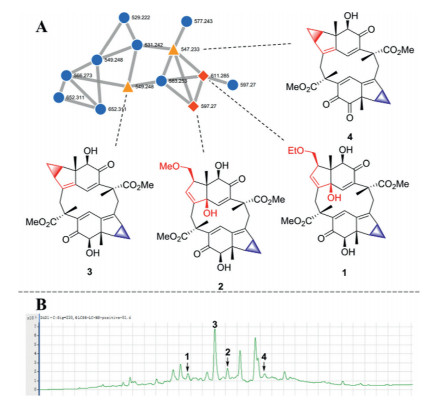

Fig. 2 (A) A cluster for LSDs and structures of compounds 1–4. (B) ESI (+)-TIC full scan mass spectrum of fraction B.

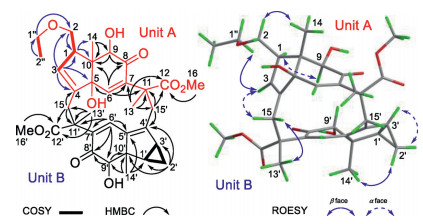

Fig. 3 Key 2D NMR correlations of 1.

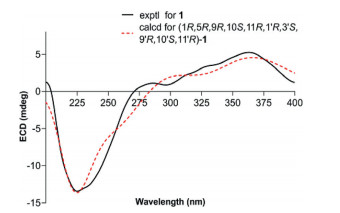

Fig. 4 Experimental and computational ECD spectra of 1.

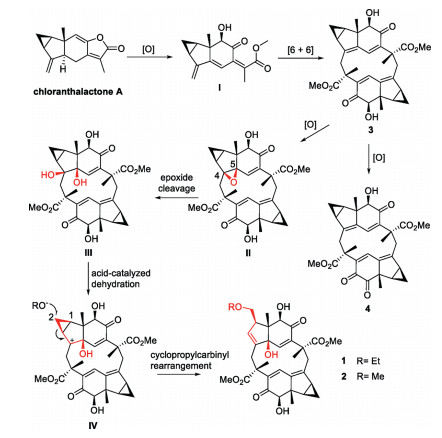

Scheme 1 Proposed biogenetic pathways of 1 and 2.

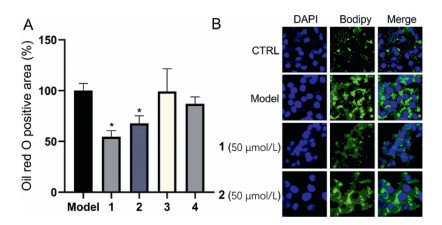

Fig. 5 Anti-NASH screening of selected isolates in FFA-induced HepG2 cells. (A) Effects on reducing intracellular lipid accumulation of 1, 2, 3, and 4. The control group was treated with a blank medium and the model group was treated with 0.25 mmol/L FFA for 48 h. The other groups were treated with 0.25 mmol/L FFA and selected compounds at a concentration of 50 µmol/L for 48 h. The cells were carried out through oil red O staining, eluted with isopropanol, and measured the relative absorbance (n = 3), compared with the model group (*P < 0.05). (B) FFA-exposed HepG2 cells were treated with compounds 1 and 2 at a concentration of 50 µmol/L for 48 h. Bodipy staining (0.5 µmol/L, 30 min) was used to show the lipid droplets in the cells.
