A general cocatalyst strategy for performance enhancement in nickel catalyzed ethylene (co)polymerization
Full
Quan Wang, Zhao Zhang, Chen Zou*, Changle Chen*
Affiliations
  • CAS Key Laboratory of Soft Matter Chemistry, Department of Polymer Science and Engineering, University of Science and Technology of China, Hefei 230026, China
Published: 2022-09-15 doi: 10.1016/j.cclet.2021.12.036
Outline
收藏切换

The tuning of olefin-polymerization catalyst properties through ligand modifications is efficient but requires complicated and costly syntheses. In this contribution, a simple Bu2Mg-based cocatalyst strategy is designed that can simultaneously enhance the catalytic properties (activity, thermal stability, polymer molecular weight, branching density, melting point, etc.) of various nickel catalysts (α-diimine nickel, pyridine imine nickel and iminopyridine-N-oxide nickel) in ethylene polymerization, and enable great product morphology control. For example, a simple α-diimine nickel catalyst can demonstrate polymerization activity of up to 1.29 × 107 g mol−1 h−1 and molecular weight of up to 1.90 × 106 g/mol in the presence of Bu2Mg cocatalyst. The resulting polyethylenes exhibit excellent mechanical properties, with tensile stress of up to 47.4 MPa and strain of up to 1020%. This cocatalyst strategy is generally applicable to different nickel catalysts, and can lead to property enhancement in ethylene copolymerization with a series of polar comonomers such as methyl 10-undecylenate, 10-undecylenic acid and 10-undecenol.

Nickel  /  Cocatalyst  /  Magnesium  /  Ethylene polymerization
Quan Wang, Zhao Zhang, Chen Zou, Changle Chen. A general cocatalyst strategy for performance enhancement in nickel catalyzed ethylene (co)polymerization[J]. Chinese Chemical Letters, 2022 , 33 (9) : 4363 -4366 . DOI: 10.1016/j.cclet.2021.12.036
Full Text
Less
In 1963, Ziegler and Natta won the Nobel Prize for their contributions to olefin polymerization catalysts. More than 50 years later, polyolefins are widely used in both industry and everyday products due to their desirable properties and low cost. The design and development of high-performance catalysts have attracted great attention from both academia and industry [1-16]. Since Brookhart's seminal works on α-diimine catalyst (Scheme 1, A) [17], this catalyst system has been extensively investigated in the past few decades [18-25]. Due to their unique chain walking mechanism, this type of catalysts can prepare polyolefins with branched chain structures and various polymer topologies. However, many of the initially reported α-diimine catalysts suffered from low thermal stability, which prevents their potential industrial applications.
Generally, modifications on ligand steric hindrance and electronic effects can improve important parameters such as activity, thermal stability and polymer molecular weight. For instance, Long and coworkers reported the studies of an α-diimine Ni(Ⅱ) catalyst (Scheme 1, B) containing benzhydryl moiety, which maintained high activity at temperatures up to 100 ℃ [26]. Chen and coworkers studied ligand electronic effect on ethylene polymerization catalyzed by α-diimine nickel(Ⅱ), which can efficiently influence catalytic activity and polyethylene molecular weight [27]. Brookhart, Daugulis and Coates designed a "sandwich-type" α-diimine nickel catalyst (Scheme 1, C) with great properties in ethylene polymerization. These catalysts possess increased axial bulkiness, resulting in lower rates of chain transfer relative to chain propagation rates [28-30].

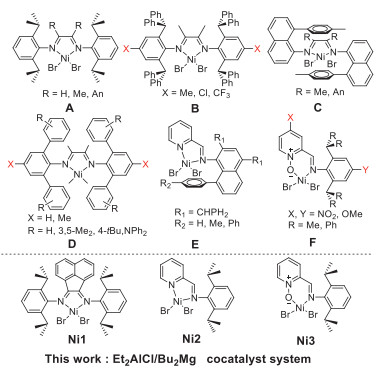

Rieger and coworkers prepared a series of Ni(Ⅱ) catalysts with meta-substituted terphenyl α-diimine ligands (Scheme 1, D), which afforded highly linear polyethylenes [31]. Recently, Jian and coworkers designed a concerted double-layer steric strategy by interlocking the axial spaces around the metal center to form a large blockage, enabling high activity (up to 1.03 × 109 g mol−1h−1) and high polymer molecular weight (Mw = 4.2 × 106 g/mol) [32]. In addition to the developments in α-diimine nickel system, a series of nickel catalysts bearing new ligands have been designed and synthesized. For example, Chen and coworkers prepared a series of iminopyridyl Ni(Ⅱ) catalysts (Scheme 1, E) containing both dibenzhydryl and naphthyl moieties, generating polyethylene with molecular weight of up to one million [33]. Similarly, some iminopyridine-N-oxide nickel catalysts have been demonstrated with great properties in ethylene polymerization (Scheme 1, F). It was shown that the steric hindrance and electronic effect of the ligand can significantly improve the polymerization activity, and ultra-high molecular weight polyethylene with tunable molecular weight distribution can be obtained [34-36].
Modifications on ligand sterics and electronics have been widely used in tuning catalysts properties. However, this usually requires costly and cumbersome ligand/catalyst syntheses. Alternatively, the tuning of catalyst properties through different cocatalyst represents an easy and generally applicable strategy, which has been widely used in early transition metal-based olefin polymerization catalysts [37, 38]. For example, the utilization of boranes [39-42], aluminum alkyls [43, 44] or magnesium salts [45-47] cannot only influence the catalytic performances, but also act as support to modulate product morphology [48, 49]. Product morphology control is a critical issue in polyolefin industry.
However, this cocatalyst strategy has remained largely unexplored in late transition metal-based olefin polymerization catalysts, especially for the purpose of product morphology control [50-56]. In this contribution, we decide to explore the influence of a Et2AlCl/Bu2Mg binary cocatalyst system on a known α-diimine Ni(Ⅱ) catalyst (Scheme 1, Ni1). In addition to significantly improved catalytic activity and polymer molecular weight, this cocatalyst enables great product morphology control. More importantly, this strategy is generally applicable for various late transition metal nickel catalysts such as pyridine imine nickel (Scheme 1, Ni2) [57] and iminopyridine-N-oxide nickel (Scheme 1, Ni3) [58] catalysts.
Similar with literature reports, the activation of classic Ni1 with Et2AlCl catalyzes the polymerization of ethylene (30 ℃, 50 ℃ and 80 ℃) to generate branched polyethylene (the branching densities: 53–79/1000 C) with activities of ca. 106 g mol−1 h−1 (Table 1, entries 1–3). In contrast, the addition of Bu2Mg to Et2AlCl followed by injection of the nickel catalyst can increase the polymerization activity to up to 1.29 × 107 g mol−1 h−1 (Table 1, entries 4–10). The polyethylene molecular weight was increased by an order of magnitude from 1.72 × 105 g/mol to 1.90 × 106 g/mol. The polyethylene branching density was decreased from 53 to 10 per 1000 carbon atoms, along with significantly increased polymer melting point (from 85 ℃ to 129.7 ℃). When the amount of Bu2Mg was increased to be the same as or exceeding the amount of Et2AlCl, the polymerization activity was significantly reduced (Table 1, entries 11 and 12). In another set of control experiment, the addition of Bu2Mg to the nickel catalyst followed by injection of Et2AlCl showed no activity at all (Table 1, entry 13). These results indicated that excessive Bu2Mg may react with the nickel pre-catalyst and deactivate the system. This performance enhancement was amplified at higher polymerization temperatures (Table 1, entries 14 and 15, Fig. S1a in Supporting information). For example, the polymerization activity and molecular weight were increased by 9 and 29 times, respectively, with the addition of 250 equiv. Bu2Mg at 80 ℃ (Table 1, entry 15 vs. entry 3). Moreover, polymerization time dependence studies at 80 ℃ showed that the addition of Bu2Mg can significantly increase catalyst thermal stability (Fig. S1b in Supporting information).
This Bu2Mg-based cocatalyst strategy is also applicable in Ni2 and Ni3 systems. With the addition of Bu2Mg, the polymerization activity of Ni2 was increased by more than 10 times, along with increased polyethylene molecular weight, decreased branching density and increased melting point (Table 1, entries 16–18, Fig. S1c in Supporting information). The polymer molecular weight distribution was increased after adding Bu2Mg, which may be caused by the generation of multiple active centers through interaction of the sterically open ligands with Bu2Mg. With Et2AlCl cocatalyst, Ni3 is not active at all in ethylene polymerization (Table 1, entry 19). However, the addition of Bu2Mg can lead to highly active catalyst (Table 1, entries 20 and 21).
The origin of this interesting Bu2Mg-based cocatalyst strategy was investigated. The addition of Bu2Mg to Et2AlCl could lead to the formation of MgCl2 [47], which serves as an efficiently solid support for nickel catalysts and influences their properties in polymerization. Scanning electron microscope showed the reaction of AlEt2Cl with Bu2Mg led to the formation of discrete particles with diameters of ca. 100 nm (Fig. 1a). The shape of the resulting polyethylene particles replicated that of MgCl2 with average diameters increased to ca. 500 nm at 30 ℃ (Fig. 1b). Importantly, the polymers prepared in the presence of Bu2Mg are in the form of dispersed and non-sticky particles (Fig. 1c). In direct contrast, the absence of Bu2Mg results in the formation of viscous and continuous materials (Fig. 1d). Previously, it has been demonstrated that the supporting of homogeneous nickel catalysts on solid support usually led to increased polymer molecular weight and decreased branching density in ethylene polymerization [50-56]. This is consistent with our experimental results, and support the above-mentioned hypothesis. Most importantly, this simple cocatalyst strategy can prevent reactor fouling through polymer morphology control.
The influence of the Bu2Mg on Ni1 catalyzed ethylene-polar comonomer copolymerization was also investigated (Table 2). Under the current conditions, Ni1 was not able to mediate ethylene copolymerization with methyl 10-undecenoate (Table 2, entry 1). In contrast, the addition of Bu2Mg can enable efficient copolymerization (Table 2, entry 2), affording copolymers with high molecular weight (22.5 × 104) and moderate comonomer incorporation (3.2%). For comonomers of 10-undecylenic acid and 10-undecenol, Bu2Mg can significantly increase copolymer molecular weights, while slightly affect activity and comonomer incorporation (Table 2, entries 4–8). The resulting copolymers are amorphous in the absence of Bu2Mg, while semicrystalline copolymers with high melting points can be generated with the addition of Bu2Mg.

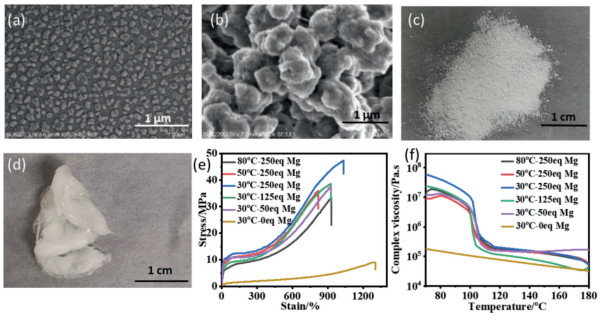

The influence of Bu2Mg on polymer microstructures (molecular weight, branching density, etc.) can translate into influences on physical properties. Tensile tests were carried out to probe the mechanical properties of these polyethylene products (Fig. 1e). In the absence of Bu2Mg, Ni1 generated polyethylene with elastic properties (strength of 8.5 MPa and strain of 1400%). However, the addition of Bu2Mg led to the formation of polyethylenes bearing hard and strong thermoplastic properties, with significantly enhanced tensile strength (33.2–47.4 MPa) and good strain values (830%−1030%). Polyethylene with good mechanical properties can be obtained even at 80 ℃ (sample from Table 1, entry 15). However, only sticky oil product can be obtained in the absence of Bu2Mg. The outstanding mechanical properties of these polyethylenes can be attributed to their low branching density and high molecular weight.
Furthermore, the rheological behaviors of these polyethylenes were studied using flat plate rheometer. The storage modulus (G') and complex viscosity are two important parameters related to polymer rheological and processing properties [59]. The complex viscosity was determined using temperature sweep experiments with Anton Paar MCR302 (plate: 25 mm diameter). The temperature scanning rate was set at 5 ℃/min, and the frequency was set constant at 1.0 Hz (Fig. 1f). When the temperature was increased from 70 ℃ to 180 ℃, the complex viscosities of samples prepared without Bu2Mg (30 ℃, 0 equiv. Bu2Mg, Table 1, entry 1) decreased smoothly, indicating elastic properties. In contrast, a significant step change at approximately 100 ℃ were observed for the samples prepared in the presence of Bu2Mg, which were characteristic of thermoplastics. These results are consistent with the previously mentioned polymer thermal properties and mechanical properties.
In summary, we have developed a simple and effective cocatalyst strategy to enhance the properties of nickel catalysts in ethylene polymerization. In addition to significantly improved activity, thermal stability, polymer molecular weight, greatly reduced branching density and increased melting points, this strategy enables great product morphology control. Moreover, the polyethylene products prepared by this strategy possess good mechanical properties and tunable rheological/processing properties. Similar property enhancement was also observed in ethylene copolymerization with a series of polar comonomers such as methyl 10-undecylenate, 10-undecylenic acid and 10-undecenol. Most importantly, this versatile strategy is generally applicable to different nickel catalyst systems. It is expected that further studies using different cocatalysts and on different late transition metal catalysts could lead to the discovery of superior systems with potentials for practical applications.
Declaration of competing interest
Less
The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.
Acknowledgments
Less
This work was supported by National Key R & D Program of China (No. 2021YFA1501700), National Natural Science Foundation of China (Nos. 52025031, U19B6001 and U1904212) and K. C. Wong Education Foundation.
Supplementary materials
Less
Supplementary material associated with this article can be found, in the online version, at doi:10.1016/j.cclet.2021.12.036
References
Less
[1]
C.L. Chen, Nat. Rev. Chem. 2 (2018) 6–14.
[2]
Y.S. Gao, J.Z. Chen, Y. Wang, et al., Nat. Catal. 2 (2019) 236–242.
[3]
J.M. Eagan, J. Xu, R.D. Girolamo, et al., Science 355 (2017) 814–816.
[4]
H.L. Mu, G.L. Zhou, X.Q. Hu, Z.B. Jian, Coord. Chem. Rev. 435 (2021) 213802.
[5]
S. Behzadi, C. Zou, B.P. Yang, C. Tan, C.L. Chen, Chin. J. Polym. Sci. 39 (2021) 447–454.
[6]
M.H. Xu, C.L. Chen, Sci. Bull. 66 (2021) 1429–1436.
[7]
L. Zhong, H.D. Zheng, C. Du, et al., J. Catal. 384 (2020) 208–217.
[8]
X. Fu, L.J. Zhang, R. Tanaka, T. Shiono, Z.G. Cai, Macromolecules 50 (2017) 9216–9221.
[9]
H. Zhang, C. Zou, H. Zhao, Z.G. Cai, C.L. Chen, Angew. Chem. Int. Ed. 60 (2021) 17446–17451.
[10]
X.L. Wang, Y.P. Zhang, F. Wang, et al., ACS Catal. 11 (2021) 2902–2911.
[11]
S.L.J. Luckham, K. Nozaki, Acc. Chem. Res. 54 (2021) 344–355.
[12]
C. Tan, C.L. Chen, Angew. Chem. Int. Ed. 58 (2019) 7192–7200.
[13]
Z. Chen, M. Brookhart, Acc. Chem. Res. 51 (2018) 1831–1839.
[14]
S. Mecking, M. Schnitte, Acc. Chem. Res. 53 (2020) 2738–2752.
[15]
S.Y. Chen, R.C. Pan, M. Chen, et al., J. Am. Chem. Soc. 143 (2021) 10743–10750.
[16]
M. Stürzel, S. Mihan, R. Mülhaupt, Chem. Rev. 116 (2016) 1398–1433.
[17]
L.K. Johnson, C.M. Killian, M. Brookhart, J. Am. Chem. Soc. 117 (1995) 6414–6415.
[18]
L.K. Johnson, S. Mecking, M. Brookhart, J. Am. Chem. Soc. 118 (1996) 267–268.
[19]
D. Takeuchi, Polym. J. 50 (2018) 573–578.
[20]
F.Z. Wang, C.L. Chen, Polym. Chem. 10 (2019) 2354–2369.
[21]
J.M. Kaiser, B.K. Long, Coord. Chem. Rev. 372 (2018) 141–152.
[22]
D. Peng, C.L. Chen, Angew. Chem. Int. Ed. 60 (2021) 22195–22200.
[23]
G.H. Wang, D. Peng, Y. Sun, C.L. Chen, CCS Chem. 2 (2020) 2025–2034.
[24]
Q. Muhammad, C. Tan, C.L. Chen, Sci. Bull. 65 (2020) 300–307.
[25]
C. Tan, C.L. Chen, Sci. Bull. 65 (2020) 1137–1138.
[26]
J.L. Rhinehart, L.A. Brown, B.K. Long, J. Am. Chem. Soc. 135 (2013) 16316–16319.
[27]
L.H. Guo, S.Y. Dai, C.L. Chen, Polymers 8 (2016) 37.
[28]
D. Zhang, E.T. Nadres, M. Brookhart, O. Daugulis, Organometallics 32 (2013) 5136–5143.
[29]
O. Padilla-Vélez, K.S. O'Connor, A.M. Lapointe, S.N. Macmillan, G.W. Coates, Chem. Commun. 55 (2019) 7607–7610.
[30]
K.S. O'Connor, A. Watts, T. Vaidya, et al., Macromolecules 49 (2016) 6743–6751.
[31]
M. Schmid, R. Eberhardt, M. Klinga, M. Leskelä, B. Rieger, Organometallics 20 (2001) 2321–2330.
[32]
J. Xia, Y.X. Zhang, S.Q. Kou, Z.B. Jian, J. Catal. 390 (2020) 30–36.
[33]
S.Y. Dai, X.L. Sui. C.L. Chen, Chem. Commun. 52 (2016) 9113–9116.
[34]
M.J. Chi, A. Chen, W.M. Pang, C. Tan, C.L. Chen, Chin. J. Chem. 39 (2021) 1683–1689.
[35]
C. Zou, S.Y. Dai, C.L. Chen, Macromolecules 51 (2018) 49–56.
[36]
M. Brasse, J. Cámpora, P. Palma, et al., Organometallics 27 (2008) 4711–4723.
[37]
E.Y. Chen, T.J. Marks, Chem. Rev. 100 (2000) 1391–1434.
[38]
L. Li, M.V. Metz, H. Li, et al., J. Am. Chem. Soc. 124 (2002) 12725–12741.
[39]
T. Nakashima, Y. Nakayama, T. Shiono, R. Tanaka, ACS Catal. 11 (2021) 865–870.
[40]
J.Z. Chen, A. Motta, B.H. Wang, Y.S. Gao, T.J. Marks, Angew. Chem. Int. Ed. 58 (2019) 7030–7034.
[41]
H. Li, L. Li, T.J. Marks, L. Liable-Sands, A.L. Rheingold, J. Am. Chem. Soc. 125 (2003) 10788–10789.
[42]
C.L. Beswick, T.J. Marks, J. Am. Chem. Soc. 122 (2000) 10358–10370.
[43]
W.P. Zheng, A.H. He, C.G. Liu, H.F. Shao, R.G. Wang, Polymer 210 (2020) 122998.
[44]
M.A. Akram, X. Liu, B. Jiang, et al., J. Macromol. Sci. A. 58 (2021) 539–549.
[45]
R. Huang, F. Malizia, G. Pennini, C.E. Koning, J.C. Chadwick, Macromol. Rapid. Comm. 29 (2008) 1732–1738.
[46]
V.A. Tuskaev, S.C. Gagieva, D.A. Kurmaev, et al., Chin. J. Polym. Sci. 37 (2019) 471–477.
[47]
Y.V. Kissin, R.I. Mink, A.J. Brandolini, T.E. Nowlin, J. Polym. Sci. 47 (2009) 3271–3285.
[48]
D. Liu, S.A. Lin, F.M. Zhu, H.Y. Gao, Q. Wu, Polym. Bull. 61 (2008) 71–80.
[49]
Y. Nakayama, H. Bando, Y. Sonobe, et al., J. Catal. 215 (2003) 171-175.
[50]
J.R. Severn, J.C. Chadwick, V.V.A. Castelli, Macromolecules 37 (2004) 6258–6259.
[51]
F. Yu, P. Li, M.L. Xu, et al., Polymer 229 (2021) 124023.
[52]
R.W. Xu, D.B. Liu, S.B. Wang, B.Q. Mao, Macromol. Chem. Phys. 207 (2006) 779–786.
[53]
P. Preishuber-Pflugl, M. Brookhart, Macromolecules 35 (2002) 6074–6076.
[54]
H.S. Schrekker, V. Kotov, P. Preishuber-Pflugl, P. White, M. Brookhart, Macromolecules 39 (2006) 6341–6354.
[55]
M. Okada, Y. Nakayama, T. Shiono, Macromol. Chem. Phys. 215 (2014) 1792–1796.
[56]
T. Liang, S. Goudari, C.L. Chen, Nat. Commun. 11 (2020) 372–380.
[57]
Z. Chen, K.E. Allen, P.S. White, O. Daugulis, M. Brookhart, Organometallics 35 (2016) 1756–1760.
[58]
M. Brasse, J. Caḿpora, P. Palma, E. Álvarez, Organometallics 27 (2008) 4711–4723.
[59]
D.J. Lohse, S.T. Milner, L.J. Fetters, et al., Macromolecules 35 (2002) 3066–3075.
