Malignant tumors are severe diseases in which some cells in the body grow rapidly and uncontrollably and spread to other parts of the body quietly. During the past century, human beings have invested lot of time and money seeking effective therapies for cancer treatment. The subsequent development of surgical treatment, radiotherapy, chemotherapy, and other methods has prolonged the survival time of tumor patients to a certain extent, but still cannot prevent tumor recurrence and transformation. Also, most antitumor drugs are costly. Therefore, it is necessary to develop some new antitumor therapies that effectively prolong patients' survival time and improve patients' quality of life while making them affordable for most people.

With the in-depth study of malignant tumors, we gradually understand the cause of malignant tumors is that some cancer cells escape from the surveillance of the immune system and grow arbitrarily in the body. Therefore, to treat cancer fundamentally, it is necessary to reactive the human natural defense system, the immune system, which can recognize and kill tumor cells while not harming normal cells. Nowadays, some cancer immunotherapies have been developed which induce the tumor specific-immune response of the tumor bearer [1-6]. The tumor vaccine has been one of the hot spots in immunotherapy research in recent years [7-14]. Some preventive tumor vaccines have been marketed and widely used, such as the HPV vaccine (not a vaccine against tumor cells, but a virus vaccine used to eliminate tumor-inducing viruses). However, therapeutic tumor vaccines, which activate T cell-mediated antitumor immune responses in various ways, have been challenging to succeed. The weak immunogenicity of tumor-associated antigen, the low antigen loading efficiency, and an immunosuppressive tumor microenvironment are the main obstacles for developing therapeutic tumor vaccines. The arising of nanomaterials provides many new strategies for the development of tumor vaccines [15-19]. These nano biomaterials can achieve high loading of antigens and adjuvants through electrostatic interactions, hydrophobic interactions, and covalent binding, and realize the enrichment of tumor-associated antigen in lymph nodes according to their special physical or chemical properties [19-21]. In this study, we used graphene oxide (GO), an ideal biological material owing to its unique physiochemical properties [22, 23], as a carrier to load model antigens and immune adjuvants to construct a new type of nano-tumor vaccine. The process of preparing a therapeutic vaccine based on GO-nanocomposite is shown in Fig. 1A. Firstly, we prepared GO-PEI according to our previous work [24, 25]. Then, Ovalbumin (OVA), a model antigen, was combined to GO-PEI through electrostatic interaction because OVA is negatively charged (with a zeta-potential of −2.13 mV) [26] and GO-PEI is positively charged (with a zeta-potential of +55.5 mV) [25]. When the mass ratio of OVA to GO-PEI was 0.9:1, the OVA was hardly detected by the non-denatured polyacrylamide gel electrophoresis, indicating that OVA is almost completely adsorbed to GO-PEI (Fig. 1B). Nanoparticle size was estimated by the dynamic light scattering (DLS). The measured average hydrated particle size of GO-PEI was 63 nm, while GO-PEI-OVA was 143 nm (Fig. 1C). This increase in volume may be due to the accumulation of nanomaterials. Because aggregation is not good for loading drugs, we conjugated polyethylene glycol (PEG) to GO-PEI-OVA, which provides a steric barrier to effectively prevent material aggregation and increase the biocompatibility of nanomaterials [27, 28]. As expected, the measured hydrated particle size of GO-PEI-OVA-PEG was 98 nm, much smaller than that of GO-PEI-OVA, suggesting that PEG effectively prevents nanomaterial aggregation. It had been reported that GO-PEG-PEI has an effect similar to vaccine adjuvants [29], but this ability is not strong enough. Thus, we combined CpG oligonucleotide (ODN), evaluated as an excellent cancer vaccine adjuvant in multiple clinical trials [30, 31], with GO-PEI-OVA-PEG through electrostatic interaction to achieve a better therapeutic effect. As illustrated in Fig. 1D, when the mass ratio of CpG ODN to GO-PEI is 1:1.28, CpG ODN can be adsorbed entirely through agarose gel electrophoresis. Atomic force microscopy (AFM) analysis shows the height increase of GO-PEI-OVA-PEG-CpG nanovaccine compared to GO-PEI (Fig. 1E). The obtained nanovaccine had a hydrodynamic diameter of 186 nm with a zeta-potential of −5.995 mV (Fig. 1F). The reduction in zeta potential is due to the binding of negatively charged OVA and nucleic acid to the positively charged GO-PEI. Moreover, to determine whether it can exist stably under physiological conditions, we investigated the stability of this nanovaccine by storing the nanoparticles in deionized water, PBS, RPMI 1640 medium, and FBS (10%) at 4 ℃. As shown in Fig. 1G, the GO-PEI-OVA-PEG-CpG maintains good dispersibility in these solutions for 30 days, suggesting that the obtained nanovaccine is very stable under physiological conditions.

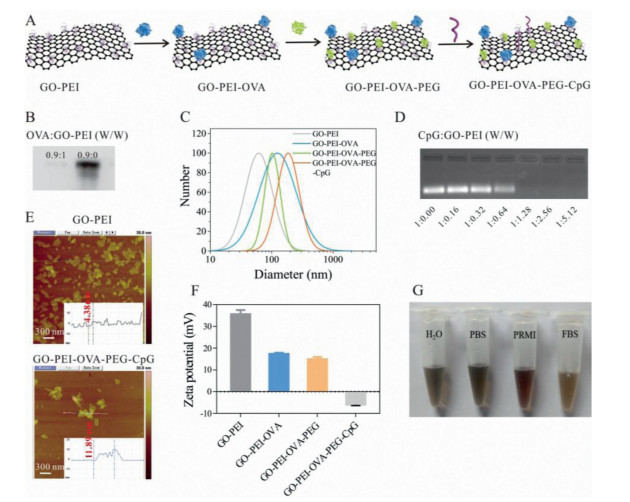

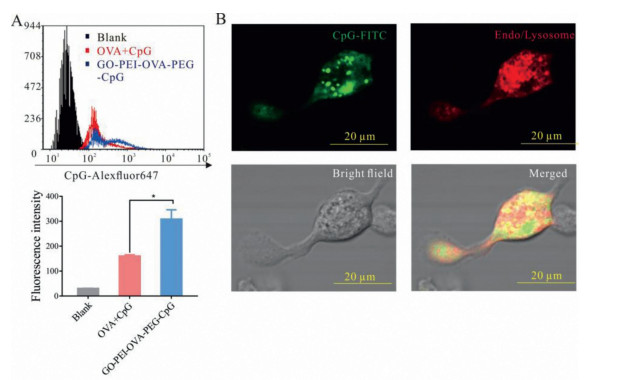

Whether nanomaterials can enter cells is essential for playing their functions in vivo. In general, phagocytic cells, such as macrophages, neutrophils, and DCs, are preferentially take up anionic nanoparticles [32], suggesting that the prepared negatively charged nanovaccine might be more easily taken up by these immune cells. To verify our hypothesis, we investigated the cellular uptake of GO-PEI-OVA-PEG-CpG nanovaccine by using Alexa Fluor 647 labelled-CpG (CpG^{Alexa Fluor 647}). After incubation with GO-PEI-OVA-PEG-CpG^{Alexa Fluor 647} and OVA + CpG^{Alexa Fluor 647} for 12 h, respectively, the fluorescence intensities of Alexa Fluor 647 in CD11c⁺ BMDCs (Bone marrow-derived dendritic cells) were detected. As shown in Fig. 2A, the fluorescence intensity of the GO-PEI-OVA-PEG-CpG^{Alexa Fluor 647} group is twice that of the OVA + CpG^{Alexa Fluor 647} group. These results demonstrated that the CpG ODN, in the form of nanovaccine, is much easier to be taken up by BMDCs than free CpG ODN. In order to further confirm that the nanoparticles are indeed internalized by BMDCs, we observed the intracellular localization of the nanoparticles through a confocal microscope. BMDCs cultured with the GO-PEI-OVA-PEG-CpG ^{Alexa Fluor 647} nanovaccine were fixed, and then imaged after staining with lysosomal dyes to observe the acid lysosomes. As shown in Fig. 2B, most of the nanoparticles are localized in the lysosome (demonstrated by the presence of yellow fluorescence in the merged picture). These results confirmed our hypothesis that the negatively charged GO-PEI-OVA-PEG-CpG nanovaccine could be easily taken up by DCs, and it was finally located in the lysosome.

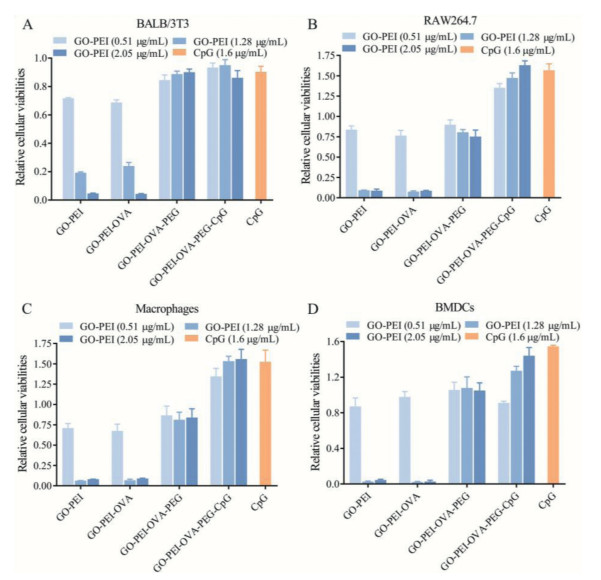

The biosafety of nanomedicine is also very important for clinical use [33, 34]. In this study, mouse fibroblast cells (BALB/3T3 cell line), macrophage-like cells (Raw264.7 cell line), mouse peritoneal macrophages, and BMDCs were used for evaluating the cytotoxicity of GO-PEI-OVA-PEG-CpG nanovaccine by CCK-8 assay. As shown in Figs. 3A-D, the viabilities of all kinds of cells treated with GO-PEI and GO-PEI-OVA decrease with the increase of GO concentration, but the trend is reversed when the cells are incubated with GO-PEI-OVA-PEG and GO-PEI-OVA-PEG-CpG nanovaccine even under the incubation of high concentration. More interesting, it can be observed that the relative cell viabilities of Raw264.7, mouse peritoneal macrophages and BMDCs after incubating with GO-PEI-OVA-PEG-CpG (GO-PEI, 1.6 µg/mL) had risen to 1.63, 1.558 and 1.44, respectively, indicating that GO-PEI-OVA-PEG-CpG nanovaccine can promote the proliferation of antigen presenting cell (APCs).

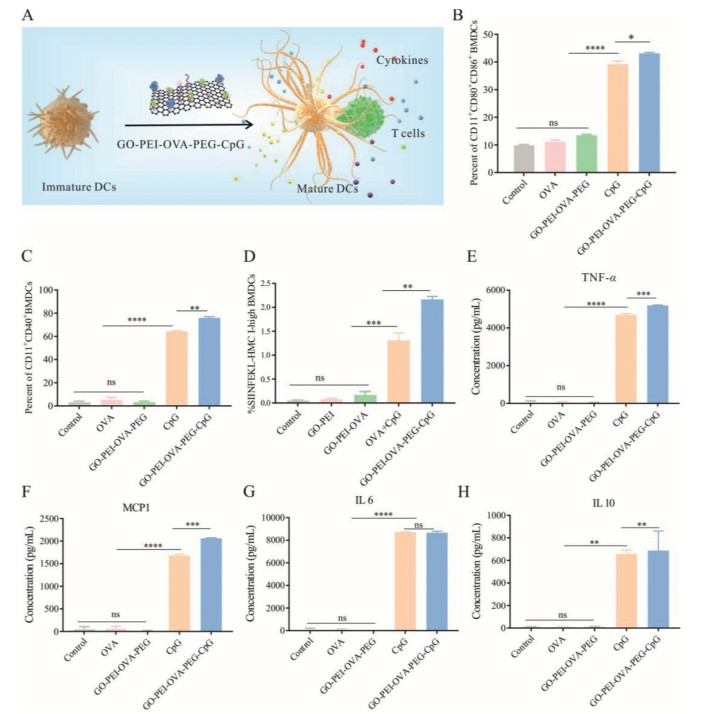

If the immune system is compared to an army, DCs are undoubtedly the potent professional signal soldiers in the army. As illustrated in Fig. 4A, immature DCs will transform into mature DCs after phagocytosing tumor antigens, and then mature DCs present antigen peptides through major histocompatibility complex (MHC) molecules to induce T cell activation and differentiation [35-37]. To clarify whether the prepared nanovaccine can transform the status of DCs from immature into mature, we measured the expression of costimulatory molecules, which will be up-regulated during the maturation of DCs. As shown in Fig. 4B, the percentage of mature BMDCs (CD11c⁺CD80⁺CD86⁺) remarkably increase to 43.11% after treatment with GO-PEI-OVA-PEG-CpG nanovaccine, much higher than those treated with OVA and GO-PEI-OVA-PEG, and slightly higher than those treated by the same dose of CpG (39.1%). Accordingly, the percentage of CD11c⁺CD40⁺ cells increase to 75.9% for GO-PEI-OVA-PEG-CpG treatment (Fig. 4C). Since the interaction between CD40 on dendritic cells and CD154 on T cells leads to T cell activation and CD40 is also thought to lead to the activation of B cells and macrophages [38], the increase in the number of CD11c⁺CD40⁺ cells induced by the nanovaccine may be beneficial to improving the therapeutic effect. These results confirmed that the nanovaccine could effectively induce the maturation of DCs, and the induction effect is more robust than that of single CpG ODN. DCs present antigens to T cells through the MHC-I pathway, which is essential for activating antigen-specific cytotoxic T cells [39, 40]. Therefore, we tested the expression of OVA_257–264 (SIINFEKL) peptide (MHC-I complex on the surface of BMDCs). As illustrated in Fig. 4D, the amount of OVA_257–264 (SIINFEKL) peptide on the surface of BMDC with treatment of GO-PEI-OVA-PEG-CpG is almost twice as much as that with treatment of OVA + CpG group, indicating that GO-PEI-OVA-PEG-CpG nanovaccine can enhance antigen presentation.

We further detected the changes in cytokine secretion of BMDCs induced by GO-PEI-OVA-PEG-CpG nanovaccine. As shown in Figs. 4E-G, after incubation with nanovaccine, the secretion of proinflammatory cytokines, including TNF-α, MCP-1 and IL-6, increases dramatically. And this tendency to stimulate increased secretion of inflammatory factors also appeared in the peritoneal macrophages and RAW264.7 cells incubated with the GO-PEI-OVA-PEG-CpG nanovaccine (Fig. S1 in Supporting information). One of the main functions of IL-6 is to induce the differentiation of CD8⁺ T cells into cytotoxic T cells, so an increase in the concentration of IL-6 in the serum may benefit for enlarging the number of cytotoxic T cells [41]. Although TNF-α as a single drug, produced unsatisfactory results, it produced positive clinical results when combined with IFN-γ, IL-2 or cytotoxic drugs [42]. MCP-1 induces the recruitment and activation of monocytes and macrophages, and it also stimulates the movement of T cells and natural killer cells [43]. Thus, the dramatic increase in the secretion of these cytokines could help the body obtain a strong enough immune response to fight against malignant tumor cells. Moreover, the ability of GO-PEI-OVA-PEG-CpG nanovaccine to stimulate BMDCs to secrete TNF-α and MCP-1 is much stronger than that of free CpG ODN treatment alone. This is probably because CpG ODN as a component of nanovaccine is more easily absorbed by cells than free CpG ODN. The secretion of IL-10, an anti-inflammatory cytokine, somewhat unexpectedly, increased after incubation of the GO-PEI-OVA-PEG-CpG or free CpG ODN (Fig. 4H). This may be caused by the body's protective mechanism. Increased regulatory cytokines can prevent excessive production of pro-inflammatory cytokines which may cause damage to normal cells [44].

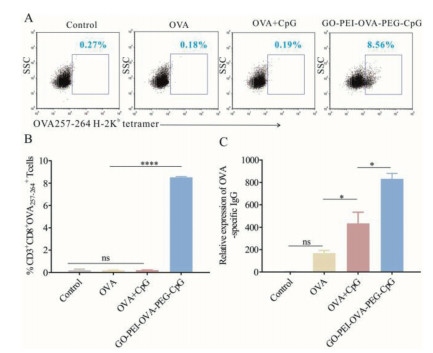

In order to explore whether the GO-PEI-OVA-PEG-CpG nanovaccine can trigger immune response in vivo, OVA, OVA + CpG, GO-PEI-OVA-PEG-CpG nanovaccine were injected into the thigh of C57 mice by intradermal injection (once per week for 2 weeks), respectively. Firstly, we measured the amount of OVA-specific cytotoxic T cells after treatment with OVA alone, OVA with adjuvant, and GO-PEI-OVA-PEG-CpG nanovaccine. The results showed that almost no antigen-specific cytotoxic T cell was detected after treatment with OVA alone or OVA with adjuvant, but a large number of antigen-specific cytotoxic T cells were detected after treatment with GO-PEI-OVA-PEG-CpG nanovaccine (Figs. 5A and B), indicating that the mature DCs activated by the nanovaccine effectively present antigen to T cells which generate OVA257–264-specific CD8⁺ T cells. Antigen-specific IgG plays an essential role in immunotherapy. Secondly, we tested the relative concentration of antigen-specific IgG expression in the serum of mice after each treatment. The results showed that the relative expression of antigen-specific IgG in mouse serum after GO-PEI-OVA-PEG-CpG treatment was 5 times and 2.5 times of that after OVA treatment or OVA + CpG treatment (Fig. 5C). From the above results, we concluded that GO-PEI-OVA-PEG-CpG nanovaccine could lead to a strong cell and humoral immune responses.

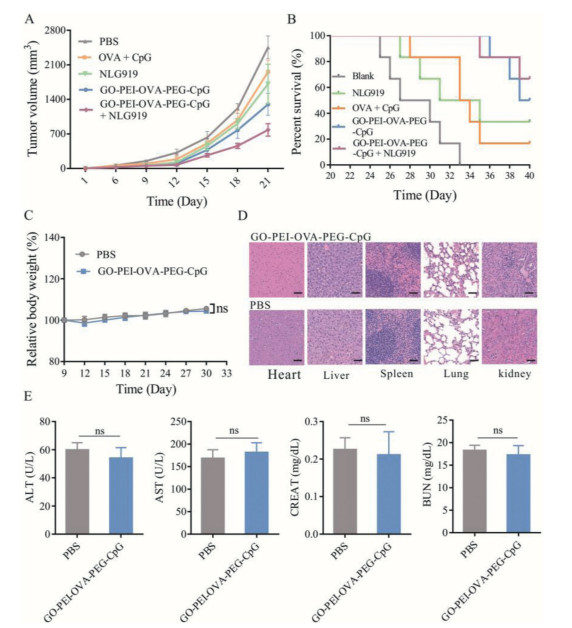

The in vivo antitumor performance of GO-PEI-OVA-PEG-CpG nanovaccine was evaluated by using murine melanoma tumor model. Animal experiments in this study were approved by the Animal Ethics Committee of Hainan Medical University. Considering that the immunosuppressive microenvironment may affect the antitumor function of nano-vaccine, we planned to combine drugs that can reverse the immune microenvironment to treat tumors cooperatively. In this study, NLG919, an IDO-1 (indoleamine-2,3-dioxygenase) inhibitor, which specifically blocks IDO-trigged T-cell suppression and restores a strong T-cell response [4, 45, 46], was selected to synergistically improve the effects of GO-PEI-OVA-PEG-CpG nanovaccine on melanoma-bearing mice. C57 mice were inoculated with B16-OVA cells and divided into 5 groups randomly with 6 individuals in each group: (1) control (PBS-treated) group; (2) OVA+CpG-treated group; (3) NLG919-treated group; (4) GO-PEI-OVA-PEG-CpG-treated group; (5) GO-PEI-OVA-PEG-CpG + NLG919-treated group. As shown in Fig. 6A, the average tumor volume of nanovaccine-treated group is obviously lower than those of the PBS-treated group and OVA + CpG-treated group, suggesting that the GO-PEI-OVA-PEG-CpG nanovaccine could significantly inhibit tumor growth. And the smallest tumor average volume is observed in the combination therapy group, indicating that GO-PEI-OVA-PEG-CpG nanovaccine combined with the NLG919 displayed synergistic antitumor effects superior to nanovaccine-treatment alone. Moreover, the survival curve also showed the same trend. The data showed that nanovaccine therapy or combination therapy can significantly extend the survival time of B16-OVA-bearing C57 mice (more than 50% of the mice were alive within 40 days). Instead, all mice in the control (PBS-treated) group and the vast majority (83.3%) of the mice treated with OVA + CpG died within 40 days (Fig. 6B). The effect of NLG919 treatment alone was not good either, only 33.3% of mice survived within 40 days (Fig. 6B). These results confirmed our hypothesis that the drugs which can improve the immunosuppressive tumor microenvironment could effectively improve the antitumor efficacy of GO-PEI-OVA-PEG-CpG nanovaccine.

The earlier cell experiments confirmed that the nanovaccine has no cytotoxicity. To further study whether the GO-PEI-OVA-PEG-CpG nanovaccine had a toxic and side effects in vivo, we observed survival status and monitor the changes of body weight of C57 mice for 30 days. The mice with the treatment of nanovaccine were all alive during one month observation period without abnormal reactions. As shown in Fig. 6C, there is no difference between the PBS-treated group and the GO-PEI-OVA-PEG-CpG-treated group in terms of the relative weight. Tissue section images also showed that main organs were not damaged after GO-PEI-OVA-PEG-CpG treatment (Fig. 6D). Moreover, after treatment of nanovaccine, the biochemical indicators of mice including, alanine aminotransferase (ALT), aspartate aminotransferase (AST), creatinine (CREA), and urea nitrogen (BUN), had no significant changes, proving that the GO-PEI-OVA-PEG-CpG nanovaccine has no obvious side effects on liver and kidney functions (Fig. 6E). The above results proved that the GO-PEI-OVA-PEG-CpG nanovaccine has good biosafety.

In summary, we developed a novel graphene oxide-based nanovaccine, GO-PEI-OVA-PEG-CpG. In vitro experiment proved that the nanovaccine is easily taken up by BMDCs, stimulates the maturation of BMDCs, and induces BMDCs and macrophages (peritoneal macrophages and Raw264.7 cells) to secrete a large amount of proinflammatory cytokines. In vivo experiments indicated that the GO-PEI-OVA-PEG-CpG nanovaccine can effectively induce DC maturation and activated DCs effectively present antigen to lymphocytes to generate OVA257–264-specific CD8⁺ T cells and OVA-specific IgG. Moreover, GO-PEI-OVA-PEG-CpG nanovaccine exhibited good biosafety and evident antitumor activity in vivo, which can effectively inhibit tumor growth and prolong the survival time of mice. And the prepared vaccine could achieve a better therapeutic effect when it is combined with NLG919.
