Tunable superstructures constructed by low-molecular weight building blocks have attracted considerable attention due to their wide range of applications in catalysis, biological functions, silica superstructures and so on [1-5]. The development of supramolecular chemistry provides an effective strategy for the construction of versatile superstructures which are responsive to various stimuli, such as light, temperature, pH, solvents and metal ions [6-11]. One general design strategy for the construction of stimuli-responsive superstructures is the introduction of photo-responsive building blocks such as azobenzene, vinylene, coumarin and diarylethene [12-15]. Coumarin as a weakly toxic dye can be extracted from many plants and plays an important role in the research of reversible photodimerization, biomaterials, electro-optical materials [16-21], but their potential application in the construction of superstructures has been rarely investigated. Aida et al. reported graphitic nanotubes with a photo stitching capability based on a novel coumarin-appended amphiphilic hexaperi-hexabenzocoronene [22]. Feng et al. constructed chiral nanoribbons which can curve and grow into higher ordered hollow microstructures by the co-assembly of chiral phenylalanine and achiral coumarin derivatives [23]. Zhang et al. reported macroscalar helices based on the co-assembly of temperature-responsive coumarin modified carbohydrate and 1, 4-benzenediboronic acid [24]. On the other hand, crown ethers with hydrophilic ether oxygen chain and hydrophobic aromatic ring were always used to construct various superstructures with specific functions [25]. Fenniri et al. reported multichannel rosette nanotubes constructed by the entropically driven hierarchical self-assembly of cytosine modified crown ethers [26, 27]. Shinkai et al. reported multilayered spherical, helical ribbon and tubular structures of silica with an application in metal-deposition for catalyst based on crown-appended cholesterol derivatives [4, 28-30]. Nolte et al. tuned the chirality of helical fibers of phthalocyanine ring attached four crown ethers by adding K⁺ ions [31]. Recently, we reported a snowflake-like clockwise helical assembly with photo-controlled chirality based on azobenzene bridged crown ether [32]. We also reported a nanosheet constructed by the assembly of sulfonated crown ether and diphenylalanine [33]. Here in, we synthesized a coumarin-12-crown-4 (1) with highly selective [2 + 2] cycloaddition of the coumarin groups to yield the anti-head-to-head dimer (anti-HH-1) and syn-head-to-head dimer (syn-HH-1) with a ratio of 10.8:1 (Fig. 1). Then we constructed a system with tunable superstructures based on the reversible photodimerization and photocleavage of 1 (Scheme 1). It is the first application of photo controlled multiple building blocks based on a coumarin derivative in the construction of tunable superstructures, to the best of our knowledge.

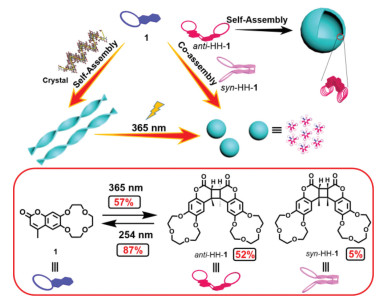

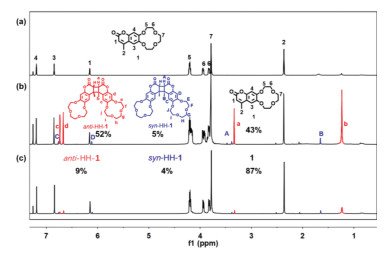

Brief synthetic route, compound characterization and assignment of protons for 1 are shown in Scheme S1 and Figs. S1-S3 (Supporting information). Single crystals of 1 were obtained by slow vapor diffusion of ethyl ether into the dichloromethane solution of 1. The crystal structure of 1 was determined by single-crystal X-ray diffraction that revealed the coumarins adopt a head-to-head parallel arrangement. The distances between two adjacent C=C bonds are in the range from 3.63 Å to 3.76 Å, which are shorter than the favourable distance (4.7 Å) for the [2 + 2] dimerization (Fig. S17 in Supporting information) [34, 35]. The well-preoriented coumarins not only favor dimerization of two adjacent 1 molecules, but also preferentially yield head-to-head dimers. Naturally, four cycloaddition isomers can be formed during the photodimerization process of coumarin as shown in Scheme S2 (Supporting information): syn-head-to head (syn-HH), anti-head-to-head (anti-HH), syn-head-to-tail (syn-HT), anti-head-to-tail (anti-HT) [36]. Considering these information, the photoreaction of 1 was characterized by ¹H NMR, UV–vis, fluorescence and ESI-MS. When a chloroform-d solution of 1 was irradiated by a lamp (365 nm, 2 × 6 W) in a quartz tube, a light yellow solution was obtained as the reaction proceeded. ¹H NMR spectra were first used to monitor the photoreaction process. With the increase of irradiation time, the peaks related to the protons (H₁, H₂, H₃ and H₄) of 1 decreased and two sets of upfield shifted peaks (H_a, H_b, H_c and H_d; H_A, H_B, H_C and H_D) appeared and increased gradually which were attributed to the [2 + 2] photodimerization of 1 (Fig. 1b and Scheme 1). The stereochemistry of the photoproducts was identified by either comparing the aromatic proton resonances (H_c, H_d, H_C and H_D) [37] or the crystal structure of monomer. The almost identical ¹H NMR spectra which were measured after irradiation with 365 nm light for 8.5 h and 9 h respectively, indicated the photodimerization of 1 was complete after the irradiation of 8.5 h. According to the relative integrals of the protons, the ratio of 1, anti-HH-1 and syn-HH-1 was calculated to be 43:52:5 in the photostationary state (PSS). Further irradiation with 254 nm light for 80 h, the ¹H NMR spectra indicated 87% conversion of the photoreaction products into 1 monomer (Fig. 1c). Electrospray ionization mass spectrometry (ESI-MS) provided further evidence for the formation of the intermolecular [2 + 2] cycloadduct (Fig. S4 in Supporting information, m/z 635.2103 for [(1 dimer + Na⁺)]⁺). To further confirm the formation of anti-HH-1 and syn-HH-1, we separated the photoproducts of 1 in chloroform and obtained three compounds (1, anti-HH-1 and syn-HH-1). The photoreaction route, compound characterization and assignment of protons for anti-HH-1 and syn-HH-1 are shown in Scheme 1 and Figs. S5-S12 (Supporting information).

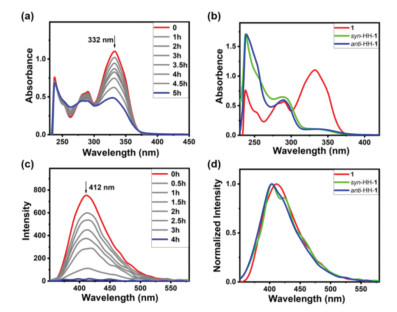

UV–vis absorption spectra and fluorescence spectra were also used to trace the photodimerization process of 1. A chloroform solution of 1 was subjected to the irradiation with 365 nm light when the absorption and fluorescence were detected at 0.5 h or 1 h intervals (Figs. 2a and c). With the irradiation, the absorption peak of the coumarin monomer at 332 nm decreases gradually which means the formation of single bonds between cyclobutane (Fig. 2a) [34, 38, 39]. With the irradiation time increased from 0 to 5 h, the absorbance intensity at 332 nm decreased and achieved PSS. Further irradiation caused a collapse of the UV–vis curve due to the photobleaching. For fluorescence spectra, the emission at 412 nm decreased gradually until quenching with the increasing irradiation time of 365 nm light. As shown in Fig. 2b, the UV–vis spectrum of 1 showed two sharp peaks at 238 nm, 332 nm and one double peaks at 281 nm, 290 nm. The UV–vis spectra of anti-HH-1 and syn-HH-1 showed only two sharp peaks at 238 nm and 289 nm. Fig. 2d showed the fluorescence emission spectra of 1, anti-HH-1 and syn-HH-1. A strong fluorescence emission peak was detected at 413 nm in the chloroform solution of 1. While both anti-HH-1 and syn-HH-1 show a slightly blue-shift peak at 411 nm and a shoulder peak at 434 nm only appeared in the spectrum of syn-HH-1. The fluorescence excitation spectra of 1, anti-HH-1 and syn-HH-1 were shown in Fig. S14 (Supporting information), and the corresponding fluorescence quantum yields are 24.8%, 13.5% and 16.2%, respectively (Fig. S15 in Supporting information).

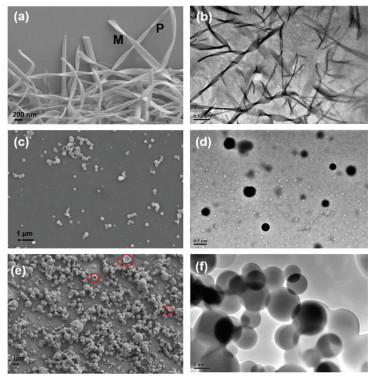

Further, we explored the morphological information of the photo-controlled building blocks based on 1. Firstly, the morphologies of 1 were examined by scanning electron microscope (SEM) and transmission electron microscopy (TEM) shown in Fig. 3 and Fig. S18 (Supporting information). A network composed of helical belts with one or two hundred nanometers wide, nanoscale thickness and microscale length (Figs. 3a and b). In the course of assembly, nanobelts with chiral P type mixed with few M types were constructed simultaneously (Fig. 3a). The above results indicate that there is asymmetric stacking during the period of self-assembly progress. Further, we explored the self-assembly behaviors of 1 in acetonitrile with different concentration. And found that the higher concentration of 1 lead to more helical belts (Fig. S18). The photo-controlled transformation of nanostructures was investigated by SEM and TEM images. The photodimerization of 1 leads to morphological variation from helical belts to nanoballs with diameter about hundreds of nanometers (Figs. 3c and d). It can be considered as the co-assembly of three building blocks (1, anti-HH-1 and syn-HH-1). To further investigate the process, the TEM image of halftime irradiated solution of 1 was given in Fig. S13 and showed both helical nanobelts and nanoballs. We think the morphological changes from helixes to nanoballs were due to the transition from self-assembly of 1 to the co-assembly of the photoproducts. As displayed in Fig. S16 (Supporting information), the XRD spectra of 1, photoproducts of 1 and anti-HH-1 all showed sharp peaks, implying that the assemblies are ordered.

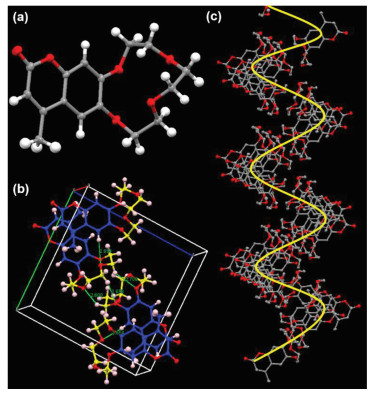

Since the self-assembly of achiral molecule 1 shows macroscopic helical property, it is essential to figure out the origin of chirality in nanobelts. Molecular structure and packing model of 1 were determined by single-crystal X-ray diffraction analysis. Single crystal superstructure, unit cell, and related crystal data of 1 are shown in Fig. 4 and Supporting information, respectively. Each molecule interacts with four neighboring ones through seven C‒H···O interactions with distances ranging from 2.51 to 3.37 Å (Fig. 4b and Fig. S17 in Supporting information). In the solid-state superstructure, 1 assembles into a right-handed helix due to the intermolecular asymmetrical hydrogen bonds and π-π stacking. After the irradiation with 365 nm light, the photodimerization of 1 occurs accompanying with the formation of two new building blocks (anti-HH-1 and syn-HH-1). Further to find out the possible molecular packing model after the irradiation with 365 nm light, we optimized molecular structures of anti-HH-1 and syn-HH-1 (Fig. S20 in Supporting information) by Gaussian 09 W. The two coumarins of anti-HH-1 are not parallel to each other with a little skewing which may make a curve to the whole packing system of three building blocks. The coumarin groups of three building blocks folded by π-π stacking with ether oxygen chains outside. Due to the un-parallel aromatic ring of anti-HH-1, nanoballs with increased curvature compared to nanobelts were obtained. We have got the pure anti-HH-1 through the photoreaction of 1 and purified by silica gel column chromatography. The self-assembly of anti-HH-1 generated hollow balls with micrometers in diameter which were observed by TEM and SEM (Figs. 3e and f). A careful analysis of the SEM images which showed several ruptured microstructures (marked by red circle) and holes on the surface of these microstructures well illustrates the hollow interiors of balls (Fig. 3e and Fig. S19 in Supporting information) [40, 41]. The possible molecular packing model of anti-HH-1 was optimized and shown in Fig. S19c. The torison of coumarin after dimerization may caused the slight curvature which lead to a vesicle on the micron scale.

In summary, we designed and synthesized a coumarin derivative 1, and found that 1 shows regio- and stereo-selected photodimerization to producing only head-to-head coumarin isomers (anti-HH-1 and syn-HH-1 with a ratio of 10.8:1) under the irradiation of 365 nm light due to the preorientation of the coumarins. And this coumarin derivative was utilized as photocontrolled reversible multiple building blocks with similar structures to construct photo-tunable superstructures which works like a game of 3D Tetris. The self-assembly of 1 formed a network consisted helical nanobelts which in accordance with the stacking model of single crystal of 1. After the irradiation of 365 nm light, it turns to nanoballs as a result of the co-assembly of 1, syn-HH-1 and anti-HH-1. Further, we find the self-assembly of pure anti-HH-1 form hollow micro-balls. This work explored the relationship between molecular structures and properties, provide new strategy for the construction of supramolecular functional materials.
