Hydrogen is an environmentally friendly, climatically clean, and renewable energy source throughout its conversion chain from production to employment [1, 2]. The electrolytic water splitting has been considered a highly sustainable pathway to producing hydrogen as an ideal future energy carrier [3]. However, the hydrogen evolution reaction (HER) necessitates an effective catalytic electrode, such as the noble metal platinum (Pt) [4, 5]. Its high prices and resource scarcity hinder the upscaling of hydrogen production [6]. Thus, it is urgent to remove these restrictions to enable hydrogen favorite by future energies [7].

With the goal of searching for alternatives to precious metal catalytic electrodes, considerable efforts have been made to investigating non-noble metal catalysts [8, 9], namely metal sulfides [10, 11], metal selenides [12], metal carbides [13], metal nitrides [14], metal phosphides [15], and heteroatom-doped nanocarbon [16]. In particular, molybdenum disulfide (MoS₂) is a cheap, geographically ubiquitous compound with layered structures connect up by weak van der Waals forces in the form of stacked S-Mo-S layers [17-19]. Density functional theory (DFT) calculations show that the edge of 2H phase MoS₂ has a high chemisorption capacity for hydrogen due to the synergistic effect of the Mo-S site, which is similar to the adsorption capacity of Pt for hydrogen [17, 20, 21]. However, all the factors that low active site density, poor reactivity, poor conductivity, and inefficient electrical contact between electrode and electrolyte may limit the catalytic activity of MoS₂. In general, for the MoS₂-based materials, two principles are used in getting a better catalytic performance: one is to raise the relative amount of the metallic 1T-phase MoS_2, thus improve the entire active site density [22]; another principle is to engineer various highly reactive MoS₂ nanostructures onto conductive substrates. Although many methods improve their HER catalytic activity, the gap between MoS₂-based and Pt-based catalytic electrodes still needs to be narrowed.

Besides, up to date, no literature reports detailed the mechanism underlying the influence of surface mass transfer behavior of MoS₂-based catalytic electrodes on catalytic efficiency. Indeed, because electrochemical reactions occur mainly at the solid (electrode)/liquid (electrolyte)/gas (hydrogen) interface, with gas evolution, even with a terrific catalytic electrode, the electrode surface under the electrolyte is easy to be attached by bubbles. It easily results in impeding electrolyte diffusion, causing more Ohmic drops, and creating electrode surface dead areas, ultimately the mass transfer is blocked, and the performance is destroyed [23, 24]. In industrial production, although the forced electrolyte convection or heating can induce ultra-gravity [25], which can promote bubble separation to a certain extent, the cost is still too high. Hence, a matter of concern is removing bubbles on the surface of the catalytic electrode naturally and easily. Nevertheless, in the process of electrochemical reaction, the connection between solid, liquid, and gas is often ignored [26], although the field of electrochemistry has been established as early as the 19^th century, and the subject of electrode surface engineering has a long history. Specifically, on the microscale, the influence mechanism of the solid/liquid/gas three-phase interface behavior, in other words, the gas-liquid mass transfer at the solid phase surface, on the HER efficiency, is not yet clearly understood.

In this work, a catalytic electrode of carbon fiber paper (CFP) with 1T-2H MoS₂ nanosheets (as a uniform "cloak") is fabricated, and deep insight into three-phase interface behaviors in the HER process is presented. Herein, two phenomena are found in three-phase interface behaviors: rapid gas-liquid mass transfer at the catalytic electrode interface can enhance the reaction stability; the other is that the behavior of capillarity can increase the working area of the catalytic electrode. Furthermore, a real scene of the prepared MoS₂-based non-noble metal catalytic electrode could substitute the Pt-based catalytic electrode promisingly by unique three-interface behaviors is disclosed. Besides, some fascinating issues are also discussed, such as the potential factors of the coexistence of the 1T and 2H phase of MoS₂, the source of the excellent hydrophilicity of the prepared MoS₂-based catalytic electrode surface, and the relationship between the hydrophilicity of the electrode surface and the gas-liquid mass transfer behavior at the three-phase interface. The investigation results further support the perspective that the behavior of the three-phase mass transfer is one of the non-negligible factors in the HER process under buoyancy and static pressure environments. Our work provides new insight and theoretical evidence for developing high-efficiency, stability, and low-cost HER catalytic electrodes.

In recent years, the special structure of catalytic materials, such as hollow, layered, uniformly distributed conductive network and hydrophilic surface structure, has been studied to improve the activity of the HER catalytic electrode [27-29]. Inspired by these structural studies, a 1T-2H MoS₂/CFP catalytic electrode was prepared, and the physicochemical mechanism of improving HER efficiency was discussed with it as a typical case. The synthesis procedure of the 1T-2H MoS₂/CFP catalytic electrode is schematically shown in Fig. 1a. Nitric acid treatment was performed to functionalize the CFP surface and thus make it more accessible to the aqueous precursor solution (Fig. S3 in Supporting information).

The surface of the nitric acid-treated CFP effectively generates oxygen-containing groups, as shown in Fig. S4 (Supporting information). As a result, the CFP is in close contact with the precursor solution during the reaction due to its improved surface hydrophilicity. When the aqueous precursor solution contacts the acid-treated CFP, NH₄⁺ would adsorb on the CFP surface, which has oxygen-containing functional groups through electrostatic interaction [30], while the negatively charged MoO₄^2‒ and CFP can be bridged together by a positively charged NH₄⁺ [31]. Meanwhile, the MoS₂ nanosheets produced by S and MoO₄^2‒ ions were accumulated on the surface of the CFP [32]. The NH₄⁺ hydrolyzed from starting materials and its bridging during sample synthesis might play a vital role in forming the intercalated structure [33].

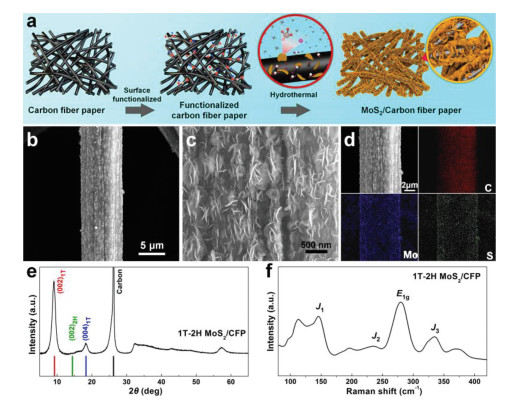

According to the scanning electron microscope (SEM) pictures, the CFP substrate has macroporous features (Fig. S5 in Supporting information), and the surface of the prepared sample was evenly covered by MoS₂ nanosheets (Fig. 1b). It can be seen from the high-magnification SEM photos that the MoS₂ nanosheets covered the whole carbon fiber with high density (Fig. 1c). From the energy dispersive spectroscopic (EDS) mapping of C, Mo, and S, the MoS₂ nanosheets distribute uniformly and densely (Fig. 1d). In Fig. 1e, the crystal structures of the MoS₂/CFP catalytic electrode were characterized by X-ray diffraction (XRD). Compared to the (002) peak of the original MoS₂, new peaks appear at approximately 9.3° and 18.4° due to expansion that is arising from the insertion of cations or water [34], which can be indexed at the (002) and the (004) base planes of the 1T phase MoS₂ [35]. And the (002) reflection of graphite carbon leads to the peak at about 26.1°. The Raman spectra were performed further observed the prepared catalytic electrode structure (Fig. 1f). The E_1g peak at 282 cm^‒1 is closely correlated with MoS₂ that adopts distorted octahedral coordination [36]. On the other hand, intense peaks centered at 146, 235, and 334 cm^‒1 are attributed to the 1T phase crystal structure (with typical peaks of J₁, J₂, J₃) [37]. The results show that there is 1T-MoS₂ in the prepared electrode. XPS results also confirmed the presence of both 1T- and 2H-phase MoS₂ in the prepared electrode, and the proportion of the 1T-phase is large (Figs. S7a and b in Supporting information). Interestingly, uneven NH₄⁺ was also found in 1T-2H MoS₂/CFP (Figs. S7c-f in Supporting information).

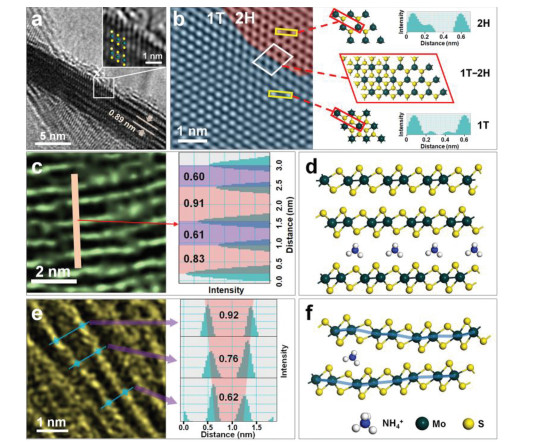

Moreover, high-resolution transmission electron microscopy (HRTEM) was used for polymorph identification and microstructural characterizations in the synthesized MoS₂ nanosheets. Fig. 2a shows that the van der Waals gap of 0.89 mm of the sample is significantly enlarged compared with the 0.61 nm of the original 2H-MoS₂ [38], which is well compatible with the XRD analysis results. These results may be ascribed to the insertion of NH₄⁺ ions into the MoS₂ layer. Besides, the diagonal edge structure in the atomic scale confirms the octahedral coordinated 1T phase MoS₂ (inset of Fig. 2a) [39-41]. Remarkably, two different lattice matrices were identified in the basal plane, as shown in Fig. 2b. The blue and red regions, respectively, mark the 1T and 2H phase domains. At the same time, we further distinguished the microstructures between 2H- and 1T-MoS₂. The intensity profile recorded with the yellow rectangles reveals that the variations in the signal intensity of both the 2H- and 1T-MoS₂ demonstrate a noticeable difference. The atomic number of the S atom is much lower than that of Mo, and they are uniformly distributed around the Mo sites in 1T-MoS₂, which results in sharp contrast in the signal intensity. In 2H-MoS₂, the S-site signal increases significantly due to the two S atoms, which overlapped along the direction of the electron beam. Also, S-Mo-S in 2H-MoS₂ has a trigonal prism structure, while it has an octahedral structure in 1T-MoS₂. These findings, according to the variations of the signal strength (Fig. S8 in Supporting information). Models are listed in Fig. 2b to distinguish the coexistence of the 1T-2H heterogeneous intuitively. Moreover, the lattice fringe of the sample was further investigated (Fig. S9 in Supporting information). Interestingly, there are still a few regions that have different interlayer by intensity line scans through the MoS₂ layer (Fig. 2c). To explain the non-uniform interlayer distance, we built a corresponding model. Fig. 2d shows the optimized NH₄⁺ inserted model, in which the interlayer distance along the c direction expanded clearly. This result is consistent with that observed in HRTEM images. Detailed calculations are shown in Fig. S10 (Supporting information). It is demonstrated that the lack of NH₄⁺ might cause a difference in the sample interlayer distance. In addition, rare cases were found in the sample, in which the spacing between adjacent layers changed, as shown in Fig. 2e. By modeling the unsaturated NH₄⁺ embedding in layers, it is found that the optimization results agree with the HRTEM outcomes (Fig. 2f and Fig. S11). It is worth noting that previous studies showed that guest ion intercalation dominates the formation of 1T phase MoS₂ [42, 43]. Presumably, the coexistence structure of the 1T and 2H phases is probably caused by uneven NH₄⁺ ions intercalation. Besides, SEM images from several additional experiments showed the effects of the addition of different amounts of sodium molybdate and thiourea during the hydrothermal reaction with the same CFP substrates and DI water, which are respectively named as MC-1, MC-2, MC-3, MC-4, and MC-5 (Table S1 and Fig. S12 in Supporting information).

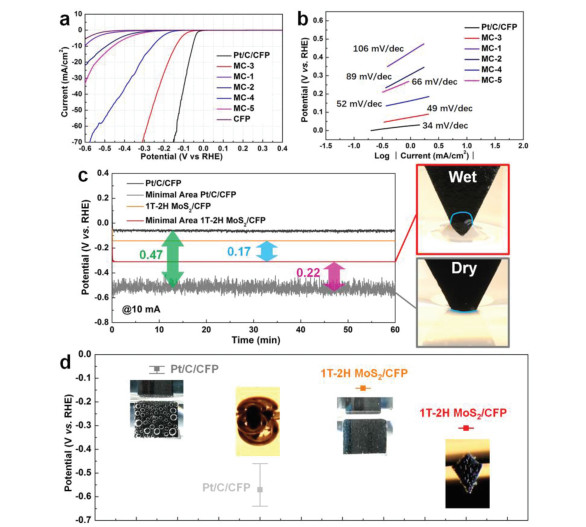

In determining the suitability of the 1T-2H MoS₂/CFP catalytic electrode in water splitting, the linear sweep voltammetry (LSV) with three-electrode configuration was used to evaluate the electrocatalytic performance of all materials in an H₂SO₄ electrolyte solution (0.5 mol/L). The polarization curves of the prepared 1T-2H MoS₂/CFP catalytic electrode compared to those of a Pt/C/CFP catalytic electrode (the preparation method is described in Supporting information) are presented in Fig. 3a. The onset overpotential of the 1T-2H MoS₂/CFP (MC-3) catalytic electrode is ca. 40 mV, which approaches the Pt/C/CFP catalytic electrode (ca. 0 mV). The HER catalytic activity of CFP can be negligible in comparison to the activities of these samples. From a comparative study on the required applied overpotential to produce a current density of 10 mA/cm², the applied overpotentials of the 1T-2H MoS₂/CFP (MC-3) and Pt/C/CFP catalytic electrodes are 141 mV and 56 mV, respectively. The Tafel slope is well known to be one of the inherent parameters for evaluating the HER rate-determining steps. In Fig. 3b, the Tafel slope of the 1T-2H MoS₂/CFP (MC-3) electrode (49 mV/dec) is nearby that of the Pt/C/CFP electrode (34 mV/dec). According to the classic theory (Eqs. S1-S3 in Supporting information), the mechanism of Volmer-Heyrovsky is used by the 1T-2H MoS₂/CFP (MC-3) catalytic electrode in HER [44, 45]. The long-term stability evaluation of the 1T-2H MoS₂/CFP (MC-3) sample was treated under 2000 continuous cycles. Relative to those recorded previously, the obtained I-V curves remained almost unchanged (Fig. S13 in Supporting information). Besides, the effects of different concentrations of raw materials (thiourea and sodium molybdate) in the precursor solution on the HER performance of the catalytic electrodes have been investigated (details in Supporting information). Although the activity of sample MC-3 is the best among the prepared 1T-2H MoS₂/CFP electrodes, the activity of MC-3 is still quite away from that of noble metal Pt-based catalytic electrodes (such as Pt/C/CFP catalytic electrode).

Here, we systematically investigated the three-phase interface behavior driven by the surface properties of the HER catalytic electrode. At the same time, the stability and energy utilization efficiency differences caused by the different three-phase interface behavior between the prepared non-noble metal electrode and the noble metal catalytic electrode were analyzed. We tested the surface hydrophilicity of the catalytic electrodes in terms of water static contact angles (Fig. S14 in Supporting information). The results show that 1T-2H MoS₂/CFP (MC-3) has superhydrophilic properties, while Pt/C/CFP has superhydrophobic properties. On this basis, the 1T-2H MoS₂/CFP (MC-3) sample but also the Pt/C/CFP electrode was tested by the galvanostatic electrolysis at 10 mA/cm² over 60 min, to their long-term HER electrochemical stability measurement (Fig. 3c). Meanwhile, Fig. 3d shows the potential of various catalytic electrodes and the corresponding oscillation intervals. One interesting observation is that the 1T-2H MoS₂/CFP (MC-3) catalytic electrode performed steadily (with a relatively smooth curve at a potential of 140 mV due to the rapid detachment of as-formed hydrogen bubbles before they grew too large). The large fluctuation of the Pt/C/CFP catalytic electrode indicates that the electrode surface works under unstable gas/liquid two-phase transport. The unstable mass transfer behavior can be attributed to the strong adhesion between the bubbles and the hydrophobic surface of the electrode. Despite this finding, the energy utilization efficiency of the Pt/C/CFP catalytic electrode is still superior to the 1T-2H MoS₂/CFP (MC-3) catalytic electrode.

In the galvanostatic test at 10 mA, we also tried to contact the electrolyte with the catalytic electrode's tiny part (the contact area is about 0.5 mm²). The adhesion behaviors of the gas bubbles on different electrodes used for the HER were further observed. A large bubble appeared on the surface of the Pt/C/CFP catalytic electrode. The distinct difference is that the bubbles on the 1T-2H MoS₂/CFP (MC-3) electrode surface separated away naturally as soon as they formed (Fig. 3d and part 1 of Movie S1 in Supporting information). The 1T-2H MoS₂/CFP (MC-3) catalytic electrode performed steadily with a smooth potential curve at a potential of 310 mV. In contrast, by functioning under unstable surface gas/liquid mass transport, the potential curve of the Pt/C/CFP catalytic electrode fluctuated clearly (Figs. 3c and d). It is worthwhile to note that the potential of the Pt/C/CFP catalytic electrode (approximately 530 mV) is higher than the value of the 1T-2H MoS₂/CFP (MC-3) catalytic electrode. It can be attributed to the attenuation of the working area caused by the inherent hydrophobicity of the Pt/C catalyst (Fig. 3c). Also, hydrogen bubbles can form "gas pockets" in the pores of Pt/C/CFP, there could lead to loss of vast internal active sites, making the electrode potential had to be increased by 470 mV to maintain the working current at 10 mA. Interestingly, the 1T-2H MoS₂/CFP (MC-3) catalytic electrode has a water absorption characteristic (part 2 of Movie S1). This characteristic makes the 1T-2H MoS₂/CFP (MC-3) catalytic electrode work with a capillary effect during operation. This effect can be understood as a mass transfer process in which the electrolyte is flowing to the "dry area" of the catalytic electrode. The unique three-phase behavior not only enlarges the real work area of the catalytic electrode but also gives an extensive "wet area" that could even participate in the test (Fig. 3c and part 3 of Movie S1). Therefore, the electric potential of the 1T-2H MoS₂/CFP (MC-3) catalytic electrode went up by only 170 mV. These results further confirm that the three-phase interface behavior dominated by the hydrophilic surface of the catalytic electrode can improve the energy utilization efficiency and stability of the hydrogen evolution.

The hydrophilicity of MoS₂ nanosheets is studied in detail to determining the reasons for the formation of excellent hydrophilicity on the 1T-2H MoS₂/CFP catalytic electrode surface. Studies on the 2H, 1T, and 3R polymorphs of low-dimensional materials have been increasing [46]. Our work presents the calculation data of all three MoS₂ phases. Different phases of MoS₂ have different spatial structures. Fig. 4a shows the polymorphs of MoS₂. The stacking order of the 3R phase and the 2H phase MoS₂ layer array is ABC and AB, respectively, while in 1T-MoS₂, each layer is the same. In the ABC stacking sequence, the arrangement repeats every three layers with a slight stagger of the neighboring layers in the a-axis direction of the lattice. Similar characteristics were observed in the AB stacking, but the structure repeats every two layers. Herein, we constructed models of layered MoS₂ of the three phases from a monolayer to nine layers (all shown in Fig. S15 in Supporting information). Afterward, the geometries of all of the layered MoS₂ models were optimized [47], and the total optimized energies were determined. The surface energy of the MoS₂ with layer number of n (E_sur(n)) can calculate by using the following expression (Eq. 1):

where n represents the number of MoS₂ layers, E_n is the overall energy of the optimized layered MoS₂ model (exact values are shown in Table S2 in Supporting information). E_b is the gross energy of the bulk MoS_2, which has no vacuum layer and represents situations with no surface, which is essential for the accuracy of the E_sur results (Table S3 in Supporting information presents the detailed E_b results). N is the specific value of the number of atoms in the layered MoS₂ model to that in the corresponding bulk MoS₂ model. S is the surface cell area [48].

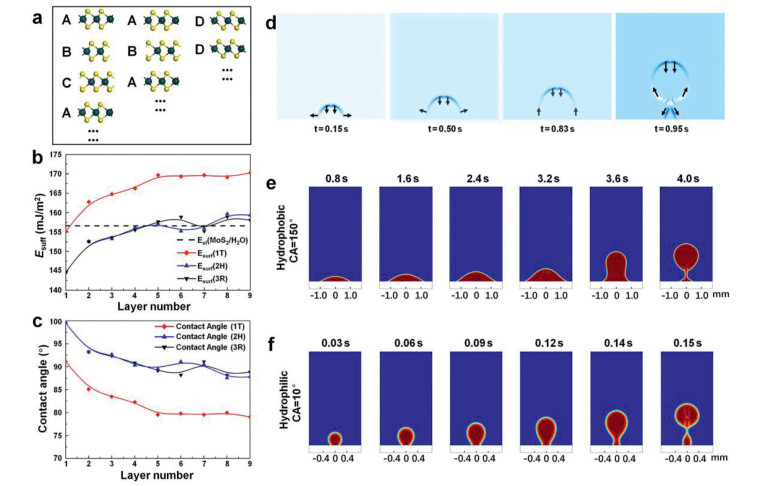

As the function of layer number, the surface energy is presented in Fig. 4b (exact values see Table S4 in Supporting information). For all polymorphs of MoS₂, the surface energy increases with n when n is smaller than 5. However, once n is greater than 5, the surface energy begins to converge, with only slight increases or decreases in the energy as n continues to increase. It indicates that the surface characteristics of layered MoS₂ with more than 5 layers are similar. Besides, the surface energy of MoS₂ with 1T phase is usually higher than that of the other two phases, which is caused by the different coordination geometries in 1T-MoS₂. In the 1T phase, one Mo center is octahedrally coordinated by six S atoms and prismatically coordinated in the 2H and 3R phases (Fig. S1 in Supporting information). This distinct structure enables the surface of 1T-MoS₂ more active for covalent functionalization than the 2H and 3R counterparts. It further leads to higher surface energy in the 1T phase. In addition, the water contact angle is measured to evaluate the hydrophilicity and is calculated by the following expression (Eq. 2) [49]:

where E_s and E_l are the solid and the liquid surface energy, respectively. E_sl is the solid-liquid interface energy. To calculate the water contact angle θ, the values of E_l, E_s and E_sl must be ascertained. E_l is the surface energy of water with a chosen value of 72 mJ/m² [50]. E_s is the surface energy of the layered MoS₂. We consider E_sl to be a constant (156.589 mJ/m²) since the type of solid and liquid are fixed (particulars of selecting the relevant final value are in the Supporting Information section). In Fig. 4b, the line of dashes represents the value of E_sl; when E_s is above this line, the contact angle is an acute angle, which indicates relatively good hydrophilicity. Fig. 4c presents the theoretical values of the water contact angle when calculated according to Eq. 2, and the exact values are presented in Table S5 (Supporting information). Much like the surface energy sequels, the contact angle changes only slightly under the condition that the layer number is larger than 5, which implies that an additional layer for MoS₂ materials contributes little to the hydrophilicity after the number of layers exceeds 5. The results show that 1T-MoS₂ has a smaller water contact angle than 2H and 3R MoS₂, which indicates that 1T-MoS₂ has better hydrophilicity. On the other hand, the hydrophilicity of the material itself can be greatly increased by the formation of rough nanostructured interfaces [51, 52]. Therefore, in the prepared 1T-2H MoS₂/CFP catalytic electrode, the 1T phase MoS₂ is dominant with a porous structure and rough interfaces, which explains the excellent hydrophilicity.

Further, studying the fluid tensor distribution similar to the HER environment is used to analyze the influence of the three-phase interface behavior on the prepared electrode surface, reaction stability, and energy utilization efficiency. As shown in Fig. 4d, the arrows describe the direction of the tensor, and the color represents the magnitude of the tensor. At the beginning of the bubble generation, a small amount of hydrogen gathers and adheres to the surface of the catalytic electrodes due to the surface adsorption force. The bubble spreads rapidly along the radial direction but slowly in the vertical direction; thus, the bubble sticks on the catalytic electrode surface in a flat form. It is the so-called budding stage. As the bubbles grow, the direction of the bubble top tensor remains downward due to hydraulic pressure. Still, the direction of the bubble bottom tensor varies from lateral to upward due to the joint effect of the interfacial absorption force and the floating force. This arrangement is the spreading stage. As hydrogen is produced continuously and the bubble volume increases, the interfacial adsorption force effect decreases relative to the buoyancy. Growth in the radial direction slows, and vertical growth begins accelerating. The bubble is gradually drawn out. This arrangement is the stretching stage. As the bubble length increases to a particular value, the middle of the bubble starts shrinking since the uplift force at the top and the adsorption force at the catalytic electrode surface act in opposite directions. This arrangement is the shrinking stage. As a result, the shrinking tensor accelerates the flotation of the bubble toward the air region. In contrast, the adsorption force accelerates hydrogen gathering at and detaches from the catalytic electrode surface. The remaining hydrogen will reattach to the catalytic electrode surface, forming the next bubble. Thus, the influence of the surface adsorption force throughout the whole process of hydrogen bubble formation can be seen. The bubble morphology formed at the hydrophilic and hydrophobic surfaces was further studied through the time-dependent nephogram of the fluid distribution, which matches the corresponding surfaces of the 1T-2H MoS₂/CFP (MC-3) and Pt/C/CFP catalytic electrodes (Figs. 4e and f). The radial-spreading stage lasts longer on the hydrophobic surface, and more hydrogen concentrates on the surface before fully forming a bubble. In sharp contrast, the bubble radius on the superhydrophilic surface is much smaller, while the bubble generation rate is higher than that on the hydrophobic interface (Movie S2 in Supporting information). The results of fluid dynamics simulations indicate that compared with the hydrophobic surface, the hydrophilic surface has a weak adsorption capacity on the bubble surface, which is beneficial to the release of hydrogen and the reduction of the contact area between the gas and the catalytic electrode surface. In other words, as a benefit from the hydrophilic characteristic, the surface of the 1T-2H MoS₂/CFP catalytic electrode in HER will exhibit a rapid gas-liquid mass transfer behavior. This three-phase interfacial mass transfer behavior is beneficial for the electrode to maintain a stable working area and increase the generation rate of the hydrogen bubbles [53]. Besides, a simple model (Fig. S16 in Supporting information) was proposed to illustrate the synergistic effect of the prepared sample (MC-3) during the HER process.

In summary, a case study of the 1T-2H MoS₂/CFP catalytic electrode was conducted. The results show that the catalytic electrode has good hydrophilicity, which can accelerate the gas-liquid mass transfer efficiency between the solid-liquid-gas three-phase interface in the hydrogen evolution process at the micro-scale, thus providing a stable working area. In a very small area contact of electrode and electrolyte during the HER, the 1T-2H MoS₂/CFP catalytic electrode is accompanied by capillary behavior, which promotes the energy utilization efficiency of the prepared electrode to be superior to that of the Pt/C/CFP catalytic electrode. The MoS₂-based electrode promises to replace the Pt-based catalytic electrode in specific cases. Non-uniform NH₄⁺ ion intercalation could be the main factor that leads to the coexistence of the 1T and 2H phases in the MoS₂. The wettability evaluation indicates that the excellent hydrophilicity of the 1T-2H MoS₂/CFP catalytic electrode is mainly due to the leading role of 1T MoS₂ and the existence of more than 5 layers of MoS₂ nanosheets. The fluid dynamics simulation results show that the superhydrophilic electrode surface can boost the frequency of hydrogen production and minimize bubbles duration time. The three-phase interfacial mass transfer behavior is a non-negligible factor in the HER, which affects both the stability of the hydrogen bubble formation and energy utilization efficiency.
