In this work, Z-scheme V₂O₅ loaded fluorinated inverse opal carbon nitride (IO F-CN/V₂O₅) was synthesized as a product of ternary collaborative modification with heterostructure construction, element doping and inverse opal structure. The catalyst presented the highest photocatalytic activity and rate constant for degradation of typical organic pollutants Rhodamine B (RhB) and was also used for the efficient removal of antibiotics, represented by norfloxacin (NOR), sulfadiazine (SD) and levofloxacin (LVX). Characterizations confirmed its increased specific surface area, narrowed bandgap, and enhanced visible light utilization capacity. Further mechanism study including band structure study and electron paramagnetic resonance (EPR) proved the successful construction of Z-scheme heterojunction, which improved photo-generated charge carrier migration and provide sufficient free radicals for the degradation process. The combination of different modifications contributed to the synergetic improvement of removal efficiency towards different organic pollutants.

Key words

Carbon nitride / Inverse opal structure / Vanadium pentoxide / Fluorinate / Organic pollutants degradation

Cite this Article

Ningkai Ding, Bin Chen, Liang Zhou, Lingzhi Wang, Yongdi Liu, Jinlong Zhang, Juying Lei. Fluorinated inverse opal carbon nitride combined with vanadium pentoxide as a Z-scheme photocatalyst with enhanced photocatalytic activity[J]. Chinese Chemical Letters, 2022 , 33 (8) : 3797 -3801 . DOI: 10.1016/j.cclet.2021.11.042

Full Text

Less

For the last few years, photocatalytic oxidation technology receives great development in the remediation of environmental pollutants [1]. All-solid-state Z-scheme heterojunction photocatalysts have gotten much attention due to its enhanced separation of photogenerated carriers and shortened charge-transfer length, contributing to the effective elimination of organic and heavy metal pollutants [2-4]. Carbon nitride (g-C₃N₄) is one of the most used semiconductor photocatalysts with narrow band gap (E_g) of 2.7 eV, low toxicity, excellent stability as well as unique electronic and optical properties [5-9]. Based on its superiority, there have been attempts to construct g-C₃N₄-based Z-scheme heterojunction photocatalysts [10, 11]. However, pure g-C₃N₄ material is limited by its poor visible light absorption capacity and low photogenerated electron-hole separation efficiency [12], thus various methods are studied for further application of the material. Meanwhile, inverse opal structure has caught lots of attention due to its unique properties such as photonic band gap, slow photon effect and negative refraction effect [13-15], and the structure has been successfully applied to photocatalysts like inverse opal TiO₂ [16], Ni doped inverse opal black TiO₂ and Cds doped inverse opal WO₃ [17]. There is much potential in the study of inverse opal carbon nitride (IO CN), which is proved to be efficient in aspects like H₂O₂ production, CO₂ reduction and environmental remediation [18-20]. Recent years, element doping is often considered a simple and efficient method to modify g-C₃N₄, widening its optical response range and improving the separation efficiency of photogenerated electron-hole pairs. Metal doping (K⁺ [21], Na⁺ [22]) and nonmetal doping (P [23], S [24]) have been proven effective for g-C₃N₄, and besides these practices, fluorinated carbon nitride (F-CN) was also reported [25, 26]. On the other hand, vanadium pentoxide (V₂O₅) is an important transition metal oxide semiconductor, which has been widely used in lithium-ion batteries, gas sensors and other fields [27, 28]. In addition, V₂O₅ is a typical mid-band gap (2.3 eV) semiconductor which can absorb visible light well [29]. But still, pure V₂O₅ represents low photocatalytic activity due to the narrow visible light response range and high recombination rate of photogenerated electron-hole pairs. It is noted that the CB (0.47 eV) and VB (2.73 eV) of V₂O₅ can perfectly match the CB (−1.2 eV) and VB (1.5 eV) of g-C₃N₄ to construct heterojunction. In this way, photogenerated electrons in CB of g-C₃N₄ eventually accumulated with strong reducibility, while photogenerated holes on VB of V₂O₅ eventually accumulated with strong oxidizability.

In this work, we synthesized the Z-scheme V₂O₅ loaded fluorinated inverse opal carbon nitride (IO F-CN/V₂O₅) in which heterostructure construction and element doping were combined with the inverse opal structure to carry out ternary collaborative modification. We explored the photocatalytic degradation effect on Rhodamine B (RhB) and antibiotics as typical organic pollutants. Based on various characterizations and experiments, we explored the possible photocatalytic mechanism of the catalyst.

To better examine the photocatalytic ability of IO F-CN/V₂O₅, we also synthesized bulk carbon nitride (bulk CN), IO CN, inverse opal structure F-CN (IO F-CN) and V₂O₅ loaded bulk fluorinated CN (bulk F-CN/V₂O₅) as comparisons. SiO₂ photonic crystal as the template of inverse opal structure was prepared by a Stöber method (Text S1 in Supporting information). IO CN and bulk CN were synthesized using SiO₂ and dicyandiamide (DCDA). 0.6 g of DCDA and 1.0 g of SiO₂ PC were fully grounded and heated up to 520 ℃ for 120 min in argon gas, then heated to 550 ℃ for 120 min. For the yellow powder obtained after natural cooling, 4 mol/L NH₄HF₂ solution was used for etching. After 48 h, the light-yellow sample was washed for 3 times with water and dried overnight. The sample obtained was IO CN. 0.6 g of DCDA was fully grounded and heated up to 550 ℃ for 360 min in air stream. The yellow sample obtained after natural cooling was bulk CN. IO F-CN and IO F-CN/V₂O₅ were synthesized based on IO CN. 0.1 g IO CN was fully dissolved in a 100 mL sodium fluoride (NaF) solution of 2.5 g/L and stirred for 24 h. The sample was washed several times with deionized water and anhydrous ethanol and dried overnight. The sample obtained was recorded as IO F-CN. Then, 0.4 g of IO F-CN and 0.0052 g of ammonium vanadate (NH₄VO₃) were mixed and calcined. The sample was heated up to 550 ℃ at the rate of 2 ℃/min, and the temperature was kept for 1 h. The sample obtained after natural cooling was IO F-CN/V₂O₅. The preparation of bulk F-CN/V₂O₅ was the same as that of IO F-CN/V₂O₅ except the replacement of IO CN with bulk CN.

To characterize the morphology and microstructure of the samples obtained, the measurements of scanning electron microscope (SEM), transmission electron microscope (TEM) and high-resolution transmission electron microscope (HRTEM) were conducted. From the SEM image in Fig. 1A, it can be observed that bulk F-CN/V₂O₅ has a block structure. Figs. 1B and C showed the SEM and TEM images of IO F-CN/V₂O₅, from which we can observe an obvious 3D ordered porous structure, and the results also showed that the fluorination doping and V₂O₅ loading did not destroy the unique 3D ordered porous structure of IO CN. From the HRTEM image in Fig. 1D, we can find a region with lattice fringe of 0.287 nm corresponding to the (400) crystal plane of V₂O₅ [30].

Nitrogen adsorption-desorption curve (BET, Micromeritics ASAP 2020) was used to obtain the specific surface area of the sample under the degassing condition of heating under 300 ℃ for 8 h. And Barret-Joyner-Halenda (BJH) model was used to calculate the pore volume and pore size distribution of the sample. From Fig. S1 (Supporting information), it can be observed that, on the one hand, the specific surface area of IO F-CN/V₂O₅ increased significantly compared with bulk CN and bulk F-CN/V₂O₅ thanks to the unique porous structure of inverse opal structure. On the other hand, the specific surface area of IO F-CN/V₂O₅ did not change significantly compared with IO CN, which further indicated that fluorination and V₂O₅ loading had little impact on the specific surface area of IO CN.

X-ray diffractometer (XRD, Rigaku D/Max 2550 VB/PC) was used to study the crystal structure of the sample with a scanning range of 5°-80°. From Figs. 2A and B, we can clearly observe two diffraction peaks belonging to the (100) and (002) crystal planes of g-C₃N₄ at 13.0° and 27.3°, respectively. In addition, no diffraction peak belonging to NaF was found, indicating that fluorine element was successfully incorporated inside IO CN. In Fig. 2B, we can find four diffraction peaks at 20.3°, 26.1°, 31.0° and 47.3° attributed to the (001), (110), (301) and (600) crystal planes of V₂O₅ simultaneously, which are consistent with the ones of pure V₂O₅ in Fig. 2C. The results indicate that IO F-CN has successfully combined with V₂O₅ which is well-crystallized.

X-ray photoelectron spectrometer (XPS, Thermo Scientific ESCALAB 250Xi) was used to analyze the chemical composition of the sample. The results were shown in Fig. S2 (Supporting information). The internal standard was carbon and the data obtained were translated and corrected according to C 1s = 284.6 eV. Fig. S2A showed the C 1s spectrum of IO F-CN/V₂O₅, in which the peak at 288.7 eV corresponded to the existing of C-N-C bond [31], and the other peak at 284.7 eV corresponded to C-C bond [32]. Fig. S2B showed the spectrum of N 1s in which the peak of 399.1 eV corresponded to C=N−C bond, and the peaks of 400.1 eV and 401.2 eV corresponded to N−(C)₃ bond and N−H bond [33, 34]. The O 1s of IO F-CN/V₂O₅ in Fig. S2C showed a signal peak at 532.8 eV, which belonged to the oxygen atom in the surface hydroxyl group. In F 1s, the peaks of 689.7 eV and 692.1 eV can be assigned to charge effect between fluorine atoms and π electorn system [35], proving the success of fluorination. As shown in Fig. S2E, V 2p can be decomposed into two spin orbital components at the binding energies of 517.4 eV and 524.8 eV, which were attributed to V 2p_3/2 and V 2p_1/2 of V₂O_5, respectively [30]. XPS results further proved the successful combination of IO F-CN and V₂O₅.

In order to explore the degradation effect for RhB, 50 mg of samples were dispersed into 50 mL of 20 mg/L RhB solution. The reaction was kept in dark condition for 20 min to ensure the adsorption balance of RhB. After 20 min, a 300 W Xenon lamp with a 420 nm cutoff filter was used for the photocatalytic process under visible light irradiation. For every 10 min during the reaction, a certain amount of suspension was removed and centrifuged at the speed of 12000 rpm for 10 min. The absorbance of RhB at 553 nm was determined using an ultraviolet-visible spectrophotometer to determine its concentration.

The degradation of antibiotics was explored in the same method as RhB. The chosen antibiotics were norfloxacin (NOR), sulfadiazine (SD) and levofloxacin (LVX). All the antibiotics were prepared in 20 mg/L solutions. The concentration of NOR, SD and LVX was determined by HPLC (Shimadzu LC-20AD, Japan) at 7 min, 7 min and 8 min interval, respectively.

The degradation results were shown in Fig. 3A and Fig. S3 (Supporting information). Fig. 3A showed that the degradation rate of RhB for bulk CN was 48.7% after 30 min under visible light irradiation. For bulk F-CN/V₂O₅, the degradation rate of RhB was 56.9%. For IO CN, the degradation rate of RhB was 67.9%. For IO F-CN, the degradation rate of RhB was 72.4%. However, for IO F-CN/V₂O₅, the degradation rate of RhB was 100%. Fig. S3 showed the UV-vis spectra of RhB solution during the whole degradation process with IO F-CN/V₂O₅ as the catalyst. The intensity at 553 nm was significantly decreased after 30 min of visible light irradiation, and there was only a small characteristic peak at around 500 nm, which may be the possible remaining degradation intermediate while the majority of RhB was turned into H₂O and CO₂. Fig. 3A showed the degradation effect of RhB with different catalysts. The results showed that IO F-CN/V₂O₅ had the highest photocatalytic activity among all the samples. As shown in Fig. 3B, we can further compare the photocatalytic performance of bulk CN, bulk CN/V₂O₅, bulk F-CN/V₂O₅, IO CN, IO F-CN, IO CN/V₂O₅ and IO F-CN/V₂O₅ by the photocatalytic degradation rate constant (k value). The k value of IO F-CN was about 1.16 times that of IO CN, bulk F-CN/V₂O₅ was 1.07 times that of bulk CN/V₂O₅, indicating that fluorination can improve the activity of photocatalyst. In addition, the k value of IO F-CN/V₂O₅ was about 1.48 times that of IO F-CN and 1.33 times that of IO CN/V₂O₅, which showed the advantages of the combination of IO F-CN and V₂O₅ in improving the photocatalytic activity. In addition to the degradation of RhB, the catalyst IO F-CN/V₂O₅ was also used for degradation of antibiotics under visible light irradiation. As shown in Fig. 3C, after irradiation for 60 min, the degradation rate of NOR, SD and LVX (20 mg/L) was 69.6%, 80.3% and 100%, respectively. Based on the degradation results of RhB and antibiotics, the prepared IO F-CN/V₂O₅ catalyst had a good performance in degrading various organic pollutants.

The adsorption effect of catalysts was also studied. As shown in Fig. S4A (Supporting information), catalysts with inverse opal structure could adsorb more RhB under dark condition, but the total amount was only 2%-4%, which had little influence on the photocatalytic degradation process. Fig. S4B (Supporting information) showed the adsorption effect of different antibiotics with IO F-CN/V₂O₅ under dark conditions. SD could hardly be adsorbed, while 15% of NOR and LVX were adsorbed. According to the results above, it can be confirmed that most organic pollutants were removed by degradation under light irradiation rather than adsorption.

To explore the stability of the sample, cycle experiments were conducted. The results were shown in Fig. S5 (Supporting information). Fig. S5A showed that the sample remained a strong ability for RhB degradation after 4 times of use. Fig. S4B showed that the XRD pattern of IO F-CN/V₂O₅ did not change significantly after the cycle experiments, indicating that the crystal structure of the sample did not change. The SEM image in Fig. S5C and TEM image in Fig. S5D further verified that after the cycle experiments the material remained good mechanical stability. All the results above showed that the catalyst can be reused for a good practical application prospect with good stability.

To reveal the photocatalytic mechanism of the sample, a series of photochemical tests were conducted. The results were shown in Fig. S6 (Supporting information). Photoluminescence (PL) emission spectra were used to validate the photogenic carrier separation efficiency of the modified catalysts. As shown in Fig. S6A, the samples can be sorted by PL strength as follows: bulk CN > bulk F-CN/V₂O₅ > IO CN > IO F-CN > IO F-CN/V₂O_5. Therefore, the photocatalytic system of IO F-CN/V₂O₅ presented the best photogenic carrier separation ability, which explained its best photocatalytic ability in RhB degradation process. At the same time, we tested the photocurrent (Fig. S6B) and electrical impedance (Fig. S6C) of the samples. The results showed that IO F-CN/V₂O₅ got the highest photocurrent intensity as well as the minimum electrical impedance, which further proved that IO F-CN/V₂O₅ had the best photogenerated carrier separation capability.

To further explore other possible reasons for the enhanced photocatalytic activity, we conducted UV-DRS tests on the sample shown in Fig. S7 (Supporting information). Fig. S7A showed that the absorption capacity of IO F-CN in visible light region was enhanced compared with IO CN, which may be related to fluorination [36]. The band gap (E_g) of the catalyst was evaluated by the Kubelka-Munk equation (Eq. 1) [37, 38]:

(1)

Fig. S7B showed that the band gap (E_g) of IO CN and IO F-CN were 2.68 eV and 2.64 eV respectively. It can be observed that fluorination can narrow the E_g of the material to a certain extent, which was consistent with previous literature results [39]. The Mott-Schottky curves in Figs. S7C and D were used to determine the Fermi energy level (E_F) [40-42]. The exact potentials were converted into the reversible hydrogen electrode (RHE) as followed (Eq. 2):

(2)

Considering that the pH of Na₂SO₄ solution was 6.8, the E_F potentials of IO F-CN and V₂O₅ was −0.69 eV and 1.28 eV respectively. Thus, photogenerated electrons would transfer from V₂O₅ with higher Fermi level to IO F-CN, and XPS-VB results (Fig. S8 in support information) were used to determind the specfic band structure [43]. According to the band structure established above, the band alignment of IO F-CN and V₂O₅ was plotted in Fig. 4A.

In order to explore the main active species of the photocatalytic process and verify possible charge transfer pathways, triethanolamine (TEOA, 1 mmol/L), benzoquinone (BQ, 1 mmol/L) and thiobarbituric acid (TBA, 1 mmol/L) were used as capture agents for h⁺, ^•O₂⁻ and ^•OH, respectively. The procedure of free radical capture experiments was similar to that of photocatalytic degradation experiments. Fig. S9 (Supporting information) showed that BQ as the ^•O₂⁻ trapping agent had a significant effect on the photocatalytic activity of photocatalyst, indicating that ^•O₂⁻ was the main active substance in the photocatalytic oxidation process, while ^•OH and h⁺ played a relatively weaker role. The electron paramagnetic resonance (EPR) examination was also performed, validating the existence of superoxide (Fig. S10A in Supporting information) and hydroxyl radicals (Fig. S10B in Supporting information) by using 5, 5-dimethyl-1-pyrroline N-oxide (DMPO) as spin-trapping agent [44, 45].

Based on the experimental results above, the possible mechanism of IO F-CN/V₂O₅ photocatalytic system was clarified as follows: as shown in Fig. 4B, both IO F-CN and V₂O₅ can be excited by visible light to generate photoelectron-hole pairs. If the photoelectron-hole pairs on the charge transfer path were of the traditional type Ⅱ-scheme heterojunction system, the photoelectrons in the CB of V₂O₅ will not be combined with O₂ to produce ^•O₂⁻, for that the potential of V₂O₅ CB (0.64 eV) was more positive than standard oxidation-reduction potentials of O₂/^•O₂⁻ (0.33 eV vs. NHE). However, according to the results of the free radical capture experiment, we proved that ^•O₂⁻ was the main active species of the reaction. Therefore, photogenerated electrons in CB of V₂O₅ tended to transfer directly to VB of IO F-CN and compound with photogenerated holes. In this way, the e⁻ accumulated in CB of IO F-CN with higher reducing capacity can combine with O₂ to form ^•O₂⁻. Meanwhile, h⁺ accumulated in VB of V₂O₅ can directly oxidize organic pollutants. In conclusion, the IO F-CN/V₂O₅ heterojunction prepared was verified as Z-scheme heterojunction, which can improve the separation and transfer efficiency of photogenerated electron-hole pairs effectively and showed a strong oxidation capacity to enhance the degradation capacity of organic pollutants.

In this study, IO F-CN was synthesized and combined with V₂O₅ by a hard template method and calcination as a Z-scheme heterojunction photocatalyst. Through various characterizations, it was proved that the photocatalyst had improved visible light utilization capacity and efficient photogenic carrier separation efficiency due to the synergistic effect of fluorination and V₂O₅. The material was applied to the photocatalytic degradation of organic pollutants represented by RhB and antibiotics, and the results exhibited its excellent photocatalytic activity. The photocatalytic degradation rate constants of RhB are 3.2 times and 1.7 times higher than that of bulk CN and IO CN respectively, indicating the synergistic effect of element doping, heterostructure construction alongside with inverse opal structure in the photocatalytic process. The free radical capture experiments showed that the main active species of the degradation system was ^•O₂⁻. In addition, the material had a good cyclic stability.

Declaration of competing interest

Less

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Acknowledgments

Less

The authors are grateful for support from the National Natural Science Foundation of China (Nos. 21777044 and 22076046, 22176061), the Science and Technology Commission of Shanghai Municipality (Nos. 19ZR1472400, 19230711300 and 20DZ2250400).

Supplementary materials

Less

Supplementary material associated with this article can be found, in the online version, at doi:10.1016/j.cclet.2021.11.042

References

Less

[1]

Y. Ye, Z. Zang, T. Zhou, et al., J. Catal. 357 (2018) 100-107.

[2]

D. Yuan, M. Sun, S. Tang, et al., Chin. Chem. Lett. 31 (2020) 547-550.

[3]

Y.C. Zhou, P. Wang, H. Fu, C. Zhao, C.C. Wang, Chin. Chem. Lett. 31 (2020) 2645-2650.

[4]

Q. Xu, L. Zhang, B. Cheng, J. Fan, J. Yu, Chem 6 (2020) 1543-1559.

[5]

Y. Xing, X. Wang, S. Hao, et al., Chin. Chem. Lett. 32 (2021) 13-20.

[6]

J. Fu, J. Yu, C. Jiang, C. Bei, Adv. Energy Mater. 8 (2018). 1701503.

[7]

F. Wang, Y. Wang, Y. Feng, et al., Appl. Catal. B: Environ. 221 (2017) 510-520.

[8]

J. Hu, W. Cheng, S. Huang, D. Wu, X. Zhi, Appl. Phys. Lett. 89 (2006) 841-853.

[9]

A. Pisanu, A. Speltini, B. Vigani, et al., Dalton Trans. 47 (2018) 6772-6778.

[10]

M. Ding, J. Zhou, H. Yang, et al., Chin. Chem. Lett. 31 (2020) 71-76.

[11]

B. Li, L.C. Nengzi, R. Guo, et al., Chin. Chem. Lett. 31 (2020) 2705-2711.

[12]

W. Ong, L. Tan, Y. Ng, S. Yong, S. Chai, Chem. Rev. 116 (2016) 7159-7329.

[13]

E.R. Brown, C.D. Parker, E. Yablonovitch, J. Opt. Soc. Am. B 10 (1993) 404-407.

[14]

M. Curti, C.B. Mendive, M.A. Grela, D.W. Bahnemann, Mater. Res. Bull. 91 (2017) 155-165.

[15]

E. Cubukcu, K. Aydin, E. Ozbay, S. Foteinopoulou, C.M. Soukoulis, Nature 423 (2003) 604-605.

[16]

M. Wu, J. Liu, J. Jin, et al., Appl. Catal. B-Environ. 150 (2014) 411-420.

[17]

Y.Z. Dong, Y.S. Xue, W.W. Yang, H.M. You, Y. Su, Colloids Surf. A 561 (2019) 381-387.

[18]

X. Huang, W. Gu, S. Hu, et al., Catal. Sci. Technol. 10 (2020) 3694-3700.

[19]

S. Lin, N. Zhang, F. Wang, et al., ACS Sustain. Chem. Eng. 9 (2021) 481-488.

[20]

Y. Tian, L. Zhou, Q. Zhu, et al., Nanoscale 11 (2019) 20638-20647.

[21]

S. Hu, F. Li, Z. Fan, et al., Dalton Trans. 44 (2015) 1084-1092.

[22]

J. Zhang, S. Hu, Y. Wang, RSC Adv. 4 (2014) 62912-62919.

[23]

D.H. Lan, H.T. Wang, L. Chen, C.T. Au, S.F. Yin, Carbon 100 (2016) 81-89.

[24]

G. Liu, P. Niu, C. Sun, et al., J. Am. Chem. Soc. 132 (2010) 11642-11648.

[25]

M. Xue, G. Tan, T. Liu, et al., Appl. Catal. A 578 (2019) 89-97.

[26]

F. Ma, C. Sun, Y. Shao, et al., New J. Chem. 41 (2017) 3061-3067.

[27]

A.D. Raj, T. Pazhanivel, P.S. Kumar, D. Mangalaraj, N. Ponpandian, Curr. Appl. Phys. 10 (2010) 531-537.

[28]

C. Wang, L. Zhang, M. Al-Mamun, et al., Adv. Energy Mater. 9 (2019) 1900909.

[29]

J. Su, X.X. Zou, G.D. Li, et al., J. Phys. Chem. C 115 (2011) 8064-8071.

[30]

Y. Hong, Y. Jiang, C. Li, et al., Appl. Catal. B-Environ. 180 (2016) 663-673.

[31]

S.C. Yan, Z.S. Li, Z.G. Zou, Langmuir 26 (2010) 3894-3901.

[32]

A.P. Dementjev, A.D. Graaf, M.C. M van de Sanden, et al., Diamond Relat. Mater. 9 (2000) 1904-1907.

[33]

A. Vinu, Adv. Funct. Mater. 18 (2008) 816-827.

[34]

J. Xu, L. Zhang, R. Shi, Y. Zhu, J. Mater. Chem. A 1 (2013) 14766-14772.

[35]

L. Zeng, X. Ding, Z. Sun, et al., Appl. Catal. B: Environ. 227 (2018) 276-284.

[36]

L. Jiang, X. Yuan, Y. Pan, et al., Appl. Catal. B: Environ. 217 (2017) 388-406.

[37]

H. Lei, Q. He, M. Wu, et al., J. Hazard. Mater. 421 (2022) 126696.

[38]

H. Lei, M. Wu, F. Mo, et al., Nano Energy 78 (2020) 105290.

[39]

Y. Wang, Y. Di, M. Antonietti, et al., Chem. Mater. 22 (2010) 5119-5121.

[40]

C. Yao, R. Wang, Z. Wang, et al., J. Mater. Chem. A 7 (2019) 27547-27559.

[41]

C. Yao, A. Yuan, Z. Wang, et al., J. Mater. Chem. A 7 (2019) 13071-13079.

[42]

A. Yuan, H. Lei, Z. Wang, X. Dong, J. Colloid Interface Sci. 560 (2020) 40-49.

[43]

Y. Liu, A. Yuan, Y. Xiao, H. Yu, X. Dong, Ceram. Int. 46 (2020) 16157-16165.

[44]

H. Lei, M. Wu, Y. Liu, et al., Chin. Chem. Lett. 32 (2021) 2317-2321.

[45]

H. Lei, M. Wu, F. Mo, et al., Environ. Sci. : Nano 8 (2021) 1398-1407.

Appendix

Less

Year 2022 volume 33 Issue 8

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1016/j.cclet.2021.11.042

Receive Date：2021-08-09
Online Date：2025-12-19
Published：2022-08-15

Article Data

Affiliations

History

Received：2021-08-09
Revised：2021-10-05
Accepted：2021-11-13

Affiliations

^a State Environmental Protection Key Laboratory of Environmental Risk Assessment and Control on Chemical Process, East China University of Science and Technology, Shanghai 200237, China

^b Shanghai Institute of Pollution Control and Ecological Security, Shanghai 200092, China

^d Shanghai Engineering Research Center for Multi-media Environmental Catalysis and Resource Utilization, East China University of Science and Technology, Shanghai 200237, China

References

Share

https://castjournals.cast.org.cn/joweb/ccl/EN/10.1016/j.cclet.2021.11.042

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

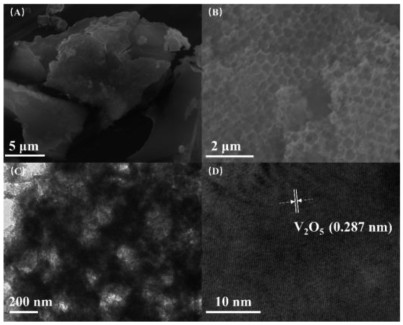

Fig. 1 (A) SEM image of bulk F-CN/V₂O₅; (B) SEM, (C) TEM and (D) HRTEM images of IO F-CN/V₂O₅.

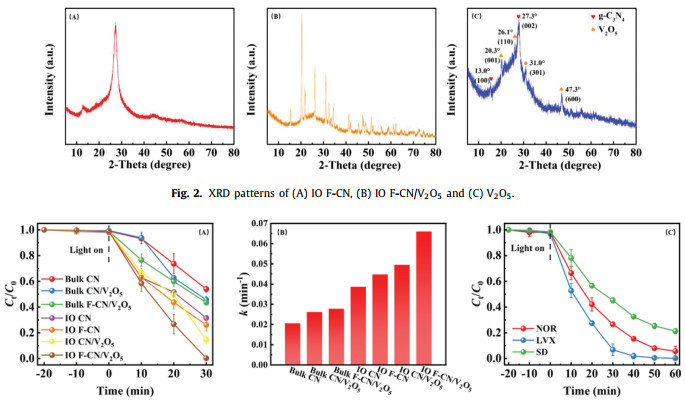

Fig. 2 XRD patterns of (A) IO F-CN, (B) IO F-CN/V₂O₅ and (C) V₂O₅.

Fig. 3 (A) The degradation results to RhB over different catalysts under visible light irradiation. (B) The corresponding rate constant and (C) the degradation results of IO F-CN/V₂O₅ to NOR, LVX and SD.

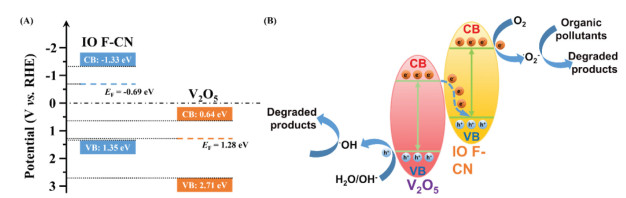

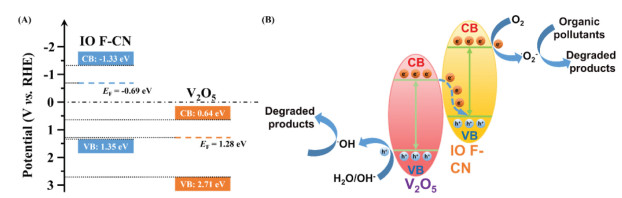

Fig. 4 (A) Schematic diagram for the band alignments of IO F-CN and V₂O₅. (B) Schematic illustration of the photocatalytic mechanism for IO F-CN/V₂O₅.
