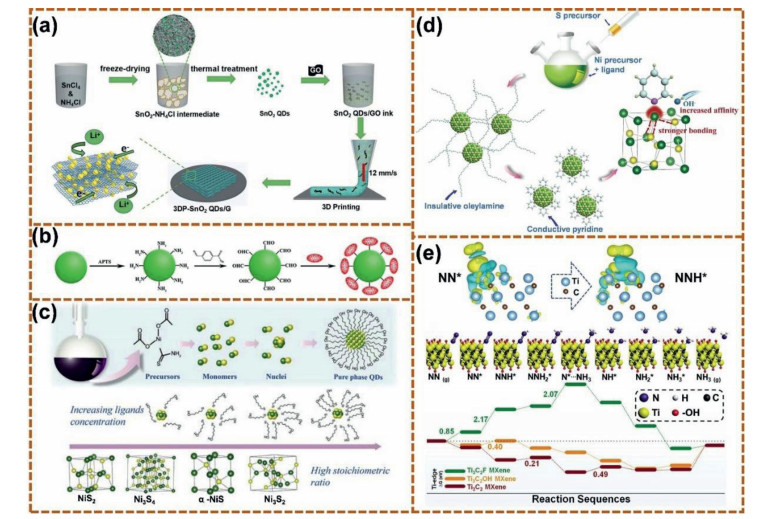

In the fields of telephony and energy storage, metals and metal oxides usually have a large theoretical capacity. Applying quantum dots to 3D printing can not only smoothen 3D printing, but also solve the problem of poor electrochemical performance of 3D-printing materials due to their slow ion and electron diffusion dynamics. Zhang et al. [72] prepared monodisperse SnO₂ quantum dots (QDs) on a large scale by a simple controlled sol-gel method (Fig. 2a). The material has a high specific capacity for electrochemical energy storage. Therefore, QDs are promising for 3D printing. Inspired by this, we summarize some typical QD synthesis methods. The synthesis of transition metal oxide QDs has been performed. For example, Soap free emulsion polymerization can not only effectively control the size, surface morphology and properties of colloidal particles, but also reduce the pollution and make clean materials, Tong et al. [73] synthesized Co₃O₄ QDs by the soap-free method and obtained Co₃O₄ QDs rich in oxygen defects by calcination under H₂/AR conditions. Liang et al. [74] synthesized KAS-ZnO QDs by combining kasugamycin (KAS) with aldehyde functionalized ZnO QDs via a shearable benzoimide covalent bond (Fig. 2b). In addition, some transition metal sulfide QDs have been synthesized. At the same time, in order to meet the specific needs of some material synthesis, different schemes can be adopted to synthesize different quantum dots. For instance, the required quantum dots can be synthesized in situ by using the original metal on a certain metal substrate. Yang et al. [75] prepared Co₉S₈ QDs based on the in situ selective sulfurization of Co on carbon fibers and embedded them into the interlayer of ternary metal layered double hydroxidenanosheets derived from metal organic frameworks. Quantum dots are synthesized in situ through the metal active sites in the raw materials, which further expands the synthesis method of quantum dots. In 3D printing technology, the successful extrusion of ink is closely related to the mechanical properties and morphology of the material. The existence of large size will not only destroy the shear stress required by the material in the extrusion process, but also block the needle in the extrusion process, which leads to the smooth printing progress being hindered. Therefore, the synthesis of small-size materials is very important. The size and morphology of materials can be further modified and controlled effectively by temperature control, cracking and etching, Wang et al. [76] successfully synthesized small-size ZnS QDs (2.5 nm) by a simple stirring hydrothermal pyrolysis method. Sun et al. [77] synthesized edge-rich S-vacancy MoS₂ QDs based on the Lewis acid-base theory and top-down strategy. Chen et al. [78] synthesized monodisperse Ni₃S₄ QDs with an average size of 3.8 nm by the one-pot method (Fig. 2c). In the same year, Chen et al. [79] synthesized smaller NiS₂ QDs with an average size of less than 3.1 nm by a colloid injection method (Fig. 2d). In addition, Wu et al. [80] and Yuan et al. [81] have synthesized 3D pillared vanadium nitride (VN) QDs/CM composites and N-doped vanadium nitride QDs in porous shells of carbon hollow spheres by effective methods, respectively (VNQD@NC HSs). Jin et al. [82] successfully prepared Ti₃C₂OH QDs by alkalizing Ti₃C₂T_x MXene in NaOH solution (Fig. 2e).

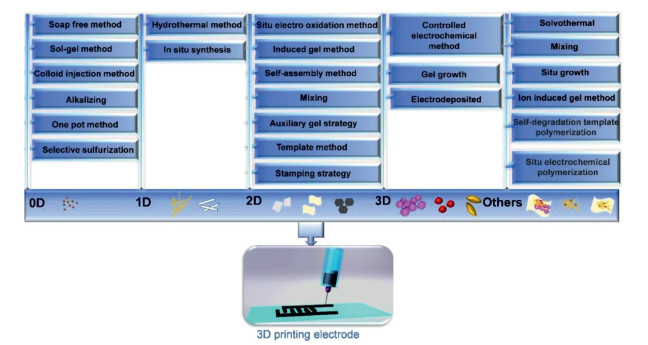

In summary, relatively small quantum dots (metals, metal oxides, metal sulfides, and metal nitrides) can be obtained by the sol-gel, soap-free, hydrothermal, and acid-base methods. However, although the synthesis of these methods further improves our requirements for the size and morphology of materials, some methods are complex and present some limitations in material synthesis. Therefore, in practical applications, further exploration of more mature and widely used quantum dot synthesis methods has vast application value.

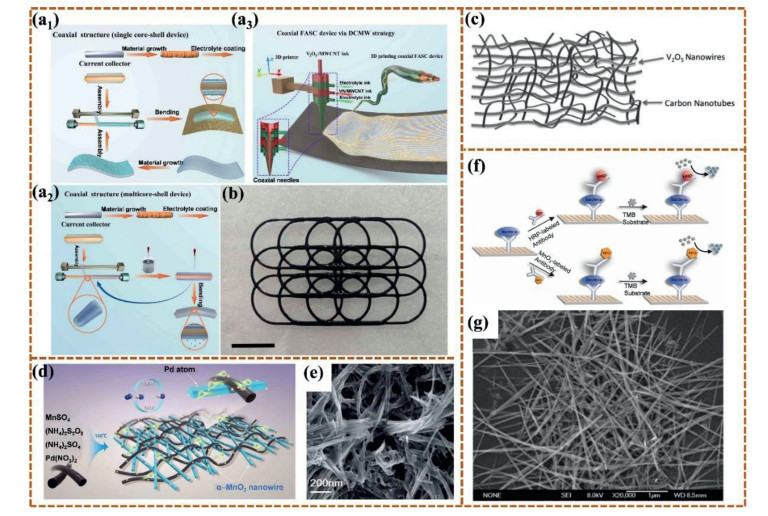

In the field of 3D-printing energy storage, metal oxide nanowires have been widely used, which can make it possible to print and control ink smoothly [83]. Through the regulation of hydrothermal temperature and hydrothermal time, the morphology of materials can be flexibly regulated. Therefore, hydrothermal synthesis of 1D nanowires has become a mature and effective method. Zhao et al. [84] synthesized V₂O₅ nanowires (NWs)/multiwalled carbon nanotubes (MWCNTs) with a 1D nanowire structure by hydrothermal synthesis, and VN NWs/MWCNTs by further annealing (Fig. 3a), additionally designing a 3D-printing coaxial fiber-shaped asymmetric supercapacitor (FASC) all-in-one device as positive and negative electrodes (Fig. 3b). The device has excellent mechanical properties and electrochemical stability. Yu et al. [85] developed a 3D-printing method for micro supercapacitors using carbon nanotubes. It can be further seen that 1D materials have a wide application prospect in the field of 3D printing technology. On this basis, we further reviewed several synthesis methods of V₂O₅ nanowires. André et al. [86] synthesized V₂O₅ nanowires via the hydrothermal method. Chen et al. [87] developed a hierarchical porous network structure composite comprising V₂O₅ nanowires and carbon nanotubes (Fig. 3c). In addition, Chen et al. [88] prepared nanocomposites with an interpenetrating network structure of fibrous carbon nanotubes and V₂O₅ nanowires via an in situ hydrothermal method. Other transition metal oxide nanowires have been synthesized. Yin et al. [89] synthesized MnO₂ nanowires via a hydrothermal method. Wan et al. [90] also synthesized MnO₂ nanowires by controlling the hydrothermal reaction time (Figs. 3f and g). Xiang et al. [91] prepared a 3D interlaced structure by uniformly combining MnO₂ nanowires deposited by atomic PD with CNTs (Fig. 3d). The micromorphology is shown in Fig. 3e.

1D nanowires have excellent flexibility and mechanical properties because of their interlaced structure, which has a good prospect for 3D printing. At the same time, a good network structure is conducive to ion exchange and transmission, giving it good electrochemical properties. The synthesis of a variety of metal oxide, nitride, and related composite nanowires by a simple hydrothermal and subsequent annealing method has been widely used.

2D materials, such as carbonaceous materials, conductive polymers, metal oxides, and metal sulfides, have high anisotropy, with transverse dimensions ranging from hundreds of nanometers to microns and a thickness of one nanometer. 2D materials have been widely used in various fields, particularly in the field of electrochemical energy storage, due to their high specific surface area, easy-to-control thickness and function, excellent electronic properties, mechanical strength, flexibility, and optical transparency. Controlling the assembly of these materials has a direct impact on their properties.

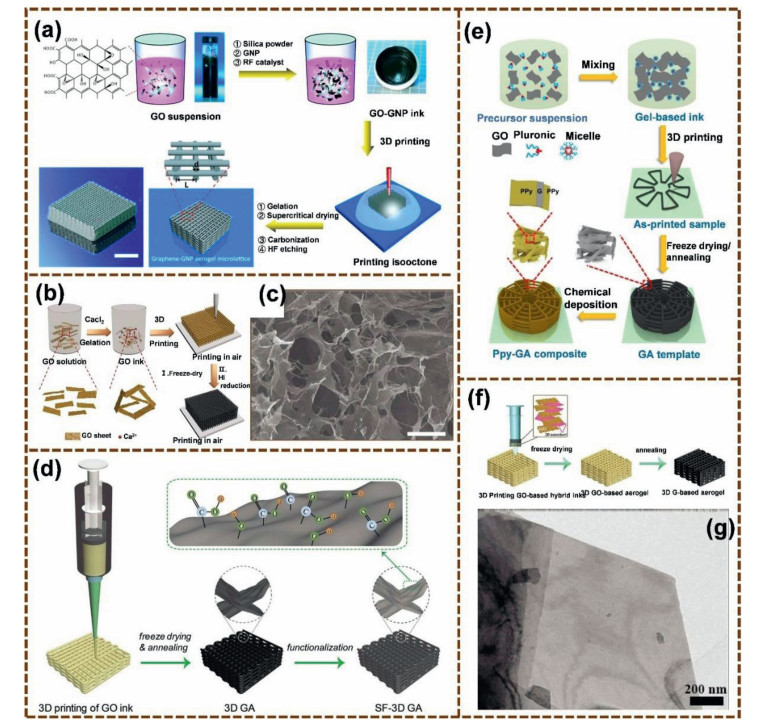

Graphene is one of the excitation materials for micro-sized electrical double-layer capacitors, water decomposition and solar cells due to its large surface area, high conductivity, good chemical stability, and other beneficial properties. However, due to the narrow channel, limited ion contact surface, and contact resistance, the stacking of graphene sheets notably affects its properties. At present, some attempts to create 3D carbon-based compressible devices have been made. The reduced graphene oxide method has been widely used because of its simple and effective operation, Nathan-Walleser et al. [92] obtained 2D sheet materials with excellent electrochemical properties by the thermal reduction of graphene oxide (TRGO) and introduced a simple 3D micro extrusion one-step printing process to manufacture five surfactant functionalized adhesive electrodes, which have a high charge–discharge performance. Zhu et al. [93] used GO and graphene nanoflakesas composite materials with high conductivity for printable composite ink without harmful surface area loss (Fig. 4a). In addition, in order to obtain the structure of special structural materials to further optimize the material structure, Jiang et al. [94] designed and manufactured 3D graphene aerogel microgrid by a simple ion-induced gel method (Fig. 4b), adding trace Ca²⁺ ions as an efficient crosslinking agent. This method adjusts the rheological behavior of ink by adjusting the interaction of GO sheets (Fig. 4c). Yao et al. [95] proposed a new surface-functionalized graphene aerogel (SF-3D GA) for 3D printing, which exhibits good dynamic properties and has a record high capacitance for independent carbon-based materials (Fig. 4d). In addition, the relationship between some related composites and other materials was also studied. At the same time, the composite materials formed by self-assembly between materials can effectively meet our needs in all aspects of materials. For example, Qi et al. [96] has prepared a superelastic polypyrrole (PPy)-coated GA electrode with a 3D framework with adjustable shape and periodic macropores by self-assembly (Fig. 4e). Zhao et al. [97] obtained mixed aerogel microgrid structure electrode materials by mixing ZnV₂O₆@Co₃V₂O₈ and VN with a 2D flake structure with graphene (Figs. 4f and g). These materials have good cycle stability and high specific capacitance when used in an asymmetric capacitor electrode.

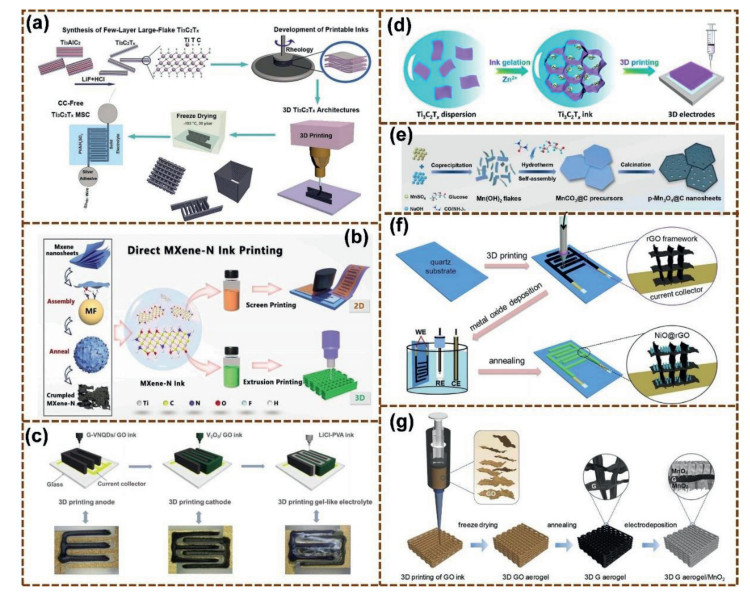

In recent years, a class of 2D metal carbides and nitrides called MXenes has attracted increasing attention. The surface of MXene nanosheets carries negative charge, and the rich chemical composition of the surface makes it possible to form a stable and adhesive colloidal water solution without any surfactant or polymer. Yang et al. [98] developed additive-free 3D-printing ink based on thin Ti₃C₂T_x nanosheets with a large transverse size to form a strong solid Ti₃C₂T_x network with ideal rheological properties, which can be used to print independent 3D structures layer by layer (Fig. 5a). Orangi et al. [99] introduced the use of viscoelastic, high concentration, water-based, and additive free MXene ink, which is the best choice for the preparation of a 3D-printing all-solid-state micro supercapacitor (3D MSCs) electrode material. Fan et al. [100] uses micro M²⁺ (such as Zn²⁺) as an auxiliary gel strategy instead of high-dose external additives, which further enhances the interaction between MXene nanosheets and effectively suppresses the stacking of MXene nanosheets. Therefore, Ti₃C₂ MXene gel ink with good rheological properties is directly used for 3D printing (Fig. 5d). Yu et al. [101] doped nitrogen into MXene by a melamine formaldehyde template method to enhance its redox activity and conductivity to improve its electrochemical performance (Fig. 5b). The design of the two kinds of MXene-N-based inks with different viscosities was demonstrated to build a printable electrochemical energy storage device. Zhang et al. [33] demonstrated a simple, low-cost, and novel stamping strategy, and quickly created high-performance, coplanar solid-state Ti₃C₂T_x MXene MSCs by combining 3D printing with viscous MXene water-based ink. Cain et al. [102] realized the formation, assembly, and blocking of MXene nano sheet surfactant at the oil–water interface through the interaction of an amine terminal ligand and the inherent surface functionalization and negative charge on a Ti₃C₂T_x sheet, and prepared the 3D modeling of planar MXene film and a two-phase liquid mixture. In addition, transition metal oxide nanosheets are also widely used in 3D printing. For example, Shen et al. [103] first developed a 3D-printing method to prepare quasi-solid asymmetric mesenchymal stem cells using vanadium pentoxide (V₂O₅) nanosheets and graphene vanadium nitride quantum dots (G VNQDs) as cathode and anode inks, respectively (Fig. 5c). Cai et al. [104] proposed a two-in-one strategy to prepare dual-functional V₈C₇-VO₂ heterostructure scaffolds based on 3D printing. Peng et al. [105] synthesized porous carbon-coated hexagonal Mn₃O₄ (p-Mn₃O₄@C) nanoplates in situ that were used as electrodes (Fig. 5e). Structure can effectively improve conductivity and electrochemical stability. Wang et al. [106] developed an interdigitated graphene framework (IGF) structure with a unique open porous interconnection support and a required microelectrode mode through simple extrusion 3D printing. MPCs were prepared by filling MnO₂ nanosheets supported by an IGF structure (Fig. 5f). Wang et al. [107] synthesized a new flexible and unbonded paper composite of Mn₃O₄/reduced GO nanosheets by ultrasonic crushing, filtration, and hydrothermal reduction. The large specific surface area and abundant pores of the composite provide more electrochemical active centers for electrons and ions. In addition, interconnected nanostructures can also effectively inhibit the self-condensation of rGO NSS. Yao et al. [108] deposited manganese oxide (MnO₂) on the collector by electrodeposition. A 3D-printed graphene aerogel/MnO₂ electrode has a highly porous structure and is conducive to the effective diffusion of ions (Fig. 5g). Liu et al. [109] designed a complete and ordered porous 3D copper conductive framework using 3D direct ink-writing technology and prepared a CuO nanosheet array by an in situ electro oxidation method. This porous structure can effectively improve the surface area and enhance the permeability of the electrolyte, thus further promoting the effective transport of ions and electrons.

In conclusion, 2D materials have been widely used in the field of 3D printing. It can be concluded that the most commonly used 2D materials are graphene-based, transition metal carbonitrides, and a small amount of transition metal oxide nanosheets. Due to the limitation of materials and 3D-printing requirements, the application of 2D materials in 3D printing needs further development and research.

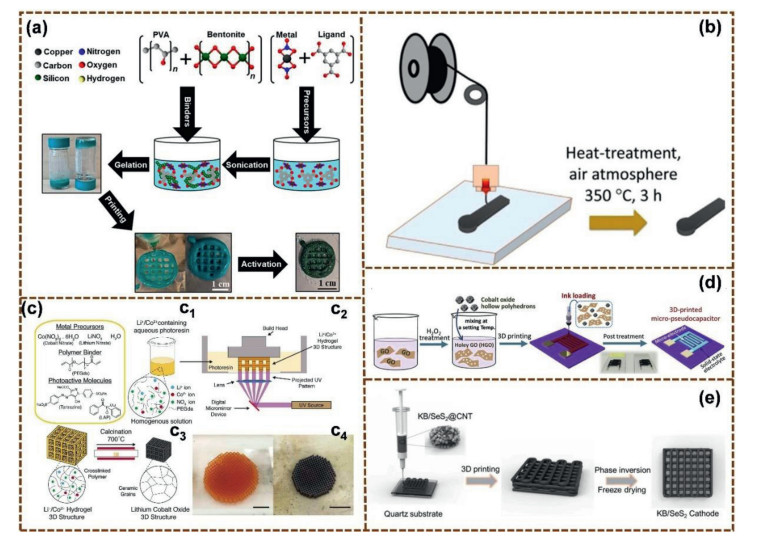

Most materials with three-dimensional structure are synthesized in powder state, and the 3D structure materials have large size. When applied to 3D printing, it will cause particle scattering, material loss and needle blockage. However, 3D materials usually have large specific surface area and more electrochemical active sites. Therefore, it is of great significance to incorporate 3D structural materials in 3D printing technology. Nowadays, metal organic frameworks (MOFs) applied for 3D printable materials are usually formed by suspending pre synthesized ions in ink and further processing [110]. However, MOFs do not combine well with binders, which results in poor rheological properties of the ink. To solve this problem, Lawson et al. [111] used a gel-printing growth monomer to print an MOF gel precursor through 3D to coordinate MOF, synthesized a sol-gel containing 70% HKUST-1 precursor, and optimized the in situ growth conditions by changing the activation solvent and the dissolution temperature (Fig. 6a). Zhong et al. [112] used extrusion 3D printing to implant nano-ZIF-8 into composite polycaprolactoneand calcium dihydrogen phosphatescaffolds to prepare composite scaffolds with a uniform structure, high mechanical strength, and high macroporous connectivity. Ying et al. [113] transformed octahedral ZIF-67 into active porous metal oxide Co₃O₄ nanosheets by a controlled electrochemical method. The material was directly coated onto the surface of a 3D-printed titanium (Ti) electrode to form a ZIF-67/Ti-E electrode by a mild step-by-step in situ growth method. Graphene/polylactic acid (PLA) filaments are widely used in melt manufacturing. Recently, Ghosh et al. [114] doped titanium oxide and iron oxide into graphene/PLA filaments to fabricate 3D-printed electrodes (Fig. 6b). This discovery allowed other active materials to be introduced into the filament in a controllable way, which can be used to customize high-performance 3D-printed electrodes. Santos et al. [115] electrodeposited PLA/graphene electrode with low-cost nickel iron hydroxide containing oxygen, effectively improving the activity of the electrocatalytic oxygen evolution reaction (OER) in an alkaline medium. To optimize electrochemical performance, the composition of the electrocatalytic surface can be adjusted by the relative content of nickel and iron in the electrodeposited solution. Yee et al. [116] avoided the addition of 3D multi-component metal oxides using an aqueous metal salt photocatalyst, and the manufacturing method depended on the particle type or the organic-inorganic binder, which was limited in chemical composition and resolution, respectively (Fig. 6c). Through the synthesis of a homogeneous lithium and cobalt nitrate solution resin and printing with digital light treatment, a hydrogel containing lithium and cobalt ions was obtained, and a lithium cobalt oxide (LCO) structure was constructed. Tian et al. [117] combined an exfoliated porous graphene oxide (HGO) sheet with pseudocapacitive cobalt oxide hollow nano polyhedrons and prepared a high concentration composite ink without additives (Fig. 6d). The ink used in 3D printing has good rheological properties, such as shear dilution, and a non-Newtonian and steady flow. An MPC microelectrode supported by reduced HGO was constructed by 3D printing and freeze-drying. Figueredo-Rodriguez et al. [118] mixed Fe₂O₃ nanopowder, carbon powder and Bi₂S₃ powder balls to form an iron electrode by 3D printing, which has a high energy density when applied to a water-iron-air battery. Saleha et al. [119] printed nanoparticle dispersed droplets directly, then heated them to remove solvents and sinter the nanoparticles, resulting in a large porosity, thus forming a hierarchical porous system with a very high surface-to-volume ratio. A highly complex high-capacity high-strength microcrystalline lattice electrode Li ion battery was fabricated by 3D printing. Shen et al. [120] used low-cost commercial ketjenblack (KB) with rich meso‑ and microporosity as the matrix material of SeS₂, and used extrusion-based 3D printing to fabricate hierarchical freestanding honeycomb microgrid electrodes for Li ion batteries (Fig. 6e).

Various material morphologies are used in 3D printing. Due to its rich amphiphilic, stable dispersion and tunable rheological properties, 2D materials are often selected to prepare various aqueous composite inks. For different printing purposes, the rheological properties required by printing inks are controlled by changing the concentration and proportion of 2D material inks and additives (such as Ca²⁺, CNTs and cellulose nanofibers), such as good formability high porosity, excellent conductivity, and mechanical stability. So far, a variety of electrode structures based on different morphologies have been successfully designed and constructed, such as mesh, cross and micro dot array structures [121-123]. Kong et al. [124] synthesized CNTs (1D) and rGO nanosheets (2D) through simple solvothermal and direct ink writing techniques for the printing of self-supporting and thickness-adjustable periodic rGO/CNT hybrid aerogel microcrystals. Through reasonable design and adjustment of chemical composition, we directly grow α-Fe₂O₃ nanorods and Ni-(OH)₂ nanosheet arrays on an rGO/CNT surface (Fig. 7a). As an ink for 3D printing, this material has ideal shape, size, and high dispersion. Tang et al. [125] prepared high-concentration printable electrode inks by mixing Fe₂O₃ nanoparticles, 1D silver NWs, and 2D graphene nanoparticleswith adhesives. The resulting electrode ink shows good printing performance and can be processed by extrusion (Fig. 7b). The 3D-printed MSCs have high device area capacitance, high energy density, and good cycle stability. Zhou et al. [126] used a simple ion-induced gel method to transform a GO sol into hydrogel by adding CoCl₂ as a crosslinking agent in a chemical crosslinking reaction between cobalt ions and oxygen functional groups on GO sheets. A graphene film electrode with controllable shape and structure was prepared to match the rheological properties of 3D printing. This method avoids the shortcomings of the pure oxygen graphene ink, such as insufficient viscosity and complicated production procedure. Nitrogen-doped graphene was prepared by annealing in 1 mol/L urea solution to improve the conductivity of graphene. Gao et al. [127] used 2D reduced GO nanosheets as adhesive and support, 3D AC microparticles as active materials, and 1D CNTs to form a conductive network (Fig. 7c). A compact 3D brick-like activated carbon/1D carbon nanotube/reduced graphene oxide (AC/CNT/rGO) carbon composite electrode with adjustable thickness is formed without using a polymer adhesive, and the layered extrusion 3D printing is used for high-energy density supercapacitors. Shen et al. [128] designed a 3D sulfur copolymer graphene system with a periodic microcrystalline lattice, high viscosity, and shear thinning characteristics using the formulation of sulfur particles, 1, 3-diisopropyl benzene (DIB), and concentrated GO dispersion and extrusion 3D printing (Fig. 7d). The sulfur copolymer can be formed by heat treatment through the reaction of elemental sulfur and DIB. Some of them can inhibit the dissolution of polysulfides. In addition, the presence of graphene can also provide a high conductivity for the whole electrode. Li et al. [121] introduced a simple strategy to utilize 3D printing and unidirectional frozen pseudoplastic nanocomposite gels (Fig. 7e) by preparing a viscous pseudoplastic nanocomposite ink composed of Ti₃C₂T_x nanosheets, manganese dioxide nanowires (MnONWs), silver nanowires (AgNWs), and fullerenes (C60) (Fig. 7f). A high-resolution thick honeycomb porous cross-electrode and essentially stretched mesenchymal stem cells were constructed. Zhang et al. [123] introduced a new strategy for manufacturing all-printed solid-state micro supercapacitors with a multilayer structure through multi-material 3D printing. Polypyrrole/polyaniline (PPy/PANI) coaxial nanotubes were synthesized by self-degradation template polymerization and in situ electrochemical polymerization. The ink based on polymer/graphene is environmentally friendly, safe to dry, low-cost, and versatile. Tang et al. [129] enhanced the viscoelastic response of the solution by introducing sodium alginate into GO solution and adopted the newly developed Ni_0.33Co_0.66(OH)₂·xH₂O, which is ultra-fine and has high stability. Through this 3D-printing strategy, Ni_0.33Co_0.66S₂/type graphene aerogels with highly interconnected and programmable internal network modes were constructed. Azhari et al. [130] introduced the application of bonded spray powder bed technology in the fabrication of thick graphene-based 3D structures, which directly uses the high specific surface area powder produced in the rapid thermal expansion process of GO. The heat generated by the surface polymerization between wrinkles and folds reduces the contact resistance between the powder agglomerates by modifying the TRGO sheet with Pd nanoparticles. Rocha et al. [131] used additive manufacturing technology to manufacture electrodes. The device uses copper as the collector and chemically modified graphene (CMG) as the active material for the preparation of Pluronic F127 hot ink. These formulations are water-based, nontoxic, flexible, easy-to-upgrade, and easy-to-design inks, containing materials with different shape, size, chemical composition, and surface area, from 2D materials (CMG) to metal particles (Cu), with optimized rheological behavior, and multi-material devices for 3D printing. Yu et al. [132] produced heavy-duty NiCoP/MXene (NCPM) electrodes by the in situ growth of NiCoP bimetallic phosphide nanowires on the surface of Ti₃C₂ MXene nanosheets and designed an ASC device with a printed NCPM positive electrode and a printed AC negative electrode. The NCPM electrode has layered holes and an adjustable mass load, resulting in thorough electrolyte penetration and convenient charge transfer, improving cycle stability and rate capability.

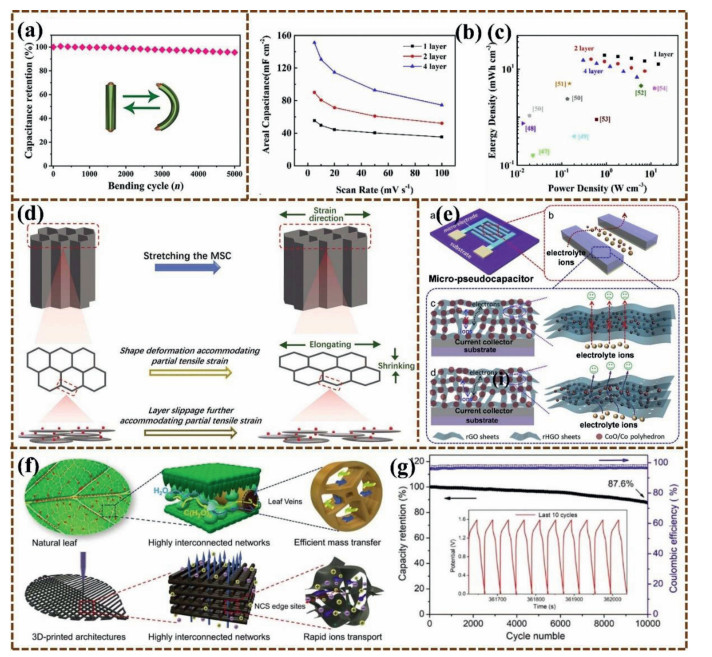

Supercapacitors, which have the advantages of high power density and charge storage capacity, excellent low temperature performance, long life, and fast charge and discharge, have become one of the most promising energy storage devices in the application of 3D-printing technology. Zhao et al. [84] designed a 3D-printing coaxial FASC all-in-one device with V₂O₅ NWs/MWCNTs and VN NWs/MWCNTs as positive and negative electrodes, respectively. The device has excellent mechanical properties and flexibility. After 5000 cycles of repeated bending, the capacitance retention rate can reach 95.5%, which is superior to asymmetric supercapacitors with a traditional coaxial structure (87.1%) and twisted structure (78.2%) (Fig. 8a). Ma et al. [133] proposed a novel reversible self-protecting micro-supercapacitor based on a thermally responsive polymer electrolyte to prevent thermal runaway. Yu et al. [85] used 3D printing, pre-designed base temperature, and a pre-programmed printing track to make the electrode, which can improve the structural integrity of the motor. The 3D-printed MSC device has good cycle stability and reliable energy storage capacity, which indicates that the micro power supply device is promising for energy storage applications. Zhang et al. [123] reported a new strategy for the scalable fabrication of all-printed solid-state micro supercapacitors with multilayer structures by multimaterial 3D printing. One option is to print the electrode directly onto tape to make a transferable device. The other is a wearable MSC prepared in situ, which has good performance and excellent flexibility and can be printed directly onto a lab coat. As shown in Figs. 8b and c, the multilayer MSCs show excellent electrochemical performance: the four-layer device has a high surface capacitance (151.2 mF/cm²), with maximum bulk energy density at 19.6 mWh/cm³ when the average power density is 0.91 mW/cm³. Li et al. [121] used thick honeycomb porous cross-electrode 3D printing to construct stretchable mesenchymal stem cells. The electrochemical reaction mechanism of the device is shown in Fig. 8d. An MSC has good rate performance and long-term cycle stability. At 50% tensile strain, the area capacitance degradation of an MSC is less than 20%; however, it still maintains 75% of the initial capacitance after 1000 tension/release cycles. Tang et al. [129] first demonstrated a dual-electrode hybrid EES device constructed using 3D printing. The device has a high surface capacitance, excellent rate performance, and good cycle stability. Fig. 8g shows the excitation diagram of the electrochemical reaction of the device sample. As shown in Fig. 8f, after charging and discharging 10,000 times, 87.6% capacitance is retained. This 3D-printing method can be easily extended to other materials (functional nanomaterials/graphene composite aerogels) and provides a powerful platform for energy conversion and storage, MEMS, biomedical electronics, and environmental remediation. Tian et al. [117] proposed a 3D-printing strategy based on extrusion. As shown in Fig. 8e, a 3D-printed microelectrode with a high conductivity and a continuous ion transport channel was obtained by the surface modification of GO nanosheets. The electrode has a high capacitance, excellent rate performance, and strong cycle stability (91% capacity retention after 11,000 cycles). In addition, Shao et al. [134] prepared a high 1T ultra-thin c-MoS₂ material by an electrospray method and made it into a binder-free functional ink through ink adjustment to expand an inkjet printing MSC device. The 3D 1T cMoS₂//rGO asymmetric micro-supercapacitors (AMSCs) assembly device have a stable working voltage of 1.75 V and an excellent cycle stability in a MgSO₄ aqueous solution. Chao et al. [135] synthesized soluble MoS₂/PEDOT: PSS (MP) hydrogels directly from PEDOT: PSS, Na₂MoO₄, and L-cysteine precursors using a simple synthetic method (one-pot hydrothermal method). MP has a stable dispersion in water, can be used for vacuum filtration and 3D extrusion printing, and has a wide application potential. For supercapacitors, maintaining a fast-charging capacity at low temperatures is a major challenge. Yao et al. [136] studied the important role of multi-scale open 3D porous structures in realizing the performance of ultra-low temperature supercapacitors. It is proven that the 3D-printing carbon aerogel with an open porous structure has a higher energy storage capacitance than non-3D block aerogels at ultra-low temperatures. Kang et al. [137] easily achieved excellent load density and area capacitance by establishing a double continuous transmission path of ion/electron species and a self-healing mechanism to eliminate interface resistance. Xiao et al. [138] directly produced ionic liquid electrolyte films with a digital inter-pattern by depositing phosphorus nanosheets layer-by-layer and electrochemically stripping graphene, and directly transferred them to a polyethylene terephthalate substrate. The device has an excellent electrochemical performance. Liu et al. [139] successfully wound functional nanowires and crosslinking agents (2D nanosheets, GO and MXene nanosheets) into nanowire junctions as crosslinking materials. Finally, a functional nanowire gel was 3D-printed, and an MSC subdevice was successfully prepared. Zhao et al. [140] used advanced 3D printing to integrate temperature sensors with FASC. In the FASC device, the positive pole of V₂O₅/SWCNT fibers and the negative pole of VN/SWCNT fibers are distorted. The FASC device has a high specific capacitance and an excellent mechanical flexibility (116.19 mF/cm² at 0.6 mA/cm²). Fan et al. [141] assembled a 3D-printed hybrid capacitor and sodium ion hybrid capacitor device with a high energy and power density using porous nitrogen doped MXeneas the anode material and activated carbon as the cathode material. The ink used in the device has the advantage in that it can print directly to form an electrode structure without the use of a collector.

To summarize, the application of 3D printing in the field of micro supercapacitors is mature (Table 1). 3D-printed lattice structures can significantly reduce ion diffusion resistance and distance, allowing operation at low temperatures. The application of 3D printing is a feasible manufacturing means for the construction of flexible supercapacitor devices and the feasible design and manufacture of miniaturized energy storage elements in the device architecture. However, MSCs still face some challenges in providing or collecting energy with a high power and energy capacity.

3D printing can directly use viscoelastic ink with continuous filamentous materials under environmental conditions [142, 143]. It is an attractive method for the manufacture and customization of energy storage devices. Zhang et al. [72] focused on the energy storage architecture of the electrode through 3D printing. 3D-printed quantum dot microelectronics have very good electronic and ion dynamics. They have an ultra-high specific capacity, high area capacity, and good amplification performance (6 layers, 5.0 mAh/cm²). Their energy storage capacity is three times that of ordinary lithium storage microelectrodes. They can be directly used as lithium storage anodes. Yee et al. [116] integrated an independent, binder-free, conductive, and additive-free LCO structure into LIBs as a cathode. After 100 cycles at C/10, the electrochemical capacity retention was 76%. This simple method of making a 3D LCO structure can be extended to other materials. By customizing the characteristics and chemometrics of a metal salt solution, a general method for the preparation of multicomponent metal oxides with a complex 3D structure is provided. Moreover, Shen et al. [144] realized a dendritic-free lithium anode by 3D printing an MXene array, which can guide lithium nucleation and uniformly disperse lithium-ion flux and the electric field. The above characteristics enable the electrode to exhibit a very low potential and good long-period stability.

Lithium sulfur batteries (LSB) are considered to be the next generation of advanced energy storage systems in the future. Wei et al. [145] proved that in situ oxide implantation can promote the reaction kinetics of polysulfide conversion and explained that the application of 3D printing is conducive to the improvement of sulfur redox kinetics and the ion diffusion coefficient and reduction of the impact of volume change on discharging/charging. Cai et al. [104] proposed an innovative idea, designing a V₈C₇-VO₂ heterostructure scaffold based on extrusion 3DP technology. As a dual effective polysulfide fixer and lithium dendrite inhibitor for high-performance LSB, it can effectively adjust polysulfide compounds to reduce their shuttling. The device has an excellent rate performance (643.5 mAh/g at 6.0 C) and cycle stability (capacity attenuation of 0.061% per cycle after 900 cycles at 4.0 C) when applied to an LSB. Shen et al. [128] carefully designed a sulfur copolymer graphene structure with a periodic microcrystalline lattice as the cathode of an LSB. The D-type sulfur copolymer graphene system has a high reversible capacity (812.8 mAh/g) and good cycle performance.

Superoxide sodium oxygen batteries (SSOB) are considered to be one of the most promising candidates for next-generation energy storage systems, with a high theoretical energy efficiency and energy density. However, they face problems of low utilization and poor cycle stability. Lin et al. [146] produced an rGO air electrode with a hierarchical porous structure by 3D printing. Its electrodes have good O₂/Na⁺ transport capacity and good conductivity, which is instrumental for the development of a high-performance Na-O₂ battery. Kong et al. [124] adopted a simple and scalable 3D-printing method. 3D printing of quasi-solid state nickel iron battery (QSS-NFB) devices with excellent compressibility, ultra-high energy density (28.1 mWh/cm³), and excellent long-term cycle durability (more than 1500 cycles even under severe mechanical stress, stable performance) was performed. Shen et al. [120] used 3D printing to select KB, a low-cost commercial conductive material with abundant pores, as the main material of selenium sulfide. The reaction kinetics and electrochemical performance of the 3D-printed KB/SeS₂ electrode (3D PKB/SeS₂) under high-quality loading are better than those of an electrode prepared by a traditional roll coating process. The 4-layer printed 3D PKB/SeS₂ honeycomb cathode has a high initial discharge capacity and good cycle stability.

To summarize, 3D printing has been widely used in battery research fields such as lithium ion and lithium sulfur batteries and solid fuel cells. In contrast, vanadium pentoxide as a cathode material has a high theoretical capacitance (2120 F/g) [147], the theoretical capacitance of manganese oxide is up to 386 F/g at a current density of 1 A/g, [148] the theoretical capacitance of graphene is ~ 550 F/g, [149] the capacitance of multi wall CNTs [150] is up to 135 F/g, and the capacitance of single wall CNTs [151] is up to 180 F/g. In order to maximize the adhesion and mechanical stability between the electrode material and the elastic substrate, a thinner electrode is usually required. However, due to the thin electrode, small electrode volume and insufficient interface area for energy storage, the regional electrochemical performance is inevitably not ideal [152]. The electrochemical energy storage capacity of printable active materials is low, and the construction of electrochemical devices with high electrochemical capacity is still a challenge (Table 2).

3D printing has the advantages of rapid prototyping and decentralized manufacturing. The 3D framework of 3D printing can provide more electrochemical active sites for electrocatalysis to effectively improve the efficiency of electrochemical energy conversion [153]. Therefore, the application of 3D printing in the field of electrocatalysis is an attractive option. Ying et al. [113] designed a 3D-printed titanium electrode (ZIF-67/Ti-E electrode) with a high specific surface area for the electrochemical conversion of ZIF-67 to porous metal oxides for an efficient OER electrocatalyst. In an alkaline medium, the optimized 3D-printed electrode can be directly used as an OER electrode with an excellent electrocatalytic performance. Additionally, Sullivan et al. [154] studied the hydrogen evolution reaction (HER) of a 3D-printed porous NiMo-based electrode in 1.0 mol/L KOH solution in an electrochemical H-cell. For comparison, the current density voltage characteristics of the same electrode under a traditional electrode configuration and a flow electrode configuration are studied. It was found that effective hydrogen bubble removal on the electrode surface reduces the losses related to dynamic overpotential and ohmic resistance compared with the traditional planar electrode structure. 3D printing provides unlimited opportunities for the customization of actual substrates or electrodes for various functions. Ng et al. [155] synthesized a ReS₂ electrocatalyst on 3D- and 2D-printed electrodes by a simple electrodeposition method. Compared with a blank electrode, the electrocatalytic activity of the HER was significantly improved.

In conclusion, 3D printing has rapidly developed in electrocatalysis (Table 3). Its advantages are summarized as follows: the printing of a 3D structure can provide porous structure to an electrode, effectively improving electron transfer and electrochemical active sites in the process of an electrochemical reaction; furthermore, the application of 3D printing makes it possible to create any independent electrode. For example, the room temperature electrodeposition method allows for coating on 3D electrodes, opening a new method of photo- and electrochemistry [156].
