Chiral pillar[n]arenes have shown great research value and application prospect in construction of chiral materials and chiral applications, due to their inherent planar chiral configurations, chiral recognition ability, easy modification and highly symmetric hydrophobic cavity. This review systematically summarized the conformation inversion factors of planar chiral Pillar[5]arenes (pR/pS), such as solvents, temperature, substituent size, alkyl chains, chiral and achiral guest molecules. We firstly introduced the applications of chiral pillar[n]arenes for constructing chiral materials and pointed out that planar conformation inversion showed a great potential role in constructing chiral materials. Then, we mainly concluded the chiral applications of chiral and planar chiral pillar[n]arenes like chiral enantiomer analysis by circular dichroism, electrochemistry or chiral fluorescence sensing. From this review, we found that the inherent planar chiral conformation of chiral pillar[n]arenes have played a very important role in chiral field in the future.

Key words

Chiral pillar[n]arene / Planar chiral configuration / Chiral supramolecular materials / Chiral separation and analysis / Conformation inversion

Cite this Article

Chengxiang Shi, Hui Li, Xiaofeng Shi, Liang Zhao, Hongdeng Qiu. Chiral pillar[n]arenes: Conformation inversion, material preparation and applications[J]. Chinese Chemical Letters, 2022 , 33 (8) : 3613 -3622 . DOI: 10.1016/j.cclet.2021.12.010

Full Text

Less

1 Introduction

Less

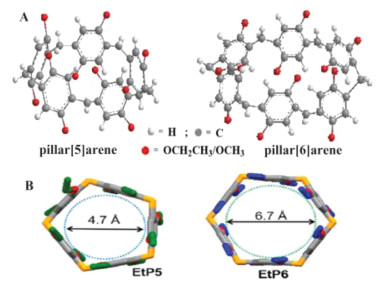

Pillar[n]arenes (n = 5, 6…) have been widely used in material preparation, life sciences and separation analysis as soon as it was first synthesized by Ogoshi, due to their excellent characteristics such as symmetrical hydrophobic cavity, electron-rich and easy edge modification [1-11]. Pillar[5]arene is benzene pentamers with 1, 4-methylene bridged hydroquinone derivatives, which cavity inner diameter is around 4.7 Å (Fig. 1), and the bond angle of −CH₂− is 111.3° which is closely to the sp³ hybrid orbital bond angle of carbon atoms of 109.5° and the pentagonal internal angle of 108°, so it has a relatively stable pentagonal configuration. Pillar[6]arene was then prepared with a larger cavity and found to have one more repeating unit than Pillar[5]arene (Fig. 1A) [12], the inner diameter of Pillar[6]arene cavity approximately 6.7 Å (Fig. 1B) [13], then more pillar[n]arenes with larger cavity were successfully prepared. Among these pillar[n]arenes (n = 5, 6) have always been widely synthesized and applied due to their high thermodynamic stability and high yield.

Chiral pillar[n]arenes can be easily obtained by introducing different chiral groups at the edge or conformation inversion. Small molecular groups on the benzene ring can be elastically reversed with its units undergoing oxygen-through-the-annulus rotation, which produces conformational isomers and leads to various conformations of pillar[n]arenes (Fig. 2). They were five enantiomers of Pillar[6]arene, including of (pS, pS, pS, pS, pS, pS)/(pR, pR, pR, pR, pR, pR), (pR, pS, pS, pS, pS, pS)/(pS, pR, pR, pR, pR, pR), (pR, pR, pS, pS, pS, pS)/(pS, pS, pR, pR, pR, pR), (pR, pS, pR, pS, pS, pS)/(pS, pR, pS, pR, pR, pR), (pR, pS, pS, pR, pS, pS)/(pS, pR, pR, pS, pR, pR). Although the conformation of pillar[n]arenes can be reversed, the conformations with the lowest energy state become its dominant conformation due to the different potential barriers of conformational isomers. For all alkoxy pillar[n]arenes, due to steric effect, the energy of (pS, pS, pS, pS, pS, pS)/(pR, pR, pR, pR, pR, pR) in all R or all S conformations is the lowest [14-16].

There are usually two main synthesis methods for both chiral and achiral pillar[n]arenes including derivatization followed by ring polymerization and ring polymerization followed by derivatization of repeating units, mainly catalyzed by BF₃·OEt₂, FeCl₃ or TsOH under mild conditions with paraformaldehyde as polymerization agent. The first method mainly uses homogeneous or mixed hydroquinone derivatives as repeating units to obtain homogeneous or copolymerization pillar[n]arenes [17-25], and then construction of dimeric, trimeric or tetrameric (Fig. 3) [26-28]. In contrast, the second synthesis method involves dealkylation of methoxy or ethoxy Pillar[5]arene (MP5/EP5)first by BBr₃ to obtain homogeneous hydroxyl pillar[n]arene (P5), and then alkyl chain, carboxyl, amine, sulfonic acid or chiral groups were introduced to prepare a series of functionalized Pillar[5]arenes. Therefore, chiral pillar[n]arenes (n = 5, 6…) can be accurately synthesized by selectively optimizing and designing the chiral molecules or chiral precursors at its edge use the same strategy.

Chiral pillar[n]arenes (n = 5, 6…) can be used to construct novel chiral supramolecular polymers or planar chiral control systems, due to their specialized electron-rich cavity, easy to modify and polyfunctional groups. Chiral or achiral guest molecules of appropriate structural can be encapsulated into its cavities, as well as used for chiral fluorescence and chiral electrochemical sensing. Pillar[n]arene is a kind of good chiral sensor molecule, and its two enantiomers have the property of inversion, which makes it show special chiral response. Therefore, pillar[n]arene molecules have great application potential in chiral separation and analysis. Some reports have been published and mostly focus on the synthesis, sensing, separation or analysis of pillar[n]arenes [29-52]. This review we focused on chiral information like conformation inversion of planar chiral conformation Pillar[5]arenes (pR/pS), pillar[n]arene-based chiral materials and their applications of in chiral separation analysis. Through reading this review, we hope to provide readers with a powerful reference for the preparation, performance and chiral applications of chiral pillar[n]arenes.

2 Conformation inversion of chiral pillar[n]arenes

Less

Chiral conformation inversion of Pillar[5]arene may be caused by epimerization or racemization caused by rotation of units at the molecular level [53], and the reversal of the planar chiral configurations of the guest molecule induced pillar[n]arenes (n = 5, 6…) maybe a new strategy to construct the planar chiral control system, chiral supramolecular self-assembly and polymers [54, 55]. Researchers have found that the inversion of the planar conformation (pR/pS) of pillar[n]arenes contain a variety of inducing factors, such as chiral or achiral guest molecules (anion and cation), length of alkyl chain, solvents, temperature or substituted radical hindrance.

2.1 Conformation inversion induced by chiral guest molecules

The inversion of the planar chiral conformations (pR/pS) of the Pillar[5]arene is mainly due to different steric effect between chiral guest molecules and its cavity edge, and the most basic reason is the different binding model between Pillar[5]arene cavity and α-side chain group of chiral guest molecules. Chen et al. found that the chiral α-side chain group of L-Arg-ethyl ester hydrochloride faced the cavity of water-soluble Pillar[5]arene WP5, which can induce its pR conformation to reverse. Other 18 types of L-amino acid ethyl ester hydrochlorides can also induce the pS conformation to reverse [53].

2.2 Conformation inversion induced by achiral guest molecules

The rotation speed of units and its direction on pillar[n]arenes can be affected by the interactions between pillar[n]arenes and achiral guest molecules, which then induce the reversal of pR/pS of pillar[n]arenes. Ogoshi et al. prepared chiral Pillar[5]arene with 1, 4-bis[2(S)-methylbutoxy]-benzene as repeating units, they found that when octyltrimethylammonium hexafluorophosphate (OTMA) was added, the negative signal intensity of circular dichroism (CD) was significantly enhanced and conformation reversal was also induced [25]. Then they found that introducing substituents containing π-π conjugated units and appropriate guest molecules to Pillar[5]arenes could effectively control the reversal and change the planar chiral structure, which provides a new strategy for inducing planar chiral conformations [21]. Cheng et al. used the guest molecule 1, 4-dicyanobutane as a competitor molecule to induce the conformation conversion of mechanically self-locked molecules (MSM1 and MSM2) under the conditions of increasing solvent polarity [20]. Lee et al. found that guest molecule of Hg²⁺ can lead the in-pS-L conformation of bicyclic Pillar[5]arene to reverse to the out-pR-L in the presence of ClO₄^– or NO₃^– [22]. In addition, changing the length and addition amount of achiral guest molecules pyridine, imidazole and alkyl chain containing terminal hydroxyl or methyl can lead to the conformation reversal of L/D-Ala-tertbutyl ester hydrochloride derived Pillar[5]arenes [54]. Ji et al. found that amino acid derivatives can induce Pillar[5]arene with alkyl chains of different lengths to generate extremely strong CD signal values [56]. Yao et al. found that pressure could also drive the planar chirality switching of molecular universal joints based on cyclophano-Pillar[5]arenes [57]. The structures, preparation, influencing factors, advantages and applications of chiral and planar chiral Pillar[5]arenes were summarized in detail in Table 1.

2.3 Conformation inversion induced by solvents

Solvent molecules can be encapsulated into pillar[n]arenes cavity due to their hydrogen bonding, repulsion, C—H···π interaction and space interaction to form stable encapsulated structure, which may lead to different rotation or swing speed of pillar[n]arenes under different dielectric constants, resulting in configurations inversion. Ogoshi et al. found that solvents with high dielectric constant could induce the conformation inversion of 2-(S)-methylbutoxy modified Pillar[5]arene (Fig. 4A), mainly because the substituents of Pillar[5]arene ring swung and rotated rapidly in such solvents, which led to the decrease of CD signal intensity [25]. The stable pS/pR conformation of butoxycarbonyl (Boc)-protected pillar[4]arene[1]-diaminobenzene (BP) BP-f1 and BP-f2 (Fig. 4B), mainly depended on the size of solvent molecules(n-hexane or dichloromethane) and encapsulation in the cavity [24]. Nagata et al. found that 2-(S)-methyl butoxy substituted chiral Pillar[5]arene mainly existed in pR conformation in short linear dihaloalkane solvents. While in long linear solvents, it mainly existed in pS conformation (Fig. 4C) [58]. Cheng et al. revealed planar chiral conformation of the mechanically self-locking molecule can be inversed when changing the polarity of mixed solvents (Fig. 4D) [20]. In addition, the planar chiral conformations of electrochemically responsive molecular universal joints (EMUJ) out-(S_P) EMUJ1-f1 and in-(R_P) EMUJ1-f2 of the electrochemically responsive molecular universal joint EMUJ based on pillar[n]arene can also be controlled by the polarity of solvents. In the polar solvents (Fig. 4E), EMUJ1 exists in out-(S_P) conformation. While in nonpolar solvents, it exists in-(R_P) conformation [59]. Therefore, the inversion of the planar chiral conformations of pillar[n]arenes (n = 5, 6…) can be effectively controlled by changing the types, polarity or amounts of solvents, further applied to be used in the preparation of chiral materials, chiral separation and analysis.

2.4 Conformation inversion induced by temperature

The rotation and oscillation rate of the substituents on the edge of the pillar[n]arene cavity may be caused by the temperature, and resulted in excessive diastereomers or conformations inversion for Pillar[5]arene. Chiral Pillar[5]arenes with 1, 4-bis(2-(S)-methyl‑butyl)benzene as the repeating units can be induced conformation reversal when the temperature was in the range of 0–60 ℃ with the ee value as high as 24.2% (Fig. 5A) [25]. (RS)-(±)−1-phenylethane-1-acetamide decasubstituted chiral Pillar[5]arene derivatives can induce enantiomers of different proportions, and their ee values vary by 14%−40% in the temperature range of 50–72 ℃ [60]. The pS conformation reversal of pillar[4]arene[1]-diaminobenzene BP protected by butoxy carbonyl Boc can be accelerated by increasing the temperature in n-hexane [24]. The absolute conformation of the universal joint MUJ based on ethoxy substituted Pillar[5] arene can also be switched reversibly by controlling the temperature (Figs. 5B and C) [61]. Similarly, L/D-Ala-derivatived Pillar[5]arenes can only exist in pR conformation at low temperature, and the interaction between L-Ala-PA and guest molecule Py-11-OH is stronger at 35 ℃ than at 45 ℃. It was mainly due to the strong hydrophobic and electrostatic interaction of L-Ala-PA at low temperature, which made it easier to reverse the CD signal. (Fig. 5D) [54]. In addition, Fan et al. synthesized temperature-driven chiral switching molecular universal joints materials using ethoxy-substituted Pillar[5]arene, and realized a single form of in-(Sp) or out-(Rp) with temperature changes (Figs. 5E and F) [62]. Therefore, we can use this strategy to obtain single enantiomer of Pillar[5]arene by changing the temperature and apply them to construct new chiral materials.

2.5 Conformation inversion induced by substituents

The introduction of bulky groups at the edge of pillar[n]arenes to increase the steric hindrance, which can effectively inhibit the rotation of pillar[n] arene units and induce the planar conformation reversal, and this can be judged by the integral area of the splitting peak. Ogoshi et al. found that the rotation of the Pillar[5]arene unit was inhibited by the introduction of percyclohexylmethyl substituents at the edge of the Pillar[5]arene [63]. Al-Azemi et al. demonstrated large substituents of planar chiral Pillar[5]arene derivatives substituted by chiral reagents (S)-(+)-Mosher-inhibited the rotation of their units and converted them into compounds with a single planar chiral conformation [55]. In addition, Pan et al. introduced bulky substituents on Pillar[5]arene, and found that the conformations of Pillar[5]arene could be reversed in solid state [64].

2.6 Significance of chiral inversion

Chiral Pillar[5]arenes can be used to construct a large number of chiral materials like chiral memory materials and chiral mechanical self-locking molecules, because of the unique chiral conformation reversal properties or chiral modification, and widely used in chiral biosensing, electrochemical sensing and chiral separation analysis and other fields. Fa et al. found that when added the regulator 1, 4-dibromobutane, the planar chirality of Pillar[5]arene can be induced by chiral inducer and accurately regulated by regulator. Moreover, during the chiral induction period, the addition sequence of chiral inducers and regulators will have a certain impact on the chiral induction behavior of Pillar[5]arene [65]. This may provide a new strategy to the applications of Pillar[5]arene in the construction of chiral control system materials and expand the applications range of chiral Pillar[5]arene.

3 Pillar[n]arene-based chiral materials

Less

Novel chiral macrocyclic materials derived from single enantiomer of planar chiral or chiral Pillar[5]arene, which mainly can be constructed by the modification of Pillar[5]arene on its cavity edge or polymerization of hydroquinone derivatives. In this way, it may provide a new strategy for the construction and application on pillar[n]arene-based chiral materials. In this chapter, we focused on several types of pillar[n]arene-based chiral materials and their preparation methods.

3.1 Chiral mechanical self-locking molecules/rotaxane

Chiral mechanical self-locking molecules or rotaxane can be efficiently synthesized by selective modification or derivatization on symmetric co-pillar[n]arene. Moreover, the inversion of planar chiral configuration has great influence on the construction of chiral rotaxane enantiomers, and has great application potential in chiral separation and analysis. Jia et al. synthesized diester-functionalized Pillar[5]arene by one-pot method, which can be used as intermediate of complex system polymers and mechanically interlocking molecules [66]. Ogoshi et al. used per-ethylated Pillar[5]arene as wheels, and pyridinium derivatives containing alkynyl and trans-azobenzene moieties as the axis, to construct planar chiral [2/3]-rotaxanes [67]. The planar chiral conformations inversion of pseud[1]rotaxane, including in-pS-1 and in-pR-1, out-pS-1 and out-pR-1 (Fig. 6A), can be controlled, which is of great significance for the preparation of chiral switches or sensors [68]. Li et al. prepared A1/A2-dicarboxy-DMP[5]A by alkylation of 4-dimethoxy pillar[4]arene[1]hydroquinone with ethyl bromoacetate, and then reacted with 1, 8-diaminooctane DA-8 to prepare pseudo[1]rotaxane and gemini-catenanes (Figs. 6B and C) [69]. Moreover, Trinh et al. prepared amphiphilic Pillar[5]arene-containing[2]rotaxane (Fig. 6D), which could form a stable Langmuir film [70]. Cheng et al. used 1, 6-diisocyanate hexane and diamino-functionalized Pillar[5]arene to construct mechanical self-locking molecular pseudo[1]naphthene [20]. Holler et al. used dodecanedioyl dichloride to form diamide[2]rotaxaneby associating with all ethoxy Pillar[5]arene (Fig. 6E). This research opened a new method for the preparation of rotaxanes [71]. Liang et al. complexed a carboxyl bifunctionalized Pillar[5]arene host with alkyl diamine guest to form pseudo[1]naphthene PN4 with high affinity in and out configuration with good acid or alkali response performance (Fig. 6F), which was of great significance for the construction of acid and alkali responsive materials [72]. Chiral rotaxane prepared by Oxacalix[4]arene bridging Pillar[5]arene dimer realized chiral enantiomer pR/pS resolution (Fig. 6G) [73]. The pseudo[4]rotaxane material prepared by the reaction of amphiphilic tetraphenylethylene derivative TPEA, γ-cyclodextrin (γ-CD) and water-soluble Pillar[5]arene has achieved chiral metrological control [74]. Recently, Li et al. prepared chiral[3]rotaxane based on Pillar[5]arene macrocycles with the thiourea moieties and the ethoxy group [75].

3.2 Chiral bio-interface materials

Chiral biological interface materials formed by chiral Pillar[5]arene immobilized on biological interfaces may exhibit better performance, due to their self-assembly, inclusion and easy modification. L/D-His-self-assembled on the D-tartaric acid modified Pillar[5]arene interface to construct a chiral interface D-TP5 (Fig. 7A), which was greatly effective for L-His and D-His and the recognition ability was K_L/K_D = 4.6. In addition to recognizing amino acid enantiomers, D/L-AP5 interface, prepared by attaching D/L-Ala-Pillar[5]arene to gold surface, were applied to highly selective adsorption of ctDNA and proteins (Fig. 7B) [76, 77]. Similarly, Yan et al. prepared chiral biological interface materials R-PEA@WP5 and S-PEA@WP5 through reacting phenythylamine with Pillar[5]arene (Fig. 7C), which shows high enantioselectivity to proteins, and R-PEA@WP5 has the fastest adsorption rate and large adsorption capacity [78]. This may provide a new strategy for constructing new chiral platform to study chiral phenomena in biological systems.

3.3 Chiral framework active domain materials

Chiral metal organic framework materials with homochiral active domains can be prepared by pillar[n]arene. Strutt et al. incorporated Pillar[5]arene into Zn₄O clusters and synthesized rac-P5A-MOF-1, which had an active domain. These active domains could selectively absorb a large number of electron-deficient guest pyridinium cations and p-dinitrobenzene. At the same time, they also used rac-P5A-MOF-1 as chiral stationary phase of HPLC and successfully separated enantiomers of methyl Pillar[5]arene [79]. This study may provide a significant reference for the construction of chiral frameworks with active domain based on chiral pillar[n]arenes.

3.4 Chiral nanomaterials

Chiral nanoparticles or asymmetric biomolecular molecules may be constructed with chiral Pillar[5]arene due to its molecular size, functional group, self-assemblyor inversion of chiral configuration. Shurpik et al. prepared (pS/pR)-deca-substitution modified chiral nanoparticles containing secondary amide fragments Pillar[5]arene. The content ratio of enantiomers pR/pS can be changed by increasing or decreasing the temperature, which proved that chiral inversion plays an important role in constructing chiral nanomaterials [60]. In addition, Yang et al. used galactose derivatives combined with Trp-modified chiral Pillar[5]arene to synthesize chiral nanocarrier supramolecular vesicles TP5G (Fig. 8A). TP5G loaded with DOX was relatively stable under physiological conditions and could be used for controlled release [80]. Under normal physiological conditions, Liu et al. prepared the targeted drug delivery system GalP5⊃G based on alkyne-substituted Pillar[5]arene (Fig. 8B), which had good stability. However, in the cell environment with high GSH concentration, camptothecin prodrug G could be released effectively [81]. Similarly, Sun et al. synthesized (S_P-D)-GP5 and (R_P-D)-GP5 which could capture DNS-CPT with planar chiral Pillar[5]arene, then using them to prepare planar chiral S_P and R_P nanomaterials with good stability (Fig. 8C). This work also proves that the inversion of chiral planar conformation can affect the construction of chiral nanomaterials [82]. Nanoparticles, based on the self-assembly of glycine decasubstituted Pillar[5]arene hydrazide compounds, combined with antitumor drugs floxuridine (FUDR) to form a complex (Fig. 8D). It could significantly reduce the toxicity of FUDR when applied to drug delivery [83].

3.5 Chiral polymer materials

Chiral polymer materials can be successfully constructed due to its advantages of chiral Pillar[5]arene, such as structural modifiability, hydrogen bond, covalent bond, bridging and self-assembly layer by layer of pillar[n]arenes. Strutt et al. reacted mono (2, 5-diamino-1, 4-benzoquinone) Pillar[5]arene with terephthalaldehyde to produce AB-type monomers. After being used to synthesize oligomers, the initial monomer and extended viologen form a 1:1 complex dimer tubular structures (Fig. 9A) [84]. Ogoshi et al. propargylated the monohydroxy Pillar[5]arene derivatives to obtain Pillar[5]arene derivatives, and then reacted with 5-azidopentanenitrile through alkyne-azide cycloaddition CuAAC reaction to prepare planar chiral supramolecular polymer host-guest conjugates (Fig. 9B), which provides a new way to construct chiral supramolecular polymer based on chiral pillar[n]arene, were affected by planar chiral configuration [85]. Furthermore, chiral nanotubes with specific lengths and diameters were obtained by chiral functionalized Pillar[5]arene, which contained chiral building block of 2, 5-dihydroxybenzaldehyde as repeating units. In the study, pre-regulation of chiral molecules was designed, which improved the planar chirality of chiral Pillar[5]arene and provided a reference for the construction of chiral nanomaterials based on chiral pillar[n]arenes [86]. Zhu et al. combined the (2-bromoethyl)Pillar[5]arene DBEP5 with(R, R)-tetraaryl-1, 3-dioxolane-4, 5-dimethanol derivative (TADDOL-OH) to construct a new chiral 3D polymer network TADP5 that had good heterogeneous asymmetric catalytic ability and recycling ability (Fig. 9C). It is very important to synthesize chiral catalysts [87]. In addition, a supramolecular polymer three-cavity host β-cyclodextrin-Pillar[5]arene can be constructed by combining the planar chiral Pillar[5]arene with β-cyclodextrin (Fig. 9D), and its stereoselectivity depends on the absolute configuration of the central Pillar[5]arene and the conjugate position on β-cyclodextrin, in which the inversion of planar chiral configuration plays an extremely important role [88].

4 Applications of chiral pillar[n]arenes

Less

Chiral pillar[n]arenes can easily interact with chiral or achiral guest molecules due to their chiral functional groups, electron-rich cavities and intrinsic planar chiral conformation. They are also widely used in chiral separation and analytical chemistry, especially in fluorescence detection of chiral guest molecules, electrochemical detection of chiral enantiomers and circular dichroism detection of chiral compounds. In addition, pillar[n]arenes also play an important role in biological separation or life processes.

4.1 Chiral fluorescence

Chiral pillar[n]arenes can easily form stable complexes with guest molecules through electrostatic, hydrophobic bonding, hydrogen bonds, π-π, C—H···O and C—H···π. Lin et al. found that L-Met-could induce the cationic water-soluble Pillar[5]arene AWP5 to show a strong fluorescence signal [89]. Similarly, L-Arg-could significantly enhance the fluorescence intensity of naphthoyl hydrazone group Pillar[5]arene chemical sensor PNS, while other amino acids hardly changed its fluorescence intensity [90]. Zhang et al. prepared the N-(2-aminoethyl)−2-(hexylthio)acetamide functionalized Pillar[5]arene fluorescence sensor SNP5, which has achieved high sensitivity and selectivity for L-Trp-detection [91]. A Pillar[5]arene fluorescence sensor SP5 with two-site cooperative ester functionalization was constructed by Yang et al. They found that only L-Met-can obviously reduce the fluorescence signal intensity of SP5 [92]. Chen et al. synthesized planar chiral organoborane fluorescent molecules P5NN and P5BN, and applied chiral pillar[n]arenes in chiral luminescence sensing, chiral supramolecular assembly and chiral fluorescent electronic devices [93]. Other small molecular fluorescent structures like pigment molecules with good adsorption and fluorescence properties attached to pillar[n]arenes, could significantly affect the fluorescence intensity [94, 95]. Tan et al. prepared gold nanoparticle CP5@Au-NPs and used them to detect L-carnitine in human serum and milk samples, with the lowest detection limit of 0.067 µmol/L [96]. Wei et al. synthesized a fluorescence sensor BTAP5 and used for high sensitivity detecting L-Trp [97]. Specific information, such as functional groups, chiral analytes, driving force, mechanisms and LOD of chiral Pillar[5]arene, has been summarized in Table 2.

4.2 Chiral electrochemistry

Pillar[n]arenes with electron-rich system when they interact with guest molecules, may cause electron transfer. The mechanism between Pillar[5]arenes and chiral substances by electrochemical method may be that the spatial conformation of chiral isomers of guest molecules is opposite, and the interaction between isomers and pillar[n]arene host is different, which leads to obvious distinguishable electrochemical differences in peak currents for identifying chiral isomers (Figs. 10A and B). Zhao et al. assembled water-soluble cations and anion Pillar[5]arene on carboxyl-graphene C-Gra to form glassy carbon electrode, and then used differential pulse voltammetry DPV to electrochemically identify L/D-Trp (Fig. 10C). It indicated that Pillar[5]arene-based chiral interface material can be used to identify tryptophan isomers at a low detection limit [98]. Yu et al. prepared a chiral sensor based on pillar[n]arenes and used it for electrochemical detection of chiral drug propranolol (R/S-PPL) [99]. In addition, Tan et al. prepared a CP6-COF-Co glass electrode with Pillar[6]arene loaded with transition metal ions and cations (Fig. 10D), and used it for electrochemical detection of AA in acetic acid buffer solution. The oxidation peak current values of ascorbic acid (AA) in CP6-COF-Co/GCE gradually increased when gruadlly increase concentration of AA (Fig. 10E), the detection limit could reach 0.26 µmol/L (S/N = 3) [100].

4.3 Chiral circular dichroism

Detection of chiral enantiomers by circular dichroism mainly relies on the host-guest interaction between pillar[n]arenes and chiral guest molecules to form a relatively stable host-guest complex, which changes the corresponding wavelength values of maximum CD signal intensity, thus realizing the recognition of chiral enantiomers. Ji et al. synthesized amino acid based Pillar[5]arene, when chiral guest molecules entrapped in the cavity of Pillar[5]arene, may induce to produce a strong CD signal [58]. Furthermore, Zhu et al. used chiral amplification induced by Pillar[5]arene host-guest complexs to detect D/L-Arg-by circular dichroism [101]. Chen et al. also claimed that WP5 and its homologues can be used as detectors to study the recognition of different chiral regions of a single chiral α-amino acid derivative [53, 102]. In addition, Zhu et al. synthesized pS/pR Pillar[5]arene derivatives by triflate Pillar[5]arene and 4-pyridylphenyl borate through Suzuki coupling reaction, and then reacted with chiral metal ring of Pt(Ⅱ) receptors with 60° and 90° respectively to synthesize platinum triangle rows with pS/pR planar chirality, and their enantiomers show mirror images of CD signals at the same wavelength. Moreover, the chiral platinum triangles have the property of circularly polarized light. This study provides a new method to construct planar chiral coordination-driven metal-organic complexes (MOCs) and know chiral supramolecular self-assembly [103]. Table 3 summarizes the above-mentioned pillar[n]arene edge modification functional groups, analytes and CD signal values and intensity.

4.4 Other chiral applications

Chiral pillar[n]arenes may have more chiral materials and applications, due to their unique structure, shape or intrinsic planar chirality. Therefore, in this section we will summarize other reports on chiral separation and analysis of chiral pillar[n]arenes. Li et al. synthesized peptide-linked Pillar[5]arene biomimetic nanochannels pR/pS-pH by using phenylalanine and Pillar[5]arene reaction. This study laid a solid foundation for developing high-efficiency artificial water-based biomimetic membranes for water purification. The chiral biomimetic nanochannels were influenced by planar chiral configuration which plays an important potential role in chiral separation analysis [104]. By immobilizing nanochannels-containing liposomes on the active layer of the reverse osmosis (RO) membranes, Lim et al. prepared pillararene-based NBM-pRPH membranes, which gave a water permeability higher than commercial RO membranes [105]. Furthermore, Nierengarten et al. found that the chiral pillar[n]arene modified with mannose clusters can be used as an inhibitor of adhesion between urinary pathogenic Escherichia coli strains and red blood cells [106]. Al-Azemi et al. prepared planar chiral Pillar[5]arene derivatized with Mosher acid chloride [(S)-(+)-α-methoxy-α-trifluoromethyl phenylacetyl chloride], which can identify chiral alkylammonium salt guest molecules. This may be because the hydrophobic cavity of the pillar[n]arene forms an inclusion compound with the chiral guest molecule, which leads to the shift of the nuclear magnetic peak of the host or guest molecule to the corresponding high field or low field, so that the enantiomers detection of the chiral guest molecule can be realized [107]. Isothermal titration calorimetry can also detect chiral enantiomers. Lv et al. reacted dicarboxylic acid Pillar[5]arene with monohydroxy calix[4]pyrrole to prepare chiral mandelic acid ester macrocyclic compound PC. The affinity and selectivity of its enantiomer to chiral mandelic acid ester may mainly depend on the structure of chiral guest molecules, that is, based on structural complementarity [108].

5 Conclusions and perspectives

Less

Chiral pillar[n]arenes have shown excellent results in constructing chiral supramolecular materials, detecting chiral small molecules or amino acid enantiomers. Other chiral pillar[n]arenes (n = 7, 8…) with larger hydrophobic cavity or more chiral groups, may be more effective in the separation and analysis of chiral analytes with larger volume and more complex structure. The inversion of planar chiral conformation has great potential influence on chiral separation analysis, especially the development of chiral separation materials. Based on the special chiral inversion performance of chiral pillar[n]arenes, we believe that the research on the planar chiral conformation inversion of pillar[n]arenes can promote the remarkable development of chiral pillar[n]arenes in the fields of design, preparation and application of chiral photoelectric devices, chiral asymmetric catalysis and chiral supramolecular materials.

Declaration of competing interest

Less

The authors declare that they have no known competing financial interestsor personal relationships that could have appeared to influence the work reported in this paper.

Acknowledgments

Less

The authors gratefully acknowledge the financial support provided by the National Natural Science Foundation of China (Nos. 21822407, 21974146), the Foundation for Science and Tech Research Project of Gansu Province (No. 20JR10RA052).

References

Less

[1]

T.F. Al-Azemi, M. Vinodh, F.H. Alipour, et al., J. Org. Chem. 82 (2017) 10945–10952.

[2]

W. Mao, S. Zhan, B. Zhu, D. Ma, J. Org. Chem. 83 (2018) 4147–4152.

[3]

T. Ogoshi, K. Kida, T.A. Yamagishi, J. Am. Chem. Soc. 134 (2012) 20146–20150.

[4]

T. Ogoshi, R. Shiga, T.A. Yamagishi, J. Am. Chem. Soc. 134 (2012) 4577–4580.

[5]

X. Liu, Z.J. Weinert, M. Sharafi, et al., Angew. Chem. Int. Ed. 54 (2015) 12772–12776.

[6]

H. Li, X. Fan, M. Qi, et al., Chem. Eur. J. 22 (2016) 101–105.

[7]

T. Ogoshi, T. Akutsu, Y. Tamura, et al., Chem. Commun. 51 (2015) 7184–7186.

[8]

T. Kimura, S. Miyagawa, H. Takaya, et al., Chem. Asian J. 15 (2020) 3897–3903.

[9]

P. Rajasekar, C. Jose, M. Sarkar, et al., Angew. Chem. Int. Ed. 60 (2021) 4023–4027.

[10]

S. Guo, Q. Huang, Y. Chen, et al., Angew. Chem. Int. Ed. 60 (2021) 618–623.

[11]

T. Ogoshi, S. Kanai, S. Fujinami, et al., J. Am. Chem. Soc. 130 (2008) 5022–5023.

[12]

D. Cao, Y. Kou, J. Liang, et al., Angew. Chem. Int. Ed. 48 (2009) 9721–9723.

[13]

K. Jie, Y. Zhou, E. Li, F. Huang, Acc. Chem. Res. 51 (2018) 2064–2072.

[14]

M. Xue, F. Fan, Y. Yang, et al., Prog. Chem. 31 (2019) 491–504.

[15]

S. Fa, T. Kakuta, T. Yamagishi, et al., Chem. Lett. 48 (2019) 1278–1287.

[16]

T. Ogoshi, K. Demachi, K. Masaki, T. Yamagishi, Chem. Commun. 49 (2013), 3952–3954.

[17]

Y. Chen, H.Q. Tao, Y.H. Kou, et al., Chin. Chem. Lett. 23 (2012) 509–511.

[18]

T. Ogoshi, N. Ueshima, F. Sakakibara, et al., Org. Lett. 16 (2014) 2896–2899.

[19]

X.B. Hu, Z. Chen, L. Chen, et al., Chem. Commun. 48 (2012) 10999–11001.

[20]

M. Cheng, Q. Wang, Y. Cao, et al., Tetrahedron Lett. 57 (2016) 4133–4137.

[21]

T. Ogoshi, D. Yamafuji, T. Akutsu, et al., Chem. Commun. 49 (2013) 8782–8784.

[22]

E. Lee, H. Ju, I.H. Park, et al., J. Am. Chem. Soc. 140 (2018) 9669–9677.

[23]

T. Adiri, D. Marciano, Y. Cohen, Chem. Commun. 49 (2013) 7082–7084.

[24]

C. Xiao, W. Liang, W. Wu, et al., Symmetry 11 (2019) 773.

[25]

T. Ogoshi, R. Shiga, T.A. Yamagishi, Y. Nakamoto, J. Org. Chem. 76 (2011) 618–622.

[26]

B. Xia, J. He, Z. Abliz, et al., Tetrahedron Lett. 52 (2011) 4433–4436.

[27]

Y. Han, L.M. Xu, C.Y. Nie, et al., Beilstein J. Org. Chem. 14 (2018) 1660–1667.

[28]

J. Wu, S. Sun, X. Feng, et al., Chem. Commun. 50 (2014) 9122–9125.

[29]

H. Li, K. Quan, X. Yang, et al., TrAC, Trends Anal. Chem. 131 (2020) 116026.

[30]

H. Zhang, J. Han, Org. Biomol. Chem. 18 (2020) 4894–4905.

[31]

K. Yang, Y. Pei, J. Wen, Z. Pei, Chem. Commun. 52 (2016) 9316–9326.

[32]

M. Xue, Y. Yang, X. Chi, et al., Acc. Chem. Res. 45 (2012) 1294–1308.

[33]

Y. Cai, Z. Zhang, Y. Ding, et al., Chin. Chem. Lett. 32 (2021) 1267–1279.

[34]

J. Chen, Y. Wang, C. Wang, et al., Chem. Commun. 55 (2019) 6817–6826.

[35]

C. Jiang, Z. Song, L. Yu, et al., TrAC, Trends Anal. Chem. 133 (2020) 116086.

[36]

G.A. Evtyugin, D.N. Shurpik, I.I. Stoikov, Russ. Chem. Bull. 69 (2020) 859–874.

[37]

Y.F. Li, Z. Li, Q. Lin, et al., Nanoscale 12 (2020) 2180–2200.

[38]

D. Cao, H. Meier, Chin. Chem. Lett. 30 (2019) 1758–1766.

[39]

K. Yang, S. Chao, F. Zhang, et al., Chem. Commun. 55 (2019) 13198–13210.

[40]

P.J. Cragg, K. Sharma, Chem. Soc. Rev. 41 (2012) 597–607.

[41]

J. Murray, K. Kim, T. Ogoshi, et al., Chem. Soc. Rev. 46 (2017) 2479–2496.

[42]

J.D. Ding, W.J. Jin, Z. Pei, et al., Chem. Commun. 56 (2020) 10113–10126.

[43]

H. Zhang, Y. Zhao, Chem. Eur. J. 19 (2013) 16862–16879.

[44]

L. Guo, J. Du, Y. Wang, et al., J. Incl. Phenom. Macro. 97 (2020) 1–17.

[45]

H. Zhang, C. Li, RSC Adv. 10 (2020) 18502–18511.

[46]

Y. Wang, Z. Pei, W. Feng, et al., J. Mater. Chem. B7 (2019) 7656–7675.

[47]

T. Kakuta, T.A. Yamagishi, T. Ogoshi, Acc. Chem. Res. 51 (2018) 1656–1666.

[48]

N.L. Strutt, H. Zhang, S.T. Schneebeli, et al., Acc. Chem. Res. 47 (2014) 2631–2642.

[49]

W.R. Henderson, R.K. Castellano, Polym. Int. 70 (2021) 897–910.

[50]

X.Y. Lou, Y.W. Yang, Adv. Mater. 32 (2020) 2003263.

[51]

L. Chen, Y. Cai, W. Feng, et al., Chem. Commun. 55 (2019) 7883–7898.

[52]

J.F. Chen, J.D. Ding, T.B. Wei, Chem. Commun. (2021), DOI: 10.1039/d1cc03778a.

[53]

Y. Chen, L. Fu, B. Sun, et al., Org. Lett. 22 (2020) 2266–2270.

[54]

J. Park, Y. Choi, S.S. Lee, et al., Org. Lett. 21 (2019) 1232–1236.

[55]

T.F. Al-Azemi, M. Vinodh, F.H. Alipour, et al., RSC Adv. 9 (2019) 23295–23301.

[56]

J. Ji, Y. Li, C. Xiao, et al., Chem. Commun. 56 (2020) 161–164.

[57]

J. Yao, H. Mizuno, C. Xiao, et al., Chem. Sci. 12 (2021) 4361–4366.

[58]

Y. Nagata, M. Suzuki, Y. Shimada, et al., Chem. Commun. 56 (2020) 8424–8427.

[59]

C. Xiao, W. Wu, W. Liang, et al., Angew. Chem. Int. Ed. 59 (2020) 8094–8098.

[60]

D.N. Shurpik, P.L. Padnya, V.G. Evtugyn, et al., RSC Adv. 6 (2016) 9124–9131.

[61]

J. Yao, W. Wu, W. Liang, et al., Angew. Chem. Int. Ed. 56 (2017) 6869–6873.

[62]

C. Fan, J. Yao, G. Li, et al., Chem. Eur. J. 25 (2019) 12526–12537.

[63]

T. Ogoshi, K. Masaki, R. Shiga, et al., Org. Lett. 13 (2011) 1264–1266.

[64]

M. Pan, M. Xue, Chin. J. Chem. 32 (2014) 391–395.

[65]

S. Fa, K. Egami, K. Adachi, et al., Angew. Chem. Int. Ed. 59 (2020) 20353–20356.

[66]

Q. Jia, X. Du, C. Wang, et al., Chin. Chem. Lett. 30 (2019) 721–724.

[67]

T. Ogoshi, D. Yamafuji, T. Aoki, et al., Chem. Eur. J. 18 (2012) 7493–7500.

[68]

T. Ogoshi, T. Akutsu, D. Yamafuji, et al., Angew. Chem. Int. Ed. 52 (2013) 8111–8115.

[69]

S.H. Li, H.Y. Zhang, X. Xu, et al., Nat. Commun. 6 (2015) 7590.

[70]

T.M.N. Trinh, I. Nierengarten, M. Holler, et al., Chem. Eur. J. 21 (2015) 8019–8022.

[71]

M. Holler, T. Stoerkler, A. Louis, et al., Eur. J. Org. Chem. 2019 (2019) 3401–3405.

[72]

H. Liang, B. Hua, F. Xu, et al., J. Am. Chem. Soc. 142 (2020) 19772–19778.

[73]

K. Wan, S.C. Gao, X. Fang, et al., Chem. Commun. 56 (2020) 10155–10158.

[74]

Y. Chen, S. Pangannaya, B. Sun, et al., ACS Appl. Bio Mater. 4 (2021) 2066–2072.

[75]

W.J. Li, Q. Gu, X.Q. Wang, et al., Angew. Chem. Int. Ed. 60 (2021) 9507–9515.

[76]

J. Ma, H. Yan, J. Quan, et al., ACS Appl. Mater. Inter. 11 (2019) 1665–1671.

[77]

J. Zhang, Z. Wang, S. Lv, et al., Chem. Commun. 55 (2019) 778–781.

[78]

H. Yan, J. Ma, F. Zhu, et al., Chem. Asian J. 15 (2020) 1025–1029.

[79]

N.L. Strutt, H. Zhang, J.F. Stoddart, Chem. Commun. 50 (2014) 7455–7458.

[80]

K. Yang, Y. Chang, J. Wen, et al., Chem. Mater. 28 (2016) 1990–1993.

[81]

X. Liu, W. Shao, Y. Zheng, et al., Chem. Commun. 53 (2017) 8596–8599.

[82]

G.P. Sun, L.T. Pu, S. Pangannaya, et al., Front. Chem. 7 (2019) 743.

[83]

D.N. Shurpik, D.A. Sevastyanov, P.V. Zelenikhin, et al., Tetrahedron Lett. 59 (2018) 4410–4415.

[84]

N.L. Strutt, H. Zhang, S.T. Schneebeli, et al., Chem. Eur. J. 20 (2014) 10996–11004.

[85]

T. Ogoshi, T. Furuta, T.A. Yamagishi, et al., Chem. Commun. 52 (2016) 10775–10778.

[86]

S. Fa, K. Adachi, Y. Nagata, et al., Chem. Sci. 12 (2021) 3483–3488.

[87]

H. Zhu, B. Shi, L. Gao, et al., Polym. Chem. 8 (2017) 7108–7112.

[88]

J. Ji, W. Wu, X. Wei, et al., Chem. Commun. 56 (2020) 6197–6200.

[89]

Q. Lin, L. Liu, F. Zheng, et al., RSC Adv. 7 (2017) 34411–34414.

[90]

Y.Y. Chen, G.F. Gong, Y.M. Zhang, et al., Dyes Pigm. 171 (2019) 107706.

[91]

Y.M. Zhang, Q.Y. Yang, X.Q. Ma, et al., J. Phys. Chem. A124 (2020) 9811–9817.

[92]

Q.Y. Yang, Y.M. Zhang, X.Q. Ma, et al., Spectrochim. Acta A240 (2020) 118569.

[93]

J.F. Chen, X. Yin, B. Wang, et al., Angew. Chem. Int. Ed. 59 (2020) 11267–11272.

[94]

C. Fan, W. Wu, J.J. Chruma, et al., J. Am. Chem. Soc. 138 (2016) 15405–15412.

[95]

G. Li, C. Fan, G. Cheng, et al., Beilstein J. Org. Chem. 15 (2019) 1601–1611.

[96]

X. Tan, Y. Yang, S. Luo, et al., Sensors (Basel)18 (2018) 3927.

[97]

T.B. Wei, J.F. Chen, X.B. Cheng, et al., Org. Chem. Front. 4 (2017) 210–213.

[98]

G. Zhao, X. Zhou, X. Ran, et al., Electrochim. Acta277 (2018) 1–8.

[99]

S. Yu, Y. Wang, S. Chatterjee, et al., Chin. Chem. Lett. 32 (2021) 179–183.

[100]

X. Tan, Q. Gou, Z. Yu, et al., Langmuir36 (2020) 14676–14685.

[101]

H. Zhu, Q. Li, Z. Gao, et al., Angew. Chem. Int. Ed. 59 (2020) 10868–10872.

[102]

Y. Chen, L. Fu, B. Sun, et al., Chem. Eur. J. 27 (2021) 5890–5896.

[103]

H. Zhu, Q. Li, B. Shi, et al., J. Am. Chem. Soc. 142 (2020) 17340–17345.

[104]

Q. Li, X. Li, L. Ning, et al., Small15 (2019) 1804678.

[105]

Y.J. Lim, K. Goh, G.S. Lai, et al., J. Membr. Sci. 628 (2021) 119276.

[106]

I. Nierengarten, K. Buffet, M. Holler, et al., Tetrahedron Lett. 54 (2013) 2398–2402.

[107]

T.F. Al-Azemi, M. Vinodh, F.H. Alipour, et al., Org. Chem. Front. 6 (2019) 603–610.

[108]

Y. Lv, C. Xiao, C. Yang, et al., New J. Chem. 42 (2018) 19357–19359.

Appendix

Less

Year 2022 volume 33 Issue 8

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1016/j.cclet.2021.12.010

Receive Date：2021-10-06
Online Date：2025-12-19
Published：2022-08-15

Article Data

Affiliations

History

Received：2021-10-06
Revised：2021-11-05
Accepted：2021-12-06

Affiliations

^bUniversity of Chinese Academy of Sciences, Beijing 100049, China

^cDepartment of Gansu Provincial Cancer Hospital, Institute of Materia Medica, Lanzhou 730000, China

^dCollege of Chemistry, Zhengzhou University, Zhengzhou 450001, China

^eCollege of Chemistry and Chemical Engineering, Gannan Normal University, Ganzhou 341000, China

References

Share

https://castjournals.cast.org.cn/joweb/ccl/EN/10.1016/j.cclet.2021.12.010

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

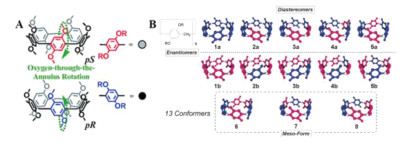

Fig. 2 (A) Rotation of paraphenylene methylene units of pillar[n]arenes represented by permethylated Pillar[5]arene. Reproduced with permission [15]. Copyright 2019, the Chemical Society of Japan. (B) Conformers of Pillar[6]arenes. Reproduced with permission [16]. Copyright 2013, the Royal Society of Chemistry.

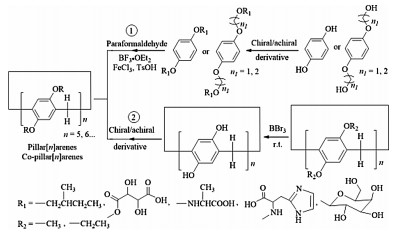

Fig. 3 Synthesis method of chiral pillar[n]arenes.

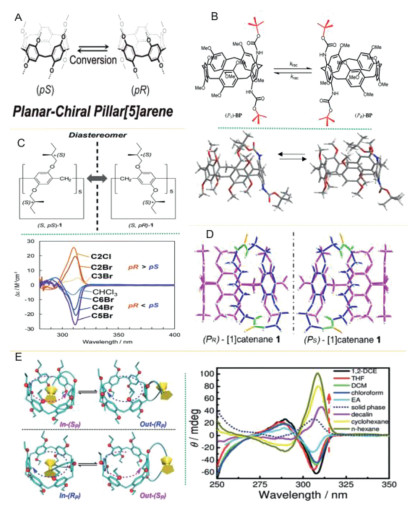

Fig. 4 (A) Chemical structures of pS/pR-Pillar[5]arene. Reproduced with permission [25]. Copyright 2011, American Chemical Society. (B) Chemical structures and the stick model of planar chiral of butoxycarbonyl (Boc)-protected pillar[4]-arene[1]-diaminobenzene (P_S)-BP and (P_R)-(BP). Reproduced with permission [24]. Copyright 2019, Multidisciplinary Digital Publishing Institute. (C) Diastereomer of Pillar[5]arene carrying 10 stereogenic carbons and CD spectra. Reproduced with permission [58]. Copyright 2020, Royal Society of Chemistry. (D) Two isomers of MSM1. Reproduced with permission [20]. Copyright 2016, Elsevier. (E) In-R_P and out-S_P conformations of enantiomeric EMUJ1 and CD spectra. Reproduced with permission [59]. Copyright 2020, Wiley.

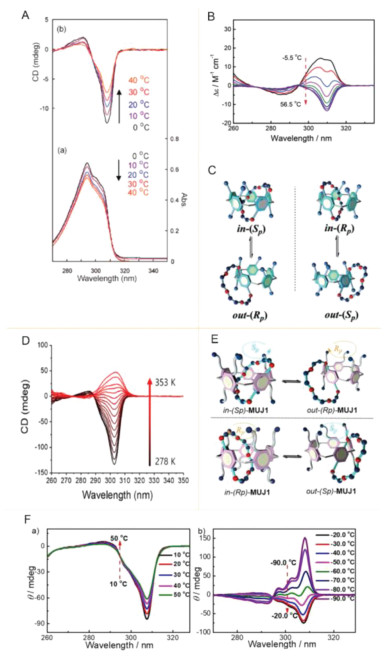

Fig. 5 (A) CD spectra of Pillar[5]arene carrying 2(S)-methylbutoxy moieties. Reproduced with permission [25]. Copyright 2010, American Chemical Society. (B, C) Representations for the in-out equilibrium of the MUJ1 enantiomeric pair and CD spectra of MUJ1-f1 in CHCl₃. Reproduced with permission [61]. Copyright 2017, Wiley. (D) CD spectra of aqueous solution of L-Ala-PA and Py-11-OH. Reproduced with permission [54]. Copyright 2019, American Chemical Society. (E, F) Schematic representations of the in/out equilibrium of a pair of MUJ enantiomers and CD spectra of in-(Sp)/out-(Rp) MUJ1. Reproduced with permission [62]. Copyright 2019, Wiley.

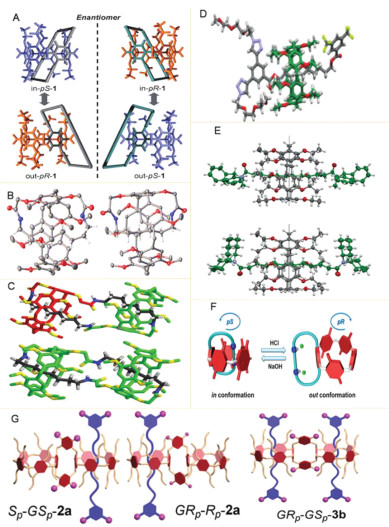

Fig. 6 (A) Four conformers of a pseudo[1]catenane 1. Reproduced with permission [68]. Copyright 2013, Wiley. (B, C) Crystal structures of pseudo[1]catenanes and geometries of selflocked gemini-catenanes. Reproduced with permission [69]. Copyright 2015, Macmillan Publishers Limited. (D) X-ray crystal structure of amphiphilic[2]rotaxanes. Reproduced with permission [70]. Copyright 2015, Wiley. (E) ORTEP plots of the structure of diamide[2]rotaxanes. Reproduced with permission [71]. Copyright 2019, Wiley. (F) Chirality switching of PN4. Reproduced with permission [72]. Copyright 2020, Journal of the American Chemical Society. (G) Cartoon representations of 2a and 3b. Reproduced with permission [73]. Copyright 2020, Royal Society of Chemistry.

Fig. 7 (A) Modification of D-TP5 on a Si-surface. Reproduced with permission [76]. Copyright 2018, American Chemical Society. (B) D/L-AP5-interfaces. Reproduced with permission [77]. Copyright 2019, Royal Society of Chemistry. (C) The picture of chiral R-PEA@WP5/S-PEA@WP5 surface. Reproduced with permission [78]. Copyright 2020, Wiley.

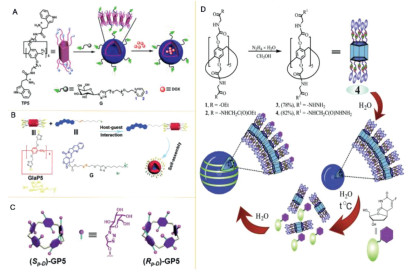

Fig. 8 (A) Representation of the self-assembly and drug loading process of TP5G. Reproduced with permission [80]. Copyright 2016, American Chemical Society. (B) Schematic of the construction of supramolecular prodrug nanoparticles. Reproduced with permission [81]. Copyright 2017, Royal Society of Chemistry. (C) Structure illustration of (R_p-D/S_p-D)-GP5. Reproduced with permission [82]. Copyright 2019, Frontiers in Chemistry. (D) Pillar[5]arene 4 self-assembly and self-organization of the 4/FUDR system into monodisperse spherical particles. Reproduced with permission [83]. Copyright 2018, Elsevier.

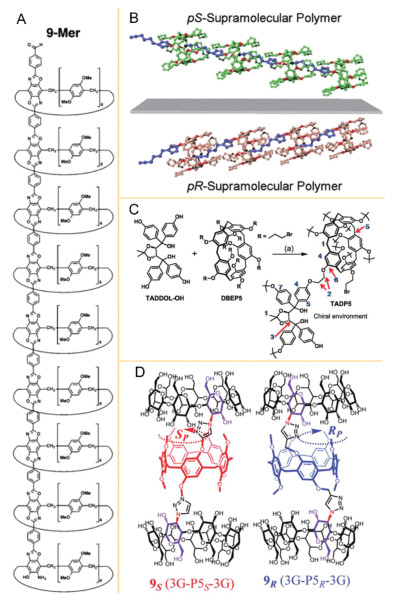

Fig. 9 (A) Chemical structure of the rigid Pillar[5]arene-containing oligomers 9-Mer. Reproduced with permission [84]. Copyright 2014, Wiley. (B) Cartoon representation of pS and pR planar-chiral supramolecular polymers. Reproduced with permission [85]. Copyright 2016, Royal Society of Chemistry. (C) Synthetic procedures of TADP5. Reproduced with permission [87]. Copyright 2017, Royal Society of Chemistry. (D) Chemical structure of chiral 9. Reproduced with permission [88]. Copyright 2020, Royal Society of Chemistry.

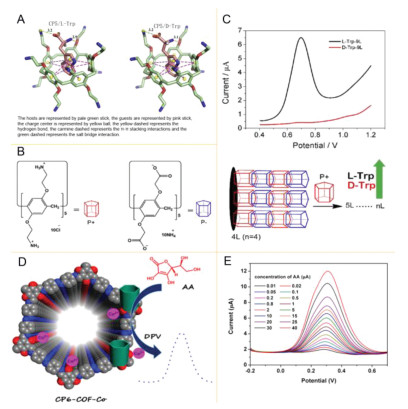

Fig. 10 (A-C) The binding models of CP5/L-Trp, CP5/D-Trp, the structures of P- and P+ and LbL assembly of anionic-/cationic-Pillar[5]arene multilayer films and the recognition of Trp-isomers. Reproduced with permission [98]. Copyright 2018, Elsevier. (D, E) Electrochemical sensing application of the novel nanomaterial CP6-COF-Co and quantitative determination current value versus various concentrations of AA at CP6-COF-Co/GCE. Reproduced with permission [100]. Copyright 2020, American chemical society.

Articles: Latest Articles; Most Read; Collections

Updates: Events; News; Multimedia

About: About Us

Contact

No. 86 Xueyuan South Road, Haidian District, Beijing

100081

010-62199257

qkjq@cast.org.cn

Copyright © 2025 China Association for Science and Technology. All rights reserved. For all open access content, the relevant licensing terms apply.
Sponsored by the Office of the Leading Group for Cybersecurity and Informatization of CAST, and supported by Science and Technology Review Publishing House
