Temperature-responsive alkaline aqueous biphasic system for radioactive wastewater treatment

Full

Chuanying Liu^a^,^b^,¹, Jianhui Lan^c^,¹, Qibin Yan^a, Zhipeng Wang^d, Chao Xu^d, Weiqun Shi^*^,^c, Chengliang Xiao^*^,^a^,^b

Affiliations

^aCollege of Chemical and Biological Engineering, Zhejiang University, Hangzhou 310027, China

^bInstitute of Zhejiang University - Quzhou, Quzhou 324000, China

^cLaboratory of Nuclear Energy Chemistry, Institute of High Energy Physics, Chinese Academy of Sciences, Beijing 100049, China

^dInstitute of Nuclear & New Energy Technology, Tsinghua University, Beijing 100084, China

Published: 2022-07-15 doi: 10.1016/j.cclet.2022.02.024

Outline

Abstract

Less

The treatment of anionic ⁹⁹TcO₄^- in the waste tank with high alkalinity is still very challenging. In this work, a new temperature-responsive alkaline aqueous biphasic system (ABS) based on (tri-n-butyl)-n-tetradecyl phosphonium chloride (P₄₄₄₁₄Cl) was developed to remove radioactive ⁹⁹TcO₄^-. The phase transition mechanism was studied by cloud point titration, small-angel X-ray scattering, dynamic light scattering, and molecular dynamic simulations. As the NaOH concentration or temperature increased, the P₄₄₄₁₄⁺ micelle could grow and aggregate. This micelle showed a particularly high affinity toward ReO₄^-/⁹⁹TcO₄^- compared to other competing anions and could directly extract more than 98.6% of ⁹⁹TcO₄^- from simulated radioactive tank waste supernatant. Furthermore, the loaded ⁹⁹TcO₄^- could be easily stripped by using concentrated nitric acid rather than metal salt-based reductants. This work clearly demonstrates that the alkaline ABS is a promising separation system for solving the technetium problem in the alkaline waste tank.

Key words

Pertechnetate / Ionic liquid / Nuclear waste / Aqueous biphasic system / Sustainable chemistry

Cite this Article

Chuanying Liu, Jianhui Lan, Qibin Yan, Zhipeng Wang, Chao Xu, Weiqun Shi, Chengliang Xiao. Temperature-responsive alkaline aqueous biphasic system for radioactive wastewater treatment[J]. Chinese Chemical Letters, 2022 , 33 (7) : 3561 -3564 . DOI: 10.1016/j.cclet.2022.02.024

Full Text

Less

Liquid-liquid extraction is widely applied in environmental engineering, hydrometallurgy, petrochemical industry, pharmacy, and fine chemicals engineering [1-5]. In this process, one compound is separated from others due to their different solubility in two immiscible liquid phases [6]. Traditionally, organic solvents like kerosene are adopted as an immiscible phase. However, the high volatility, inflammability, and inherent unsustainability of these solvents make them the source of pollution and danger in many chemical engineering processes [7]. Furthermore, the hydration energy and mass transfer on the interface which need to be overcome during the extraction make it an energy-intensive process. For this, various green solvents, such as ionic liquid (IL), supercritical fluids, deep eutectic solvent (DES), and aqueous biphasic system (ABS), have been developed to replace the traditional organic solvents [8-11]. Among them, the ABS, which consists of two immiscible aqueous-rich phases, is regarded as a non-denaturing and highly efficient separation media without the need of dehydration [12, 13]. However, the interfacial mass transfer problem still impedes the extraction efficiency of ABS.

The homogeneous liquid-liquid extraction process is considered to be a solution to the mass transfer problem. This technique has extremely fast kinetics because there is no obstacle of mass transfer by the liquid interface and is mainly applied to extract metals or natural products [14, 15]. The phase separation of homogeneous liquid-liquid extraction is achieved by the thermomorphic behavior of the solute in water, which are often organic salts or ILs. Recently, some novel phosphonium-based IL ABSs have been developed to separate transition metals and rare earths, showing the advantages of both ABS and homogeneous liquid-liquid extraction [16-18]. However, to the best of our knowledge, there is still lack of alkaline ABSs that may have huge particular applications in hydrometallurgy and nuclear waste treatment.

Taking the ⁹⁹Tc problem for an example, as a long-lived β-emitting radionuclide, it is generated from the fission of ²³⁵U and ²³⁹Pu in nuclear reactors [19, 20], and is stored in the waste tanks with high alkalinity after recovery of nuclear materials [21]. The long half-life (2.13 × 10⁵ years) and high thermal neutron fission yield (6.1%) make this radionuclide a long-term threat to human health [22]. What is more, the major species of ⁹⁹Tc (i.e., ⁹⁹TcO₄^-) has a vast solubility in water and high environmental mobility, leading to severe leakage of this hazardous anion [23, 24]. To avoid this pollution, it is highly desired to treat ⁹⁹TcO₄^- in the alkaline tank waste. However, the content of ⁹⁹Tc in the waste tank is very low (5 ppm) and the alkalinity is very high, making the treatment of ⁹⁹TcO₄^- very challenging [25]. The state of art ⁹⁹Tc removal techniques are mainly focused on the adsorption process based on novel cationic materials which were operated under pH ranges that might not be suitable for treating waste water with OH^- concentration as high as 2 mol/L [26-30].

In this work, we developed an alkaline ABS system based on P₄₄₄₁₄Cl to extract ⁹⁹TcO₄^- from waste tank water with high selectivity. The phase separation and extraction mechanism were studied through cloudy point titration, small-angel X-rays scattering (SAXS), dynamic light scattering (DLS), and molecular dynamic simulations (MD).

The phase transition of ABS is a thermodynamically driven process, where the temperature plays a significant role in the critical concentrations [31]. A simple illustration of the phase separation process is provided in Fig. 1A. As the NaOH concentration or temperature increases, the P₄₄₄₁₄⁺ micelles tend to aggregate and result in a new phase. The binodal curves of P₄₄₄₁₄Cl-NaOH-H₂O systems at 25, 35, 45 and 55 ℃, shown in Fig. 1B, were obtained by cloudy point titration. The biphasic domain is located at the right for each binodal curve, while the monophasic domain is at the left, indicating that this system is a low critical temperature system (LCTS) [32]. In this kind of colloid solution, the critical concentration of the solute decreases as the temperature increases. So, the P₄₄₄₁₄Cl-NaOH-H₂O system is a homogeneous aqueous solution at room temperature and become ABS when the temperature exceeds to a certain degree. This temperature-responsive property is endowed with the surface activity of the long side chain on P₄₄₄₁₄⁺ and salting-out effect of NaOH [33, 34]. Compared with the HCl ABS, the concentration of NaOH needed to induce ABS under the same condition is smaller, but the distance between isothermal binodal curves of NaOH is much closer [16], which gives NaOH a more moderate phase transition condition but narrower adjusting range than HCl ABS.

Due to quite similar size and physico-chemical properties between ReO₄^- and ⁹⁹TcO₄^-, ReO₄^- is used as a surrogate for ⁹⁹TcO₄^- in most of our batch experiments. The effect of NaOH concentration on the extraction of ReO₄^- was first studied. From Fig. 2A, when the NaOH concentration increases from 2 mol/kg to 6.5 mol/kg, the ReO₄^- could be extracted quantitatively by the P₄₄₄₁₄Cl with extraction efficiency larger than 99.9%. The extraction equilibrium could be accomplished in 3 min due to the strong reaction between ReO₄^- and P₄₄₄₁₄Cl. As a comparison, the extraction efficiency of ReO₄^- dramatically decreases with increasing HNO₃ concentration (Fig. 2A), which indicates the P₄₄₄₁₄Cl ABS is suitable to extract ReO₄^- from NaOH solution rather than HNO₃ solution and the HNO₃ might be applied in the stripping of ReO₄^-/⁹⁹TcO₄^-.

Traditionally, the loaded ReO₄^-/⁹⁹TcO₄^- on the ABS or IL could not be stripped directly. Reduction precipitation was adopted to recover ReO₄^-/⁹⁹TcO₄^- from the extract [35-37]. This procedure would consume extra reduction agents and lack continuity or flexibility. Whereas, as shown in Fig. 2B, the maximum stripping ratio of ReO₄^- by HNO₃ from P₄₄₄₁₄Cl phase could reach 85%, which promises the recovery of ReO₄^- in the practical process. It should be noted that only HNO₃ could obtain such high stripping ratio of ReO₄^-. The NaNO₃ solution did not exhibit any stripping capability (Fig. 2B). This result indicates both NO₃^- anion and H⁺ play an important role in the stripping step.

The influence of NO₃^- on the extraction also verified this hypothesis. From Fig. 2C, the extraction efficiency of ReO₄^- could keep over 99.5% even the ratio of NO₃^- to ReO₄^- increased from 0 to 5000. Comparing with other extraction and adsorption systems, in which the presence of large amount of NO₃^- would greatly reduce the removal of ReO₄^-/⁹⁹TcO₄^- [36, 37], the P₄₄₄₁₄Cl ABS exhibited stronger selectivity towards ReO₄^-/⁹⁹TcO₄^-. The influence of Cl^-, SO₄^2-, OH^-, PO₄^3- and NO₃^-, which are main competing anions in practical tank waste, on the extraction of ReO₄^- was also tested and is shown in Fig. 2D. All the anions had no influence on the extraction efficiency of ReO₄^- with a molar ratio of 1000:1.

The extremely high selectivity toward ReO₄^-/⁹⁹TcO₄^- by P₄₄₄₁₄Cl-NaOH ABS could be interpreted by the Hofmeister series [38, 39]. The P₄₄₄₁₄Cl acts as a chaotrope in the alkaline ABS, so the P₄₄₄₁₄⁺ is inclined to form an IL-rich phase with hydrophobic anions [36, 40]. The anions adopted in this work follow the Gibbs free energies of hydration (Δ_hydG⁰): PO₄^3- (-2773) < SO₄^2- (-1090) < Cl^- (-347) < NO₃^- (-306) < ReO₄^- (-251) [28]. Not surprisingly, the ReO₄^- with monovalent and largest ion radii is the most hydrophobic anion; thus, it is easy to be extracted into the IL-rich phase even from large amounts of competing anions. The high stripping ratio by HNO₃ might be the resulting formation of HReO_4, which had strong interaction with water molecules and increased the solubility of ReO₄^- in the acid-rich phase [41, 42].

Nevertheless, as shown in Table S6 (Supporting information), the H₂SO₄ and HCl showed almost no stripping effect on ReO₄^- which suggests both H⁺ and an anion with high Δ_hydG⁰ are indispensable in stripping.

Another important parameter in the extraction process is the loading capacity of the target anion, which influences the operation efficiency of the extraction process. As Fig. S1 (Supporting information) illustrated, the maximum Re content in the IL-rich phase could reach 160, 000 ppm which has reached 50% of the theoretical concentration of Re in P₄₄₄₁₄ReO₄. Because of the strong extraction ability of P₄₄₄₁₄Cl to ReO₄^-, the P₄₄₄₁₄Cl concentration had very little influence on the extraction efficiency of ReO₄^- (Fig. S2 in Supporting information), which indicates this parameter could be adjusted flexibly according to the sample composition.

SAXS, DLS and MD were combined to interpret the phase transition mechanism of P₄₄₄₁₄Cl-NaOH ABS. The compositions of mixtures used in the measurements were based on the points marked in the phase diagram (Fig. 1B). Points 1 to 6 in path 1 were used to study the effect of NaOH concentration and the corresponding SAXS patterns are shown in Fig. 3A. Taking the curve of mixture 1 as an example, from the peak around 1.14 nm^-1, the short-range order structure diameter was calculated to be 5.51 nm from the equation: d = 2π/q, which represented the size of micelle that the P₄₄₄₁₄⁺ aggregated into [43]. With the increasing NaOH concentration, the peak position around 1.14 nm^-1 almost did not change, but the shape became smooth and vanished. The DLS measurement supported the change in SAXS curves. From Fig. 3D, the dynamic diameter of each mixture increased with increasing NaOH concentration, indicating the aggregation of P₄₄₄₁₄⁺ micelle [44]. It should be noted that the dynamic diameter of each mixture followed by the Gaussian distribution (Figs. S4-S6 in Supporting information) which suggested that the P₄₄₄₁₄Cl-NaOH ABS was a polydisperse system. When the NaOH concentration increased, the micelles grew larger and started to aggregate, resulting in a larger and more dispersed size range. As the dispersity of the system increased, the peaks of SAXS patterns became smooth and finally resulted in a slash.

Similar but weaker changes in the SAXS patterns and micelle diameter could be observed with increasing temperature (Figs. 3C and F) and P₄₄₄₁₄Cl concentration (Figs. 3B and E). The mixture used in the temperature study was referred to the point c, path 2 in Fig. 1B. The SAXS patterns also became smooth as the temperature increased from 25 ℃ to 55 ℃, companying with the increase of micelle size. The experiments of P₄₄₄₁₄Cl concentration were carried out according to mixtures a-f from path 2 in Fig. 1B, whose SAXS patterns kept their peaks around 1.14 nm^-1. The dynamic diameter varied from 5 nm to 14 nm when the P₄₄₄₁₄Cl concentration changed from 5% to 30%. Comparing the results of the three variables, we can conclude that the NaOH concentration has a much stronger effect on the trigger of the micelle aggregation than temperature and IL concentration for its stronger effect on the change of critical micelle concentration. The growth and aggregation of phosphonium micelle would finally connect the separated micelles and generate a new aqueous phase immiscible with the NaOH solution [44, 45].

We first studied the selective extraction behavior of the P₄₄₄₁₄Cl-NaOH system towards ReO₄^- using all-atom MD simulations. The geometric structures of P₄₄₄₁₄Cl optimized based on density functional theory (DFT) is shown in Fig. S7A (Supporting information). Figs. S7B and C (Supporting information) show the snapshots of initial and final configurations of the MD trajectory for the P₄₄₄₁₄Cl system, respectively. At the initial state, all the chemical components are randomly distributed at a relatively low density in order to avoid the atom overlap. However, as shown in Fig. S7C, the aggregation behavior of P₄₄₄₁₄⁺ appears after equilibrium in the molecular scale, forming P₄₄₄₁₄⁺ micelles. Then we analyzed the spacial distribution of ReO₄^-, Cl^-, and OH^- as the simulation time increases. As revealed in Fig. S7D (Supporting information), the formed P₄₄₄₁₄⁺ micelles have significantly stronger affinity towards ReO₄^- rather than Cl^-, which is in good accordance to our experimental results. All the ReO₄^- ions are selectively extracted by the P₄₄₄₁₄⁺ micelles from aqueous solution, either being attached on the surface or moving into the interior. In contrast, Na⁺, Cl^- and OH^- ions prefer to reside in aqueous solution instead of penetrating into the interior. Fig. S7E (Supporting information) clearly shows the relative distribution of various ions at the micelle-aqueous interface and within channels between neighboring micelles. We can deduce that the positive charges of P₄₄₄₁₄⁺ may be shielded by surrounding anions to different extents, and thus the observed P₄₄₄₁₄⁺ micelles can be formed via strong enough van der Waals interaction. The effect of ReO₄^- on the aggregation of P₄₄₄₁₄⁺ has also been studied via MD simulations. Our results indicated that the P₄₄₄₁₄⁺ micelles can still be formed without the absence of ReO₄^- at room temperature, as displayed in Fig. S7F (Supporting information). The connected micelles predict the forming of P₄₄₄₁₄Cl-NaOH ABS that is in accordance with the SAXS and DLS analysis.

We also compared the influence of various counterions like Cl^-, SO₄^2- and NO₃^- on the extraction in MD simulations. It is surprising that all the counterions have negligible influence on the formation of the P₄₄₄₁₄⁺ micelles as well as the extraction efficiency towards ReO₄^-. As presented in Fig. S8 (Supporting information), the average interaction energies of the P₄₄₄₁₄⁺ micelles with each counteranion reveal that the P₄₄₄₁₄⁺ micelles show significantly higher affinity to ReO₄^- over Cl^-, SO₄^2-, and NO₃^-, which explains the high selectivity to ReO₄^- of the P₄₄₄₁₄Cl ABS.

The practical application of the P₄₄₄₁₄Cl-NaOH ABS was tested with a simulated tank waste supernatant. The composition of elements was listed in Table S1 (Supporting information). The extraction efficiency of ⁹⁹TcO₄^- is larger than 98.6%. In addition, over 73.8% of loaded ⁹⁹TcO₄^- could be directly stripped by 65% HNO₃. The P₄₄₄₁₄Cl based ABS extraction process could be regarded as an efficient and green method to prevent the environmental risk from ⁹⁹TcO₄^- in the tank waste. The reusability of P₄₄₄₁₄Cl from HNO₃ stripping was tested by extracting ReO₄^- with three repeated cycles. As shown in Table S13 (Supporting information), the extraction efficiencies of recycled P₄₄₄₁₄Cl in all three cycles are 99.9% which is only 0.07% less than original P₄₄₄₁₄Cl and suggests that this extractant could be reused.

In summary, a homogeneous liquid-liquid extraction process based on P₄₄₄₁₄Cl-NaOH ABS was developed to treat ⁹⁹TcO₄^- from tank waste supernatant. The phase diagram suggests this ABS is a LCTS. The NaOH concentration strongly affected the phase separation by changing the critical micelle concentration. The P₄₄₄₁₄Cl-NaOH ABS could quantitatively extract ReO₄^- with high concentration of competing anions because the interaction energy between P₄₄₄₁₄⁺ micelles and ReO₄^- was much lower than that of other anions. However, the P₄₄₄₁₄⁺ micelle still has relative strong affinity to NO₃^-, resulting in the high stripping ratio (85%) of loaded ReO₄^- by HNO₃. The practical test of extracting ⁹⁹TcO₄^- from simulated waste tank water by the P₄₄₄₁₄Cl ABS indicate that this system provides an efficient and green option for recovering hazardous anions from alkaline solutions.

Declaration of competing interest

Less

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Acknowledgments

Less

This work was supported by the National Natural Science Foundation of China (Nos. 21876124, U2032106), Natural Science Foundation of Zhejiang Province (Nos. LR21B060001 and LQ21B070004).

Supplementary materials

Less

Supplementary material associated with this article can be found, in the online version, at doi:10.1016/j.cclet.2022.02.024

References

Less

[1]

C.Y. Liu, L. Chen, J. Chen, et al., J. Rare Earths 37 (2019) 1002-1008.

[2]

J. Chen, S.K. Spear, J.G. Huddleston, R.D. Rogers, Green Chem. 7 (2005) 64-82.

[3]

L. Li, F. Liu, X.X. Kong, et al., Chin. Chem. Lett. 13 (2002) 349-350.

[4]

J.X. Huang, D.H. Lu, K. Wan, F.H. Wang, Chin. Chem. Lett. 25 (2014) 635-639.

[5]

S.B. Yu, H.J. Zang, X.L. Yang, et al., Chin. Chem. Lett. 28 (2017) 1479-1484.

[6]

N. Schaeffer, J.H.F. Conceição, M.A.R. Martins, et al., Green Chem. 22 (2020) 2810-2820.

[7]

Y.H. Chen, H.Y. Wang, Y.C. Pei, et al., ACS Sustain. Chem. Eng. 3 (2015) 3167-3174.

[8]

L. Chen, J. Chen, H.L. Li, et al., Sep. Purif. Technol. 207 (2018) 179-186.

[9]

N. Schaeffer, M. Gras, H. Passos, et al., ACS Sustain. Chem. Eng. 7 (2019) 1769-1777.

[10]

Y.X. Yao, N.F. Farac, G. Azimi, ACS Sustain. Chem. Eng. 6 (2018) 1417-1426.

[11]

C.Y. Liu, Q.B. Yan, X.W. Zhang, et al., Environ. Sci. Technol. 54 (2020) 10370-10379.

[12]

M.G. Freire, A.F.M. Claudio, J.M.M. Araujo, et al., Chem. Soc. Rev. 41 (2012) 4966-4995.

[13]

L.L. Zhang, Y.B. Tian, Y.Y. Wang, L.Y. Dai, Chin. Chem. Lett. 32 (2021) 2233-2238.

[14]

S. Igarashi, T. Kyuwa, M. Matsuura, T. Yotsuyanagi, Chem. Lett. 23 (1994) 1189-1190.

[15]

T. Vander Hoogerstraete, B. Onghena, K. Binnemans, J. Phys. Chem. Lett. 4 (2013) 1659-1663.

[16]

M. Gras, N. Papaiconomou, N. Schaeffer, et al., Angew. Chem. Int. Ed. 57 (2018) 1563-1566.

[17]

D. Depuydt, L.W. Liu, C. Glorieux, et al., Chem. Commun. 51 (2015) 14183-14186.

[18]

C.Y. Liu, Q.B. Yan, X.W. Zhang, et al., Chin. Chem. Lett. 33 (2022) 953-956.

[19]

S. Chatterjee, V. Holfeltz, G.B. Hall, et al., Anal. Chem. 92 (2020) 13961-13970.

[20]

C.X. Lu, Z.W. Wang, Q.F. Jiang, et al., Chin. Chem. Lett. 22 (2011) 1309-1312.

[21]

K.R. Ashley, G.D. Whitener, N.C. Schroeder, et al., Solvent Extr. Ion Exch. 16 (1998) 843-859.

[22]

L. Wang, H. Song, L.Y. Yuan, et al., Environ. Sci. Technol. 53 (2019) 3739-3747.

[23]

N.N. Shen, Z.X. Yang, S.T. Liu, et al., Nat. Commun. 11 (2020) 5571.

[24]

H.D. Ji, Y.M. Zhu, J. Duan, et al., Chin. Chem. Lett. 30 (2019) 2163-2168.

[25]

W.D. King, N.M. Hassan, D.J. McCabe, et al., Sep. Sci. Technol. 38 (2003) 3093-3114.

[26]

L. Zhu, C.L. Xiao, X. Dai, et al., Environ. Sci. Technol. Lett. 4 (2017) 316-322.

[27]

L. Zhu, D.P. Sheng, C. Xu, et al., J. Am. Chem. Soc. 139 (2017) 14873-14876.

[28]

C.L. Xiao, A. Khayambashi, S. Wang, Chem. Mater. 31 (2019) 3863-3877.

[29]

D.P. Sheng, L. Zhu, X. Dai, et al., Angew. Chem. Int. Ed. 58 (2019) 4968-4972.

[30]

X.J. Chen, X. Dai, R.Z. Xie, et al., Chin. Chem. Lett. 31 (2020) 1974-1977.

[31]

M. Dilip, N.J. Bridges, H. Rodriguez, et al., J. Solut. Chem. 44 (2015) 454-468.

[32]

P.H.J. Kouwer, P. de Almeida, O. ven den Boomen, et al., Chin. Chem. Lett. 29 (2018) 281-284.

[33]

N. Schaeffer, H. Passos, I. Billard, et al., Crit. Rev. Environ. Sci. Technol. 48 (2018) 859-922.

[34]

Y.B. Xie, L.F. Yang, Y.Q. Ke, et al., ACS Sustain. Chem. Eng. 8 (2020) 3253-3260.

[35]

R.D. Rogers, J.H. Zhang, A.H. Bond, et al., Solvent Extr. Ion Exch. 13 (1995) 665-688.

[36]

T.E. Phelps, N. Bhawawet, S.S. Jurisson, G.A. Baker, ACS Sustain. Chem. Eng. 6 (2018) 13656-13661.

[37]

M. Chotkowski, D. Polomski, J. Radioanal. Nucl. Chem. 314 (2017) 87-92.

[38]

P.A. Gurnev, T.C. Roark, H.I. Petrache, et al., Angew. Chem. Int. Ed. 56 (2017) 3506-3509.

[39]

X.L. He, K.L. Zhang, Y. Liu, et al., Angew. Chem. Int. Ed. 57 (2018) 4590-4593.

[40]

N.J. Bridges, K.E. Gutowski, R.D. Rogers, Green Chem. 9 (2007) 177-183.

[41]

P. Moeyaert, L. Abiad, C. Sorel, J.F. Dufrêche, P. Moisy, J. Chem. Thermodyn. 85 (2015) 61-67.

[42]

R.R. Srivastava, J. Lee, M. Kim, J. Chem. Technol. Biotechnol. 90 (2015) 1752-1764.

[43]

C. Shi, S.X. Xi, Y.C. Han, et al., Chin. Chem. Lett. 30 (2019) 305-310.

[44]

N. Schaeffer, G. Perez-Sanchez, H. Passos, et al., Phys. Chem. Chem. Phys. 21 (2019) 7462-7473.

[45]

Q.W. Yang, D. Xu, J.Z. Zhang, et al., ACS Sustain. Chem. Eng. 3 (2015) 309-316.

Appendix

Less

Year 2022 volume 33 Issue 7

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1016/j.cclet.2022.02.024

Receive Date：2021-11-24
Online Date：2025-12-19
Published：2022-07-15

Article Data

Affiliations

History

Received：2021-11-24
Revised：2022-02-08
Accepted：2022-02-09

Affiliations

^aCollege of Chemical and Biological Engineering, Zhejiang University, Hangzhou 310027, China

^bInstitute of Zhejiang University - Quzhou, Quzhou 324000, China

^cLaboratory of Nuclear Energy Chemistry, Institute of High Energy Physics, Chinese Academy of Sciences, Beijing 100049, China

^dInstitute of Nuclear & New Energy Technology, Tsinghua University, Beijing 100084, China

References

Share

https://castjournals.cast.org.cn/joweb/ccl/EN/10.1016/j.cclet.2022.02.024

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

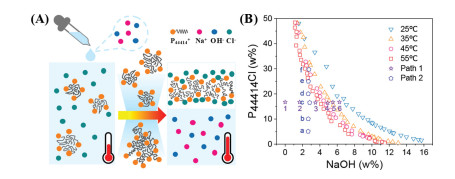

Fig. 1 (A) Phase separation process of the P₄₄₄₁₄Cl-NaOH-H₂O system, (B) the binodal curves for the P₄₄₄₁₄Cl-NaOH-H₂O system at various temperatures and the composition of mixture points in paths 1 and 2 studied.

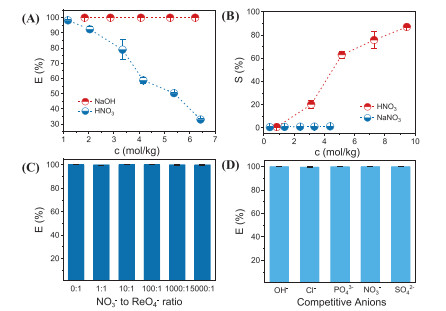

Fig. 2 (A) Extraction efficiency of ReO₄^- by P₄₄₄₁₄Cl-NaOH and P₄₄₄₁₄Cl-HNO₃ ABS, (B) stripping ratio of ReO^- using HNO₃ and NaNO₃, (C) effect of competing NO₃^- anions on the extraction of ReO₄^- by P₄₄₄₁₄Cl-NaOH ABS, and (D) effect of different competing anions (1000 times) on the extraction of ReO₄^- by P₄₄₄₁₄Cl-NaOH ABS.

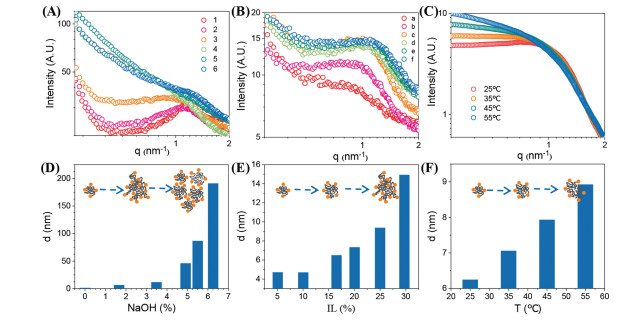

Fig. 3 SAXS patterns of mixtures taken from Fig. 1: (A) path 1, (B) path 2, (C) point c in path 2, and average dynamic diameter of the mixtures that was taken from DLS, (D) path 1, (E) path 2, (F) point c in path 2. The scheme in (D), (E), and (F) represent the growth and aggregation process of P₄₄₄₁₄⁺ micelle.
