Synergy of photocatalytic reduction and adsorption for boosting uranium removal with PMo<sub>12</sub>/UiO-66 heterojunction

Synergy of photocatalytic reduction and adsorption for boosting uranium removal with PMo₁₂/UiO-66 heterojunction

PDF

Zhibin Zhang^a^,^b^,¹, Zifan Li^a^,^b^,¹, Zhimin Dong^a^,^b, Fengtao Yu^a^,^b, Yingcai Wang^a^,^b, Youqun Wang^a^,^b, Xiaohong Cao^a^,^b, Yuhui Liu^a^,^b^,^*, Yunhai Liu^a^,^b^,^*

Chinese Chemical Letters | 2022, 33(7) : 3577 - 3580

Less

Chinese Chemical Letters | 2022, 33(7): 3577-3580

• Communication •

Synergy of photocatalytic reduction and adsorption for boosting uranium removal with PMo₁₂/UiO-66 heterojunction

Full

Zhibin Zhang^a^,^b^,¹, Zifan Li^a^,^b^,¹, Zhimin Dong^a^,^b, Fengtao Yu^a^,^b, Yingcai Wang^a^,^b, Youqun Wang^a^,^b, Xiaohong Cao^a^,^b, Yuhui Liu^a^,^b^,^*, Yunhai Liu^a^,^b^,^*

Affiliations

^a Jiangxi Province Key Laboratory of Synthetic Chemistry, East China University of Technology, Nanchang 330013, China

^b State Key Laboratory of Nuclear Resources and Environment, East China University of Technology, Nanchang 330013, China

Published: 2022-07-15 doi: 10.1016/j.cclet.2022.01.062

Outline

Abstract

Less

In this work, we proposed a new U(Ⅵ) removal strategy combining adsorption and photocatalytic reduction by the PMo₁₂/UiO-66 heterojunctions. The PMo₁₂ has been encapsulated in the cavities of UiO-66 by a one-step hydrothermal method, and the PMo₁₂/UiO-66 exhibited high adsorption capacity and photocatalytic activity. The maximal theoretical sorption capacity of U(Ⅵ) on 15% PMo₁₂/UiO-66 reached 225.36 mg/g and the photoreduction rate of 15% PMo₁₂/UiO-66 is about thirty times as much as UiO-66. Under the light irradiation, the photogenerated electrons rapidly transport from UiO-66 to PMo₁₂, and the photo-generated electrons could efficiently reduce the pre-enriched U(Ⅵ) to U(Ⅳ). This work provides new insights into remediation of the radioactive environment.

Key words

UiO-66 / PMo12 / Uranium / Adsorption / Photocatalytic reduction

Cite this Article

Zhibin Zhang, Zifan Li, Zhimin Dong, Fengtao Yu, Yingcai Wang, Youqun Wang, Xiaohong Cao, Yuhui Liu, Yunhai Liu. Synergy of photocatalytic reduction and adsorption for boosting uranium removal with PMo₁₂/UiO-66 heterojunction[J]. Chinese Chemical Letters, 2022 , 33 (7) : 3577 -3580 . DOI: 10.1016/j.cclet.2022.01.062

Full Text

Less

Developing nuclear power that has been exploited extensively as a clean energy source is of great significance to meet growing global energy demand [1]. As the fundamental elements of nuclear fuel, uranium possesses chemotoxicity and radiotoxicity, which can pose serious threats to the living organisms and natural environment [2]. Therefore, it is desirable to explore an effective and economical strategy for the removal of uranium [3].

Over the past few years, numerous adsorbents have been extensively investigated for removing uranium because of environment-friendly, convenient operation and high efficiency [4, 5]. However, the adsorption capacity is preponderantly limited by the adsorption active sites, adsorption equilibrium between sorbent and solution, and available surface area [6]. Recently, the reduction of highly soluble U(Ⅵ) to insoluble U(Ⅳ) species by semiconductor photocatalyst has been extensively investigated [7, 8]. The prior photocatalysis process of U(Ⅵ) reduction commonly contain the enriched of U(Ⅵ) on the surface of photocatalysts [9]. Feng et al. have been proved the adsorption of U(Ⅵ) was a vital step in photoreduction of U(Ⅵ) [10]. Considering the benefits of adsorption and the characteristics of uranium, integrating the adsorption and photocatalysis seems a more effective strategy for removing uranium. Chen et al. reported that the adsorbent-semiconductor hybrid nanosheet (g-C₃N₄/GO) composites exhibited high uranium removal capacity [11].

Polyoxometalates (POMs), a type of metal oxide nanoclusters, have been investigated for incorporating uranium atoms in polyoxometalate for the sequestration and storage of radioactive waste since early 1990s [12]. Besides, POMs are extensively used as catalysts due to the remarkable capability to receive electrons and redox properties [13]. However, the low surface area (1–10 m²/g) and high solubility restricted the direct application of POMs. Therefore, MOFs have been selected as the matrix to encapsulate the POMs or employed organic linkages to graft MOFs and POMs together [14].

[Zr₆O₄(OH)₄] clusters interlinked with twelve terephthalate ligands create one centrical octahedral cage (free diameters of 11 Å) and eight corner tetrahedral cages (8 Å) in each UiO-66 unit. The centrical octahedral cage provides an appropriate space for encapsulating PMo₁₂ (~10 Å), and the stable structure of UiO-66 make the encapsulation of PMo₁₂ be more reliable [15].

Herein, the PMo₁₂/UiO-66 has been assembled synthesized by a one-pot method and applied for the extraction of uranium. The prepared PMo₁₂/UiO-66 could effectively improve the adsorption capacity and the visible-light photocatalytic activity, which provides a new insight strategy for combined adsorption and photocatalytic reduction of uranyl ions.

The UiO-66 was synthesized according to the hydrothermal method [16]. The synthesis of PMo₁₂/UiO-66 was performed according to previous method with some modification [17]. Specifically, 1.1652 g zirconium chloride (ZrCl₄), 0.835 g terephthalic acid (BDC), 3.6 mL condensed HCl, and the required amount of PMo₁₂ (5% PMo₁₂ (0.1053 g), 10% PMo₁₂ (0.2220 g), 15% PMo₁₂ (0.3529 g), 20% PMo₁₂ (0.500 g), 30% PMo₁₂ (0.8591 g)) were added in DMF (40 mL). The resulting reaction mixture was ultrasonicated for ~30 min at room temperature. Then, the obtained mixtures were sealed in a Teflon-lined autoclave and kept in an oven at 120 ℃ for 24 h. The product was collected via centrifugation and washed for three times with DMF and methanol and then dried under vacuum at 60 ℃. The obtained PMo₁₂/UiO-66 were named as X PMo₁₂/UiO-66, where X refer to 5%, 10%, 15%, 20% and 30% PMo₁₂. The characterization, photocatalytic tests and sorption experiments are described in Supporting information, respectively.

The morphology and microstructure of UiO-66 and 15% PMo₁₂/UiO-66 were investigated by scanning electron microscopy (SEM). According to Figs. 1a and b, the irregular octahedral UiO-66 about 300 nm with Zr, C, O elements dispersed uniformly can be observed, whereas the additional Mo and P elements can be found in 15% PMo₁₂/UiO-66, confirming the well dispersion of PMo₁₂ nanoparticles in UiO-66 (Fig. S1 in Supporting information). The crystalline structures of UiO-66 and PMo₁₂/UiO-66 were confirmed by XRD (Fig. 1c). The diffraction peaks at 2θ of 7.15°, 8.30°, 11.83°, 14.57°, 25.52°, 30.53° and 42.94° correspond to the (111), (200), (220), (400), (442), and (711) crystal planes of UiO-66 [18]. For PMo₁₂/UiO-66, the peak intensities of UiO-66 gradually decreased with increasing the addition of PMo₁₂. However, no diffraction peaks of PMo₁₂ can be observed in the PMo₁₂/UiO-66 probably due to the following two reasons: (1) the particle size of PMo₁₂ clusters are relatively small (~10 Å); (2) the PMo₁₂ clusters have been encapsulated in the cavities of UiO-66. Similar results can also be observed in the previous reports [19].

FI-IR spectra were investigated to recognize the functional groups on the surface of bare UiO-66, commercial PMo₁₂ and PMo₁₂/UiO-66 (Fig. 1d). Two bands located at 660 cm⁻¹ and 743 cm⁻¹ correspond to the asymmetric stretching of C-H and C=C. The bands at 1017 cm⁻¹ and 1393 cm⁻¹ are the signals of Zr-O and O=C=O symmetric stretching, while the weak band at 1507 cm⁻¹ represents the C=C of benzene ring [20]. Three characteristic peaks are observed for PMo₁₂ at 1056 cm⁻¹, 952 cm⁻¹, 879 cm⁻¹ attribute to the stretching vibrations of P-O, M=O and Mo-O-Mo, respectively [18]. Note that increasing the content of PMo₁₂ causes a red shift for the vibration peaks of UiO-66. Furthermore, a new stretching vibration of M=O can be observed in 20% PMo₁₂/UiO-66 and 30% PMo₁₂/UiO-66 owing to the incorporation of PMo₁₂. The TG analyses have also confirmed it (Fig. S2 in Supporting information).

The chemical composition and chemical state of as prepared samples were investigated by XPS. The survey spectra revealed the presence of Zr, C, O, Mo, P in the 15% PMo₁₂/UiO-66, which are consistent with EDS analysis (Fig. 2a). The peaks at 284.64 eV, 285.58, and 288.77 eV are indexed to the binding energies of C-C, C-O and O-C=O [21], while the peaks at 182.77 eV and 185.13 eV are referring to Zr 3d_5/2 and 3d_3/2 in the high-resolution XPS C 1s and Zr 3d spectra of UiO-66 (Figs. 2b and c) [22]. In addition, the peaks at 232.55 eV and 235.70 eV are ascribed to Mo 3d_5/2 and 3d_3/2 (Fig. 2e) [23], whereas the framed peak at 133.63 eV is due to the deconvoluted P 2p spectra, revealing the P⁵⁺ state in PMo₁₂/UiO-66 (Fig. 2d) [24].

Fig. 3a shows the adsorption dynamics process of U(Ⅵ) onto UiO-66 and 15% PMo₁₂/UiO-66 in the darkness at pH 5.5. The adsorption rate is comparatively rapid during the first 50 min and then gradually becomes slowly after 100 min causing by the occupied and decreased active sites. Obviously, the adsorption process is well fitted with pseudo-second-order model with the values of R² near 1.0 (Table S1 in Supporting information). The q_e values derived from the pseudo-second-order model are 140.83 mg/g (15% PMo₁₂/UiO-66) and 53.58 mg/g (UiO-66) which are close to the experimental capacities of 15% PMo₁₂/UiO-66 (131.37 mg/g) and UiO-66 (52.13 mg/g), confirming that the uptake processes of uranyl ions are relied on the assumption of the rate-limiting chemical process rather than mass transport. Furthermore, the surface charge of 15% PMo₁₂/UiO-66 is more negative than that of UiO-66 due to the existence of PMo₁₂ (Fig. S3 in Supporting information). The species of U(Ⅵ) are primarily existing as UO₂²⁺ at pH 5.5, thereby the charge attraction between cationic UO₂²⁺ with PMo₁₂/UiO-66 could boost the surface adsorption.

The adsorption isotherms of UiO-66 and 15% PMo₁₂/UiO-66 are revealed Fig. 3b. Clearly, the correlation coefficients (R² > 0.98) of Langmuir model are much higher than that of Freundlich model (R² = 0.85–0.96) (Table S2 in Supporting information), demonstrating that the dominant adsorption process was monolayer adsorption. The fitted maximum U(Ⅵ) uptake capacity of 15% PMo₁₂/UiO-66 was calculated to be 225.36 mg/g according to Langmuir model, which is much larger than that of UiO-66 (59.67 mg/g). More importantly, the adsorbed U(Ⅵ) on the surface of PMo₁₂/UiO-66 could boost the transfer of excited electrons [25, 26].

The photocatalytic reduction of U(Ⅵ) was tested under 300 W Xe lamp irradiation, and the results are shown in Fig. 3c. The pure UiO-66 has low photocatalytic activity due to the rapid recombination of charge carriers and limited light absorption range. Comparatively, the 15% PMo₁₂/UiO-66 shows the best photoreduction activity and the total removal efficiency reaches 98.92% within 300 min irradiation, and the U(Ⅵ) photoreduction rate attains 0.0149 min⁻¹, about thirty times as much as UiO-66 (0.0005 min⁻¹) (Fig. 3d).

It can be seen from the UV–vis absorption spectra (Fig. 4a) that the PMo₁₂/UiO-66 heterojunctions display enhanced visible-light harvesting in the range of 450–800 nm owing to the competitive absorption factor of PMo₁₂ cocatalyst (Fig. 4a). The corresponding Tauc plot shows the band gap of UiO-66 and PMo₁₂ are 2.85 eV and 2.23 eV, respectively (Figs. 4b and c). The intensity of photoluminescence (PL) spectra can reflect the extent of recombination of the photo-generated charges. As shown in Fig. 4d, the pristine UiO-66 displays striking emission peaks at 380 nm, in contrast, the fluorescence of PMo₁₂/UiO-66 heterojunctions are partially quenched due to the formation of heterojunction between UiO-66 and PMo₁₂. The 15% PMo₁₂/UiO-66 shows the lowest PL peak intensity, suggesting that it has the most efficient suppression for charge recombination. The relationship between light harvesting and charges separation is currently conflicting, and the 15% PMo₁₂/UiO-66 achieves the optimum point [27].

As displayed in Fig. S4 (Supporting information), the Mott-Schottky curves of UiO-66 show a positive slope, indicating the characteristics of n-type semiconductors. The flat band potential of UiO-66 is −0.70 V vs. Ag/AgCl. The conduction band (CB) edge nearly overlaps the flat band potential [28], thus, the CB of UiO-66 is calculated to be −0.50 V vs. NHE. Moreover, the flat-band potential of PMo₁₂ is around −0.28 V vs. NHE [19]. The CB position of UiO-66 is lower than that of PMo₁₂, which means the electrons on the UiO-66 can be smoothly transferred to the PMo₁₂ due to E_f equilibrium in the PMo₁₂/UiO-66 heterojunction. As described in Fig. 2, the chemical environment of C, Zr, Mo and P have changed after photoreaction. Specifically, the peaks of C and Zr red shift by 0.08 eV and 0.04 eV, whereas the peaks of P and Mo blue shift by 0.18 eV and 0.09 eV. The above offsets of peaks indicate that the electrons migrate from UiO-66 to PMo₁₂, confirming the formation of heterojunction [29]. Additionally, in the U 4f spectra of 15% PMo₁₂/UiO-66, four peaks at 396.19 eV, 395.39 eV and 392.96 eV, 382.16 eV are attributed to U(Ⅵ) and U(Ⅳ), indicating the coexistence of U(Ⅵ) and U(Ⅳ) species (Fig. 2f) [30]. In Fig. 5a the new vibration band at 899 cm⁻¹ is the asymmetric stretching of uranyl species [31], and have been confirmed as uranium peroxide, (UO₂)O₂·2H₂O by XRD (Fig. 5b and Fig. S5 in Supporting information) [32]. The quenching experiments were conducted to verify the primary active substances involved in the photoreduction process in order to gain deeper insight into reaction mechanism (Fig. S6 in Supporting information). The photocatalytic activity of 15% PMo₁₂/UiO-66 was inhibited after adding p-BQ, revealing that ˙O₂⁻ radicals are the main reduction radicals. In contrast, methanol acting as the hole scavenger can promote the separation of photoinduced carriers and improve the photocatalytic reduction, whereas the TBA shows no effect on the photoreaction, indicating ˙OH radicals are unnecessary during the photoreaction. In conclusion, the removal of U(Ⅵ) by PMo₁₂/UiO-66 can be divided as follow steps: (i) The dissociative U(Ⅵ) ions were adsorbed on the surface of PMo₁₂/UiO-66 before photoreaction ((Eq. 1)). (ii) Under irradiation, the electrons in the CB of UiO-66 drift rapidly along the direction of the internal electric field to the CB of PMo₁₂, and reduce U(Ⅵ) pre-enriched in PMo₁₂/UiO-66 (Eq. 2). (iii) The U(Ⅵ) species were reduced by photoelectrons and ˙O₂⁻ radicals to form (UO₂)O₂·2H₂O (Eqs. 3–5) (Fig. 6).

(1)

(2)

(3)

(4)

(5)

In summary, this work provides a new uranium removal strategy combining adsorption and photocatalysis. The encapsulation of PMo₁₂ in UiO-66 could enhance the adsorption capacity to 225.36 mg/g. The PMo₁₂ can also accept electrons transporting from UiO-66, and further reduce the U(Ⅵ) pre-enriched on the surface of PMo₁₂/UiO-66 heterojunctions. The reduced uranium specie was confirmed to be (UO₂)O₂·2H₂O due to the photoelectrons and ˙O₂⁻ radicals. Thus, there are reasons to believe that PMo₁₂/UiO-66 is a promising candidate for uranium extraction from radioactive wastewater.

Declaration of competing interest

Less

The authors declare that they have no competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Acknowledgments

Less

This work was financially supported by the National Natural Science Foundation of China (Nos. 21866004, 21866003, 22066003, 22076022, 22006004), the Defense Industrial Technology Development Program (No. JCKY2019401C004), the Open Fund of Jiangxi Province Key Laboratory of Synthetic Chemistry (No. JXSC202012), the Open Fund of State Key Laboratory of Nuclear Resources and Environment (No. NRE1924), the Graduate Innovation Fund of East China University of Technology (No. DHYC-202134).

Supplementary materials

Less

Supplementary material associated with this article can be found, in the online version, at doi:10.1016/j.cclet.2022.01.062

References

Less

[1]

Z. Dong, Z. Zhang, R. Zhou, et al., Chem. Eng. J.386 (2020) 123944.

[2]

Z. Zhang, C. Liu, Z. Dong, et al., Appl. Surf. Sci. 520 (2020) 146352.

[3]

K. Yu, P. Jiang, J. Wei, H. Yuan, Y. Xin, et al., J Hazard Mater. (2021) 127823.

[4]

Z. Zhang, Z. Dong, X. Wang, et al., Chem. Eng. J. 370 (2019) 1376–1387.

[5]

Z. Zhang, Z. Dong, X. Wang, et al., Chem. Eng. J. 341 (2018) 208–217.

[6]

H. Li, F. Zhai, D. Gui, et al., Appl. Catal. B254 (2019) 47–54.

[7]

F. Yu, Z. Zhu, S. Wang, et al., Chem. Eng. J. 412 (2021) 127558.

[8]

K. Yu, P. Jiang, H. Yuan, et al., Appl. Catal. B288 (2021) 119978.

[9]

H. Liu, J. Lei, J. Chen, et al., Nano Res. (2021) 1–9.

[10]

J. Feng, Z. Yang, S. He, et al., Chemosphere212 (2018) 114–123.

[11]

T. Chen, J. Zhang, H. Ge, et al., J. Hazard. Mater. 384 (2020) 121383.

[12]

H. Zhang, W. Liu, A. Li, et al., Angew. Chem. Int. Ed. 58 (2019) 16110–16114.

[13]

M. Zhang, A.M. Zhang, X. Wang, et al., J. Mater. Chem. A6 (2018) 8735–8741.

[14]

Y. Huang, R. Wang, J. Mater. Chem. A7 (2019) 12105–12114.

[15]

X. Zhang, Z. Zhang, B. Zhang, et al., Appl. Catal. B256 (2019) 117804.

[16]

M.J. Katz, Z.J. Brown, Y.J. Colon, et al., Chem. Commun. 49 (2013) 9449–9451.

[17]

R. Abazari, L. Esrafili, A. Morsali, Y. Wu, J. Gao, Appl. Catal. B283 (2021) 119582.

[18]

X. Chang, X.F. Yang, Y. Qiao, et al., Small16 (2020) 1906432.

[19]

R. Liang, R. Chen, F. Jing, N. Qin, L. Wu, Dalton Trans. 44 (2015) 18227–18236.

[20]

R. Bariki, D. Majhi, K. Das, A. Behera, B.G. Mishra, Appl. Catal. B270 (2020) 118882.

[21]

F. Yang, S. Xie, G. Wang, et al., Environ. Sci. Pollut. Res. Int. 27 (2020) 20246–20258.

[22]

X. Xie, X. Dao, F. Guo, et al., ChemistrySelect5 (2020) 4001–4007.

[23]

D. Hu, X. Song, S. Wu, et al., Chin. J. Catal. 42 (2021) 356–366.

[24]

H. Shi, Y. Yu, Y. Zhang, et al., Appl. Catal. B221 (2018) 280–289.

[25]

K. Yu, P. Shao, P. Meng, et al., J. Hazard. Mater. 392 (2020) 122350.

[26]

J. Lei, H. Liu, C. Yuan, et al., Chem. Eng. J. 416 (2021) 129164. https://10.1016/j.cej.2021.129164.

[27]

Z. Li, Z. Zhang, Z. Dong, et al., Sep. Purif. Technol. 283 (2022) 120195.

[28]

Y. Zhang, Z. Jin, Phys. Chem. Chem. Phys. 21 (2019) 8326–8341.

[29]

Y. Zhang, M. Zhu, S. Zhang, et al., Appl. Catal. B279 (2020) 119390.

[30]

Z. Li, Z. Zhang, Z. Dong, et al., J. Solid. State. Chem. 303 (2021) 122499.

[31]

Z. Li, Z. Zhang, Z. Dong, et al., J. Solid. State. Chem. 302 (2021) 122305.

[32]

Z. Dong, Z. Zhang, Z. Li, et al., Environ. Sci. 8 (2021) 2372–2385.

Appendix

Less

Year 2022 volume 33 Issue 7

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1016/j.cclet.2022.01.062

Receive Date：2021-11-21
Online Date：2025-12-19
Published：2022-07-15

Article Data

Affiliations

History

Received：2021-11-21
Revised：2022-01-21
Accepted：2022-01-24

Affiliations

^a Jiangxi Province Key Laboratory of Synthetic Chemistry, East China University of Technology, Nanchang 330013, China

^b State Key Laboratory of Nuclear Resources and Environment, East China University of Technology, Nanchang 330013, China

References

Share

https://castjournals.cast.org.cn/joweb/ccl/EN/10.1016/j.cclet.2022.01.062

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

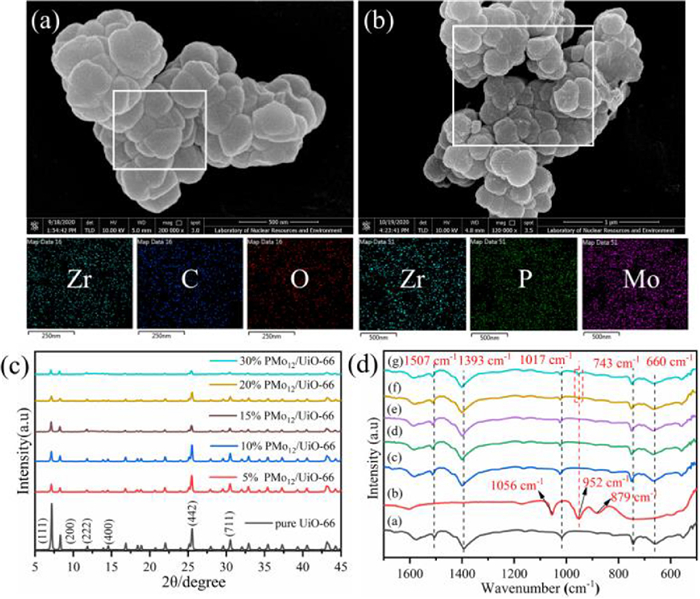

Fig. 1 SEM images and EDS elemental mapping images of pure UiO-66 (a) and 15% PMo₁₂/UiO-66 (b). (c) XRD patterns of the synthetic PMo₁₂/UiO-66 composites. (d) FT-IR spectra of the synthetic PMo₁₂/UiO-66 composites. Samples of (a, b) are UiO-66 and PMo₁₂. Samples of (c-g) are 5% PMo₁₂/UiO-66, 10% PMo₁₂/UiO-66, 15% PMo₁₂/UiO-66, 20% PMo₁₂/UiO-66, 30% PMo₁₂/UiO-66, respectively, .

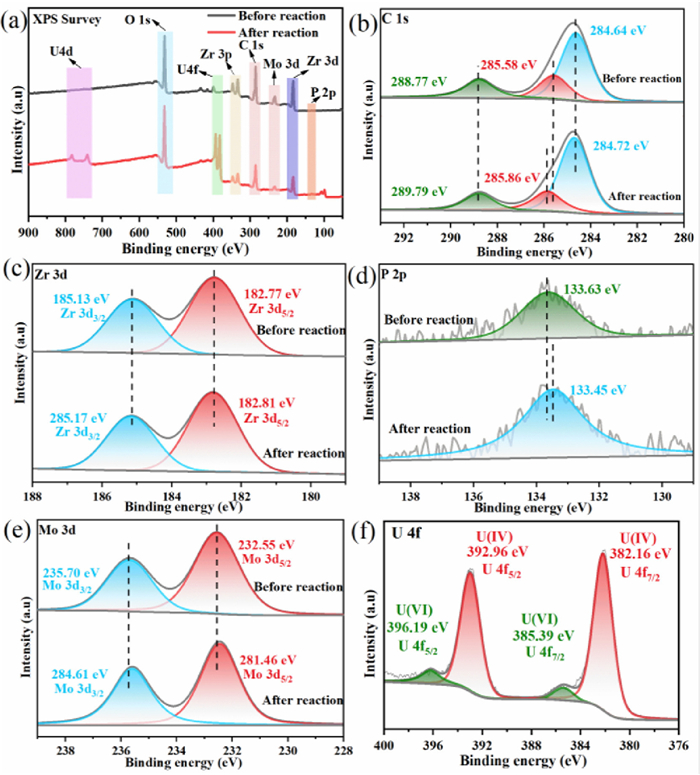

Fig. 2 XPSspectra of 15% PMo₁₂/UiO-66 before and after photoreaction: (a) Survey spectra; (b) C 1s; (c) Zr 3d; (d) P 2p; (e) Mo 3d; (f) U 4f.

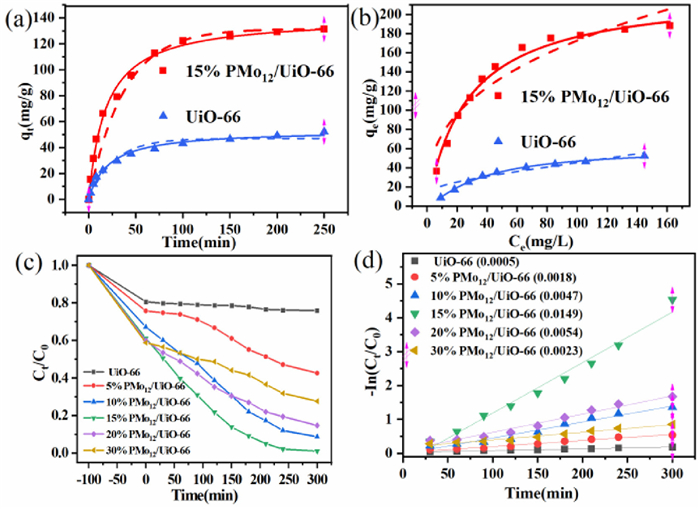

Fig. 3 (a) The sorption kinetics of UiO-66 and 15% PMo₁₂/UiO-66, the full lines and dotted lines are non-linear pseudo-first-order and pseudo-second-order kinetics model, respectively; (b) The sorption isotherms of UiO-66 and 15% PMo₁₂/UiO-66. The full lines and dotted lines are Langmuir and Freundlich adsorptionisotherm models, respectively; (c) Photocatalytic reduction by different samples; (d) The calculated first-order kinetics rate constant for the photocatalytic reaction.

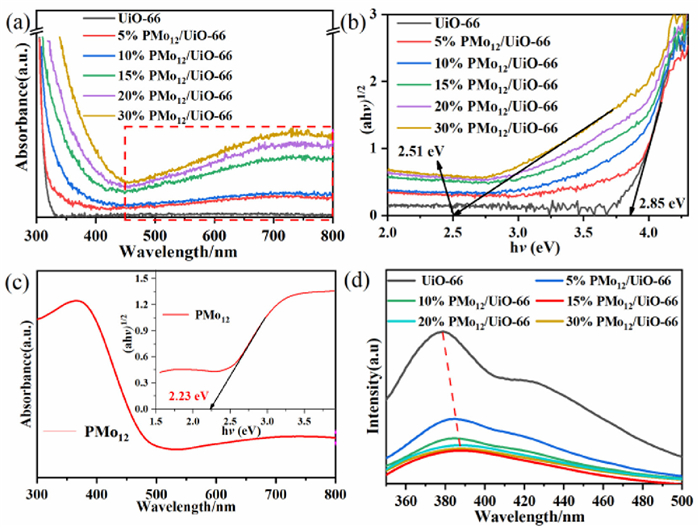

Fig. 4 (a) UV–vis diffuse reflectance spectra of as-prepared samples; (b) Tauc plot band gap estimation from UV–vis diffuse reflectance spectra of samples; (c) UV–vis diffuse reflectance spectra of PMo₁₂; (inset) Tauc plot band gap; (d) PL emission spectra of as-prepared samples.

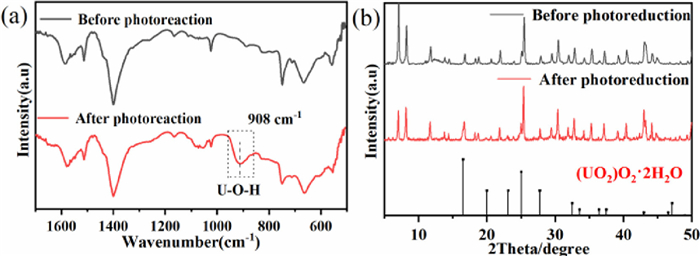

Fig. 5 FT-IR (a) and XRD (b) patterns of 15% PMo₁₂/UiO-66 before and after photoreaction.

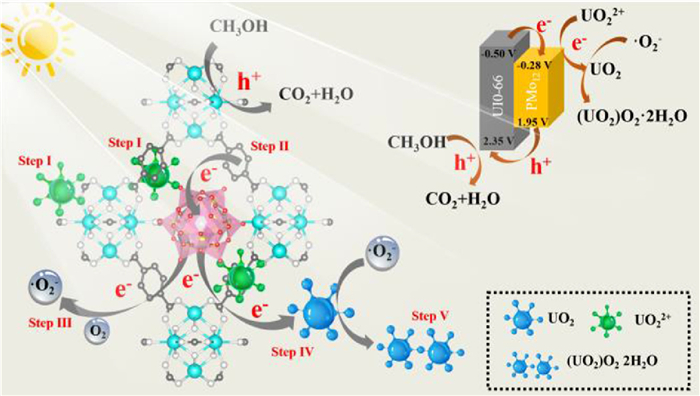

Fig. 6 The proposed mechanism for photocatalytic reduction uranium by 15% PMo₁₂/UiO-66 under visible-light illumination.
