Potassium-ion batteries (PIBs) are regarded as a promising substitution of lithium-ion batteries (LIBs) based on their low cost, high ionic conductivity and the close redox potential of K⁺/K (−2.93 V vs. SHE) to that of Li⁺/Li (−3.04 V vs. SHE) [1-4]. However, the anode suffers from extensive volume expansion during potassiation process due to the large size of K ion (1.38 Å). For example, the volume expansion of graphite could reach as high as 61% when used as the anode of PIBs [5, 6]. Moreover, the large size of K⁺ results in slow charge kinetics and leads to inferior rate capability of the batteries. Thus, selecting and designing appropriate anode materials is crucial in the case of PIBs. In this regard, a variety of nanomaterials such as carbon materials [7-9], alloys [10, 11], metal oxides [12, 13] and metal sulfides (MSs) [14, 15] have been explored as anode materials for PIBs.

Unlike carbon-based materials, which follow an intercalation mechanism, MSs rely on multiple processes including conversion and alloying reaction for potassium storage and form a cumulative mechanism with a large theoretical capacity [15]. Recently, some MSs, such as WS₂ [16, 17], MoS₂ [18-20], CoS₂ [21], FeS₂ [22-24], CuS [25, 26], Sb₂S₃ [27, 28] and ZnS [29], have proven to be efficient in achieving high capacity, however, their poor electron conductivity and sluggish ion-diffusion rates usually lead to delayed reaction kinetics. In addition, the drastic volume change during potassiation/de-potassiation may result in the collapse of the electrode structure and impair the cycling performance. Controlling the morphology or constructing nanocomposites is a viable route to improve the performance of MSs-based anodes. For example, Peng et al. prepared a nitrogen-doped carbon coated Cu₂S hollow nanocube structure as anode of PIBs, realizing enhanced conductivity as well as efficient volume expansion mitigation [30]. Similarly, Li et al. designed Fe₇S₈/C hybrid nanocages reinforced by defect-rich MoS₂ nanosheets [31], which exhibited an enhanced structure stability with rapid K⁺ diffusion rates. Bi₂S₃ is a layered semiconductor material widely utilized in photoelectric components and thermoelectric equipment, and also shows great potential for PIBs [32-34]. Besides conversion and alloying reaction, the unique layered structure enables the Bi₂S₃ with extra intercalation process for K⁺ storage, resulting in higher potassium storage capacity. Moreover, its growth has a 1D preferred orientation trend and is easy to form nanowires or nanorods, which is beneficial for alleviating the large volume change during potassiation/de-potassiation process [35, 36].

Herein, we reported an iodine-doped graphene encapsulated Bi₂S₃ nanorods composite (denoted as Bi₂S₃/IG) as the effective anode for PIBs. In the composite, the uniform sized Bi₂S₃ nanorods evenly encapsulated in the iodine-doped graphene framework. This unique structure design cannot only improve the conductivity of the composites, but also alleviate the large volume expansion and maintain the structure stability during potassiation. These advantages endow the Bi₂S₃/IG nanocomposites with enhanced capacity, rate capability, and cycle stability as PIBs anode in reference to its pristine Bi₂S₃ counterpart. In addition, since electrolyte has a great influence on the potassium storage performance, three electrolytes (i.e., 1 mol/L KFSI in EC/DEC, 1 mol/L KFSI in DME, and 5 mol/L KFSI in DME) were selected for optimum the potassium storage performance of the Bi₂S₃/IG electrodes. Among all, the Bi₂S₃/IG showed the best comprehensive performance with 5 mol/L KFSI in DME electrolyte in terms of capacity, cycle performance, and rate capability.

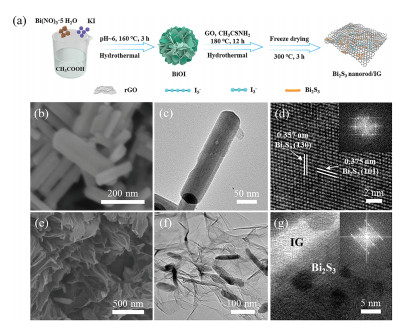

Fig. 1a showed the schematic illustration of the synthesis procedure for the Bi₂S₃/IG composite. BiOI nanoflowers were firstly synthesized through a hydrothermal process at 160 ℃ using Bi(NO₃)·5H₂O and KI as precursors. The BiOI was then re-dispersed into graphene oxide dispersion and sulfurized with thioacetamide by hydrothermal method at 180 ℃ for 12 h In this process, Bi₂S₃ was in-situ grew and encapsulated in graphene framework, and iodine atoms decomposed by BiOI were captured by graphene to form iodine-doped graphene. Finally, after an annealing process under Ar atmosphere at 300 ℃, the Bi₂S₃/I doped-rGO (denoted as Bi₂S₃/IG) was obtained. The morphologies of the materials were characterized using scanning electron microscopy (SEM) and transmission electron microscopy (TEM). The BiOI intermediates exhibited a nanoflower-like structure composed of multiple nanosheets (Fig. S1 in Supporting information). The microstructure of Bi₂S₃ exhibited a nanorod-like morphology with a length of ~200 nm and a width of ~50 nm (Figs. 1b and c). The high-resolution TEM (HRTEM) image of Bi₂S₃ shown in Fig. 1d revealed two sets of crystal lattice fringes with interplane spacing of 0.375 nm and 0.357 nm, corresponding to the (101) and (130) index planes. The morphologies of the Bi₂S₃/IG composite were shown in Figs. 1e and f, where the Bi₂S₃ nanorods were dispersed throughout the graphene skeleton structure. Interestingly, the graphene encapsulation further confined the growth of Bi₂S₃ nanorods to a length of ~100 nm and a width of ~30 nm. The interfacial boundary of Bi₂S₃ and iodine-doped graphene could be seen in the HRTEM image of the complex (Fig. 1g). The observed blur of the Bi₂S₃ lattice fringes could be linked to the overlaying of graphene sheets. Besides, the element distribution mapping results of Bi₂S₃/IG were displayed in Fig. S2 (Supporting information), demonstrating the presence of iodine.

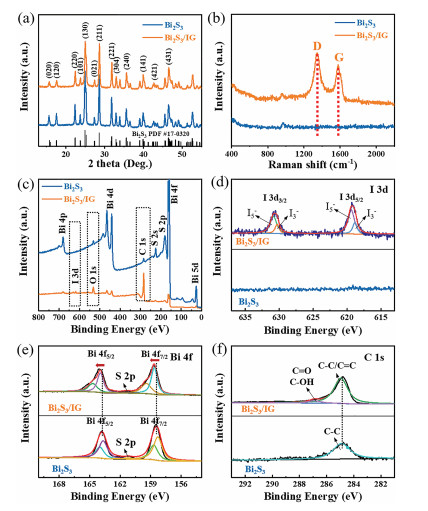

X-ray diffraction (XRD) pattern was employed to investigate the crystal structure of the Bi₂S₃ and Bi₂S₃/IG (Fig. 2a). The Bi₂S₃ consisted of peaks indexed to the orthorhombic crystal system referenced against PDF card (Bi₂S₃, #17–0320). The main crystal planes were marked in the spectrum. Besides, the XRD pattern of the precursor BiOI was provided in Fig. S3 (Supporting information), with major peaks indexed to the tetragonal crystal lattice structure. Fig. 2b showed the Raman spectra of Bi₂S₃/IG in reference to the Bi₂S₃, where the obvious D and G peaks of carbon confirmed the existence of graphene in the former.

X-ray photoelectron spectroscopy (XPS) further revealed the presence of iodine and the interaction between Bi₂S₃ and graphene in the composite. Fig. 2c showed the full XPS spectra of the Bi₂S₃ and Bi₂S₃/IG, where the I 3d peak appeared in the Bi₂S₃/IG composite, while the peaks of O 1s and C 1s were strengthened significantly compared with the pure Bi₂S₃. The rise in binding energy for carbon and oxygen within the composite further confirmed the existence of graphene with oxygen-containing groups. Moreover, the emergence of iodine peaks demonstrated that iodine doping had been successful. Since no iodine peak was seen for Bi₂S₃ and the associated XRD pattern did not alter, it was fair to infer that the iodine atoms doped predominantly inside graphene sheets. The high-resolution I 3d XPS spectrum of the Bi₂S₃/IG was displayed in Fig. 2d, where the peaks at 630.8 and 619.3 eV belonged to I₅⁻ 3d_5/2 and I₅⁻ 3d_3/2, and the peaks at 630.3 and 618.8 eV belonged to I₃⁻ 3d_5/2 and I₃⁻ 3d_3/2, respectively [37, 38]. The iodine-doping in graphene could led to the formation of iodide polyanions which facilitated the improvement of electrical conductivity and chemical activity, resulting in rapid charge transfer and enhanced charge density [39]. As for the high-resolution XPS spectrum of Bi 4f (Fig. 2e), the peaks of Bi₂S₃/IG shifted towards the high binding energy compared with that of Bi₂S₃, confirming the strong interaction between Bi₂S₃ and IG. This interfacial electron migration resulted in strong polarization and electron field at the interface, which was conducive to higher electrochemical activity [34]. The C 1s spectra (Fig. 2f) showed enhanced peaks of C=O/C-OH bonds, which belonged to the residual surface groups of graphene.

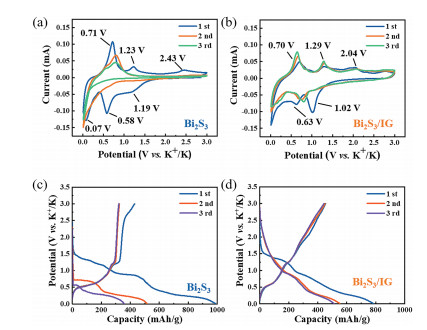

Half-batteries were assembled to examine the potassium storage behavior of the Bi₂S₃/IG composite. Three electrolytes (i.e., 1 mol/L KFSI in EC/DEC, 1 mol/L KFSI in DME, and 5 mol/L KFSI in DME) were used for Bi₂S₃ and Bi₂S₃/IG electrodes to optimum the potassium storage performance. The corresponding cyclic voltammograms (CV) and galvanostatic charge/discharge curves of the Bi₂S₃ and Bi₂S₃/IG in these three electrolytes were shown in Fig. 3, Figs. S3 and S4 (Supporting information). As seen, the Bi₂S₃ electrode had a poor CV reversibility regardless of the nature of electrolyte. In contrast, the reversibility was significantly improved post iodine doping and graphene encapsulation as in Bi₂S₃/IG. The discharge-charge curves of the Bi₂S₃ further exhibited low initial Coulombic efficiencies of 40.1%, 47.8% and 43.6% in the ester and ether-based electrolytes (Fig. S4b and S5b in Supporting information, Fig. 3c), respectively. In the case of the Bi₂S₃/IG electrode, the initial Coulombic efficiency in ester electrolytes (Fig. S4d, 54.5%) was also a little lower than those in the ether electrolytes (Fig. S5d in Supporting information, 57.6% and Fig. 3d, 57.8%). Thus ether-based electrolytes might be preferable to Bi₂S₃-based electrodes. Figs. 3a and b showed the CV curves of the Bi₂S₃ and Bi₂S₃/IG electrodes in a potential range from 0.01 to 3.0 V (vs. K⁺/K) at a scan rate of 0.1 mV/s with 5 mol/L KFSI in DME as electrolyte. As seen, three peaks located at 1.19, 0.58 and 0.07 V were found in the initial cathodic scan. The peak at 1.19 V could be ascribed to the formation of a solid electrolyte interphase (SEI) film and the conversion of Bi₂S₃ to Bi and K₂S, while the other two peaks reflected the alloying process between Bi and K⁺, resulting in numerous K_xBi molecules [40]. The first anodic scan also showed three peaks near 0.71, 1.23 and 2.43 V, respectively. The peaks at 0.71 and 1.23 V represented the dealloying reaction of K_xBi to Bi, whereas the peak at 2.43 V signified the weak conversion reaction from Bi and K₂S to Bi₂S₃. Interestingly, these anodic peaks of Bi₂S₃ later weakened or disappeared in the subsequent cycles_, which could be attributed to the low reversibility of conversion reactions and the structural collapse of the electrode. Although no new peaks were identified in the case of Bi₂S₃/IG, the reversibility of CV curves readily improved, suggesting a kinetic facilitation with iodine-doped graphene encapsulation. The cathodic peak at ~1.02 V later weakened in the second and third cycles, indicating the formation of SEI layer and the weak process of the conversion reaction. The peaks at ~0.63 V shifted to higher potential in the subsequent cycles, which could be attributed to the structural refinement of the electrode materials. Figs. 3c and d showed the galvanostatic charge/discharge curves of Bi₂S₃ and Bi₂S₃/IG electrodes. The potential plateaus in discharge/charge curves were nearly identical to those seen in CV curves. Compared with the Bi₂S₃, enhanced initial coulombic efficiency with inhibited capacity attenuation was realized in Bi₂S₃/IG.

To further investigate the influence of electrolytes on potassium storage performance, cycling performances in the above three electrolytes were conducted for the Bi₂S₃ electrode at 200 mA/g, as shown in Fig. S6 (Supporting information). The Bi₂S₃ electrode had the highest capacity and the best cycle stability with the 5 mol/L KFSI in DME electrolyte. The rate performance of Bi₂S₃ electrode was tested at different current densities, where the Bi₂S₃ with 5 mol/L KFSI in DME exhibited the highest capacity retention at enhanced current density. The improved chemical characteristics of Bi₂S₃ in ether electrolytes might be derived from its ability to produce a more stable SEI layer on the Bi₂S₃ surface and prompt kinetic process of potassium ion storage [41]. Fig. S7 (Supporting information) showed the electrochemical performances of Bi₂S₃/IG electrodes in the above three electrolytes with relatively improved performance realized in 5 mol/L KFSI in DME. According to the HOMO (highest occupied molecular orbital) and LUMO (lowest unoccupied molecular orbital) energy levels of KFSI, KPF₆, DME, EC and DEC, the KFSI salt owns more reactive feature, while the DME solvent owns a more inactive characteristic [42-45]. Thus, when KFSI/DME electrolyte is selected, KFSI is preferred to form a robust inorganic SEI layer on the electrode surface rather than solvent decomposition, which can inhibit the growth of potassium dendrites [46, 47]. Meanwhile, concentrated KFSI electrolyte can enhance the stability of the solvent [47, 48]. These characteristics enabled Bi₂S₃/IG to perform higher Coulombic efficiency and better cyclic stability with the electrolyte of 5 mol/L KFSI in DME. As a result, 5 mol/L KFSI in DME electrolyte was chosen as the optimum electrolyte for comparing the potassium storage performance of the Bi₂S₃ and Bi₂S₃/IG electrode.

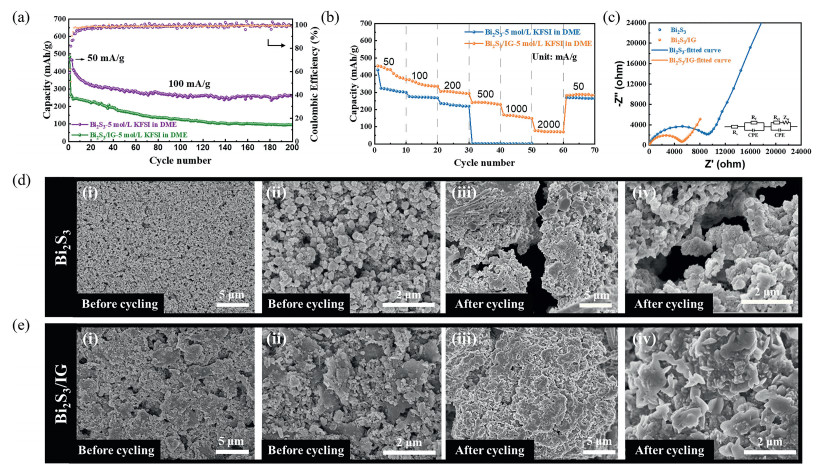

The cycling performances of Bi₂S₃ and Bi₂S₃/IG electrodes at 100 mA/g for 200 cycles were shown in Fig. 4a, which were pre-activated at a low current density of 50 mA/g for the initial three cycles before the long-term cycle testing. The Bi₂S₃ electrode showed an initial reversible capacity of 242.1 mAh/g with a maintained capacity of only 94.9 mAh/g after 200 cycles. In contrast, the Bi₂S₃/IG composite revealed an initial reversible capacity of 413.6 mAh/g with a maintained capacity of 256.9 mAh/g after 200 cycles. The rate performances of Bi₂S₃ and Bi₂S₃/IG electrodes were evaluated by varying the current density from 50 mA/g to 2000 mA/g (Fig. 4b). Here, the Bi₂S₃/IG electrode delivered reversible capacities of 453.5, 373.5, 304.8, 241.0, 169.9 and 78.2 mAh/g at different current densities of 0.05, 0.1, 0.2, 0.5, 1 and 2 A/g, respectively, much higher than those of the Bi₂S₃ electrode, which lost its work ability at 500 mA/g. The results indicated that the addition of iodine-doped graphene could effectively increase the potassium storage performances of the Bi₂S₃. Meanwhile, Fig. S8 (Supporting information) provided the rate capabilities of pure graphene electrode with 5 mol/L KFSI in DME as electrolyte. Fig. 4c showed the electrochemical impedance spectroscopy (EIS) of Bi₂S₃ and Bi₂S₃/IG electrodes with the 5 mol/L KFSI in DME electrolyte. The charge transfer resistance (R_ct) of Bi₂S₃ reduced dramatically when the iodine-doped graphene was introduced, as evident by the lower semicircle diameter of the Bi₂S₃/IG electrode, which was responsible for the superior electron transfer efficiency and good rate performance of the Bi₂S₃/IG composite. The Nyquist plots of Bi₂S₃ and Bi₂S₃/IG with their fitting curves in 1 mol/L KFSI in EC/DEC and 1 mol/L KFSI in DME were provided in Fig. S9 (Supporting information), which showed similar rule. Figs. 4d and e showed the morphologies of the Bi₂S₃ and Bi₂S₃/IG electrodes before and after cycling, respectively. The surface of both electrodes had good flatness before cycling. However, obvious cracks were observed for the Bi₂S₃ electrode post cycles at 100 mA/g, explaining its fast-declining capacity. By contrast, after adding the iodine-doped graphene, the structural stability of the Bi₂S₃/IG electrode was obviously improved. No obvious crack can be observed on the surface of Bi₂S₃/IG electrode after cycling, which was responsible for the better cycling stability.

In conclusion, we proposed a Bi₂S₃/IG composite as an efficient anode for PIBs. Compared with the pure Bi₂S₃, the interaction between Bi₂S₃ and iodine-doped graphene realized a more stable structure with improved electron transfer rate, enhancing the overall potassium storage performances of the Bi₂S₃-based materials in terms of capacity, cycle performance, and rate performance. The electrochemical performances of Bi₂S₃ and Bi₂S₃/IG electrodes were also investigated in three different electrolytes, with 5 mol/L KFSI in DME as the best choice. The representative Bi₂S₃/IG composite achieved a high specific capacity of 453.5 mAh/g at a current density of 50 mA/g with good cycling performance at 100 mA/g. The constructed Bi₂S₃/IG composite and the proposed iodine doping graphene approach are expected to improve the performance of potassium ion batteries and related electrochemical applications.
