In recent years, the rapid increased energy demands urged the development of alternative energy sources, which are clean and renewable [1]. Hydrogen is considered as one of the best candidates to satisfy the increasing demand for an efficient and clean energy carrier because hydrogen possess higher gravimetric energy density than petroleum (120 kJ/g for hydrogen vs. 44 kJ/g for petroleum) and with only water as by-product [2]. However, the efficient storage [3] and production of hydrogen are still two key issues in the "hydrogen economy" [4-6]; . Under the continuous exploration of predecessors, it has been demonstrated that using solid media, such as sorbent materials [7-11] (activated carbon, nanotubes, carbon, metal-organic frameworks, etc.) and hydrides (metal hydrides, complex hydrides, chemical hydrides, etc.) [12-14], is the safest and most effective way to store hydrogen. Among the new hydrogen storage materials, various complex hydrides, ammonia borane (NH₃BH₃, AB), appears to be a suitable hydrogen source and is attracting more and more interest in the field of solid-state hydrogen storage because of its abnormally high hydrogen content of 19.6 wt% and well-behaved stability under ambient conditions. Hydrogen can be released from AB via thermolysis or catalysis in various solvents [15]. Al-Kukhun et al. [16]. also reported the cyclization mechanism of AB low temperature dehydrogenation. Luo and Ohno [17] reported an intramolecular stepwise dehydrogenation process catalyzed by Cp2Ti in which N-H activation precedes B-H activation. However, there are some serious drawbacks which need to be overcome in order to make it suitable for practical on-board application: (1) The relatively high dehydrogenation temperature (> 100 ℃) and low hydrogen release rate [18, 19]; (2) The detailed theoretical mechanism of AB releasing hydrogen in different substrates is not well understood and further studies are required [16]; (3) The by-product borazine can hinder the practical application of AB because of its toxicity [20].

To overcome the above drawbacks and make the AB can be dehydrogenated under mild conditions. a number of approaches have been developed recently, including heating ammonia borane pyrolysis, acid catalysts [21-23], metal complex catalysts [24, 25], metal particle and transition metal [11, 15, 26]. Noted that the introduction of a catalytic amount of platinum (~2 mol%) to a solution of AB in 2-methoxyethyl ether (0.02–0.03 mol/L) results in accelerating hydrogen evolution at room temperature [27] and the RuP₂ [28, 29] nanohybrid also can be as an efficient bifunctional catalyst for hydrolysis of AB [30]. Pt-based catalysts, such as small Pt nanoparticles supported on porous chromium terephthalate (MIL-101) [31], and carbon nanotubes (CNT) [32, 33], exhibit superior catalytic activity for hydrolysis of AB. Transition non-noble metals such as Cu, Ni and Co [34-36] are also widely studied to improve the use efficiency of precious metals. Unfortunately, most catalysts are relatively expensive metals [37, 38] or nanoparticles (such as Rh [39], Ir [40] and Os [41]) or suffer from instability under the reaction conditions [42, 43]. Searching for new types of catalysts is still demanding. An alternative way is to maximize the utilization of noble metal by downsizing the size of nanoparticles even to single atoms on designed substrates [44]. Due to its excellent activity, selectivity and stability, single-atom catalysts (SACs) have become eternal themes in both academia and industry [45-47]. Wu et al. [48]. reported that Pt SACs are supported on the surface of graphene oxide as effective catalysts for the hydrolysis of AB to hydrogen. Peng et al. [49]. proposed that a Rh SACs supported on oxygen-rich nitrogen-doped carbon nanosheets produced high-efficiency activity for AB hydrogen production. Indeed, the wide range of metal-hydrogen bond polarization present in these compounds, combined with the interaction of the metal and the charge of the AB molecule achieves the purpose of activation [50], which offers an extremely versatile platform of efficient AB dehydrogenation catalysts.

After Sun et al. [51] found that phosphene-graphene hybrid materials exhibit high performance, more and more graphene hybrid materials have been experimentally and theoretically demonstrated. Recently, a new P/C composite material (PC₆) has been reported by Jiang et al. [43, 52], and this analogue of graphene is designed as a substrate with supported transition metals (TMs), which exhibited excellent catalytic activity. Similarly, Zhao et al. [53]. predicted a new buckled hexagonal P/C composite material (P₃C), which have intrinsic metallicity and excellent thermal stability. Lin Long and his colleagues used density functional theory (DFT) calculations to reveal that when P₃C is used as a catalyst substrate [54], SACs exhibit excellent catalytic activity for electrocatalytic reactions. Therefore, this new two-dimensional material may become a highly active catalytic substrate.

In this paper, we evaluated the potential of TMs supported P₃C (P₃C_O) sheet (TM/P₃C and TM/P₃C_O) for AB dehydrogenation reactions. A number of TMs were considered as the supported metals to screen out promising SACs [55] for AB dehydrogenation. Then, the adsorption and activation mechanisms of AB on the SACs surface was also revealed by the analysis of charge differential density (CDD), density of states (DOS) and crystal orbital Hamilton population (COHP). And the possible reaction pathways for AB dehydrogenation are also provided [56]. On the other hand, rate constants in kinetics further quantitatively confirmed the real situation of the first step of dehydrogenation of AB. Therefore, our investigations may provide a rational route to design and evaluate the efficient catalysts for AB dehydrogenation reactions.

All the calculations are carried out with the Vienna Ab Initio Simulation Package (VASP) [57] based on the density functional theory (DFT) [58]. The Perdew Burke and Ernzerhof (PBE) functional within generalized gradient approximation (GGA) was used to describe the electronic exchange-correlation interaction [59, 60]. The projector augmented-wave (PAW) method was applied to illustrate the interaction of ion-electrons [61]. The cutoff energy for the plane-wave basis is set to 400 eV. For structural elaxation and electron self-consistent calculation, the convergence criteria for energy and force are set to 10⁻⁴ eV and 0.02 eV/Å, respectively. The Gamma Scheme of 2 × 3 × 1 is also employed for the geometric optimization and 6 × 7 × 1 k-points were applied to the electronic structure calculation. The Bader charge analysis [62] was used to compute the charge transfer. At the same time, the zero-point energy (ZPE) correction [63] for the total energy was adopted. Device Studio [64] program provides several functions for performing visualization, modeling, and simulation. Transition states (TS) were searched by climbing image nudged elastic band method (CI-NEB) [65] and further confirmed by vibrational frequency analysis. The calculation simulation process is performed on P₃C surface structure, as shown in Fig. S1 (Supporting information). The lattice vectors are a = 10.69 Å, b = 12.35 Å, and c = 15.49 Å. To avoid artificial interactions, a vacuum of 15 Å was added in the Z direction [66, 67]. The dehydrogenation mechanisms of AB reaction catalyzed reactions all proceed on the surface [68, 69].

The 2D material P₃C is obtained by calculation and prediction due to the high performance of the phosphorene-graphene hybrid material [70, 71]. As presented in Fig. S1a, the basic building blocks of P₃C monolayers P₆ and P₄C₂ rings and it owes a C₂/m symmetry. We investigated the electron structure of 2D P₃C by calculating the band structure and partial density of states (PDOS) (Fig. S1b). As can be seen, there are some bands crossing the Fermi level, which means it is a good conductor. 2D P₃C exhibits intrinsic metallic features and the high conductivities and its high thermodynamic stability was identified through Ab Initio Molecular Dynamics simulation and Phonon spectra according to the report by Zhao et al. [72]. Then, six possible adsorption sites (B_pp, B_pc, H_pp, H_pc, T_p, T_c) on the P₃C monolayer are considered to confirm the energetically most favorable anchoring site for the considered TM (TMs = Fe, Co, Ni, Zr, Nb, Mo, Ru, W, Os, Zr and Pt) atoms as shown in Fig. S1a. And the most stable geometry structures of TMs/P₃C sheet are shown in Fig. S2 (Supporting information). Further, the binding energy (E_b) of TM atoms on P₃C monolayer is calculated to verify the stability of SACs according to the formula: E_b = E_P3C-M − E_P3C − E_M, in which M represents different single atoms. E_b represents the Binding energy of M atom, E_P3C-M, E_P3C and E_M represent the total energy of M adsorbed on the 2D P₃C plane, 2D P₃C surfaces, and single atoms in bulk metals. The large E_b in Table S1 (Supporting information) implies that there is a strong interaction between TMs and P₃C monolayer and TM/P₃C is a kind of promising and feasible SACs.

Further, charges are redistributed due to the interactions between the supported TMs and the P₃C substrate. For example, some of the TMs (Os, Pt and Ir) shown by bader charge analysis have obvious electron transfer from the P₃C sheet to the TMs [73], and the other is the opposite. Interestingly, it has been reported that due to the interaction between electrons, the charged TM may activate the adsorbed molecules [74, 75], which are expected to adsorb and activate AB and promote the dehydrogenation reaction of AB. Therefore, TMs/P₃C tablets may provide a promising method to promote the dehydrogenation of AB under mild conditions.

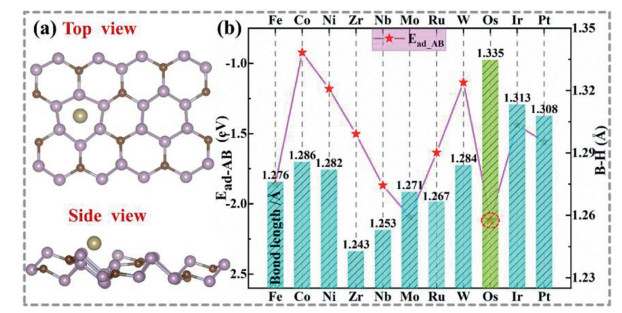

To estimate and design the most promising SACs based on P₃C substrate, we have implemented a rational screening strategy, including the adsorption of AB molecules on the SACs according to the B-terminal and the N-terminal adsorption respectively. The corresponding structures are shown in Fig. S3 (Supporting information, B-terminal) and Fig. S4 (Supporting information, N-terminal). Remarkably, through structural optimization, we found that some of the AB molecules catalyzed by TMs/P₃C (Fe/P₃C, Ni/P₃C, Zr/P₃C and Mo/P₃C) can only be stabilized on the substrate through B-terminal adsorption. In order to further determine the best adsorption position, we calculated the adsorption energy of the AB molecules at the B-terminal and the N-terminal. The adsorption energies of AB on the TMs/P₃C were calculated by the following equation is defined as: E_{ad_AB} = E_tot − E_P3C-M − E_AB. Where E_tot represents the energy of the AB adsorbed on TMs/P₃C. E_P3C-M and E_AB are the calculated total energy of TMs/P₃C and single AB, respectively. Specifically, if the adsorption energy E_{ad_AB} is a positive value, it means that the adsorption of the AB molecule on the SACs is endothermic. On the contrary, if E_{ad_AB} is a negative value, it means that the adsorption is a spontaneous process. As shown in Fig. S5 (Supporting information), the black represents the adsorption energy of the N-terminal, and the red represents the adsorption energy of the B-terminal. The higher adsorption energy negative represents the more stable the AB molecule is adsorbed on TMs/P₃C. We found that the B-terminal adsorption of the AB molecule is more stable in most cases (except for W/P₃C). Therefore, all the subsequent results are developed around the B-terminal adsorption of AB (Fig. 1a). And all the detailed results during the screening progress are listed in Fig. 1b (pink line chart). First of all, the absorption of AB molecules is an important criterion for the subsequent AB activation and dehydrogenation reaction. Thus, the calculated adsorption energy of AB molecule on surface as following: Co/P₃C (−0.922 eV) < W/P₃C (−1.136 eV) < Ni/P₃C (−1.181 eV) < Ir/P₃C (−1.439 eV) < Pt/P₃C (−1.558 eV) < Ru/P₃C (−1.636 eV) < Zr/P₃C (−1.658 eV) < Fe/P₃C (−1.859 eV) < Nb/P₃C (−1.868 eV) < Mo/P₃C (−2.092 eV) < Os/P₃C (−2.114 eV). The Os/P₃C provided considerable adsorption energy of −2.114 eV, thus a relevant strong interaction. This may provide favorable conditions for the dehydrogenation reaction of AB. In order to better screen out the catalysts that activate AB, we respectively compared the optimal bond lengths of the B-H_II bonds activated under different TM/P₃C, as shown in Fig. 1b (histogram). The optimized B-H_II bond distance increases in the following order: Os/P₃C (1.335 Å) > Ir/P₃C (1.313 Å) > Pt/P₃C (1.308 Å) > Co/P₃C (1.286 Å) > W/P₃C (1.284 Å) > Ni/P₃C (1.282 Å) > Fe/P₃C (1.276 Å) > Mo/P₃C (1.271 Å) > Ru/P₃C (1.267 Å) > Nb/P₃C (1.253 Å) > Zr/P₃C (1.243 Å). There is a slight increase in the bond length compared to the original B-H (1.217 Å). Especially, the B-H_II catalyzed by the Os/P₃C catalyst reached 1.335 Å and the results further indicate that the interaction between 2D Os/P₃C surface and AB molecule may promote the dissociation of H in the AB hydrolysis. Interestingly, we found that there is a certain linear relationship between the degree of activation of B-H_II and the electronegativity of TMs. As shown in Fig. S6 (Supporting information), as the electronegativity increases, the bond length of B-H_II tends to elongate; this may be caused by the charge transfer and interaction strength between TMs and P₃C surface. To better understand the electron distribution and transfer, we studied the CDD between Os/P₃C and AB, as shown in Fig. S7 (Supporting information). The cyan and yellow areas represent electron depletion and accumulation, respectively. The adsorption of the AB molecule induces slight charge redistribution and the electron accumulation mainly occurring between the AB and the Os atom. Based on this, the Os/P₃C catalyst shows a strong adsorption force for AB and B-H bond tension. Therefore, we believe that Os/P₃C SAC is the most suitable candidate material for AB dehydrogenation.

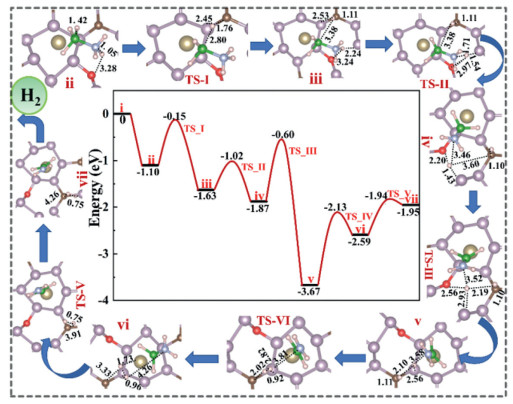

In the present study, we found that the reactant AB on the surface of Os/P₃C can be dehydrogenated by stepwise pathway: in its first half, a B-H bond is broken to form an intermediate characterized by an H atom adsorbed at the top of C atoms via a H-adsorbed transition state; in the second half, the adsorbed B-H bond is broken and the two adsorbed H atoms form a hydrogen molecule via a transition state of the H movement. More interestingly, we found that O doping on the P₃C surface (Os/P₃C_O) will greatly reduce the adsorption energy of AB, thereby weakening the B-H bond energy in the AB molecule, making the dehydrogenation pathway of the AB reaction easier. Selected optimized structure for the stationary points along the pathways is given in Fig. 2, Fig. 3. The relative energy values are the Gibbs free energy (ΔG) (the surface energy of 2D P₃C (P₃C_O) is selected as 0 level energy) except for specially mentioned, the corresponding correction data are listed in Tables S3–S6 (Supporting information). As shown in Fig. 2, the structure of the stepwise reaction pathway shows that one B-H bond and N-H bond in the adsorbed AB are gradually elongated, and then the H proton migrates on the surface to form a hydrogen molecule, and the remaining BH₂NH₂ species adsorbed on the Os atom. Firstly, AB molecules are chemically adsorbed on Os/P₃C, and the adsorbed B-H_II bond changes from 1.219 Å to 1.335 Å. The loosening of the bonds facilitates the dissociation of the first H atom in the AB dehydrogenation pathway. As shown in the structure of Fig. 2, the elongated B-H_II bond undergoes a transition state TS_I (false frequency is 1328.08 cm⁻¹), and the bond length has changed from the original 1.335 Å to 2.993 Å, which is almost completely broken. The energy barrier of this process is 2.07 eV, which is difficult to occur at room temperature, but it is worth noting that the heat released by AB molecules adsorbed on Os/P₃C is 2.14 eV, so we firmly believe that the heat released by AB adsorption can provide the heat required for self-reaction. The shed H atoms move to the C atoms on the P₃C surface to form an intermediate iii with a C-H bond of 1.11 Å. Noted that the B-H_I bond has been elongated to 1.36 Å, so there are two possible ways of evolution, namely B-terminal continuous dehydrogenation (Fig. S8 in Supporting information) and the stepwise reaction pathway (Fig. 2). B-H_II fracture undergoes a transition state TSII (false frequency is 1315.22 cm⁻¹) absorbs heat of 1.4 eV, and the energy barrier crossed is 2.61 eV. Both kinetics and thermodynamics are unfavorable. Thence, our main consideration is the stepwise reaction pathway of the N-H_VI path.

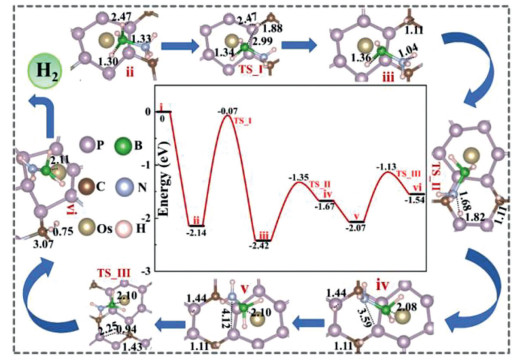

In this pathway, the N-H_VI bond slightly activated by the surface undergoes a transition state TS_II (false frequency is 1300.91 cm⁻¹) with an energy barrier of 1.07 eV. Simultaneously, the H_VI atom moves to the surface to form a P-H bond with a bond length of 1.44 Å, *NH₂BH₂ (* indicates adsorbate) gradually begins to move away from Os/P₃C to form an intermediate iv, and then *NH₂BH₂ undergoes an energy-free flattening process and leaves slightly Os/P₃C surface. After that, two H atoms on the surface cross the transition state with an energy barrier of 0.94 eV to form TS_III (false frequency is 727.27 cm⁻¹). In this process, the H atoms on the two surfaces approach each other to form a bond length of 0.94 Å of H₂ molecules, while C-H_II and P-H_VI are elongated to 1.43 and 2.25 Å, respectively. The generated H₂ molecules are far away from the surface and accompanied by a shortening of the H-H bond (0.75 Å), which is highly consistent with the bond length of normal H₂ molecules (0.75 Å). This process absorbs heat of 0.64 eV. The present results indicate that the dehydrogenation of the AB molecule on the Os/P₃C surface are feasible due to the entire reaction is exothermic and has a low energy barrier.

We replaced the C atom near the Os adsorption site with an O atom to form an oxidized P₃C_O substrate [76]. In order to systematically evaluate the stability of the substrate, we further evaluated the stability of P₃C_O through AIMD simulation [77]. As shown in Fig. S9 (Supporting information), the structure maintains well at 800 K. The geometric structure is still not significantly deformed, indicating that P₃C_O has high thermodynamic stability. We further carried out the MD simulation of 18 ps, the energy and temperature oscillated near the equilibrium state, and the structure of P₃C_O remained good. This shows that P₃C_O can exist stably at the actual reaction temperature. As shown in Fig. S7, the P₃C surface doped with O stretched the B-H_II bond length to 1.457 Å, and the N-HVI bond length to 1.053 Å. Based on the degree of activation of the AB molecule B-H_II and N-H_VI by the Os/P₃C_O substrate, we studied the same dehydrogenation pathway. As shown in Fig. 3, the AB molecule is adsorbed on Os/P₃C_O with an adsorption energy of −1.10 eV forms an adsorbed substance ii, undergoes a transition state TS-I (false frequency is 1371.89 cm⁻¹), which elongates the bond length of B-H_II to 2.45 Å, and the H_II atoms gradually transfer to the C atoms on the surface, forming an intermediate state iii with C-H_II of 1.11 Å. After that, N-H_VI began to be elongated and experienced TS-II (false frequency is 468.03 cm⁻¹), and the dropped H_VI continued to approach the surface, forming O-H_VI of 2.20 Å and P-H_VI of 1.43 Å. In the intermediate iv, the H_VI on the surface undergoes TS-III (false frequency is 1084.53 cm⁻¹) and approaches H_II. Simultaneously, the *NH₂BH₂ adsorbate starts to move away from the surface, forming a vertical structure of v with the surface of the substrate. After that, the H_VI atoms on the surface pass TS-IV (false frequency is 663.99 cm⁻¹) continues to move towards the H_II atom, forming an intermediate vi with H_VI-H_II of 0.96 Å above the P atom near Os. Finally, the formed H_VI-H_II undergoes TS-V (false frequency is 61.41 cm⁻¹) and begins to move away from the surface and the vii with H_VI-H_II of 0.75 Å is formed, and the distance between the H₂ molecules and the surface reaches 4.26 Å, completely detaching from the surface. In addition, *NH₂BH₂ can continue the dehydrogenation reaction or leave the surface to form by-products. These results indicate that the stepwise reaction pathway for AB dehydrogenation on the Os/P₃C_O is energetically favorable.

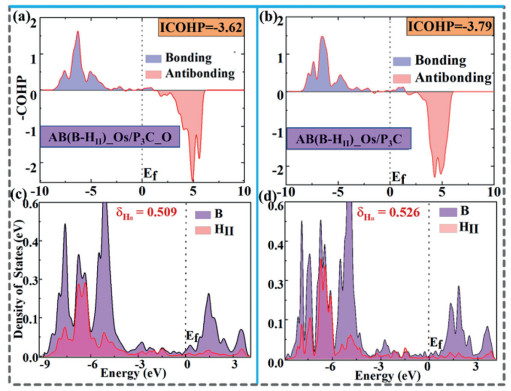

The mechanism of AB activation is also evaluated theoretically, firstly, we investigated the initial adsorption configuration and electronic structure of AB adsorbed on Os/P₃C and Os/P₃C_O. As shown in Table S2 (Supporting information), doping with O atoms makes the adsorption energy of AB changed from −2.14 eV to −1.10 eV. Interestingly, the bond length of B-H_II has grown from 1.335 Å to 1.417 Å, and N-H_VI (1.053 Å). Compared with the original B-H_II (1.217 Å) and N-H_VI (1.032 Å), the AB molecule is fully activated. To figure out the nature of the interaction between supported Os atom and AB, CDD is analyzed to illustrate the interaction mechanism. It can be found from Figs. S7b and c that the charge transfer and redistribution can be observed around the AB molecule and supported Os atom, respectively. To deeply understand the activation process, ICOHP and DOS of the B-H_II bond in the first dehydrogenation reaction of AB on Os/P₃C and Os/P₃C_O are calculated in Figs. 4a and b. The decrease of ICOHP values of B-H_II bond (from −3.79 to −3.62) confirms that the strength of B-H_II bond of Os/P₃C_O is obviously weakened. In order to deep insights into the interaction between atoms in bonding, we analyzed the interaction of the B-H_II bond by plotting PDOS. The size of the overlapping peak area of PDOS indicates the strength of the bond between atoms. It can be seen from Figs. 4c and d that the integral value (0.526) of the Os/P₃C surface is greater than Os/P₃C_O (0.509), this result once again explains the nature of the low energy barrier of the Os/P₃C_O substrate adsorption of AB in the first step of dehydrogenation reaction.

Rate constant [78] was performed to further verify confirmed quantitative analysis of Os/P₃C and Os/P₃C_O activated AB at different temperatures. The relationship between rate constants (k_fi) and reaction temperature (T) is shown in the following formula [79]:

where ν_i is the pre-exponential factor, and E_act is the ZPE-corrected activation energy. Within harmonic transition state theory, we can calculate the pre-exponential factor (ν_i) of each reaction pathway using the following definition:

where f_i^IS and f_i^TS are the vibrational frequencies at the initial state and the vibrational frequencies at the transition state (excluding the imaginary one).

From the above formula, we can deduce that the relationship between the first step dehydrogenation rate constant on Os/P₃C and Os/P₃C_O:

where r_f1 and r_f2 are the ratio of the first step dehydrogenation rate of Os/P₃C and Os/P₃C_O; θ_AB is the coverage of AB on the surface. k is the ratio of dimensionless r_f1 to r_f2.

Applying the same rough rule of thumb [78], the dehydrogenation energy barriers of AB in the first step of Os/P₃C and Os/P₃C_O are 2.07 and 0.95 eV, their reaction temperatures are 800 K and 400 K, respectively. Based on the DFT results and microkinetic model, we have calculated k_f1 and k_f2 of 300–850 K by Eqs. 1 and 2. From the data listed in Table 1, we can find that the k_f1 (k_f2) is increased with increasing temperature due to increase it is conducive to the increase in the average kinetic energy of the molecules, the increase in the number of activated molecules and the effective collision frequency. Obviously, with the increase of temperature, the increase of k_f1 and k_f2 and the value of k is getting smaller and smaller, which indicates that there is a certain limit in the reaction of AB on Os/P₃C and Os/P₃C_O, and the sensitivity to temperature keep getting smaller. And it is worth noting that the k_f1 at 400 K and the k_f2 at 800 K are in the same order of magnitude. This not only proves the accuracy of the empirical formula [75], but also shows that the P₃C surface doped with O greatly reduces the temperature of the reaction so that the reaction occurs under mild conditions.

In our work, a DFT calculation was performed to design and evaluate the catalytic activity of TMs/P₃C sheet for AB dehydrogenation. There is a strong interaction between TMs and P₃C substrate, which can alter the local geometric and electronic structure and promote AB dehydrogenation reaction. According to our screening criteria, the Os/P₃C can obviously activate the AB due to the electron exchange interactions. And Os/P₃C (Os/P₃C_O) sheet is considered as a very promising electrocatalysts for AB, which needs to suffer from a moderate Gibbs free energy barrier of 2.07 and 1.54 eV respectively. Simultaneously, the microscopic kinetic model further quantitatively confirmed the real situation of the first step of dehydrogenation of AB on the Os/P₃C and Os/P₃C_O substrates. We found that k_f1 at 400 K is equivalent to k_f2 at 800 K, which greatly reduced temperature of the first step of AB dehydrogenation on Os/P₃C_O.

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

This study was funded by the National Natural Science Foundation of China (No. 21603109), the Henan Joint Fund of the National Natural Science Foundation of China (No. U1404216), the Special Fund of Tianshui Normal University, China (No. CXJ2020-08), and the Scientific Research Program Funded by Shaanxi Provincial Education Department (No. 20JK0676). Jinrong Huo was partially supported by the postgraduate research opportunities program of HZWTECH (HZWTECH-PROP). Thanks for the National Supercomputing Center in Zhengzhou.

Supplementary material associated with this article can be found, in the online version, at doi:10.1016/j.cclet.2022.02.055
