Excessive emission of carbon dioxide (CO₂) from the burning fossil fuels results in serious global climatic change and energy shortage [1-4]. Currently, the photocatalytic conversion of CO₂ to valuable energy-rich chemicals has been considered as one of promising technologies to alleviate above issues [5-8]. Unfortunately, owing to the high thermodynamic stability of CO₂ molecule, the activation and reduction of CO₂ are very difficult and complex [9, 10]. The multiple proton coupled electron transfer process is required to CO₂ photoreduction, which is accompanied by the competing hydrogen evolution reduction (HER) leading to a wide variety of products [11]. In the past several decades, a series of efficient photocatalysts based on semiconductors (such as TiO₂, CdS, g-C₃N₄) and nanocomposites have been developed [12-22]. Due to the complicated structural components of catalysts and the large number of possible products, fundamental understanding the dependence between the structure and composition of catalyst on the activity and selectivity of CO₂ photoreduction is a significant challenge.

Loading active metal atoms/ions onto heterogeneous supports is a very versatile route to maximize the fraction of active sites and tailor properties of catalysts [23, 24]. The transition-metal (TM) catalyst has attracted worldwide attention in catalytic field. Especially, the metal Ni and Co serving as active sites play important roles in catalytic reaction [5, 7, 13, 19]. Generally, active carbon, metal oxides, silica and zeolites are the most common supports, because of their effective voids and defect sites [25-31]. However, it is difficult to precisely control the location and the local environment of metal atoms/ions on these mostly disordered anchoring surfaces, easily resulting in nonuniform distribution as well as complicated metal-support interactions. Compared with the conventional inorganic supports, metal-organic frameworks (MOFs) possess many attractive features such as well-defined structure, high surface area, tunable inorganic nodes and organic linkers, and rich surface coordination sites, and have thus emerged as possible supporters to embed catalytic metal sites [32-36]. Introducing TM atoms into a MOF matrix could open up great opportunities to tune the electronic properties of TMs as CO₂RR active sites and maintain relatively simple atomic coordination for fundamental mechanism study. Recently, many studies have shown that MOFs can serve as functional supports for anchoring external metal sites on secondary building units (SBU) or organic struts [37-41]. However, the reaction condition for photocatalytic reduction of CO₂ is somewhat harsh, and it is urgently needed to develop new porous and stable functional MOFs.

Boron imidazolate frameworks (BIFs), a kind of MOFs constructed by the crosslinking of pre-synthesized boron imidazolate ligands and metal ions, are unexpectedly found to show improved chemical stability due to the presence of robust M-N coordination bonds and the strong covalent B-N bonds [42]. Recently, some BIFs have been used as catalysts to reduction CO₂ study, which offered accurate insight into the catalytic processes via adjusting the local environment of metal nodes [43-47]. However, it is difficult to anchor metal on the organic struts in BIFs because of the lack of uncoordinated functional groups, such as −COOH, −OH, −NH₂. Consequently, the construction of BIF-based catalyst with a special binding microenvironment to provide a new direction to functionalize BIFs is quite desirable.

Here, we designed an amine-functionalized boron imidazolate framework (BIF-43) which was used as a support to stabilize the transition metal ions (Ni²⁺and Co²⁺) in pores, obtaining Ni@BIF-43 and Co@BIF-43. By anchoring external metal ions, it offered a simple and precise structural model to analyze the metal nodes-dependent effect on photoreduction of CO₂. As expected, the BIF-43 with different catalytic active centers exhibit diverse effects on the activity and selectivity of mainly reductive products. It is worth noting that Ni@BIF-43 showed very high catalytic selectivity (90.2%) for CO, which has far exceeded the selectivity of Co@BIF-43 (64.1%). The close contact between adsorption sites and active sites effectively activates CO₂ molecules and improves photocatalytic conversion of CO₂. This strategy offered us an important insight to prepare BIF-based materials for CO₂ capture and photoreduction.

BIF-43 (Zn₁₁[B(im)₄]₆[BH(mim)₃]₂(2-ATP)₆(OH)₂, im = imidazole, mim = 2-methylimidazole, 2-ATP = 2-aminoterephthalic acid) was successfully designed and synthesized through the self-assembly of Zn(CH₃COO)₂·2H₂O and three different ligands KBH(2-mim)₃, KB(im)₄ and 2-ATP (summary of crystal data and structural refinements are shown in Table S1 in Supporting information). It is the first example that integrates both tetradentate B(im)₄⁻ ligand and tridentate BH(mim)₃⁻ ligand. Despite such a complex composition, BIF-43 can be simply considered to be built from the 2D boron-imidazolate-zinc layer pillared by the 2-ATP ligands. The single-crystal X-ray diffraction analysis exhibits that BIF-43 crystallizes in the hexagonal space group P62c and features a 3D pore structure. There are three crystallographically independent tetrahedral zinc sites in the asymmetric unit. Each Zn1 is bonded to three N from two B(im)₄⁻ and one BH(mim)₃⁻, and one O atoms from 2-ATP ligand (Fig. S1 in Supporting information). Each Zn2 is bonded to three N from three B(im)₄⁻ and one charge-balancing OH⁻ (Fig. S2 in Supporting information). Zn1 and Zn2 ions are bridged by B(im)₄⁻ and BH(mim)₃⁻ ligands to form a hcb layer parallel to the ab plane (Fig. 1a). Two such layers are bridged by Zn3 ions to form a 2D sandwich-like layer, with Zn₃(2-ATP)₃ rings at the center of the sandwich layer (Figs. 1b and c and Fig. S3 in Supporting information). Furthermore, these sandwich layers are linked by 2-ATP ligands that bonded on Zn1 to yield a 3D porous structure (Fig. 1b). Its phase purity, thermal and chemical stability were confirmed by powder X-ray diffraction (PXRD) and thermogravimetry analysis (TGA) (Figs. S4-S7 in Supporting information). As estimated by the PLATON program, the free space in BIF-43 is 5459.2 ų per unit cell with the pore volume ration of 43.0%. N₂ sorption measurements (Fig. S8 in Supporting information) at 77 K exhibit type-I isotherms behavior with the calculated Brunauer-Emmett-Teller (BET) and Langmuir surface areas of 539.8 and 779.3 m²/g, respectively. Moreover, BIF-43 shows a high affinity for CO₂ due to the presence of −NH₂ in the pore [48, 49]. The CO₂ uptake values are 97.2 cm³/g at 273 K and 63.9 cm³/g at 298 K under 1 atm (Fig. S9 in Supporting information). The adsorption enthalpy (Q_st) near the zero coverage was calculated to be 32.4 kJ/mol, which was significantly higher than those reported BIFs without −NH₂ groups [50]. The stronger affinity of BIF-43 toward CO₂ is more conductive to the activation of CO₂ during the reduction process.

Owing to the presence of 2-ATP in the pore wall, the adjacent free -NH₂ and uncoordinated O-atoms of the 2-ATP could be used to chelate external metal ions in the pores of BIF-43 (Fig. 1c) [51-53]. Therefore, the metalated compounds Ni@BIF-43 were created by immersing the pristine crystals in solutions of Ni²⁺ under air at room temperature. The color of the crystals changed from pale yellow to light green suggesting the adsorption of external metal ions (Fig. S11 in Supporting information). The PXRD (Fig. S12 in Supporting information) demonstrated the retention of BIF-43 crystallinity after loading of Ni ions. Ni@BIF-43 remained porous and showed reduced porosity as demonstrated by N₂ sorption isotherms (Fig. S8). The BET surface was decreased from 539.8 m²/g for BIF-43 to 275.1 m²/g for Ni@BIF-43. The coordination of Ni ions with the −NH₂/O groups of BIF-43 was further confirmed by Fourier transform infrared (FT-IR) spectra. As shown in Fig. S13 (Supporting information), the peaks at 1612 and 1450 cm⁻¹ for Ni@BIF-43 displayed a significantly lower intensity compared to that for BIF-43, which are ascribed to the −NH₂ and −COO stretch vibrations, strongly supporting the interaction between Ni ions and −NH₂/O species [54]. Inductively coupled plasma atomic emission spectroscopy (ICP-AES) showed that the Ni²⁺ content was 2.1%. The high resolution transmission electron microscopy (HRTEM) images clearly confirmed that no Ni nanoparticles and metal oxides are formed during the immersion period, shown in Fig. 2a. Element mapping revealed uniform distribution of Ni ions throughout entire BIF-43 crystal. To gain further structural details on the chemical status and elemental composition of the samples, we performed X-ray photoelectron spectroscopy (XPS) and X-ray absorption spectroscopy (XAS) measurements. The XPS survey scan clearly showed the presence of C, N, O, B, Zn, Ni in Ni@BIF-43 (Fig. S14 in Supporting information). As shown in Fig. 2b, the binding energy of Ni 3p peak centered at 856.10 eV, which was assigned to Ni²⁺ [7]. The X-ray absorption near-edge structure (XANES) spectra (Fig. 2c) also showed that the absorption edge positions of Ni@BIF-43 is also close to that of NiO, which coincided well with the XPS results. In addition, the Fourier-transformed (FT) extended X-ray absorption fine structure (EXAFS) analysis (Fig. 2d) in R space of Ni showed one main peak at 1.56 Å, which is longer than the distance of Ni-N (1.40 Å) and slightly shorter than that of Ni-O (1.59 Å), likely due to the Ni-O and Ni-N combined contributions. No Ni-Ni bonds at around 2.20 Å are observed. Altogether, these results underline the presence of Ni²⁺ ions in an atomically dispersed form, which is coordinated to the −NH₂/O species of the 2-ATP ligands in BIF-43.

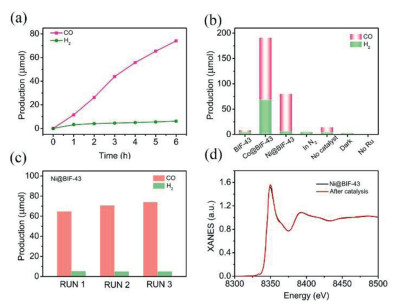

Photocatalytic CO₂ reduction reactions at room temperature have been investigated in CO₂-saturated CH₃CN/H₂O solution with triethanolamine (TEOA) as sacrificial reagent and Ru(bpy)₃]Cl₂ (noted Ru) as photosensitizer under visible light (420 < λ < 800 nm) irradiation [5, 26, 44, 55]. In this reaction system, CO and H₂ were detected as the main reduction products and no appreciable amounts of other carbonous products were detected from the reaction (Fig. S15 in Supporting information). As shown in Fig. 3a, the yields of CO and H₂ increases almost linearly with irradiation time in a 6 h reaction. The total amounts of CO and H₂ products from Ni@BIF-43 catalytic system were 66.5 µmol (rate: 1109.0 µmol g⁻¹ h⁻¹) and 7.2 µmol (rate: 121.1 µmol g⁻¹ h⁻¹), respectively, giving a high CO selectivity of 90.2%. The apparent quantum efficiency for CO production was measured to be 0.060% at 450 nm (Fig. S26 in Supporting information). It should be noted that the catalytic performance of pristine crystals BIF-43 without anchoring external metal ions was rather poor and nearly undetectable. Therefore, these results demonstrated that the anchored metal ions serve as the catalytic sites for CO₂ photoreduction [51, 52].

Control experiments were carried out to further understand the CO₂ reduction under different conditions and these results were shown in Fig. 3b. No products were detected in the absence of visible light or Ru, suggesting that the CO₂ reduction is indeed driven by the photoirradiation. When CO₂ was replaced by N₂, only H₂ can be detected while no CO is observed, implying that the CO derived from conversion of CO₂. In the absence of Ni@BIF-43 catalysts, only trace amount of CO and H₂ were detected, which came from the Ru catalysts and were negligible as compared to that with Ni@BIF-43 catalysts. These results confirmed that the CO₂ reduction reaction was indeed catalyzed by Ni@BIF-43 and driven by light excitation of the Ru photosensitizer. Additionally, Ni@BIF-43 exhibited high durability in cycling tests with reasonably reproducible photocatalytic activities for all three cycles, shown in Fig. 3c. XRD analysis (Fig. S16 in Supporting information) evidenced that the crystallinity of the catalysts is maintained. Moreover, XANES (Fig. 3d) and EXAFS (Fig. S17 in Supporting information) measurements of Ni have been examined after photocatalytic reaction. No obvious structural evolution has been observed, further reflecting its stability during the CO₂ photoreduction process.

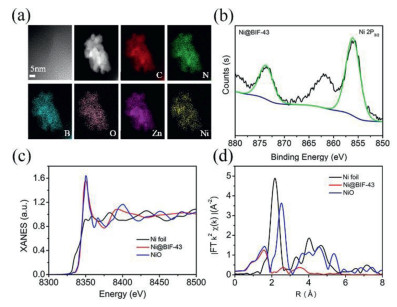

The well functionalized porous platform of BIF-43 allows us to investigate the significant role of different metal sites in CO₂ photocatalytic reaction. In comparison, Co with only one d-orbital electron less than Ni has been investigated to construct a counterpart sample of Co@BIF-43. The Co content was 0.52% as determined by ICP-AES analysis. HRTEM, element mapping, photograph and XPS analyses revealed that Co was uniformly distributed throughout the crystal in the form of Co²⁺ ions (Figs. S18-S20 in Supporting information). In the similar photocatalytic condition, Co@BIF-43 displayed a higher photocatalytic activity (2036.0 µmol g⁻¹ h⁻¹ for CO) than that of Ni@BIF-43 (1109.0 µmol g⁻¹ h⁻¹), however, its selectivity (64.1%) was obviously lower than that of Ni@BIF-43 (90.2%) (Fig. 3b and Fig. S21 in Supporting information). The apparent quantum efficiency for CO production was measured to be 0.061% at 450 nm (Fig. S27 in Supporting information). In addition, three cycles reactions experiments were conducted to evaluate the stability of the photocatalyst (Fig. S22 in Supporting information).

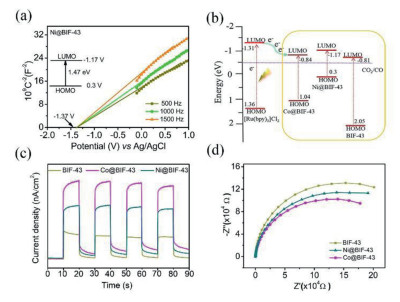

To elucidate the mechanisms behind the metal sites dependent performance for CO₂ photoreduction, we studied the whole reaction process systematically. Firstly, the electronic structure of catalyst is one key factor to determine the photocatalytic capability. The UV-vis diffuse reflectance spectra (Figs. S23 and S24 in Supporting information) were conducted to give the bandgap energy of 2.86, 1.88 and 1.47 eV for BIF-43, Co@BIF-43 and Ni@BIF-43, respectively. Mott-Schottky measurements were carried out to determine the flat-band position to be −0.81, −0.84 and −1.17 eV for BIF-43, Co@BIF-43 and Ni@BIF-43 (Fig. 4a and Fig. S25 in Supporting information), respectively, which are approximately close to the bottom of the conduction band (CB). Combined with the analysis of the UV-vis diffuse reflectance spectra, the energy level diagrams for all three catalysts are obtained (Fig. 4b). The CB potential for all the three catalysts were higher than the reduction potential of CO₂-to-CO and lower than the lowest unoccupied molecular orbital (LUMO) of Ru (−1.27 eV) [5]. These results suggested that these catalysts were thermodynamically capable of receiving the photoexcited electrons from the excited Ru for reducing the adsorbed CO₂ to CO product. However, although the catalytic activity of Co@BIF-43 was higher than that of Ni@BIF-43, its CB potential was lower than that of Ni@BIF-43. Therefore, energy band positions only endow sufficient driving force to trigger the CO₂ reduction process but cannot determine the catalytic activity. Furthermore, charge separation efficiency of these catalysts was investigated by the transient photocurrent response and the electrochemical impedance spectroscopy (EIS) under the photocatalytic system condition, shown in Figs. 4c and d. Greatly enhanced photocurrent intensity and reduced semicircle arc of Nyquist plots have been observed over Co@BIF-43 and Ni@BIF-43, suggesting the enhanced separation efficiency of the photogenerated electron-hole pairs and faster electron transfer from the excited Ru photosensitizer to the reaction center by anchoring Co/Ni ions. Based on previous works [5, 37] and the above results, a conceivable mechanism was proposed. Under visible light irradiation, the photosensitizer (Ru) is promoted to the excited state. This excited state is then oxidatively quenched by the catalyst of M@BIF-43 and transfers electron to the exposed metal active site where CO₂ molecule is activated and reduced to CO. Finally, Ru returned back to its original state by electron supply from the sacrificial reductant TEOA. Moreover, the highest current intensity and lowest charge-transfer resistance of Co@BIF-43 was consistent with its highest catalytic activity towards CO, which demonstrates that charge separation and transport efficiency may be the key factor for the boosted catalytic reaction rate. Whereas, Ni@BIF-43 shows the higher selectivity of CO over H₂, indicating the important selective role of the metal center in the catalytic process. The above results clearly indicate that BIFs modified by transition metal ions can significantly facilitate the charge separation, and vastly improve photocatalytic CO₂ efficiency, and the catalytic performances highly dependent the types of active metal ions.

In summary, an amine-functionalized BIF-43 was reasonably designed and used as the supporter to stabilize active sites Co and Ni, thereby obtaining photocatalysts Ni@BIF-43 and Co@BIF-43. Ni@BIF-43 exhibited a high selectivity of 90% for the CO₂-to-CO conversion, while Co@BIF-43 performed a high CO production rate of 2036.0 µmol g⁻¹ h⁻¹. The close connection between active sites and adsorption sites, and the enhanced photo-excited electrons transfer together promoted photocatalytic CO₂ efficiency. Furthermore, the model allows us to realize more definitively the specific effects of different metal-ion species on CO₂ conversion. The work provided more insights into the design of photocatalysts by anchoring active sites via functional organic ligands as linker.
