Recent advances of two-dimensional CoFe layered-double-hydroxides for electrocatalytic water oxidation

Full

Yi Zhou^a^,^c, Jialai Hu^a, Lichun Yang^*^,^b, Qingsheng Gao^*^,^a

Affiliations

^aCollege of Chemistry and Materials Science, and Guangdong Provincial Key Laboratory of Functional Supramolecular Coordination Materials and Applications, Jinan University, Guangzhou 510632, China

^bSchool of Materials Science and Engineering, and Guangdong Provincial Key Laboratory of Advanced Energy Storage Materials, South China University of Technology, Guangzhou 510640, China

^cNingbo Fengcheng Advanced Energy Materials Research Institute Co., Ltd., Ningbo 315000, China

Published: 2022-06-15 doi: 10.1016/j.cclet.2021.10.034

Outline

Abstract

Less

Oxygen evolution reaction (OER) is pivotal to drive green hydrogen generation from water electrolysis, but yet is strictly overshadowed by the sluggish reaction kinetics. Earth-abundant and cut-price transition-metal compounds, particularly CoFe layered-double-hydroxides (LDHs), show the distinct superiorities in contrast to noble metals and their derivatives. In this review, we firstly underline their fundamental issues in electrocatalytic water oxidation, including CoFe LDHs crystal structure, the surface of (hydr)oxides confined to OER and the controversial roles of Fe species, aiming at understanding the structure-related activity and catalytic mechanism. Advanced approaches for optimizing OER activity of CoFe LDHs are then comprehensively overviewed, which will shed light on the different working mechanisms and provide a concise analysis of their unique advantages. Finally, a perspective on the future development of CoFe LDHs electrocatalysts is offered. We hope this review can give a concise and explicit guidance for the development of transition-metal-based electrocatalysts in the energy field.

Key words

CoFe layered-double-hydroxides / Electrocatalytic water oxidation / Two-dimensional nanostructures / Surface reconstruction / d-band

Cite this Article

Yi Zhou, Jialai Hu, Lichun Yang, Qingsheng Gao. Recent advances of two-dimensional CoFe layered-double-hydroxides for electrocatalytic water oxidation[J]. Chinese Chemical Letters, 2022 , 33 (6) : 2845 -2855 . DOI: 10.1016/j.cclet.2021.10.034

Full Text

Less

1 Introduction

Less

The demand of sustainable energy technologies is drastically growing due to unregulated environmental contamination and superfluous CO₂ emission from the over consumption of fossil fuel [1]. Water electrolysis, coupling oxygen evolution reaction (OER) at anodes with hydrogen evolution reaction (HER) at cathodes, finds a promising way out of the current dilemma [2-6]. However, the 4-electron uphill reaction pathway of OER unfortunately leads to a substandard efficiency of overall water splitting. Accordingly, anodic OER is treated as a pivotal entry point for uncovering the knack of commercial water electrolysis [7-10].

Nowadays, chemists and materials scientists devote extensive efforts in exploiting transition-metal compounds with superior OER performance, for the replacement of noble metals and their derivatives that are severely prohibited by the scarcity and high cost [11-13]. Among first-row 3d transition-mental (Fe, Co and Ni) compounds, Co and its derivatives have attracted particular research interest owing to the prominent intrinsic OER activity and long-term durability in a large pH range (neutral to strong alkaline), in contrast to Ni based electrocatalysts (pH 7-11) whose surface deprotonation is obviously impacted by the electrolyte pH [14-16]. Apart from aforesaid merits, hydrotalcite-like CoFe layered-double-hydroxides (LDHs) are generally electrolyte-permeable, affording a large amount of active sites toward efficient OER. Besides, the layered structure offers an approach for preparing few-layered CoFe LDHs via exfoliation of the raw materials, which gives rise to an ample amount of active sites, convertible electron configuration, and more distorted and defective structures [17-19]. For instance, Wang and co-workers fabricated highly active monolayer CoFe LDHs with multiple vacancies via etching bulk CoFe LDHs through Ar plasma [20]. Moreover, the synergistic effects between Fe and Co sites are favored in OER, and Hung et al. identified that Fe stabilizes Co ions under a higher valence state during OER and promotes the generation of more stable reactant intermediates [21]. Besides, Fe species have highest intrinsic activity and might severs as dynamical active sites over the CoO_xH_y host [22]. Therefore, CoFe LDHs possess a high intrinsically catalytic activity, and outperform other Co based LDHs (e.g., CoNi and CoMn, LDHs) which are unintentionally contaminated by Fe impurities due to using unpurified basic electrolytes, leading to complicated catalytic mechanism. In addition, Dionigi et al. and Gao et al., have an excellent summary about NiFe-Based catalysts for (photo)electrochemical water oxidation [23, 24], while CoFe LDHs as OER electrocatalysts have scarcely received a compact summarization on the aspect of unscrambling the intrinsically catalytic activity and enlightening the path for further development.

Herein, we throw a concentrated attention on recent insights in CoFe LDHs for water oxidation, giving priority to their electronic configurations and chemical states which regulate the surface reconstruction for the generation of catalytically active phase and govern the binding energies of multistep OER intermediates as well. This review begins with the crystal structure of CoFe LDHs and the proposed OER mechanism, and then introduces the surface reconstruction and the key role of Fe species in CoFe LDHs, aiming at unveiling the structure-dependence of OER activity. Afterwards, representative optimization strategies for CoFe hydroxide catalysts are summarized and discussed thoroughly to point out the activity determinants at atomic level. Finally, we provide a concise outlook on the future development of CoFe LDHs for high-performance electrocatalytic water oxidation.

2 Fundamental of CoFe LDHs for OER

Less

2.1 Crystal structure of β-Co(OH)₂ and CoFe LDHs

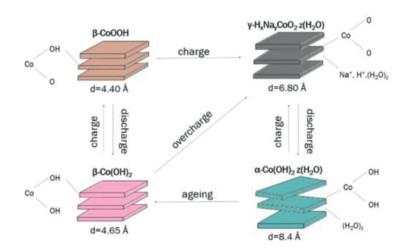

In a nutshell, CoFe LDHs can be regarded as the substitution of iron for cobalt sites in the octahedron geometry of cobalt hydroxides and therefore it is convenient for us to use Co(OH)₂ to cotton on their crystallographic structures. The isostructural α-Co(OH)₂ and stoichiometric β-Co(OH)₂ phases are the two basic crystallographic forms of cobalt hydroxides. The former is a metastable phase constituted by positively charged Co(OH)_2-x layers with anions filled in the interlayer region for charge balancing, and facilely converts into a β-Co(OH)₂ phase. The latter is composed of a hexagonal packing of hydroxyl ions with bivalent cobalt ions occupying alternate rows of octahedral sites (Fig. 1), and Van der Waals forces exit between layers in β-Co(OH)₂, which is analogous to other layer materials (e.g., graphite, MoS₂). Brucite-like β-Co(OH)₂ has a trigonal crystal symmetry with hexagonal lattice and space group P3m1. Fig. 2 shows Bode scheme of squares for cobalt hydroxides and oxyhydroxide species. The phase transformation from α-Co(OH)₂ into β-Co(OH)₂ is autonomous in thermodynamics and kinetics [25, 26]. Many factors can accelerate phase transformation, for instance, applied positive electric field, Fe impurities, intense stirring, etc. [26, 27]. The oxidation of Co(OH)₂ is much easier that than of Ni(OH)₂, and the full oxidation of bivalent cobalt hydroxides are followed the redox transformation:

(1)

(2)

where the oxidation state of Co is +3 and +3/+4 in β-CoOOH and γ-CoOOH, respectively.

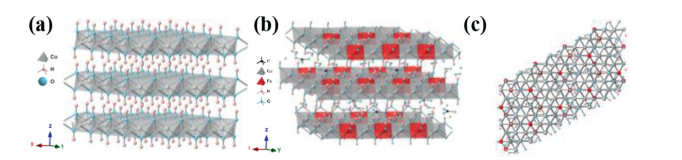

As for CoFe LDHs (Figs. 1b and c), it can be obtained by the substitution of ferric iron for bivalent cobalt sites in octahedron geometry and the layers in Co(OH)₂ are resultantly positive charged. To balance these positive charged layers, anions (e.g., CO₃^2-, SO₄^2-, Cl^-, NO₃^-) intercalate in the interlayer region in cobalt hydroxides [17, 24, 28-32]. However, the exchange of these interlayer anions with carbonate is unavoidable in alkaline electrolyte under ambient conditions and such anions exchange still occurs without an applied bias [33]. Generally, CoFe LDHs can be expressed with the formula [17, 28, 34, 35]: [Co_1-x²⁺Fe_x^{3 +}(OH)₂]^x+(A^n-)_x/n · yH₂O, where x is the molar ratio of Fe in CoFe LDHs, A is the intercalated anion; n is the charge of the anions and y the amount of water between layers.

2.2 Proposed mechanisms for OER on CoFe LDHs

Prior to discussing OER mechanisms on (hydr)oxide surfaces, it is necessary to define the "surface" of (hydr)oxides where OER occurs because the intrinsic activity will be determined complicatedly [36, 37]. As shown in Fig. 3, three possibilities have been put forward based on the degree of electrolyte permeability in electrocatalysts: (1) OER takes place at an outer surface, which is suitable for a dense catalyst with high degree of crystallinity. (2) Whole catalyst is OER active, which are appropriate for an electrolyte-permeable catalyst, e.g., amorphous hydroxides prepared under soft conditions. (3) OER occurs at a near surface region because of a specific structure of LDHs with ionic conductivity and electrolyte intercalating into the nanosheets [36-38]. Therefore, layered CoFe LDHs provides more active sites for electrocatalytic water oxidation in contrast to oxide electrocatalysts of which OER takes place at an outer surface. However, the degree of electrolyte permeability in electrocatalysts greatly depends on the degree of crystallinity which is associated with preparation strategies. β-Co(OH)₂ and CoFe LDHs are generally prepared by soft methods (e.g., precipitation methods and electrodeposition). Therefore, the hydrotalcite-like CoFe LDHs with low crystallinity are conceivably electrolyte-permeable and therefore whole catalyst is OER active. The merit and demerit of electrolyte-permeable (amorphous phase and catalyst with low crystalline and high-disorder structure) and non-permeable (high crystalline and dense structure) catalysts are summarized in Table 1.

There are several OER mechanisms of (hydr)oxides that have been proposed in recent decades. The classic adsorption mechanism is proposed that a battery of intermediates are chemisorbed and desorbed on the metal cations with concerted electron–proton transfers (CEPT), resulting in pH-independent activities. The release of oxygen molecule is not involved in lattice oxygen in catalysts. Whereas, lattice oxygen mechanism (LOM), which intensely depends on the co-valency of metal–oxygen bonds, is known as the release of oxygen molecule that is involved in redox reactions of lattice oxygen in catalysts and gives rise to pH-dependent activity [8].

As for CoFe, it is more suitable using the classic adsorption mechanism under alkaline conditions. The most critical and intricate step in OER multi-steps is the incipient O-O bond formation. One of these mechanisms can be expressed that O–O radical coupling interaction of metal-oxo or oxyl radical species (I2M) is involved in the formation of O-O bond Eqs. 3-5. The alternative mechanism involves water/OH^- nucleophilic attack (WNA) by a water molecule on an electrophilic M^V–oxo or M^IV–oxyl Eqs. 6-9 [8, 39]. As shown in Fig. 4, the involved OER multi-steps can be represented as follows:

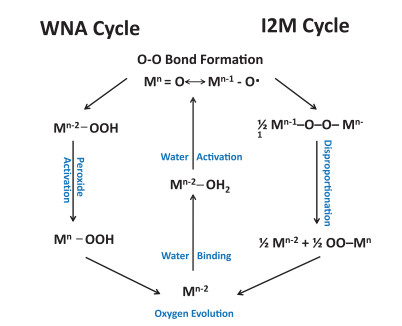

1 I2M cycle

(3)

(4)

(5)

2 WNA cycle

(6)

(7)

(8)

(9)

The M here represents the active sites of water oxidation catalysis.

Compared to the I2M cycle in water oxidation, the latter is more broadly used for theoretically modulating the process of OER. The ΔG₁~ΔG₄ denote as the four varied reaction free energies pertaining to a WNA cycle. Therefore, the potential determining step (PDS) rests with the largest ΔG in the process of electrocatalytic OER and is conventionally the formation of MO from MOH or the evolution of MOOH from MO. Therefore, an OER activity descriptor is built on the difference between ΔG_O* and ΔG_HO* (ΔG_O* — ΔG_HO*) for the prediction of their OER performance and elucidate their intrinsic OER activity. According to the Sabatier principle, the adsorption strength of OER intermediates on an ideal catalyst is neither too strong nor too weak. The plot of overpotential as a function of (ΔG_O* — ΔG_HO*) results in the universal volcano-shaped relationship independent of electrocatalysts.

It is noteworthy that surface reconstruction and phase transformation in some case is mostly unavoidable for alkaline water electrolysis, even for hydroxides. Recently, operando Raman spectroscopy revealed that CoFe oxyhydroxide underwent a drastic reconstruction, spontaneously generating active CoOOH on its surface when immersed into KOH electrolyte, even under a zero bias condition [40]. Dionigi et al. further demonstrated that the as-prepared α-phase CoFe LDHs was oxidized to the activated γ-phase which was a feature of about 8% contraction of the lattice spacing and switching of the intercalated ions by using advanced electrochemical measurements, e.g., operando X-ray scattering and absorption spectroscopy [41]. However, the rational interpretations of crystal and electronic structures of active CoFe LDHs remain challenging during the OER process. Meanwhile, the synergistic effects between the in-situ formed active phases and incipient substances still lack in-depth investigation.

2.3 The role of Fe sites in CoFe LDHs electrocatalysts

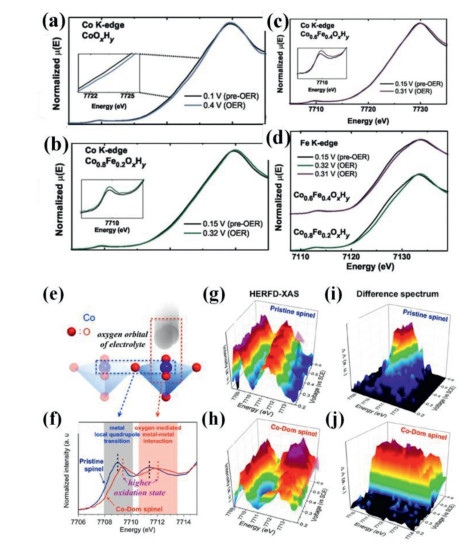

The most controversial issue in transition-metal based OER catalysts is the role of Fe spices because even trace amount of Fe impurities in electrolyte can obviously enhance pure Ni and Co based (oxy)hydroxides, whereas the catalytic performance of pure FeOOH is restricted by its extremely low electroconductivity [22, 36, 42, 43]. Enman et al. manifested that the water oxidation activity of Co_1-xFe_x(OOH) is about 100 times higher than pure CoOOH on a per-metal turnover frequency basis. Moreover, pure CoOOH is liable to be contaminated by Fe impurities using unpurified electrolyte. They proposed that CoOOH basically services as a conductive, high-surface area, and chemically stabilizing host for the most-active Fe sites [43, 44]. Operando X-ray absorption spectroscopy (XAS) has been employed in probing oxidation states, electronic structure, and local bonding environments of electrocatalysts under water oxidation condition, uncovering the nature of the catalytically active sites [45, 46]. As identified (Figs. 5a-d), the iron was partially oxidized and the bond length of Fe-O was concomitantly shortened during water oxidation on Co(Fe)O_xH_y. The cobalt oxidation was only detected without the contamination of iron. These results demonstrated that CoO_xH_y follows a varied water oxidation mechanism with and without iron corporation and suggested iron as active sites during water oxidation on Co-(Fe)O_xH_y [44]. Different observations of the iron oxidation have been obtained and varied reaction mechanisms have been proposed. Gong et al. showed that CoO_x, which adsorbed Fe³⁺ ions from electrolyte, outperforms co-deposited Fe_4.4Co_95.6O_x for water oxidation. Operando XAS manifested that the oxidation of Co sites in CoO_x, CoO_x+Fe³⁺, and control Fe₄₈Co₅₂O_x catalysts was similar under water oxidation condition. But the adsorbed Fe³⁺ with lower oxygen coordination on CoO_x was not further oxidized and the Fe-O bond lengths/strengths barely changed. The enhanced water oxidation activity of CoO_x was ascribed to the Fe sites with oxygen vacancies [47]. Smith et al. observed the change of Co oxidation states of photochemically deposited Fe_100-yCo_yO_x films, but not Fe under operando condition, confirming that OER takes place at two distinct reaction sites, di-μ-oxo bridged cobalt–cobalt and di-μ-oxo bridged iron–cobalt sites [48].

A synergistic effect of Co and Fe in CoFe LDHs for water oxidation, which is obligated to their superior OER activity, is proposed according to density functional theory (DFT) calculations. Dionigi et al. suggested that pure Co-Co centers and single Fe sites are less favorable for stabilizing OER intermediates than surface Fe sites which have synergy with nearest-neighbor Co sites via forming O-bridged Fe-Co reaction centers [41]. Moreover, by taking advantage of operando high-energy resolution fluorescence-detected X-ray absorption spectroscopy (HERFD-XAS) with a small incident angle (Figs. 5e-j), the more direct observation of local orbital interaction in reactant/catalyst interface can be achieved. The active sites of Co-Fe spinel oxides are Co ions rather than Fe, because O 2p orbitals directly interacted with 3d orbitals of Co ions. The key role of Fe ions is to stabilize the Co ions under a higher valent state during water oxidation and thereby may result in stable intermediate of reactant and its superior intrinsic activity [21].

These different features of Fe oxidation under OER condition were probably caused by the varied preparation of catalysts [44]. However, we are not entirely sure whether Fe species participate in OER as active sites, according to the change of oxidation states of Fe species observed in a majority of operando XAS. This is because the orbital of oxygen will overlap with unoccupied Fe band under Fe⁴⁺ condition, and this electron overlap with oxygen sites is the precondition by which discharge of oxygen atoms can occur with eventual release of O₂ molecules [22]. Chung et al. proposed a dynamic reaction mechanism, which emphasized on balancing the rates of Fe dissolution and re-deposition over a MO_xH_y host that constructed Fe active sites with dynamical stability. This is opposite to the traditional view featuring the confinement of all the components at the electrochemical interface (static active sites), and reckoning that only reactants and products are mobile [22]. This is in line with the construction of dynamically stable Fe active sites in La_1-xSr_xCoO₃ model perovskite, which originate from the surface reconstructed thin Co hydr(oxy)oxide interacted with trace-level Fe impurities in the electrolyte. The dynamically stable Fe active sites strongly interacted with the Co hydr(oxy)oxide host endow with the OER activity of these perovskite catalysts [49]. These observations and conclusions strongly strike the current OER mechanism and reaction descriptors (e.g., orbital occupancy, metal–oxygen covalency and M-OH bond length), and will refine our understanding of OER reactions on 3d transition-metal hydr(oxy)oxides in alkaline media.

3 Synthetic methodologies

Less

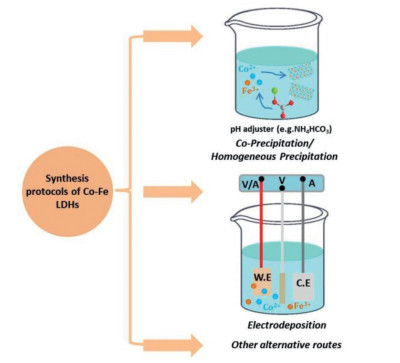

As shown in Fig. 6, CoFe LDHs can be synthesized via various protocols, including co-precipitation and homogeneous precipitation, electrodeposition and other alternative routes, thereby exhibiting different crystal sizes, long-range order and microstructures. The Gordian knot for the preparation of CoFe LDH is the appearance of unwanted phase (e.g., FeO_xH_y), especially under circumstances with a lower atomic ratio of Co/Fe.

3.1 Co-precipitation and homogeneous precipitation methods

The most ordinary methods for the synthesis of CoFe-based (oxy)hydroxides are co-precipitation and homogeneous precipitation, in which Co²⁺ and Fe^2+/3+ salts and hydrolysis agents (e.g., ammonia, sodium/potassium hydroxide, sodium/potassium carbonate, urea, hexamethylenetetramine) are dissolved in aqueous solution and react under heating and stirring. The morphological structure of CoFe LDHs is facilely controlled by the pH of deposition solution during nucleation. Elevating reaction temperature and prolonging time can increase the crystal sizes and improve crystallinity of CoFe LDHs [24]. Han et al. prepared CoFe LDHs nanosheets by a facile co-precipitation, which were further incubated at 80 ℃ for 48 h (hydrothermal method) to finally obtain carbonate-intercalated CoFe LDHs with high OER activity [50].

3.2 Electrodeposition

Electrodeposition is widely used in the preparation of materials due to its irreplaceable inherent merits [51, 52]. One of them is that the target materials can directly grow on conducting substrates (e.g., carbon cloth, nickel foam, fluorine doped tin oxide), which ensures a low electron transfer resistance [51, 52]. A cathodic electrodeposition is generally conducted via the cathodic reduction of NO₃^- or water at the conductive substrate surface, leading to the increase of pH and the consequential precipitation of CoFe LDHs [51]. The plating solution contains bivalent cobalt and iron salts. The bivalent irons are facilely oxidized and become insoluble ferric hydroxide in the presence of air, and therefore solvent is usually purged with inert gases (N₂ and Ar) to get rid of dissolved oxygen prior to the dissolution of solutes [53, 54]. The only caveat in cathodic electrodeposition of CoFe LDHs is the different solubility product constant of bivalent cobalt hydroxide (1.09 × 10^-15 for α phase, 5.92 × 10^-15 for β phase) and iron hydroxide (4 × 10^-33), inducing different deposition speeds at electrode surface and consequently unexpected metal cation ratio in the same cases.

3.3 Other alternative routes

The alternative synthetic strategies for CoFe hydroxides are generally involved in the chemisorption of Fe impurity in electrolyte, a phase transformation from their solid-state phases into (oxy)hydroxides and a laser ablation in liquid (LAL) method [24]. Due to the existence of Fe impurities in commercial KOH electrolyte, the Co (hydr)oxides inevitably chemisorb Fe impurities because of high affinity for the formation of CoFe hydroxide catalysts, and then dramatically enhanced the OER activity [9, 22, 43, 44]. For instance, Lopes et al. have proved that the OER activity of a La_1-xSr_xCoO₃ model perovskite originated from a thin surface-reconstructed Co hydr(oxy)oxide (CoO_xH_y) layer, and trace-level Fe species in electrolyte was dissolved and redeposited over CoO_xH_y hydr(oxy)oxide host, leading to the dynamically stable active sites [49]. Gao et al. synthesized CoO/CoFe LDHs hybrid catalysts via a LAL method, in which a nanosecond pulsed laser beam was adopted to ablate a CoFe alloy (Co: Fe = 3:1, atomic ratio) tablet immersed in NaCl aqueous solution [55].

4 Optimization strategies for CoFe LDHs electrocatalysts

Less

As a traditional Chinese proverb "To do good work must first sharpen his tools" proves it, the profound understanding of the activity determinants is the prerequisite for the rational design of highly catalytic CoFe hydroxides. The OER activity of CoFe hydroxide catalysts depends on three aspects: (1) The number of active sites per unit volume. This is always ascribed to the electrochemical active area (ECSA), (or) specific surface area and the nature of catalysts whether electrolyte-accessible. (2) Electro-conductivity. In general, the strength of electronic conductivity is closely related to the number of co-valency in the M-O π bond. Meanwhile, crystal defect is a critically key factor for enhancing the electronic conductivity of oxides. However, the charge transport in CoFe LDHs follows a mixed mechanism involving an "electron hopping" along the layers, which is caused by an inner redox reaction between oxidized and reduced forms of the Co²⁺/Co³⁺ couple with a compensation of these extra positive charge by anions. Accordingly, under a suitable applied bias, the CoFe LDHs undergo redox reactions, prompting the charge transport among the CoFe LDHs [56]. (3) The intrinsically catalytic activity of each metal cation in CoFe hydroxides. In recent years, several reaction descriptors have been proposed for the description of intrinsically catalytic activity of active sites, including ΔG_O* ― ΔG_HO*, e.g., orbital occupancy, metal–oxygen covalency, the binding strength of M-OH and Fe–M adsorption energy (M: Co, Fe, Ni, Cu, etc.) [8, 22]. Based on the above consensus, several approaches have been put forward to enhance the OER activity of CoFe LDHs relying on aforementioned four aspects, including nanostructured morphologies, doping foreign elements, defect engineering, hybridization, etc.

4.1 Nanostructured morphologies

The controllable synthesis of CoFe hydroxide catalysts with nanostructured morphologies is desirable due to their high specific surface area. As OER occurs at the surface of catalysts, the increase in surface area is certainly conducive to enhancing water oxidation efficiency. This is because larger surface area of electrocatalysts can afford more active sites, shorten charge transport distance and facilitate mass transfer [57]. Moreover, CoFe hydroxide catalysts with nanostructured morphologies potentially enrich more crystal defects, further facilitating the OER activity [58]. In addition, due to the layered structure, few-layered and mono-layered CoFe LDHs electrocatalysts can be obtained via exfoliation of the raw materials or direct preparation under suitable condition, which gives rise to an ample amount of active sites, convertible electron configuration, and more distorted and defective structures. For instance, Zhou et al. fabricated a single-layer CoFe LDHs under a near-anhydrous condition. Owing to increased C_dl, more crystal vacancies, larger degree of structural disorder and enhanced intrinsic activity, single-layer CoFe LDHs outperformed bulk materials for water oxidation and afforded overpotential of 270 mV at 10 mA/cm² [59]. CoFe LDHs are facilely exfoliated into ultrathin structure with abundant vacancies. This will be clarified in section 4.3. Recently, DFT calculations demonstrated that the edge (100) facet of NiFe based electrocatalysts exhibits a much higher OER activity than basal plane (001) facet [60, 61]. Due to the similar layered structure, the exposed edges sites on (100) of CoFe LDHs are expected to have a higher intrinsic activity. Therefore, the OER performance of CoFe LDHs is supposed to be likely enhanced by increasing the ratio of the exposed edges sites, while there is no direct evidence for enhancing water oxidation via aforesaid optimizing strategy at the present stage.

CoFe LDHs can also be used as precursors for the preparation of CoFe oxides, selenides, sulfides and alloy, which maintains similar morphologies [28]. For instance, Li et al. synthesized 2D CoFe alloy nanosheet arrays with atomic thickness on Ni foam via a topotactic reduction of CoFe LDHs [62].

4.2 Doping foreign elements

Doping foreign elements is a conventional and effective approach to boost the OER activity by increasing their intrinsic activity of active sites and (or) prompting the creation of catalytically active phase [13, 24, 63]. The increased electrical conductivity, changed electronic structure and accelerated surface reconstruction of catalysts via foreign elements substitution can be straightforwardly understood by virtue of molecular orbital theory and chemical/physical characterizations.

Vanadium (V), tungsten (W), chromium (Cr) and cerium (Ce) with high valence state and highly electronegative fluorine (F) are the most hackneyed dopants for enhancing OER activity by drawing or pulling the electron from neighboring 3d metals and therefor optimizing the binding energies of the intermediates [64-71]. Hu et al. found Co and Fe 2p in CoFe LDHs exhibit various degrees of positive shift after doping high valence state V and show an intense electron correlation in Co, Fe and V, accounting for the boosted OER activity [65]. Moreover, Yang et al. considered that V doping can improve the covalency of the metal-oxygen bond because of slightly blue shift of binding energy of Co, Fe and O and the consequent charge-transfer from oxygen to the metal for OER [72]. By using CHF₃-plasma etching technique, Liu et al. prepared F-doped Co₃Fe LDH ultrathin nanosheets with an excellent OER activity due to the filling of oxygen vacancies with F^- ions and decreasing the reaction energy barrier [66]. In some cases, noble metal cations have also been implanted into transition-metal based catalysts for lowering the amount of noble metals [73, 74]. For instance, Zhu et al. found Rh doping in CoFe LDH would create Fe vacancies, which led to the changes in the coordination environment of Fe. The special character of Rh doping and their hollow structure promoted whole HER and OER processes [73].

The improved intrinsic activity of active sites via doping foreign elements can be expressed by the Gibbs free energy changes in catalysts because OER reaction pathways with multi-step intermediates can be simulated with the aid of first principles calculations based on DFT [13, 17, 57]. For instance, doping foreign elements can enhance the adsorption of H₂O molecules on active sites, which is deemed as a determining step and can be applied for the estimation of active sites and catalytic activity. As shown in Figs. 7a-d, the pristine adsorption energies for H₂O molecules on Fe and Co site are ―0.31 and ―0.36 eV, respectively, indicating Co atom possesses superior catalytic activity and acts as active sites for water oxidation. Whereas, adsorption energies for H₂O molecules on Co site can be reduced into ―0.99 eV after Cr-doping, much lower than those on Cr atom (―0.29 eV) and pristine Co site. Moreover, the reduced adsorption energies for H₂O on Co atom is coincide with the decreased bond lengths which derives from the interaction between oxygen atom in water molecule and surface H atom in catalyst [64]. Therefore, Cr doped CoFe LDHs affords ultralow overpotential of 202 mV at 10 mA/cm² (Table 2). Doping foreign elements, especially iron ions, in other first-row transition metal based catalysts can alter the PDS, switch the active sites from other first-row transition metal to dopants and decrease the overpotential for water oxidation [22, 44, 49]. As shown in Fig. 7e, the PDS on Co LDHs is the formation of oxygen molecule and the calculated overpotential is 0.81 eV, which reduces to 0.55 V via Fe incorporation along with the formation of *O from *OH being the PDS. However, the multi-step intermediates during the OER process were chemisorbed on Cr sites in Cr-CoFe LDHs rather conventional Co sites, leading to similar adsorption strength of OH on the Cr-CoFe LDHs (∆E_OH = 1.06 eV) and CoFe LDHs (∆E_OH = 1.06 eV) and decreased adsorption strength toward OOH* from 3.06 eV for Cr-CoFe LDHs to 4.25 eV for CoFe LDHs. Besides, the highest energy barrier is the evolution of oxygen molecules from ∗OOH with overpotential of 0.23 V on Cr-CoFe LDHs, which is much smaller than that on CoFe and Co LDHs [67].

Nickel foam (NF), carbon paper (CP) and glassy carbon electrode (GCE) are commonly used as supports. The current density (µA/cm_ox²) was normalized to the surface area of the oxides to give the intrinsic activity. Surface reconstruction has attracted attentions for in-depth understanding of structure-activity relationship of catalysts. Typically, under a high anodic oxidation condition, the surface of catalysts suffer some degree of reconstruction for the generation of a thin (oxy)hydroxide layer which is the truly active phase for water oxidation [75]. Doping foreign elements can facilitate this process and regulate the electronic configurations of reconstructed oxyhydroxides, thus promoting the OER activity. Recently, spinel CoAl₂O₄ with OER inactivity can be intensely activated by Fe substitution, owing to the facilitated reconstruction into Co oxyhydroxides [63]. Meanwhile, Fe substitution leads to the oxygen being negatively charged due to the activation of deprotonation on the reconstructed oxyhydroxides and thereby oxygen can act as the reactive site for oxygen evolution. Therefore, Fe doping remarkably enhances the water oxidation performance of CoAl₂O₄, which outperforms the benchmark IrO₂. Besides, Co is promoted to be pre-oxidized and the structure of Co₂Al₂O₄ processes great flexibility because Fe substitution propels the upshift of oxygen 2p levels. Accordingly, oxygen vacancies are accumulated at the surface along with lattice oxygen oxidation that ends at the dissolution of Al³⁺, maintaining a stable surface chemistry [63]. The similar surface reconstruction on LiCoO₂ electrocatalyst via Cl doping has been also discovered. Wang et al. carried out a cationic redox-tuning strategy to regulate in-situ catalyst leaching and to redirect the dynamic surface restructuring of layered LiCoO_2–xCl_x (x = 0, 0.1 or 0.2), for OER. LiCoO_1.8Cl_0.2 required lower potential to initiate in-situ Co oxidation and Li leaching in contrast with Cl-free LiCoO₂, resulting in surface reconstruction for the generation of self-terminated amorphous (oxy)hydroxide during the OER. Moreover, the stabilization of surface reconstruction on LiCoO_1.8Cl_0.2 called for shorter cycles than that of Cl-free LiCoO₂. Surface-restructured LiCoO_1.8Cl_0.2 afforded a superior catalytic activity among many state-of-the-art OER catalysts and showed significant stability [76]. The OER performance of representative catalysts via doping foreign elements is summarized in Table 2.

In spite of the glaring research on the mechanism of doping, yet, there are still some dark spots in the bright sky. V, W and chromium Cr based (hydr)oxides are amphoteric compounds and facilely dissolved in alkali electrolyte, especially under high oxidation conditions. More seriously, surface reconstruction of electrocatalyst is inevitable because oxyhydroxides are conceived as truly catalytically active phase [75]. Hence, do aforementioned dopants still exit in the reconstructed amorphous oxyhydroxides? If not, how to explain improved OER activity of catalysts? Creating vacancies, promoting surface reconstruction and (or) facilitating the adsorption/interaction of Fe impurities [49, 77-79]? Particularly, we might be more cautious for the effect of Fe impurities in commercial electrolyte because of recent works put emphasis on dynamically stable Fe active sites in La_1-xSr_xCoO₃ model perovskite whose OER activity originated from the surface reconstructed thin Co hydr(oxy)oxide interacted with trace-level Fe impurities in the electrolyte [49].

4.3 Defect engineering

The existence of crystal defects in materials is not preventable, and a moderate amount of defects can improve their electroconductivity, tune electronic structure and provide more unsaturated cation sites for electrolysis. This is because oxygen surpluses or vacancies induce charge counterbalancing holes or electrons in the metal d orbital manifolds [80] and OH^- is firstly chemisorbed on the surface O vacancy site [8]. Therefore, defect engineering is conceived as a feasible strategy for promoting OER activity. The most common strategies for creating oxygen vacancies in targeted catalysts are the utilization of reductive agents (TiCl₃, NaBH₄, etc.) and gases (H₂, NH₃, CH₄, etc.). The implantation of electrochemical reduction is also feasible to create oxygen vacancies [81]. But it is more difficult and complicated for the introduction of cation defects in solid catalysts, relying on special formation mechanism [82, 83]. As for layered hydroxides, one of the most conventional methods is to exfoliate the bulk materials into and (or) directly fabricate ultra-thin nanosheets with atomic thickness, thus simultaneously creating defects and increasing the number of active sites for OER [17, 28]. For instance, Zhou et al. proposed a simple co-precipitation method for the synthesis of single-unit-cell-thick and defect-rich LDH nanosheets [84]. However, it is worth noting that the re-stacking of few-layered and mono-layered CoFe LDHs is conceivably inevitable after a series of post-processing (e.g., centrifugation and drying). Therefore, the synthetic strategies centering on the synthesis of CoFe LDHs nanosheets with atomic thickness on conductive substrate (e.g., nickel foam, carbon cloth, Cu foils, Ti mesh) are more desirable and suitable. Besides, the exact layer number control from monolayer to multilayer (e.g., 1 → 5) remains intriguing but challenging. Advanced synthetic methodologies should be carried out for achieving these arduous targets.

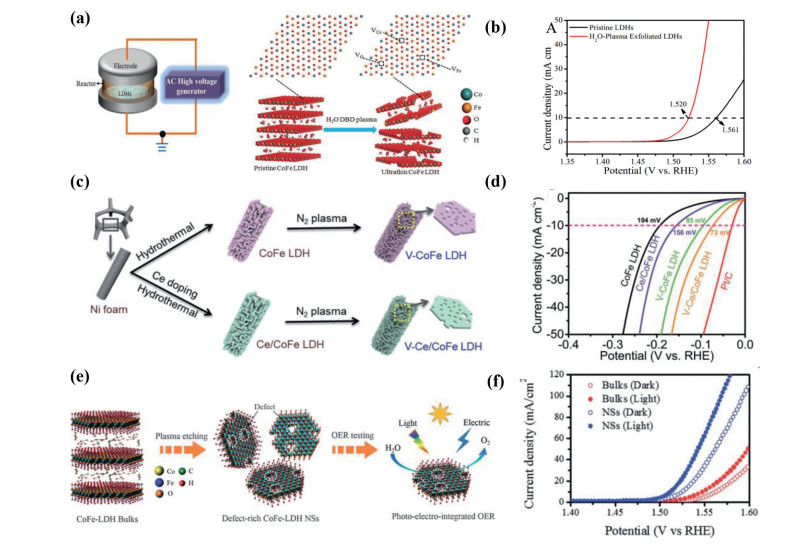

Plasma etching has been widely implemented in the introduction of vacancies in solid catalysts [72, 73, 85]. Liu et al. proposed water-plasma-enabled exfoliation of CoFe LDHs nanosheets along with producing multi-vacancies due to the destruction of the electrostatic interactions between the host metal layers and the interlayer cations (Fig. 8a). The applied potential arriving at 10 mA/cm² of LDHs is reduced from 1.561 into 1.520 vs. RHE (Fig. 8b). The improved OER activity of CoFe LDHs is consequently derived from the increment in active sites and multi-vacancies [20]. More critically, N₂, Ar and CHF₃-plasma etching have also been applied to create vacancies in CoFe LDHs and give rise to a significantly enhanced electrocatalytic activity for OER [18, 19, 66]. Recently, Liu et al. manifested a synergistic effect of Ce doping and plasma etching in CoFe LDHs (V-Ce/CoFe LDHs) for enhanced HER (Fig. 8c). The plasma etching brings about massive defects and triggers amorphous phase formation in CoFe LDH, meanwhile, Ce doping results in additional active sites and improves its electrical conductivity [71]. Therefore, V-Ce/CoFe LDHs deliver remarkably small overpotential at 10 mA/cm² (73 mV) for HER (Fig. 8d). Besides, as shown in Figs. 8e and f, Ding et al. found the OER activity of ultrathin CoFe LDHs nanosheets obtained by Ar-plasma exfoliation of bulk counterparts is harvested under illumination due to photoelectronic excitation and oxo-bridge-mediated metal-to-metal charge-transfer transition [86]. Yang et al. provided other alternative strategies for inducing vacancies in (hydr)oxides by facile H₂O₂ treatment. The Fenton reaction occurs between the tervalent Fe and H₂O₂. Accordingly, the generated oxygen and oxygen free radicals reduced integrant Fe³⁺ into Fe²⁺ along with the oxidation of Co²⁺, leading to multiple defects in CoFe hydroxides [87]. The OER performance of representative catalysts via defect engineering is summarized in Table 3.

4.4 Hybridization

In broad terms, anchoring the targeted catalysts on other disparate materials forms hybrid catalysts, leading to increased electrolyte-accessible sites, enhanced electron transport and tunable local chemical binding environment of hybrid interfaces [88-93]. Hybrid catalysts usually take on multiple forms, including catalyst@conducting substrate [89, 94], catalyst@support [95-102], and catalyst@catalyst [55, 103-105]. The glassy carbon electrode (GCE), Au substrate, titanium mesh, Ni foam (NF), carbon paper (CP) and carbon cloth (CC) are the most conventional substrates, while supports are of high diversity, including various types of carbon materials [24, 91, 93], metallic copper and C₃N₄ semiconductor (Figs. 9a and b) [101, 102], etc. However, the rational interpretation of local chemical binding environment of hybrid interfaces and the corresponding catalytic mechanisms, especially for catalyst@catalyst hybrids, is desirable but challenging.

To boost OER activity, conducting substrates and supports with superior conductivity and high specific surface area, give rise to faster mass transfer kinetics, more exposed active sites and higher bubbles evolve rates at the electrodes under operation condition. It is noteworthy that fast bubbles evolve rate at the electrodes surmounts the bubble overpotentials and avoids catalytic deactivation, maintaining OER stability of catalysts [24]. Wang et al. electrodeposited CoFe LDHs on CuO nanowire array, forming a CuO@CoFe LDHs core-shell heterostructure, which exhibited highly catalytic activity and excellent stability toward OER under mild alkaline conditions. In contrast to the first two hybrids, the catalyst@catalyst hybrids are hackneyed but tanglesome hybrid category because electrochemical reaction presumably occurs at the whole hybrids, affording luxurious active sites. As shown in Fig. 9c, Huang et al. proposed a hierarchical FeCo₂S₄@CoFe LDH core–shell structure catalyst by a hydrothermal–sulfuration–electrodeposition three-step strategies. The special structure of FeCo₂S₄@CoFe LDHs hybrids enriches abundant catalytically active sites, leading to small overpotentials of 115 and 247 mV to reach a current density of 10 mA/cm² for the HER and OER, respectively [104]. Meanwhile, the support also affects the direct growth orientation of catalyst and alters the physicochemical property of catalyst. In particular, Hao et al. found the hydroxyl-group on MXene facilitated surface growth and maximized the exposed active edge sites of the CoFe LDHs, and the O 2p states in LDHs become distributed above the Fermi level which is mediated by the possible anionic redox process, suggesting the insulated LDH possesses metallic features (Fig. 9d-f) [106]. More crucially, the existence of intense chemical couplings at the interface of hybrids can promote the charge transfer between hybrids and alter the electronic structure of metal cations, affecting the water oxidation efficiencies. For instance, Ma et al. conceived that the intense interfacial coupling effects between CoFe LDHs and Co₃O₄ are conducive to their superior OER activity and faster charge transfer than individual component [103]. As shown in Fig. 9g, Gao et al. found that trigged by the intense chemical couplings at the interface of hybrids, the charges transfer from bivalent Co in CoO to trivalent Fe in the CoFe LDHs through the interfacial Fe-O-Co bond, enabling more Co³⁺ sites with higher valence state in the hybrids [55]. The OER performance of representative catalysts via hybridization is summarized in Table 4.

5 Summary and outlook

Less

CoFe-based (oxy)hydroxides have been conceived as alluring OER electrocatalysts because of high catalytic activity and superior endurance against the corrosion under alkaline condition, surpassing many kinds of the state-of-the-art noble metal based catalysts. In this review, the in-depth understanding of crystal structure and phase transformation of CoFe hydroxides has been achieved, uncovering the structure-activity relationship. Prior to understand the basic OER mechanism, we firstly discussed the "surface" of (hydr)oxides that OER occurs for the better understanding intrinsically catalytic activity of catalysts. In quick succession, we discussed the key role of Fe species and analysis of surface reconstruction/phase transformation of CoFe LDH during OER. Advanced optimization strategies for CoFe hydroxide catalysts have been summarized centering on enhancing electro-conductivity, enlarging the active sites and regulating the electronic structure to optimize the binding energy of the intermediates.

At the present stage, the most urgent topic is the design of high efficient CoFe LDHs based electrocatalyst with superior stability at atomic level, satisfying the technical requirements of liquid sunshine visions and other commercial utilization. There is the dispute about the active sites in CoFe LDHs for water oxidation, which blocks probing OER mechanism. The significant impacts of Fe impurities are non-negligible, and therefore excluding the impact of Fe impurities in electrolyte is prerequisite for asserting the mechanism of improved OER. More critically, CoFe LDHs oxidize from as-prepared α-phases to activated γ-phases prior to the process of water oxidation. At first, the interpretation of crystal structure and electronic structure of this activated γ-phases is still intriguing but elusive. Moreover, it is unclear whether there is a synergistic effect between the in-situ formed active phase and incipient substances. Therefore, advanced in-situ/operando techniques along with theoretical predictions and modeling should be employed for wrestling with aforesaid enigma of CoFe LDHs during OER process. In addition, CoFe LDHs often suffer deactivation for water oxidation, leading to an inferior long-term stability. The corresponding deactivation mechanisms and protecting strategies should be put forward. For instance, the porous substrates and supports can be used for avoiding bubble overpotentials and resultant detachment of catalyst from the electrodes. A proper amount of Fe impurities can be intentionally added into electrolyte, giving rise to a dynamical balance of dissolution and re-deposition of Fe species over a CoO_xH_y. Finally, more attention should be paid to designing advanced water electrolysis reactors and devices for increasing the collection, separation and storage efficiencies of hydrogen.

Declaration of competing interest

Less

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Acknowledgments

Less

This work was supported by National Natural Science Foundation of China (Nos. 21773093 and 22175077), Natural Science Foundation of Guangdong Province (Nos. 2021A1515012351 and 2017B030306004) and Guangdong Special Support Program (No. 2017TQ04N224).

References

Less

[1]

M. Arif, G. Yasin, L. Luo, et al., Appl. Catal. B: Environ. 265 (2020) 118559.

[2]

D. Yang, Y. Chen, Z. Su, et al., Coordin. Chem. Rev. 428 (2021) 213619.

[3]

S.W. Boettcher, Nat. Catal. 1 (2018) 814-815.

[4]

M. Arif, G. Yasin, M. Shakeel, et al., J Energy Chem. 58 (2021) 237-246.

[5]

R. Gao, H. Zhang, D. Yan, Nano Energy 31 (2017) 90-95.

[6]

L. Yao, N. Zhang, Y. Wang, et al., J. Power Sources 374 (2018) 142-148.

[7]

C. Feng, M.B. Faheem, J. Fu, et al., ACS Catal. 10 (2020) 4019-4047.

[8]

J. Song, C. Wei, Z.F. Huang, et al., Chem. Soc. Rev. 49 (2020) 2196-2214.

[9]

S. Anantharaj, S. Kundu, S. Noda, Nano Energy 80 (2021) 105514.

[10]

E. Fabbri, T.J. Schmidt, ACS Catal. 8 (2018) 9765-9774.

[11]

N.T. Suen, S.F. Hung, Q. Quan, et al., Chem. Soc. Rev. 46 (2017) 337-365.

[12]

M.S. Faber, S. Jin, Energy Environ. Sci. 7 (2014) 3519-3542.

[13]

F. Lu, M. Zhou, Y. Zhou, et al., Small 13 (2017) 1701931.

[14]

H.B. Tao, Y. Xu, X. Huang, et al., Joule 3 (2019) 1498-1509.

[15]

Y. Meng, G. Ni, X. Jin, et al., Mater. Today Nano 12 (2020) 100095.

[16]

O. Diaz-Morales, D. Ferrus-Suspedra, M.T.M. Koper, Chem. Sci. 7 (2016) 2639-2645.

[17]

L. Lv, Z. Yang, K. Chen, et al., Adv. Energy Mater. 9 (2019) 1803358.

[18]

Y. Wang, Y. Zhang, Z. Liu, et al., Angew. Chem. Int. Ed. 56 (2017) 5867-5871.

[19]

Y. Wang, C. Xie, Z. Zhang, et al., Adv. Funct. Mater. 28 (2018) 1703363.

[20]

R. Liu, Y. Wang, D. Liu, et al., Adv. Mater. 29 (2017) 1701546.

[21]

S.F. Hung, Y.T. Chan, C.C. Chang, et al., J. Am. Chem. Soc. 140 (2018) 17263-17270.

[22]

D.Y. Chung, P.P. Lopes, P. Farinazzo Bergamo Dias Martins, et al., Nat. Energy 5 (2020) 222-230.

[23]

R. Gao, D. Yan, Adv. Energy Mater. 10 (2019) 1900954.

[24]

F. Dionigi, P. Strasser, Adv. Energy Mater. 6 (2016) 1600621.

[25]

A.A.S. Rovetta, M.P. Browne, A. Harvey, et al., Nanotechnology 28 (2017) 375401.

[26]

S. Kundu, B. Malik, A. Prabhakaran, et al., Chem. Commun. 53 (2017) 9809-9812.

[27]

L. Wang, C. Lin, F. Zhang, et al., ACS Nano 8 (2014) 3724-3734.

[28]

M. Xu, M. Wei, Adv. Funct. Mater. 28 (2018) 1802943.

[29]

X. Lu, H. Xue, H. Gong, et al., Nano-Micro Lett. 12 (2020) 86.

[30]

X.R. Wang, H.M. Cheng, X.W. Gao, et al., Chin. Chem. Lett. 30 (2019) 919-923.

[31]

R. Gao, J. Zhu, D. Yan, Nanoscale 13 (2021) 13593-13603.

[32]

H. Ma, R. Gao, D. Yan, et al., J. Mater. Chem. C 1 (2013) 4128.

[33]

L. Dang, H. Liang, J. Zhuo, et al., Chem. Mater. 30 (2018) 4321-4330.

[34]

W. Xie, Y. Song, S. Li, et al., Energy Environ. Mater. 2 (2019) 158-171.

[35]

D. Yan, J. Lu, L. Chen, et al., Chem. Commun. 46 (2010) 5912-5914.

[36]

M.S. Burke, L.J. Enman, A.S. Batchellor, et al., Chem. Mater. 27 (2015) 7549-7558.

[37]

C. Roy, B. Sebok, S.B. Scott, et al., Nat. Catal. 1 (2018) 820-829.

[38]

M.R. Nellist, F.A.L. Laskowski, F. Lin, et al., Acc. Chem. Res. 49 (2016) 733-740.

[39]

D.W. Shaffer, Y. Xie, J.J. Concepcion, Chem. Soc. Rev. 46 (2017) 6170-6193.

[40]

X. Bo, Y. Li, X. Chen, et al., Chem. Mater. 32 (2020) 4303-4311.

[41]

F. Dionigi, Z. Zeng, I. Sinev, et al., Nat. Commun. 11 (2020) 2522.

[42]

S. Zou, M.S. Burke, M.G. Kast, et al., Chem. Mater. 27 (2015) 8011-8020.

[43]

M.S. Burke, M.G. Kast, L. Trotochaud, et al., J. Am. Chem. Soc. 137 (2015) 3638-3648.

[44]

L.J. Enman, M.B. Stevens, M.H. Dahan, et al., Angew. Chem. Int. Ed. 57 (2018) 12840-12844.

[45]

Y. Zhu, J. Wang, H. Chu, et al., ACS Energy Lett. 5 (2020) 1281-1291.

[46]

M. Wang, L. Árnadóttir, Z.J. Xu, et al., Nano-Micro Lett. 11 (2019) 47.

[47]

L. Gong, X.Y.E. Chng, Y. Du, et al., ACS Catal. 8 (2017) 807-814.

[48]

R.D.L. Smith, C. Pasquini, S. Loos, et al., Nat. Commun. 8 (2017) 2022.

[49]

P.P. Lopes, D.Y. Chung, X. Rui, et al., J. Am. Chem. Soc. 143 (2021) 2741-2750.

[50]

X. Han, C. Yu, J. Yang, et al., Adv. Mater. Interfaces 3 (2016) 1500782.

[51]

D. Kang, T.W. Kim, S.R. Kubota, et al., Chem. Rev. 115 (2015) 12839-12887.

[52]

G.V. Govindaraju, G.P. Wheeler, D. Lee, et al., Chem. Mater. 29 (2016) 355-370.

[53]

R.L. Spray, K.S. Choi, Chem. Mater. 21 (2009) 3701-3709.

[54]

D.K. Lee, K.S. Choi, Nat. Energy 3 (2017) 53-60.

[55]

Z.W. Gao, T. Ma, X.M. Chen, et al., Small 14 (2018) 1800195.

[56]

M.A. Oliver-Tolentino, J. Vázquez-Samperio, A. Manzo-Robledo, et al., J. Phys. Chem. C 118 (2014) 22432-22438.

[57]

Z.W. Seh, J. Kibsgaard, C.F. Dickens, et al., Science 355 (2017) 4998.

[58]

Y. Liu, C. Xiao, P. Huang, et al., Chem 4 (2018) 1263-1283.

[59]

Y. Zhou, J. Hu, D. Li, et al., Chem. Commun. 57 (2021) 7653-7656.

[60]

Y. Zhang, W. Xie, J. Ma, et al., J. Energy Chem. 60 (2021) 127-134.

[61]

J.M.P. Martirez, E.A. Carter, J. Am. Chem. Soc. 141 (2019) 693-705.

[62]

P. Li, Q. Xie, L. Zheng, et al., Nano Res. 10 (2017) 2988-2997.

[63]

T. Wu, S. Sun, J. Song, et al., Nat. Catal. 2 (2019) 763-772.

[64]

Z. Wang, W. Liu, Y. Hu, et al., Appl. Catal. B: Environ. 272 (2020) 118959.

[65]

Y. Hu, Z. Wang, W. Liu, et al., ACS Sustainable Chem. Eng. 7 (2019) 16828-16834.

[66]

Z. Liu, C.L. Dong, Y.C. Huang, et al., J. Mater. Chem. A 7 (2019) 14483-14488.

[67]

L. Wen, X. Zhang, J. Liu, et al., Small 15 (2019) 1902373.

[68]

B. Zhang, X. Zheng, O. Voznyy, et al., Science 352 (2016) 333.

[69]

H.S. Jadhav, A. Roy, B.Z. Desalegan, et al., Sustain. Energy Fuels 4 (2020) 312-323.

[70]

H. Xu, B. Wang, C. Shan, et al., ACS Appl. Mater. Interfaces 10 (2018) 6336-6345.

[71]

S. Liu, J. Zhu, M. Sun, et al., J. Mater. Chem. A 8 (2020) 2490-2497.

[72]

Y. Yang, Y. Ou, Y. Yang, et al., Nanoscale 11 (2019) 23296-23303.

[73]

K. Zhu, J. Chen, W. Wang, et al., Adv. Funct. Mater. 30 (2020) 2003556.

[74]

G. Chen, T. Wang, J. Zhang, et al., Adv. Mater. 30 (2018) 1706279.

[75]

Z.J. Xu, Sci. China Mater. 63 (2019) 3-7.

[76]

J. Wang, S.J. Kim, J. Liu, et al., Nat. Catal. (2021) 212-222.

[77]

Y. Duan, J.Y. Lee, S. Xi, et al., Angew. Chem. Int. Ed. 60 (2020) 7148-7425.

[78]

Y. Wang, M. Qiao, Y. Li, et al., Small 14 (2018) 1800136.

[79]

H. Yang, Y. Long, Y. Zhu, et al., Green Chem. 19 (2017) 5809-5817.

[80]

Y. Surendranath, D.G. Nocera, Prog. Inorg. Chem. 57 (2012) 505-560.

[81]

G. Wang, Y. Yang, D. Han, et al., Nano Today 13 (2017) 23-39.

[82]

Q. He, Y. Wan, H. Jiang, et al., ACS Energy Lett. 3 (2018) 1373-1380.

[83]

R. Zhang, Y.C. Zhang, L. Pan, et al., ACS Catal. 8 (2018) 3803-3811.

[84]

R. Gao, D. Yan, Nano Res. 11 (2018) 1883-1894.

[85]

L. He, W. Zhang, Q. Mo, et al., Angew. Chem. Int. Ed. 59 (2020) 3544-3548.

[86]

P. Ding, F. Luo, P. Wang, et al., J. Mater. Chem. A 8 (2020) 1105-1112.

[87]

W. Zhang, N. Li, Z. Xie, et al., Int. J. Hydrogen Energy 44 (2019) 21858-21864.

[88]

S. Zhao, R. Jin, H. Abroshan, et al., J. Am. Chem. Soc. 139 (2017) 1077-1080.

[89]

J.W.D. Ng, M. García-Melchor, M. Bajdich, et al., Nat. Energy 1 (2016) 1-8.

[90]

H.S. Oh, H.N. Nong, T. Reier, et al., J. Am. Chem. Soc. 138 (2016) 12552-12563.

[91]

M. Gong, Y. Li, H. Wang, et al., J. Am. Chem. Soc. 135 (2013) 8452-8455.

[92]

H. Gu, G. Shi, H.C. Chen, et al., ACS Energy Lett 5 (2020) 3185-3194.

[93]

M. Gorlin, J. Ferreira de Araujo, H. Schmies, et al., J. Am. Chem. Soc. 139 (2017) 2070-2082.

[94]

F. Cheng, X. Feng, X. Chen, et al., Electrochim. Acta 251 (2017) 336-343.

[95]

Y. Wang, T. Wang, R. Zhang, et al., Inorg. Chem. 59 (2020) 9491-9495.

[96]

T. Bhowmik, M.K. Kundu, S. Barman, ACS Appl. Energy Mater. 1 (2018) 1200-1209.

[97]

Z. Sun, L. Lin, C. Nan, et al., ACS Sustainable Chem. Eng. 6 (2018) 14257-14263.

[98]

S. Chen, F. Bi, K. Xiang, et al., ACS Sustain. Chem. Eng. 7 (2019) 15278-15288.

[99]

D. Zhou, Z. Cai, X. Lei, et al., Adv. Energy Mater. 8 (2018) 1701905.

[100]

Y.J. Yang, M. Duan, C. Yan, et al., J. Electroanaly. Chem. 856 (2020) 113697.

[101]

M. Arif, G. Yasin, M. Shakeel, et al., Mater. Chem. Front. 3 (2019) 520-531.

[102]

L. Yu, H. Zhou, J. Sun, et al., Nano Energy 41 (2017) 327-336.

[103]

P. Ma, H. Yang, Y. Luo, et al., ChemSusChem 12 (2019) 4442-4451.

[104]

Y. Huang, X. Chen, S. Ge, et al., Catal. Sci. Technol. 10 (2020) 1292-1298.

[105]

R. Yang, Y. Zhou, Y. Xing, et al., Appl. Catal. B: Environ. 253 (2019) 131-139.

[106]

C. Hao, Y. Wu, Y. An, et al., Mater. Today Energy 12 (2019) 453-462.

Appendix

Less

Year 2022 volume 33 Issue 6

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1016/j.cclet.2021.10.034

Receive Date：2021-08-30
Online Date：2025-12-19
Published：2022-06-15

Article Data

Affiliations

History

Received：2021-08-30
Revised：2021-09-26
Accepted：2021-10-15

Affiliations

^aCollege of Chemistry and Materials Science, and Guangdong Provincial Key Laboratory of Functional Supramolecular Coordination Materials and Applications, Jinan University, Guangzhou 510632, China

^bSchool of Materials Science and Engineering, and Guangdong Provincial Key Laboratory of Advanced Energy Storage Materials, South China University of Technology, Guangzhou 510640, China

^cNingbo Fengcheng Advanced Energy Materials Research Institute Co., Ltd., Ningbo 315000, China

References

Share

https://castjournals.cast.org.cn/joweb/ccl/EN/10.1016/j.cclet.2021.10.034

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

Table 1 The physicochemical properties of amorphous and crystalline electrocatalysts.

Table 2 OER performance of representative catalysts via doping foreign elements.

Table 3 OER performance of representative catalysts via defect engineering.

Table 4 OER performance of representative catalysts via hybridization.

Fig. 1 Ideal structure of (a) brucite-like β-Co(OH)₂ and (b) hydrotalcite-like CoFe LDH (Co/Fe = 3/1) stacked along the crystallographic c-axis with intercalated water and carbonate anions (randomly distributed). (c) Top-view along the c-axis of CoFe LDH.

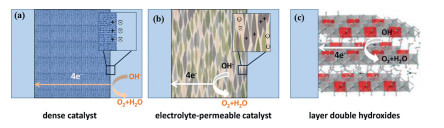

Fig. 3 Comparison of dense, electrolyte-permeable and LDHs catalysts. (a) Dense catalysts are electrolyte-impermeable, and the surface charge of catalyst is compensated by an electrical double layer. (b) Electrolyte-permeable catalysts screen electronic charge on the catalyst with mobile solution ions (inset), leading to no electrostaticpotential drop across the catalyst. (c) LDHs possess ionicconductivity and electrolyte intercalated between the nanosheets.

Fig. 4 The proposed water nucleophilic attack (WNA) and oxo–oxo coupling (I2M) mechanisms for electrochemical water oxidation in alkaline conditions.

Fig. 5 Operando Co K-edge XANES data collected for (a) CoO_xH_y, (b) Co_0.8Fe_0.2O_xH_y, and (c) Co_0.6Fe_0.4O_xH_y films. (d) Operando Fe K-edge XANES data. Pre-OER spectra were collected at potentials higher than the nominal Co²⁺/³⁺ oxidation wave and prior to OER onset. OER spectra were collected at potentials necessary to maintain 3–4 mA/cm² of OER current density. Potentials are given in overpotential, V vs. E_O₂/_OH^-. Reproduced with permission [44]. Copyright 2018, Wiley-VCH. (e) Schematic illustration of the cobalt 3d orbital interaction of catalytic surface with oxygen 2p orbital of electrolyte. (f) High-energy resolution fluorescence detection X-ray absorption spectroscopy of Co K-edge for pristine spinel and Co-Dom spinel. Operando HERFD-XAS and difference spectrum of Co K-edge for (g, h) pristine spinel and (i, j) Co-Dom spinel. Reproduced with permission [21]. Copyright 2018, American Chemical Society.

Fig. 6 Representative synthesis protocols of CoFe LDHs: Co-precipitation/homogeneous precipitation, electrodeposition and other alternative routes.

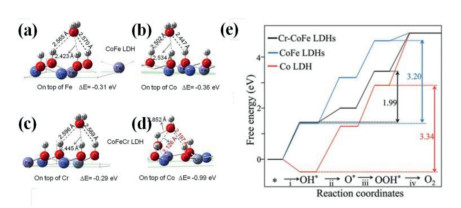

Fig. 7 Adsorptionenergies for H₂O on different sites. On top of (a) Fe and (b) Co sites of CoFe LDH; On top of (c) Cr and (d) Co sites of CoFeCr LDH. Reproduced with permission [64]. Copyright 2020, Elsevier. (e) Free energy diagram for the OER on three considered models at zero potential. Reproduced with permission [67]. Copyright 2019, Wiley-VCH.

Fig. 8 (a) Schematic illustration of the water-plasma-enabled exfoliation of CoFe LDH nanosheets. The DBD plasma reactor is designed with the plate-to-plate electrode at 50 V powered by the AC high voltage generator. Reproduced with permission [20]. Copyright 2017, Wiley-VCH. (b) LSV curves for OER on pristine CoFe LDHs and the water-plasma exfoliated CoFe LDH nanosheets. (c) Schematic illustration of synthesis of V-CoFe LDH and V-Ce/CoFe LDH. HER performances of CoFe LDH, V-CoFe LDH, Ce/CoFe LDH and V-Ce/CoFe LDH in 1 mol/L KOH electrolyte: (d) IR-corrected polarization curves. Reproduced with permission [71]. Copyright 2020, The Royal Society of Chemistry. (e) Schematic illustration of the Ar-plasma etching of bulk CoFe LDHs into defect-rich ultrathin nanosheets (NSs) to highlight photo-electro-integrated OER activity. (f) OER polarization curves of CoFe-LDH bulks and NSs in dark and light fields. Reproduced with permission [86]. Copyright 2020, The Royal Society of Chemistry

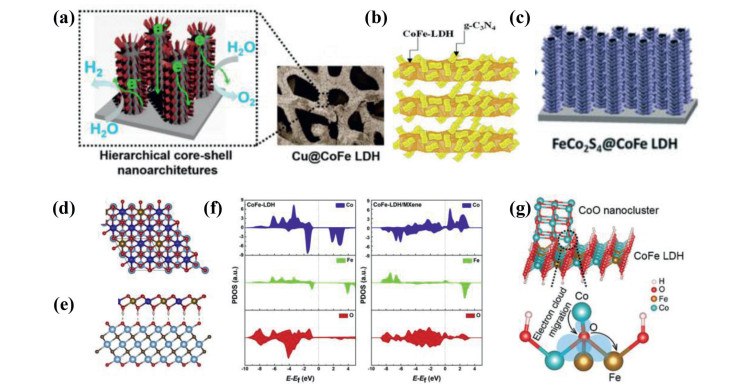

Fig. 9 (a) Cu@CoFe LDH core-shell nanostructure electrocatalysts. Reproduced with permission [102]. Copyright 2017, Elsevier. (b) CoFe-LDH@g-C₃N₄ hybrid semiconductor. Reproduced with permission [101]. Copyright 2019, The Royal Society of Chemistry. (c) FeCo₂S₄@CoFe LDH hybrid. Reproduced with permission [104]. Copyright 2020, The Royal Society of Chemistry. (d) Top view and (e) side view of model structure of CoFe-LDH/MXene hybrid system. The Co, Fe, Ti, O, C and H atoms are presented in blue, yellow, light blue, red, grey and white colors, respectively. (f) Projected density of states (PDOS) of individual CoFe-LDH and CoFe-LDH/MXene. The Fermilevel is shifted to zero. Reproduced with permission [106]. Copyright 2019, Elsevier. (g) Schematic illustration of electron transfer at the interface of the M-CoO/CoFe LDHs hybrid. Reproduced with permission [55]. Copyright 2018, Wiley-VCH.

Articles: Latest Articles; Most Read; Collections

Updates: Events; News; Multimedia

About: About Us

Contact

No. 86 Xueyuan South Road, Haidian District, Beijing

100081

010-62199257

qkjq@cast.org.cn

Copyright © 2025 China Association for Science and Technology. All rights reserved. For all open access content, the relevant licensing terms apply.
Sponsored by the Office of the Leading Group for Cybersecurity and Informatization of CAST, and supported by Science and Technology Review Publishing House
