A self-assembling prodrug nanosystem to enhance metabolic stability and anticancer activity of gemcitabine
收藏切换
PDF
Mei Conga, Guangling Xub, c, Shaoyou Yanga, Jing Zhangb, c, Wenzheng Zhangd, e, Dinesh Dhumald, Erik Laurinif, Kaiyue Zhangd, Yi Xiae, Sabrina Priclf, g, Ling Pengd, *, Weidong Zhaob, c, **
Chinese Chemical Letters | 2022, 33(5) : 2481 - 2485
Less
收藏切换
Chinese Chemical Letters | 2022, 33(5): 2481-2485
• Communication •
A self-assembling prodrug nanosystem to enhance metabolic stability and anticancer activity of gemcitabine
Full
Mei Conga, Guangling Xub, c, Shaoyou Yanga, Jing Zhangb, c, Wenzheng Zhangd, e, Dinesh Dhumald, Erik Laurinif, Kaiyue Zhangd, Yi Xiae, Sabrina Priclf, g, Ling Pengd, *, Weidong Zhaob, c, **
Affiliations
  • a School of Pharmacy, Xinxiang Medical University, Xinxiang 453003, China
  • b Henan Key Laboratory of Immunology and Targeted Drugs, School of Laboratory Medicine, Xinxiang Medical University, Xinxiang 453003, China
  • c Henan Collaborative Innovation Center of Molecular Diagnosis and Laboratory Medicine, School of Laboratory Medicine, Xinxiang Medical University, Xinxiang 453003, China
  • d Aix-Marseille Université, CNRS, Center Interdisciplinaire de Nanoscience de Marseille, UMR 7325, Equipe Labellisé par La Ligue, Marseille 13288, France
  • e Chongqing Key Laboratory of Natural Product Synthesis and Drug Research, School of Pharmaceutical Sciences, Chongqing University, Chongqing 401331, China
  • f Molecular Biology and Nanotechnology Laboratory, Department of Engineering and Architecture, University of Trieste, Trieste 34127, Italy
  • g Department of General Biophysics, Faculty of Biology and Environmental Protection, University of Lodz, Lodz 90-236, Poland
Published: 2022-05-15 doi: 10.1016/j.cclet.2021.11.083
Outline
收藏切换

Self-assembly is a powerful approach in molecular engineering for biomedical applications, in particular for creating self-assembling prodrugs. Here, we report a self-assembling prodrug of the anticancer drug gemcitabine (Gem) based on amphiphilic dendrimer approach. The prodrug reported in this study demonstrates high drug loading (40%) and robust ability to self-assemble into small nanomicelles, which increase the metabolic stability of Gem and enable entry into cells via endocytosis, hence bypassing transport-mediated uptake. In addition, this prodrug nanosystem exhibited an effective pH- and enzyme-responsive release of Gem, resulting in enhanced anticancer activity and reduced toxicity. Harboring advantageous features of both prodrug- and nanotechnology-based drug delivery, this self-assembling Gem prodrug nanosystem constitutes a promising anticancer candidate. This study also offers new perspectives of the amphiphilic dendrimer nanoplatforms for the development of self-assembling prodrugs.

Self-assembling prodrug  /  Gemcitabine  /  Amphiphilic dendrimer  /  Anticancer candidate  /  Nanomicelles
Mei Cong, Guangling Xu, Shaoyou Yang, Jing Zhang, Wenzheng Zhang, Dinesh Dhumal, Erik Laurini, Kaiyue Zhang, Yi Xia, Sabrina Pricl, Ling Peng, Weidong Zhao. A self-assembling prodrug nanosystem to enhance metabolic stability and anticancer activity of gemcitabine[J]. Chinese Chemical Letters, 2022 , 33 (5) : 2481 -2485 . DOI: 10.1016/j.cclet.2021.11.083
Full Text
Less
Self-assembly is a powerful approach for creating new functional materials in various applications [1]. Of particular interest is the recently emerging self-assembling prodrug (SAPD) approach for drug delivery [2]. SAPD is based on the spontaneous self-assembly of amphiphilic molecule into well-defined supramolecular structure, with the goal of enhancing drug efficacy while overcoming drug instability and toxicity. We report here our efforts to elaborate SAPDs for enhancing the stability and activity of the anticancer drug gemcitabine while reducing its toxicity.
Gemcitabine (Gem) is an important nucleoside drug widely used in clinical practice for treating various cancers including pancreatic, breast, ovarian and non-small cell lung cancers [3-8]. However, the clinical performance of Gem is greatly compromised by its metabolic instability due to the fast enzymatic conversion to the inactive metabolite fluorodeoxyuridine (dFdU) [9]. In addition, specific transporters, such as human equilibrative nucleoside transporter (hENT) [10], are required for the cellular intake of Gem; and the expression of such transporters is often low or suppressed in many cancer cells, resulting in an inefficient cellular uptake of Gem and hence poor treatment response. In order to achieve a satisfactory clinical response, high doses of Gem are usually administered and in combination with other drugs, which frequently lead to serious side effects. To overcome these limitations, various drug delivery systems have been developed for improving the therapeutic efficiency of Gem, with lipid and polymer vectors being the most widely studied [11-18].
However, as inert drug excipients and vector components account for the major part of the mass of such delivery systems, the drug loading is rather low. To solve this dilemma, the self-assembling prodrug (SAPD) approach represents a particularly promising strategy [2, 19-21]. SAPD incorporates drug that not only has a therapeutic purpose but also has a structural role within the resulting self-assembled nanoparticle. This effectively reduces the amount of drug carrier required and, at the same time, enables the exploitation of nanotechnology-based drug delivery, notably: (ⅰ) an abundance of drug molecules within the same nanoparticle, hence enhancing drug efficacy; (ⅱ) the ability to enter cells via endocytosis, thus bypassing transporter-mediated cellular uptake; and (ⅲ) the specific accumulation within tumors via the "enhanced permeability and retention" (EPR) effect for passive tumor targeting [22, 23].

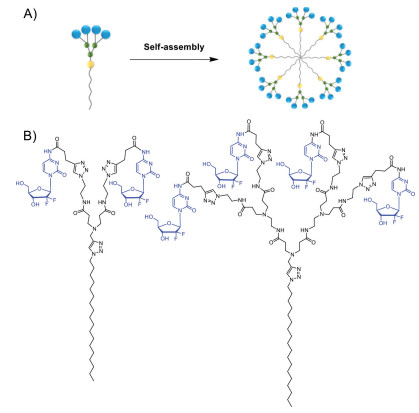

In this context, we have been particularly interested in elaborating nanotechnology-based self-assembling prodrugs of Gem. Inspired by the self-assembling dendrimer nanosystems established in our group for drug delivery (Fig. 1A) [24-27], we developed amphiphilic dendrimers Ⅰ and Ⅱ as SAPDs of Gem (Fig. 1B). Specifically, Gem entities are appended covalently to the terminals of the amphiphilic dendrimers, which are composed of a hydrophobic alkyl (C18) tail and a hydrophilic poly(amidoamine) (PAMAM) dendron. One of these Gem-dendrimer conjugates in particular, Ⅰ, is able to self-assemble into small nanoparticles (GemNPs) that protect Gem against enzymatic transformation and promote effective cellular uptake via endocytosis while bypassing the transporter-mediated uptake and facilitating acid- and enzyme-promoted drug release, ultimately achieving much more potent anticancer activity with reduced adverse effects compared to the free drug Gem. We present these results below.

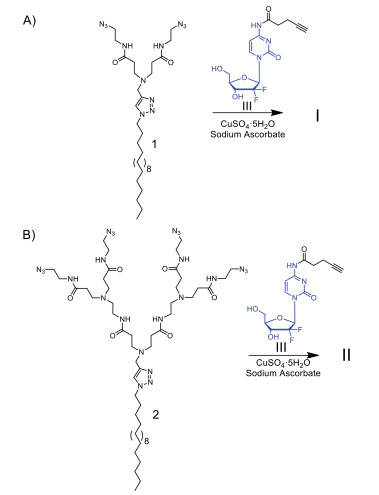

We synthesized the Gem-dendrimer conjugates Ⅰ and Ⅱ via click chemistry using the alkynyl-bearing gemcitabine analogue Ⅲ and the corresponding azido-carrying dendrimers 1 and 2, respectively (Scheme 1 and Schemes S1–S3 in Supporting information). The precursors Ⅲ, 1 and 2 were prepared readily using reported protocols [28, 29]. The click reaction between Ⅲ and 1 or 2 proceeded very well, and both Ⅰ and Ⅱ were obtained in pure state, as confirmed by NMR spectroscopy and high-resolution mass spectroscopy (HRMS) (Figs. S1–S4 in Supporting information).
By virtue of the covalent prodrug conjugation, both Ⅰ and Ⅱ have high and stable loading content of Gem up to 40 wt% and 42 wt%, respectively, calculated from their molecular structure and chemical composition. Unfortunately, Ⅱ was not soluble in water. We therefore continued all further studies using Ⅰ, the conjugate showing much better solubility.

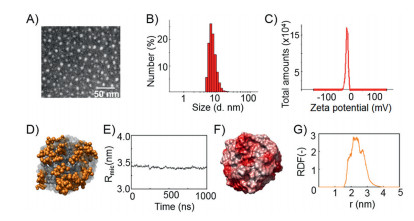

We first studied the self-assembly of Ⅰ by determining its critical micelle concentration (CMC) using fluorescence spectroscopy with pyrene as fluorescent probe (Fig. S5 in Supporting information). The packing and self-assembling ability of Ⅰ was demonstrated with a CMC value of 11 µmol/L. In addition, Ⅰ formed spherical nanomicelles (hereafter referred to as GemNPs) of around 7.0 nm in water, as revealed by transmission electron microscopy (TEM) (Fig. 2A). This was further confirmed with results obtained from dynamic light scattering (DLS) analysis, which clearly demonstrated the formation of small particles (Fig. 2B) with dimensions in the range of typical nanomicelles. Importantly, the zeta potential of GemNPs, found to be around −20 mV (Fig. 2C), enables the generation of electrostatic repulsion and prevents aggregation of NPs, making GemNPs colloidally stable. Also, the negatively charged NPs would be expected to demonstrate a repulsive interaction with the often negatively charged cell membrane and serum proteins, hence being less toxic.
In order to confirm the spontaneous self-assembling of Ⅰ into GemNPs, we performed extensive runs (1.0 µs) of molecular dynamics (MD) simulations. Starting from a random distribution of Ⅰ in solution, the MD approach permitted the achievement of stable GemNPs, as shown in Fig. 2D. The calculated average micelle radius (Rmic) was around 3.4 nm (Fig. 2E), matching the GemNPs dimensions obtained using both DLS and TEM. The electrostatic potential at the surface of the simulated GemNPs was found to be negative (Fig. 2F), in agreement with the experimentally-derived negative surface zeta potential. Further examination of the conformational structures of the formed GemNPs and the relevant radial distribution of the amphiphilic dendrimer terminal groups (Fig. 2G) revealed the absence of backfolding and the location of the Gem moieties at the micellar periphery, in line with the structure of the stable GemNPs shown in Fig. 2D.

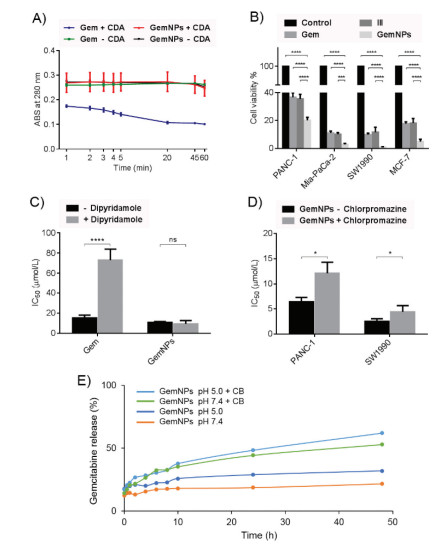

Considering the metabolic instability of Gem due to its fast enzymatic deamination to the inactive form dFdU by cytidine-deaminase (CDA) that is responsible for the reduced efficacy of this anticancer drug [9], we wished to assess the protective capacity of GemNPs against this enzyme. We used an in vitro CDA ELISA assay to inspect whether CDA could metabolize the Gem entities within the GemNPs, with the free Gem serving as the control. Gem (100 µmol/L) or equivalents from GemNPs (100 µmol/L) were incubated with 0.25 µg of CDA at 37 ℃, and the absorbance was recorded at λ = 280 nm. The decrease in the absorbance intensity was indicative of deamination [30]. As shown in Fig. 3A, free Gem was rapidly deaminated as illustrated by a significant reduction in its absorbance intensity in the presence of CDA. This result is consistent with the literature report showing the high susceptibility of free Gem to enzymatic deamination by CDA [30]. However, conjugated Gem held within GemNPs was unaffected by CDA, as shown by the similar results obtained in the presence and in the absence of CDA. These results demonstrate that GemNPs effectively protected Gem from deamination. The resistance of GemNPs to CDA deamination can be explained by both the protection of the amino group in Gem via amide bond formation in Ⅰ and the steric hindrance of the Gem entities at the surface of the GemNPs (Fig. 2D), the latter of which hampers access of CDA to Gem terminals. The GemNPs ultimately enhance therefore the metabolic stability of Gem.
Motivated by the increased metabolic stability and high drug loading offered by GemNPs, we further assessed the anticancer activity on different cancer cell lines including human pancreatic cancer cell lines PANC-1, Mia-PaCa-2 and SW1990 as well as the human breast cancer cell line MCF-7. Using CCK8 assay, we evaluated cancer cell proliferation upon treatment with GemNPs, the free drug Gem, the single Gem prodrug Ⅲ and a non-treatment control (Fig. 3B). The concentration of Gem was 50 µmol/L for all tested compounds. GemNPs demonstrated a much stronger ability to inhibit cancer cell proliferation with respect to the free Gem and the Gem prodrug Ⅲ, highlighting the beneficial role of GemNPs in enhancing the antitumor activity of Gem.
A reasonable explanation for the observed enhanced antiproliferative activity of GemNPs compared to the free drug Gem is an increased amount of Gem molecules able to enter cancer cells through alternative cell entry pathways. Indeed, cellular uptake of hydrophilic Gem requires special transport systems such as the human equilibrative nucleoside transporter (hENT) [10], whereas nanosized particles enter cells often via endocytosis. In order to check whether cellular uptake of GemNPs occurs independently of hENT, we assessed and compared the antiproliferative activity of GemNPs in the presence and absence of dipyridamole, a hENT inhibitor. Our results show that GemNPs demonstrated similar antiproliferative activity in the presence and absence of dipyridamole, with an IC50 value of 11 µmol/L and 9.4 µmol/L, respectively (Fig. 3C). This indicates that blocking the nucleoside transporter did not affect the cytotoxicity of GemNPs. As a control, the IC50 values for free Gem were 73 µmol/L and 15 µmol/L in the presence and absence of dipyridamole, respectively (Fig. 3C), highlighting that the cytotoxicity of free Gem is highly reliant on the nucleoside transporter, in accordance with the literature report [31]. Collectively, our results demonstrate that GemNPs inhibit cancer cell proliferation in a nucleoside transporter-independent manner.
In order to confirm that endocytosis is indeed the cellular uptake pathway used by GemNPs, we further evaluated and compared the antiproliferative activity of GemNPs in the presence and absence of chlorpromazine, an inhibitor for endocytosis pathway on the pancreatic cancer cells PANC-1 and SW1990. As shown in Fig. 3D, GemNPs exhibited much stronger antiproliferative activity in the absence of chlorpromazine on both PANC-1 and SW1990 cell lines. These data demonstrate that blocking endocytosis effectively reduced the anticancer activity of GemNPs, indicating that endocytosis is importantly involved in cellular uptake of GemNPs.
It is to mention that the endocytosis-mediated cell uptake can further favor the acid- and enzyme-promoted drug release of the prodrug nanoparticles in the acidic and protease-rich endosomes. This is particularly beneficial to drug release from GemNPs, as Gem is covalently linked within Ⅰ via amide linkage and reluctant to be released under normal physiological conditions. Usually, the amide bond is very stable, and needs specific enzymatic action to be cleaved under mild conditions, hence being frequently used as an enzyme-responsive linker of gemcitabine and other drug molecules [2, 32]. Nevertheless, the exocyclic amide bond which protects the amino function in gemcitabine is often activated for breakdown thanks to the electron withdrawing character of the nucleobase. We therefore assessed Gem release from GemNPs at pH 5.0 and in the presence of the enzyme, cathepsin B (CB), in order to mimic the acidic and enzyme-rich endosomes. Cathepsin B is a cysteine protease which plays an prominent role in intracellular proteolysis, and has been frequently used as a model enzyme for studying enzyme-promoted drug release from prodrug systems [33]. Solutions of GemNPs (0.50 mg/mL, 0.38 mmol/L, equivalent to 0.76 mmol/L Gem) were incubated in buffer at pH 7.4 or pH 5.0 and in the presence and absence of 20 µL of Cathepsin B (2445 U/mg) at 37 ℃, and the released Gem was quantified using HPLC. As shown in Fig. 3E, Gem release was increased at pH 5.0, and significantly enhanced in the presence of CB when compared to that at neutral pH 7.4 and in the absence of enzyme. Specifically, the drug release attained more than 60% of the total Gem in the presence of CB and at pH 5.0 after 48 h. This result highlights a pH- and enzyme-promoted release of Gem from the GemNPs, being both effective and sustainable.

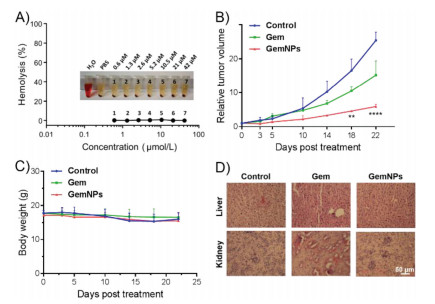

Encouraged by all these promising features of GemNPs, we wanted to evaluate their anticancer activity in vivo using pancreatic tumor-xenograft mice. Pancreatic cancer is one of the most lethal and devastating human cancers; and it has an overall survival rate less than 10% and a median survival less than 6 months [5]. Although Gem is the standard-of-care chemotherapy for treating pancreatic cancer, the therapeutic outcomes remain largely unsatisfactory because of the specific metabolism and transportation mechanisms of Gem [34]. Consequently, there is a pressing need to explore novel therapeutic modalities to combat pancreatic cancer. In this study, we therefore wanted to assess GemNPs for the anticancer efficacy using pancreatic cancer as the cancer model.
Before starting the animal experiments, we first assessed the potential hemolytic toxicity of GemNPs using mouse red blood cells. Gratifyingly, no notable hemolysis was observed with red blood cells after treated with GemNPs at varying concentrations from 0.50 µmol/L to 42 µmol/L, using water as a positive control and PBS buffer as a negative control (Fig. 4A). We then assessed the anticancer performance of GemNPs in vivo using pancreatic cancer SW1990 xenograft mice treated with saline, Gem or GemNPs at the equivalent Gem dose. We set the dosage of Gem of 7.0 mg/kg on the basis of the above in vitro evaluation data and numerous reported studies [35-37] in the view to inspecting the efficacy and the safety profile of GemNPs. The tumor size and the mouse body weight were monitored over 3 weeks. As shown in Fig. 4B, GemNPs significantly attenuated tumor growth, compared with the control groups of mice treated with saline or Gem alone, underlining the superior anticancer activity of GemNPs compared to the parent drug Gem. In addition, no significant body weight loss was observed upon treatment with GemNPs (Fig. 3C), suggesting that GemNPs were well tolerated.
As Gem is reported to cause serious side effects such as nephrotoxicity and hepatotoxicity, we further assessed the toxicity of GemNPs using H & E staining to assess any pathological changes in both liver and kidney of mice treated with GemNPs and free Gem intravenously. Mice treated with GemNPs showed no discernible effects of toxicity in either of these two organs (Fig. 4D). In contrast, however, we observed acute tissue injuries in both liver and kidney of xenograft mice treated with free Gem. These results emphasize the safety of GemNPs compared with free Gem, and collectively demonstrate the potential of this Gem prodrug for future therapeutic implementation.
In summary, we developed amphiphilic dendrimer conjugates Ⅰ and Ⅱ as self-assembling gemcitabine prodrugs. The conjugate Ⅰ is particularly promising because of its high drug loading (40%) and self-assembling ability into small and stable nanoparticles (GemNPs). GemNPs significantly increased the metabolic stability of Gem by preventing enzyme degradation, and at the same time, effectively enhanced cellular uptake via endocytosis while bypassing nucleoside transporter-mediated uptake. In addition, GemNPs released Gem effectively and sustainably in response to acid and enzyme action, leading to effective antiproliferative activity on different cancer cells and in tumor-xenograft mouse model without adverse effects. Collectively, these results demonstrate that this self-assembling Gem prodrug nanosystem constitutes a promising anticancer candidate. This study has also underlined the potential of self-assembling prodrug nanosystem to harness the combined advantages of both prodrug and nanotechnology-based drug delivery for improving drug stability and efficacy as well as reducing drug toxicity. We are actively pursuing this research direction.
Declaration of competing interest
Less
The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.
Acknowledgments
Less
Financial support was from the National Natural Science Foundation of China (Nos. 81903567, 31600109), Henan Programs for Science and Technology Development (No. 182102310221), Xinxiang Innovative Technology Team (No. CXTD17004), the PhD startup fund of Xinxiang Medical University (No. 505158) and the Ligue Nationale Contre le Cancer. This publication is based upon work from COST Action CA 17140 "Cancer Nanomedicine from the Bench to the Bedside".
Supplementary materials
Less
Supplementary material associated with this article can be found, in the online version, at doi: 10.1016/j.cclet.2021.11.083
References
Less
[1]
M.J. Webber, E.A. Appel, E.W. Meijer, R. Langer, Nat. Mater.15 (2016) 13–26.
[2]
A.G. Cheetham, R.W. Chakroun, W. Ma, H. Cui, Chem. Soc. Rev. 46 (2017) 6638–6663.
[3]
L. Toschi, G. Finocchiaro, S. Bartolini, et al., Future Oncol. 1 (2005) 7–17.
[4]
Y. Zhang, L. Chen, G.Q. Hu, et al., N. Engl. J. Med. 381 (2019) 1124–1135.
[5]
J.D. Mizrahi, R. Surana, J.W. Valle, R.T. Shroff, Lancet 395 (2020) 2008–2020.
[6]
E. Ferrazzi, L. Stievano, Ann. Oncol. 17 (2006) V169–V172.
[7]
N. Thatcher, F.R. Hirsch, A.V. Luft, et al., Lancet Oncol. 16 (2015) 763–774.
[8]
D. Lorusso, A. Di Stefano, F. Fanfani, G. Scambia, Ann. Oncol. 17 (2006) V188–V194.
[9]
H. Ueno, K. Kiyosawa, N. Kaniwa, Br. J. Cancer 97 (2007) 145–151.
[10]
N.J. Wright, S. Lee, Chem. Rev. 121, (2021) 5336–5358.
[11]
S. Paroha, J. Verma, R. Dhar Dubey, et al., Int. J. Pharm. 592 (2021) 10.1016/j. ijpharm. 2020.120043.
[12]
D. Sobot, S. Mura, S.O. Yesylevskyy, et al., Nat. Commun. 8 (2017) 10.1038/ncomms15678.
[13]
G. Birhanu, H.A. Javar, E. Seyedjafari, A. Zandi-Karimi, Biomed. Pharmacother. 88 (2017) 635–643.
[14]
Y.T. Tam, C. Huang, M. Poellmann, G.S. Kwon, ACS Nano. 12 (2018) 7406–7414.
[15]
P. Huang, D. Wang, Y. Su, et al., J. Am. Chem. Soc. 136 (2014) 11748–11756.
[16]
Y. Wang, P. Huang, M. Hu, et al., Bioconjugate Chem. 27 (2016) 2722–2733.
[17]
S. Zhou, Q. Shang, N. Wang, et al., J. Control. Release 328 (2020) 617–630.
[18]
S.T. Tucci, A. Kheirolomoom, E.S. Ingham, et al., J. Control. Release 309 (2019) 277–288.
[19]
Y.Z. Zhang, H.G. Cui, R.Q. Zhang, et al., Adv. Sci. 8 (2021) e2101454.
[20]
S.Y. Qin, A.Q. Zhang, S.X. Cheng, et al., Biomaterials 112 (2017) 234–247.
[21]
X. Liu J. Xiang, G. Yuan, R. Zhang, Q. Zhou, T. Xie, Y. Shen, Adv. Drug Deliv. Rev. 179 (2021) 114027.
[22]
M.J. Mitchell, M.M. Billingsley, R.M. Haley, et al., Nat. Rev. Drug Discov. 20 (2020) 101–124.
[23]
R. van der Meel, E. Sulheim, Y. Shi, et al., Nat. Nanotechnol. 14 (2019) 1007–1017.
[24]
Z. Lyu, L. Ding, A. Tintaru, L. Peng, Acc. Chem. Res. 53 (2020) 2936–2949.
[25]
C. Chen, P. Posocco, X. Liu, et al., Small 12 (2016) 3667–3676.
[26]
T. Wei, C. Chen, J. Liu, et al., Proc. Natl. Acad. Sci. USA 112 (2015) 2978–2983.
[27]
J. Liu, C. Chen, T. Wei, et al., Exploration 1 (2021) 21–34.
[28]
Z. Zhou, M. Cong, M. Li, et al., Chem. Commun. 54 (2018) 5956–5959.
[29]
N. Cox, J.R. Kintzing, M. Smith, et al., Angew. Chem. Int. Ed. Engl. 55 (2016) 9894–9897.
[30]
A. Abu-Fayyad, S. Nazzal, Int. J. Pharm. 528 (2017) 463–470.
[31]
X. Zhao, X. Wang, W. Sun, et al., Biomaterials 158 (2018) 44–55.
[32]
A.I. Antoniou, S. Giofrè, P. Seneci, et al., Drug Discov. Today 26 (2021) 1794–1824.
[33]
D. Dheer; J. Nicolas; R. Shankar., Adv. Drug Deliv. Rev. 151–152 (2019) 130–151.
[34]
H. Oettle, P. Neuhaus, A. Hochhaus, et al., JAMA 310 (2013) 1473–1481.
[35]
G.Y. Lee, W.P. Qian, L. Wang, et al., ACS Nano 7 (2013) 2078–2089.
[36]
L. Wu, F. Zhang, X. Chen, et al., ACS Appl. Mater. Interfaces 12 (2020) 3327–3340.
[37]
J. Li, Y. Di, C. Jin, et al., Nanoscale Res. Lett. 8 (2013) 176.
