Advances in cycloaddition and hydroaddition reaction of α-(trifluoromethyl)styrenes without defluorination: An alternative approach to CF3-containing compounds
收藏切换
PDF
Yupian Denga, Jingjing Hea, Song Cao*, a, Xuhong Qian*, a, b
Chinese Chemical Letters | 2022, 33(5) : 2363 - 2371
Less
收藏切换
Chinese Chemical Letters | 2022, 33(5): 2363-2371
• Review •
Advances in cycloaddition and hydroaddition reaction of α-(trifluoromethyl)styrenes without defluorination: An alternative approach to CF3-containing compounds
Full
Yupian Denga, Jingjing Hea, Song Cao*, a, Xuhong Qian*, a, b
Affiliations
  • aShanghai Key Laboratory of Chemical Biology, School of Pharmacy, East China University of Science and Technology (ECUST), Shanghai 200237, China
  • bSchool of Chemistry and Molecular Engineering, East China Normal University, Shanghai 200062, China
Published: 2022-05-15 doi: 10.1016/j.cclet.2021.11.049
Outline
收藏切换

α-(Trifluoromethyl)styrene and its derivatives have found wide applications in the fields of pharmaceuticals, agrochemicals, and advanced materials. They are also versatile trifluoromethyl-containing building blocks for the preparation of various trifluoromethyl-containing, fluorine-containing or nonfluorinated compounds. Recently, great efforts have been made to develop diverse reactions for rapidly accessing a wide range of valuable gem-difluoroalkenes and gem-difluoroalkylated compounds via defluorinative reaction or the defluorinative ipso-functionalization reaction of α-(trifluoromethyl)styrenes, respectively. In contrast, α-(trifluoromethyl)styrenes remain notably underdeveloped with respect to their use in cycloaddition and hydroaddition reaction with retaining of three CF bonds. This short review herein is aimed to summarize the recent progress on the cycloaddition and hydroaddition reaction including nucleophilic, radical and transition metal-catalyzed addition of α-(trifluoromethyl)styrenes without accompanying defluorination.

α-(Trifluoromethyl)styrenes  /  Cycloaddition and hydroaddition  /  Nondefluorination  /  CF3-containing compounds
Yupian Deng, Jingjing He, Song Cao, Xuhong Qian. Advances in cycloaddition and hydroaddition reaction of α-(trifluoromethyl)styrenes without defluorination: An alternative approach to CF3-containing compounds[J]. Chinese Chemical Letters, 2022 , 33 (5) : 2363 -2371 . DOI: 10.1016/j.cclet.2021.11.049
Full Text
Less
1 Introduction
Less

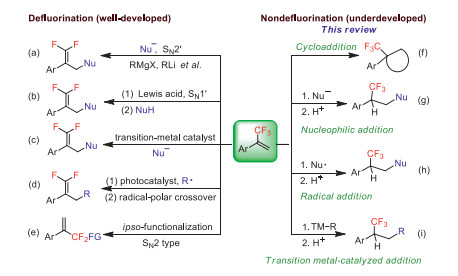

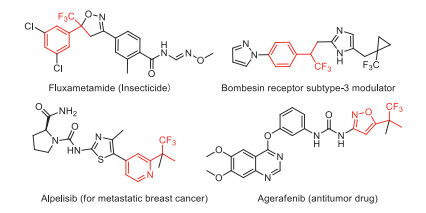

α-(Trifluoromethyl)styrenes have received a great deal of attention due to their important applications in the fields of pharmaceuticals, agrochemicals and functional materials [1, 2]. They are also versatile and useful trifluoromethyl-containing building blocks for the preparation of a diverse range of trifluoromethyl-bearing, fluorine-bearing and nonfluorinated organic compounds [3-7]. As a consequence, remarkable progress has been achieved in the transformation of α-(trifluoromethyl)styrenes to various structurally novel molecules [8, 9]. However, especially in recent years, most of the research efforts have been devoted towards the conversion of α-(trifluoromethyl)styrenes into gem-difluoroalkenes and gem-difluoroalkylated compounds via cleavage of the C-F bonds in the trifluoromethyl group (Schemes 1a–e) [10-14]. On the contrary, the incorporation of the CF3 group in α-(trifluoromethyl)styrenes into the final products without β-fluoride elimination remains largely unexplored. It is probably due to the fact that the C-F bond in α-(trifluoromethyl)styrenes is more easily cleaved in the presence of nucleophiles, nucleophilic radicals, transition-metal nucleophiles and base with formation of gem-difluoroalkenes and metal fluorides. Although there are several excellent reviews focusing on the defluorination of α-(trifluoromethyl)styrenes to generate gem-difluoroalkenes [15-18], no review articles have been published on the cycloaddition and hydroaddition of α-(trifluoromethyl)styrenes. On the other hand, the nucleophilic addition products, α-CF3 arylethyl group-containing compounds, have also found wide use in pharmaceutical and agrochemical sciences (Fig. 1) [19-23]. With the above considerations in mind, in this short review, we highlight the most recent advances in the cycloaddition and nucleophilic, radical and transition metal-catalyzed addition of α-(trifluoromethyl)styrenes without accompanying defluorination (Schemes 1f–i). It should be noted that this review concentrated on the cycloaddition and hydroaddition of α-(trifluoromethyl)styrenes, other aliphatic 2-trifluoromethyl-1-alkenes and trifluoromethyl-polyfluoroalkenes derivatives will not be included in this review. In addition, this review will focus on the most recent developments of the cycloaddition and hydroaddition of α-(trifluoromethyl)styrenes during the past two decades but mention to previous work when it is needed.
2 A brief discussion on the electronic properties of α-(trifluoromethyl)styrenes
Less
Generally, alkenes (such as I, α-methylstyrene, Scheme 2) are considered as nucleophiles and therefore they could be easily reacted with electrophiles. α-(Trifluoromethyl)styrene (II, Scheme 2) is activated alkene owing to the σ-electron-withdrawing effect of trifluoromethyl group. The electronic characteristics of the trifluoromethyl group have significant implications on the vinylic terminal carbon of α-(trifluoromethyl)styrene. Consequently, the terminal carbon atom of α-(trifluoromethyl)styrene is much more electron-poor than the corresponding α-methylstyrene arene I. The trifluoromethyl group on the carbon-carbon double bond can significantly decrease the LUMO energy level of the alkene [24, 25]. On the other hand, compared to other relatively strong electrophiles such as α, β-unsaturated ketone and ketone (III and IV, Scheme 2), α-(trifluoromethyl)styrene is slightly less reactive toward nucleophilic attack due to the absence of π-electron-withdrawing group (for example, ketone, ester, cyano, or nitro). These observations might be ascribed to the fact that the π-LUMO energies are lowered by attachment to a carbonyl group more than by attachment to CF3 group. Based on the above-mentioned considerations, we envision that α-(trifluoromethyl)styrenes could be used as the moderate electrophiles and a nucleophilic attack is expected to occur at the methylene terminus of the olefin. Although α-(trifluoromethyl)styrenes are appropriate electrophiles with enough reactivity toward nucleophiles, most resulting products are gem-difluoroalkenes and gem-difluoroalkylated compounds which are formed by via cleavage of the C-F bonds in the trifluoromethyl group. It is because the α-(trifluoromethyl)styrenes are susceptible to β-fluoride elimination when they react with nucleophiles in the presence of base or metal catalyst. In contrast, hydroaddition of α-(trifluoromethyl)styrenes with nucleophiles without accompanying defluorination has scarcely been explored.
3 Cycloaddition of α-(trifluoromethyl)styrene without breaking a CnullF bond
Less
Cycloaddition of α-(trifluoromethyl)styrene with different substrates is an efficient and practical strategy for the synthesis of novel trifluoromethyl-containing heterocycles and carbocycles. Although the defluorination products are seldom observed during the cycloaddition process, the use of α-(trifluoromethyl)styrene in cycloaddition reaction for the preparation of the trifluoromethyl-containing cyclic compounds is still underdeveloped. In this section, we extensively reviewed the cycloaddition of α-(trifluoromethyl)styrenes with various substrates.
3.1 Synthesis of trifluoromethyl-substituted three-membered rings
Trifluoromethyl-substituted cyclopropane (TFCp) is an important structural motif found in bioactive compounds. It is reported that CF3-substituted cyclopropane could be considered as a bioisostere of tert-butyl group and could increase metabolic stability of trifluoromethylated cyclopropyl group-containing molecules [26]. Up to now, numerous methods for the synthesis of CF3-substituted cyclopropanes have been developed [27]. One of the most common methods for the synthesis of CF3-substituted cyclopropanes involves the [3 + 2] cycloaddition of trifluoromethyl-substituted alkenes such as 2-trifluoromethylacrylates with diazoalkanes followed by a thermally-induced ring contraction [28]. However, the use of α-(trifluoromethyl)styrene as reactant has rarely been reported in the literature. For example, Barnes-Seeman reported the [3 + 2] cycloaddition of 2-(1-trifluoromethylvinyl)pyridine 1 with diazomethane [29]. The pyrolysis of the resulting 1-pyrazoline 2 at 140 ℃ afforded trifluoromethylcyclopropyl-containing pyridine 3 (Scheme 3).
In 2003, Nguyen et al. reported Fe-catalyzed cycloaddition of α-(trifluoromethyl)styrene 4 with ethyl 2-diazoacetate 5. A mixture of cis- and trans-isomers of cyclopropanes 6 was obtained in 84% yield (Scheme 4) [30]. However, only one example was described. The authors also indicated that the yield decreased dramatically and only 28% of 6 was obtained in absence of iron(III) complexes. One example of Fe-catalyzed cycloaddition of α-(trifluoromethyl)styrene 4 with diazo acetonitrile, generated in situ from amine 7, has also been reported (Scheme 5). A trifluoromethyl and nitrile-substituted cyclopropane 8 was formed in moderate yield [31].

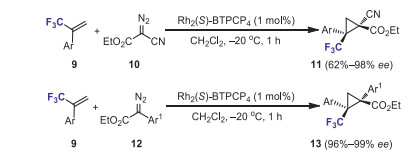

In 2018, Charette and Jubault et al. developed a general and efficient access to chiral functionalized trifluoromethyl cyclopropanes 11 and 13 via the enantioselective Rh-catalyzed cyclopropanation of α-trifluoromethyl styrenes 9 with ethyl α-cyanodiazo acetate 10 and α-aryl diazo acetates 12, respectively (Scheme 6) [32]. The cyclopropanation proceeded smoothly at −20 ℃ in the presence of 1 mol% Rh2(S)-BTPCP4, affording various polyfunctionalized trifluoromethylated cyclopropanes in moderate to high yields with high diasteroselectivities and enantioselectivities. In addition, the synthetic utility of the valuable trifluoromethylated cyclopropanes was demonstrated by derivatization reactions and several useful enantiomerically pure cyclopropanes were synthesized efficiently.
Single-electron access to cyclopropanes still remains underdeveloped. No photooxidizable C1 reagent for radical cyclopropanation has emerged in the literature. To bridge this gap, in 2018, Gutierrez and Molander's group designed and synthesized three novel halomethyl-based silicate reagents (14a–14c) (Scheme 7) [33]. During the course of screening the reaction conditions for the redox-neutral cyclopropanation of olefins, they found that the distribution of trifluoromethyl-substituted cyclopropane 15 and undesired gem-difluoroalkene 16 was highly dependent on the halomethyl silicate employed and iodomethyl-based silicate reagent 14c could provide the expected cyclopropanation product 15 in excellent yield. Subsequently, the scope and limitations of the novel redox-neutral cyclopropanation of α-(trifluoromethyl)styrenes 9 with iodomethylsilicate 14c were investigated (Scheme 8). This reaction exhibited a broad substrate scope and a variety of functional groups were well tolerated under the optimized reaction conditions, providing trifluoromethyl-substituted cyclopropanes 15 in moderate to good yields. Based on the results of theoretical and experimental mechanistic investigation, they indicated that the reaction likely proceeds via an anionic 3-exo-tet ring closure.
The Johnson–Corey–Chaykovsky reaction is an alternative and convenient approach to cyclopropane. For example, Xiao et al. used (2, 2, 2-trifluoroethyl)diphenylsulfonium triflate as an efficient ylide reagent for the Johnson–Corey–Chaykovsky reaction [34]. The cyclopropanation of α, β-unsaturated ketones with sulfonium salt (Ph2S+CH2CF3OTf-) could afford trans-trifluoromethyl and carbonyl group-containing cyclopropanes in high yields. Inspired by the Johnson–Corey–Chaykovsky reaction involving sulfonium ylide, recently, Cyr and Marinier et al. described a mild and diazo-free method for the synthesis of trifluoromethyl cyclopropanes by the cyclization of 1-aryl-1-trifluoromethyl ethylenes 9 with sulfonium ylide (Ph2SMeBF4, 17). In most cases, trifluoromethyl alkenes bearing electron-neutral, -rich and -poor rings could provide the corresponding CF3-cyclopropanes 15 in good yields. This strategy may provide an alternative approach to prepare useful trifluoromethyl-cyclopropanes (Scheme 9) [35].
In addition, another specific example of cyclopropanation reaction needs to be mentioned is that the 2-trifluoromethyl-1, 3-enynes are capable of undergoing ylide cyclopropanation. In 2019, Liu and Wang et al. reported a highly diastereoselective cyclopropanations of trifluoromethylenynes 19 with aroyl sulfur ylides 18. A variety of CF3-substituted cyclopropanes containing alkynyl and carbonyl groups 20 were synthesized under mild reaction conditions (Scheme 10) [36]. However, when α-(trifluoromethyl)styrene 9 was used as substrate, no cyclopropanation product 15 was obtained. The authors speculated that the electron-withdrawing character of the alkynyl group might further lower the LUMO energy level of trifluoromethylenyne. They also indicated that no fluoride elimination was observed.
More recently, Koenigs et al. developed a novel protocol for the photocatalytic synthesis of trifluoromethylated aziridines 22 by Ru-catalyzed direct aziridination reactions of α-trifluoromethyl styrene with iminoiodinane (21, PhINTs) under visible-light irradiation from 3 W blue LEDs (470 nm) (Scheme 11) [37]. The reaction exhibited good substrate scope and functional group compatibility. The authors indicated that the nitrene radical anion 23 served as a reactive intermediate in the aziridination reaction.
3.2 Synthesis of trifluoromethyl-substituted five- and six-membered rings
The important application of these α-(trifluoromethyl)styrenes has been in their use as dipolarophiles for 1, 3-dipolar cycloaddition. Although α-(trifluoromethyl)styrenes are electron-deficient alkenes, generally, they are not good dipolarophiles for 1, 3-dipolar cycloaddition due to the absence of a strong electron-withdrawing π-acceptor such as cyano, ester, ketone, nitro or sulfone. Therefore, the use of α-(trifluoromethyl)styrene as dipolarophile to undergo the 1, 3-dipolar cycloaddition is rare. In consideration of the strong electron-withdrawing nature of the CF3 group which could decrease the LUMO energy levels of the alkenes, α-(trifluoromethyl)styrenes were expected to act as dipolarophile in [3 + 2] cycloaddition reactions [24, 25].
As early as 1991, Bégué et al. investigated the 1, 3-dipolar cycloaddition between nitrone (N-(benzylidene)-methylamine-N-oxide 24 and α-(trifluoromethyl)styrene 4. A diastereoisomeric mixture of trifluoromethyl isoxazolidines 25 was obtained in 65% yield (Scheme 12) [38].
Two years later, Bégué et al. studied the 1, 3-dipolar cycloaddition of non-stabilized azomethine ylide 26 with several trifluoromthylated olefins. They found α-(trifluoromethyl)styrene 4 was also a good dipolarophile and could afforded polysubstituted 3-trifluoromethyl-pyrrolidine 27 in 80% yield (Scheme 13) [39].
Morehead et al. developed Rh-catalyzed asymmetric hydroacylation of 2-formyl α-(trifluoromethyl)styrene 28 and a chiral 3-trifluoromethyl indanone 29 was synthesized in high yield with 99% ee (Scheme 14) [40]. Unfortunately, only one example was reported.
In 2015, the group of Trost has demonstrated the first example of the palladium-catalyzed [3 + 2] cycloaddition of trimethylenemethane (30, TMM) with α-(trifluoromethyl)styrenes. This novel method allows for the preparation of various exomethylene cyclopentanes bearing a quaternary center substituted by the trifluoromethyl group 31. The σ-electron-withdrawing trifluoromethyl group played a key role in this cycloaddition. In addition, when 2-bromo α-(trifluoromethyl)styrene 32 was used as substrate, undesired β-fluorine elimination occurred and gem-difluoroalkene 33 was formed exclusively (Scheme 15) [41].
Recently, much attention has been paid to the synthesis of trifluoromethyl-containing isoxazoline derivatives due to their wide applications in pesticide chemistry. Treatment of α-(trifluoromethyl)styrene 34 with oxime 35 in the presence of NaOCl would produce isooxazoline 36 (Scheme 16), which is the key intermediate of insecticide [42]. Another method for the synthesis of CF3-containing isoxazolines was the cyclization of α-(trifluoromethyl)styrene 9 with ethyl nitroacetate in the presence of a catalytic amount of DABCO (1, 4-diazabicyclo[2.2.2]octane). The reaction was carried out in anhydrous EtOH at 80 ℃ for 80 h and the target products, ethyl 5-aryl-5-(trifluoromethyl)−1, 2-dihydroisoxazole-3-carboxylates 37 were obtained in 65%–75% yields (Scheme 17) [43].

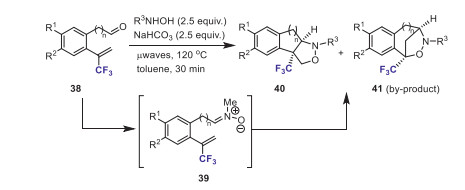

In 2017, Pozo and Fustero et al. described an intramolecular 1, 3-dipolar cycloaddition of ortho-substituted α-(trifluoromethyl)styrene-derived nitrones 39, which were generated in situ from α-(trifluoromethyl)styrenes bearing an aldehyde functionality in the ortho position 38 and N-alkylhydroxylamine hydrochloride. Tricyclic fused isoxazolidines bearing a quaternary trifluoromethyl moiety 40 were obtained as major or exclusive products, whereas the bridged cycloadducts were formed as by-products 41 (Scheme 18) [44]. They also suggested that the role of the trifluoromethyl group is crucial in the regioselectivity of the reaction, leading to the formation of fused isoxazolidines preferentially or exclusively.
In continuation of their interest in new cycloaddition of α-(trifluoromethyl)styrenes bearing an aldehyde in the ortho position 38, Pozo and Fustero et al. disclosed a novel method for the synthesis of tri- and tetracyclic fused pyrrolidines bearing a quaternary trifluoromethyl group 43 by means of an intramolecular azomethine ylide 44 cycloaddition with trifluoromethylated dipolarophiles 38. The intermediates 44, azomethine ylides (AMY), were generated in situ from the reaction of 38 with α-amino acids 42 in toluene. Intramolecular cycloaddition of azomethine ylides could afford tricyclic and tetracyclic pyrrolidines in moderated yields in a stereoselective manner (Scheme 19) [45].
In 2020, Tsubaki et al. used α-(trifluoromethyl)styrene 4 as dipolarophile to react with O-alkyloxime-substituted nitroalkanes 45. The 1, 3-dipolar cycloaddition reaction proceeded efficiently in the presence of dehydrating reagent PhNCO, affording trifluorinated 2-isoxazoline 46 in high yield (Scheme 20) [46].
More recently, our group developed an efficient method for the synthesis of bis(trifluoromethyl)-substituted pyrazolines 48 via [3 + 2] cycloaddition reactions of 2, 2, 2-trifluorodiazoethane 47 with α-(trifluoromethyl)styrenes 9 in the presence of a catalytic amount of Et3N (Scheme 21) [47]. A range of bis(trifluoromethyl)-substituted 2-pyrazolines were obtained in good to excellent yields. This method also exhibits wide functional group compatibility. The results indicated that α-(trifluoromethyl)styrenes could be used as excellent dipolarophile partners in [3 + 2] dipolar cycloaddition [48, 49].
α-(Trifluoromethyl)styrenes could also be used as substrates for the synthesis of six-membered rings. For example, in 1992, Bégué et al. reported the preparation of CF3-substituted cyclohexene 50 by the Diels-Alder reaction of Danishefsky's diene 49 with α-(trifluoromethyl)styrene under high pressure (Scheme 22) [50]. For comparison purpose, when α-methylstyrene was used as substrate, no cycloaddition occurred and polymeric material was formed.
In 2018, Cheng et al. disclosed a useful method for the synthesis of enantiopure trifluoromethyl-substituted chromenones via a one-pot carbene-catalyzed umpolung/oxidation process of CF3 substituted o-allyloxybenzaldehyde 51. A variety of enantiopure chromenones having trifluoromethylated stereogenic center in the β position of the carbonyl group 52 was synthesized in moderate to good yields with excellent enantioselectivities (Scheme 23) [51].
4 Hydroaddition of α-(trifluoromethyl)styrenes without accompanying defluorination
Less
Recently, Altman and co-workers have extensively investigated the nucleophilic hydrofunctionalization reactions of gem-difluoroalkenes without affecting the C-F bond. This fluorine-retentive strategy provides a facile and efficient alternative for the preparation of the difluorinated compounds [52, 53]. While hydroaddition of α-(trifluoromethyl)styrenes without β-fluoride elimination is still in its infancy in terms of reaction efficiency, yield and types. Although a few examples involving the hydroaddition of (trifluoromethyl)styrenes have been reported, but examples that delivers the hydroaddition products as the main products are rare. In most cases, hydroaddition products are observed or formed as by-products. In some other cases, the formation of the defluorination products and hydroaddition products depends significantly on the reaction conditions used.
4.1 The hydroaddition products as the main products
In 2016, Zhang et al. found that in contrast to the results of the reaction of α-trifluoromethyl-α, β-unsaturated carbonyl compounds with nucleophiles, N-tosylated 2-aminomalonates 53, no defluorination products were observed when α-(trifluoromethyl)styrenes were used, instead, the unexpected nucleophilic addition products 54 were obtained as the sole product (Scheme 24) [54]. α-(Trifluoromethyl)styrenes bearing strong electron-withdrawing 54b and 54c had a beneficial effect on the yield of the addition reaction. When (3, 3, 3-trifluoroprop-1-en-2-yl)benzene was used as substrate, the yield of addition product 54a decreased to 9%.
In 2019, Wang et al. developed a versatile and powerful approach to valuable β-CF3 ketones 56 through the photocatalytic hydroacylation of α-(trifluoromethyl)styrenes with aldehydes 55 (Scheme 25) [55]. The tetrabutylammonium decatungstate (TBADT) was used as a hydrogen-atom-transfer (HAT) photocatalyst for acyl C–H activation. The TBADT-catalyzed hydroacylation method offered several remarkable advantages including high functional group tolerance, excellent regioselectivity and complete atom economy. Under the optimized condition, the β-elimination was effectively suppressed.
One example of iridium-catalyzed asymmetric hydroboration of α-(trifluoromethyl)styrene 9 with HBpin has been reported by Pàmies and Diéguez (Scheme 26) [56]. In contrast to other 1, 1-disubstituted aryl olefins, which provided the hydroboration products with high enantioselectivity, α-(trifluoromethyl)styrene 9 gave the hydroborated product 57 with poor enantioselectivity.
During the course of their investigation on the direct deoxygenative ketone synthesis from aromatic carboxylic acids 58 and alkenes in the presence of photocatalyst, Zhu's group found that α-(trifluoromethyl)styrene was also a good coupling partner and afforded the trifluoromethylated ketone 59 in good yield (Scheme 27) [57].
In 2021, Xiang and Yang et al. reported a visible-light-induced sulfonation of α-(trifluoromethyl)styrenes 9 with sodium sulfinates 60. A variety of structurally diverse novel α-trifluoromethyl-β-sulfonyl tertiary alcohols 61 were obtained in good yields (Scheme 28) [58]. The authors proposed a CTC (charge-transfer complexes)-involved mechanism for this photoinduced process. The radical RSO2• was added to the double bond of α-trifluoromethylstyrenes to give the trifluoroalkyl radical species 62. Radical cross-coupling of radical 62 and superoxide anion radical (HO2•) led to peroxide intermediate 63. The cleavage of the peroxide bond of 63 furnished the desired products 61.
TBHP (tert-butyl hydroperoxide)-promoted regioselective 1, 2-difunctionalization of alkenes has attracted considerable attention from synthetic chemists. It is an efficient tool for the synthesis of functionalized alcohols. In 2021, Zhu et al. developed a novel and facile method for the synthesis of various useful α-trifluoromethyl-β-aryloxy tertiary alcohols 64 through a regioselective one-pot, three-component reaction of α-(trifluoromethyl)styrenes, TBHP and boronic acids (Scheme 29) [59]. This hydroetherification proceeded smoothly under mild reaction conditions and provided the CF3-containing tertiary alcohols in high yields. TBHP might serve as the oxidant, nucleophile and O-source of the products. The addition of tert-butyl peroxide anion to α-(trifluoromethyl)styrene resulted in the formation of the epoxide intermediate 65. The regioselective nucleophilic ring-opening reaction of epoxide 65 with aryloxy anion (ArO–), which is generated in situ from TBHP and boronic acids, would afford the intermediate 66. Further protonation of intermediate 66 gave the expected products 64.
The above-mentioned two bifunctionalization of α-(trifluoromethyl)styrenes would provide a practical strategy for the preparation of various functionalized CF3-containing compounds.
More recently, our group developed two unprecedented Cs2CO3-catalyzed and DBU-mediated nucleophilic additions of TMSCN to α-(trifluoromethyl)styrenes. The reaction proceeded efficiently at room temperature under mild and transition-metal free conditions without accompanying defluorination of trifluoromethyl group. A range of structurally diverse CF3-containing linear nitriles 67 were obtained in moderate to excellent yields in a highly regioselective manner (Scheme 30) [60].
4.2 The generation of hydroaddition and defluorination products depending on the reaction conditions

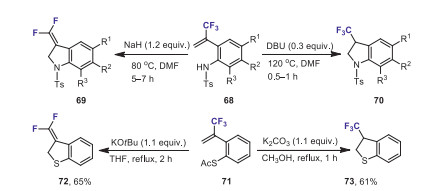

In 2008, Ichikawa et al. reported the disfavored nucleophilic 5-endo-trig cyclization of 1-(trifluoromethyl)vinyl compounds to yield five-membered hetero- and carbocycles bearing fluorinated one-carbon units. The cyclization of α-(trifluoromethyl)styrenes bearing a nucleophilic nitrogen atom at the ortho position 68 in the presence of NaH could afford 3-(difluoromethylene)indolines 69 through intramolecular SN2′ reaction with loss of a fluoride ion. The use of DBU as base resulted in the formation of intramolecular nucleophilic addition products, 3-(trifluoromethyl)indolines 70 (Scheme 31) [61]. Furthermore, 3-difluoromethylene 2, 3-dihydrobenzo[b]thiophene 72 and 3-trifluoromethyl 2, 3-dihydrobenzo[b]thiophene 73 could be obtained by the cyclization of 2-(3, 3, 3-trifluoroprop-1-en-2-yl)thiophenol ester 71 through the nucleophilic substitution and addition, respectively, depending on the bases and solvents involved. The authors suggested that the sulfonamide NH group of 68 and/or DBU·H+ and CH3OH acted as a proton donor.

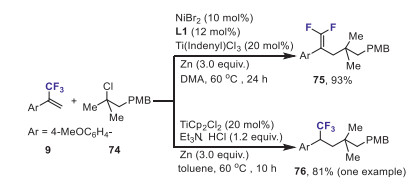

In 2019, Wang et al. disclosed a Ni, Ti-cocatalyzed reductive allylic defluorinative cross-coupling reaction of α-(trifluoromethyl)styrenes with unactivated alkyl chlorides and bromides. This new method provided an efficient and highly versatile entry to synthesis of a range of gem-difluoroalkenes. They also further demonstrated that the reaction of α-(trifluoromethyl)styrene 9 (Ar = 4-MeOC6H4-) with tertiary alkyl chloride 74 could provide the gem-difluoroalkene 75 (defluorination product) and addition product 76 (nondefluorination product) in good yields, respectively, under different reaction conditions (Scheme 32) [62].
4.3 The formation of hydroaddition products as by-products
As mentioned in the Introduction, α-(trifluoromethyl)styrenes can easily undergo β-F elimination to afford the gem-difluoroalkenes. Generally, gem-difluoroalkenes are obtained as the sole products, however, in some cases, hydroaddition products are detected as by-products. Considering the low yields of hydroaddition products obtained for the these reported examples, therefore, chances and challenges still remain, such as tuning the reaction conditions and finding proper ways to control the product distribution.
In 2017, Shimakoshi and Hisaeda et al. reported a photocatalytic reduction of α-(trifluoromethyl)styrenes in the presence of a catalytic amount of B12-TiO2 under UV light irradiation. A mixture of the defluorinated product, β, β-difluoro-α-methylstyrenes 77 and the hydrogenated product, α-trifluoromethyl ethylbenzenes 78, was formed (Scheme 33) [63]. The DFT calculations revealed that the reaction proceeded via α-radical intermediate 79 and carbanion intermediate 80.

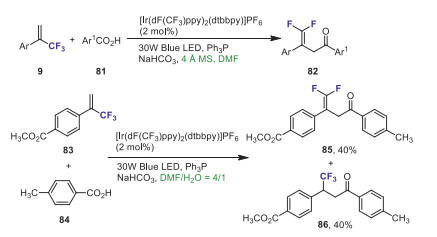

In 2020, Wang et al. described a visible-light-induced deoxygenation/defluorination protocol for synthesis of γ, γ-difluoroallylic ketones 82 from aromatic carboxylic acids 81 and α-(trifluoromethyl)styrenes 9. However, the coupling reaction of α-(trifluoromethyl)styrene 83 with carboxylic acid 84 using water and DMF as solvent, the γ, γ-difluoroallylic ketone 85 and addition product 86 were isolated in 80% total yield as a 1:1 mixture. The presence of water was beneficial for the formation of the trifluoromethyl-containing product (Scheme 34) [64]. A plausible mechanism involving the CF3-styrene carbon radical and CF3-styrene carbanion intermediate was suggested.
In 2008, Murakami et al. reported a rhodium-catalyzed addition reaction of arylboronic esters or phenylboronic acid to α-(trifluoromethyl)styrenes. The alkylrhodium(I) intermediate 87 underwent either β-fluoride elimination to afford gem-difluoroalkene 88 or protodemetalation with phenylboronic acid or H2O to give addition product 89 in the absence of additive (Scheme 35) [65].
In 2016, Zhou et al. investigated the Ir-catalyzed coupling reaction of 4-ester-substituted α-(trifluoromethyl)styrene 9 with benzoylformic acid 90 under the irradiation of a 5 W blue LED (Scheme 36) [66]. They found that a mixture of gem-difluoroalkene 91 and nondefluorination product 92 was obtained using 2, 6-lutidine as base. The gem-difluoroalkene 91 was isolated as the sole product by changing 2, 6-lutidine to LiOH. The reaction proceeded through a radical-polar crossover mechanism.
The copper catalyzed defluoroborylation of trifluoromethylalkenes with B2pin2 has been well-documented. In 2019, Hoveyda et al. disclosed that the borylation of (3, 3, 3-trifluoroprop-1-en-2-yl)benzene 4 with B2pin2 afforded difluoroallyl boronate 93 in excellent yield (GCMS) should be (GC-MS), along with a small amount of unexpected hydroborylation product 94. The Cu-F β-elimination and protonation of Cu-alkyl intermediate 95 furnished the defluorinative product 93 and CF3-containing product 94, respectively (Scheme 37) [67].
In 2020, Lu et al. have synthesized a diverse array of functionalized gem-difluoroalkene-containing alcohol compounds 97 through the nickel-catalyzed allylic defluorinative reductive cross-coupling of α-(trifluoromethyl)styrenes with epoxides 96 (Scheme 38) [68]. In some cases, the defluorinative products were obtained as a mixture with addition by-products. The gem-difluoroalkene 97 was formed via the β-F elimination of the key intermediate 99, whereas the by-product 98 was produced by the protonation of the intermediate 99.
In the same year, Wang et al. successfully synthesized a variety of gem-difluorobishomoallylic alcohols 101 from α-(trifluoromethyl)styrenes 9 and epoxides 100 via a titanocene-catalyzed reductive domino reaction. The by-product, CF3-containing alcohol 102, was also detected (Scheme 39) [69].

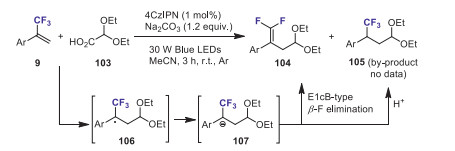

In 2020, Yi and Wei et al. developed a mild and transition-metal-free organo-photoredox catalyzed defluoroacetalation of α-trifluoromethyl alkenes 9 with glyoxylic acid acetal 103. This protocol was a straightforward access to diverse masked γ, γ-difluoroallylic ketones 104. The plausible reaction mechanism involved the formation of the stable α-CF3 benzyl radical 106 and the sp3-hybridized carbanion intermediate 107. The intermediate 107 underwent β-fluorine elimination to afford the desired product 104. However, as for some α-trifluoromethyl alkenes having electron-withdrawing group, the carbanionic intermediate 107 could be protonated, giving the competitive hydro-acetalation by-product 105 (Scheme 40) [70].

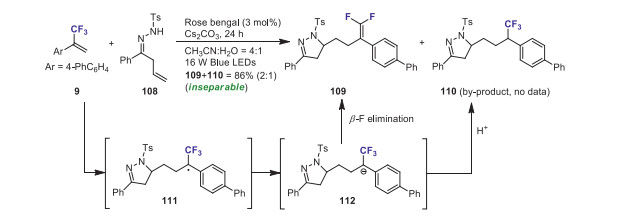

Recently, Zhou et al. described an novel visible-light-driven N-radical-mediated tandem radical cyclization/defluorinated alkylation of α-(trifluoromethyl)styrenes with β, γ-unsaturated hydrazones (Scheme 41) [71]. This method provided an alternative approach to valuable dihydropyrazole-fused gem-difluoroalkenes under redox-neutral, metal-free, and mild conditions. However, when the reaction of α-(trifluoromethyl)styrene with β, γ-unsaturated hydrazone 108 was performed in the presence of water (CH3CN: H2O = 4:1), an inseparable mixture of gem-difluoroalkene 109 and hydroaddition product 110 were formed. The ratio of 109 and 110 was 2:1. The authors suggested that the radical intermediate 111 and the carbanion intermediate 112 might be formed during this photocatalytic cycle. The carbanion intermediate 112 could be transformed to CF3-containing product 110 by trapping a proton from water.
In 2021, Wang et al. developed a chromium-catalyzed allylic defluorinative ketyl olefin coupling of aldehydes 113 with α-(trifluoromethyl)styrenes. This novel method enabled the rapid synthesis of diverse gem-difluorohomoallylic alcohols under mild and reductive conditions. The authors found that when α-(trifluoromethyl)styrenes bearing a strong electron-withdrawing group were subjected to the optimized reaction conditions, in addition to the desired allylic defluorinative product 114, a small amount of the nondefluorination by-product 115 was also detected (Scheme 42) [72].
5 Conclusions
Less
In summary, this review highlights the recent advances in cycloaddition and hydroaddition reaction of α-(trifluoromethyl)styrenes with various substrates without defluorination. Although several elegant transformations of α-(trifluoromethyl)styrenes to CF3-containing compounds have been reported in the past two decades, synthetic application of this strategy is still in its infancy mainly because of the simultaneous formation of the defluorination products, which are often the main reaction products. Despite the fact that the yields of hydroaddition products are generally low in most cases, plenty of room for improvement still remains with regard to reaction types, yields and substrate scope. The critical challenge is to suppress the undesired defluorination reaction. It is anticipated that the hydroaddition reaction of α-(trifluoromethyl)styrenes without affecting CF3 group will be an alternative approach to valuable CF3-containing compounds. We hope that this short review about the rarely explored hydroaddition reaction of α-(trifluoromethyl)styrenes would arise great interest in the chemical community and help to obtain deep insight into hydroaddition reaction.
Declaration of competing interest
Less
The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.
Acknowledgement
Less
We are grateful for the financial support from the National Natural Science Foundation of China (No. 21472043).
References
Less
[1]
Z. Shi, J. Davies, S. Jang, W. Kaminsky, A. Jen, Chem. Commun. 48 (2012) 7880-7882.
[2]
T. Konno, T. Daitoh, A. Noiri, et al., Org. Lett. 6 (2004) 933-936.
[3]
R.J. Wiles, J.P. Phelan, G.A. Molander, et al., Chem. Commun. 55 (2019) 7599-7602.
[4]
G. Chen, L. Wang, X. Liu, P. Liu, Adv. Synth. Catal. 362 (2020) 2990-2996.
[5]
P. Gao, G. Wang, L. Xi, et al., Chin. J. Chem. 37 (2019) 1009-1014.
[6]
T.T. Simur, T. Ye, Y. Yu, F. Zhang, Y. Wang, Chin. Chem. Lett. 33 (2021) 1193-1198.
[7]
Q. Gui, F. Teng, Z. Li, et al., Chin. Chem. Lett. 32 (2021) 1907-1910.
[8]
F. Chen, X. Xu, Y. He, G. Huang, S. Zhu, Angew. Chem. Int. Ed. 59 (2020) 5398-5402.
[9]
L. Wu, J. Cheng, L. Shen, Z. Shen, T. Loh, Adv. Synth. Catal. 360 (2018) 3894-3899.
[10]
G. Chelucci, Chem. Rev. 112 (2012) 1344-1462.
[11]
K. Fuchibe, H. Hatta, K. Oh, R. Oki, J. Ichikawa, Angew. Chem. Int. Ed. 56 (2017) 5890-5893.
[12]
W. Dai, Y. Lin, Y. Wan, S. Cao, Org. Chem. Front. 5 (2018) 55-58.
[13]
D. Anand, Z. Sun, L. Zhou, Org. Lett. 22 (2020) 2371-2375.
[14]
H. Zeng, Y. Cai, H. Jiang, C. Zhu, Org. Lett. 23 (2021) 66-70.
[15]
F. Tian, G. Yan, J. Yu, Chem. Commun. 55 (2019) 13486-13505.
[16]
T. Fujita, K. Fuchibe, J. Ichikawa, Angew. Chem. Int. Ed. 58 (2019) 390-402.
[17]
X. Zhang, S. Cao, Tetrahedron Lett. 58 (2017) 375-392.
[18]
H. Amii, K. Uneyama, Chem. Rev. 109 (2009) 2119-2183.
[19]
M. Asahia, M. Kobayashia, T. Kagami, et al., Pestic. Biochem. Physiol. 151 (2018) 67-72.
[20]
D. Chen, C.L. Franklin, P.R. Guzzo, et al., Patent WO 2008051404A2, 2008.
[21]
P. Furet, V. Guagnano, R.A. Fairhurst, Bioorg. Med. Chem. Lett. 23 (2013) 3741-3748.
[22]
H. Li, Y. Yu, Y. Zhao, et al., Cancer Lett. 457 (2019) 129-141.
[23]
H. Mei, A.M. Remete, Y. Zou, et al., Chin. Chem. Lett. 31 (2020) 2401-2413.
[24]
D. Bonnet-Delpon, J. Bégué, T. Leqneux, M. Ourevitch, Tetrahedron 52 (1996) 59-70.
[25]
I. Ojima, M. Yatabe, T. Fuchikami, J. Org. Chem. 47 (1982) 2051-2055.
[26]
M.V. Westphal, B.T. Wolfstädter, J. Plancher, J. Gatfield, E.M. Carreira, Chem. Med. Chem. 10 (2015) 461-469.
[27]
O.O. Grygorenko, O.S. Artamonov, I.V. Komarov, P.K. Mykhailiuk, Tetrahedron 67 (2011) 803-823.
[28]
T. Fuchikami, Y. Shibata, Y. Suzuki, Tetrahedron Lett. 27 (1986) 3173-3176.
[29]
D. Barnes-Seeman, M. Jain, L. Bell, et al., ACS Med. Chem. Lett. 4 (2013) 514-516.
[30]
S.K. Edulji, S.T. Nguyen, Organometallics 22 (2003) 3374-3381.
[31]
K.J. Hock, R. Spitzner, R.M. Koenigs, Green Chem. 19 (2017) 2118-2122.
[32]
W. Huang, C. Schlinquer, T. Poisson, et al., Chem. Eur. J. 24 (2018) 10339-10343.
[33]
J.P. Phelan, S.B. Lang, J.S. Compton, et al., J. Am. Chem. Soc. 140 (2018) 8037-8047.
[34]
Y. Duan, B. Zhou, J. Lin, Chem. Commun. 51 (2015) 13127-13130.
[35]
P. Cyr, J. Flynn-Robitaille, P. Boissarie, et al., Org. Lett. 21 (2019) 2265-2268.
[36]
S. Chen, J. Zhang, M. Yang, et al., Chem. Commun. 55 (2019) 3879-3882.
[37]
Y. Guo, C. Pei, S. Jana, R.M. Koenigs, ACS Catal. 11 (2021) 337-342.
[38]
J. Bégué, D. Bonnet-Delpon, T. Leqneux, J. Chem. Soc., Perkin Trans. 1 (1991) 2888-2889.
[39]
J. Bégué, D. Bonnet-Delpon, T. Leqneux, Tetrahedron Lett. 34 (1993) 3279-3282.
[40]
K. Kundu, J.V. McCullagh, A.T. Morehead, J. Am. Chem. Soc. 127 (2005) 16042-16043.
[41]
B.M. Trost, L. Debien, J. Am. Chem. Soc. 137 (2015) 11606-11609.
[42]
G.P. Lahm, D. Cordova, J.D. Barry, et al., Bioorg. Med. Chem. Lett. 23 (2013) 3001-3006.
[43]
A.L. Sigan, A.S. Golubev, E.V. Belyaeva, et al., Russ. Chem. Bull. Int. Ed. 68 (2019) 99-103.
[44]
F. Rabasa-Alcañiz, A. Asensio, M. Sánchez-Roselló, et al., J. Org. Chem. 82 (2017) 2505-2514.
[45]
A.S. Merino, F.R. Alcañiz, D. Gaviña, et al., Eur. J. Org. Chem. 39 (2019) 6606-6610.
[46]
N. Umemoto, A. Imayoshi, K. Tsubaki, Tetrahedron Lett. 61 (2020) 152213-152216.
[47]
C. Li, X. Zhang, J. He, S. Xu, S. Cao, Chin. J. Chem. 39 (2021) 301-306.
[48]
S. Lv, Y. Sun, Y. Xu, S. Yang, L. Wang, Chin. Chem. Lett. 31 (2020) 1568-1571.
[49]
B. Wang, H. Wang, H. Liu, et al., Chin. Chem. Lett. 31 (2020) 739-745.
[50]
J. Bégué, D. Bonnet-Delpon, T. Leqneux, J. Angelo, A. Guingant, Synlett (1992) 146-148.
[51]
B. Wang, L. Huang, Y. Hou, S. Lan, J. Cheng, Org. Lett. 20 (2018) 6012-6016.
[52]
K. Yuan, T. Feoktistova, P.H. Cheong, R.A. Altman, Chem. Sci. 12 (2021) 1363-1367.
[53]
D.L. Orsi, M.R. Yadav, R.A. Altman, Tetrahedron 75 (2019) 4325-4336.
[54]
J. Yang, X. Zhou, Y. Zeng, et al., Chem. Commun. 52 (2016) 4922-4925.
[55]
P. Fan, C. Zhang, Y. Lan, et al., Chem. Commun. 55 (2019) 12691-12694.
[56]
M. Magre, M. Biosca, O. Pàmies, M. Diéguez, ChemCatChem 7 (2015) 114-120.
[57]
M. Zhang, J. Xie, C. Zhu, Nat. Commun. 9 (2018) 3517-3526.
[58]
Y. Chen, Z. Wang, J. Xiao, et al., Org. Lett. 23 (2021) 6558-6562.
[59]
H. Li, C. Zhu, Synthesis (Mass) 53 (2021) 2881-2888.
[60]
S. Xu, Y. Deng, J. He, et al., Org. Lett. 23 (2021) 5853-5858.
[61]
J. Ichikawa, Y. Iwai, R. Nadano, T. Mori, M. Ikeda, Chem. Asian J. 3 (2008) 393-406.
[62]
Z. Lin, Y. Lan, C. Wang, Org. Lett. 21 (2019) 8316-8322.
[63]
H. Tian, H. Shimakoshi, K. Imamura, et al., Chem. Commun. 53 (2017) 9478-9481.
[64]
Y. Guo, R. Wang, H. Song, Y. Liu, Q. Wang, Org. Lett. 22 (2020) 709-713.
[65]
T. Miura, Y. Ito, M. Murakami, Chem. Lett. 37 (2008) 1006-1007.
[66]
T. Xiao, L. Li, L. Zhou, J. Org. Chem. 81 (2016) 7908-7916.
[67]
P.H.S. Paioti, J. Pozo, M.S. Mikus, et al., J. Am. Chem. Soc. 141 (2019) 19917-19934.
[68]
X. Lu, R. Jiang, J. Li, et al., Org. Biomol. Chem. 18 (2020) 3674-3678.
[69]
Z. Lin, Y. Lan, C. Wang, Org. Lett. 22 (2020) 3509-3514.
[70]
P. Xiang, L. He, H. Li, et al., Tetrahedron Lett. 61 (2020) 152369-152373.
[71]
Q. Gao, Z. Niu, Y. Chen, et al., Org. Lett. 23 (2021) 6153-6157.
[72]
C. Zhang, Z. Lin, Y. Zhu, C. Wang, J. Am. Chem. Soc. 143 (2021) 11602-11610.
Appendix
Less
Year 2022 volume 33 Issue 5
PDF
61
32
Cite this Article
BibTeX
Article Info
doi: 10.1016/j.cclet.2021.11.049
  • Receive Date：2021-09-11
  • Online Date：2025-12-19
  • Published：2022-05-15
Article Data
Affiliations
History
  • Received：2021-09-11
  • Revised：2021-11-10
  • Accepted：2021-11-14
Affiliations
    aShanghai Key Laboratory of Chemical Biology, School of Pharmacy, East China University of Science and Technology (ECUST), Shanghai 200237, China
    bSchool of Chemistry and Molecular Engineering, East China Normal University, Shanghai 200062, China
References
Share
https://castjournals.cast.org.cn/joweb/ccl/EN/10.1016/j.cclet.2021.11.049
Share to
QR

Scan QR to access full text

Cite this article
BibTeX
Citations
表12种不同金属材料的力学参数
科
Family		 属数
Number of
genus		 种数
Number of
species		 占总种数比例
Percentage of
total species (%)		 属
Genus		 种数
Number of
species		 占总种数比例
Percentage of total
species (%)
鹅膏菌科Amanitaceae 2 11 5.26 鹅膏菌属 Amanita 10 4.78
小菇科 Mycenaceae 2 12 5.74 丝盖伞属 Inocybe 5 2.39
多孔菌科 Polyporaceae 8 14 6.70 蜡蘑属 Laccaria 5 2.39
红菇科 Russulaceae 3 23 11.00 小皮伞属 Marasmius 6 2.87
小菇属 Mycena 11 5.26
光柄菇属 Pluteus 5 2.39
红菇属 Russula 17 8.13
栓菌属 Trametes 5 2.39
关闭全屏
  • BibTeX
  • EndNote
  • RefWorks
  • TxT
Links
Articles
Latest Articles
Most Read
Collections
Updates
Events
News
Multimedia
About
About Us
Contact
No. 86 Xueyuan South Road, Haidian District, Beijing
100081
010-62199257
qkjq@cast.org.cn

Copyright © 2025 China Association for Science and Technology. All rights reserved. For all open access content, the relevant licensing terms apply.
Sponsored by the Office of the Leading Group for Cybersecurity and Informatization of CAST, and supported by Science and Technology Review Publishing House
