POMs are an outstanding class of metal-oxygen anionic clusters composed of high-oxidation-state early transition metals (including Mo^VI, W^VI, V^V, Nb^V, Ta^V) with structural diversities and glamorous topological aesthetics, which have been widely used in various fields, such as medicine, optics, catalysis, material science and electronic sensors [1-11]. Lacunary POMs can be considered as one extraordinary kind of inorganic multidentate ligands for integrating transition-metal (TM) or rare-earth (RE) cations to produce diverse TM or RE-encapsulated POMs with fascinating architectures and newfangled properties [12-14]. Amongst them, TM-encapsulated POMs possess diversiform metal centers and present possible applications in catalysis, magnetism and electroconductivity [15-19]. For RE-encapsulated POMs, abundant electronic energy levels and flexible coordination modes of RE ions render them to become prospective linkers of lacunary POMs, presenting potential applications in luminescence and catalysis [20-22]. While, the design and preparation of TM-RE-included POMs (TRIPs) have attracted comprehensively growing attention on account of abundant structure types and spacious applications combined with the advantages of these two kinds of metals [23, 24]. Even so, continuous explorations on TRIPs still remain less developed because of unavoidable competing reaction amongst TM, RE and POM components [25]. Therefore, the preparation and exploration of TRIPs will remain a long-term and abiding challenge.

GTs, as a significant branch of POMs, have gradually become an attractive research hotspot and a challengeable field displaying latent performances in catalysis, magnetism, materials science and optics [26, 27]. Importantly, highly nucleophilic lacunary GTs are generally used as reactants to grasp TM and RE cations to further generate TM–RE-included GTs (TRIGs) [28]. For example, in 2010, a novel Ce–Mn co-embedded GT was prepared by incorporating Ce^IV ions into [Mn₄(H₂O)₂(B-α-GeW₉O₃₄)₂]^12-, which represents the first case of heterometallic 3d–4f Weakley-type structure [29]. Zhao et al. introduced the {Ce^IV/Mn^II/ox^2-} system into the trivacant [α-GeW₉O₃₄]^10- precursor to synthesize a neoteric TRIG [Ce₂(ox)₃(H₂O)₂]₂{[Mn(H₂O)₃]₂[Mn₄(GeW₉O₃₄)₂(H₂O)₂]^8- (ox = oxalate), which is the first 3-D organic-inorganic hybrid framework assembled from tetra-Mn sandwiched GTs and mixed Mn and Ce connectors [30]. Besides, a heterometallic hexameric GT [Fe₆Sm₆(H₂O)₁₂(α-GeW₁₀O₃₈)₆]^23- is composed of divacant [α-GeW₁₀O₃₈]^12- fragments and six {Fe-(µ₃-O)₃-Sm} linkers [31]. Zheng et al. reported unprecedented decameric TRIGs [RE₂₉Ge₁₀W₁₀₆O₄₀₆(OH)₄(H₂O)₂₈]^59- (RE = La^III, Ce^II) [32]. Our group has also made some progresses on TRIGs such as tetrameric and 1D Cu-RE encapsulated TRIGs constructed from two [Cu(en)₂]²⁺ or [Cu(dap)₂]²⁺ linkers and [RE(α-GeW₁₁O₃₉)₂]^13- (RE = Gd^III, Y^II) subunits [33–35].

Albeit enormous efforts have been devoted to explore fascinating TRIGs, some challenges still exist due to the following three reasons: (i) The majority of TM ions in TRIGs are Cu²⁺ions, in contrast, reports on other TM ions are relatively infrequent [29-34], [35]; (ii) Organic ligands of TRIGs are mainly flexible ligands, however, rigid organic ligands were less introduced in the construction of TRIGs [30-35]; (iii) Most of TRIGs are based on monovacant and trivacant fragments, but TRIGs based on divacant fragments or novel building blocks are very scarce [32]. Recently, upon our persistent exploration, using rigid 2-pyridinecarboxylic acid (Hpca), Fe³⁺ and Pr³⁺ cations are simultaneously introduced into the GT system to generate a glamorous pca-functionalized Fe^III–Pr^III-included 2-germano-20-tungstate [Pr(H₂O)₈]₂H₂[Fe₄(H₂O)₄(pca)₄Ge₂W₂₀O₇₂]•34H₂O (1) including a novel S-type [Ge₂W₂₀O₇₂]^16- cluster. To our knowledge, such 2-picolinate modified Fe^III–Pr^III co-embedded GT is very rare. In addition, the S-type [Ge₂W₂₀O₇₂]^16- cluster is a rarely seen POM segment. Moreover, the solid-state electrochemical properties of 1 have been carried out by entrapping it into a carbon paste electrode (CPE) for detecting norepinephrine (NPP).

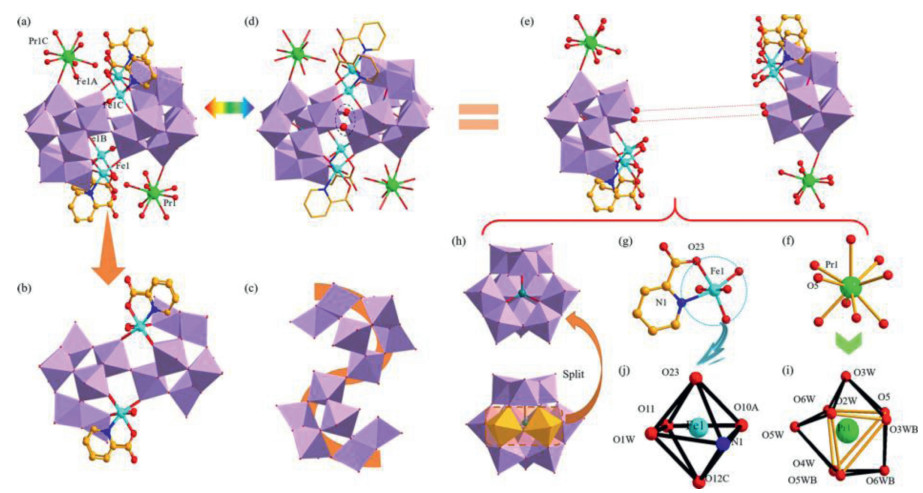

The powder X-ray diffraction (PXRD) (Fig. S1 in Supporting information) exhibits that the sample of 1 is pure. Crystallographic data of 1 are provided in Table S1 (Supporting information), showing that 1 belongs to the monoclinic space group C2/m. The molecular structure of 1 contains a tetra-Fe^III incorporated [Pr(H₂O)₈]₂[Fe₄(H₂O)₄(pca)₄Ge₂W₂₀O₇₂]^2– (1a) hybrid anion with two pendant [Pr(H₂O)₈]³⁺ cations (Fig. 1a). On one hand, the 1a hybrid anion can be taken as one [Fe₄(H₂O)₄(pca)₄Ge₂W₂₀O₇₂]^8- entity (Fig. 1b) suspended by two [Pr(H₂O)₈]³⁺ cations. The tetra-Fe^III incorporated [Fe₄(H₂O)₄(pca)₄ Ge₂W₂₀O₇₂]^8– entity is made up of a novel S-type [Ge₂W₂₀O₇₂]^16– cluster (Fig. 1c) that is stabilized by four [Fe(H₂O)(pca)]²⁺ groups. On the other hand, the 1a hybrid anion could be also regarded as condensation of two identical [Pr(H₂O)₈][Fe₂(H₂O)₂(pca)₂GeW₁₀O₃₆]^– moieties by sharing O1 and O1A atoms (Fig. 1d). Importantly, in each [Pr(H₂O)₈][Fe₂(H₂O)₂(pca)₂GeW₁₀O₃₆]^– moiety (Fig. 1e), the [Pr(H₂O)₈]³⁺ cation (Fig. 1f) is located at the vertex of [α-GeW₁₀O₃₇]^10– subunit whereas two [Fe(H₂O)(pca)]²⁺ groups (Fig. 1g) are located at the divacant sites of [α-GeW₁₀O₃₇]^10– subunit (Fig. 1h). From the viewpoint of crystallography, only one crystallographically independent Pr³⁺ ion and one crystallographically unique Fe³⁺ ion exist in the crystal structure. The coordination sphere of the Pr1³⁺ cation displays a nine-coordinate twisted tricapped triangular prism (Fig. 1i), in which the O5 atom is from the [α-GeW₁₀O₃₇]^10- segment [Pr–O5: 2.532(16) Å] and the remaining eight oxygen atoms originate from water ligands [Pr-O: 2.464(13)–2.60(2) Å]. In the Pr1³⁺ tricapped triangular prism, the O2W–O6W–O5–O3WB, O5–O3WB–O5WB–O4W and O5WB–O4W–O6W–O2W groups build the three side surfaces of the triangular prism while O3W, O6WB and O5W atoms are respectively located on three capped sites of the tricapped triangular prism. Besides, every Fe1³⁺ cation coordinates to one pca ligand, and every pca ligand adopts the bidentate coordination and coordinates to the Fe1³⁺ cation by means of the O23 and N1 atoms in a five-membered heterocyclic mode (Fig. 1g). The coordination sphere of the Fe1³⁺ cation presents a six-coordinate octahedron (Fig. 1j), in which the O23 and N1 atoms [Fe1–O23: 2.046(11) Å, Fe1–N1: 2.153(12) Å] originate from pca ligand, O12 and O10 atoms [Fe1-O12C: 1.922(10) Å, Fe1–O10A: 1.923(10) Å] come from one [α-GeW₁₀O₃₇]^10- segment and the O11 atom [Fe1–O11: 1.984(10) Å] is from the other [α-GeW₁₀O₃₇]^10- segment.

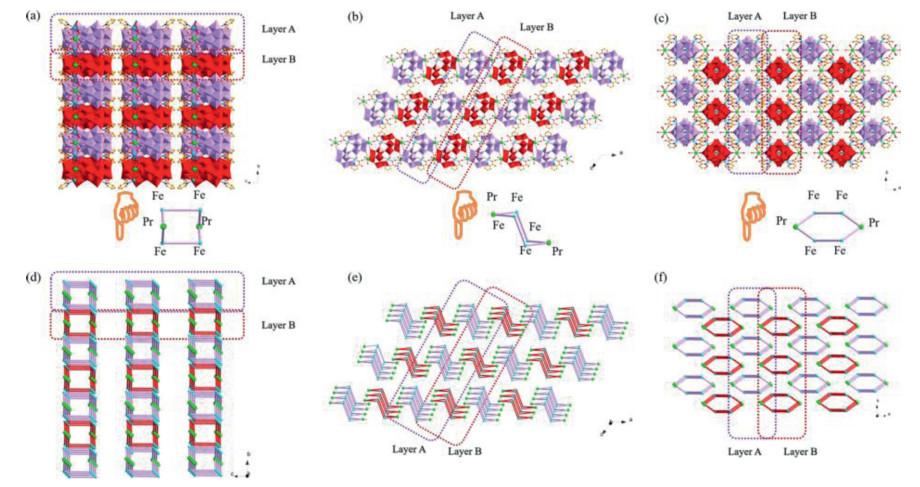

Ulteriorly, the 3D stacking arrangements of 1a hybrid anions along the a, b and c axes are exhibited in Fig. 2. 1a hybrid anions show the similar –ABAB– arrangement pattern in the bc, ac and ab planes (Figs. 2a–c). Simplified views of anions of 1 are shown in Figs. 2d–f. Interestingly, compared to the bc and ac planes, adjacent A and B layers viewed along the c axis are aligned in a staggered fashion, which contributes to decreasing the steric hindrance as much as possible.

NPP is a neurotransmitter and belongs to catecholamines in chemical structure. It is recommended as a vasopressor of first choice for clinical and pharmacological purposes, but this high dose catecholamine therapy may cause myocardial infarction, immunosuppression, and increased risk of death. Therefore, develop the technique of monitoring trace NPP concentration is of great significance for the diagnosis and treatment of various neurological diseases [36-39]. In recent years, the determination methods of NPP mainly include fluorescent nanoprobes, enzyme biosensors and electrochemical sensors [40, 41]. Electrochemical sensors toward NPP have been widely applied due to fast response speed, high detection efficiency, simple operation and low cost.

In fact, POM-based materials have been served as candidates for electrode materials because of their good electron exchange activity and redox ability [42-44]. Considering that the prepared crystalline material of 1 is difficult to dissolve in solvents under hydrothermal conditions, it can be mixed with carbon material to prepare 1-CPE. It is shown that CPE prepared by graphite powder have better sensitivity and detection limit than carbon black or acetylene black [45]. Therefore, in this paper, graphite powder (60 mg), 1 (20 mg) and liquid paraffin wax (50 µL) are mixed and ground evenly, and filled in the electrode to produce the 1-CPE electrochemical sensor to detect NPP. Before the electrochemically detecting NPP, the experiments to justify the stability of 1 in PBS were performed. Because 1 is insoluble in water, the crystals of 1 were immersed in PBS for 4 h and then the crystals were characterized by IR the spectrum (Fig. S2b in Supporting information). The IR spectra of 1 before and after immersing in PBS are almost the same, which illustrates the stability of 1 in PBS. First, CPE and 1-CPE were placed in the 0.10 mol/L NaH₂PO₄–Na₂HPO₄ buffer solution (PBS) (pH 6.50) for cyclic voltammetry (CV) measurement (Fig. S3 in Supporting information). Compared with the CPE, 1-CPE generates new oxidation peaks at +0.21 V and −0.18 V, among which the peak at +0.21 could be related to the redox process of Fe(III)/Fe(II) in 1, while the peak at −0.18 V may be attributed to the redox process of W(VI)/W(IV) centers [46, 47]. After that, CV curves of CPE and 1-CPE were measured in the PBS containing 1.00 mmol/L NPP (Fig. 3a). At this time, a strong oxidation peak appears at +0.52 V and a corresponding reduction peak appears at −0.34 V, which was due to the redox reaction of NPP. Meanwhile, the peak intensity measured by 1-CPE is much higher than that of CPE. Overall, it is indicated that the signal enhancement effect of 1 in 1-CPE is quite significant.

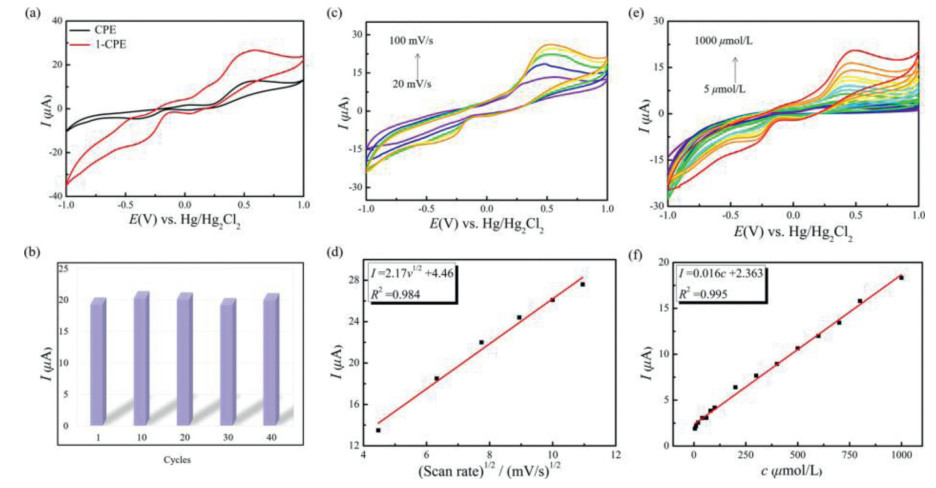

In order to examine the stability of 1-CPE, the CV method was used by 40 cycles in PBS (pH 6.50) containing 1.00 mmol/L NPP at a scan rate of 100 mV/s (Fig. S4 in Supporting information). As can be seen that the peak current value changes very little (Fig. 3b). Similarly, almost every curve is overlapped together in CV chart, and the change of the peak potential is very small, indicating that the stability of 1-CPE is good, which can meet the following experimental requirements.

In addition, the relationship between scan rate (ν) and peak current is explored. The peak current generated by 1-CPE in the PBS (pH 6.50) containing NPP at different scan rates of 20-100 mV/s was still tested. It can be seen from Fig. 3c that the oxidation peak potential becomes more positive with increasing scan rate, while the reduction peak potentials become more negative. Similarly, the peak current also changes regularly with the increase of scan rate: when the scan rate varies between 20 mV/s to 100 mV/s, the peak current (I_pc) is proportional to their square root, and the linear equation is I_pc (µA) = 2.29ν^1/2 (mV/s)^1/2 + 3.66, which reveals that the redox process of 1-CPE is diffusion-controlled (Fig. 3d) [48].

Based on the requirement for detecting the NPP concentration, we explored the relationship between the NPP concentration and the peak current by the CV method. As the NPP concentration increases from 5 µmol/L to 1000 µmol/L, the peak current also gradually increases, and there is a linear relationship between them: I_pc (µA) = 0.016c (µmol/L) + 2.363 (Figs. 3e and f). The limit of determination (LOD) for 1-CPE is calculated as 3.25 µmol/L on the base of three times the standard deviation of the blank sample. The low LOD and good linear relationship indicate the possibility for the efficient and rapid detection of the NPP concentration.

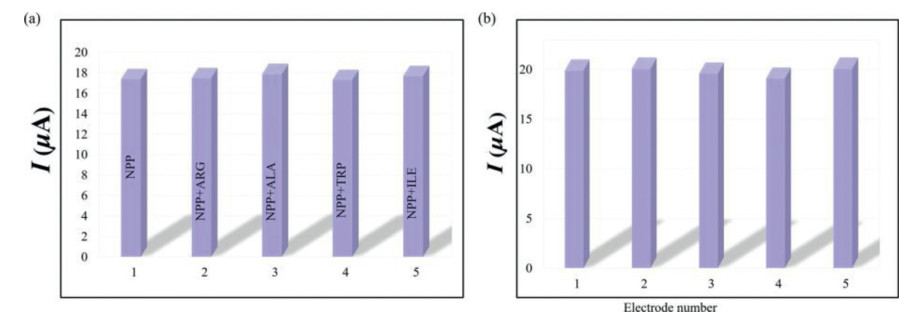

In order to further estimate the applicability of the 1-CPE, the reproducibility and antijamming capability were tested. On one hand, in the process of detecting biological small molecules, there are usually interferences from other small molecules. To this end, 1.00 mmol/L arginine (ARG), alanine (ALA), tryptophan (TRP) and isoleucine (ILE) were separately added in the PBS (pH 6.50) containing 1.00 mmol/L NPP to observe its antijamming ability. It can be concluded from the coincidence degree of curves measured by CV and the histogram of peak current that 1-CPE has good specificity detection capability (Fig. 4a and Fig. S5 in Supporting information). On the other hand, five electrodes were prepared and detected under the same conditions, and the relative standard deviation of peak current is 2.02%, which hints that 1-CPE electrochemical sensors have considerable reproducibility (Fig. 4b and Fig. S6 in Supporting information). To date, there are few reports on POM-based material to electrochemically detect NPP. The electrochemically detecting performances of 1-CPE towards NPP are comparable to those previously reported results [49-51].

In conclusion, we have hydrothermally synthetized and structurally characterized one pca-modified TRIG 1, whose hybrid anion shows an unusual assembly constructed from an unusual S-type [Ge₂W₂₀O₇₂]^16- cluster functionalized by four [Fe(H₂O)(pca)]²⁺ and two terminal [Pr(H₂O)₈]³⁺ groups. In addition, the electrochemical behaviors of 1 involving the detection toward NPP have been studied in the PBS, presenting potential applications in detection biomolecules. In the work, we can find that some unusual GT fragments can be continuously discovered by controlling appropriate hydrothermal reaction conditions. Moreover, the introduction and utilization of N-heterocyclic carboxylic acid ligands to the TM-RE-POM system is beneficial to construct and tune the structural diversity of TRIPs. In the future, others N-heterocyclic organic ligands and other different valent TMs will be introduced in the system to generate diverse TRIGs with novel structures and outstanding functional properties.
