Recent progress in advanced core-shell metal-based catalysts for electrochemical carbon dioxide reduction

Full

Fengqi Wang^a, Wenlong Zhang^a, Hongbin Wan^b, Chenxi Li^c, Wankai An^a, Xia Sheng^a, Xiaoyu Liang^a, Xiaopeng Wang^a^,^*, Yunlai Ren^a, Xin Zheng^a, Dongcan Lv^a, Yuchen Qin^a^,^*

Affiliations

^a College of Sciences, Henan Agricultural University, Zhengzhou 450000, China

^b Oilfield Technology Research Institute of Fengcheng Oilfield Operation Area, Xinjiang Oilfield Company, Karamay 834000, China

^c College of Life Science, Chongqing Normal University, Chongqing 401331, China

Published: 2022-05-15 doi: 10.1016/j.cclet.2021.08.074

Outline

Abstract

Less

Electrochemical carbon dioxide reduction (CO₂RR) plays an important role in solving the problem of high concentration of CO₂ in the atmosphere and realizing carbon cycle. Core-shell structure has many unique features including tandem catalysis, lattice strain effect, defect engineering, which exhibit great potential in electrocatalysis. In this review, we focus on the advanced core-shell metal-based catalysts (CMCs) for electrochemical CO₂RR. The recent progress of CMCs in electrocatalytic CO₂RR is described as the following aspects: (1) The mechanism of electrochemical CO₂RR and evaluation parameters of electrocatalyst performance, (2) preparation methods of core-shell metal catalysts and core-shell structural advantages and (3) advanced CMCs towards electrochemical CO₂RR. Finally, we make a brief conclusion and propose the opportunities and challenges in the field of electrochemical CO₂RR.

Key words

CMCs / Electrochemical CO₂RR / Tandem catalysis / Lattice strain effect / Defect engineering

Cite this Article

Fengqi Wang, Wenlong Zhang, Hongbin Wan, Chenxi Li, Wankai An, Xia Sheng, Xiaoyu Liang, Xiaopeng Wang, Yunlai Ren, Xin Zheng, Dongcan Lv, Yuchen Qin. Recent progress in advanced core-shell metal-based catalysts for electrochemical carbon dioxide reduction[J]. Chinese Chemical Letters, 2022 , 33 (5) : 2259 -2269 . DOI: 10.1016/j.cclet.2021.08.074

Full Text

Less

1 Introduction

Less

As the development of industry and society, the consumption of fossil fuels has increased seriously [1-5], resulting in excessive CO₂ emission [6-11]. The concentration of CO₂ has reached 412 ppm in 2020, which is higher than the safe limit of 350 ppm [12-15], leading to a series of environmental problems [16, 17]. Therefore, the efficient means of CO₂ conversion have been eagerly desired [18-21]. In recent years, electrochemical carbon dioxide reduction (CO₂RR) has attracted wide attention due to the lower energy consumption and environment friendly processes [22, 23]. Metal-based nanostructures are generally employed as catalysts for electrochemical CO₂RR. Although many efforts have been paid, the performance of CO₂ conversion and product selectivity are still unsatisfactory. The chemical stability of CO₂ leads to the high energy needed to activate CO₂ molecule, which is blocking the performance of CO₂ conversion. In addition, a wide variety of reduction products could be achieved owing to the multi-electron transfer mechanism of CO₂RR, resulting in the lower selectivity. Therefore, many researchers focus on the preparation of advanced metal-based catalysts to boost the activity and selectivity of electrocatalytic CO₂RR [24].

Recently, metal-based electrocatalysts with core-shell structure (CMCs) have exhibited great potential in electrochemical CO₂RR. For instances, Wu et al. utilized the non-classical epitaxial growth mediated by bromine anions (Br^–) to synthesize Pd@Ag cubes with Faraday efficiency (FE) of carbon monoxide (CO) as high as 85% at −0.8 V vs. reversible hydrogen electrode (RHE) in 0.5 mol/L KHCO₃, which is much higher than the counterparts of Pd octahedron, Ag nanoparticles and Pd-Ag nanoalloys [25]. Chloroplast-like porous bismuth-based core-shell (CPBC) materials present remarkable FE_formate > 94% with high catalysis durability (> 72 h) [26]. Based on their various structures, CMCs can be divided into solid core-shell structure and heterogeneous hollow structure, among which heterogeneous hollow structure includes yolk-shelled structure (solid inside) and interlayer-hetero hollow multi-shelled structure (hollow inside). The core-shell structure generally has a strong synergistic effect. Moreover, based on the lattice mismatch of the shell atoms and the core atoms, core-shell structure can produce strain effect and interfacial effect, which is beneficial to tune the electronic structure of catalysts and boost the CO₂RR performance. It is well known that metal nanoparticles (NPs) such as Au, Ag and Pd have excellent catalytic activity for electrocatalytic CO₂RR, while these metals are expensive and not suitable for large-scale applications. Fabricating CMCs could reduce the amount of noble metals, which is beneficial to reduce the cost and the large-scale production of catalyst. A stable Au-Fe core-shell nanoparticle (AuFe-CSNP) that is nearly 100 times more reactive to CO₂ reduction than Au NPs at a much lower cost. Additionally, owing to the various combination of core and shell components, CMCs can flexibly integrate many functions and play important roles in the many reactions, including electrochemical reduction of CO₂.

Herein, we summarize the recent developments of CMCs for electrochemical CO₂RR. First, the mechanism and evaluation parameters of electrocatalytic CO₂RR are discussed. Then, the preparation methods and structural advantages of CMCs are evaluated. Based on an in-depth understanding of mechanism and structural advantages, the advanced CMCs for electrochemical CO₂RR are reviewed according to the composition of the core and shell. Finally, a brief summary and several opportunities and challenges are provided for the development of electrochemical CO₂RR.

2 Fundamentals and evaluation parameters of electrochemical CO₂RR

Less

2.1 Mechanism of electrochemical CO₂RR

The C=O bond (750 kJ/mol) is more than twice the energy of the C−C bond (336 kJ/mol) and the C−O bond (327 kJ/mol) [27]. CO₂ is a linear molecule composed of two C=O molecules [28], resulting in the chemically stable. Electrocatalytic CO₂RR involves multi-electron or proton transfer steps, and the whole reaction can be roughly divided into three steps. In the first step, CO₂ molecules are briefly attached to the catalyst surface and then the atoms interact with each other. The second step is activating CO₂ to CO₂^·− by one electron transfer, which is the key process of CO₂ reduction. Then, CO₂^·− can be easily attached on the surface of catalysts and undergo further reactions. The formation of chemical bonds between CO₂ molecules and suitable electrocatalysts can stabilize CO₂^·− radical or reaction intermediates, which can reduce the negative redox potential and ultimately promote the reduction of CO₂ to other substances. As shown in Fig. 1, CO₂^·− could be further reduced to CO or other products through different electron transfer pathways. Excessive accumulation of reduction products on the surface will hinder the adsorption of new CO₂ molecules and affect the continuous process of subsequent reactions. Moreover, when the reduction product is CO, the accumulation of CO on the surface of the catalyst will poison the catalyst and eventually lead to the loss of catalytic activity. Therefore, the third step is desorption of reduction products from the catalysts, which plays an important role in the catalytic stability.

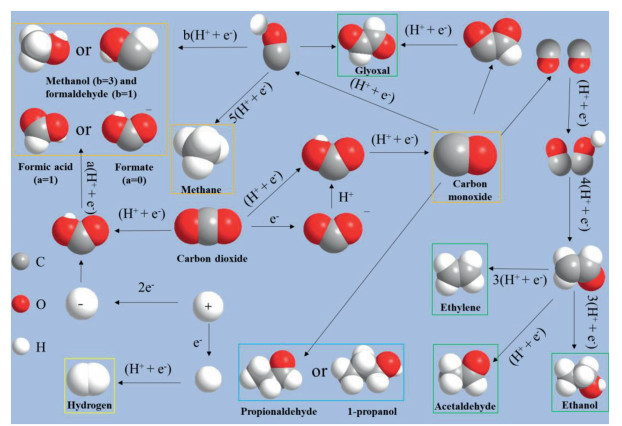

The reduction products generated by electrocatalytic CO₂RR in aqueous solution are different with different electron transfer numbers. Table 1 shows the half electrochemical thermodynamic reactions of the common C₁ and C₂₊ reduction products, their corresponding reduction potentials vs. standard hydrogen electrode (SHE) and the number of electrons transferred. The reaction products are closely related to the adsorption strength of CO at the active site of catalyst. When the CO intermediate is weakly adsorbed on the catalyst, it will desorb and become the main reduction product; when it adsorbs strongly on the catalyst (such as Pt or Pd), it will poison the surface of the catalyst. An intermediate strength of adsorption of CO results in the formation of hydrocarbons and oxygenates. The generation of advanced reduction products is generally divided into two steps: CO₂ is electrically reduced to CO, and then the bimolecular CO is electrically reduced to other advanced organic molecules. The occurrence of the second step reaction is closely related to the nature of the catalyst, local pH, electrolyte, temperature, the concentration of CO₂ and CO. The high overpotential associated with adverse thermodynamics and low FE of specific products are the biggest challenges for CO₂RR. The lattice mismatch between core and shell in the CMCs can be used to shift the d-band center of surface elements, leading to affect the adsorption strength of various intermediates. Therefore, core-shell catalysts can be used to improve the FE of specific products by reducing overpotential or creating new reaction pathways. Because of its unique structural composition, CMCs are easier to reduce CO₂ to higher C₂₊ products. In addition, it should be noted that hydrogen evolution reaction (HER) [29-31] generally is regarded as the primary competitive reaction for CO₂ reduction, which seriously affects the performance of CO₂ reduction.

2.2 Evaluation parameters of performance

In the electrocatalytic CO₂RR, the evaluation parameters of CO₂RR performance are mainly concerned with the following four aspects: FE, current density, turnover number (TON) and turnover frequency (TOF).

FE refers to the ratio of the amount of electric energy transferred to produce a specific product to the total amount of electric energy transferred, which reflects the selectivity to a specific product. The formula for FE is as follows Eqs. 1–3:

(1)

(2)

(3)

where α refers to the number of electrons transferred by the reaction, n_p refers to the number of moles of the reduction product, F refers to the Faraday constant, and Q is the total passed charge. FE_gas and FE_liquid are the FE of gas products and liquid products respectively. ppm is the concentration of the gas products, C_CO₂ represents the flow rate of CO₂, t is the reaction time, V_liquid, ρ_liquid, and M_liquid refer to the volume, density, and relative molecular weight of the liquid product respectively [32].

Current density refers to the amount of electricity that passes over the catalyst per unit surface area (the electrochemical surface area) per unit time, which reflects the kinetic rate of electrochemical transformation Eq. 4 [33].

(4)

where, j_i is the current density of the target product, j_total is the total current density of the reaction, and FE_target is the FE of the target product.

The activity of electrocatalyst can be judged by TON and TOF in the field of electrocatalytic CO₂RR, and the calculation formula of the two is as follows Eq. 5 [34]:

(5)

where n_p is mole of the target product, n_c is moles of catalyst, and t is the reaction time.

2.3 Characterization techniques of CMCs

The structure and components of CMCs are important for their catalytic performance. Therefore, it is necessary to confirm the structure and components of CMCs. Scanning Electron microscopy (SEM) and transmission electron microscopy (TEM) are the most commonly employed means of object structure analysis. SEM is to scan the surface of bulk samples with a focused low-energy electron beam, and then the surface morphology and crystal orientation of the catalyst can be obtained. TEM is to irradiate a thin film sample which can pass through electrons with parallel high-energy electron beam. The electron diffraction pattern of crystal structure information and high-resolution image reflecting the internal structure of the sample can be obtained. Inductively coupled plasma optical emission spectrometer (ICP-OES), X-ray photoelectron spectroscopy (XPS) and Energy dispersive X-ray spectroscopy (EDS) could be used to analyze the composition of samples. ICP-OES, also known as ICP-AES, is an atomic emission spectrometry method using inductively coupled high frequency plasma torch as excitation light source to qualitatively and quantitatively analyze more than 70 metal elements and some non-metal elements in samples. ICP-OES can simultaneously analyze both constant and trace components without complicated two-way observation, which has the advantages of rapidity and wide linear range. XPS tests the valence state and element content of the substance about 10 nanometers on the surface of the object, while EDS cannot measure the valence state and the depth of the test is tens of nanometers to a few microns, so basically it can only make qualitative analysis rather than quantitative analysis of the element content on the surface. X-ray diffraction (XRD) is normally applied to analyze the crystal structure of catalysts. According to the XRD pattern, the sample information, such as amorphous or crystalline, phase composition and crystal cell expansion or contraction, can be obtained.

3 Preparation methods and structural advantages of CMCs

Less

3.1 Synthesis of CMCs

Wet chemical method [35] is the main method for the synthesis of CMCs owing to the simple operation and large-scale production [36]. This preparation method could be divided into one-step [37, 38] and multi-step. Up to now, a large number of CMCs have been prepared by wet chemical method and several representative CMCs synthesized through one-step and multi-step methods have been listed in the following Table 2 [32, 33, 39-61].

3.2 Structural advantages of CMCs

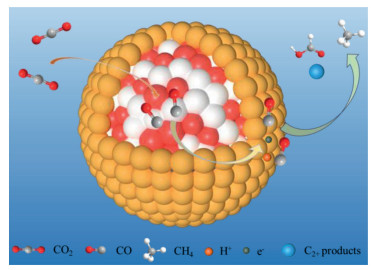

Tandem catalysis: Tandem catalysis refers to two or more continuous catalytic reactions in a reactor that eventually produce the target product, in which the product of the previous step will be the reactant of the next step (Fig. 2) [62, 63]. As Le Chatelier's Law [64] shown, the continuous consumption of the products of the previous step will accelerate the reaction rate. There are three essential factors for tandem catalysis. First, different catalytic sites should be arranged in a specific order, that is, the order of each reaction is fixed and cannot be confused or reversed. Second, the distance between different catalytic sites should be close enough or even direct contact, which is the key to ensure the occurrence of tandem catalysis. Third, the compatibility of different catalytic sites should be considered to prevent these active sites from reacting with each other and interfering with tandem catalysis [65]. The core-shell structure with different inner and outer components is very suitable for multiphase tandem catalysis, especially the interlayer-hetero hollow multi-shelled structure is considered to have great application potential in multiphase tandem catalysis [66]. Besides, CMCs could be employed as an excellent tandem catalyst owing to close distance with unreactive properties of core and shell. These unique structural features well meet the requirements of tandem catalysis. For instance, Zhang et al. prepared Au@Cu₂O yolk-shell NPs as tandem catalysts for electrochemical CO₂RR. In this catalyst, CO₂ could be reduced to CO on Au core, and then further reduced to ethanol on the Cu₂O shell, which improves the activity and selectivity of electrochemical CO₂RR to ethanol at a lower electric potential through tandem catalysis [54]. Iyengar et al. reported FEs for gaseous and liquid products of Cu-Ag, Cu and Ag catalysts at different potentials in order to demonstrate the role of tandem catalysis in Cu-Ag catalysts [67]. In the range of −1.1 ~ −1.4 V_RHE, Cu-Ag catalyst has smaller FE_H2 and FE_CO than pure Cu nanocrystals and pure Ag nanocrystals, and gradually becomes smaller with more negative potential, which is related to the tandem catalysis. The efficiency of Cu-Ag catalyst for CO conversion is improved, and the effectiveness of tandem catalysis mechanism is also enhanced.

Lattice strain effect: Lattice strain refers to the deviation from the equilibrium spacing between atoms in the crystal lattice of core shell catalysts [68-71]. The core-shell catalysts may have compression or tensile strain owing to the mismatch between core atoms and shell atoms, which could tune the electronic structure of catalysts and affect the catalytic properties. For example, the binding of ^*COOH is enhanced on Au₆₀Pd₄₀@Pd due to the strain effect between Au and Pd. Therefore, the activation of CO₂ to ^*COOH is easier to reach 0.10 eV than on pure Pd [43]. Shao et al. synthesized twisted Pd_0.8Au@Pd nanowires (NWs) through a self-assembly strategy. Due to the tensile strain and the ratio of Pd to Au, Pd_0.8Au@Pd showed superior specific activity and mass activity of CO. The highest selectivity of FE was 94.3% at a relatively low overpotential (−0.6 V) [44].

Interface effect: Compared with traditional mono-component materials, CMCs have special interfaces, and the synergistic effect of these interfaces can improve the catalytic performance of the catalysts. Zhang and his coworkers synthesized core/shell Co₂P/Pt nanorods (NRs) via a seed mediated method, and proved that Co₂P(001)/Pt(111) interface had the best ORR catalytic performance and Co₂P(010)/Pt(111) had the worst ORR catalytic performance by density functional theory (DFT) calculation [72]. Qi et al. confirmed that excellent selectivity of Au@CeO₂ CMCs is owing to the interface effect between Au (core) and CeO₂ (shell) [73]. Reasonable use of the interface effect of CMCs is beneficial to the preparation of high-performance catalysts and reduces unnecessary waste at the same time.

Defect engineering: Defects are technically defined as distortions in the periodic structure of the full crystals [74-76]. It can be divided into volume defects and surface defects [77]. According to the previous reports, surface defects such as vacancy and doping could be constructed on CMCs, which are helpful to the enhancement of catalytic properties. Wang and co-workers prepared In-doped Cu@Cu₂O catalyst by co-electrodeposition. The FE of CO reaches to 87.6% ± 2.2%, which is far higher than that of other copper-based catalysts [60]. Sargent and co-workers synthesized Cu₂S@Cu core-shell catalysts by taking advantage of the vacancy defect of the sulfur atom in the core of Cu₂S and the copper atom in the shell to change the C₂ reaction path and improve the FE of the reaction product polyols in the electrocatalytic CO₂RR [40].

Stability: As is well-known, the surface energies of catalysts increase significantly as the decrease of size. Therefore, agglomeration of nanoparticles is easy to occur in electrochemical reactions, resulting in the rapid loss of active sites. Fabricating catalysts with core-shell structure could be an effective method to prevent the agglomeration and improve the stability of catalysts. In CMCs, the internal active sites can be well protected by shell, which are employed as the physical barrier to hinder the loss and agglomeration of active sites, increasing the catalytic stability. For instance, monolithic nanoporous core-shell structured AuCu₃@Au catalysts, of which FE_CO was 97.27% at a partial current density of 5.3 mA/cm² at −0.6 V vs. RHE, were prepared by oxidizing etching Au₂₀Cu₈₀ alloy by An and co-workers [78]. The total current density on the catalyst remains about 10 mA/cm² even after electrolysis at −0.7 V for 100 h, indicating the AuCu₃@Au catalysts are very stable. Zhang et al. synthesized Cu₂O-SnO₂ core-shell electrocatalysts with shell thickness of 5 nm by adjusting the content of tin precursors. The FE_CO is more than 90% at a low overpotential of 390 mV. The catalyst showed superior stability over 18 h at −0.6 V vs. RHE in 0.5 mol/L KHCO₃ electrolyte [61].

4 Performance of electrochemical CO₂RR

Less

CMCs generally exhibit superior catalytic properties of electrochemical CO₂RR due to their unique structural advantages discussed above [79-82]. In this section, the advanced CMCs towards electrochemical CO₂RR are evaluated according to the composition of core and shell.

4.1 Pure metal core-shell structure

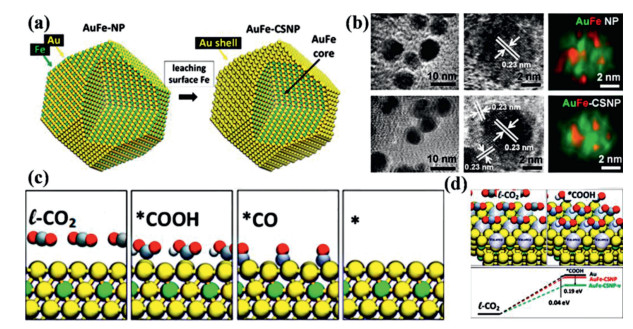

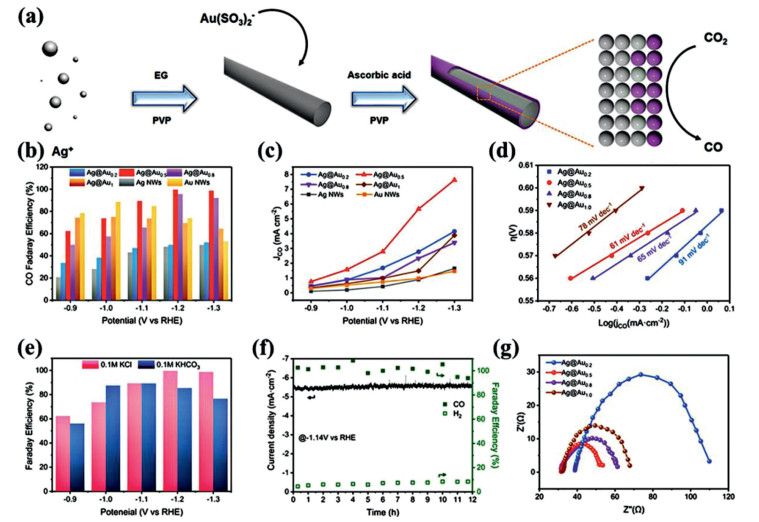

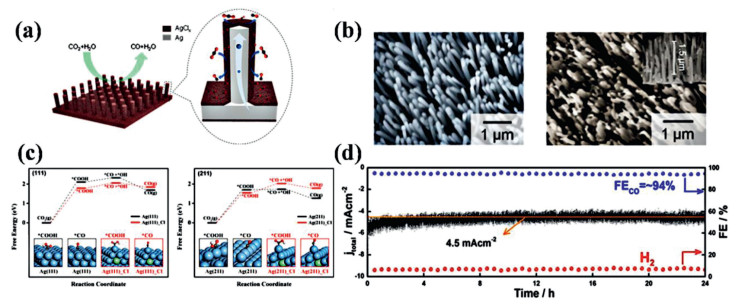

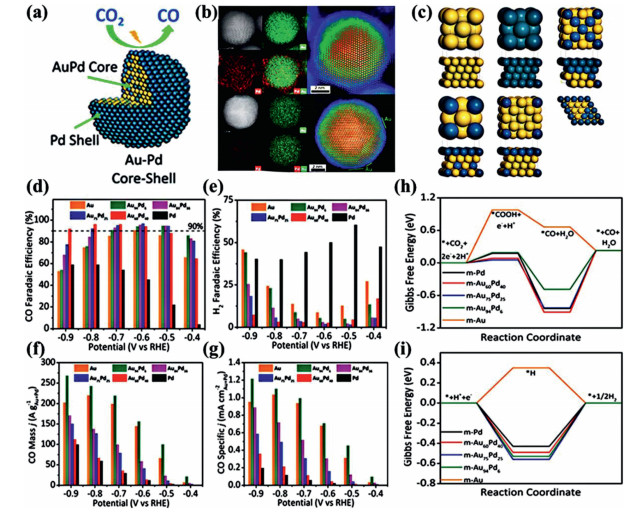

Several metal nanostructures such as Au [81-86], Ag [42, 58, 87] and Pd [41, 44, 88-90] show excellent catalytic activity of electrocatalytic CO₂RR [91], but the main product is CO. Other metal nanostructures such as Cu, Bi could provide various reduction products [92, 93], but the ability of CO₂ conversion is limited. Therefore, preparing core-shell catalysts with various metals could take the core-shell structural advantages and provide a promising means to enhance the performance of electrochemical CO₂RR [94-103]. Sun et al. obtained AuFe-CSNP through leaching out surface Fe of AuFe-CSNP during the electrochemical reduction process (Figs. 3a and b) [48]. Fig. 3c shows the model diagram of the CO₂RR process of Au-mental (M) catalyst. According to the calculation of silico quantum mechanics rapid screening (QM-RS), Au-Fe alloys have a low ^*COOH formation energy (0.46 eV) and CO desorption energy (0.17 eV). Therefore, Au-Fe alloys are considered to have the potential to improve CO₂ reduction performance. As predicted by the calculation results, AuFe-CSNP exhibits superior mass activity of 48.2 mA/mg towards electrochemical CO₂RR, which is approximate 100 times higher than Au NPs. To estimate the effect of Fe leaching on CO₂RR, Au atom on the surface is further removed to produce Schottky defects. Based on the DFT calculations, the surface defects can reduce the formation of ^*COOH by 0.19 eV, which confirms that the Schottky defect has a great impact on the catalytic performance of AuFe-CSNPs (Fig. 3d). It demonstrates that the superior activity could be attributed to the defects caused by the surface Fe leaching. Zhu et al. prepared AuPd-CSNP by one-pot synthesis method, and the FE_CO reached 96.7% at −0.6 V [43]. Through high-angle annular dark field- scanning transmission electron microscopy (HAADF-STEM) and X-ray energy dispersive spectrometry (XEDS) mapping, the element composition and distribution of Au₆₀Pd₄₀-CSNP and Au₉₄Pd₆-CSNP can be clearly observed (Figs. 4a and b). The atomic model diagrams of m-Au, m-Pd, m-Au₆₀Pd₄₀, m-Au₇₅Pd₂₅ and m-Au₉₄Pd₆ are shown in Fig. 4c. Moreover, it is obvious that when Au: Pd = 94:6, the Pd shell will not be observed by XEDS mapping. In Au, Pd and Au_xPd_100-x NPs, the selectivity of CO increases with the increase of Au content (Fig.s 4d-g). The mass activity and specific activity of Au₉₄Pd₆-CSNP are higher than other catalysts at −0.9 V to −0.4 V. Figs. 4h and i are the model catalysts with Au: Pd = x: (100 – x), which can be abbreviated as m-Au_xPd_100-x. The surface of pure Au has a very high free energy barrier (~0.98 eV) for the formation of ^*COOH intermediate, whereas the thermodynamic barrier of pure Pd is much smaller (~0.18 eV). It can be obtained from Fig. 4h that the activation of CO₂ to ^*COOH by m-Au₆₀Pd₄₀ is 0.10 eV easier than that of pure Pd, which is partly because of strain and ligand effect between Au and Pd, and synergistic results of ^*COOH coordination changes. In addition, Pd and Au will receive electrons after alloying, and then will lead the downshift of d-band center, but the tensile strain will make d-band center upshift. The overall contribution of these two effects makes the d-band center of Pd upshift to the Fermi energy level and enhance the adsorption of ^*COOH. Therefore, m-Au₉₄Pd₆ surface has the highest ^*COOH free energy among all the bimetallic surfaces and low HER competition (Fig. 4i). Liu et al. employed polyol reduction combined with PVP ligand orientation to deposit Au on Ag NWs for the preparation of Ag@Au NWs (Fig. 5a) [49]. As shown in Figs. 5b–d, Ag@Au_0.5 NWs show the superior catalytic activity and highest FE_CO (Fig. 5b). Moreover, Ag@Au_0.5 NWs have different CO selectivity at various potentials in CO₂-saturated 0.1 mol/L KHCO₃ and CO₂-saturated 0.1 mol/L KCl electrolyte (Fig. 5e). CO₂-saturated 0.1 mol/L KHCO₃ as a buffer solution can maintain a neutral environment, while the pH of CO₂-saturated 0.1 mol/L KCl electrolyte will rise as the reaction proceeding, thus inhibiting HER. Additionally, the strong interaction between CO₂ and Cl⁻ improves the ability of CO₂ capture, resulting in the higher catalytic performance of Ag@Au_0.5 NWs in 0.1 mol/L KCl solution (Figs. 5f and g).

4.2 Core-shell structure of metal and metal oxide

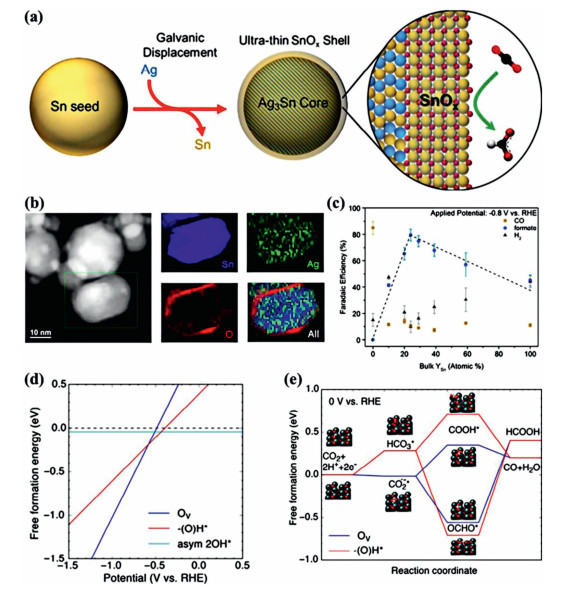

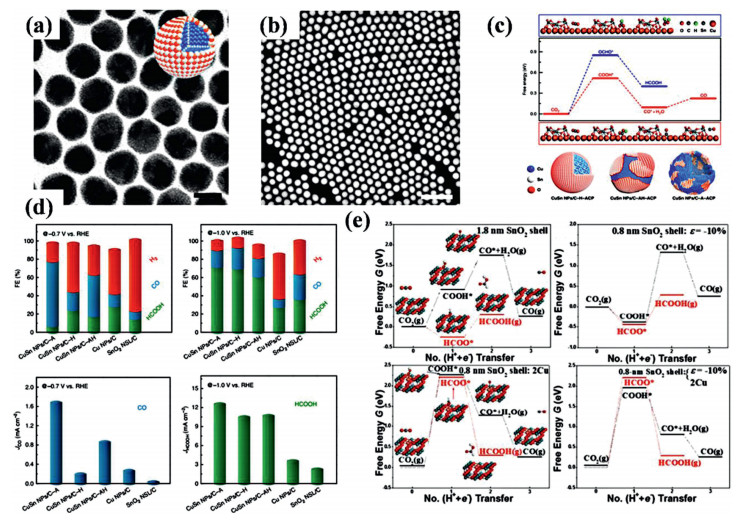

Recently, metal and metal oxide heterostructures [104, 105] exhibit great potential in electrochemical CO₂RR owing to the interface effect and tandem catalysis [94, 106-108. Fabricating metal and metal oxide catalysts with core-shell structure can remarkably enhance the performance of electrochemical CO₂RR. Wesley et al. prepared AgSn/SnO_x NPs though galvanic displacement process, which had an Ag-Sn bimetallic core and an ultra-thin partially oxidized SnO_x shell (Figs. 6a and b) [109]. In this catalyst, the Ag-Sn core is responsible for the high electronic conductivity and SnO_x shell can provide an excellent activity of CO₂ conversion. Owing to the unique structure, AgSn/SnO_x shows superior CO₂RR performance. The FE of formate reaches to ~80% and the formate partial current density is ~16 mA/cm² at −0.8 V vs. RHE. Though investigating a series of Ag-Sn catalysts with various Ag/Sn compositions, a structure-activity relationship between the AgSn/SnO_x core-shell structure and CO₂RR performance is established and found the optimal thickness of SnO_x shell is 1.7 nm (Fig. 6c). Moreover, according to the DFT calculations, the outstanding catalytic performance of AgSn/SnO_x should be attributed to oxygen vacancies on SnO (101) surface, which is favorable for stabilizing OCHO^*, the key intermediate for the HCOOH (Figs. 6d and e). Wang et al. obtained Cu-SnO₂ catalysts with three different structures and phases by thermal annealing of CuSn core-shell NPs at various conditions [110]. Among them, CuO/hollow SnO₂ heterostructure shows excellent performance of electrochemical CO₂RR (Fig. 7a and b). It can tune the products from CO to HCOOH with a high FE at ~70% by simply tuning the electrolysis potentials. This promising catalytic properties of CuO/hollow SnO₂ heterostructure can be attributed to the abundant Cu/SnO₂ interfaces, which can decrease ΔG for the formation of ^*COOH species (Fig. 7c). CuSn NPs/C-A has the highest CO selectivity (FE_CO = 70.1%) and the highest current density (1.66 mA/cm²) at the potential of −0.7 V vs. RHE, and CuSn NPs/C-A has the highest HCOOH selectivity (FE_CO = 71.5%) and the highest current density (12.6 mA/cm²) at the potential of −1.0 V vs. RHE (Fig. 7d). Li et al. demonstrated a new strategy to selectively achieve CO₂ reduction products through tuning synergistic effect between Cu and SnO₂ in Cu@SnO₂ [111]. They found that the product was closely related to the thickness of SnO₂. The reduction product is formate when the thickness of SnO₂ is ~1.8 nm, while changes to CO with FE of ~93% as the thickness of SnO₂ decreases to 0.8 nm. Based on the DFT calculations [112, 113], the co-existence of the compressive strain and Cu doped on 0.8 nm SnO₂ shell makes the free energy of CO formation lower than that of formate formation, resulting in the favorite production of CO over formate (Fig. 7e). Ye et al. fabricated hierarchical Sn_2.7Cu core with amorphous SnO_x shell through one-step electrodeposition [45]. During the electrochemical CO₂RR process, SnO_x shell can be in situ reconstructed to Sn/SnO_x interface, which is demonstrated by in situ extended X-ray absorption fine structure (EXAFS) and structural examinations. According to the theoretical calculations, the in situ reconstructed Sn/SnO_x interface plays a crucial role in facilitating formic acid production though optimizing the binding of intermediate HCOO^*, resulting in the high FE of C₁ products.

4.3 Core-shell structure of metal-based compounds

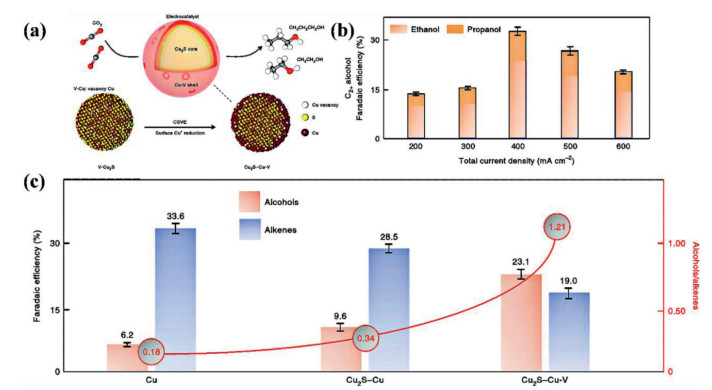

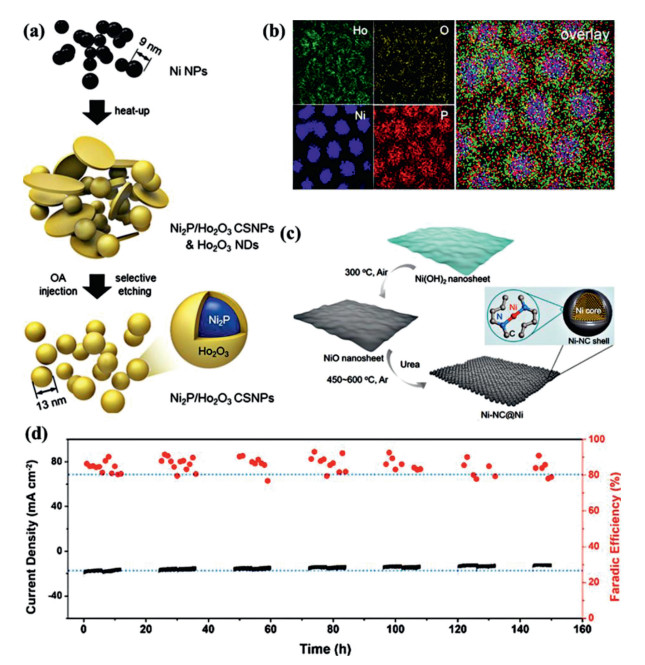

In addition to metal oxides, core-shell structures composed of other metal compounds [112-117] also show excellent performance and great application potential in electrocatalytic CO₂RR. Li and co-workers prepared Ag@AgCl_x nanowire arrays by using low-temperature nanoimprinting technique and electrochemical reduction (Figs. 8a and b) [52]. The Ag@AgCl_x nanowire arrays have excellent catalytic activity of CO₂RR. The CO current density is up to 5.27 mA/cm² at −0.6 V vs. RHE, which is mainly attributed to the strong electron coupling between AgCl_x shell and Ag core and superior CO₂ activation capacity of AgCl_x shells. Fig. 8c shows the change of free energy when CO₂RR occurs on (111) and (211) surfaces of crystalline silver chloride, and Cl modified Ag (111) [Ag(111)_Cl] and (211) surfaces [Ag(211)_Cl], which can indirectly reveal the reason that determines the superior catalytic activity of AgCl_x shell. It can be concluded that Ag (111)_Cl and Ag(211)_Cl are more conducive to the adsorption of ^*COOH. In addition, Ag on the surface is low coordination, which is easier to combine with ^*COOH. Cheng et al. designed a Fe-N-C nanofiber (Fe-N/CNF), which is a core-shell structure composed of the iron nitride (Fe_xN) NPs encapsulated by Fe and N co-doped carbon layers (Fe_xN@Fe-N-C) [53]. The synthetic steps of Fe_xN@Fe-N-C are complex, including electrospinning, carbonization, acid leaching and nitriding under NH₃. Among them, the nitriding time could affect the formation of core-shell structure. The nitriding time was selected as 10, 20 and 40 min, denoted as Fe-N/CNF-x (x = 1, 2 and 4). Fe-N/CNF-2 has excellent catalytic performance (Fig. 8d), the current density has been maintained at value of about 4.5 ± 0.4 mA/cm², FE_CO fluctuates around 94%. The excellent performance could be attributed to that iron nitride can promote the intermediate desorption of CO from Fe and N doped shells, thus improving the catalytic performance of CO₂.

Reduction products with high carbon numbers possess higher commercial value than C₁ products, but are also more difficult to obtain [118-126]. Kim et al. synthesized crystalline/amorphous (C/A) Ni₂P@Ho₂O₃ core shell NPs (CSNPs) by depositing an amorphous Ho₂O₃ shell on the surface of Ni NPs (Fig. 9a). Fig. 9b shows the element mapping of C/A Ni₂P/Ho₂O₃ CSNPs. And the FE_acetone of C/A Ni₂P@ Ho₂O₃ is up to 25.4% [51]. The excellent catalytic performance is mainly attributed to its heterostructure. Deng and co-workers synthesized a sheet-like open nanostructure with Ni nanoparticle wrapped by Ni-N species exposed carbon layer (Ni-NC@Ni) through a low-temperature (450 ℃) chemical vapor deposition strategy (Fig. 9c) [33]. Ni-NC@Ni electrocatalyst has many advantages, such as the isolated Ni-N species (~4.23 at%) providing the active site for CO₂RR, the open nanostructure of the sheet enlarging the contact area with the electrolyte/reactants, and the Ni nanoparticle core wrapped in the carbon shell acting as an excellent conductor to enhance electron transport. Therefore, Ni-NC@Ni exhibits superior CO₂RR performance. The FE_CO is about 87% at 670 mV and the current density is up to 14.8 mA/cm² with a long-term stability of more than 150 h (Fig. 9d). Sargent and co-workers synthesized Cu₂S@Cu-V (V stands for vacancy) NPs (Fig. 10a), which can alter the C₂ reaction pathway by shifting selectivity away from ethylene and towards multi-carbon alcohols [40]. The S atom is introduced to produce vacancy defects on the surface of Cu. This kind of core-shell catalyst with vacancy defects is called core-shell-vacancy engineering (CSVE) catalyst, which can effectively reduce CO₂ to multi-carbon alcohols. Fig. 10b shows the FE of multi-carbon alcohols such as ethanol and propanol catalyzed by CSVE, and Fig. 10c shows the FE of multi-carbon alcohols and ethylene on different catalysts. With the further research on electrocatalytic CO₂RR, more electrocatalyst synthesis methods have been developed.

5 Conclusions and outlook

Less

Global warming and energy crisis have been increasing seriously with the development of industry. Recently, electrochemical CO₂RR provides a promising means for CO₂ recycling and attracts wide attention. In this review, we focus on the advanced metal-based catalysts with core-shell structure towards electrochemical CO₂RR. The preparation methods and structural advantages of CMCs are discussed as well as the mechanism and evaluation parameters of electrochemical CO₂RR. Recent progresses in CMCs for electrocatalytic CO₂RR have been reviewed, with emphasis on the role of core-shell structure played in electrochemical CO₂RR. Although several significant advances have been achieved, the catalytic ability of CMCs for electrochemical CO₂RR is still unsatisfactory. Therefore, several challenges and opportunities are proposed based on our limited knowledge.

Multi-carbon products: Electrocatalytic CO₂RR can reduce CO₂ to a variety of products under mild reaction conditions, such as CO, formaldehyde, methane, ethylene, acetone. However, it is very difficult to obtain high selectivity for a specific product, especially for C₂ and other multi-carbon products. Therefore, improving the selectivity of multi-carbon reduction products is a great challenge of electrochemical reduction of CO₂.

Tandem catalysts: Tandem catalysis is a promising strategy to obtain C₂₊ reduction products of CO₂RR. Various metals have different catalytic properties of electrochemical CO₂RR. For example, Au shows the highest activity of CO₂ reduction due to the weak Au−CO binding energy, but the products are mainly CO. Cu exhibits lower activity, but the products are various including hydrocarbons and oxygenates owing to the intermediate CO binding energy. Therefore, constructing CMCs as tandem catalysts to tune the CO binding energy and reaction process provides a promising means to enhance the activity and selectivity of electrocatalytic CO₂RR.

Phase engineering: Phase structure is one of the most significant structural parameters and has important influences on the catalytic property of catalysts. Especially, the unconventional phases of metal elements generally endow them with wondrous catalytic properties. For instance, Au NPs with 4H phase delivery a higher activity and ethylene selectivity in electrochemical CO₂RR compared to the traditional face center cubic (fcc) Au [127]. Ru NPs with fcc phase also exhibit superior electrocatalytic properties in many reactions than conventional (hexagonal close packed) hcp Ru catalysts [128]. Therefore, fine tuning the phase structure of metals in CMCs exhibits great potential for boosting the performance of electrochemical CO₂RR.

Further reveal the catalytic mechanism: Electrochemical CO₂RR is a complex multi-electron reaction. Through several in-situ characterizations to further investigate the electrocatalytic mechanism of CO₂RR plays crucial roles in the enhancement of catalytic properties. In-situ synchrotron radiation technologies and in-situ HRTEM can be employed to detect the changes in geometric and electronic structure of catalysts. In-situ Raman spectra and in-situ FT-IR spectra could be used to monitor the changes in the whole CO₂RR process. In general, we believe that more advanced electrocatalysts for CO₂RR could be achieved through a deeper understanding of mechanism and fine-tuning catalyst structure.

Declaration of competing interest

Less

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Acknowledgments

Less

This research was funded by the National Natural Science Foundation of China (Nos. 21706074 and 21972038), the Natural Science Foundation of Henan Province (No. 2023000410209), the Key Research and Promotion Project of Henan Province (Nos. 202102210261 and 202102310267) and the Top-notch Personnel Fund of Henan Agricultural University (No. 30500682). The Science and Technology Research Program of Chongqing Municipal Education Commission (No. KJQN202000519) and the foundation project of Chongqing Normal University (No. 18XLB008).
