Catalytic enantioselective insertion reaction of metal carbenoids, generated in situ from metal mediated decomposition of diazo compounds, into C-H bonds represents an important and powerful strategy for C-H bond functionalization and construction of C-C bonds [1-4]. In particular, chiral dirhodium(Ⅱ) complexes catalyzed intermolecular C-H insertions of donor/acceptor-substituted carbenoids have been extensively investigated and found broad applications in the synthesis of natural products, pharmaceuticals, bioactive compounds and other complex chiral targets [5, 6]. Successful dirhodium(Ⅱ) catalysts include, among others, binaphtholphosphates, ortho-metalated arylphosphine dirhodium, especially various dirhodium carboxylates and carboxamidates complexes. Undoubtedly, rhodium complexes have been widely established as the most effective and versatile catalysts for asymmetric carbenoid C-H bond insertion reactions. In contrast, only a limited number of iridium complexes have been reported as viable catalysts for such reactions despite the fact that less expensive Ir belongs to the same group as Rh [7]. Compared with their rhodium counterparts, iridium carbenoids tend to have a lower electrophilic character due to the increased metal to ligand back-bonding, which makes the iridium carbenoids less reactive but more selective [6, 7]. Indeed, researches from Suematsu and Katsuki [8], Weldy et al. [9] have demonstrated the unique reactivity of iridium carbenoids by means of which some challenges in the area have been addressed. In their works, intermolecular C-H insertions of α-diazopropionates [8] and ethyl diazoacetates [9] were successfully realized with high enantioselectivities (83% ~ > 99% ee and up to 96% ee, respectively) for the first time by using chiral Ir(Ⅲ)-(salen) or bis(imidazoline) pincer Ir(Ⅲ) complexes as catalysts. It is well known that the reactions with these two types of diazo compounds are quite challenging. For α-diazopropionates, they are inclined to undergo competitive β-hydride elimination. While for ethyl diazoacetates, controlling site, chemo- and stereo-selectivity of the reactions is difficult owing to the very high reactivity and non-prochiral property of the corresponding acceptor-only metallocarbenoids.

Oxindole derivatives, including chiral 3-substituted oxindoles, are widely found in alkaloid natural products, pharmaceuticals and synthetic biologically active molecules [10, 11]. They can also serve as versatile precursors in organic synthesis and as central intermediates in the synthesis of a number of naturally occurring compounds [12, 13]. Transition metal catalyzed intermolecular carbenoid C-H insertion of 3-diazooxindoles, a kind of cyclic diazoamide and also a donor-acceptor diazo compound, provides a direct and efficient approach for the construction of 3-substituted oxindoles. Thus, various achiral 3-substituted oxindoles with diverse structures have been successfully prepared through Rh, In, Au or Ru catalyzed non-asymmetric C-H insertion of 3-diazooxindoles with a wide range of substrates such as indoles, pyrroles, anthracenes, carbazoles, β-enaminoesters, N, N-disubstituted anilines, phenols, β-enaminones [14-24]. However, to the best of our knowledge, there are no reports on enantioselective C-H carbenoid insertion of 3-diazooxindoles for the synthesis of chiral 3-substituted oxindoles.

We have been interested in exploring applications of pincer metal complexes in metal-catalyzed transformations including those of chiral ones in enantioselective reactions [25-28]. Very recently, we found that pincer Ir(Ⅲ) complex 1d with a chiral bis(imidazolinyl)phenyl ligand (abbreviated as Phebim, Fig. 1) exhibited good activity and stereocontrol (up to 86% ee) in asymmetric carbenoid C-H insertion of α-aryl-α-diazoacetates with N-protected indoles [29]. To develop more Ir-catalyzed, especially pincer Ir-catalyzed intermolecular carbenoid C-H insertions for further exploring and understanding the chiral iridium chemistry in the area, we herein present the use of the pincer (Phebim)Ir complexes (Fig. 1) in catalytic enantioselective C-H insertion of 3-diazooxindoles into 1, 4-cyclohexadiene. The current work represents the first example of asymmetric intermolecular C-H carbenoid insertion reaction using 3-diazooxindoles as carbenoid precursors.

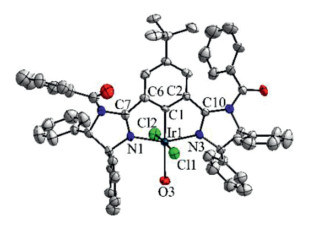

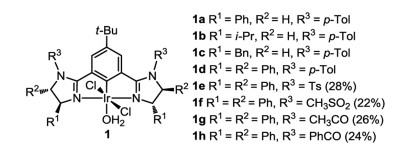

In our previous study, the pincer (Phebim)Ir complex 1d with a catalyst loading of 3 mol% gave the best result among complexes 1a-1d [29]. For further catalyst optimization, synthesis of the new (Phebim)Ir complexes 1e-h were carried out (for details see Supporting information). In comparison with 1d, complexes 1e-1h have the same (4S, 5S)-diphenyl substituents but different N-substituent on the imidazoline ring. Synthetically, a chiral diamine was used as the chiral source for complexes 1e-1h, while for complex 1d (and also complexes 1a-1c) the chiral substituents originated from chiral amino alcohols. In addition, it was found that the introduction of N-electron withdrawing group (N-sulfonyl or acyl) on the imidazoline ring was detrimental to the direct metallation of the corresponding Phebim-H ligands, leading to the obviously lower yields of complexes 1e-1h (22%−28%) in this step when compared with 1d (46%) and 1a-1c (34%−45%). X-ray single crystal analysis of the complex 1h confirmed that it is the expected H₂O-bound six-coordinate pincer complex with meridionally tridentate coordination of the Phebim ligand (Fig. 2, CCDC: 1971477).

The C-H insertion of 3-diazo-1-methylindolin-2-one with 1, 4-cyclohexadiene was first chosen as a model to evaluate the potential of the obtained (Phebim)Ir complexes (for details see Supporting information). Encouragingly, except for complexes 1b and 1c, all other complexes including 1a and 1d-1h could give the desired product 3a in high yields (81%−97%) with excellent enantioselectivities (93%−97% ee) when the reactions were conducted with a large excess of the cyclodiene (21.5 equiv.) under solvent-free condition at room temperature with a catalyst loading of 1.0 mol% for 12 h (Table 1, entries 1–6). Considering that the synthetic yield of 1a was higher than those of 1f-1h in the metallation step (44% vs. 22%−26%), complex 1a was then further utilized as the catalyst for optimization of reaction conditions. A screening of temperature indicated that in the range of −20~40 ℃ lowering the temperature helped to improve the yield of product 3a by inhibiting side reactions such as dimerization of the diazo compound and 0 ℃ was found to be the optimal temperature (entry 7). Next, we tried to reduce the amount of 1, 4-cyclohexadiene and the catalyst loading. It turned out that the use of 10.8 equiv. of the cyclodiene in the presence of CH₂Cl₂ solvent (0.2 mL) and with a catalyst loading of 0.5 mol% could also afford a good result (entry 8, 88% yield with 93% ee). Pleasingly, under these conditions, complex 1g gave a better result than 1a in terms of both yield and enantioselectivity (entry 9, 93% yield with 97% ee). Increasing the CH₂Cl₂ solvent volume resulted in decreased yields and/or enantioselectivity of 3a. Based on the results and also for convenience of manipulation, 0.5 mL of CH₂Cl₂ as the solvent was considered to be appropriate (entry 10). Finally, TLC monitoring of the reaction showed that the diazo compound was completely consumed within 8 h, furnishing the product 3a in 87% yield with 96% ee (entry 11).

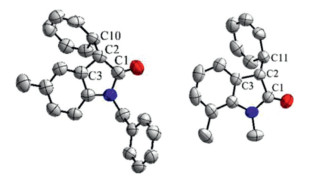

The substrate scope of 3-diazooxindoles was then investigated under the optimized conditions. As shown in Table 2, various substituted 3-diazooxindoles reacted smoothly with 1, 4-cyclohexadiene to furnish structurally diverse oxindoles 3 bearing a chiral cyclohexa-2, 5-dien-1-yl group at the 3-position in moderate to excellent yields (42%−99%) with moderate to excellent enantioselectivities (51%−99% ee). The substituents involve electron-withdrawing groups (EWG) including F, Cl, Br, I, CF₃, and OCF₃ as well as electron-donating groups (EDG) including Me and OMe which are located at 4-, 5-, 6- or 7-position of 3-diazooxindoles. In general, 3-diazooxindoles containing an EDG at 5-, 6- or 7-position reacted quite well with the cyclodiene, giving the corresponding products 3 in high yields (76%−95%) with invariably excellent enantioselectivities (entries 4–6, 13, 14, 18 and 19, 94%−99% ee). In contrast, 3-diazooxindoles with an EWG exhibited lower reactivity and an extended reaction time (24 vs. 8 h) was needed to ensure satisfactory yields. Good to excellent enantioselectivities (80%−91% ee) could still be achieved when the electron-withdrawing substituents including F, Cl and Br are located at 6- or 7-position (entries 15–17 and 20–22). However, when the EWG are at 5-position and a CF₃ group at 7-position, moderate enantioselectivities (51%−70% ee) were obtained (entries 7–12 and 23). In the case of 4-substituted 3-diazooxindoles, 4-methyl failed to react with the cyclodiene possibly due to the steric hindrance at the 4-position. For the smaller 4-F substituent, the reaction could occur but besides prolonged time (24 h), a higher catalyst loading of 1.0 mol% and an elevated reaction temperature (25 ℃) were also necessary because of the steric hindrance and the strong electron-withdrawing property of the fluorine (entry 3). The desired product 3b was generated in 62% yield with 78% ee. In addition, the effect of the N-substituent was studied as well. The reactions of unsubstituted and 5-Me substituted N-benzyl diazooxindoles proceeded efficiently to afford the products 3a′ and 3c′ in 88% yield with 97% ee and 88% yield with 99% ee, respectively (entries 2 and 5). The results were slightly better in terms of both the yields and enantioselectivities when compared with the corresponding N-methyl reactants. On the other hand, the reaction of the 5-Cl substituted N-benzyl diazooxindole provided an obviously inferior result to that of the 5-Cl N-methyl diazooxindole (entry 9 vs. 8). The absolute configurations of the products 3c′ (CCDC: 1476610) and 3o (CCDC: 2051865) were determined by X-ray single crystal diffraction analysis to be S (Fig. 3).

Besides 1, 4-cyclohexadiene, 1-methyl-1, 4-cyclohexadiene was also subjected to the reaction with N-methyl 3-diazooxindole, providing (S)−1-methyl-3-(m-tolyl)indolin-2-one 3u as the single regioisomer in 36% yield with 16% ee after subsequent oxidation of the crude insertion product with DDQ. When 1, 3, 5-cycloheptatriene reacted with the same 3-diazooxindole, the corresponding insertion product 3v was obtained in 48% yield with 55% ee. In addition, we tried the C-H insertion reactions of N-methyl 3-diazooxindole into cyclohexene and toluene. Unfortunately, no desired products were observed.

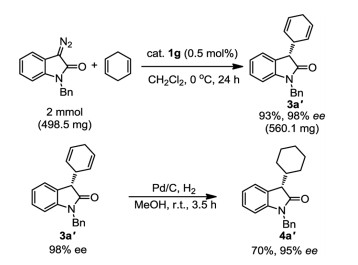

A scale-up reaction of 1-benzyl-3-diazoindolin-2-one with 1, 4-cyclohexadiene was carried out on a 2 mmol scale under the optimized reaction conditions with a reaction time of 24 h (Scheme 1). The desired product 3a′ was isolated in excellent yield without any loss in enantioselectivity (93% yield, 98% ee). In addition, the chiral cyclohexa-2, 5-dien-1-yl group in the product 3a′ was easily reduced by catalytic hydrogenation in the presence of Pd/C catalyst, delivering the corresponding 3-cyclohexyl substituted oxindole 4a′ in 70% yield with 95% ee.

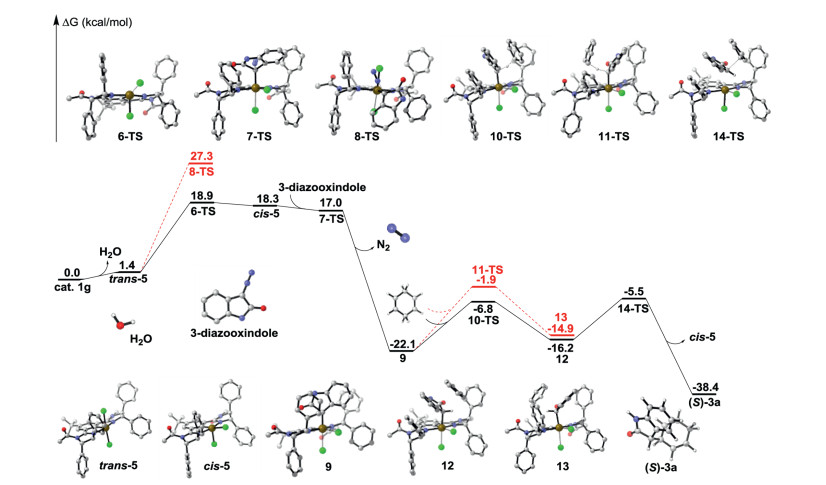

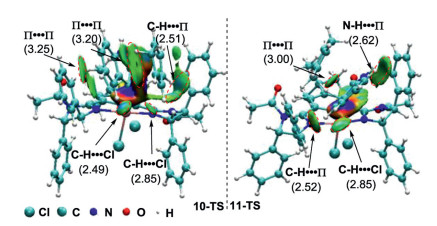

In order to gain a better understanding of the reaction mechanism and the origin of stereocontrol of the current pincer Ir-catalyzed asymmetric C-H insertion, density functional theory (DFT) calculations were performed by employment of Gaussian 09 program [30]. The geometry optimization was carried out by using the M06–2X [31, 32] functional with the basis set of 6–31G(d, p) for C, N, Cl, O, H and SDD for Ir [33, 34] and accounting for the dichloromethane solvent effect by employing the IEF-PCM [35, 36] solvation model (M06–2X/6–31G(d, p)+SDD//IEF-PCM_DCM). As shown in Fig. 4, the reaction initiates with dissociation of the water from the catalyst 1g, which requires only 1.4 kcal/mol energy, giving rise to the formation of the 16-electron intermediate trans-5 with the two chloride ligands located trans to each other. Then the resulting trans-5 intermediate would interact with the 3-diazooxindole to generate the iridium carbenoid complex along with extrusion of nitrogen. The energy barrier associated with this process (through the transition state 8-TS) is found to be 25.9 kcal/mol, which is difficult to attain under the optimized reaction conditions. Meanwhile, trans-5 can rearrange to its cis counterpart cis-5 through 6-TS with a much lower energy barrier of 17.5 kcal/mol. Furthermore, the interaction of cis-5 intermediate with the 3-diazooxindole proceeds very readily via the 7-TS because the 7-TS has a lower energy than cis-5, furnishing the iridium carbenoid intermediate 9 with the carbene ligand coordinated at the axial position. Subsequently, the carbenoid intermediate 9 undergoes the C-H insertion step with 1, 4-cyclohexadiene to give the product 3a. It was found that the reaction did not proceed via a three-centered transition state which would yield directly the insertion product 3a. Instead, a stepwise process involving hydride transfer followed by C-C bond formation was proposed computationally (Fig. 4). This is quite different from the related Ir and Rh catalyzed asymmetric C-H insertion with cyclohexadiene, where a concerted or concerted asynchronous mechanism involving a three-centered transition state was well supported by computational analysis [37, 38]. In the hydride transfer step, Si-face approach of the cyclodiene to the intermediate 9 through the 10-TS has an energy barrier of 15.3 kcal/mol, whereas a higher barrier of 20.2 kcal/mol (11-TS) is present for the corresponding Re-face approach. The higher energy of the 11-TS is related to the steric hindrance of upward 4S-phenyl substituent on the imidazoline ligand, which shields the Re-face of the carbenoid intermediate, thereby making the Si-face approach of the cyclodiene preferentially and leading to the formation of (S)-isomer of the product with high enantioselectivity. In addition, noncovalent interaction (NCI) [39, 40] was used to analyze the transition states 10-TS and 11-TS (Fig. 5). It is found that there are five stronger interactions (C–H…Cl, C–H…π, C–H…Cl and two π…π) in 10-TS. While only four interactions (C–H…π, C–H…Cl, N–H…π and π…π) exist in 11-TS. The observation also indicates that 10-TS is more stable than 11-TS. The lower energy 10-TS results in generation of the zwitterionic intermediate 12. From this intermediate, the reaction continues and the C-C bond is formed to afford the product (S)−3a via the 14-TS with an energy barrier of 10.7 kcal/mol.

In summary, we have developed a chiral NCN pincer (Phebim)Ir complex-catalyzed enantioselective C-H insertion of 3-diazooxindoles with 1, 4-cyclohexadiene. During the investigations four new (Phebim)Ir complexes were synthesized and well characterized. The catalytic reactions tolerate a variety of functional groups, furnishing chiral 3-substituted oxindoles with structural diversity in high yields and in most cases with good to excellent enantioselectivities (15 of 23 examples, 80%−99% ee). DFT calculations suggest that the current asymmetric C-H insertion proceeds via a stepwise mechanism involving hydride transfer and the subsequent C-C bond formation, rather than a concerted or concerted asynchronous mechanism involving a three-centered transition state. The calculations also explain the stereoselectivity and are consistent with the experimental observation.
