Chloride ion batteries (CIB) based on the transfer of chloride ion have attracted significant attention because of their high theoretical volumetric energy density (2500 Wh/L) and abundant material resources [1-3]. In the first concept, this battery system employed commercial metal chloride (CoCl₂, VCl₃ or BiCl₃) as the cathode, lithium metal as the anode and a binary ionic liquid as the electrolyte. However, severe capacity decay occurs during cycling, which is caused by dissolution of metal chloride into the electrolyte via Lewis acid/base interaction and/or the large volume contraction/expansion of metal chloride upon cycling [4, 5]. Subsequently, metal oxychlorides including BiOCl [6], FeOCl [6, 7] and VOCl [8, 9] with good chemical stability in the electrolyte were explored as cathode materials for CIBs. Nevertheless, metal oxychlorides also suffered from a large volume change during repeated charge and discharge, resulting in pulverization and electrical disconnection between active material particles [10, 11]. An effective strategy is to incorporate different carbon materials (e.g., carbon nanotube, carbon black, graphene nanoplatelets and ordered mesoporous carbon CMK-3) [12, 13] or conducting polymers [14, 15] into metal oxychloride cathodes. Recently, layered double hydroxides (Ni₂V_0.9Al_0.1-Cl [16], CoFe-Cl [17], NiMn-Cl [18], NiFe-Cl [19]) were demonstrated to be effective intercalation cathode materials for CIBs due to their good chemical and structural stability. Besides inorganic electrode materials, chloride ion-doped polypyrrole [20] and polyaniline [21] have also been developed as cathode materials for chloride ion batteries. The polymer cathode materials exhibit reversible electrochemical energy storage based on the redox reactions of nitrogen species and chloride ion transfer. Although some progresses have been achieved, the research of CIBs is still at an early stage [22]. Exploiting alternative cathode materials via designing new materials or modifying the current materials with high capacity and long lifetime is highly desired.

As mentioned above, even though the feasibility of transition-metal chlorides to be cathode materials has been proved, they showed inferior electrochemical activity. For example, commercial BiCl₃ delivered an initial discharge capacity of 142.9 and ~75 mAh/g after only 3 cycles even at a low current density of 3 mA/g. Considering the insoluble behavior of BiCl₃ in the electrolyte, the authors attributed this capacity decay to the large volume change of the conversion reaction between Bi metal and BiCl₃ [1]. Inspired by the carbon incorporation effect for the FeOCl cathode material in CIBs, it is possible to improve the chloride-ion storage performance of BiCl₃ using the similar strategy [12, 13, 23]. However, it is difficult to obtain BiCl₃/carbon nanocomposite because BiCl₃ is highly hygroscopic in air to irreversibly form BiOCl [24]. Therefore, the reports on preparation of BiCl₃/carbon nanocomposites are rare. To our best knowledge, the only work was reported by Anumol et al. who heated the mixture of BiCl₃ and MWCNTs in a sealed quartz ampule under vacuum to obtain the BiCl₃@multi-walled carbon nanotube (BiCl₃@MWCNT) nanocomposite [25]. In order to melt BiCl₃ into a liquid state, a high reaction temperature of 500 K needs to be used. A long heating time of more than 72 h is also required to infiltrate the molten BiCl₃ into the carbon nanotube because of the high surface tension and viscosity of molten BiCl₃. Therefore, this preparation process is energy- and time-consuming. Furthermore, the purity of the final product depends strictly on the tightness of the preparation system and the purity of the BiCl₃ raw material since BiCl₃ is easily transformed into BiOCl upon exposure to air.

In this study, a facile and novel strategy is developed to prepare BiCl₃@mesocellular carbon foam (BiCl₃@MCF) nanocomposite for CIBs. The commercial BiCl₃ dissolved in hydrochloric acid is successfully loaded into the MCF with open porous structure at a considerably mild condition (298 K for 18 h and 393 K for 5 h) via an infiltration process. The hydrochloric acid medium can inhibit the hydrolysis of BiCl₃ [26-29]. When assembled into CIBs, the BiCl₃@MCF nanocomposite electrode exhibited significantly enhanced electrochemical properties compared to the BiCl₃ electrode, such as an initial discharge capacity of 298 mAh/g and a reversible capacity of 91 mAh/g after 60 cycles. The superior electrochemical performance is attributed to the unique BiCl₃@MCF electrode architecture. BiCl₃ nanocrystals with a size less than 10 nm are favorable for the rapid transport of electrons and Cl^– [30-32]. The porous carbon scaffold could facilitate electrolyte penetration and provide a mechanical cushion to buffer the large volume variation of BiCl₃ during repeated charge and discharge. This is the first report that the metal chloride cathode can achieve a prolonged cycling in CIBs.

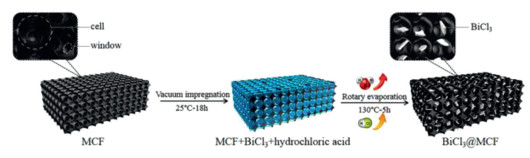

Two kinds of mesocellular carbon foams (MCF-1 and MCF-2) with different porosities were prepared via a nano casting method with the Al-impregnated mesocellular silica foams as hard templates. The detailed fabrication process is provided in Supporting information. The scheme of the fabrication process for the BiCl₃@MCF composites is shown in Fig. 1. First, 1 g of commercial BiCl₃ was dissolved in 1 mL of concentrated hydrochloric acid. Then, the solution was impregnated into 0.5 g of the mesocellular carbon foam obtained above at 298 K under vacuum for 18 h. The obtained paste was dried by rotary evaporation at 393 K for 5 h to remove hydrochloric acid. The as-prepared powders were denoted as BiCl₃@MCF-1 and BiCl₃@MCF-2 when MCF-1 and MCF-2 were used as carbon matrix, respectively. Likewise, the commercial BiCl₃ powder was treated in the same way except the use of MCF to form a BiCl₃ electrode material.

Electrochemical measurements were conducted using coin cells (CR2032). The anode was lithium metal (Alfa Aesar). The separator is glass fiber film (Whatman). The working electrode was prepared by pressing a mixture of 80 wt% BiCl₃@MCF nanocomposite or BiCl₃, 10 wt% carbon black and 10 wt% PVDF powders between two stainless steel meshes. The loading weight of the as-prepared composite material in the cathode is about 1.5 mg. The 0.5 mol/L PP₁₄Cl in PP₁₄TFSI was used as the electrolyte [7]. The galvanostatic discharge and charge was tested on a Neware battery testing system (Neware Co., Ltd.). Cyclic voltammetry (CV) and electrochemical impedance spectroscopy (EIS) were measured on a BioLogic (VMP3) battery testing system. All electrochemical measurements were performed at 298 K.

The wide-angle XRD patterns of the two mesocellular carbon foams (Fig. S1a in Supporting information) show two broad peaks at 23.8° and 43.6°, corresponding to the (002) and (100) planes of graphite, respectively. Small-angle XRD patterns of the MCF-1 and MCF-2 (Fig. S1b in Supporting information) both exhibit one well-defined diffraction peak, implying the ordered mesoporous structure of the as-prepared carbon materials. This regular and ordered mesostructure is beneficial to achieve homogeneous distribution of BiCl₃ nanocrystals and prevent its aggregation in the carbon matrix. The porosity of the as-prepared MCFs was investigated by nitrogen adsorption/desorption analysis. The isotherms of MCF-1 and MCF-2 exhibit the type-IV shape with two H2-type hysteresis loops at medium and high relative pressures, indicating the presence of the small mesopores with size of around 3 nm inside the walls of the MCFs and the large cellular mesopores, respectively (Fig. S2 in Supporting information). The cell and window size of the MCFs (inset in Fig. S2) were calculated from the adsorption and desorption branch of the isotherm using the Barrett-Joyner-Halenda (BJH) method, respectively. The textural parameters including total pore volume, cell diameter, window diameter and Brunauer-Emmett-Teller (BET) specific surface area of the mesocellular carbon foams were summarized in Table S1. By increasing the amount of organic swelling agent 1, 3, 5-trimethylbenzene (TMB) from 1.2 g to 6 g, the total pore volume, cell and window diameter increase from 1.5 cm³/g, 15.7 nm and 15.2 nm for MCF-1 to 2.0 cm³/g, 23.2 nm and 22.3 nm for MCF-2, respectively. The BET specific surface area decreases from 1429 m²/g for MCF-1 to 993 m²/g for MCF-2. The large pore size and pore volume of the mesocellular carbon foams may be suitable for accommodating a large amount of electroactive BiCl₃ material. The interconnected mesoporous structure of the mesocellular carbon foams could facilitate the rapid release of water vapor during heating the BiCl₃·HCl·H₂O system, thus avoiding the appearance of BiOCl impurity during the sample preparation process.

Fig. S3 (Supporting information) shows the SEM images of the as-prepared MCFs. The low-magnification images (Figs. S3a and c) show that the MCFs comprise irregular micrometer sized particles. Upon considerably enhanced magnification, that the MCF particle is composed of nanospheres with a size of ~20 nm. The assembly of the nanospheres generates a highly porous structure. The corresponding energy-dispersive X-ray spectra (EDS) reveal an extremely low content of Si element and the absence of Al element, indicating that the Al-impregnated mesocellular silica foam templates have been almost completely removed. To further study the structure and morphology of the as-prepared mesocellular carbon foams, transition electron microscopy (TEM) and the corresponding selected area electron diffraction (SAED) were performed (Fig. S4 in Supporting information). The MCFs show a typical honeycombed structure (Figs. S4a and c) and the pore sizes of 16 nm for MCF-1 and 23 nm for MCF-2, which are consistent with the above N₂ physisorption results. The corresponding SAED patterns (Figs. S4b and d) of the MCFs display blurred diffraction rings, revealing the nanocrystalline structure that is consistent with the above wide-angle XRD results.

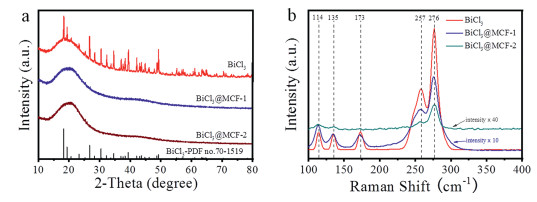

Fig. 2a shows the XRD patterns of the as-prepared BiCl₃ and BiCl₃@MCFs nanocomposites. The broad background centered at about 20.0° is ascribed to the amorphous 3M tape used for preventing the samples from moisture absorption during the tests. The diffraction peaks of the BiCl₃ sample coincides well with that of the orthorhombic BiCl₃ phase (PDF card No. 70–1519), demonstrating that the acidic treatment of the commercial BiCl₃ did not introduce any impurities. The XRD patterns of BiCl₃@MCF-1 and BiCl₃@MCF-2 only display the broad peak of the 3M tape and no characteristic peaks of BiCl₃ were detected, which may be due to the poor crystallinity of BiCl₃ caused by the confined growth inside pores of the MCFs. Raman spectroscopy was further conducted to analyze the phase structures of the as-prepared BiCl₃@MCFs (Fig. 2b). The samples were sealed between two pieces of glasses to prevent moisture contamination. Five characteristic peaks are identified in the Raman spectrum of the BiCl₃ sample [33-35]. Similar Raman signals are detected for the BiCl₃@MCF nanocomposites, confirming the presence of BiCl₃ in the as-prepared BiCl₃@MCF nanocomposites. The decreased intensity of Raman peaks for the BiCl₃@MCF nanocomposites may be due to the encapsulation of the BiCl₃ phase inside the pores of MCFs [36].

In order to study the morphology of the BiCl₃@MCF nanocomposites, field-emission scanning electron microscopy (FE-SEM) was performed. From Figs. 3a and b, it can be seen that the BiCl₃ sample is consisted of agglomerated nanosheets, with a thickness of about 20 nm. Figs. 3c–f present the morphologies of the BiCl₃@MCF-1 and BiCl₃@MCF-2 composites at two different magnifications. By comparing Figs. 3d and f with Figs. S3b and d, it is clear that the apparent morphology of mesocellular carbon foams is retained for both BiCl₃@MCF composites. For the BiCl₃@MCF-1 sample, there are large amount of bare BiCl₃ nanosheets attached on the surface of the carbon matrix MCF-1. In contrast, much fewer BiCl₃ nanosheets are observed for the BiCl₃@MCF-2 sample, indicating that most of the BiCl₃ particles are encapsulated into the carbon matrix MCF-2. This is because the carbon matrix MCF-2 with a larger pore volume, larger cell and window diameter can accommodate more BiCl₃. The corresponding elemental mapping images (Figs. 3g–i) further show that the Bi and Cl elements are evenly distributed in the carbon matrix, indicating that BiCl₃ nanoparticles are uniformly distributed in the mesocellular carbon foam matrix.

In order to further confirm the phase purity of the BiCl₃@MCF-2 composite, transition electron microscopy and the corresponding selected area electron diffraction (SAED) were carried out. Fig. 3j indicates that the porous structure of MCF-2 can be maintained after loading of BiCl₃. The high-resolution transmission electron microscopy image of the BiCl₃@MCF-2 composite (Fig. 3k) shows that many crystalline particles with size less than 10 nm are homogeneously distributed in the amorphous carbon matrix MCF-2. The interplanar spacing of 0.306 nm is well matched with the d spacing of the (211) lattice plane of BiCl₃. The corresponding SAED pattern (Fig. 3l) shows that besides the blurred diffraction ring corresponding to (100) plane of the carbon matrix, the dispersed diffraction ring with the interplanar spacing of 0.334 nm agrees well with (121) plane of the BiCl₃ phase. Hence, the TEM result further verified the confinement of pure BiCl₃ nanocrystal in the mesocellular carbon foams.

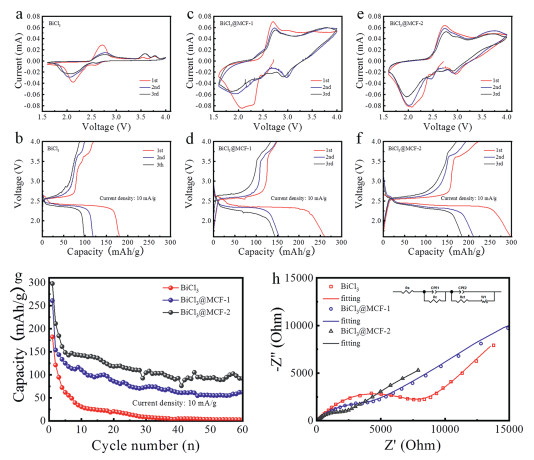

In the following, we investigated the electrochemical performances of the as-prepared BiCl₃, BiCl₃@MCF-1 and BiCl₃@MCF-2 materials. Cyclic voltammetry (CV) tests were recorded at a scan rate of 0.05 mV/s with a potential range of 1.6–4 V. The CV curves of the BiCl₃ and the BiCl₃@MCF cathodes (Figs. 4a, c and e) all show one major couple of redox peaks and two weak couples of redox peaks. This implies a three-step electrochemical reaction between BiCl₃ and Bi metal, consistent with the commercial BiCl₃ reported previously [1]. Galvanostatic discharge-charge tests were carried out at a current density of 10 mA/g. Figs. 4b, d and f illustrate the first three charge-discharge profiles of the three cathodes. In accordance with the CV results, one major charge/discharge plateau in the vicinity of 2.5 V accompanying with two short charge/discharge plateaus are observed. Benefitted from the nanoconfinement effect of the BiCl₃ nanoparticles within the mesocellular carbon foams, the BiCl₃@MCF nanocomposites show higher utilization of active materials than the BiCl₃ sample. The initial discharge capacities for the BiCl₃@MCF-2 and BiCl₃@MCF-1 cathodes are 298 mAh/g and 261 mAh/g, respectively, much higher than 182 mAh/g for the BiCl₃ cathode. Fig. 4g presents the cycling performance of the three cathodes. For the two nanocomposite cathodes, they display high reversible capacities of 91 mAh/g (BiCl₃@MCF-2) and 60 mAh/g (BiCl₃@MCF-1) after 60 cycles. On the contrary, the BiCl₃ cathode remains little capacity after 30 cycles. The terrible capacity retention of the BiCl₃ cathode is likely originated from structural collapse of the electrode and the loss of electrical contact with the current collector because of the large volume changes of BiCl₃ during repeated charge and discharge. The excellent cycling performance of the BiCl₃@MCF nanocomposite cathodes can be attributed to the enhanced structural stability by encapsulation of BiCl₃ into mesocellular carbon foams [37]. Moreover, a high energy density of 2097 Wh/L can be reached in this work, which is close to the theoretical volumetric energy density (2500 Wh/L). Besides, the energy-dispersive X-ray analysis (Fig. S5 in Supporting information) on glass fiber separator (the side facing lithium metal) after 70 cycles reveals the absence of Bi, Fe, Cr and Ni elements, indicating BiCl₃ was not dissolved in the electrolyte and the stainless steel collector was not corroded during cycling. Hence, unlike the other metal chlorides such as CoCl₂ and VCl₃, the dissolution of BiCl₃ in the electrolyte can be ignored.

To further elucidate the different electrochemical properties of the BiCl₃ and BiCl₃@MCF composites, electrochemical impedance spectroscopy (EIS) tests were performed. The EIS curves consist of two parts, a broad arc at high and medium frequency and a straight line at low frequency (Fig. 4h). The broad arc at high and medium frequency represents the combined contribution of the contact resistance (R_c) and the charge transfer process (R_ct). The straight line at low frequency may be related to the Warburg resistance reflecting the solid-state diffusion of chloride ions in the bulk electrode [38, 39]. The EIS plots can be well fitted according to the equivalent circuit model shown in the inset of Fig. 4h. The fitted electrochemical kinetic parameters of the BiCl₃ and BiCl₃@MCF cathodes are shown in Table S2 (Supporting information). The BiCl₃@MCF-2 cathode (96 Ohm) possesses a smaller charge transfer resistance than the BiCl₃@MCF-1 (167 Ohm) cathode, which could be attributed to less exposed BiCl₃ nanosheets on the surface of the MCF matrix. Moreover, the charge transfer resistances of the BiCl₃@MCF-1 and BiCl₃@MCF-2 cathodes are much smaller than that of the BiCl₃ cathode (2431 Ohm). Therefore, the unique BiCl₃@MCF composite architecture can considerably enhance the electrical conductivity and charge transfer of the corresponding electrode.

In order to understand the electrochemical reaction mechanism of the BiCl₃@MCF-2 cathode, the batteries after initial discharge and charge were disassembled. The cycled cathodes were directly characterized by XRD as shown in Fig. S6a (Supporting information). The Bi metal (PDF card No. 2–518) formed after the 1^st discharge as indicated by the arrows in Fig. S6a, revealing a conversion reaction mechanism which is consistent with the previous report [1]. After the 1^st charge, the Bi phase disappeared, the BiCl₃ phase was nevertheless not detected. The weak peaks of the BiCl₃ nanocrystals even if formed after the 1^st charge could be overlapped by the broad peak of the 3M tape. Because ex-situ XRD cannot prove the recovering of BiCl₃ phase after the 1^st charge, FE-SEM and the corresponding EDS (Figs. S6b and c) were used to further clarify whether chloride ion was back or not after the 1^st charge. In order to avoid the interference of Cl^– in the electrolyte, solvent of the electrolyte (PP₁₄TFSI) was used to wash the electrode disks detached from the current collector. The corresponding EDS results (Fig. S6b inset) verify the removal of chloride ions from the BiCl₃@MCF-2 cathode after the 1^st discharge as the atomic ratio of Cl element to Bi element is around 0.56. After the 1^st charge, the increased atomic ratio between Cl element and Bi element to around 2.5 further confirmed shuttle back of chloride ions to the BiCl₃@MCF-2 cathode. Raman spectroscopy was further used to investigate the structural evolution of the BiCl₃@MCF-1 (Fig. S7 in Supporting information) cathode during the 1^st discharge and charge process. The two peaks at 50–80 cm⁻¹ in Raman spectrum of the pristine electrode after rest for 20 h can be assigned to BiCl₃ [40]. Compared with Fig. 2b, the absence of other peaks is probably due to the formation of complex ion (such as BiCl₅²⁻or BiCl₆³⁻) between BiCl₃ and the electrolyte [41]. A broad peak at 80–105 cm⁻¹ appeared after the 1^st discharge, which can be assigned to Bi metal [36, 42], this broad peak disappeared after the subsequent charge, further suggesting the extraction/insertion of chloride ions from/into the BiCl₃@MCF composite materials.

In summary, we reported the BiCl₃@MCF nanocomposite material for chloride ion batteries which was prepared by vacuum impregnation and subsequent rotary evaporation at 393 K for 5 h, and achieved stable cycling performance of metal chloride for the first time. X-ray diffraction and Raman spectroscopy revealed the high purity of the BiCl₃@MCF nanocomposite. Field-emission scanning electron microscopy and transition electron microscopy revealed that most of the BiCl₃ nanocrystals with size less than 10 nm were uniformly encapsulated into the pores of the mesocellular carbon foam matrix. When used as cathode for chloride ion batteries, the nanoconfined BiCl₃@MCF composite exhibited superior Cl^– storage performance than the BiCl₃ material, delivering a maximum discharge capacity of 298 mAh/g and remained at 91 mAh/g after 60 cycles at 10 mA/g. The better electrochemical performance of the BiCl₃@MCF nanocomposite benefited from 3D interconnected porous carbon matrix with large cell (15.7 nm) and window size (23.2 nm), which could not only facilitate the charge transfer and electrolyte transport but also buffer the large volume change of BiCl₃ during repeated charge and discharge. Ex-situ X-ray diffraction, ex-situ scanning electron microscopy and ex-situ Raman characterization revealed the Cl^– extraction/insertion from/into the BiCl₃@MCF nanocomposite cathode during discharge and charge process. This work opens up an avenue to rationally design of bismuth chloride cathode with stable cycling performance for chloride ion batteries.
