Facile one-pot synthesis of a novel all-carbon stair containing dimerized pentalene core from alkyne
收藏切换
PDF
Hui Zhaoa, 1, Rakesh Kumar Guptaa, 1, Wei Zhangb, Jiong Jiaa, Qun Yua, Zhiyong Gaoc, Guilin Zhuangb, *, Dacheng Lid, Xingpo Wanga, *, Chen Ho Tunga, Di Suna, *
Chinese Chemical Letters | 2022, 33(4) : 2047 - 2051
Less
收藏切换
Chinese Chemical Letters | 2022, 33(4): 2047-2051
• Communication •
Facile one-pot synthesis of a novel all-carbon stair containing dimerized pentalene core from alkyne
Full
Hui Zhaoa, 1, Rakesh Kumar Guptaa, 1, Wei Zhangb, Jiong Jiaa, Qun Yua, Zhiyong Gaoc, Guilin Zhuangb, *, Dacheng Lid, Xingpo Wanga, *, Chen Ho Tunga, Di Suna, *
Affiliations
  • aKey Laboratory of Colloid and Interface Chemistry, Ministry of Education, School of Chemistry and Chemical Engineering, State Key Laboratory of Crystal Materials, Shandong University, Ji'nan 250100, China
  • bCollege of Chemical Engineering and Materials Science, Zhejiang University of Technology, Hangzhou 310032, China
  • cSchool of Chemistry and Chemical Engineering, Collaborative Innovation Center of Henan Province for Green Manufacturing of Fine Chemicals, Key Laboratory of Green Chemical Media and Reactions, Ministry of Education, Henan Normal University, Xinxiang 453007, China
  • dShandong Provincial Key Laboratory of Chemical Energy Storage and Novel Cell Technology, and School of Chemistry and Chemical Engineering, Liaocheng University, Liaocheng 252000, China
Published: 2022-04-15 doi: 10.1016/j.cclet.2021.10.036
Outline
收藏切换

The construction of all-carbon molecule frameworks remains challenging. Herein, we report a facile and efficient one-pot synthesis of a novel all-carbon stair containing dimerized pentalene core using inexpensive cyclopropyl alkyne catalyzed by in situ generated Cu(I) from the comproportionation reaction of Cu(II) salt and Cu powder under mild reaction conditions. The reaction proceeds via sequential acetylenic coupling, followed by cyclization and [2 + 2] cycloaddition to directly produce pentalene dimer, which is difficult to access by other established methods. Different mechanistic paths were studied for the pentalene formation using density functional theory, suggesting that the reaction also proceeds through acetylenic coupling followed by cyclization and [2 + 2] cycloaddition. Based on the activation energy barriers, Path 1 has the rate-determining step of 38.63 kcal/mol, which is the most thermodynamically preferred one among the four paths.

One-pot synthesis  /  Penatlene dimerization  /  Comproportionation reaction  /  Crystal structure  /  Theoretical calculations
Hui Zhao, Rakesh Kumar Gupta, Wei Zhang, Jiong Jia, Qun Yu, Zhiyong Gao, Guilin Zhuang, Dacheng Li, Xingpo Wang, Chen Ho Tung, Di Sun. Facile one-pot synthesis of a novel all-carbon stair containing dimerized pentalene core from alkyne[J]. Chinese Chemical Letters, 2022 , 33 (4) : 2047 -2051 . DOI: 10.1016/j.cclet.2021.10.036
Full Text
Less
During the past few decades, pentalene and its derivatives have attracted much attention of chemists due to their synthetic challenges and antiaromatic characters [1-6]. The chemistry of benzopentalene derivatives has been well explored [7-10]. However, the pentalene dimer or its derivatives are elusive because of multistep syntheses, tedious purification processes, and low synthetic yield. For instance, Neuenschwander et al. isolated unsubstituted pentalene dimer by two pathways, firstly oxidative coupling of dilithium pentalenediide dihydropentalene [11] and secondly the removal of hydrogen bromide from 1-bromo-1,2-dihydropentalene resulting in the dimerization of 1-bromo-1,2-dihydropentalene [12]. The dilithium pentalenediide was obtained by the reaction of BuLi and dihydropentalenes, which had to be produced via gas-phase pyrolysis of cyclooctatetraene at 400–675 ℃ [13, 14]. Although the synthesis of pentalene by nonpyrolytic methods may also be achieved by the Skattebol rearrangement of a geminal dibromocyclopropane fused cycloheptatriene [15, 16], a general method for the synthesis of substituted pentalene dimers has not been reported.
One of the most exciting aspects of transition metal chemistry is the formation of new stable metal complexes with unstable organic molecules under normal conditions [17-21]. For example, Pettit et al. isolated a stable tricarbonyliron complex by dehalogenation of 3,4-dichlorocyclobut-1-ene with Fe2(CO)9 [22]. Katz et al. have shown that the coordination to metals centres can stabilize pentalene [23-25]. Several organometallic complexes with highly unstable pentalene and its derivatives exhibiting interesting electronic properties have been well investigated [26, 27].
On the other hand, alkynyl ligands have been proved to be multifunctional protective ligands for constructing atomically precise metal nanoclusters [28]. Inspired by our previous works [29-31], herein, we were interested in developing copper nanocluster in the presence of cPrC≡CH, Cu(CF3COO)2 and Cu powder under solvothermal conditions. To our surprise, the reaction underwent multiple in situ transformations, resulting in the formation of a pentalene dimer instead of a copper nanocluster. The ensuing pentalene dimer has been comprehensively characterized by NMR, MALDI-TOF/MS, single-crystal X-ray diffraction, UV–vis absorption studies, and further supported by theoretical calculations. To our knowledge, this is the simplest and effective synthetic route for pentalene dimer, and it is also the first example of such compounds characterized by single-crystal X-ray analysis.

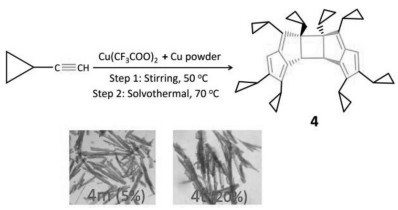

The pentalene dimer was synthesized by the reaction of a mixture of Cu(CF3COO)2, Cu powder and cPrC≡CH in a 1:4:1 (v/v/v) mixture of DMF-MeOH-MeCN (6 mL). The mixture was reacted at 50 ℃ by stirring for 6 h, followed by the solvothermal treatment at 70 ℃ for 36 h (Scheme 1). A large number of orange rod-like crystals (ca. 20%) and the small number of yellow rod-like crystals (ca. 5%) of C40H44 were obtained within two days, which were unambiguously characterized by X-ray crystallography. These compounds have been identified as triclinic (4t) and monoclinic (4m) polymorphs of C40H44. The synthesis details and some basic characterizations are provided in the Supporting information.

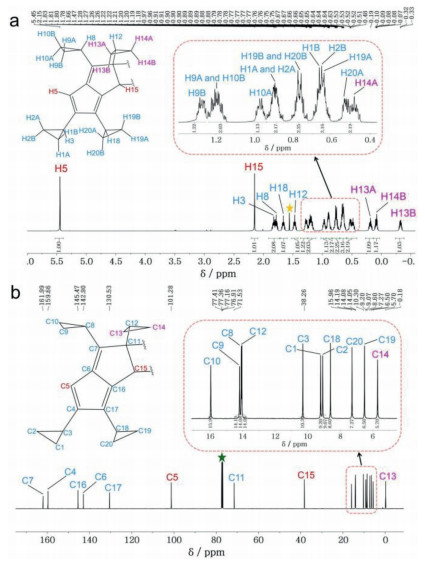

Notably, due to the polymorphic nature, only 4t has been taken as a representative for discussions in detail, but some differences between 4m and 4t were also included. The IR spectrum of 4t exhibits the characteristic stretching vibrations at 3074, 2998, and 1615 cm−1, assigned to =C-H, -C-H and C=C, respectively (Fig. S1 in Supporting information). The 1H NMR spectrum of 4t shows the characteristics proton signals for the pentalene (H5) and cyclobutane (H15) at 5.45 and 2.15 ppm as singlet, respectively (Fig. 1a). The chemical shift of methylene (CH2) and methine proton (CH) on the cyclopropyl ring attached to the cyclobutane ring appear below 0.5 ppm (δH –0.33, td; 0.14–0.03, m; 0.19, ddd; 0.50–0.44, m) and 1.47, tt, respectively. Among them, one proton (H13B) on a cyclopropyl ring showing upfield shift (δH –0.33), which is caused by the shielding effect from the adjacent pentalene ring. Whereas the protons on the cyclopropyl ring attached to the pentacene core resonated in the region of 0.51–1.83 ppm. Correspondingly, the 13C{1H} NMR spectrum shows the characteristics sp3 tertiary carbon (C15) and sp3 quaternary carbon (C11) and at 38.26 and 71.53 ppm, respectively (Fig. 1b). The sp2 tertiary carbons of the pentalene core resonated at 159.66 (C4), 142.90 (C6), 161.99 (C7), 145.47 (C16), 130.53 (C17) ppm, together with sp2 secondary carbon (C5) at 101.28 ppm. The carbons of the cyclopropyl group appeared in the range of –0.18−15.96 ppm. All these assignments for protons on 4t were further supported by DEPT135 and 2D NMR spectroscopic data, including 1H–13C HMBC, 1H–1H COSY, and 1H–1H NOESY experiments. The detailed data of 1D and 2D NMR are shown in Tables S1, S2 and Figs. S2-S5 (Supporting information). The experimental 1H and 13C{1H} NMR data match well with the theoretical data (Figs. S6-S9 and Table S1 in Supporting information). The composition of 4t has been further confirmed by the matrix-assisted laser desorption/ionization–time–of–flight (MALDI-TOF) mass spectrum (m/z calcd. for C40H44 [M]+, 524.343; found 524.391) (Fig. S10 in Supporting information).
High-quality single crystals suitable for X-ray diffraction of pentalene dimers were grown by slow evaporation of the reaction mixture for 2–3 days. It crystallizes as a polymorph in the centrosymmetric triclinic and monoclinic crystal system with the space group of P-1 and P21/c, respectively (Table S3 in Supporting information). Although some reports on pentalene dimers are well documented, and various geometries and isomers were suggested, no crystal structures with such kinds of dimers were reported to date. To our knowledge, this is the first example of a pentalene dimer, which has been unambiguously determined by single-crystal X-ray analysis. Due to the similarity of their molecular structures, we take the triclinic system (4t) as a representative for discussions in detail below.

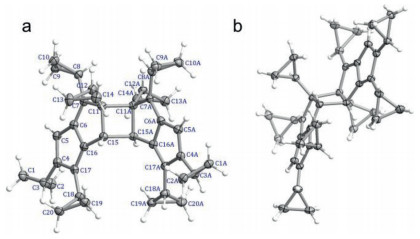

The 4t exhibits a stair-like structure (Fig. 2) with two pentalene units fused on a central cyclobutane ring left and right. The formula of 4t is C40H44. Of note, a total of eight cyclopropyl groups attached to above dimerized pentalene core, with six on the pentalene and the other two on the central cyclobutane ring. The bond length of the four-membered cyclobutane ring is slightly longer than those of carbon-carbon single bonds and varies in the range of 1.56−1.60 Å. The dimerized pentalene core showed C2h symmetry, alternate long (1.449(2), 1.4905(19), 1.5337(2) and 1.491(2) Å for C5-C6, C4-C17, C7-C11, and C15-C16, respectively) and short bonds (1.359(2), 1.354(2), and 1.353(2) Å for C4-C5, C6-C7 and C16-C17, respectively), which are in good agreement with the previously reported structures of pentalene derivatives (Fig. 2a, Table S4 in Supporting information) [32]. The cyclopropyl C-C bond lengths vary in the range of 1.473(3)−1.515(2) Å, indicating the single bond nature. The conjugated pentalene ring (A) deviates from the nonconjugated ring (B) with an average of 2.62° and 2.56° for 4t and 4m, respectively (Figs. S11 and S12 in Supporting informaion). The dihedral angles between the planes of the two pentalene units are 11.55° and 10.48° for 4t and 4m, respectively (Figs. S13 and S14 in Supporting information). The bond lengths and bond angles in both polymorphs are similar. More interestingly, through C-H…π and van der Waals interactions, C40H44 molecules in 4t and 4m packed in ABAB and ABCD fashions along a and c axis, respectively, (Figs. S15 and S16 in Supporting information), which dictate their different crystallized space groups in solid-state. The bond lengths comparison between the crystal structure and geometrically optimized structure (vide infra) is in good agreement, as shown in Fig. S17 (Supporting information).

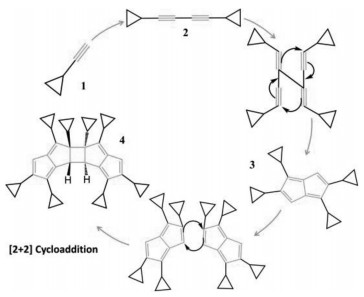

To shed insights into the reaction mechanism of the pentalene dimer, a process of dimerization, cyclization followed by cycloaddition is proposed. The mechanism for the formation of 4 is illustrated in Scheme 2. The proposed mechanism can be roughly divided into two steps. The first step is the Giles Gasser dimerization of terminal aliphatic alkyne (1) in the presence of Cu(I) in situ generated and oxygen as an oxidant to produce (2). The second step is the cyclotetramerization of a dimerized alkyne to give pentalene (3), which is prone to dimerization in order to relieve its electronic strain resulting from the conjugated 8π antiaromatic system to yield pentalene dimer (4) finally. Bailey et al. isolated and structurally characterized stable dihydropentalenes (Ph4PnH2) from cyclotetramerization of phenylacetylene catalyzed by PdCl2, where there is no driving force for dimerization in the fulvenic 6π aromatic dihydropentalene [33].
Following the above similar synthetic route, we also performed a series of parallel reactions in the presence of only Cu(CF3COO)2, only copper powder, or in the absence of Cu(CF3COO)2 and copper powder. All these reactions do not produce the pentalene dimer, confirming that both Cu(CF3COO)2 and Cu powder are essential for the reaction. Furthermore, to understand the influence of substituents on the terminal alkyne, the reactions of phenyl and tert-butyl substituted alkyne, i.e., phenyl acetylene and tert-butyl acetylene were carried out under identical conditions. Both the reactions yielded some uncharacterized products. This may be due to the fact that the steric hindrance of the phenyl substituent is greater than the cyclopropyl group and does not engage in oxidative coupling. On the other hand, electron-donating tendency imposed by the tert-butyl substituent of tert-butyl acetylene is not enough to induce the oxidative coupling.
Although we did not obtain single crystals of Cu(I) complexes, Cu(I) species in mother liquor catalyzed the formation of pentalene dimer. In order to confirm the presence of Cu(I) species in mother liquor, we performed the ESI-MS of the mother liquor. As depicted in Fig. S18 (Supporting information), we observe three peaks centered at m/z 576.8051 (1a), 706.7958 (1b) and 834.7783 (1c). After carefully checking the separation between the isotopes, we found that 1a-1c are monovalent species and are assigned to [Cu5(cPrC≡C)4]+ (1a, calcd. m/z 576.8022), [Cu6(cPrC≡C)5]+ (1b, calcd. m/z 706.7693) and [Cu7(cPrC≡C)6]+ (1c, calcd. m/z 834.7381), respectively (Table S5 in Supporting information).

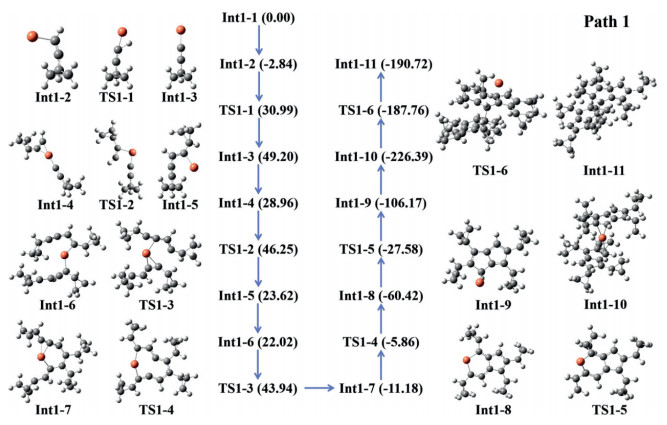

To further identify the pentalene dimer formation mechanism, spin-polarized density functional theory calculations were performed at the theoretical level of D3(BJ)-B3LYP/6-31+G(d, p)//M06/TZVP by using Gaussian 09 package [34]. Four possible reaction pathways were considered: Path 1 (Fig. 3) and Paths 2–4 (Fig. S19), for details see Figs. S19-S70 and Tables S6-S56 (Supporting information). In the initial reaction, the cyclopropyl alkyne attacks on the Cu to form Int1–2 with the releasing energy of 2.84 kcal/mol, indicating that the triple bond of cyclopropyl alkyne is thermodynamically activated. Then, the Int1–2 undergoes subsequent reactions in two ways: (1) removing the H of C-H to form Int1–3 (Path 1); (2) bonding with a cyclopropyl alkyne to become Int3–1 (Path 3), respectively. As shown in Fig. 3 and Fig. S19a, the Int1–3 is formed by removing the H atom of C-H from Int1–2 with the required energy of 33.84 kcal/mol. After removing the H, the C of Int1–3 with one unpaired electron is beneficial to react with the next cyclopropyl alkyne to produce Int1–4. In the uphill process with the activation energy of 17.29 kcal/mol (TS1–2), the C-C coupling occurs from Int1–4 to Int1–5. Meanwhile, Int1–5 has two reaction ways: (1) directly bond with another Int1–5 intermediate (Path 1), (2) combine with the reactant cyclopropyl alkyne for subsequent reactions (Path 2). For the former (Fig. 3), both carbon atoms in Int1–5 connected to Cu gradually get closer to generate Int1–7 via intermediate Int1–6 and TS1–3. Both carbon atoms feature doublets state, resulting in the activation energy of 21.92 kcal/mol in this reaction process and the reducing energy of 11.18 kcal/mol compared to Int1–1, thermodynamically. The pentalene (Int1–9) was gained from the intermediate of Int1–7 and Int1–8 through two-step successive C-C coupling of TS1–4 (5.32 kcal/mol) and TS1–5 (32.84 kcal/mol), respectively. Such reaction features an exothermic process with about 106.17 kcal/mol for Int1–1.
Pentalene (Int1–9) is synthesized from the cyclopropyl acetylene through the above four reaction paths. Furthermore, Int1–9 bonds with the intermediate after removing Cu from Int1–9 to form Int1–10 with larger exothermic energy of 226.39 kcal/mol. The best way to form pentalene dimer from Int1–10 is taken into account. Int1–10 directly crosses the 38.63 kcal/mol energy barrier to produce the final product. In general, the synthesis of pentalene dimer is mainly through multistep carbon-carbon coupling from the cyclopropyl alkyne. In view of the activation energy barriers, among the four paths, Path 1 with the rate-determining step of 38.63 kcal/mol is thermodynamically preferable.
The electronic absorption spectrum of 4t was recorded in dichloromethane (DCM) (Fig. S71 in Supporting information). The absorption band at 391 nm may be assigned to the π-π*, whereas the shoulder band and intense band at 326 and 298 nm, respectively, are credited to the n-π* transitions. Furthermore, to get a deep insight into the electronic transitions, solid-state UV–vis spectrum under reflectance mode was measured (Fig. S72a in Supporting information). The bandgap energy (Eg) for 4t and 4m was calculated to be 2.18 and 2.2 eV, respectively (Fig. S72b in Supporting information). The slightly different bandgaps of two polymorphs of C40H44 should rise from the different molecule packing in bulk phases.

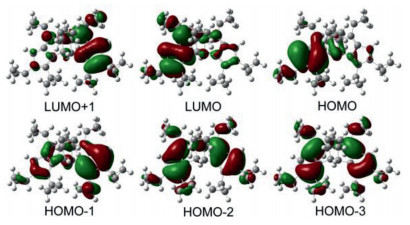

To understand the electronic structure and the origin of the absorption band of 4t, density functional theory (DFT) and time-dependent density functional theory (TD-DFT) calculations were carried out employing Gaussian 09 program (Revision A.02) 6–31G(d, p) basis set for C, and H at B3LYP (Becke-3-Lee-Yang-Parr) level (details see Supporting information). The solvent calculation was conducted in DCM using the polarized continuum model (PCM). The frontier molecular orbital (FMO) plots of the 4t are shown in Fig. S73 (Supporting information). The HOMO of 4t is delocalized over the pentalene subunits, and the LUMO is delocalized over the pentalene unit attached to the cyclobutane ring. The calculated UV–vis absorption spectrum of 4t was simulated using TD-DFT energy (vertical excitation and oscillator strengths) calculations on the optimized ground-state structures (Tables S57 and S58 in Supporting information), and these data are in good correlations with the experimental absorption spectrum (Fig. 4). The theoretical bandgap energies of 4t calculated at B3LYP level equal to 3.56 eV and matches the respective optical band energy of 3.12 eV (in DCM). The TD-DFT calculation shows that the main absorption band at ~426 nm is contributed by the transitions from HOMO to LUMO, whereas the band at 298 nm is contributed by the transitions from HOMO-2 and HOMO-3 to LUMO. The absorption band centered at 258 nm is originated from the transitions from HOMO-2 to LUMO and LUMO+1 (Fig. 5).
In conclusion, a simple and efficient route to synthesize a novel cyclopropyl substituted pentalene dimer has been serendipitously discovered and successfully characterized by X-ray crystallography, demonstrating the first example of such compounds in the solid-state. The reaction starting from cPrC≡CH has undergone multiple transformations, including acetylenic coupling, followed by cyclization and [2 + 2] cycloaddition, and finally pentalene dimer is obtained. The reaction mechanism was further investigated and elucidated in detail by theoretical calculations. The rate-determining step with the activation energy of 38.63 kcal/mol clearly indicated that Path 1 was the most thermodynamically preferred among the four proposed paths. The successful synthesis of pentalene dimer avoids the pyrolysis, flammable organolithium or Grignard reagents and is performed utilizing readily available components under ambient conditions. We believe that the proposed synthetic route would provide new insights into the synthesis and investigation of the physicochemical properties of the elusive pentalene derivatives.
Declaration of competing interest
Less
The authors declare no conflict of interest.
Acknowledgments
Less
This work was financially supported by the National Natural Science Foundation of China (Nos. 91961105, 21822107, 21571115, 21827801), the Natural Science Foundation of Shandong Province (Nos. ZR2019ZD45, JQ201803 and ZR2017MB061), and the Taishan Scholar Project of Shandong Province of China (Nos. tsqn201812003 and ts20190908). Project for Scientific Research Innovation Team of Young Scholar in Colleges and Universities of Shandong Province (No. 2019KJC028), Natural Science Foundation of Shandong Province (No. ZR2020ZD35). We thank Y. Z. Tan (Xiamen University), Y. Wang, Z. H. Xu, and L. Liu (Shandong University) for helpful discussions.
Supplementary materials
Less
Supplementary material associated with this article can be found, in the online version, at doi:10.1016/j.cclet.2021.10.036
References
Less
[1]
H.J. Lindner, Pentalene und dihydropentalene, In T.Asao, G.Becker, H.Blaschke, et al. (Eds.), Carbocyclic π-Electron Systems, 4th Ed., Georg Thieme Verlag: Stuttgart, 1985; pp 103–122.
[2]
H.S. Xin, B. Hou, X.K. Gao, Acc. Chem. Res. 54 (2021) 1737–1753.
[3]
H. Hopf, Angew. Chem. Int. Ed. 52 (2013) 12224–12226.
[4]
H. Hou, X.J. Zhao, C. Tang, et al., Nat. Commun. 11 (2020) 3976.
[5]
B. Liu, F. Yu, M. Tu, et al., Angew. Chem. Int. Ed. 58 (2019) 3748–3753.
[6]
Z.E. Zhang, Y.Y. An, B. Zheng, et al., Sci. China Chem. 64 (2021) 1177–1183.
[7]
Zerubba U. Levi, T. Don Tilley, J. Am. Chem. Soc. 131 (2009) 2796–2797.
[8]
H. Oshima, A. Fukazawa, S. Yamaguchi, Angew. Chem. Int. Ed. 56 (2017) 3270–3274.
[9]
M. Saito, Symmetry 2 (2010) 950–969.
[10]
J. Zhao, K. Oniwa, N. Asao, et al., J. Am. Chem. Soc. 135 (2013) 10222–10225.
[11]
S. You, M. Neuenschwander, Chimia 50 (1996) 24–26.
[12]
S. You, S. Chai, N. Schwarz et al., Helv. Chim. Acta 80 (1997) 1627–1638.
[13]
H. Meier, A. Pauli, P. Kochhan, Synthesis (1987) 573–574.
[14]
H. Meier, A. Pauli, H. Kolshorn et al., Chem. Ber. 120 (1987) 1607–1610.
[15]
M.S. Baird, C.B. Reese, Tetrahedron Lett. 33 (1976) 2895–2898.
[16]
I. Fleischhauer, U.H. Brinker, Chem. Ber. Recl. 120 (1987) 501–506.
[17]
S.A.R. Knox, F.G.A. Stone, Acc. Chem. Res. 7 (1974) 321–328.
[18]
C. Papatriantafyllopoulou, E.E. Moushi, A.J. Tasiopoulos, Chem. Soc. Rev. 45 (2016) 1597–1628.
[19]
M. Manoli, S. Alexandrou, A.J. Tasiopoulos, Angew. Chem. Int. Ed. 55 (2016) 679–684.
[20]
G. Feng, M. Zhang, P. Wang, et al. PANS 116 (2019) 17654–17658.
[21]
F.K.W. Kong, M.C. Tang, Y.C. Wong, et al., J. Am. Chem. Soc. 139 (2017) 6351–6362.
[22]
L. Watts, J.D. Fitzpatrick, R. Pettit, J. Amer. Chem. Soc. 87 (1965) 3253–3254.
[23]
T.J. Katz, M. Rosenberg, J. Am. Chem. Soc. 85 (1963) 2030–2031.
[24]
T.J. Katz, N. Acton, J. McGinnis, J. Am. Chem. Soc. 94 (1972) 6205–6206.
[25]
T.J. Katz, N. Acton, J. Am. Chem. Soc. 94 (1972) 3281–3283.
[26]
O.T. Summerscales, F.G.N. Cloke, Coord. Chem. Rev. 250 (2006) 1122–1140.
[27]
S.M. Boyt, N.A. Jenek, U. Hintermair, Dalton Trans. 48 (2019) 5107–5124.
[28]
Z. Lei, X.K. Wan, S.F. Yuan, et al., Acc. Chem. Res. 51 (2018) 2465–2474.
[29]
B.L. Han, Z. Liu, L. Feng, et al., J. Am. Chem. Soc. 142 (2020) 5834–5841.
[30]
H.Y. Zhuo, H.F. Su, Z.Z. Cao, et al., Chem. Eur. J. 22 (2016) 17619–17626.
[31]
H.Y. Zhuo, A.Y. Hu, L. Feng, et al., J. Clust. Sci. 29 (2018) 1017–1022.
[32]
X. Yin, Y. Li, Y. Zhu, et al., Org. Lett. 13 (2011) 1520–1523.
[33]
P.M. Bailey, B.E. Mann, I.D. Brown et al., Chem. Commun. (1976) 238–239.
[34]
M.J. Frisch, G.W. Trucks, H.B. Schlegel, et al., Gaussian 09, Revision C. 01, Gaussian, Inc., Wallingford, CT, USA, 2009.
