Pengli Gao^a, Zhigang Xie^b, Min Zheng^*^,^a

Chinese Chemical Letters | 2022, 33(4) : 1659 - 1672

Less

Chinese Chemical Letters | 2022, 33(4): 1659-1672

• Review •

Small nanoparticles bring big prospect: The synthesis, modification, photoluminescence and sensing applications of carbon dots

Full

Pengli Gao^a, Zhigang Xie^b, Min Zheng^*^,^a

Affiliations

^aSchool of Chemistry and Life Science, Advanced Institute of Materials Science, Changchun University of Technology, Changchun 130022, China

^bState Key Laboratory of Polymer Physics and Chemistry, Changchun Institute of Applied Chemistry, Chinese Academy of Sciences, Changchun 130022, China

Pengli Gao received hr B.S. degree from Xinzhou Normal University (2017). She received her master's degree from the School of Chemistry and Life Sciences, Changchun University of Technology (2020). She is currently a Ph.D. candidate at the School of Biological Science and Medical Engineering, Beihang University. Her research interests focus on molecular imaging

Zhigang Xie is a full professor at Changchun Institute of Applied Chemistry (CIAC), Chinese Academy of Science (CAS). Dr Xie obtained his B.S. degree in Chemistry from Henan University in 2002 and his Ph.D. degree in Polymer Chemistry from CIAC in 2007. Before joining CIAC in 2012, he worked as a postdoctoral fellow at the Polytechnic University at Brooklyn and the University of North Carolina at Chapel Hill. His research focuses on polymeric nanomedicines and fluorescent nanoparticles

Published: 2022-04-15 doi: 10.1016/j.cclet.2021.09.085

Outline

Abstract

Less

As a new type of carbon-based fluorescent nanomaterials, carbon dots (CDs) are provided with the advantages of small size, excellent photoluminescence (PL) property, easy surface modification, robust stability, good water solubility and biocompatibility, which endow them with great potential in sensing. In this review, we first describe the preparation of CDs from different starting materials via various techniques, and pre-/post-modification strategies to modulate their PL properties. Second, we outline the optical properties of CDs, including UV-vis absorption and PL, especially the PL mechanisms of CDs are presented in detail from the size effect, molecular state, surface state and defect state. Third, we summarize the research progress of CDs in sensing environmental pollutants, bioactive substances, biological microenvironments, bacteria and viruses via different mechanisms. In addition, we envision the future development trends and prospects for CDs-based nanosensors. We believe that this type of small nanoparticles will bring about big prospect in the near future.

Key words

Carbon dots / Synthesis / Modification / Mechanisms / Sensing

Cite this Article

Pengli Gao, Zhigang Xie, Min Zheng. Small nanoparticles bring big prospect: The synthesis, modification, photoluminescence and sensing applications of carbon dots[J]. Chinese Chemical Letters, 2022 , 33 (4) : 1659 -1672 . DOI: 10.1016/j.cclet.2021.09.085

Full Text

Less

1 Introduction

Less

Optical nanomaterials have high sensitivity and selectivity for sensing variety of substances (such as ions [1-4], biological substances [5-9] and organic pollutants [10-13]), microenvironments (pH [14-16] and temperature [17, 18]) and fungus [19-22]. In the early stage of the development of nanomaterials, semiconductor quantum dots were first prepared [23-25], but their intrinsic toxicity has become a stumbling block for the further biomedical applications [24]. With the continuous research of nanomaterials, low toxic nanomaterials have been developed, such as metal nanoparticles [26, 27], silicon quantum dots [28] and carbon-based nanomaterials [29-31]. Especially, carbon dots (CDs) have been widely concerned and studied, due to their unique properties, performances and diverse applications [32-38]. Generally, CDs are monodispersed spherical nanoparticles with the average size of 1–10 nm. CDs are generally composed of carbon core with π-conjugated domain as well as amorphous region that is constructed by various functional groups on the surface (such as carboxyl, hydroxyl, and amino groups), which endow CDs with various advantages including: superior stability, high water solubility, tunable photoluminescence, exceptional biocompatibility and low toxicity. Based on the above advantages, CDs can be employed as promising probes for sensing.

Since CDs were discovered by accident in 2004 [39], their diverse properties have attracted more and more attention. In recent years, some reviews on the preparation, properties and applications of CDs have been published [40-44]. Among them, though several outstanding reviews have discussed about CDs as probes in the field of sensing. For example, Liu et al. summarized the sensing of CDs in solution and solid state [42], Sharma et al. summarized the sensing application of different substances based on green CDs [43]. However, there are no reviews focusing on summarizing the research progress of CDs nanosensors that based on different sensing mechanisms in recent years. In this review, first, the PL mechanisms of CDs are briefly discussed, which lay solid foundation for the development of CDs-based sensing systems. Next, we focus on introducing CDs-based nanosensors for the detection of various substances, microenvironments and fungus through different mechanisms. Finally, we look forward to the future research and development of CDs.

2 Preparation of CDs

Less

2.1 Starting materials

The starting materials of CDs can be generally divided into three categories: inorganic, organic and biomass materials.

The main paragraph text follows directly on here. Most inorganic precursors for preparing CDs are limited to carbon-based materials, such as carbon fibers, carbon nanotubes, candle soot, and graphene [45-47]. These large-sized carbon materials have a perfect sp² hybrid carbon structure, but lack effective transition energy levels to produce fluorescence. In order to confer luminescent property to CDs, it is required to modify their size, symmetry and surface chemistry. The most common method is to treat these carbon-based materials in strong oxidizing acidic environment.

It is universal to synthesize fluorescent CDs by using organics as starting materials. Commonly used organic precursors include small organic molecules, biological macromolecules, polymers, amino acids and carbohydrate compounds, which undergo dehydration polymerization and carbonization in the process of forming CDs [38, 48-50]. Since these precursors themselves contain abundant functional groups, such as amino, carboxyl and hydroxyl groups, which endow the as-prepared CDs with interesting properties and potential applications. Among them, citric acid is the most commonly used organic precursor [50].

In addition to inorganic and organic precursors mentioned above, some environmentally friendly materials have been utilized as carbon sources to prepare CDs. CDs synthesized from natural products have been reported, including milk, eggs, fruits, honey, green leaves etc. [51-53]. Because this type of natural products is common in nature, CDs obtained from biomass are very popular. Moreover, biomass materials usually contain a large amount of nitrogen and oxygen elements, which are very effective for preparing heteroatom-doped CDs with high PL efficiency.

2.2 Synthetic methods

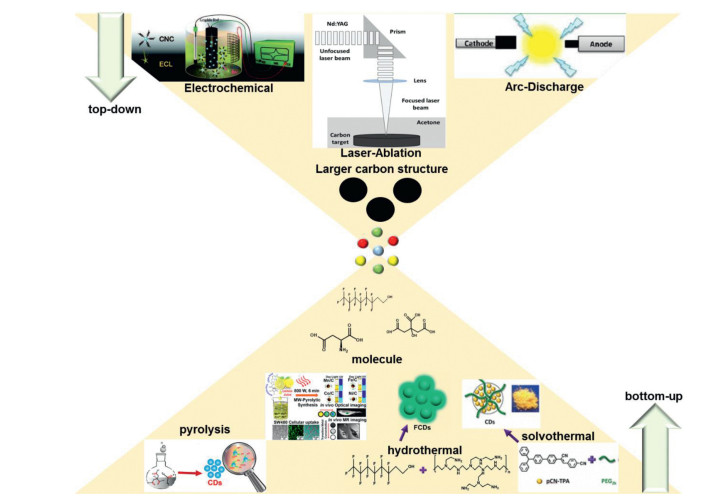

The synthetic methods of CDs have gone through two phases. The first phase was in 2004–2010, researchers are mainly committed to the development of top-down synthetic routes. The other stage was from 2010, CDs were frequently synthesized from different starting materials via bottom-up routes. These researches not only simplified the preparation process, but also significantly improved optical properties of CDs. Generally, the preparation methods of CDs fall into two broad categories: top-down and bottom-up routes (Fig. 1). The top-down technique is "breaking down" bulk carbon sources into smaller-sized CDs through arc discharge [39], laser ablation [54] or electrochemical oxidation [55, 56]. CDs prepared by this method usually have a perfect sp² hybrid structure, but they have poor PL performance and strict preparation conditions. In order to obtain exceptional PL CDs, it basically involves complicated purification, separation procedures and subsequent modification processes, which are not conducive to large-scale production. Therefore, it is imperative to modify the surface of CDs to improve their physical, chemical and optical properties. In order to overcome the disadvantages of the top-down method, researchers have proposed bottom-up route, which includes hydrothermal [57], solvothermal [58, 59], microwave [60] and pyrolysis methods [61, 62]. The bottom-up route has the advantages of relatively simple preparation process, mild reaction conditions and low equipment requirements, which is widely used for preparing CDs from organics or biomass.

3 Modification of CDs

Less

3.1 Pre-modification

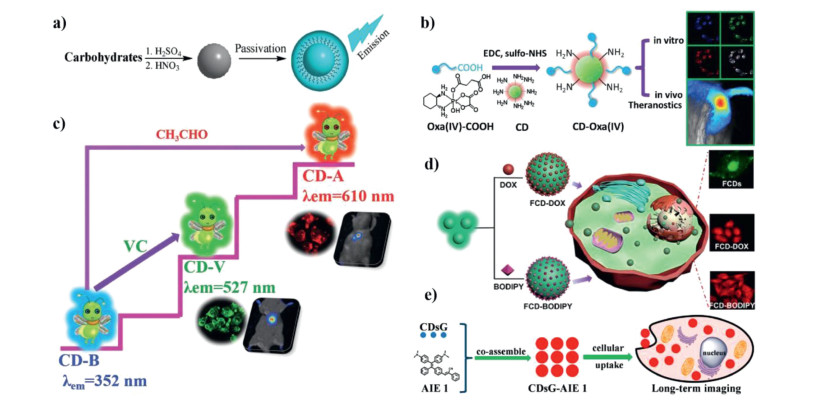

The biggest advantage of using the top-down method to synthesize CDs is that carbonization and surface modification can be completed by one step to achieve special customized CDs. Generally, pre-modified CDs are synthesized via selecting specific starting materials by means of pyrolysis, microwave, hydrothermal or solvothermal one-pot synthetic method. Zheng et al. successfully prepared multicolor fluorescent CDs that can cross the blood-brain barrier and target glioma cells (C6) by pyrolysis using d-glucose and l-aspartic acid as raw materials [63]. After that, our group synthesized a series of CDs by changing the molar ratio of d-glucose and l-aspartic acid, and determined the optimal synthesis ratio for targeting C6 cells [61]. Beforehand, our group used cyanine dyes (CyOH) [58], diketopyrrolopyrrole (DPP) [64], porphyrin [65] or dopamine [35] as starting materials via one-pot synthetic method, to synthesize CDs with high photothermal or photodynamic efficiency. Heteroatom doping is also an effective way to tune the PL performance of CDs and endow CDs with special functions. Heteroatom-doped CDs are prepared from the precursors that contain heteroelements, including non-metal elements (N [66], S [67], P [68], B [69], F [70], Cl [71], Br [72], Si [73], Se [74]) and metal elements (Cu [75], Zn [76], Mn [77, 78], Fe [79], Al [80], Zr [50]). Among them, N and S have become common doped elements [81-84], because they have rich valence electrons. Recently, our group reported concentration-modulated PL of CDs [50] which were synthesized by using citric acid and thiourea as starting materials. With the increase of concentrations, the band gap of CDs gradually decreases, resulting in the red-shift of fluorescence (Fig. 2). Qu et al. successfully prepared N-doped CDs from citric acid and ethylenediamine via hydrothermal method and the PL quantum yield (PQY) of CDs reached up to 94% [85]. During the reaction, citric acid is dehydrated to form CDs, and the adjacent amide and carboxylic acid groups form pyrrole-N in the carbon skeleton through intramolecular dehydrogenation, and further converted into graphite-N under heating conditions, thus improving the PQY of CDs. At the same time, they also proved that different types of amino groups can achieve different doping effects. Some studies reported that surface defects that caused by the passivation of heteroatoms can act as excitation energy traps and further influence the PL property of CDs. For example, Xu et al. synthesized S-doped CDs with PQY of 67% using citric acid and sodium thiosulfate as starting materials [86]. S atoms play a role in catalyzing redox during the formation of doped CDs and introduce deeper degree of surface defects on S-CDs surface. With the development of research on CDs, researchers are not satisfied with the preparation of single element doped CDs. Co-doping of N and S or other elements can effectively enhance the PL of CDs. Dong et al. used citric acid and cysteine as precursors to prepare N, S co-doped fluorescent CDs with PQY of 73% by hydrothermal method [87]. N, S-CDs have excitation-independent behavior, and they proved that the PL of CDs originates from the radiation recombination of holes and electrons that were trapped by the surface of CDs. N atoms introduce a new surface state, while the introduction of S atoms enhances the new surface state. Ding et al. prepared S-CDs and N, S-CDs, which have similar sizes but different optical properties [88]. The PQY of S-CDs is 5.5%, while the PQY of N, S-CDs is 54.4%. With prolonging the reaction time to increase N content, the PQY of N, S-CDs also gradually increased. They proved that N existed in the form of C=N and C-N, which significantly improved PQY. At the same time, the doping of S element has a synergistic effect in N, S-CDs. Therefore, heteroatom doping can effectively modify the PL of CDs. So far, heteroatoms doping has become an effective method to modulate the properties of CDs, and the development of heteroatom-doped CDs has become a hot topic in the field of CDs.

3.2 Post-modification

The surface of CDs contains prolific active groups (such as amino, carboxyl and hydroxyl groups), which can be passivated with various agents and functional polymers through covalent or non-covalent interactions. Post-modification can reduce the defects and non-radiative recombination on the surface of CDs and improve the performance of CDs. Polyethylene glycol (PEG) is the most common surface passivators. Sun et al. prepared CDs with no visible fluorescence. After decorated with PEG at 120 ℃ for 72 h, the passivated CDs emitted bright fluorescence [54]. Peng and Travas-Sejdic passivated CDs with 4, 7, 10-trioxa-1, 13-tridecanediamine to enhance the fluorescence of CDs (Fig. 3a) [89]. The above results demonstrate that the PL property of CDs can be adjusted by surface passivation. After that, plenty of researches have shown that organic molecules (such as PEG [90], mercaptosuccinic acid [91], polyethyleneimine [92]) can act as passivating agent to improve the optical property of CDs. CDs with abundant amine groups were successfully conjugated with oxaliplatin to construct theranostic nanomedicine (CD-Oxa, Fig. 3b) [93]. The PL of blue fluorescent CDs (CDs-B, Fig. 3c) could be modulated by modification with vitamin C and acetaldehyde to obtain green (CDs-V) and red emissive CDs (CDs-A), respectively [94]. CDs can also be modified CDs with (Fig. 3d) drugs [70], organic dyes (Fig. 3e) [95, 96], and proteins [97, 98] via non-covalent interactions. Post-modification opens up an avenue to improve the performance of CDs and broaden their applications.

4 Optical properties of CDs

Less

4.1 UV-vis absorption

Generally, CDs have strong absorption in the ultraviolet region and can extend into the visible light range [99]. In the UV-vis absorption spectrum, the absorption peak at 210–230 nm is ascribed to the π-π^* electron transition of the C=C bond in carbon core, while the absorption peak at 330–360 nm may be due to n-π^* electronic transition of C=N/C=O bond [100, 101]. The absorption spectrum of CDs can generally reflect the optimal PL excitation wavelength. It is worth noting that surface passivation or heteroatoms doping will change the surface groups and intrinsic structures of CDs, and ultimately adjust the absorption property of CDs. Correspondingly, different UV-vis absorption spectra reflect the different structures and compositions of CDs.

4.2 Photoluminescence

Since the advent of CDs in 2004, researchers have successfully prepared CDs with different PL, which covers almost the entire spectral range from UV to near infrared region. There is no doubt that the development of CDs with various PL has become one of the research hotspots that researchers are most concerned on. The PL of CDs can generally be divided into two categories. The first type is excitation-dependent PL. With the change of excitation wavelength, the emission peak will red-shift or blue-shift. Other inorganic or organic luminescent materials are not provided with this type of PL property. Arcudi et al. prepared CDs by microwave-assisted methods [101]. They purified the crude product through dialysis and low-pressure gel permeation chromatography to obtain four types of CDs with different fluorescent properties. The other type is excitation-independent PL behavior, where emission peak will not move with the change of excitation wavelength. Jiang et al. reported red, green, and blue fluorescent CDs derived from o-phenylenediamine, p-phenylenediamine, and m-phenylenediamine, which have excellent excitation-independent PL properties [100].

5 Photoluminescence mechanism

Less

Abundant starting materials, diverse synthesis methods, varied reaction conditions make the PL of CDs present diversity and complexity [102]. Until now, explanation on the PL mechanisms of fluorescent CDs has been an open topic that is debated by researchers. According to the previous literature, the PL of CDs mainly includes several mechanisms: size effect, molecular state, surface state, defect state, environmental effect and cross-linking enhance emission effect.

5.1 Size effect

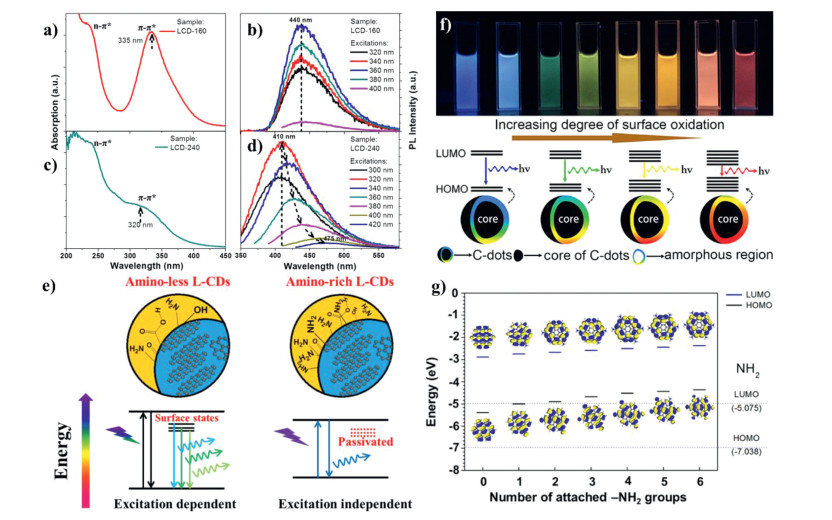

Some researchers believe that the PL of CDs is determined by the sp² hybrid structure that distributes in carbon cores, which can be explained by size effect. Changing the sizes of CDs will affect the distribution of sp² hybrid structure in carbon core, and further impact the corresponding energy band gap, which eventually results in the changes of CDs fluorescence. Sk et al. studied the relationship between the size effect of CDs and PL property through theoretical simulation [103]. They constructed CDs by density functional theory to explain that size changes will affect the emission of CDs. With the internal conjugated framework of CDs gradually extends outwards, the size of CDs increases and the emission appears obvious redshift. Meanwhile, multicolor fluorescent CDs derived from glutamic acid and p-phenylenediamine were prepared, by changing reaction solvent, precursors and pH [104]. With the aid of transmission electron microscopy (TEM), researchers found that the average size of blue, green, yellow, and red fluorescent CDs sequentially increased from 1.8 nm to 7.6 nm. They believed that the dehydration and carbonization processes were controlled by changing reaction conditions, which can promote the increase of sp² hybrid framework structure in carbon core, causing the emission red shift. Therefore, the above results prove that PL property of CDs is affected by size.

5.2 Molecular state

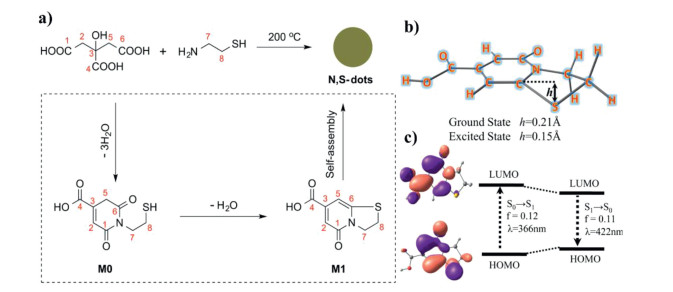

Molecular state is employed to explain the mechanism of CDs with high PL efficiency. It refers to that the PL property of CDs depends on the molecular residues on their surface. Molecular luminescence generally occurs during the synthesis of CDs [105]. In the initial stage of carbonization, due to the low temperature, starting materials undergo an intermolecular or intramolecular dehydration process, in which some small organic molecules with strong fluorescence may be generated. They are free in solution, or participate the formation of carbon core during the subsequent carbonization process and connect to the inside and surface of carbon skeleton. Variety of starting materials and synthetic conditions are capable of producing a plethora of chromophores, leading to multifarious PL [106]. Song et al. discovered a fluorescent molecule named IPCA during the synthesis of CDs from citric acid and ethylenediamine [107]. They verified that IPCA is the true emissive center of CDs, which connects on the surface and inside of the carbon core to make CDs emit fluorescence. Subsequently, CDs derived from citric acid and mercaptoethylamine were characterized by mass spectroscopy and ¹H NMR, and a luminophore M1 was found (Fig. 4a) [108]. Combining the results of density functional theory calculation (Figs. 4b and c), they certified that the luminophore M1 is the origin of the CDs fluorescence.

5.3 Surface state

Surface state is widely used to explain the mechanism of CDs PL. The abundant surface states of CDs are excited to undergo radiation recombination, which makes CDs emit different fluorescence [109]. Therefore, the functional groups or emissive centers on CDs have a great influence on their PL. The surface state of CDs could be modified chemically, which can change or generate new energy levels and further modulate PL property [110]. Li et al. utilized hydrothermal methods to change the passivated degree of CDs surface and study the luminescence mechanism of CDs [111]. They certificated that the contents of amino groups on the surface of CDs are the factors that affect the luminescence of CDs (Figs. 5a–e). CDs were successfully synthesized from thiourea and p-phenylenediamine [110], and purified by column chromatography to obtain multicolor CDs from blue to red. Since the CDs have similar size distribution and graphite structures, size effect was excluded. Through structural analysis of these samples, the researchers found that different extent of surface oxidation caused the band gap of CDs gradually decrease, leading to the fluorescence shift from blue to red (Fig. 5f). After that, they also studied the discrepancy of CDs with different surface states, with the aid of single-particle fluorescence imaging technology. The result revealed the rationality about the surface states mechanism of CDs [112]. At the same time, model CDs with different contents of amino groups were constructed via the density functional theory (Fig. 5g). It was found that the more amino groups on the surface of CDs, the smaller the energy level, which caused the red shift of emission. The above results demonstrate that luminescence is related to the surface states of CDs.

5.4 Defect state

The PL property of CDs is affected by the dangling bonds of sp³ hybrid on the edge of carbon skeleton structure or the defects in the internal structure. In the early development of CDs, bulk carbon materials such as carbon fibers, carbon nanotubes and graphene were flaked by arc discharge or laser ablation to obtain CDs (Fig. 6) [54]. The as-synthesized CDs have weak fluorescence. After passivated by strong reducing agents, the surface defects of CDs will be more stable to promote effective radiation recombination and get higher PQY. Genc et al. verified that CDs have internal defects by Raman spectroscopy and electron spin resonance spectroscopy [113]. They believed that the PL of CDs derived from surface or internal defects of CDs.

5.5 Environmental effects

The environmental factors include temperature, solvent and pressure etc., which also affect the luminescence properties of CDs. Song's group discovered that CDs with amino groups [114], can form hydrogen bonds with solvent molecules, which is the main reason for the solvent discoloration of CDs. Our group prepared a kind of CDs with solvent discoloration [115], due to the interaction of CDs with solvents. Besides solvent, temperature and pressure also affect the luminescent properties of CDs.

5.6 Cross-linking enhance emission effect (CEE)

CEE is to explore the origin of strong luminescence of non-conjugated polymer dots with non-emissive or weakly emissive sub-chromophores. Zhu et al. used PEI as a model non-conjugated polymer to prepare polymer dots by cross-linking reaction [116]. They found that the decreased vibration and rotation of the cross-linked PEI is the main reason for the luminescence enhancement. In addition, the other three cross-linked polymer dots also proved the universality of CEE. Since then, another literature demonstrated that the luminescent properties of CDs were caused by CEE [117].

6 Application of CDs in sensing

Less

Whether in chemistry or biology field, it is indispensable to detect environmental pollutants, bioactive substances, biological microenvironments, bacteria and viruses (Table 1). Usually, most of analytes exist in food, daily necessities, environment or soil, which are absorbed by human body through the food chain, and ultimately influence human health. Therefore, it is extremely important to develop nanosensors with non-toxicity, excellent biological safety and water solubility. So far, plenty of probes have been developed, such as semiconductor quantum dots [23-25] and fluorescent dyes [118-120]. Compared with these materials, CDs have advantages of good water solubility, high stability, low-toxicity and simple preparation [32-35, 57-62], which make them great potential for sensing.

The surface of CDs contains abundant functional groups. These functional groups act as active sites to react with analytes, and further change the PL of CDs to a large extent. Based on the changed PL signal, CDs can be employed as an effective fluorescence probe for sensing. In summary, the quenching or suppressed quenching mechanisms of CDs can be divided into eight types: static quenching, dynamic quenching, aggregation-induced quenching (AIQ), Förster energy resonance transfer (FERT), inner filter effect (IFE), photoinduced electron transfer (PET), oxidation/reduction and coordination reaction.

6.1 Different mechanisms-based sensing

6.1.1 Fluorescence quenching

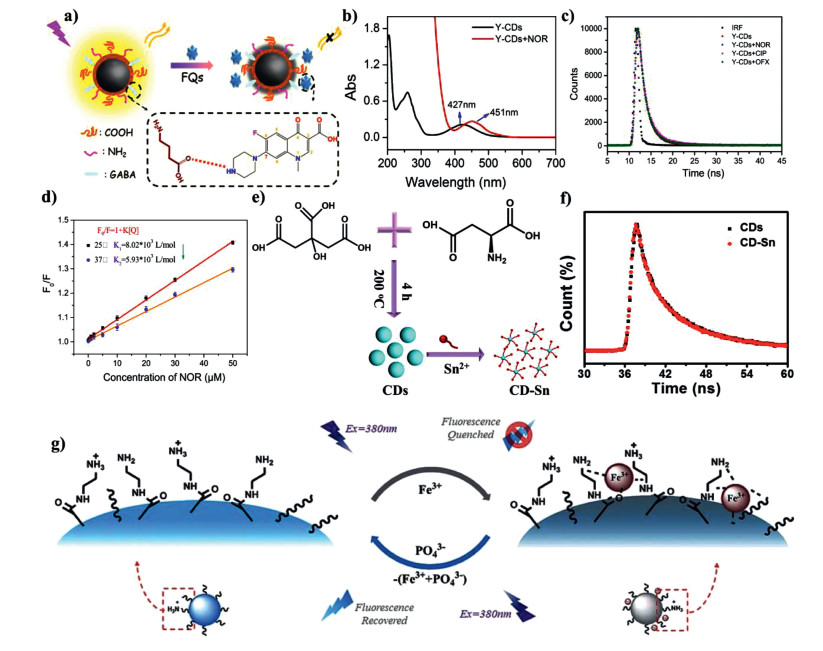

Static quenching-based sensing: The complexes between CDs and analytes are formed through intermolecular interactions, resulting in the fluorescence quenching of CDs. Static quenching has several obvious characteristics: (1) The fluorescence lifetime of CDs remains changed before and after quenching, (2) the absorption spectrum of CDs changes after adding analytes, (3) temperature affects the stability of complex, leading to reduced quenching efficiency.

Based on the mechanism of static quenching, the fluorescence of CDs is quenched by various analytes [121-125]. Lu et al. synthesized bright yellow fluorescent CDs (Y-CDs) and used them as a multi-functional nanosensor for the detection of fluoroquinolones (FQs) (Fig. 7a) [123]. The fluorescence of Y-CDs can be effectively quenched by FQs. The addition of FQs leaded to the absorption peak of Y-CDs at 427 nm disappeared, while a new absorption peak appeared at 451 nm (Fig. 7b), indicating that FQs formed complexes with the functional groups on the surface of Y-CDs. The fluorescence lifetime did not change in the presence of FQs (Fig. 7c). At the same time, they also studied the quenching efficiency at different temperature (Fig. 7d), and the results proved that the higher the temperature, the lower the quenching efficiency. The results verified that the quenching mechanism was static quenching. Our group designed a kind of chiral CDs from l-aspartic acid and citric acid [126]. The chiral CDs have good selectivity on Sn²⁺ ions (Figs. 7e and f). The addition of Sn²⁺ had no effect on the fluorescence lifetime of CDs, demonstrating that the fluorescence quenching of chiral CDs induced by Sn²⁺ was static quenching. CDs prepared by Liu et al. have the property of strong acid-induced fluorescence enhancement. Fe³⁺ could coordinate with amino groups or amide groups on the surface of CDs to form CDs/Fe³⁺ hybrids (Fig. 7g) [122]. The fluorescence lifetime of CDs and CDs/Fe³⁺ hybrids is 8.06 ns and 7.85 ns, respectively, certifying that the quenching mechanism of CDs belonged to static quenching. Ma et al. prepared B-CDs by using citric acid and sodium tetraphenylborate as starting materials via hydrothermal method. When the ortho hydroxyl groups of catechol cross-linked with the boron hydroxyl groups of B-CDs, the fluorescence of B-CDs was quenched [127]. The bimodal quenching constant proves that fluorescence quenching of B-CDs is a static quenching process. When the concentration of catechol is 1–50 nmol/L, the limit of detection (LOD) is 0.25 nmol/L.

Dynamic quenching-based sensing: When the excited state of CDs collides with quenchers, it returns to the ground state through energy or charge transfer, this process is dynamic quenching. The characteristics of dynamic quenching are the exact opposite of static quenching: (1) The fluorescence lifetime of CDs will change upon the addition of quenchers, (2) the UV-vis absorption spectrum of CDs is not affected, and (3) quenching efficiency is enhanced by increasing temperature.

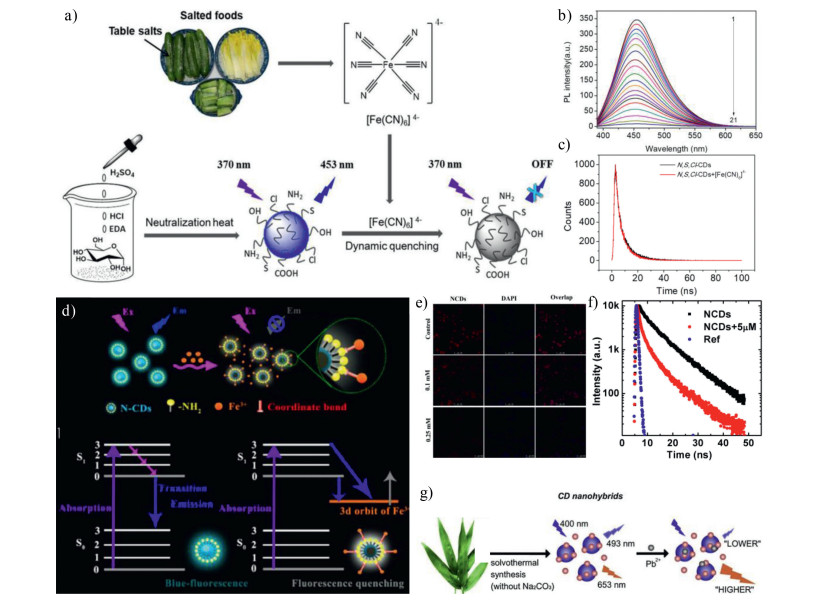

Hu et al. prepared N, S, Cl-CDs from salty food via acid hydrolysis, (Fe(CN)₆)^4- can effectively quench the fluorescence of N, S, Cl-CDs by dynamic quenching (Figs. 8a–c) [128]. Thus, N, S, Cl-CDs can be successfully used to detect (Fe(CN)₆)^4- in food samples with high sensitivity. Liu et al. prepared N-CDs by oxidizing cork materials. Fe³⁺ can effectively quench the fluorescence of N-CDs [129]. They suggested that the excited electrons of CDs were transferred to the 3d orbit of Fe³⁺ (Fig. 8d), and these non-radiative electron holes cause fluorescence quenching. At the same time, after adding Fe³⁺, the fluorescence lifetime of CDs was attenuated, which further proved the dynamic quenching mechanism. Song et al. also demonstrated the multicolor N-CDs have similar quenching mechanism for detecting Fe³⁺ in living cells (Figs. 8e and f) [130]. Pb²⁺ ions could effectively quench the fluorescence of CDs synthesized from bamboo [131], with LOD less than 0.14 nmol/L (Fig. 8g).

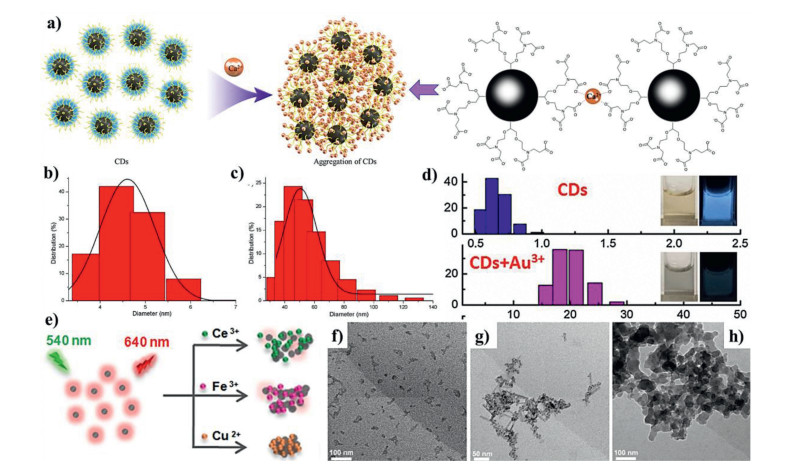

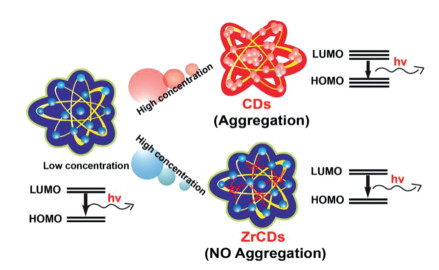

AIQ-based sensing: The AIQ effect is almost common for most fluorophores. When the fluorescent probe aggregates, the excited state energy of the probe is transferred to the ground state through a non-radiative transition, resulting in sharp decrease or even complete disappearance in the fluorescent signal. The coordination of CDs with analytes makes CDs aggregate, which causes the fluorescence quenching. The main manifestation is that the average size becomes larger after adding quenchers.

Yue et al. prepared ethylenebis-(oxyethylenetriaza)tetraacetic acid (EGTA) modified CDs by hydrothermal method for the detection of Ca²⁺ [132]. After adding Ca²⁺, EGTA on the surface of CDs can capture Ca²⁺ (Figs. 9a–c) and form the aggregates, leading to the fluorescence quenching of CDs. CDs synthesized from l-threonine and P₂O₅ have high sensitivity to Au³⁺ [133]. The addition of Au³⁺ makes the average size of CDs increase from 0.62 ± 0.4 nm to 21.1 ± 0.8 nm (Fig. 9d), proving that Au³⁺ induces the aggregation of CDs and fluorescence quenching. Sun et al. successfully prepared CDs that have different fluorescence quenching to Ce³⁺, Fe³⁺ and Cu²⁺ (Figs. 9e–h) [134].

FRET-based sensing: FRET needs to satisfy the following conditions between the excited state CDs and the ground state quencher: (1) The emission spectrum of CDs (energy donor) overlaps with the absorption spectrum of quencher (energy accepter), (2) the distance between CDs and quencher range from 1 nm to 10 nm. When the energy resonance transfer occurs, it is often accompanied by the attenuation of the fluorescence lifetime of CDs.

FRET is also one of the common quenching mechanisms for CDs-based nanosensors. For example, our group developed amphiphilic CDs for sensing environmental nitro-aromatic explosives (Fig. 10a) based on FRET [135]. Compared with other nitroaromatics (Figs. 10b and c), we observed that the fluorescence spectrum of CDs had a better overlap with the UV-vis absorption spectrum of 2, 4, 6-trinitrophenol (TNP), which resulted in the fluorescence of amphiphilic CDs was effectively quenched. Hu et al. designed red dual-emission CDs that can sensitively detect methyl blue [125]. They found that fluorescence spectrum of CDs partially overlapped with absorption spectrum of methyl blue, which promoted non-radiative recombination and quenched the fluorescence of CDs. Kudr et al. used microwave pyrolysis to prepare fluorescent CDs from citric acid and diethylenetriamine for detecting DNA damage [136]. They explored the competition experiment of the binding of CDs and ethidium bromide (EtBr) with DNA. CDs acted as energy donors, while EtBr acted as energy acceptors, promoting the binding of CDs with DNA though FRET. Effective energy resonance transfer occurred between 3-aminophenylboronic acid-derived CDs and MnO_2, as evidenced by quenched fluorescence [137]. With the concentration of MnO₂ increased, the quenching efficiency of CDs gradually increased, but the fluorescence lifetime of CDs markedly decreased.

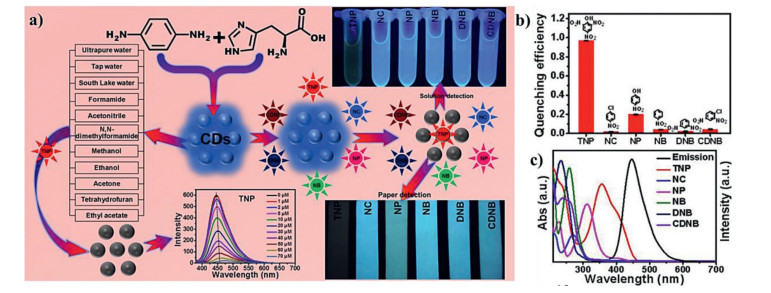

IFE-based sensing: When the UV-vis spectrum of quencher overlaps with the excitation or emission spectrum of CDs, inner filter effect (IFE) will occur. Quenchers can not only shield the excitation light of CDs, but also can absorb the emission of CDs. The enhanced absorption of quencher indicates that the fluorescence of CDs is quenched. Most importantly, the IFE-based fluorescence quenching mechanism does not affect the fluorescence lifetime of CDs.

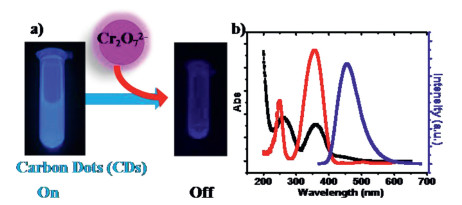

CDs sensing application that based on IFE for the detection of Cr₂O₇^2- was first developed by Zheng et al. in 2013 [138]. After adding Cr₂O₇^2-, the fluorescence of CDs was completely quenched under 365 nm excitation (Fig. 11a), and because the excitation spectrum of CDs completely overlapped with the absorption spectrum of Cr₂O₇^2- (Fig. 11b), which met with the condition of IFE. Xu et al. prepared CDs via hydrothermal method by using (3-aminopropyl)triethoxysilane and glycerin as starting materials. CDs were employed as a ratiometric nanosensor for the detection of cholinesterases [5]. Huang et al. developed fluorescent N, Co-CDs that can be sensitively quenched by 2, 3-diaminophenazine through IFE [139]. N, Co-CDs can be employed as a ratiometric fluorescent probe to effectively detect cholesterol and uric acid in human serum with LOD of 3.6 nmol/L and 3.4 nmol/L, respectively.

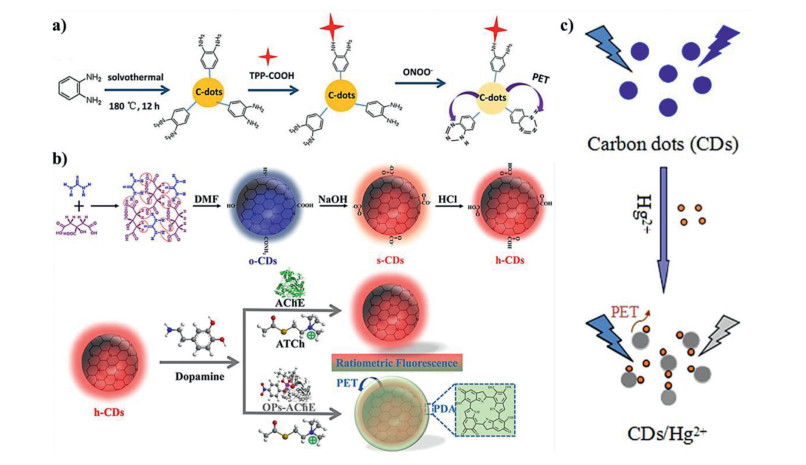

PET-based sensing: In the process of PET quenching, CDs act as electron donors or acceptors, quenchers cause fluorescence quenching of CDs through electron transfer, this quenching manner is defined as PET quenching.

Wu et al. constructed a mitochondrial-targeted CDs-based nanosensor to detect peroxynitrite (ONOO^-) in living cells [140]. The addition of ONOO^- caused the fluorescence of CDs drop off gradually. When its concentration was in the range of 0.2–10 µmol/L, the LOD is 13.5 nmol/L. Experiments showed that ONOO^- reacted with o-diaminobenzene on the surface of CDs to generate benzotriazole, and the surface electrons of CDs were transferred to benzotriazole, resulting in the quenched fluorescence (Fig. 12a). Li et al. developed red-emissive CDs for detecting organophosphorus pesticides (OPs) (Fig. 12b) [141]. In the presence of dopamine (DA), acetylcholine (ATCh) and acetylcholinesterase (AChE), OPs inhibited the activity of AChE that blocked the hydrolysis of ATCh, which promoted the polymerization of DA to form polydopamine (PDA). PDA could effectively absorb the electrons of CDs, and then transfered them from the highest occupied molecular orbital (HOMO) to the lowest unoccupied molecular orbital (LUMO). The results indicated that the quenching was attributed to PET mechanism. He et al. synthesized blue fluorescent CDs by using citric acid and EDTA as starting materials [142]. A series of experiments were carried out to prove that Hg²⁺ quenched the fluorescence of CDs through PET mechanism (Fig. 12c). In addition to the analytes mentioned above, testosterone [143], water [144], hydrogen peroxide [145], and rhodamine B were detected via PET mechanism.

Fluorescence recovery: "On-Off" nano-hybrid systems have been constructed between fluorescent CDs and quenchers through different interactions, in which quenchers can be decomposed or complexed by analytes with the aid of various chemical reactions, and restoring the fluorescence of CDs. This type of systems has been widely reported.

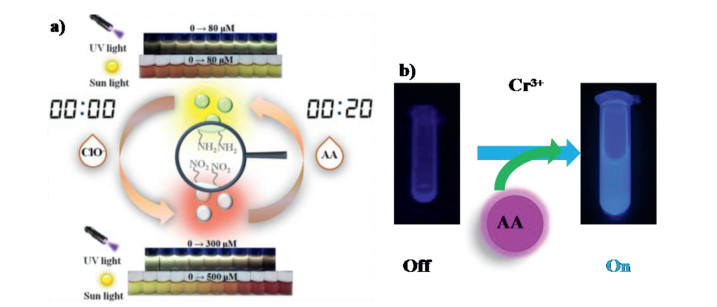

Oxidation/reduction reaction-based sensing: The fluorescence of 2, 5-diaminobenzenesulfonic acid-derived RD-CDs can be quenched by hypochlorite (ClO^-) by means of oxidation reaction as well as forming nonluminescent complex. Then the oxidant of RD-CDs was deoxygenized by ascorbic acid (AA), leading to the recovery of RD-CDs fluorescence (Fig. 13a) [121]. Zheng et al. prepared CDs from citric acid and diethylenetriamine via pyrolysis. The fluorescence of CDs was quenched via IFE. After adding AA, Cr(VI) was reduced to Cr(III), IFE was eliminated, and the fluorescence of CDs was restored (Fig. 13b) [138]. Xu et al. constructed a nonluminescent pCDs-MnO₂ for detecting GSH [146]. After adding GSH to pCDs-MnO₂ solution, pCDs were released through a series of reduction processes, and their fluorescence was restored.

Coordination reaction-based sensing: Gao et al. constructed CDs/Fe³⁺ complex through PET mechanism, which could sensitively detect phytic acid (PA). Since PA has a higher affinity with Fe³⁺ than CDs, Fe³⁺ preferentially coordinated with PA, causing the remove of Fe³⁺ from the surface of CDs. Thus, the fluorescence of CDs was restored [147]. Similarly, Hu et al. developed CDs/Fe³⁺ nanosensors to effectively detect pyrophosphate. The fluorescence of CDs was restored by the coordination between Fe³⁺ and pyrophosphate [148]. In the concentration range of 2–600 µmol/L, the LOD of pyrophosphate reached 0.86 µmol/L. Meanwhile, our group constructed chiral CD-Sn hybrids for sensing lysine enantiomers. l-Lysine (l-Lys) could complex with Sn²⁺ to prompt l-Lys to flee from the surface of CDs, recovering the fluorescence of chiral CDs [126]. However, d-Lys had no effect on the fluorescence of chiral CDs. Thus, CD-Sn was used for sensing Lys enantiomers and the LOD of l-Lys was 3.34 µmol/L.

6.2 Other type sensing

6.2.1 CDs for microenvironment sensing

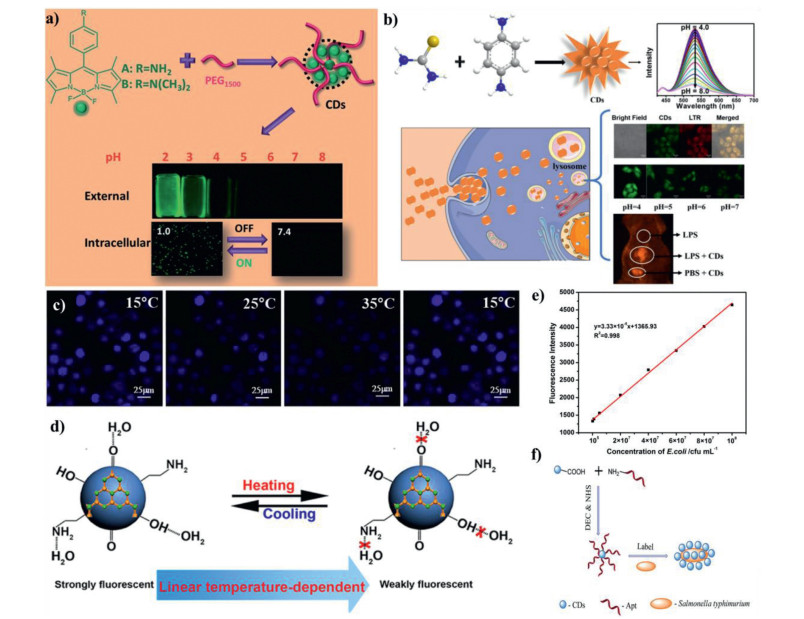

It is essential to develop nanosensors for detecting microenvironmental conditions. Since chemical processes and major diseases are closely related to abnormal pH fluctuations, it is essential to develop CDs-based pH nanosensors. Our group constructed two kinds CDs (CD-A and CD-B) derived from BODIPY dyes A/B with PEG₁₅₀₀. Both CD-A and CD-B can be used for pH sensing in extreme acidic environments in bacteria (Fig. 14a) [14]. Guo et al. prepared N, S-CDs from p-aminobenzenesulfonic acid and o-phenylenediamine by solvothermal method. The pH titration experiment proved that N, S-CDs could act as a ratiometric fluorescent probe to detect pH with good reversibility [15]. The protonation and deprotonation of pyridine N and pyrrole N in CDs manifested the response to pH. When pH dropped from 3.0 to 1.0, a new emission peak appeared at 634 nm, which could be attributed to the charge transfer of functional groups on the surface of CDs in an acidic environment. Our group has developed lysosome-targeting probes based on CDs to detect pH changes in vitro and in vivo (Fig. 14b) [149]. CDs have a good pH-sensitivity in pH range from 4.0 to 8.0. CDs exhibit good performance in quantitatively measuring pH changes in living cells and monitoring pH fluctuations in organisms. In short, the design and exploitation of CDs-based pH nanosensors has opened up a new path for disease diagnosis.

Whether in chemical process or living system, temperature is also one of the important parameters. Accurately detecting the temperature of various environments has also become top priority. Compared with other nanomaterials, CDs have greater advantages for temperature sensing. Kalytchuk et al. constructed N, S, I-CDs from C₃N₃S₃, potassium iodate (KIO₃) and ethylenediamine (EDA), which were successfully employed for sensing the temperature in HT-29 cells (Fig. 14c) [17]. Yang et al. synthesized N-CDs from C₃N₄ and ethanediamine [16]. When temperature increased from 20 ℃ to 80 ℃, the fluorescence of N-CDs gradually decreased (Fig. 14d).

6.2.2 CDs for subcellular organelle and bacteria sensing

CDs have the advantages of good biocompatibility, excellent resistance to photobleaching and non-toxicity, and have been employed for sensing subcellular organelles and bacteria. Since organelles play a key role in cell function, the imaging and location of certain subcellular structures have an important guiding role in the origin of some diseases. Wu's group has studied the imaging of subcellular structures [150-154]. For example, Hua et al. prepared red fluorescent CDs that were doped with metals, and they selected nickel-doped CDs to achieve high-resolution imaging of cell nucleus [153]. CDs can be employed not only for nucleus imaging, but also for other organelles imaging, such as mitochondria and lysosomes [154]. The fluorescent CDs prepared from glycerol and silane possess mitochondrial targeting function, which can distinguish cancer cells from normal cells based on the difference in mitochondrial membrane potential [151].

Bacteria and fungi are widespread in nature, and their infection is one of the biggest challenges to human health globally. Thus, it is urgent to develop sensors for detecting bacteria and fungi with high sensitivity and selectivity. CDs-based nanosensors for rapidly and accurately detecting bacteria or fungi have been reported [155-157]. Wang et al. used papaya powder as carbon source to synthesize W-CDs by hydrothermal method. W-CDs exhibit excellent fluorescence response to E. coli O157:H7 [19]. As the concentration of E. coli O157:H7 increased, the fluorescence of W-CDs gradually enhanced (Fig. 14e), and the LOD is 9.5 × 10⁴ cfu/mL. They believed that W-CDs could interact with the FimH protein in E. coli O157:H7, resulting in the fluorescence enhancement of W-CDs. On the contrary, the obtained E-CDs from ethanol have no fluorescent response to E. coli O157:H7. Furthermore, Wang et al. constructed a class of aptamer-conjugated CDs (CD-apt). CD-apt can specifically detect Salmonella typhimurium with high selectivity [20]. Hua et al. prepared fluorescent CDs from bacteria (S. aureus or E. coli) for the first time [21], which can selectively stain dead bacteria and fungi. It has also been reported that NPS-CDs prepared from yeast extracts can be used to stain dead bacteria [158]. CDs-605 synthesized from L. plantarum can be able to image biofilm-encased microorganisms (e.g., E. coli, S. oneidensis, P. aeruginosa, S. aures, and T. reesei) [22].

6.2.3 CDs for sensing volatile organic compounds

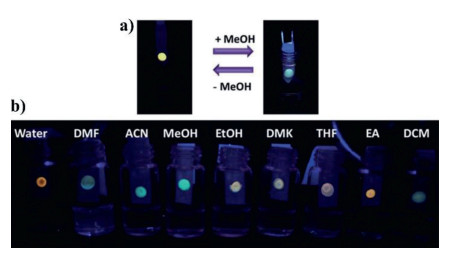

Previously, our group developed hydrophilic CDs with solvatochromism, which can be applied as optical noses for sensing volatile organic compounds (VOCs) [115]. We dropped the CDs solution onto the indicator paper to obtain a paper-based sensor for detecting VOCs (Fig. 15). Moreover, the color change of indicator paper is reversible, proving that the paper-based sensor has the advantage of fast response. Furthermore, Wang et al. designed fluorescent complexes (MCM/CDs) from mesoporous materials and CDs, which integrated the physical adsorption of mesoporous materials and the fluorescent property of CDs [159]. MCM/CQDs could sensitively detect acetic acid gas with the LOD of 0.2 µmol/L.

7 Summary and outlook

Less

Survival of the fittest is not only the law of survival in nature, but also the law in the field of scientific research. With the continuous development of nanotechnology, nanomaterials are constantly being updated. Compared with other organic or inorganic nanomaterials, CDs possess ultrasmall size, remarkable photoluminescence, high water solubility, low toxicity, robust stability, extraordinary biocompatibility, and easy surface functionalization, which make CDs superior in a variety of research fields.

Here, we emphasized the modification of CDs, including pre-modification and post-modification. For pre-modification, in the special customization process of CDs, CDs are endowed with multiple luminescent properties and functions by selecting various starting materials and reaction conditions. On the other hand, for post-modification, the surface of CDs contains plentiful functional groups, which can react with a multitude of functional materials through covalent or non-covalent interactions.

Due to the diversity of preparation conditions, the obtained CDs are invested with various PL properties, so the corresponding luminescence mechanisms are also different. According to the currently reported literature, the luminescence mechanism of CDs can be classified into four categories: size effect, molecular state, surface state and defect state. In this review, we have explained the luminescence mechanisms of CDs in detail. However, by changing the reaction conditions during the synthesis of CDs, the corresponding luminescence mechanisms will also be very different, and in many cases they will appear synergistically. Because of the infinite possibilities of CDs, their PL has been continuously exploited by researchers. Continuous exploration the PL mechanism of CDs is a top priority, because CDs may have many interesting and meaningful properties that we need to discover.

When CDs come to sensing, we summarized CDs nanosensors with different mechanisms, including static quenching, dynamic quenching, AIQ, FERT, IFE, PET, oxidation/reduction and coordination reaction. Second, CDs-based nanosensors for probing microenvironments, bacteria and virus, and VOCs were stated. However, the potential applications of CDs are far more than the content of this review. We believe that CDs-based nanosensors still have a long way to go.

Although CDs-based fluorescent nanosensors have made great progress, it is worth noting that there are very few reports on CDs for sensing viruses. However, viruses have seriously affected human health. Therefore, designing and meticulously customizing CDs-based nanosensors for the detection of viruses are still a stupendous challenge. There is no doubt that overcoming this challenge will open up a brand-new research path for the development of sensors, and will further promote the development of CDs. We firmly believe that CDs, such small-sized fluorescent nanomaterials, have a broader development prospect in the future.

Declaration of competing interest

Less

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Acknowledgments

Less

The financial support from the National Natural Science Foundation of China (No. 51873023), the Jilin Province Science and Technology Research Project (No. 20200201088JC).
