Metal-phenolic networks modified polyurethane as periosteum for bone regeneration
收藏切换
PDF
Qingyi Zhang1, Kai Huang1, Jie Tan, Xiongxin Lei, Liping Huang, Yuting Song, Qianjin Li, Chenyu Zou, Huiqi Xie*
Chinese Chemical Letters | 2022, 33(3) : 1623 - 1626
Less
收藏切换
Chinese Chemical Letters | 2022, 33(3): 1623-1626
• Communications •
Metal-phenolic networks modified polyurethane as periosteum for bone regeneration
Full
Qingyi Zhang1, Kai Huang1, Jie Tan, Xiongxin Lei, Liping Huang, Yuting Song, Qianjin Li, Chenyu Zou, Huiqi Xie*
Affiliations
  • Laboratory of Stem Cell and Tissue Engineering, Orthopedic Research Institute, Med-X Center for Materials, State Key Laboratory of Biotherapy, West China Hospital, Sichuan University, Chengdu 610041, China
Published: 2022-03-15 doi: 10.1016/j.cclet.2021.09.105
Outline
收藏切换

Treatment of bone defects still poses a great challenge in orthopedic clinics, and the vital role of periosteum in such processes has attracted widespread attention. However, studies focusing on the oxidative stress micro-environment with an artificial periosteum at the site of defect have been scarce. The intrinsic anti-oxidative properties and therapeutic potential for bone defects of metal-phenolic networks (MPNs) have provided a potential solution to this. Herein, we have developed a protocatechualdehyde + zinc ion (PCA+ZnⅡ) MPN coating on a thermoplastic polyurethane membrane with a one-pot method to fabricate a new-type of periosteum with meritorious biocompatibility and abilities of modulating oxidative stress condition and promoting osteogenesis and mineralization for better bone regeneration, which has shown to be a promising strategy for constructing artificial periosteum with various MPNs.

Metal-phenolic networks  /  Surface modification  /  Periosteum  /  Oxidative stress  /  Mineralization
Qingyi Zhang, Kai Huang, Jie Tan, Xiongxin Lei, Liping Huang, Yuting Song, Qianjin Li, Chenyu Zou, Huiqi Xie. Metal-phenolic networks modified polyurethane as periosteum for bone regeneration[J]. Chinese Chemical Letters, 2022 , 33 (3) : 1623 -1626 . DOI: 10.1016/j.cclet.2021.09.105
Full Text
Less
Bone defects, in particular those with an over critical size, remain as a major challenge in orthopedic clinics. Previous studies have mainly focused on the bone defects themselves, and therefore a diversity of transplanting strategies as well as tissue engineering bone grafts have been developed. However, delayed or even failed bone union still occurs in a considerable proportion of patients. As a matter of fact, the importance of periosteum, a "negligible" accessory of bones, has long been overlooked. During the last decade, growing evidences have suggested that the periosteum should be considered as a well-vascularized osteochondral organ which plays a significant role in the development and homeostasis of skeletal system as well as bone repair and reconstruction [1-3]. As estimated, the periosteum contributes to more than 70% of bone and cartilage formation at the early stage of autograft-mediated healing [4]. The healing effect of allografted bone may be largely limited due to devitalization or removal of the periosteum, whereas preservation or application of a periosteum graft may significantly enhance the bone reconstruction [5]. This has suggested a potential role of the periosteum in the treatment of critical-sized bone defects.
Various artificial periostea have been produced with biological and polymeric materials for preclinical and clinical usage [6-10]. Nevertheless, their primary purposes are still confined to serve as physical barriers to prevent soft tissue in-growth and scaffolds to support osteoblasts migrating to the defect area to promote bone regeneration, in addition to provide antibacterial property and signaling cues for osteoinduction [11, 12]. So far, studies focusing on the oxidative stress micro-environment at the defect site have been scarce. Studies have demonstrated that oxidative stress can not only dramatically impair bone formation through inhibiting stem cell or progenitor cell viability and differentiation into osteoblast, but also provoke cell injury and apoptosis, both adversely affecting the quantity and quality of regenerated bone at the defect site [13-15]. Moreover, oxidative stress could simultaneously induce osteoclastogenesis and promote bone resorption, further aggravating the obstacles for bone reconstruction [16]. Under such contexts, to design and construct periosteum with excellent antioxidant stress property is a valuable strategy for bone regeneration.
Metal-phenolic networks (MPNs) are super-molecular networks assembled by the coordination drive of natural phenolic ligands and metal ions [17]. As the MPNs integrate the particular functions imparted by the phenolics molecules and metal ions, diverse functionalities may be customized through various combinations of the candidates, and to date thousands of MPNs-coated materials have been fabricated and applied for various fields [18]. In fact, polyphenol itself, like protocatechualdehyde (PCA) for instance, has remarkable anti-oxidative properties, endowing with great potential in tackling oxidative stress [19-22]. As another candidate, certain metal ions such as zinc ion (ZnⅡ) may confer a beneficial effect with regard to the growth and mineralization of bone tissues through promoting cell proliferation and inducting matrix deposition [23, 24]. Meanwhile, ZnⅡ can also inhibit osteoclastogenesis by regulating receptor activator of nuclear factor kappa-B ligand (RANKL) and subsequent RANKL/RANK/osteoprotegerin (OPG) axis [25]. Therefore, we assume that MPNs-coated artificial periosteum may introduce promising therapeutic effects.
To verify above hypothesis, PCA+ZnⅡ MPN coating on thermoplastic polyurethane (PU) membrane was designed in this study via simple one-pot deposition to fabricate an MPN-modified periosteum for bone regeneration (defined as PCA+ZnⅡ group). The pure PU membrane (PU group) and PCA coated PU membrane (PCA group) were used as control. This method was also extended to magnesium ion (MgⅡ) and cupric ion (CuⅡ) at the same time.
By analyzing the hydrophilicity of each type of membrane, we have found that, after coating treatment with PCA, the hydrophilicity of the PU membrane surface was significantly enhanced owning to the hydrophilic group from the phenolic building blocks [26, 27]. Moreover, after PCA+ZnⅡ coating, the water contact angle (WCA) of the substrate surface was further reduced from 48° to 18° compared with the PCA group (Figs. 1a-c). Similar phenomena were also observed with the PCA+MgⅡ and PCA+CuⅡ coating, which indicated a great improvement of the hydrophilicity for the modified membranes (Figs. S1a and b in Supporting information). Of note, after the PCA+MgⅡ coating, the WCA has reduced to 2°. The dramatic improvement may significantly enhance the repair of bone defects [28, 29].

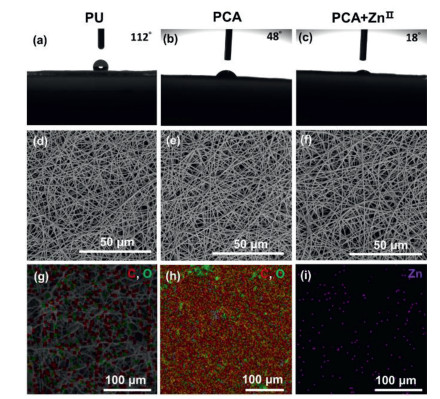

Scanning electron microscopy (SEM) has found no obvious aggregation, and the micropore structure of the PU membrane was preserved in the PCA and PCA+ZnⅡ groups (Figs. 1d-f) as well as the other two MPN groups (Figs. S1c and d in Supporting information). Meanwhile, the excellent uniformity and thin thickness of the coating has enabled the membrane in each group to retain the original functions of the substrate material such as filtration and size-matching devices.
Electron energy loss spectroscopy (EELS) mapping was carried out for each group (Figs. 1g-i). A uniform distribution of zinc element could be found on the surface of PCA+ZnⅡ groups. Meanwhile, energy dispersive X-ray (EDX)-elemental spectrum indicated a sound metal loading capacity of the MPNs coating (up to 1.3 wt%) and the ability to stabilize metal ions (Fig. S2a in Supporting information) [30, 31]. EELS mapping results and EDX-elemental spectrum analysis of the other groups were also presented in Figs. S1e and f, and Figs. S2b-e (Supporting information), respectively.

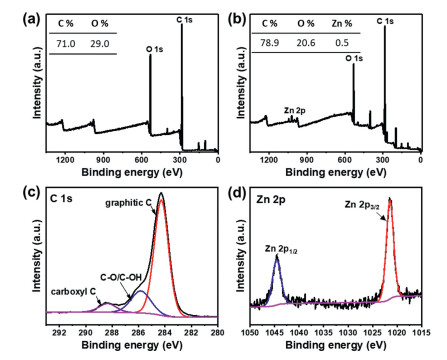

Chemical bonding and element content analysis based on X-ray photoelectron spectroscopy (XPS) have determined the presence and content difference of C, O and Zn in the PCA+ZnⅡ group as compared to the PU group (Figs. 2a and b). Deconvolution of C 1s high-resolution spectra has disclosed the existence of C-O/C-OH (285.9 eV) and carboxyl C (288.5 eV) (Fig. 2c). Furthermore, the Zn 2p spectrum peaks at 1021.6 and 1044.8 eV were assigned to ZnⅡ in the adsorbent and may be attributed to Zn 2p3/2 and Zn 2p1/2, respectively (Fig. 2d). This suggested that Zn and PCA have successfully constructed the MPN by coordination. PCA and the other two metal ions (MgⅡ and CuⅡ) coated membranes were also measured via the XPS (Fig. S3 in Supporting information).
With respect to mechanical property, the stress-strain curves revealed that the mechanical properties were almost reserved after coating (Fig. S4a in Supporting information). Nevertheless, the elastic moduli have reduced from (38.9 ± 7.8) MPa to (20.5 ± 5.1) and (22.8 ± 2.5) MPa with the PCA and PCA+ZnⅡ coating, respectively (Fig. S4b in Supporting information). The three membranes have exhibited a tensile strength of (32.7 ± 1.0), (38.3 ± 6.6), and (38.2 ± 4.7) MPa, and their elongation-at-breaks was measured as (73.5 ± 7.1)%, (122.1 ± 12.4)% and (121.2 ± 9.3)%, respectively (Figs. S4c and d in Supporting information). These indicated that the coating in the PCA and PCA+ZnⅡ groups could even slightly improve the strength of the composites due to the hierarchical interaction (such as cation-π, hydrogen bond, catechol-metal coordination) between the coating and PU substrates [3, 32, 33]. Compared with the pristine PU group, both PCA and PCA+ZnⅡ groups showed promising mechanical strengths which may be beneficial for the construction of artificial periosteum.

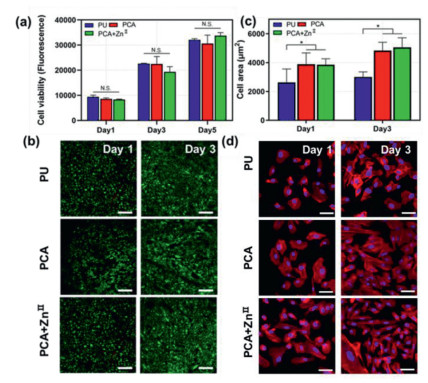

The proliferation of urine-derived stem cells (USCs) in the PU, PCA and PCA+ZnⅡ groups was quantified with alamar blue assay (Fig. 3a). The fluorescence intensity significantly increased in a time-dependent manner, and no differences in proliferation rate were detected after 1, 3 and 5 days of culture among three groups, which implied that the extra coating did not impair the original cytocompatibility. The living status of the USCs was also accessed by live/dead staining at 1 and 3 days, which indicated that the USCs proliferated well in each group, and dead cells were barely observed (Fig. 3b).
Imaging and quantitative analysis of cytoskeleton staining showed that USCs could adhere to the PU, PCA and PCA+ZnⅡ membranes. However, owning to the improved hydrophilicity after coating, superior spreading with a significant difference was observed in both the PCA and PCA+ZnⅡ groups after 1 and 3 days of culture. Accordingly, the cell area has remarkably increased in the PCA and PCA+ZnⅡ groups as compared with the PU group (Figs. 3c and d) [34, 35]. By SEM, USCs displayed a spindle shape with thin filopodia in each group [36]. Cell proliferation and overlap could be clearly observed. Of note, both PCA and PCA+ZnⅡ groups performed better than the PU group in terms of the condition and morphology of the cells at all time points (Fig. S5 in Supporting information). Above results suggested that surface coating with PCA or PCA+ZnⅡ has conferred a superior spreading condition for the USCs.

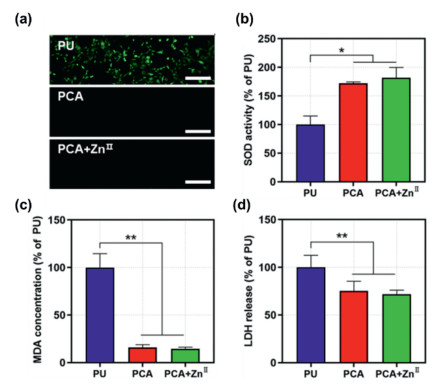

The intracellular reactive oxygen species (ROS) level was measured with 2′, 7′-dichlorofluoresceindiacetate (DCFH-DA) probe. After 24 h exposure to H2O2, ROS has notably accumulated in the cells seeded on the PU membrane as indicated by strong green fluorescence (Fig. 4a). By contrast, fluorescence signal was hardly detected when the USCs were cultured on both coated groups, suggesting that the PCA or PCA+ZnⅡ coating could effectively reduce intracellular ROS level. Above results have demonstrated an excellent ability of the MPN surface modification strategy for modulating the intracellular oxidative stress [37].
The oxidative status of each group was also evaluated. Following oxidative stimulation, the activity of superoxide dismutase (SOD) in the USCs seeded onto the PU was remarkably lower compared with those seeded onto the PCA or PCA+ZnⅡ membranes (Fig. 4b). Meanwhile, the final concentration of fatty acids peroxidation malondialdehyde (MDA) for the PCA and PCA+ZnⅡ coated membranes was also significantly decreased (Fig. 4c), suggesting that both have exhibited excellent anti-oxidative properties.
A lactic dehydrogenase (LDH) release assay was carried out to further analyze the cell damage in each group under the oxidative stress. In keeping with the results of SOD and MDA, the activity of extracellular LDH was significantly reduced in PCA and PCA+ZnⅡ groups, which suggested that the coated membrane could effectively alleviate cell damage after incubation with H2O2 (Fig. 4d) [38-40].

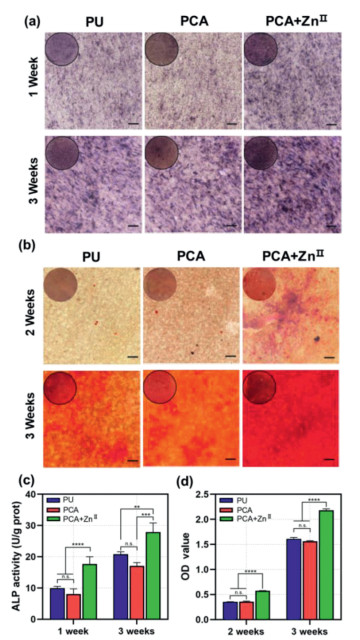

With respect to osteoinductive capability, as shown in Fig. 5a, the production of alkaline phosphatase (ALP) was remarkably enhanced on the PCA+ZnⅡ membrane after 1 and 3 weeks of osteogenesis culture as compared with the PU group and the PCA group. Intracellular ALP activity assay also revealed a significant difference between the PCA+ZnⅡ and PU group or PCA group after 1 and 3 weeks of culture (Fig. 5c), which suggested that the PCA+ZnⅡ membrane could induce the expression of ALP and promote the osteogenic differentiation. Of note, the ALP activity of the PCA group appeared to be lower than that of the PU group, which may be attributed to the influence of the PCA on the osteogenesis property of the USCs, albeit the difference was weak and without statistical significance.
Alizarin red staining (ARS) was carried out 2 and 3 weeks after the induction of osteogenesis. Similarly, calcium deposits were more obvious on the PCA+ZnⅡ membrane compared with the other two membranes (Fig. 5b). Accordingly in quantitative analysis, the content of extracellular sedimentary calcium in PCA+ZnⅡ group increased by 60.8% and 137.5% (Fig. 5d) after 2 and 3 weeks, respectively. The ARS results were in keeping with those of the ALP results, all indicating a promoted osteoinductive capability of the PCA+ZnⅡ coating.
In summary, we have designed and successfully synthesized a PCA+ZnⅡ MPN coating on the PU membrane by using a facileone-pot method to fabricate the artificial periosteum, which has shown a great potential for the treatment of bone defects. The physical and chemical properties as well as reaction mechanism of the PCA+ZnⅡ MPN have been evaluated in detail. The biocompatibility and remarkable abilities of the MPNs in modulating oxidative stress micro-environment and inducing osteogenesis and mineralization as demonstrated in our study have shown a great promise to be further applied as periosteum materials for bone regeneration.
