H2S-assisted growth of 2D MS2 (M = Ti, Zr, Nb)
Full
Yiwei Zhanga, Peng Zhang*, a, Tengfei Xub, Xingguo Wanga, Huaning Jianga, Yongji Gong*, a
Affiliations
  • a School of Materials Science and Engineering, Beihang University, Beijing 100191, China
  • b State Key Laboratory of Infrared Physics, Shanghai Institute of Technical Physics, Chinese Academy of Sciences, Shanghai 200083, China
Published: 2022-03-15 doi: 10.1016/j.cclet.2021.07.036
Outline
收藏切换

2D transition metal dichalcogenides (TMDCs) have drawn an enormous amount of attention due to their fascinating properties and application potential in next-generation information process and storage. However, the lack of proper synthesis approach limits their application. Here, we report a controllable synthesis method to grow ultrathin MS2 (M = Ti, Nb, Zr) nanosheets with H2S-assisted chemical vapor deposition (CVD). We found that the presence of H2S plays an important role to control the morphology of nanosheets including the lateral size and the nucleation density. With the assistance of H2S, the growth of MS2 shows much thinner thickness with largely decreased nucleation density, beneficial for the device application, which can be attributed to the kinetics dominated growth. Our method hence opens a new avenue for the CVD growth of 2D TMDCs and the corresponding heterojunction, and paves the way for exploring their intriguing properties and applications.

Chemical vapor deposition  /  Growth mechanism  /  2D transition-metal dichalcogenides  /  Titanium disulfide  /  FET properties
Yiwei Zhang, Peng Zhang, Tengfei Xu, Xingguo Wang, Huaning Jiang, Yongji Gong. H2S-assisted growth of 2D MS2 (M = Ti, Zr, Nb)[J]. Chinese Chemical Letters, 2022 , 33 (3) : 1390 -1394 . DOI: 10.1016/j.cclet.2021.07.036
Full Text
Less
Two-dimensional (2D) transition metal dichalcogenides (TMDCs) are layered materials with fascinating properties, like the quantum spin Hall effect [1], valley polarization [2] as well as a wide range of potential applications [3], like field-effect transistors [4, 5], photodetectors [6] and functional devices [7, 8]. Among them, the growth of semiconducting VIB group TMDCs such as MoS2 and WSe2 has been well realized and their applications in various fields have been systematically studied [9-13]. In contrast, the growths of some metallic or narrow band-gap 2D materials with promising properties are still in their infancy. Titanium disulfide (TiS2) and niobium disulfide (NbS2), for example, have attracted increasing interests for their devisable electronic properties [14-18]and show application potentials as promising localized surface plasmon resonance materials [19] and superconductors. Another example, zirconium disulfide (ZrS2) with a smaller band gap than MoS2 displays high carrier mobility and unusual electronic properties [20], which brings the potential applications in nanoelectronics [21] and photodetectors [22-24]. However, many issues are remained to be tackled in the controllable synthesis of these ultrathin TMDCs nanosheets.
Several top-down methods, such as mechanical exfoliation [25], electrochemical lithium intercalation exfoliation and liquid sonication exfoliation [26, 27], illustrate considerable handleability in the preparation of typical TMDs, black phosphorus (BP). However, it is usually difficult to control the shape, lateral size and thickness of the obtained nanosheets [28, 29]. Recently, bulk layered compounds [30] or large-size [31] TiS2 flakes can be synthesized by chemical vapor transport (CVT) technique or a mixed-method of physical vapor deposition (PVD) and electron beam evaporation. Meanwhile, it is reported some substrates, such as h-BN and transferred graphene, are applied to synthesize ultrathin 2D nanocrystal by CVD [32, 33]. Nevertheless, the uniformity of the as-grown samples and the repeatability of these approaches are still not very satisfactory.
Herein, we report a highly reproducible synthesis of MS2 (M = Ti, Nb, Zr) nanosheets using H2S-assisted CVD. By adjusting the growth parameters, like the growth temperature and the H2S flow rate, the size and thickness of the flakes can be well controlled. Various characterization techniques confirm the high quality of the as-synthesized MS2 nanosheets and FET devices based on TiS2 nanosheets show narrow band-gap semiconductor behavior and a thickness-dependent resistance.

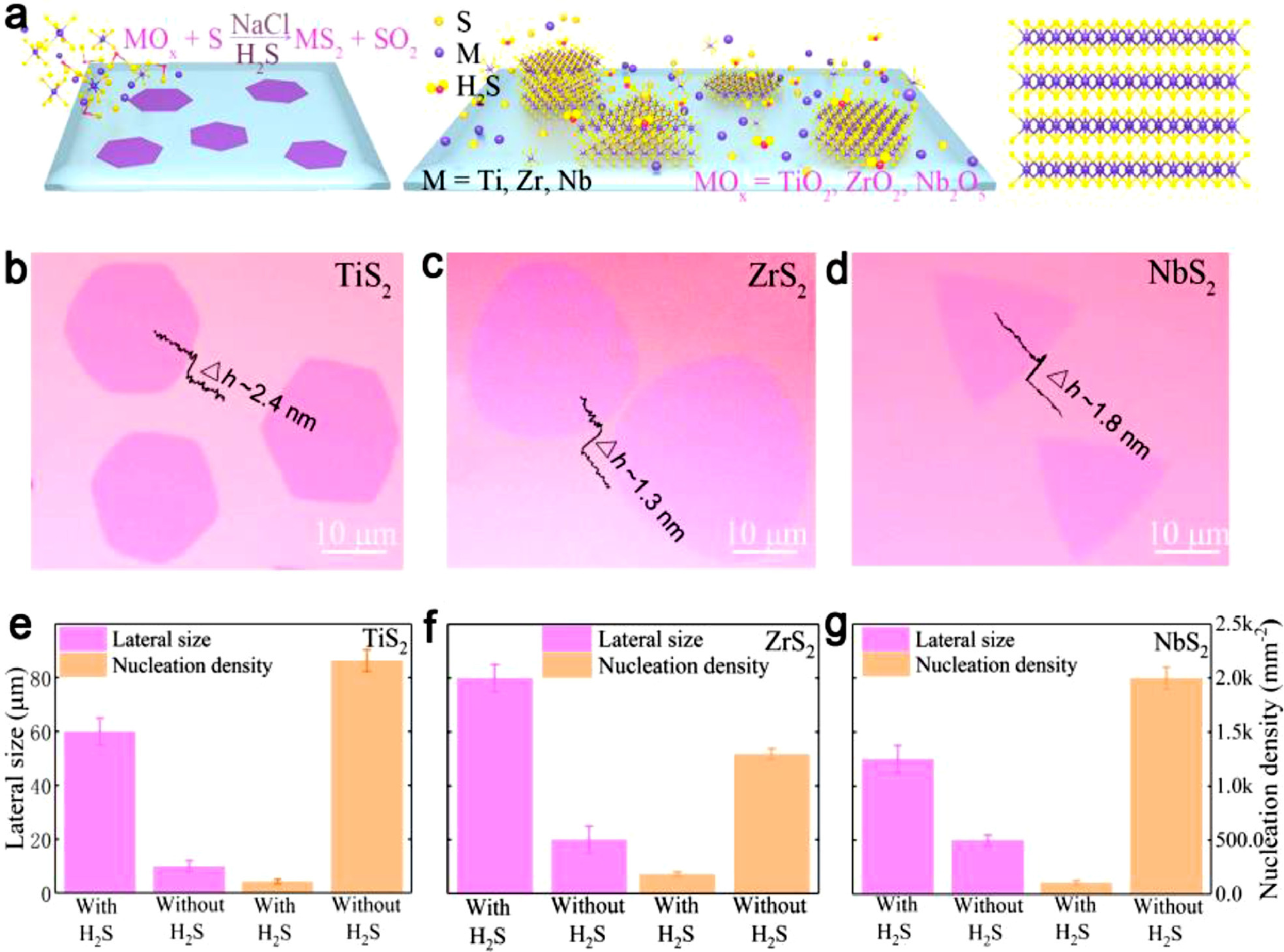

The layers of MS2 (M = Ti, Nb, Zr) are stacked via relatively weak van der Waals interactions. In each layer, M (M = Ti, Nb, Zr) atoms are sandwiched by six sulfur atoms. Fig. 1a shows the schematics of the growth of MS2 (M = Ti, Nb, Zr) films on SiO2/Si substrates via a CVD system together with the typical atomic structure of obtained MS2 (M = Ti, Nb, Zr) from the side-view. More details about the growth process and experimental setup are provided in the Experimental Section and Fig. S1 (Supporting information). Briefly, sulfur powder and MOx/NaCl mixture were used as the reactants, where NaCl powder can help to decrease the energy barrier for the reaction and thus increase the growth rate [34]. Ar is used as carrier gas and H2S is introduced only at the high temperature around 800 ℃ for about 3 min to get ultrathin nanosheets. The typical optical microscopy (OM) images of as-grown MS2 (M = Ti, Nb, Zr) nanosheets with H2S-assistance are displayed in Figs. 1b-d, where the as-synthesized samples display obvious contrast with the SiO2/Si substrates. The height profiles in Figs. 1b-d show a smooth surface with the thickness of ~2.4 nm for TiS2, ~1.3 nm for ZrS2 and ~1.8 nm for NbS2, respectively. And their corresponding AFM height images of the representative MS2 (M = Ti, Nb, Zr) nanosheets are listed as Fig. S2 (Supporting information). Furthermore, the effect of H2S on the nucleation density and lateral size of these three kinds of samples are shown in Figs. 1e-g. As shown, the presence of H2S can significantly reduce the nucleation density of TiS2, ZrS2 and NbS2, thus, leading to much increased lateral size of the products.

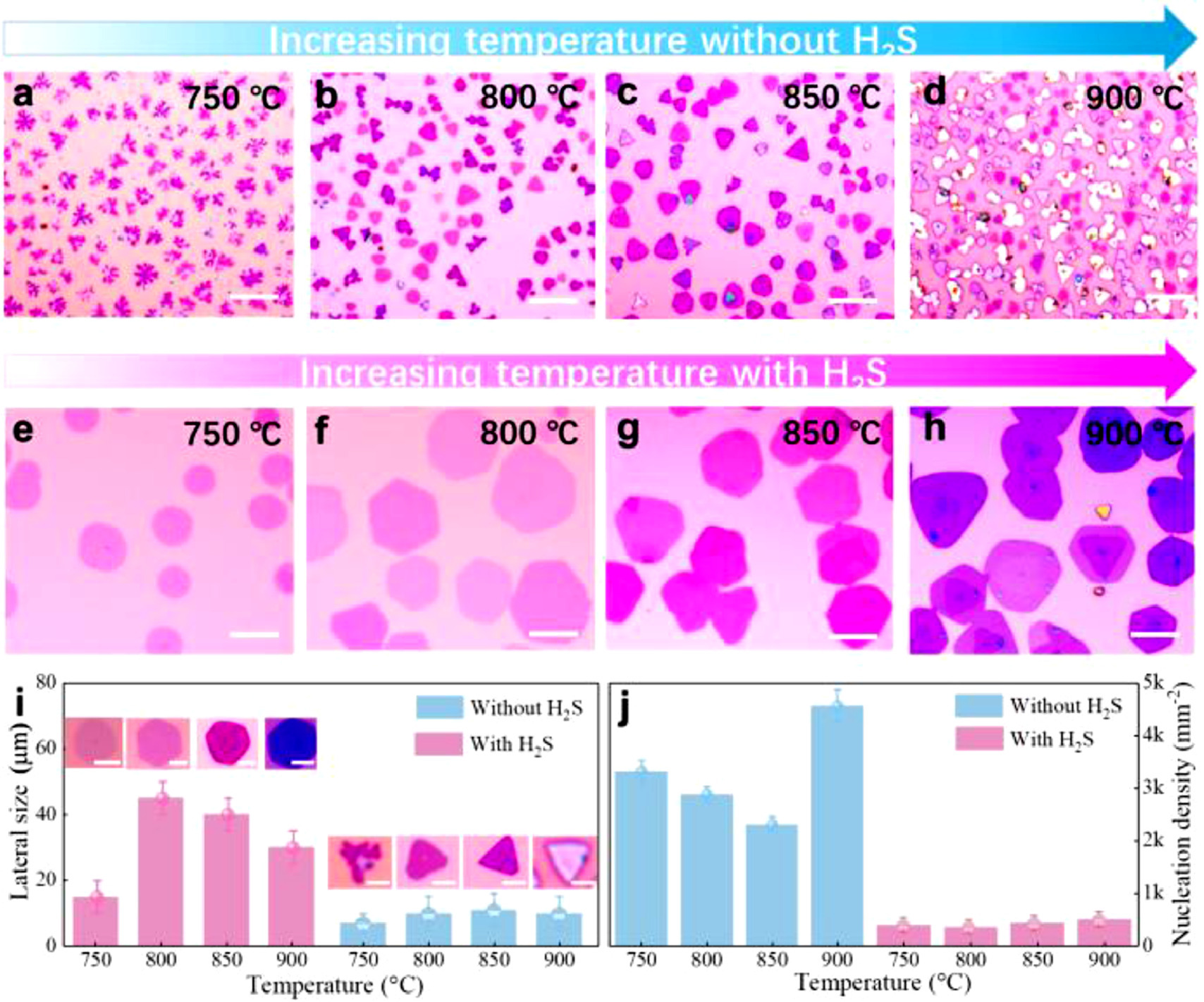

To find the optimal conditions for the growth of TiS2 nanosheets, synthesis temperature and H2S flow are investigated in detail (Fig. 2). Keeping the other growth parameters (growth time, carrier gas, precursor quantity, etc.) constant, H2S as auxiliary gas can obviously reduce the nucleation density and increase the lateral size of the samples compared to the growth without using H2S. Figs. 2a-d show the typical OM images of TiS2 grown from 750℃ to 900℃ without the help of H2S, where the thickness increases and the lateral size changes little with increased growth temperature. Figs. 2e-h display the revolution of typical OM images of TiS2 grown with 2 sccm H2S from 750℃ to 900℃, in which the lateral size increases first and then the thickness becomes thicker. The corresponding statistical histogram of the number of layers increasing with temperature can be seen in Fig. S3 (Supporting information). The statistical histograms of the lateral size and nucleation density in Figs. 2i and j show the effect of H2S clearly. The lateral size of TiS2 nanosheets increases from ~5 µm to ~50 µm when introducing H2S while the nucleation density decreases from ~3k mm−2 to ~0.5k mm−2. In addition, the change of lateral size with different temperature is observed, which may be caused by the kinetic and thermodynamic process including the source sublimation rate, the nucleation rate, the growth rate and the stability of the products [35, 36]. At relatively low temperature, the growth process is largely kinetically controlled [37]. With higher concentration of the reactants vapor at a little bit higher temperature, the product will prefer to deposit on the edge with high activity, which will lead to lateral growth. However, the growth is more thermodynamically controlled with further increased temperature, which will lead to thicker samples. Also, the supersaturated vapor source tends to increase the nucleation rate. As a result, the nanosheets tend to be thicker and smaller. However, the introduction of H2S could promote the growth of TiS2 in the lateral dimension from both thermodynamics and kinetics, which will be discussed in detail in the following part. The above experimental results confirm that ideal ultrathin TiS2 nanosheets could be gained at 800℃ with the assistance of H2S. The same research methods are used to the synthesis of ZrS2 and NbS2 and the characterization of the as-grown nanosheets can be seen in Supporting information (Figs. S4 and S5), showing similar effects of H2S on the morphology control.

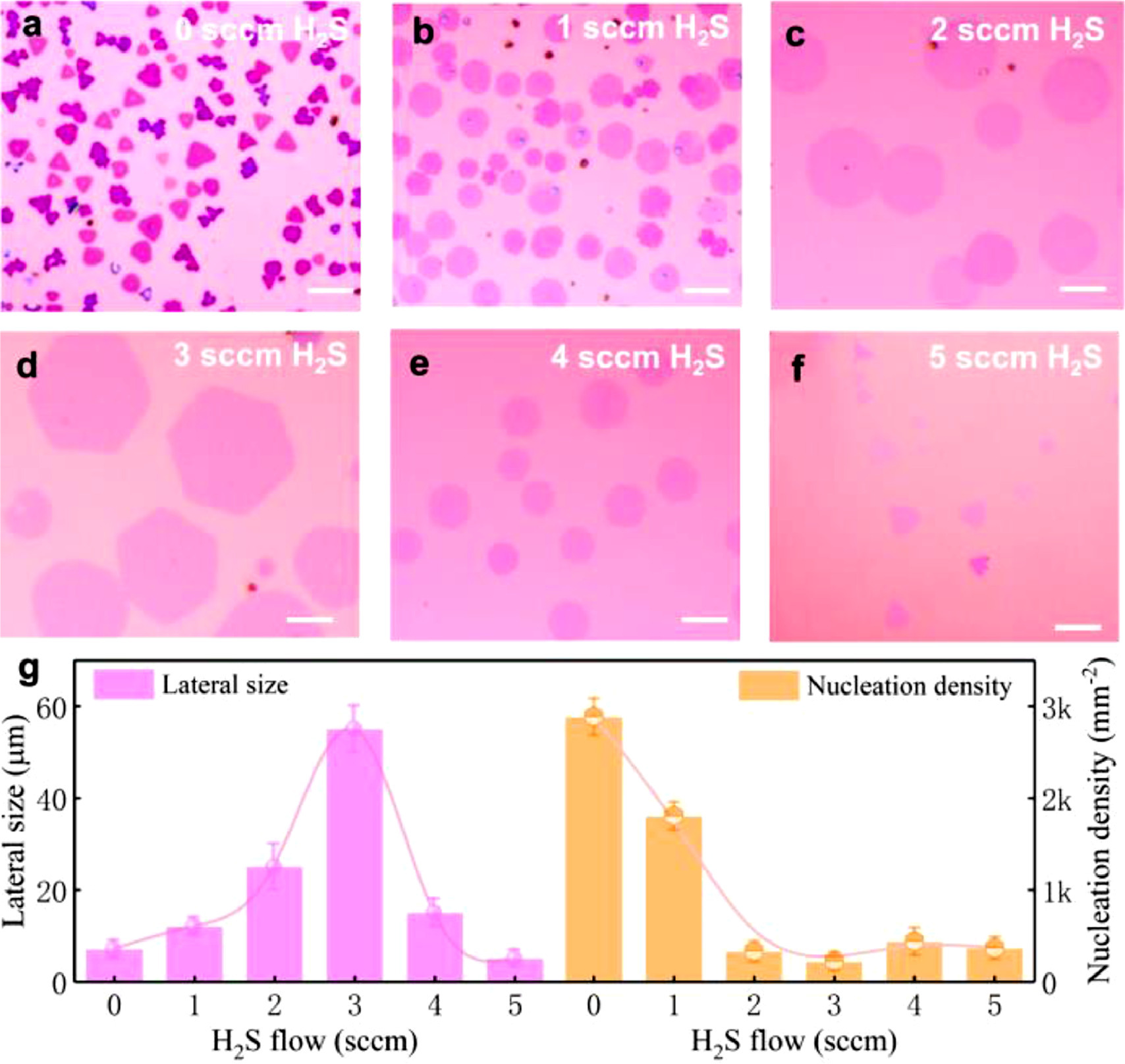

To deeply understand the mechanism of how H2S critically affects the synthesis of TiS2 nanosheets, the effect of H2S flow rate on the reaction is studied in detail. Figs. 3a-f illustrate the OM images of TiS2 grown at 800℃ with different H2S/Ar flow rate. Obviously, the nucleation density and domain size are very sensitive to H2S flow rate. With the increase of H2S flow, the lateral size firstly increases and then decreases while its nucleation density firstly decreases and then keeps constant. Thus, 3 sccm H2S flow rate is the best condition that can get the maximum size of TiS2 nanosheets (about 60 µm). The experimental phenomenon shows that a small H2S flow can significantly decrease the nucleation density (Fig. 3g), which is beneficial for achieving a large domain size at the proper growth time and growth temperature. A simple growth mechanism model and typical OM images of TiS2 nanosheets are speculated in Figs. 4a-c. Firstly, compared to S, H2S could help to produce more active Ti intermediate products with higher Gibbs free energy, which could further lower the ΔG of the reaction. This will further minimize the thermodynamic stability difference of the lateral growth product and vertical growth product. In this case, the dynamics will play a more dominant role and the source atoms will quickly add to the edge sites to realize the lateral growth [37]. Secondly, the high activity of H2S can react with the TiO2/NaCl powder before its evaporation, this could decrease the vapor pressure of Ti species to obtain a low nucleation density. Thus, further increasing the flow rate of H2S will inhibit the growth of TiS2 on the substrate.

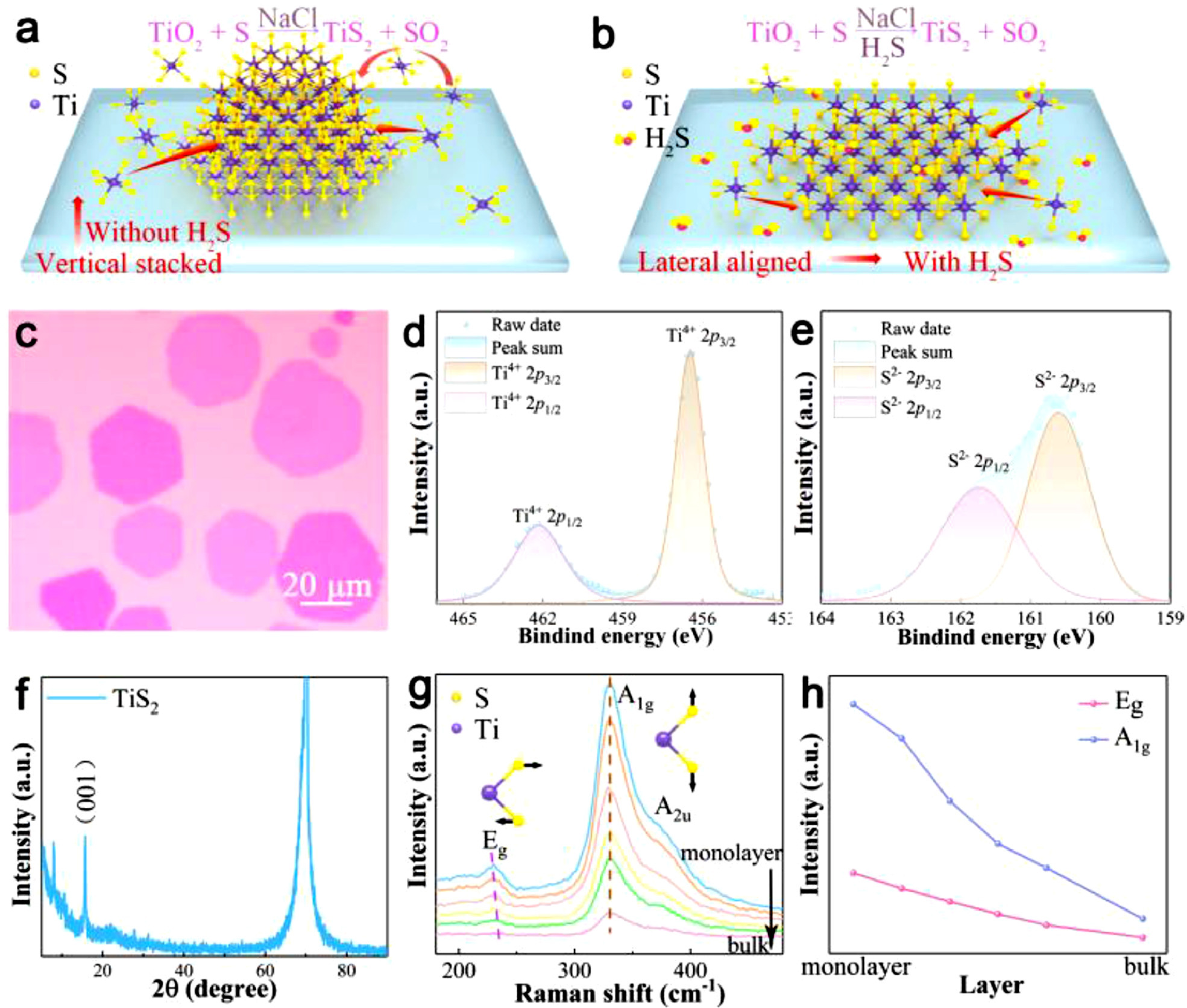

X-ray photoelectron spectroscopy (XPS) was further conducted to study the chemical states and elemental composition of the as-grown samples. As Figs. 4d and e shown, the chemical states of Ti4+ 2p3/2 and 2p1/2 can be identified from the peaks at ~456 and 462 eV (Fig. 4d) and the peaks at ~160 and ~162 eV (Fig. 4e) correspond to the 2p3/2 and 2p1/2 states of S, respectively. The elemental composition of Ti: S perfectly matches the stoichiometric ratio of 1:2.
X­ray diffraction (XRD) characterization was performed on a thick sample to further identify the crystal structure of the as-grown samples. As shown in Fig. 4f, the peak at 2θ = 15.56° of the CVD-grown sample matches well with the (001) crystal planes of TiS2 reported in the literature [29, 38]. The peak at 2θ = 69° can be indexed to the Si substrates. Raman characterization with 532 nm laser is further applied to characterize the grown samples, as shown in Fig. 4g. It shows a peak at ~230 cm−1 ascribed to the in-plane Eg, a peak at ~330 cm−1 corresponding to out-of-plane A1g modes, and a shoulder mode at about 375 cm−1 assigned to A2u, which is consistent with reported literature of TiS2 [29]. When the thickness increases, the Eg peak exhibits a blueshift from 228 cm−1 (monolayer) to 236 cm−1 (bulk) while the A1g peak at ~330 cm−1 shows a negligible shift. Fig. 4h further summarizes the evolution of Raman intensities with thickness, showing decreased intensity of both Eg and A1g peaks with increased thickness.

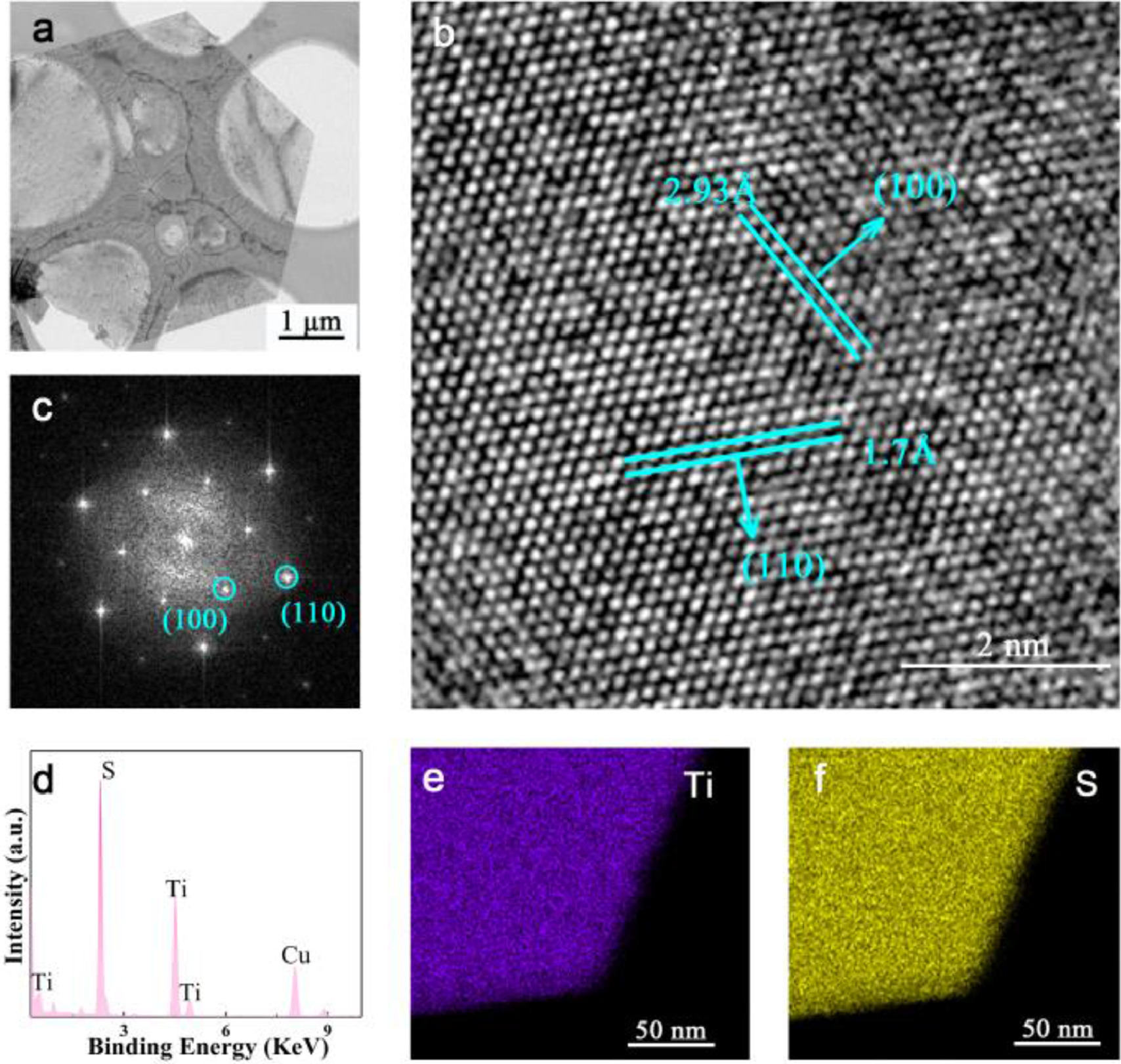

Further, transmission electron microscope (TEM) was performed on the transferred samples to investigate the detailed atomic structures of TiS2 samples. The low-magnification TEM image (Fig. 5a) shows a typical TiS2 flake on the lacey carbon films supported by Cu grids. Fig. 5b shows a high-resolution TEM (HRTEM) image of the sample, displaying a good atomic arrangement. The lattice spacing of ~1.70 and ~2.93 Å matches the predicted spacing for the (110) and (100) planes of 1T-TiS2. The corresponding fast Fourier transformation (FFT) image (Fig. 5c) presents only one set of hexagonal diffraction spots, which confirms the single-crystal nature and high crystal quality. Energy dispersive spectroscopy (EDS) employed along with TEM on the transferred samples identifies the chemical composition of ~1:2 for Ti: S in Fig. 5d. The EDS maps (Figs. 5e and f) clearly exhibit the spatial distribution of Ti and S atoms and their uniform color distribution demonstrates the compositional uniformity of the synthesized TiS2 nanosheet. Together, these TEM results confirm that the H2S-assisted CVD method can obtain ultrathin single-crystal TiS2 nanosheets with high quality.

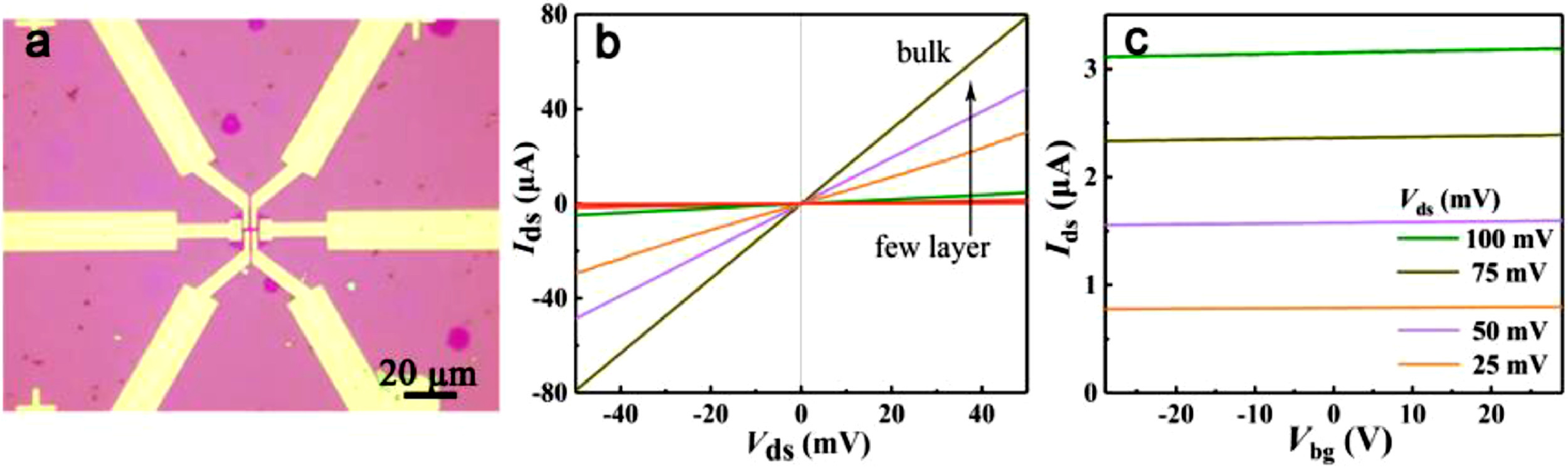

In addition, electrical measurements were performed on a series of FETs based on the as-grown TiS2 samples with different thickness. Fig. 6a exhibits the OM image of a typical fabricated device with a channel width (W) of 8 µm and channel length (L) of 7 µm. The Ti/Au electrodes were made directly on the samples using photolithography and e-beam metal deposition (more details are provided in the Experimental Section in Supporting information). Fig. 6b shows the thickness-dependent resistance of TiS2 devices, exhibiting that the resistance decreases with the increase of thickness. The corresponding linear current-voltage (Ids-Vds) curve collected at room temperature also demonstrates an Ohmic contact at the interface. The transfer characteristic curves of the devices under different Vds in Fig. 6c demonstrate the narrow band-gap semiconductor behavior of the TiS2 channel [39, 40].
In summary, we have introduced H2S to assist the synthesis of several 2D transition-metal dichalcogenide materials, such as TiS2, NbS2 and ZrS2, in an ambient pressure CVD system. Further XRD, TEM and Raman characterizations reveal that the nanosheets are single crystals and possess high crystallinity. We take TiS2 as an example to study the role of the H2S in the growth, where H2S can effectively inhibit the growth in the vertical direction and reduce the nucleation density due to its high reactivity. The method provides direct access to highly crystalline TiS2, ZrS2 and NbS2 nanosheets, with superior controllability over the growth morphologies, such as the domain size and thickness. Our study hence suggests a promising CVD paradigm to synthesize high quality various 2D atomic crystals. It also provides a possible inspiration for the preparation of other 2D TMDCs and opens up opportunities for exploring a variety of intriguing physics, corresponding properties and applications of 2D TMDCs.
