Self-assembly of single metal sites embedded covalent organic frameworks into multi-dimensional nanostructures for efficient CO<sub>2</sub> electroreduction

Self-assembly of single metal sites embedded covalent organic frameworks into multi-dimensional nanostructures for efficient CO₂ electroreduction

PDF

Yi-Lu Yang^a^,¹, Yi-Rong Wang^a^,¹, Guang-Kuo Gao^a^,¹, Ming Liu^a, Chang Miao^a, Le-Yan Li^a, Wei Cheng^a, Zi-Yue Zhao^a, Yifa Chen^a^,^b^,^*, Zhifeng Xin^c^,^*, Shun-Li Li^a, Dong-Sheng Li^d, Ya-Qian Lan^a^,^b^,^*

Chinese Chemical Letters | 2022, 33(3) : 1439 - 1444

Less

Chinese Chemical Letters | 2022, 33(3): 1439-1444

• Review •

Self-assembly of single metal sites embedded covalent organic frameworks into multi-dimensional nanostructures for efficient CO₂ electroreduction

Full

Affiliations

^a Jiangsu Collaborative Innovation Centre of Biomedical Functional Materials, Jiangsu Key Laboratory of New Power Batteries, School of Chemistry and Materials Science, Nanjing Normal University, Nanjing 210023, China

^b School of Chemistry, South China Normal University, Guangzhou 510006, China

^c Institute of Molecular Engineering and Applied Chemistry, Anhui University of Technology, Ma'anshan 243002, China

^d College of Materials and Chemical Engineering, Hubei Provincial Collaborative Innovation Center for New Energy Microgrid, Key Laboratory of Inorganic Nonmetallic Crystalline and Energy Conversion Materials, China Three Gorges University, Yichang 443002, China

Published: 2022-03-15 doi: 10.1016/j.cclet.2021.08.063

Outline

Abstract

Less

Morphology-controlled electrocatalysts with the ability of CO₂ adsorption/activation, mass transfer, high stability and porosity are much desired in electrochemical CO₂ reduction reaction (CO₂RR). Here, three kinds of multi-dimensional nanostructures (i.e., hollow sphere, nanosheets and nanofibers) have been successfully produced through the modulation of porphyrin-based covalent organic frameworks (COFs) with various modulators. The obtained nanostructures with high-stability, large surface-area, and single metal sites enable efficient CO₂RR into CH₄. Notably, they all exhibit higher FE (hollow sphere, 68.2%; nanosheet, 64.2% and nanofiber, 71.0%, −0.9 V) than COF-366-Cu (43.0%, −0.9 V) after morphology control. Noteworthy, the FE of COF-366-Cu (HS) keeps higher than 52.4% over a wide potential range from −0.9 V to −1.1 V and the achieved FE_{CH₄+C₂H₄} (82.8%, −0.9 V) is superior to most of reported COFs and copper-based electrocatalysts. This work paves a new way in the exploration of COF-based multi-dimensional nanostructures applicable in efficient CO₂RR to CH₄.

Key words

CO₂ electroreduction / Covalent organic frameworks / Hollow sphere / Nanofiber / Nanosheet

Cite this Article

Yi-Lu Yang, Yi-Rong Wang, Guang-Kuo Gao, Ming Liu, Chang Miao, Le-Yan Li, Wei Cheng, Zi-Yue Zhao, Yifa Chen, Zhifeng Xin, Shun-Li Li, Dong-Sheng Li, Ya-Qian Lan. Self-assembly of single metal sites embedded covalent organic frameworks into multi-dimensional nanostructures for efficient CO₂ electroreduction[J]. Chinese Chemical Letters, 2022 , 33 (3) : 1439 -1444 . DOI: 10.1016/j.cclet.2021.08.063

Full Text

Less

Electrochemical CO₂ reduction reaction (CO₂RR) holds high promise in the conversion of thermodynamically stable and chemically inert CO₂ into valuable products (e.g., CO, formic acid, CH₄, C₂H₄ and ethanol), which might be an alternative way to deal with the intermittent nature of renewable energy sources [1-3]. However, the competitive process of hydrogen evolution reaction (HER) in water and the similar redox potentials of various CO₂ reduction reactions usually disqualify the catalysts that would result in poor selectivity, high overpotential, low conversion efficiency, etc. [4]. Since the performances of various electrochemical energy conversion technologies are dominated by the electrocatalysts, it is critical to construct electrocatalysts with advantages like favorable catalytic activity, desired selectivity and superior durability to solve these problems [5].

Covalent organic frameworks (COFs), an attractive family of crystalline porous polymeric networks featured with predesigned geometries and well-defined pore structures, have evoked an immense level of recent interest around the world [6-8]. Because of their advantages like excellent crystallinity, tunable structures or porosity, high stability and low densities, they have attracted extensive attention in various fields, such as energy storage [9], gas separation [10], sensing [11], photoluminescence [12], proton conduction [13], drug delivery [14] and heterogeneous catalysis [15]. COFs are desired electrocatalsyts in CO₂RR owing to the following reasons [16, 17]: (1) the well-defined structures enable the exact location control of active sites [18]; (2) the abundant channels and large surface area can facilitate the mass transfer and CO₂ adsorption/enrichment [19]; (3) the porous structures of COFs may be beneficial for the confinement of functional moieties such as single atoms or small nanoparticles [20] and (4) the high stability of COFs set basis for the durability in long-term tests even under harsh experimental conditions [21]. Besides, COFs as crystalline platforms could provide insightful understanding of structure-activity correlations in electrocatalysis, resulting in new guiding knowledge for rational design and exploitation of novel electrocatalysts [21]. Up to date, some pioneering COF-based materials including porphyrin-based COFs like COF-366-Co and COF-367-Co [22], or phthalocyanine-based COFs like CoPc-PDQ-COF [23] and NiPc-COF [24] have been applied in electrocatalytic CO₂RR. However, most of the reduced products when applying COFs as the electrocatalysts are two-electron transferred products like CO and the efficient generation of higher-value products (e.g., CH₄ and C₂H₄) involving multiple proton-coupled electron transfer (PCET) remains as a scientific challenge. Besides, there are still some remaining problems that have restricted the development of COFs in broader range of applications, for example, the relatively complicated or stricted synthesis process, lacking in morphology controlled strategies or large scale production [25]. Among them, the morphology tuning of COFs that can shape COFs into regular nanostructures and control the exposed defects or sites are essential to make better use of COFs before they can be widely adopted in practical applications. Therefore, strategies that enable processing COFs into desired and well-tuned morphology that possess positive effect on applications like electrocatalytic CO₂RR are highly demanded.

During past decades, various morphology-controlled strategies have been reported for COFs and can be mainly classified as "top-down" and "bottom-up" strategies [25, 26]. The "top-down" strategies like liquid phase exfoliation have been reported to transform bulk phases of COFs into lower-dimension forms like nanosheets through methods like self-exfoliation [27, 28], chemical exfoliation [29, 30] or mechanical exfoliation [31, 32]. However, they are still limited by the entangled drawbacks of pre-synthesized COFs, low yields, in-homogeneity in the size or thickness, etc. [33]. Besides, the generated forms are relatively simple and most of them are nanopellets or nanosheets [34, 35]. In contrast, "bottom-up" strategies that enable simultaneous in-situ synthesis and morphology-control of COFs have been further explored. In "bottom-up" strategies, template and template-free methods have been investigated [36, 37]. In the reported template methods, COFs are firstly grown on the surface of templates (e.g., ZnO and Fe₃O₄) with pre-designed morphologies (e.g., spherical or tubular shapes) followed with the removal of templates to produce shaped morphology [38, 39]. However, they still have drawbacks like sophisticated template-removal processes, residues problems and relatively complicated processes. In contrast, template-free "bottom-up" approaches are much more desired in both synthesis and morphology-control processes, in which COFs are firstly formed as small crystallites and then self-assembled into target morphology in the absence of template [40]. During these processes, diverse conditions like additives [41, 42], solvent compositions [43] or polarity [44], substrate species [43], reactant concentrations [45] and the monomer's planarity [46] can induce the crystal growth process of COFs to obtain different morphologies.

Some pioneering works have been reported to tune COFs into various nanostructures like nanosheets, nanospheres or nanofibers and investigate their potential applications in trypsin immobilization [47], energy storage [48] or guest molecule capture [49], etc. Nonetheless, the investigation of COFs in this field is still at the early stage and the exploration of new methods that enable processing of COFs into valuable nanostructures are much desired for a broader range of applications. It would be highly important to study the effects of various morphologies on the CO₂RR properties and particularly attractive to explore the possibility of COF-based nanostructures in selective production of multi-electron transferred products (e.g., CH₄ or C₂H₄).

Herein, three kinds of nanostructures (i.e., hollow spheres, nanofibers and nanosheets) have been synthesized on the basis of COF-366-Cu to explore their CO₂RR performance (Fig. 1). The formation process has been revealed as supported by time-interval experiments. Thus-obtained COF-366-Cu with various nanostructures can serve as powerful electrocatalysts in CO₂RR, in which the porous nanostructures possess excellent chemical stability, large surface area, CO₂ adsorption/activation properties and tremendous Cu-N₄ sites, etc. Specifically, COF-366-Cu (HS), COF-366-Cu (NF) and COF-366-Cu (NS) exhibit superior FE_CH₄ of 68.2% (−285.4 mA/cm², −0.9 V), 71.0 % (−350.8 mA/cm², −0.9 V) and 64.2% (−276.0 mA/cm², −0.9 V) in flow-cell, respectively. Besides, the achieved FE_{CH₄+C₂H₄} (82.8%, −0.9 V) of COF-366-Cu (HS) is superior to most of reported COFs and copper-based electrocatalysts. This is a rarely reported example of porphyrin-based COFs with unique and tunable mult-dimensional nanostructures applied in efficient CO₂RR to CH₄ as far as we know, which would expand the applications of COFs in CO₂RR.

For the syntheses of various COF-366-Cu based nanostructures, different additives including aniline (Ani), hydrazine hydrate (N₂H₄•H₂O), tetraethylenepentamine (TEPA), triethylenetetramine (TETA), ammonium fluoride (NH₄F), ammonium bromide (NH₄Br), ammonium chloride (NH₄Cl), etc., have been applied in the synthesis procedures. In detail, these additives are added into the precursors of COF-366-Cu and reacted under similar conditions as that of COF-366-Cu [22]. During the synthesis process of COF-366-Cu, the addition of various modulators can shape the COF morphology and result in multi-dimensional nanostructures including hollow spheres (sample with the addition of 5 µL Ani, denoted as COF-366-Cu (HS)), nanofibers (addition of 5 µL TEPA, COF-366-Cu (NF)) and nanosheets (addition of 5 mg NH₄F, COF-366-Cu (NS)).

To study the components and crystallinity, powder X-ray diffraction (PXRD) and Fourier-transform infrared spectroscopy (FT-IR) tests have been conducted. Taking COF-366-Cu (HS) as an example, it exhibits high crystallinity with a series of strong PXRD peaks at 3.5°, 4.2° and 6.9°, which are assigned to (1 1 0), (2 0 0) and (2 2 0) crystal facets, respectively (Fig. 2a) [22]. In the case of COF-366-Cu (NF) and COF-366-Cu (NS), the PXRD patterns are also similar to that of COF-366-Cu (Fig. S1 in Supporting information). In the FT-IR spectra, similar peaks at 1622 cm⁻¹ in COF-366 and COF-366-Cu confirm the successful formation of C=N bond in the structures, accompanied by the diminish of C=O (1697 cm⁻¹) stretching band of terephthalaldehyde (BDA) and N-H (3324 cm⁻¹) stretching band of Cu-TAPP (Fig. S2 in Supporting information) [50]. COF-366-Cu (HS), COF-366-Cu (NF) and COF-366-Cu (NS) display similar peaks as that of COF-366-Cu (Fig. S3 in Supporting information). Furthermore, X-ray photoelectron spectroscopy (XPS) measurements have been conducted to determine the surface electronic state and elemental composition of COF-366-Cu (Fig. S4 in Supporting information). The observed binding energy of 934.86 eV and 954.69 eV are ascribed to Cu 2p_3/2 and Cu 2p_1/2 in COF-366-Cu, respectively (Fig. S5a in Supporting information) [51, 52]. Besides, the XPS results of COF-366-Cu (HS), COF-366-Cu (NF) and COF-366-Cu (NS) display similar results when compared with that of COF-366-Cu, revealing the remained bivalent state of Cu(II) in these materials (Figs. S5b-d in Supporting information).

To evaluate the morphology of these samples, scanning electron microscopy (SEM) and transmission electron microscopy (TEM) tests have been performed. Taking the additive of 5 µL Ani as an example, the obtained sample displays sphere morphology with a diameter of ~248 ± 71 nm as proved by the SEM image (Fig. 2b). Interestingly, it shows hollow sphere morphology (COF-366-Cu (HS)) with a wall thickness of ~86 ± 33 nm in the TEM image (Fig. 2c). In contrast, COF-366-Cu synthesized from normal condition displays irregular particle morphology as proved by the SEM and TEM images (Fig. S6 in Supporting information). Furthermore, clear lattice fringes on the hollow spherical walls are visible in high-resolution TEM (HR-TEM) images and the lattice spacing of 2.05 nm is assigned to the (2 0 0) planes, confirming the high crystallinity of obtained COF-366-Cu (HS) (Figs. 2d and e) [22]. Moreover, the corresponding energy dispersive X-ray (EDS) element mapping of COF-366-Cu (HS) shows that C, N, O and Cu elements are uniformly distributed in the hollow sphere (Fig. 2f). Besides, the hollow sphere morphology is further certified by the EDS linear scanning test, in which a volcano-type of distribution curve can be detected for Cu element (Fig. S7 in Supporting information). The Cu content in COF-366-Cu (HS) is determined to be 5.30 wt% by inductively coupled plasma (ICP) optical emission spectrometry test, matches well with the result in EDS test (Fig. S8 and Table S1 in Supporting information).

Furthermore, the morphology of COF-366-Cu with various addition amounts of Ani (3-50 µL) have been investigated. The PXRD patterns of them exhibit high and remained crystallinity when compared with that of COF-366-Cu (Fig. S9 in Supporting information). With the addition of 3 µL Ani, the sample with the hollow sphere morphology is obtained (diameter, 371 nm, wall thickness, ~107 ± 95 nm) and transformed into COF-366-Cu (HS) with the addition of 5 µL Ani as presented above (Figs. 2b and c, Fig. S10 in Supporting information). When the amount is increased to 10 µL (diameter, 350 nm, wall thickness, ~84 ± 81 nm) (Fig. S11 in Supporting information) or 30 µL (diameter, 560 nm, wall thickness, ~160 ± 150 nm), the sizes of hollow spheres gradually become larger (Fig. S12 in Supporting information). When it increases to 50 µL, the hollow sphere morphology disappears, and it changes into aggregated and irregular pellets (~5 µm) (Fig. S13 in Supporting information). Besides, the morphology tuning with other additives have also been investigated. The addition of N₂H₄•H₂O (5 µL) in the synthesis of COF-366-Cu can also result in the morphology of hollow spheres (diameter, ~350 nm and wall thickness, ~140 ± 97 nm) as proved by the PXRD, SEM and TEM images (Figs. S14 and S15 in Supporting information). Interestingly, when TEPA (5 µL) and TETA (5 µL) are applied as the modulators, they can both result in nanofiber morphology (Fig. 3a and Fig. S17 in Supporting information). Taking the addition of 5 µL TEPA as an example, the obtained nanofibers (COF-366-Cu (NF)) display remained crystallinity with a length of ~1 µm and a diameter of ~100 nm as proved by the PXRD and TEM tests (Fig. 3a and Fig. S16 in Supporting information). Besides, when the additive is NH₄F (length, ~994 ± 62 nm and width, ~752 ± 376 nm), NH₄Cl (length, 994 nm and width, 752 nm) and NH₄Br (length, 1372 nm and width, 1181 nm) (Fig. S18 in Supporting information), they are all nanosheets (Fig. 3b, Figs. S19 and S20 in Supporting information). Taking the addition of 5 mg NH₄F as an example, atomic force microscope (AFM) tests have been conducted to evaluate the thickness of the obtained COF-366-Cu (NS). The results show that the thickness of COF-366-Cu (NS) is ~1.55 nm over a large scale (~1 µm) (Fig. 3b). Therefore, some of the obtained sample with representative morphology like COF-366-Cu (HS) (addition of 5 µL Ani), COF-366-Cu (NF) (addition of 5 µL TEPA) and COF-366-Cu (NF) (addition of 5 mg NH₄F) will be selected as the desired platforms to further investigate other properties.

The morphology tuning is based on the self-assembly of COF-366-Cu with porous structure, which might be beneficial for the mass transfer of substrates and enrichment of CO₂. To further evaluate the porosity of these samples, N₂ and CO₂ sorption tests have been carried out. The Brunner-Emmet-Teller surface area (S_BET) of COF-366-Cu (HS), COF-366-Cu (NF) and COF-366-Cu (NS) are calculated to be 566, 356 and 413 cm²/g, respectively (Figs. S21–S24 in Supporting information). Besides, the pore volume values for COF-366-Cu (HS), COF-366-Cu (NF) and COF-366-Cu (NS) are detected to be 0.53 cm³/g, 0.50 cm³/g and 0.48 cm³/g, respectively. The difference in the S_BET and pore volume might be attributed to the varied exposed defects in these nanostructures. Moreover, CO₂ sorption tests conducted at 298 K reveal that COF-366-Cu (HS), COF-366-Cu (NF) and COF-366-Cu (NS) display similar CO₂ adsorption capacity of ~20 cm³/g when compared with that of COF-366-Cu, implying the remained CO₂ adsorption ability after morphology tuning (Fig. S25 in Supporting information). Besides, the catalysis stability, as a vital factor to determine the durability of samples, has also been evaluated. To investigate the chemical stability, the samples are soaked in 1 mol/L KOH for more than 24 h and characterized. PXRD patterns reveal that COF-366-Cu (HS), COF-366-Cu (NF), COF-366-Cu (NS) and COF-366-Cu all present remained crystallinity when compared with samples before tests, indicating the high chemical stability (Fig. S26 in Supporting information). Besides, thermogravimetric analysis (TGA) tests have been performed under oxygen atmosphere to evaluate the thermal stability. COF-366-Cu (HS), COF-366-Cu (NF) and COF-366-Cu (NS) all exhibit high thermal stability with slight weight loss up to ~300 ℃, complying with the result of COF-366-Cu (Figs. S27 and S28 in Supporting information). The high porosity and stability combined with well-tuned morphology as mentioned above would set fundamental basis for further applications in electrocatalytic CO₂RR.

In addition, we further study the formation process of COF-366-Cu (HS), COF-366-Cu (NF) and COF-366-Cu (NS) at different reaction time. Taking COF-366-Cu (HS) as an example, PXRD tests show that the peaks of COF-366-Cu (HS) start to appear at 1 h and the peak intensity increases from 1 h to 72 h, implying COF-366-Cu (HS) is gradually transformed into higher crystalline states along the time (Fig. S29 in Supporting information). Furthermore, the SEM image shows that COF-366-Cu (HS) displays small nanoparticle (~50 nm) morphology at 0.5 h (Fig. S30a in Supporting information). Then, these small nanosheets grow up and self-assembled into hollow spheres (diameter, ~200 nm) (Fig. S30b in Supporting information). After that, the hollow sphere gradually becomes larger in size and the final size is ~250 nm at 72 h (Figs. S30c and d in Supporting information). For COF-366-Cu (NF), it grows from short nanofibers (length ~370 nm) at 3 h (Fig. S31b in Supporting information), and then it gradually becomes longer with length of ~750 nm at 6 h (Fig. S31c in Supporting information). Finally, the obtained nanofibers display a length of ~1 µm and a diameter of ~100 nm as proved by the TEM image (Fig. 3a and Fig. S31d in Supporting information). Based on the above results, the possible reason proposed for the formation of nanofibers might be the vital role of diamine-appended analogs like TEPA and TETA, in which the amino groups at both ends of the molecule might participate in the condensation of aldehydes and amines, thus connecting the generated small nano-precursors during the formation process and result in long nanofibers. For COF-366-Cu (NS), firstly, they formed small nanoparticles (thickness, ~150 nm; diameter, ~350 nm) at 3 h (Fig. S32b in Supporting information). With the increase of time, they gradually become larger along the time and the produced nanosheets at 72 h possess a thickness of ~1.55 nm over a large scale (~1 µm) as proved by the AFM and TEM tests (Fig. 3b, Figs. S32c and d in Supporting information).

The specially designed COF-366-Cu (HS), COF-366-Cu (NF) and COF-366-Cu (NS) with well-tuned morphology, high porosity and excellent stability might serve as the desired platforms in electrochemical CO₂RR. To test their performances, the catalysts are packaged in flow cells and tested in three-electrode electrochemical system at selected potentials. The working electrode is a catalyst spray-coated gas diffusion layer (GDL). An anion exchange membrane is inserted between the cathode and Pt foil. In this work, all the potentials are measured using a Ag/AgCl electrode and the results are reported relative to reversible hydrogen electrode (RHE).

Linear sweep voltammetry (LSV) curves show that COF-366-Cu (HS), COF-366-Cu (NF) and COF-366-Cu (NS) have total current density of −285.4 mA/cm², −350.8 mA/cm² and −276.0 mA/cm² at −0.9 V, respectively, which are all superior to COF-366-Cu (−244.4 mA/cm²) at −0.9 V (Fig. 3c). Besides, COF-366-Cu, COF-366-Cu (HS), COF-366-Cu (NF) and COF-366-Cu (NS) all have much smaller current density in HER than that in CO₂RR, indicating they strongly favor CO₂RR than HER (Figs. S33–S36 in Supporting information). In order to evaluate the reduction product of CO₂RR, electrocatalysis reactions are carried out at different potentials and the reduction products are detected by gas chromatography (GC) and ¹H nuclear magnetic resonance spectroscopy (¹H NMR), respectively. As a result, there are no liquid products detected (Fig. S37a in Supporting information). For COF-366-Cu (HS), it gives a FE_CH₄ of 68.2% and a FE_C₂H₄ of 14.6% at −0.9 V with a current density of −285.4 mA/cm² (Figs. 3c and 4a). Noteworthy, the achieved FE_{CH₄+C₂H₄} of COF-366-Cu (HS) (82.8%, −0.9 V) is highest among reported COFs and superior to most of reported copper-based electrocatalysts (Figs. 4b and c, Tables S3 and S4 in Supporting information). In contrast, COF-366-Cu only has a FE_CH₄ of 43.0% and FE_C₂H₄ of 7.5% at −0.9 V with a current density of −244.4 mA/cm². Besides, the bare carbon paper is measured as comparison and no electrocatalytic CO₂RR activity is detected (Fig. S37b in Supporting information). In addition, the electroreduction CO₂ performanceof COF-366-H (without metal doping) and Cu-TAPP are tested. The result show that the main product of COF-366-H is H₂ and Cu-TAPP only gives a FE_CH₄ of 32.7% and a FE_C₂H₄ of 1.5% at −1.0 V (Figs. S38 and S39 in Supporting information), which proves the superiority of COF-366-Cu (HS) in electrocatalytic CO₂RR. The FE_CH₄ of COF-366-Cu (HS) keeps higher than 52.4% over a wide potential range from −0.9 V to −1.1 V and FE_C₂H₄ remains almost unchanged (Fig. 4a). In addition, both of COF-366-Cu (NF) (FE_CH₄, 71.0%; FE_C₂H₄, 16.6%, −0.9 V) and COF-366-Cu (NS) (FE_CH₄, 64.2%; FE_C₂H₄, 5.6%, −0.9 V) are superior to COF-366-Cu in the electrocatalytic performance (Fig. 3d and Figs. S33–S36).

Moreover, the electrochemical properties of COF-366-Cu (HS) obtained from different addition amounts of Ani have been investigated. With the addition of 3 µL Ani, it gives a FE_CH₄ of 61.1% and FE_C₂H₄ of 3.9% at −0.9 V with a current density of −269.3 mA/cm² (Fig. S40 in Supporting information). When the amount is increased to 10 µL (FE_CH₄, 67.0%; FE_C₂H₄, 12.5%, −292.1 mA/cm²) or 30 µL (FE_CH₄, 66.6%; FE_C₂H₄, 11.6%; −285.7 mA/cm²) (Figs. S41 and S42 in Supporting information). When it increases to 50 µL, it gives slightly lower FE_CH₄ of 64.1% and FE_C₂H₄ of 6.9% with a current density of −280.7 mA/cm², which might be attributed to the morphology change (Fig. S43 in Supporting information). Therefore, we select the sample with 5 µL Ani addition with the best performance (FE_CH₄, 68.2%; FE_C₂H₄, 14.6%, −0.9 V) as the target one to further investigate other properties. For COF-366-Cu (NF), it gives a FE_CH₄ of 71.0% and a FE_C₂H₄ of 16.6% at −0.9 V with a current density of −350.8 mA/cm² (Fig. S35). When the additive is TETA, it can result in nanofiber morphology and the FE_CH₄ is 69.2% and a FE_C₂H₄ of 10.8% at −0.9 V with a current density of −325.4 mA/cm² (Fig. S44 in Supporting information). For COF-366-Cu (NS), it has a FE_CH₄ of 64.2% at −0.9 V and a FE_C₂H₄ of 5.6% with a current density of −276.0 mA/cm² (Fig. S36). For the samples that possess nanosheet morphology obtained from modulators of NH₄X (X = F, Cl and Br), their CO₂RR performances have also been evaluated and compared. When the modulator is NH₄Cl or NH₄Br, they can result in nanosheet morphology. The samples obtained from NH₄Cl (FE_CH₄, 57.0% and FE_C₂H₄, 6.6%, −0.9 V) and NH₄Br (FE_CH₄, 61.3% and FE_C₂H₄, 10.0%, −0.9 V) as the modulator display poorer performance than that of NH₄F (FE_CH₄, 64.2%; FE_C₂H₄, 5.6%, −0.9 V) (Figs. S45 and S46 in Supporting information). Therefore, we select samples with the optimal modulator that possess best performances for further investigation.

To further support the activity of COF-366-Cu, COF-366-Cu (HS), COF-366-Cu (NF) and COF-366-Cu (NS), partial current densities of H₂, CO, CH₄ and C₂H₄ at different potentials are calculated (Figs. S33–S36). COF-366-Cu, COF-366-Cu (HS), COF-366-Cu (NF) and COF-366-Cu (NS) present partial CH₄ current density of −105.2 mA/cm², −194.7 mA/cm², −248.6 mA/cm², −177.3 mA/cm² at −0.9 V, respectively (Fig. 3e). The results show that the partial current densities of COF-366-Cu (HS) are almost twice than that of COF-366-Cu (Fig. 3e). To estimate the electrochemical active surface area (ECSA) and discuss the potential influence factors, electrochemical double-layer capacitance (C_dl) has been calculated and analyzed. The results show that COF-366-Cu (HS) (2.07 mF/cm²), COF-366-Cu (NF) (2.73 mF/cm²) and COF-366-Cu (NS) (1.20 mF/cm²) all exhibit higher C_dl value than that of COF-366-Cu (0.78 mF/cm²) (Fig. 3f and Fig. S47 in Supporting information). These results suggest that the samples obtained from morphology control would provide more active sites to contact with the electrolyte and facilitate the electrocatalytic CO₂RR process.

To detect the carbon source of electrochemical CO₂RR products, an isotopic experiment that utilizing ¹³CO₂ as substrate performed under similar reaction conditions has been conducted. Taking COF-366-Cu (HS) as an example, the products are analyzed by GC and mass spectra. The peaks at m/z = 17, 29 and 30 are assigned to ¹³CH₄, ¹³CO and ¹³C₂H₄, respectively (Fig. 4d and Fig. S48 in Supporting information), which indicate the carbon sources of CH₄, CO and C₂H₄ indeed derive from the CO₂. In addition, electrochemical impedance spectroscopy (EIS) measurement has been carried out to probe the electrocatalytic kinetics on the electrode/electrolyte surface. Interestingly, the charge transfer resistance of COF-366-Cu, COF-366-Cu (HS), COF-366-Cu (NF) and COF-366-Cu (NS) are calculated to be 12.27 Ω, 6.51 Ω, 5.68 Ω and 9.83 Ω, respectively (Fig. S49 in Supporting information). This result shows that COF-366-Cu (HS), COF-366-Cu (NF) and COF-366-Cu (NS) can provide faster electron transfer from the catalyst surface to the reactant (i.e., CO₂) than that of COF-366-Cu, thus eventually resulting in largely enhanced activity and selectivity.

Long-time durability is important to evaluate the performance in electrocatalytic CO₂RR as it determines the lifetime of electrocatalysts. To test it, the longtime durability test of COF-366-Cu (HS) has been performed at −0.9 V by chronoamperometric curves. After 3600 s, the corresponding FE_CH₄ can be maintained to be higher than 57.5% and the current density can be remained at about −276.1 mA/cm² (Fig. 4e). After the electrocatalytic test, the PXRD pattern of COF-366-Cu (HS) matches well with the sample before test (Fig. S50 in Supporting information). For the ICP-MS results, the Cu detected in the test is below the detection limit (Table S2 in Supporting information). Besides, the morphology characterization of COF-366-Cu (HS) after electrochemical experiment presents remained hollow sphere morphology as supported by the SEM and TEM results (Fig. S51 in Supporting information). Moreover, the XPS tests before and after CO₂RR show that the surface electronic state and elemental composition of the electronic structure remain unchanged (Fig. S5), and there are no Cu and Cu(I) observed, which certifies the high stability during the electrochemical CO₂RR process.

In summary, we have designed three kinds of porphyrin COFs based multi-dimensional nanostructures (i.e., hollow spheres, nanosheets and nanofibers) through a modulator tuning strategy. Interestingly, different modulators can induce the self-assembly of different morphologies and the formation processes have been investigated by the time-interval experiments. The obtained multi-dimensional nanostructures possess large surface area, high stability, CO₂ adsorption properties and tremendous Cu-N₄ sites that enable efficient CO₂RR to CH₄. Specifically, these sample with multi-dimensional morphology all exhibit superior FE_CH₄ (hollow sphere, 68.2%, −0.9 V; nanosheet, 64.2%, −0.9 V and nanofiber, 71.0%, −0.9 V) to pristine COF-366-Cu (43.0%, −0.9 V). Noteworthy, the FE_CH₄ of COF-366-Cu (HS) keeps higher than 52.4% over a wide potential range from −0.9 V to −1.1 V and the achieved FE_{CH₄+C₂H₄} (82.8%, −0.9 V) is superior to most of reported COFs and copper-based electrocatalysts. The morphology-controlled strategy for the design of COFs based nanostructures with tunable morphology that can be applied in efficient CO₂RR to CH₄ would expedite the development of COFs in this field.

Declaration of competing interest

Less

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Acknowledgments

Less

This work was financially supported by the National Natural Science Foundation of China (NSFC, Nos. 21871141, 21871142, 21901122, 22071109 and 92061101); the Natural Science Research of Jiangsu Higher Education Institutions of China (No. 19KJB150011) and Project funded by China Postdoctoral Science Foundation (Nos. 2018M630572 and 2019M651873); Priority Academic Program Development of Jiangsu Higher Education Institutions and the Foundation of Jiangsu Collaborative Innovation Center of Biomedical Functional Materials.

Supplementary materials

Less

Supplementary material associated with this article can be found, in the online version, at doi:10.1016/j.cclet.2021.08.063

References

Less

[1]

Y.R. Wang, R.X. Yang, Y. Chen, et al., Sci. Bull.65 (2020) 1635-1642.

[2]

S.N. Sun, N. Li, J. Liu, et al., Natl. Sci. Rev. 8 (2021) nwaa195.

[3]

J. Liu, C. Chen, K. Zhang, L. Zhang, Chin. Chem. Lett. 32 (2021) 649-659.

[4]

L. Zhang, X.X. Li, Z.L. Lang, et al., J. Am. Chem. Soc. 143 (2021) 3808-3816.

[5]

Q. Huang, Q. Li, J. Liu, et al., Matter1 (2019) 1656-1668.

[6]

Y. Yan, X. Li, G. Chen, et al., Chin. Chem. Lett. 32 (2021) 107-112.

[7]

Y. Li, W. Chen, G. Xing, D. Jiang, L. Chen, Chem. Soc. Rev. 49 (2020) 2852-2868.

[8]

C. S. Diercks, O. M. Yaghi, Science355 (2017) eaal1585.

[9]

C. Li, Q. Li, Y. V. Kaneti, et al., Chem. Soc. Rev. 49 (2020) 4681-4736.

[10]

H. Fan, A. Mundstock, A. Feldhoff, et al., J. Am. Chem. Soc. 140 (2018) 10094-10098.

[11]

S. Jhulki, A. M. Evans, X.L. Hao, et al., J. Am. Chem. Soc. 142 (2020) 783-791.

[12]

N. Keller, T. Bein, Chem. Soc. Rev. 50 (2021) 1813-1845.

[13]

Y. Yang, X. He, P. Zhang, et al., Angew. Chem. Int. Ed. 59 (2020) 3678-3684.

[14]

S. Mitra, H. S. Sasmal, T. Kundu, et al., J. Am. Chem. Soc. 139 (2017) 4513-4520.

[15]

L. Feng, C. Qian, Y. Zhao, ACS Mater. Lett. 2 (2020) 1074-1092.

[16]

C. S. Diercks, S. Lin, N. Kornienko, et al., J. Am. Chem. Soc. 140 (2018) 1116-1122.

[17]

H. Liu, J. Chu, Z. Yin, et al., Chem4 (2018) 1696-1709.

[18]

P. Su, K. Iwase, T. Harada, K. Kamiya, S. Nakanishi, Chem. Sci. 9 (2018) 3941-3947.

[19]

Q. Wu, R.K. Xie, M.J. Mao, et al., ACS Energy Lett. 5 (2020) 1005-1012.

[20]

E. J. Kim, R. L. Siegelman, H. Z. H. Jiang, et al., Science369 (2020) 392.

[21]

P. L. Cheung, S. K. Lee, C. P. Kubiak, Chem. Mater. 31 (2019) 1908-1919.

[22]

S. Lin, C. S. Diercks, Y.B. Zhang, et al., Science349 (2015) 1208.

[23]

N. Huang, K. H. Lee, Y. Yue, et al., Angew. Chem. Int. Ed. 59 (2020) 16587-16593.

[24]

M.D. Zhang, D.H. Si, J.D. Yi, et al., Small16 (2020) 2005254.

[25]

J. Li, X. Jing, Q. Li, et al., Chem. Soc. Rev. 49 (2020) 3565-3604.

[26]

D. Rodríguez-San-Miguel, C. Montoro, F. Zamora, Chem. Soc. Rev. 49 (2020) 2291-2302.

[27]

S. Mitra, S. Kandambeth, B. P. Biswal, et al., J. Am. Chem. Soc. 138 (2016) 2823-2828.

[28]

N. Zhang, T. Wang, X. Wu, et al., RSC Adv. 8 (2018) 3803-3808.

[29]

M. A. Khayum, S. Kandambeth, S. Mitra, et al., Angew. Chem. Int. Ed. 55 (2016) 15604-15608.

[30]

H. Chen, H. Tu, C. Hu, et al., J. Am. Chem. Soc. 140 (2018) 896-899.

[31]

B. P. Biswal, S. Chandra, S. Kandambeth, et al., J. Am. Chem. Soc. 135 (2013) 5328-5331.

[32]

S. Chandra, S. Kandambeth, B. P. Biswal, et al., J. Am. Chem. Soc. 135 (2013) 17853-17861.

[33]

G. Zhang, M. Tsujimoto, D. Packwood, et al., J. Am. Chem. Soc. 140 (2018) 2602-2609.

[34]

Y. Peng, Y. Huang, Y. Zhu, et al., J. Am. Chem. Soc. 139 (2017) 8698-8704.

[35]

S. Wang, Q. Wang, P. Shao, et al., J. Am. Chem. Soc. 139 (2017) 4258-4261.

[36]

X. Shi, D. Ma, F. Xu, Z. Zhang, Y. Wang, Chem. Sci. 11 (2020) 989-996.

[37]

S. 1Kandambeth, V. Venkatesh, D. B. Shinde, et al., Nat. Commun. 6 (2015) 6786.

[38]

Q. Wang, R. Li, Y. Zhao, et al., Talanta219 (2020) 121255.

[39]

Y. Yan, Y. Lu, B. Wang, et al., ACS Appl. Mater. Interfaces10 (2018) 26539-26545.

[40]

S. Wang, Y. Yang, P. Liu, et al., Cell Rep. Phys. Sci. 1 (2020) 100062.

[41]

N. A. Khan, J. Yuan, H. Wu, et al., ACS Appl. Mater. Interfaces12 (2020) 27777-27785.

[42]

C. Feriante, A. M. Evans, S. Jhulki, et al., J. Am. Chem. Soc. 142 (2020) 18637-18644.

[43]

S. Wang, Z. Zhang, H. Zhang, et al., Matter1 (2019) 1592-1605.

[44]

G. Das, T. Skorjanc, S. K. Sharma, et al., J. Am. Chem. Soc. 139 (2017) 9558-9565.

[45]

T. Ma, E. A. Kapustin, S. X. Yin, et al., Science361 (2018) 48.

[46]

A. Halder, S. Kandambeth, B. P. Biswal, et al., Angew. Chem. Int. Ed. 55 (2016) 7806-7810.

[47]

Q. Sun, B. Aguila, P. C. Lan, S. Ma, Adv. Mater. 31 (2019) 1900008.

[48]

Y. J. Sa, C. W. Lee, S. Y. Lee, et al., Chem. Soc. Rev. 49 (2020) 6632-6665.

[49]

Z. Chang, Y. Liang, S. Wang, et al., Nanoscale12 (2020) 23748-23755.

[50]

H.J. Zhu, M. Lu, Y.R. Wang, et al., Nat. Commun. 11 (2020) 497.

[51]

D. R. Jung, D. E. King, A. W. Czanderna, J. Vac. Sci. Technol. A11 (1993) 2382-2386.

[52]

M. Lu, J. Liu, Q. Li, et al., Angew. Chem. Int. Ed. 58 (2019) 12392-12397.

Appendix

Less

Year 2022 volume 33 Issue 3

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1016/j.cclet.2021.08.063

Receive Date：2021-05-27
Online Date：2025-12-12
Published：2022-03-15

Article Data

Affiliations

History

Received：2021-05-27
Revised：2021-07-19
Accepted：2021-08-12

Affiliations

^b School of Chemistry, South China Normal University, Guangzhou 510006, China

^c Institute of Molecular Engineering and Applied Chemistry, Anhui University of Technology, Ma'anshan 243002, China

References

Share

https://castjournals.cast.org.cn/joweb/ccl/EN/10.1016/j.cclet.2021.08.063

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

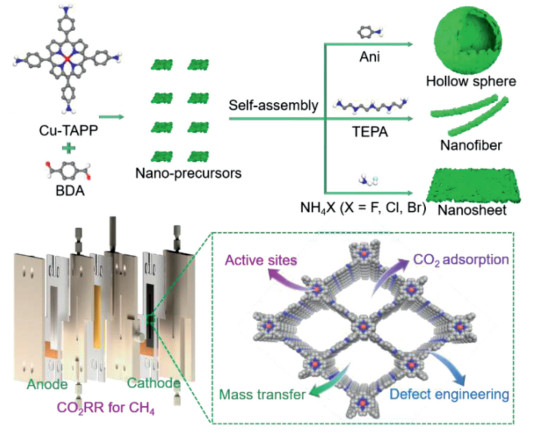

Fig. 1 The schematic representation of porphyrin COF-based nanostructures in electrocatalytic CO₂RR (Ani stands for aniline and TEPA is tetraethylenepentamine).

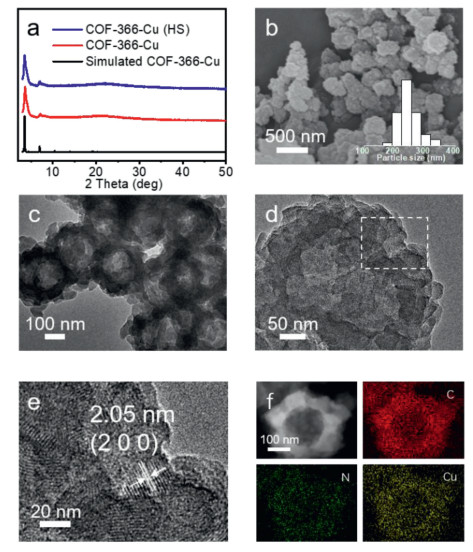

Fig. 2 The structure and characterization of COF-366-Cu (HS). (a) The PXRD of COF-366-Cu (HS). (b) SEM image of COF-366-Cu (HS). (c) TEM image of COF-366-Cu (HS). (d) HRTEM image of COF-366-Cu (HS). (e) Part of the amplification of HRTEM image of COF-366-Cu (HS). (f) STEM and mapping images of COF-366-Cu (HS).

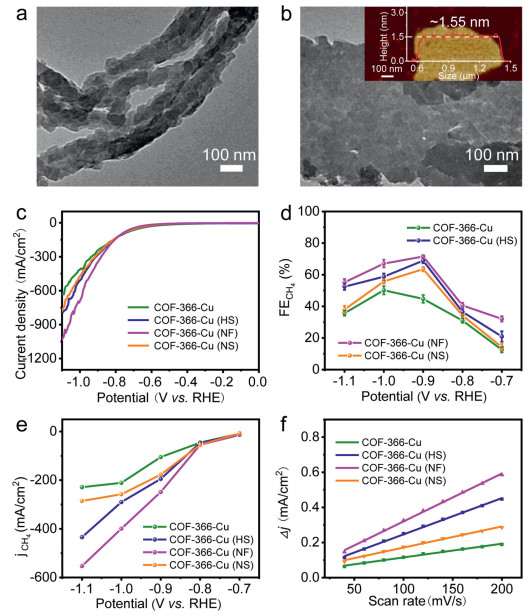

Fig. 3 Electrocatalytic performances. (a) TEM image of COF-366-Cu (NF). (b) TEM image of COF-366-Cu (NS). (c) LSV curves of COF-366-Cu, COF-366-Cu (HS), COF-366-Cu (NF) and COF-366-Cu (NS). (d) FE_CH₄ calculated over potential range from −0.7 V to −1.1 V. (e) Partial CH₄ current density. (f) Capacitive current at −0.03 V as a function of scan rate for COF-366-Cu, COF-366-Cu (HS), COF-366-Cu (NF) and COF-366-Cu (NS).

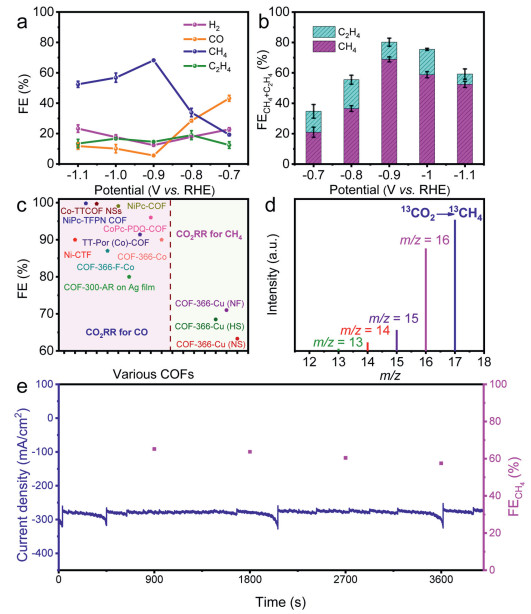

Fig. 4 Electrocatalytic performances. (a) Faradaic efficiencies of COF-366-Cu (HS) at different applied potentials. (b) FE_{CH₄+C₂H₄} of COF-366-Cu (HS) at different potentials (−0.7 V to −1.1 V). (c) A summary of electrocatalytic performances of the literature reported materials and COF-366-Cu, COF-366-Cu (HS), COF-366-Cu (NF) and COF-366-Cu (NS). (d) The mass spectra of 13CH4 recorded under 13CO2 atmosphere. (e)Durability test of COF-366-Cu (HS) at the potential of −0.9 V vs. RHE.
