Due to its simplicity, cost-effectiveness and cleanness, electrochemical approach has attracted considerable interest in water splitting into oxygen and hydrogen, which is of great importance to sustainable renewable energy resources [1-3]. However, owing to the relatively slow kinetics of oxygen evolution reaction (OER) at the anode and the low conversion efficiency of water to fuel, efficient electrocatalyst is thus desperate needed to reduce the activation energy barrier [4, 5].

Over the past several decades, due to the wide stoichiometric composition and intrinsic activities, various abundant and productive compounds containing 3d transition metals, especially cobalt chalcogenides, have been developed as promising alternatives for noble-metal oxygen evolution reaction (OER) catalyst [6-8], the shortcomings of which are the elemental scarcity and worse stability. Many literatures have reported that the activities of cobalt sulfide catalysts partly depend on their morphology and the microchemical environment of cobalt active sites [9-11]. In comparsion with various different morphologies of cobaltchalcogenides-based electrode materials, two-dimensional nanosheet materials usually show promising electrocatalytic performance due to their advantages of large specific surface area and fast charge transfer capacity [12, 13], which has attracted extensive attention. The further tuning of chemical composition and nanostructures are expected to be a general and valid strategy for the improvement of OER reactivity [14]. To tailor the chemical composition of electrocatalysts, the introducing of doping ions into the crystal lattice of materials has become an effective route to manipulate the electrical properties [15, 16]. It has been confirmed in the literatures that the Co(OH)₂ [17], Ni(OH)₂ [18, 19], TiO₂ [20-22]and MnO₂ [23] composites electrode all exhibit greatly enhanced OER activity after the doping by Fe, Cu, Co and V, respectively. However, there are few reports about the effects of different dopants on the electrocatalytic performance of one catalyst. For cobalt sulfide-based electrocatalyst, only Fe ions and Ni ions have been reported to influence active-phase structure and significantly improve the OER catalysis activity [24, 25]. To the best of our best knowledge, there are still few reports about the synthesis Co₄S₃/Co₉S₈ nanosheets and the effects of the different doped metal ions on its OER electrocatalytic properties for oxygen evolution reaction.

Here, we present an efficient solvothermal process combined with ultrasonic exfoliation for the synthesis of Co₄S₃/Co₉S₈ nanosheets (Co₄S₃/Co₉S₈ NS). With the followed simple cation exchange method, we further prepared M-doped Co₄S₃/Co₉S₈ NS (M = Fe³⁺, Cr³⁺, Mn²⁺ and Ni²⁺) at room temperature and compared their OER activities in alkaline media. The corresponding results implied that M-doped Co₄S₃/Co₉S₈ NS (M = Fe³⁺, Cr³⁺, Mn²⁺ and Ni²⁺) exhibited different electrocatalytic properties. Towards such different influences of the different metal ions doping on the electrocatalytic properties for oxygen evolution reaction, XPS analysis were carried out to investigate the possible reasons.

The details of the preparation process, structure and morphology characterization and the OER electrocatalytic performance tests of Co₄S₃/Co₉S₈ NS and M-doped Co₄S₃/Co₉S₈ NS (M = Fe³⁺, Cr³⁺, Mn²⁺ and Ni²⁺) can be seen in Supporting information.

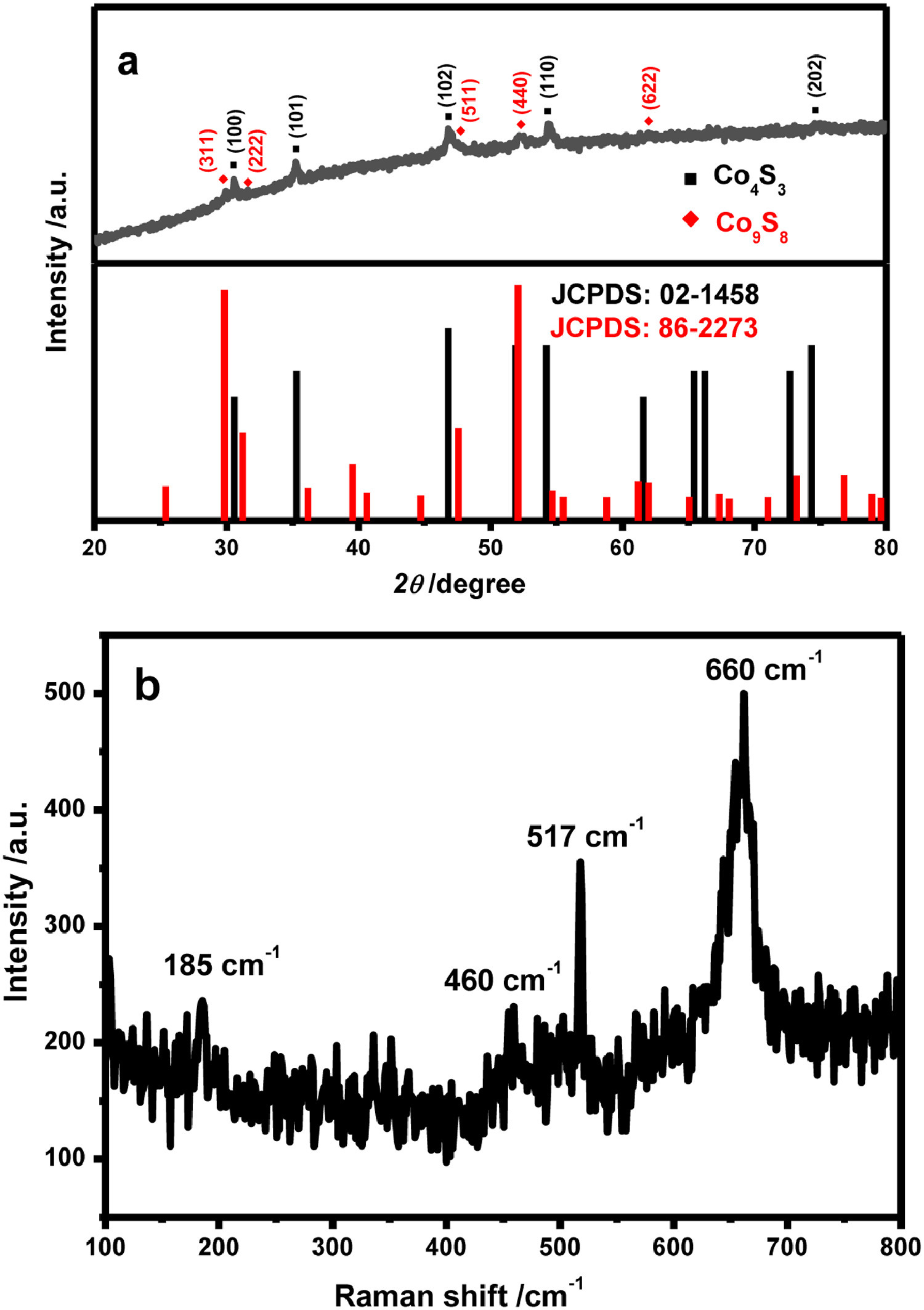

According to the so-called "solvent coordination molecular template strategy" [23, 26-28], that was, the DETA was embedded between adjacent cobalt sulfide layers through the Co-N coordination, and then Co₄S₃/Co₉S₈ nanosheets with two-dimensional lamellar structure were obtained by ultrasound exfoliation treatment from an intermediate Co₄S₃/Co₉S₈-DETA hybrid precursor. The crystallinity and composition of the cobaltous sulfide were determined by the powder XRD patterns. From Fig. 1a, the characteristic peaks indexed to (100), (101), (102), (110) and (202) crystal planes of Co₄S₃ (JCPDS No. 02-1458) can be seen at 30.6^o, 35.3^o, 46.8^o, 54.4^o and 74.6^o, respectively. Consulting the JCPDS No. 86-2273, the peaks located at the position of 29.8^o, 31.5^o, 47.7^o, 52.2^o and 61.9° can well correspond to the (311), (222), (511), (440) and (622) planes of the co-existence Co₉S₈, respectively. There were no extra diffraction peaks in the XRD pattern other than Co₄S₃ and Co₉S₈, indicating highly purified products of Co₄S₃/Co₉S₈ NS. Raman spectroscopy of Co₄S₃/Co₉S₈ NS was further performed to confirm the chemical physical environment. The Raman spectrum of the typical Co₄S₃/Co₉S₈ NS was shown in Fig. 1b. Four well-resolved Raman peaks were seen at 185 cm^–1, 460 cm^–1, 517 cm^–1 and 660 cm^–1, which were perfectly indexed to the F_2g, E_g, F_2g and A_1g modes of cobalt sulfide, respectively [29-31].

Figs. 2a and b showed the TEM and SEM images of the synthesized Co₄S₃/Co₉S₈ samples. The remarkable morphology of two-dimensional nanosheets can be clearly distinguished. The distribution of cobalt and sulfur elements can be obtained by elemental mapping images of the SEM image of Co₄S₃/Co₉S₈ NS in Fig. S1 (Supporting information). The crystalline structure of Co₄S₃/Co₉S₈ composite was further confirmed from the electron diffraction patterns of selected area (SAED). As shown in Fig. 2c, a clear crystalline spot ring, which belonged to the polycrystalline structure with the indexed planes of Co₄S₃ (100), (101), (102), (110) and (202) and Co₉S₈ (622), matched well with the results of XRD, further confirming the formation of Co₄S₃/ Co₉S₈ composites. The results of AFM in Fig. 2d demonstrated that the height of Co₄S₃/Co₉S₈ nanosheets was 1~2 nm, indicating an ultrathin layer structure.

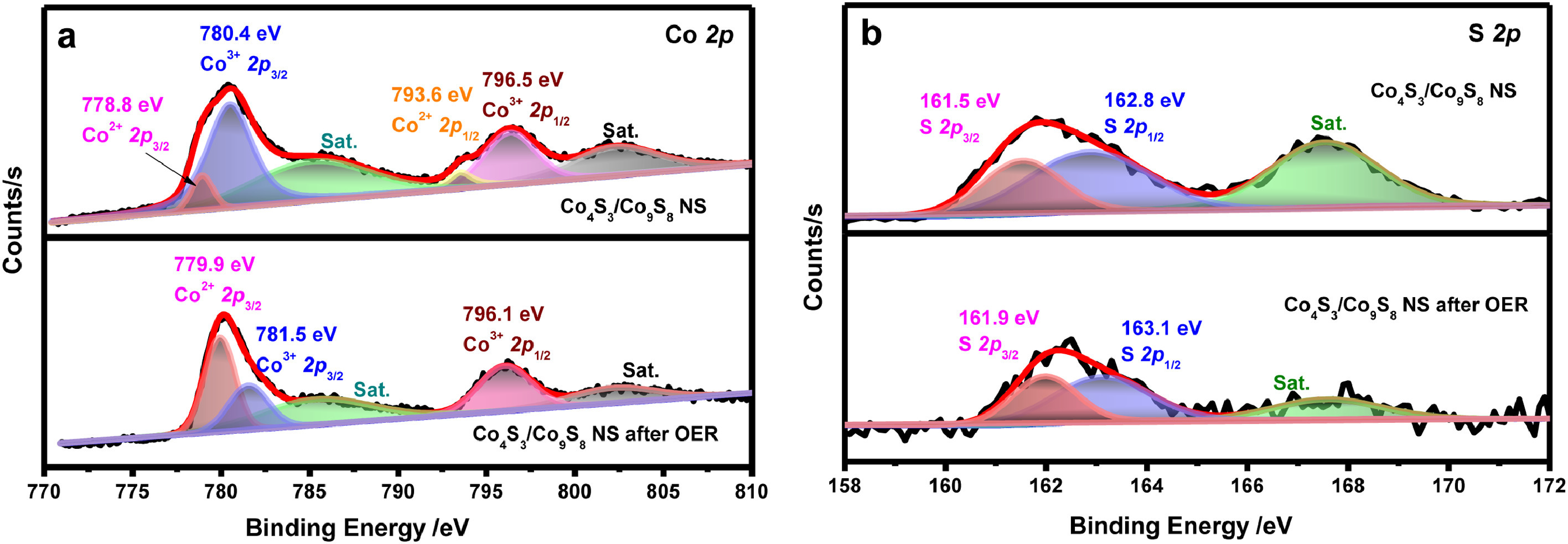

To identify the bonding configuration, Fig. 3 illustrated the high-resolution Co 2p and S 2p XPS spectra of Co₄S₃/Co₉S₈ NS, which had been fitted by Gaussian method. Two spin-orbit doublets and two shakeup satellites (denoted as "Sat.") could be fitted for the core level of Co 2p. The fitting peaks of Co 2p located at 778.8 eV and 793.6 eV and the other fitting peaks of Co 2p at 780.4 eV and 796.5 eV were attributed to Co²⁺ and Co³⁺, respectively, the two categories of cobalt oxidation states existed in Co₄S₃/Co₉S₈ NS [32, 33]. In the S 2p spectrum (Fig. 3b), the asymmetric peaks at 161.5 eV and 162.8 eV were indexed to the S 2p_3/2 and S 2p_1/2 peaks of cobalt sulfide nanosheets, while binding energy of 167.6 eV can be assigned to the satellite peak of sulfur. Hence, based on the above XPS analysis, the successful formation of Co₄S₃/Co₉S₈ NS can be further verified.

XPS characterization of the Co₄S₃/Co₉S₈ NS catalyst after OER reaction was also carried out here to ascertain whether there was a possibility of component and structural evolution during the OER process of the prepared Co₄S₃/Co₉S₈ NS catalyst. In the Co 2p and S 2p spectra of Co₄S₃/Co₉S₈ NS after OER under alkaline conditions (Figs. 3a and b), it was noteworthy that the Co 2p_3/2 and Co 2p_1/2 peaks exhibited 0.3 eV and 0.4 eV negative shifts, respectively, while that the S 2p_3/2 and S 2p_1/2 peaks exhibited 0.4 eV and 0.3 eV positive shifts, respectively. This experimental phenomenon showed that there existed electron transfer between cobalt and sulfur, and both the electron states on the surface of cobalt and sulfur atoms had been regulated. The negative shifts of Co 2p after the OER reaction compared with the pristine Co₄S₃/Co₉S₈ NS indicated a lower oxidation state of Co species. Besides, the Co 2p_3/2 peak located at 780.0 eV evidenced the still existence of Co-S bond after the OER reaction [34]. Thus, combined with the fact that the doublets appearing at 781.5 eV and 796.1 eV can be attributed to Co³⁺ 2p_3/2 and Co³⁺ 2p_1/2 of Co₉S₈, we can infer that the sample after OER reaction was still cobalt-sulfur compound with the higher content of cobalt species of low oxidation state. However, owing to the strong affinity to O of Co²⁺, cobalt hydroxide may also be formed due to absorbed hydroxide species under alkaline conditions during the OER process. To verify this, XRD patterns of the catalysts after OER reaction were performed and the results were illustrated in Fig. 4. It was obvious that after the OER reaction, the component of the catalyst was still Co₄S₃/Co₉S₈ and no cobalt hydroxide products were formed. What was slightly different was that the structure of Co₄S₃ has been partially transformed. Therefore, according to the analysis of the above results, the Co₄S₃/ Co₉S₈ catalyst as-prepared was "true catalyst", which was responsible for the catalytic activity in OER.

As mentioned above, ion doping can regulate the OER properties of electrocatalyst effectively [15, 16]. The literatures have showed that cation exchange reaction is an extremely versatile and simple tool for the accessing novel nanomaterials, and also a powerful postsynthetic modification strategy that changes the composition of one nanomaterial while maintaining its morphology and crystal structure [35, 36]. Compared with bulk extended solids, due to the relatively small number of atomic layers and the highly reactive cobalt atoms for the ultrathin two-dimensional Co₄S₃/Co₉S₈ nanomaterials, cation exchange reaction can occur completely and reversibly in ionic nanosheets at room temperature with unusually fast reaction rates [37, 38]. So herein, we selected the cation exchange method to prepare the M-doped Co₄S₃/Co₉S₈ NS (M = Fe³⁺, Cr³⁺, Mn²⁺ and Ni²⁺), in which the cobalt cations ligated within a nanocrystal host lattice were substituted with Fe³⁺, Cr³⁺, Mn²⁺ and Ni²⁺ cations in solution, respectively.

Based on the LSV data of the four Fe-doped catalyst samples with different feeding molar rations of Fe/Co during the synthesis process of Fe-doped Co₄S₃/Co₉S₈ NS shown in Fig. S2 (Supporting information), we found that 30% Fe-doped Co₄S₃/Co₉S₈ NS exhibited the highest catalytic activity and power to derive the OER among the four Fe-doped catalysts. Therefore, herein, the OER properties of different metal ions (M = Fe³⁺, Cr³⁺, Mn²⁺ and Ni²⁺) doped Co₄S₃/Co₉S₈ NS prepared with the same feeding mole rations of M/Co (3:10) were compared. As illustrated in Fig. S3 (Supporting information), Fe, Cr, Mn and Ni signals can be clearly detected in the survey XPS spectra of four M-doped Co₄S₃/Co₉S₈ NS (M = Fe³⁺, Cr³⁺, Mn²⁺ and Ni²⁺), indicating the successful doping of the metal ions into Co₄S₃/Co₉S₈ NS. The distribution of cobalt, sulfur and the respective doped metallic elements can also be distinguished by elemental mapping images of their SEM images of M-doped Co₄S₃/Co₉S₈ NS (M = Fe³⁺, Cr³⁺, Mn²⁺ and Ni²⁺) in Figs. S4-S7 (Supporting information), respectively.

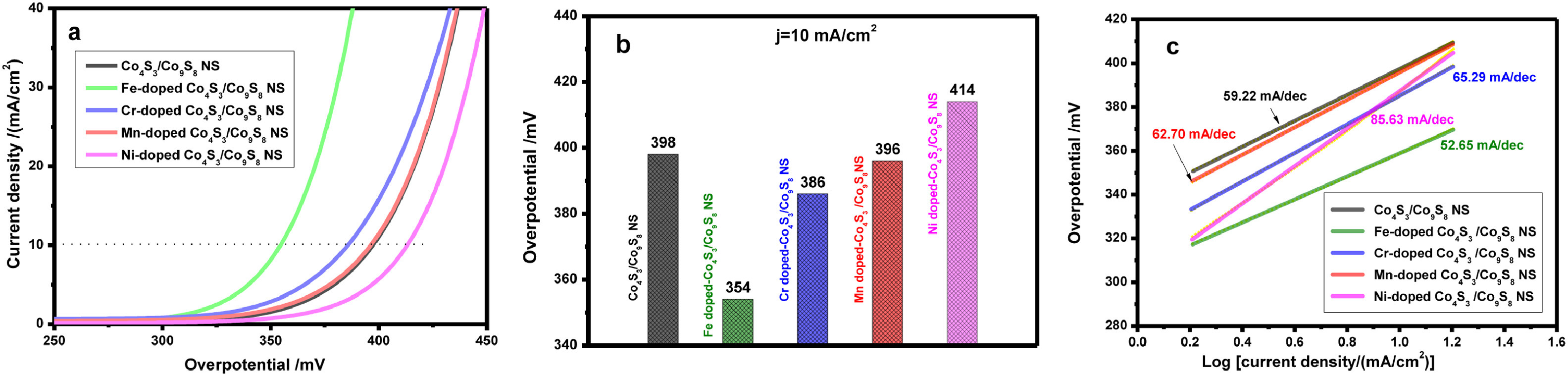

The effects of different metal ions (M = Fe³⁺, Cr³⁺, Mn²⁺ and Ni²⁺) doping on the electrochemical catalysis activity for OER of Co₄S₃/Co₉S₈ NS were investigated in alkaline media, which were first studied by LSV (Fig. 5a). From the detailed comparisons of the required overpotential to reach a current density of 10 mA/cm² shown in Fig. 5b, we can see that the overpotentials at η₁₀ for Co₄S₃/Co₉S₈ NS, Fe-doped Co₄S₃/Co₉S₈ NS, Cr-doped Co₄S₃/Co₉S₈ NS, Mn-doped Co₄S₃/Co₉S₈ NS, and Ni-doped Co₄S₃/Co₉S₈ NS were 398 mV, 354 mV, 386 mV, 396 mV and 414 mV, respectively. This result proved that the Co₄S₃/Co₉S₈NS exhibited enhanced electrocatalytic properties for OER after the Fe³⁺ doping, and the OER catalysis activities of Cr-doped Co₄S₃/Co₉S₈ NS and Mn-doped Co₄S₃/Co₉S₈ NS were just a little better than undoped Co₄S₃/Co₉S₈. However, what need to be pointed out was that the catalytic activity of Ni-doped Co₄S₃/Co₉S₈ NS on OER was obviously poor than other samples. This meant that the doping of Ni²⁺ ions weakened the catalytic activity for the OER. The catalytic kinetics of these samples was also confirmed by the Tafel plots, which were calculated from LSV curves in low overpotential regimes and were exhibited in Fig. 5c. It can be intuitively observed that Fe-doped Co₄S₃/Co₉S₈ NS had the smaller Tafel slope of 52.65 mV/dec than Co₄S₃/Co₉S₈ NS (59.22 mV/dec), Cr-doped Co₄S₃/Co₉S₈ NS (65.29 mV/dec), Mn-doped Co₄S₃/Co₉S₈ NS (62.70 mV/dec) and Ni-doped Co₄S₃/Co₉S₈ NS (85.63 mV/dec), implying that Fe-doped Co₄S₃/Co₉S₈ NS had the highest electrocatalytic activity and Ni-doped Co₄S₃/Co₉S₈ NS had the lowest catalytic activity and power to derive the OER among these five samples.The results for enhancing or weakening OER activities of the Co₄S₃/Co₉S₈ NS due to the metal ions doping could also be deduced from the charge transfer resistance, as indicated by the EIS results in Fig. 6a. It showed that Fe-doped Co₄S₃/Co₉S₈ NS had the smallest semicircular diameter, indicating a lower charge transfer resistance. Conversely, Ni-doped Co₄S₃/Co₉S₈ NS displayed a higher charge transfer resistance confirmed by the largest semicircular diameter.

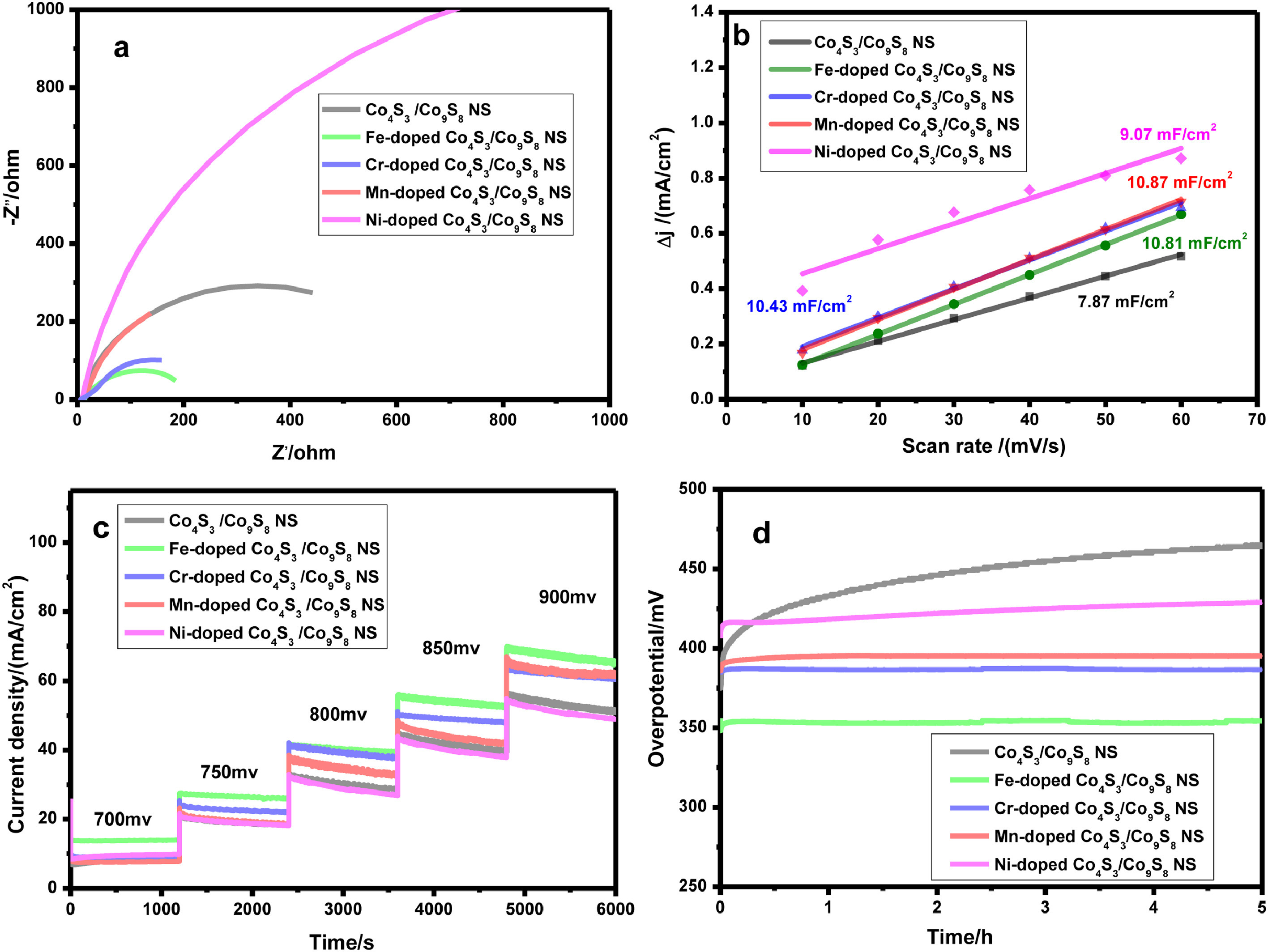

We further compared the electrochemical surface area (ECSA), calculated based on their double-layer capacitance (C_dl), which was measured from the linear slope of capacitive current vs. scan rate in the non-Faraday potential region. As can be seen in Fig. 6b, the C_dl values of M-doped Co₄S₃/Co₉S₈ NS (M = Fe³⁺, Cr³⁺, Mn²⁺ and Ni²⁺) were all significantly outperforming that of undoped Co₄S₃/Co₉S₈ NS. This phenomenon suggested that the introduced metal ions into Co₄S₃/Co₉S₈ NS, even though the metal ions were Ni²⁺, could provide more active sites for OER catalysis. However, the increase in electrochemical surface area was not the sole factor for activity enhancement [39]. So based on the above results including the η₁₀, Tafel slope and EIS values, we speculated that the OER catalysis abilities of Co₄S₃/Co₉S₈ NS and M-doped Co₄S₃/Co₉S₈ NS (M = Fe³⁺, Cr³⁺, Mn²⁺ and Ni²⁺) were mainly due to their intrinsical charge transfer kinetics.

The stability of catalyst is another important parameter that determines the performance of a catalyst. The catalytic durability of these samples was evaluated by performing CA and CP measurements. The results of CA testing exhibited in Fig. 6c demonstrated that Fe-doped Co₄S₃/Co₉S₈ NS delivered the highest current densities at different overpotentials compared with Co₄S₃/Co₉S₈ NS, Cr-doped Co₄S₃/ Co₉S₈ NS, Mn-doped Co₄S₃/Co₉S₈ NS, and Ni-doped Co₄S₃/Co₉S₈ NS. Similarly, the lowest current densities were still produced by Ni-doped Co₄S₃/ Co₉S₈ NS, which was consistent with the above conclusions.The results of CP response recorded at a constant current density of 10 mA/cm² were shown in Fig. 6d. As can be seen, undoped Co₄S₃/Co₉S₈ NS suffered from gradually declining activity, with a remarkable overpotential increase of 67.2 mV in only 5 h. In comparison, Fe-doped Co₄S₃/Co₉S₈ NS, Cr-doped Co₄S₃/Co₉S₈ NS, and Mn-doped Co₄S₃/Co₉S₈ NS exhibited excellent catalytic stability. Although the overpotential of Ni-doped Co₄S₃/Co₉S₈ NS also had a tendency to increase, it was still more stable than Co₄S₃/Co₉S₈ NS.

To sum up, from the comparison of the OER activity tests of these five samples, Fe-doped Co₄S₃/Co₉S₈ NS showed the fairly betterOER catalytic activity than Co₄S₃/Co₉S₈ NS. The OER catalysis activities of Cr-doped Co₄S₃/Co₉S₈ NS and Mn-doped Co₄S₃/Co₉S₈ NS were just a little better than undoped Co₄S₃/Co₉S₈ NS. In contrast, Ni-doped Co₄S₃/Co₉S₈ NS displayed the lower OER catalysis activity than undoped Co₄S₃/Co₉S₈ NS. Therefore, although the catalytic performance of these five samples was not very good compared to the electrocatalytic data of benchmarked RuO₂ and IrO₂ electrocatalyst, the overpotentials at η₁₀ of which is 287 mV [40] and 335 mV [41] in alkaline medium, respectively, the results in the present work can supply the trends in OER catalytic activity induced by different ion doping and provide a new way for structural engineering of transition-metal sulfide-based electrocatalysts.

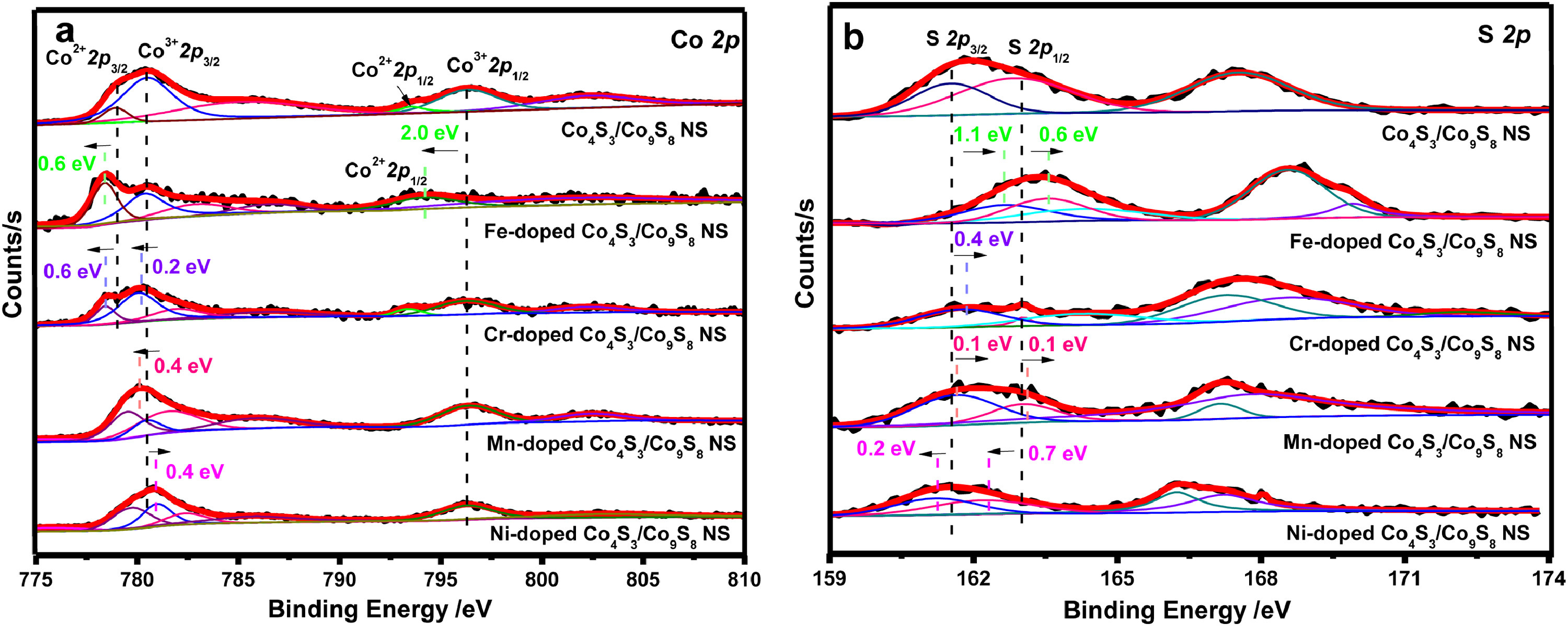

XPS analysis was carried out to investigate the possible reasons towards the different influences of the different metal ions doping on the electrocatalytic properties for oxygen evolution reaction. Fig. 7 illustrated the high-resolution Co 2p and S 2p XPS spectra of these five Co₄S₃/Co₉S₈ NS based samples. Compared with undoped Co₄S₃/Co₉S₈ NS, the two typical peaks assigned to the chemical states of Co²⁺ 2p_3/2 and Co²⁺ 2p_1/2 in Fe-doped Co₄S₃/Co₉S₈ NS exhibited 0.6 eV and 2.0 eV negative shifts, respectively (Fig. 7a). Besides, the ratio of cobalt with a lower oxidation state to cobalt with a higher oxidation state increased significantly. All of these results indicated that electron cloud density around the Co atoms increased when Fe³⁺ ions were doped. According to the high-resolution Fe 2p XPS spectra of Fe-doped Co₄S₃/Co₉S₈ NS (Fig. S8 in Supporting information), it can be seen that the binding energies of Fe 2p_3/2 and Fe 2p_1/2 were at about 713.2 eV and 725.0 eV, respectively, and exhibited positively shifted [42], further verifying the electron transfer from Fe element to Co. The electron transfer between Fe and Co makes the Lewis acid of Co stronger, which was more conducive to the adsorption of OH⁻ molecules (Lewis base), making the formation of intermediate products easier and weakening the surface adsorption capacity of toxic intermediates. All of these facts are conducive to the improvement of catalytic activity and stabilityof the catalyst. Similar phenomena and conclusions also apply to the doping of Cr³⁺ or Mn²⁺ ions. The difference was that the doping of these two ions only gave a relatively small negative shift of the Co 2p orbital binding energy. From the Fig. 7a, the typical peaks corresponding to the chemical states of Co²⁺ 2p_3/2 and Co³⁺ 2p_3/2 in Mn-doped Co₄S₃/Co₉S₈ NS exhibited 0.6 eV and 2.0 eV negative shifts with the position of Co 2p_1/2 unchanged. The doping of Mn²⁺ ions displayed 0.4 eV negative shifts only for the binding energy of Co 2p_3/2. The peak assigned to Co²⁺ 2p_1/2 did not exhibit. Therefore, compared with the Fe-doped Co₄S₃/Co₉S₈ NS catalyst, although the doping of Cr³⁺ or Mn²⁺ ions can also regulate the electron cloud around cobalt atoms and make the binding energy of cobalt ions shift negatively, the role to enhance OER performance of Co₄S₃/Co₉S₈ NS was not as good as that of iron ions doping. Conversely, the incorporation of Ni²⁺ led Co 2p_3/2 a remarkable 0.4 eV positive shifts. It was induced that electron cloud density aroundthe Co atoms decreased when Ni²⁺ ions were doped. Therefore, an beneficial redistribution of charge at the interface due to an electronic interaction between the doped Ni²⁺ ions and Co₄S₃/Co₉S₈ NS would result in the lower electrocatalytic activity [43]. Different from that the negative shift of Co 2p would enhance the OER catalytic activity and the more negative, the higher the activity, the negative shift of S 2p would lower the OER activity and the more negative, the less active. This is consistent with our experimental results. As exhibited in Fig. 7b, compared with undoped Co₄S₃/Co₉S₈ NS, both the binding energies of S 2p_3/2 and S 2p_1/2 showed a remarkable 1.1 eV and 0.6 eV positive shifts in Fe-doped Co₄S₃/Co₉S₈ NS, the OER activities of which improves obviously. The smaller positive shifts of S 2p_3/2 and S 2p_1/2 in Cr-doped Co₄S₃/Co₉S₈ NS and Mn-doped Co₄S₃/Co₉S₈ NS only demonstrated just a little better than undoped Co₄S₃/Co₉S₈ NS. In contrast, Ni-doped Co₄S₃/Co₉S₈ NS displayed the lower OER catalysis activity than undoped Co₄S₃/Co₉S₈ NS evidenced by the conspicuous negative shifts of S 2p_3/2 and S 2p_1/2.

Fig. 8, Fig. 9 showed the SEM and TEM images of the prepared M-doped Co₄S₃/Co₉S₈ NS (M = Fe³⁺, Cr³⁺, Mn²⁺ and Ni²⁺) with different magnification. Similar to the case of Co₄S₃/Co₉S₈ NS, Ni-doped Co₄S₃/Co₉S₈ NS still maintained the discrete two-dimensional sheet morphology (Figs. 8a and 9a). It is important to note, however, the morphologies of Co₄S₃/Co₉S₈ NS doped with Fe, Cr and Mn ions both have a tendency to assemble into 3D microspheres. That is to say, after the addition of Fe³⁺, Cr³⁺, or Mn²⁺ ions, 2D nanosheet was converted into 3D microsphere morphology, thus resulted in the improvement of electrocatalytic activity toward OER. The trend obeyed the order of Fe-doped Co₄S₃/Co₉S₈ NS > Cr-doped Co₄S₃/Co₉S₈ NS > Mn-doped Co₄S₃/Co₉S₈ NS, consistent with the order of OER performance. The 3D microsphere morphology of Cr-doped Co₄S₃/Co₉S₈ NS and Mn-doped Co₄S₃/Co₉S₈ NS was composed of lamellar structures, respectively. The difference was that the two-dimensional sheet structure of Cr-doped Co₄S₃/Co₉S₈ NS (Figs. 8b and 9b) was smaller than that of Mn-doped Co₄S₃/Co₉S₈ NS (Figs. 8c and 9c). The smaller two-dimensional lamellae of Cr-doped Co₄S₃/Co₉S₈ NS allowed more active sites to be exposed, resulting in slightly higher OER activity compared with Mn-doped Co₄S₃/Co₉S₈ NS. For the typical Fe-doped Co₄S₃/Co₉S₈ NS, which similarly possessed 3D distinctive microsphere structure composed of 1D nanostructure and smallest 2D lamellae (Figs. 8d and 9d), the OER performance was much inferior to Cr-doped Co₄S₃/Co₉S₈ NS and Mn-doped Co₄S₃/Co₉S₈ NS, reflecting in the lowest tafel slope and smallest charge transfer resistance. These results demonstrated that such a special 3D structure formed by Fe³⁺ doping efficiently facilitated electron transfer and then enhanced the OER performance.

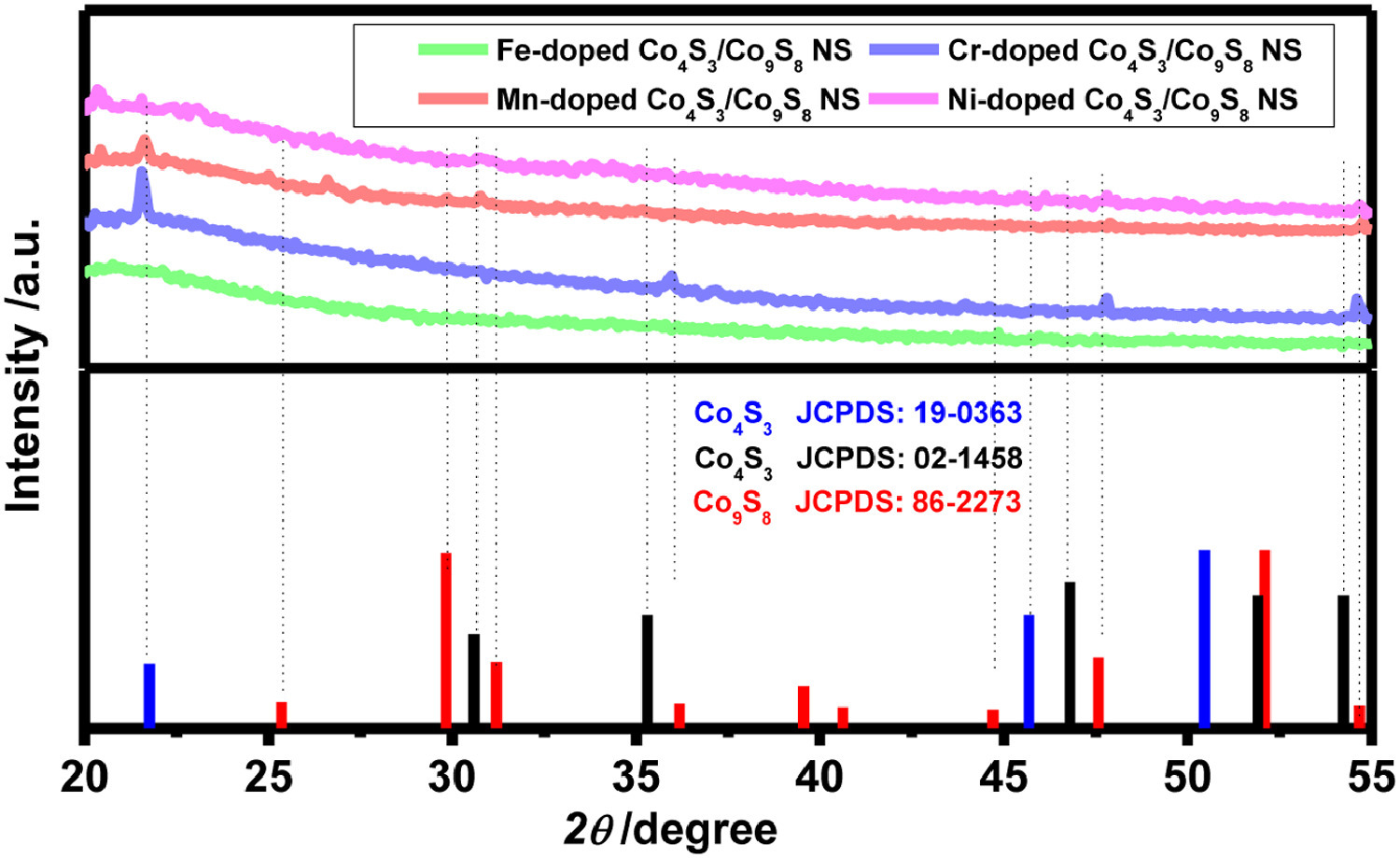

The XRD patterns of the prepared M-doped Co₄S₃/Co₉S₈ NS (M = Fe³⁺, Cr³⁺, Mn²⁺ and Ni²⁺) were illustrated in Fig. 10. It was obvious that the crystallinity of the four samples decreased a lot after the doping of the four kinds of metal ions, and it was difficult to confirm the structures and states of the doped ions existed in Co₄S₃/Co₉S₈ NS. In addition, a very interesting phenomenon that the origin structure of Co₄S₃ had also been partially transformed with the introduction of metal ion dopants, emerged similarly to the observed transition of crystalline phase for Co₄S₃/Co₉S₈ NS after OER reaction.

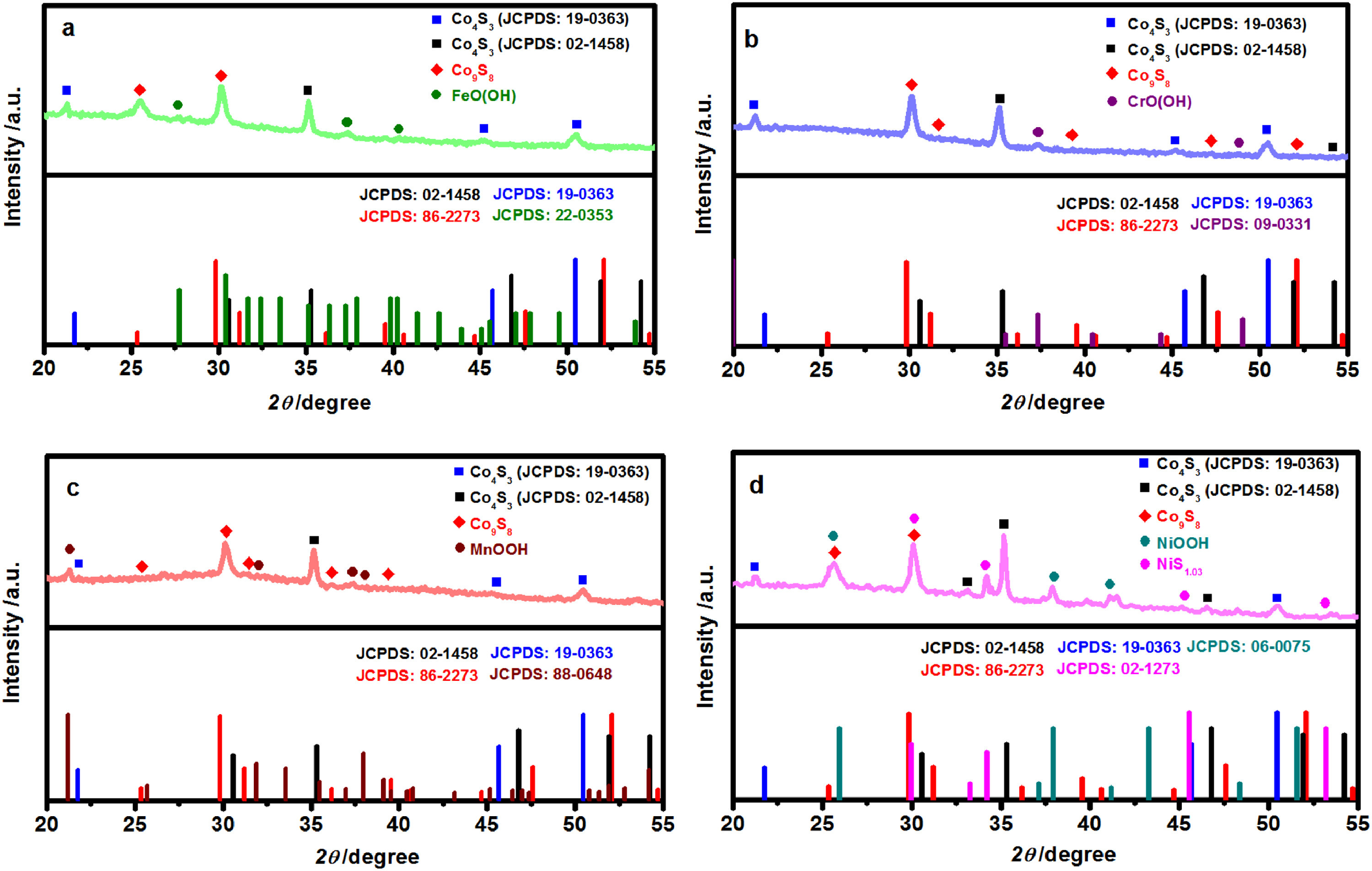

In order to further analyze the reasons for the different effects of four doping ions on the OER reaction properties of Co₄S₃/Co₉S₈ NS, the XRD patterns of the prepared M-doped Co₄S₃/Co₉S₈ NS (M = Fe³⁺, Cr³⁺, Mn²⁺ and Ni²⁺) after OER reaction were also measured and the results were exhibited in Fig. 11, respectively. Apparently, all the doped metal ions existed in 3+ oxidation state, i.e., MOOH (M = Fe, Cr, Mn and Ni) under OER conditions. Among them, FeOOH and CrOOH, the formation of which did not involve the change of valence state, these so-called active substances contributed to the increased OER activity of Co₄S₃/Co₉S₈ NS, as reported in the literatures [44, 45]. Even though the valence state of manganese has changed, the resulted Mn³⁺ of MnOOH was great important to achieve high activity of OER according to the Dai' group work [46]. However, the formation of γ-NiOOH resulted from the Ni(OH)₂ during the OER process would lead a much more severe distortion of the oxygen octahedra around the Ni ions. Such an irreversibly deactivated Ni redox sites had little OH⁻ affinity and thus obstructed the OER process [47].

Moreover, just to figure out the stability, we examined the catatlyst after the stability tests. SEM images in Figs. S9b-e (Supporting information) revealed that the morphologies of the prepared Fe-doped Co₄S₃/Co₉S₈ NS, Cr-doped Co₄S₃/Co₉S₈ NS, Mn-doped Co₄S₃/Co₉S₈ NS, and Ni-doped Co₄S₃/Co₉S₈ NS remained largely unchanged after the CP tests. Co₄S₃/ Co₉S₈ NS, however, as exhibited in Fig. S9a (Supporting information), did have a slight change in morphology compared with the fresh Co₄S₃/Co₉S₈ NS. Fig. S10 (Supporting information) compared the XRD patterns of the prepared Co₄S₃/Co₉S₈ NS, Fe-doped Co₄S₃/Co₉S₈ NS, Cr-doped Co₄S₃/Co₉S₈ NS, Mn-doped Co₄S₃/Co₉S₈ NS and Ni-doped Co₄S₃/Co₉S₈ NS after OER reaction and after CP stability tests. From the XRD patterns of Fe-doped Co₄S₃/Co₉S₈ NS, Cr-doped Co₄S₃/Co₉S₈ NS, and Mn-doped Co₄S₃/Co₉S₈ NS, it was observed that the two diffraction peaks attributed to the (100) and (101) planes of Co₄S₃ disappeared for the three samples, while the diffraction peaks attributed to the (220) crystal plane of Co₉S₈, which existed in Fe-doped Co₄S₃/Co₉S₈ NS and non-existed in Cr-doped Co₄S₃/Co₉S₈ NS and Mn-doped Co₄S₃/Co₉S₈ NS before CP test, were enhanced in Fe-doped Co₄S₃/Co₉S₈ NS and appeared in the latter two samples after the stability test. But for the XRD patterns of Co₄S₃/Co₉S₈ NS and Ni-doped Co₄S₃/Co₉S₈ NS, the two diffraction peaks attributed to the (100) and (101) planes of Co₄S₃ still remained the same. The difference was that, the (220) crystal plane of Co₉S₈, which existed in Co₄S₃/Co₉S₈ NS and Ni-doped Co₄S₃/Co₉S₈ NS before CP tests, both vanished. At the same time, the other diffraction peak attributed to the (331) crystal plane of Co₉S₈ also disappeared in Ni-doped Co₄S₃/Co₉S₈ NS after the stability test. Thus, combined with the different effects on the OER catalytic activity and stability of Co₄S₃/Co₉S₈ NS resulted by different metal ion doping, all the features discussed above indicated that the existence of Co₉S₈ phase may have a positive effect on the enhanced stability, and conversely that the Co₄S₃ phase may have a negative influence, which may be due to the higher stability of Co₉S₈ than Co₄S₃.

In summary, Co₄S₃/Co₉S₈ nanosheets (Co₄S₃/Co₉S₈ NS) were successfully synthesized via an efficient solvothermal process combined with ultrasonic exfoliation in this paper. The dopant of different metal ions (M = Fe³⁺, Cr³⁺, Mn²⁺ and Ni²⁺) into Co₄S₃/Co₉S₈ NS by a simple cation exchange method exhibited different effects on the OER electrocatalytic properties of Co₄S₃/Co₉S₈ NS. Among them, Fe-doped Co₄S₃/Co₉S₈ NS showed the fairly better OER catalytic activity compared with undoped Co₄S₃/Co₉S₈ NS. The OER catalysis activities of Cr or Mn-doped Co₄S₃/Co₉S₈ NS were just a little better than undoped Co₄S₃/Co₉S₈ nanosheets. Conversely, Co₄S₃/Co₉S₈ NS exhibited weakened OER activity after the Ni²⁺ ions doping. Evidenced by XPS spectra, the reasons for enhancing or weakening OER activities of the Co₄S₃/Co₉S₈ NS resulted from the redistribution of charge at the interface due to an electronic interaction between the doped metal ions and Co₄S₃/Co₉S₈ NS.
