1 Introduction

Less

The storage and conversion of energy sources is an important step to achieve sustainable development with future carbon neutralization policy [1-4]. LIBs with high energy density are widely employed in various fields. But the expensive and flammable disadvantages hinder their practical applications [5-7]. Considering the issues of safety and cost, rechargeable aqueous metal ion batteries (Li, Na, K, Zn, Mg and Al) might be an alternative to LIBs [8-12]. Fig. 1a shows the characteristics of organic and aqueous electrolytes in metal ion batteries. It is found that the former possesses the characteristic of flammability with high risk. On the contrary, the latter presents high safety and ionic conductivity up to 10⁻¹-6 S/cm. In terms of metal anode materials, the radii of monovalent ions (Na⁺ and K⁺) and multivalent ions (Mg²⁺) are much larger than that of Li⁺. It indicates that the above batteries present slow kinetics and poor cycling stability. Although Al electrode material possesses a large specific capacity, the standard electrode potential of Al³⁺/Al is very low [13]. Compared with the above mentioned metals, Zn presents small ionic radius (0.75 Å), suitable standard electrode potential (-0.763 V vs. SHE) and high stability (Fig. 1b).

Recently AZIBs have attracted widely attention due to their outstanding advantages [14-16]. So far, there are many reports about cathode materials for ZIBs, such as manganese-based (Mn-based) compounds [17-19], vanadium-based materials [20-23], Prussian blue analogs [24, 25] and polyanion compounds [26, 27]. Rechargeable Zn-MnO₂ battery was first discovered in 1986. Shoji and co-workers designed Zn-MnO₂ cells with 2 mol/L ZnSO₄ electrolyte, which opens a new path to develop AZIBs [28]. After that, a plenty of work has focused on polymorphic Mn-based compounds due to their non-toxicity, low cost and rich crystal structure [29-33]. In fact, the connection mode of MnO₆ octahedrons determines MnO₂ crystal structure, including α-, β-, γ-, λ-, R-, δ-, ε- and T-MnO₂. These structures can be mutually transformed and seriously affect their electrochemical performance (Fig. 2) [34-37]. In this review, we summarize the progress of Mn-based compounds in ZIBs, including electrode design, electrochemical performance and energy storage mechanism. The limitation and future perspective of ZIBs are also proposed.

2 Electrode structures

Less

Mn is a common transition metal element with multiple oxidation states (+2, +3 and +4). As a cathode material for ZIBs, Mn-based compounds have been widely investigated in recent years. It is reported that MnO₂ possesses a theoretical capacity of 308 mAh/g and a voltage window of 0.8-1.8 V. In addition, MnO₂ materials present diverse crystallographic frameworks. The crystal structure can be classified into three categories: tunnel structure, spinel and layer structure, as shown in Fig. 3 [8].

2.1 Tunnel structure

β-MnO₂ (pyrolusite-type) with 1 × 1 tunnel is a frame structure formed by MnO₆ octahedrons assembling with sharing corners (Fig. 3a). In literature, β-MnO₂ cathode was synthesized through a hydrothermal route with a capacity of 355 mAh/g at 0.1 A/g [38]. Huang and co-workers prepared β-MnO₂ nanorods by introducing N element for improving the electrochemical performance of device. The results show that N-doping effectively enhances the conductivity of MnO₂ materials, as shown in Fig. 4a [39]. Oxygen vacancy (V_o) are an important defect, which can not only improve ion insertion kinetics, but also change the thermodynamics of electrode surface [40]. Zhou's group constructed β-MnO₂ with oxygen defects to improve electrode reaction activity and specific capacity (Fig. 4b). V_o-β-MnO₂-Zn battery delivers a discharge capacity of 302 mAh/g and capacity retention of 94% at 0.5 A/g after 300 cycles (Figs. 4c and d). Additionally, the device possesses low R_ct, indicating their excellent electrical conductivity [41]. Moreover, V_o can cause rearrangement of surrounding atoms, resulting in a change in the electronic structure of metal oxides. The above methods are effective strategies (heteroatom doping and vacancy) to improve the conductivity of cathode and enable device to obtain fast ion insertion kinetics [42].

γ-MnO₂ materials with a mixed tunnel structure of 1 × 1 and 1 × 2 (Fig. 3b) was reported by Alfaruqi et al. through an environmental temperature strategy. BET results show that γ-MnO₂ electrode shows a total surface area of 148 m²/g, and the pore size is 3.77 nm. This mesoporous electrode can provide a sufficient electrode/electrolyte contact area. In addition, the high surface area of electrode ensures easy insertion/de-embedding of Zn²⁺. Surprisingly, when Zn²⁺ is fully intercalated, tunnel type γ-MnO₂ transforms into spinel type ZnMn₂O₄ (ZMO), γ-Zn_xMnO₂ (tunnel type) and L-Zn_yMnO₂ (layered) phase. It shows Mn⁴⁺ is reduced to Mn³⁺ and Mn²⁺. To be precise, a part of γ-MnO₂ undergoes the transformation to spinel ZMO in early stage of Zn insertion, as shown in Fig. 5.

In subsequent dezincification process, phase change of materials is almost completely restored to the original γ-MnO₂. Zn/γ-MnO₂ batteries show an initial discharge capacity of 285 mAh/g at 0.05 mA/cm². It indicated the mesoporous electrode can provide a large electrode/electrolyte contact area, thereby accelerating their diffusion kinetics [43]. The synergistic effect also can enhance the conductivity of electrode due to help of "external force" that the dissolution of MnO₂ is alleviated during reaction process. For instance, Lu's group utilized high conductivity of graphene to assemble a Zn//γ-MnO₂-graphene battery. Compared to bare MnO₂ electrode, MnO₂-graphene one shows excellent cycle stability. After 300 cycles, the cell maintains 64.1% of the initial capacity at 20 mA/cm², which is equivalent to a capacity decay rate of 0.12% per cycle. The increase in cycle stability can be attributed to the joint cooperation of graphene and MnO₂ [44].

α-MnO₂ also possesses a tunnel structure, and each side of tunnel consists of two MnO₆ octahedrons, which is a 2 × 2 tunnel (Fig. 3c). Pan et al. reported Zn/α-MnO₂ batteries with a significant attenuation in the first 10 cycles. However, the capacity retention is poor in subsequent cycles. It might be attributed to the dissolution of Mn²⁺ into ZnSO₄ during cycling. Therefore, 0.1 mol/L Mn²⁺ was pre-added in electrolyte to reach equilibrium with Mn²⁺ dissolved phase. The results show that Zn/MnO₂ battery with MnSO₄ additive delivers a capacity retention rate of 92% after 5000 cycles at 5 C [45]. Wu's group designed a device using α-MnO₂ /graphene scrolls as cathode. It presents a capacity of 362.2 mAh/g at 0.3 A/g. There is an inflection point located at 1.3 V in GCD curves (Fig. 6a). It means that the intercalation of Zn ions takes place in two stages. In the first stage of embedding, layer Zn-buserite is formed first. In the second stage, zinc ions are embedded in tunnel structure. Due to large electrostatic interaction at this stage, the electrode is in an unstable state. The coating of graphene scrolls on MnO₂ nanowire (MNW) improves the stability of electrode, and its rate performance is also significantly enhanced (Fig. 6b). Moreover, it is beneficial to alleviating the dissolution of Mn element during discharge, as shown in Fig. 6c [46].

Pre-embedding of large cations can stabilize the tunnel structured MnO₂ via the coordination of guest ions with adjacent atoms. For instance, Liu and co-workers designed α-MnO₂ and α-K_0.19MnO₂ structures by a self-sacrificing template method. After annealing, the shell of α-K_0.19MnO₂ nanotubes changed from a nanosheet to a vertical uniform nanorod to form a porous structure (Fig. 6d). This highly porous structure facilitates full contact with electrolyte. Furthermore, after K⁺ enters the tunnel cavity, they possess an interplanar spacing of 0.693 nm as shown in Fig. 6e. The pre-intercalated K ions enter the framework of electrode as pillars, which prevent the structure from collapsing during long cycles (Fig. 6f). Apart from this, enough tunnel space can speed up the migration speed of Zn²⁺. Fig. 6g shows two stages electrochemical reaction process: H⁺ intercalation and Zn²⁺ intercalation. When Zn ions intercalation begin, the host material changes from a tunnel structure to a layered Zn_yH_xK_0.19MnO₂. K ions play a key role in supporting structure. Therefore, Zn/α-K_0.19MnO₂ battery exhibits a superior rate performance and delivers a capacity of 113 mAh/g at 20 C (Fig. 6f) [47].

Three chains composed of MnO₆ octahedrons are arranged into a 3 × 3 large tunnels to form todorokite MnO₂ (T-MnO₂) as shown in Fig. 3d. Because of the abundant tunnel space, various cations and water molecules can be easily accommodated in host framework. Therefore, theoretically, their cycle performance and rate performance are better than traditional 2 × 2 tunnel structure. Lee et al. discovered that T-MnO₂ is a potential cathode material used in ZIBs. Then they studied the behavior of zinc ions embedded in tunnel structure. In fact, the formation of large tunnel is usually through the expansion of MnO₆ layers and ion exchange. In addition, more ions and water molecules in tunnel can ensure the stability of structure during reaction process and provide more space for Zn ions migration [48].

2.2 Layered structure

δ-MnO₂ is a layered structure material with a large interlayer spacing of 7.0 Å (Fig. 3e) [49, 50]. Kim et al. prepared δ-MnO₂ nanoflakes with an initial discharge capacity of 122 mAh/g. In the discharge process, spinel-type ZnMn₂O₄ appears. It indicates that layered MnO₂ undergoes a structural transformation. Moreover, some irreversible phases (MnOOH, Mn(OH)₂, Mn₃O₄ and Mn₂O₃) could be also observed [51]. Among them, MnOOH is a new material produced by the conversion reaction between δ-MnO₂ and H⁺, as shown in the following formulas.

(1)

(2)

The formation of these by-products exerts a certain effect on the electrochemical performance of battery. Nevertheless, the battery still delivers a discharge capacity of 136.9 mAh/g at an operating rate of 20 C. It keeps a capacity retention of 93% after 4000 cycles (Fig. 7a) [52]. δ-MnO₂ can transform to other crystal forms during reaction, resulting in a large volume change and structural collapse, which is the main reason to the poor cycle stability. Zhi's group pre-embedded Na⁺ and water molecules into δ-MnO₂ structure in order to stabilize host structure (Fig. 7b). To study the influence of structural water, cathode material powder was thermally treated at 500 ℃. Fig. 7c presents the cycling performance of two electrodes at 20 C. It is found that Zn/δ-MnO₂ with water molecule exhibits an ultra-stable cycle performance (98% of the initial capacity after 10000 cycles).

EIS curves (Fig. 7d) further confirmed that R_ct of electrode without structural water increased significantly. The lack of water molecules makes a small amount of Na⁺ unable to support the structural framework and reduces the transfer speed of Zn²⁺. It greatly compromises the specific capacity and stability of device [53]. Zhang et al. developed an expanded layer interval strategy by rare earth La doping. The shift of XRD pattern confirms the expansion of interlayer spacing, which is conducive to the transmission of Zn²⁺ (Fig. 7e). In addition, CV curves indicate that the doped MnO₂ electrodes possess high electrochemical reactivity (Fig. 7f). It means that the intercalation of La³⁺ makes the transmission speed of Zn ions fast. The assembled device exhibits an energy density of 375.9 Wh/kg [54]. Related work has been reported successively such as Co²⁺ [55], Ca²⁺ [56], V⁵⁺ [31] and rare earth element Ce³⁺ [57]. The intercalation cations mainly play two roles: the first is to increase the interlayer spacing of host material and reduce the resistance of Zn²⁺ insertion/extraction. The second is as the pillar of interlayer structure preventing the collapse of δ-MnO₂ structure.

2.3 Spinel structure

Manganese-based oxides with spinel structure can be classified into the following types: λ-MnO₂ (Fig. 3f), Mn₃O₄ and ZnMn₂O₄. The internal space of the structure is not suitable for the insertion of Zn²⁺ due to high electrostatic repulsion.

The layered manganese oxide with unstable structure can spontaneously undergo a phase transition from a layered to a spinel structure. It might be attributed to the preferential migration of Mn, which is related to the inherent characteristics of Mn [58]. However, Choi's group found that spinel Mn₃O₄ was transformed into layered Birnessite A_xMnO₂·yH₂O during cycling. Fig. 8a shows the crystal structure of Mn₃O₄ and other materials. It is found that spinel and layered type show a common structural basis of ABC-packed array with oxygen atoms. Therefore, phase change can be achieved without disturbing oxygen skeleton [59]. Besides, a binder-free SSWM@Mn₃O₄ electrode was prepared by Zhu and co-workers. The electrode directly grown on the substrate possesses a high conductivity, so Zn/SSWM@Mn₃O₄ battery delivers an excellent specific capacity and long cycle stability [60].

ZnMn₂O₄ materials with a spinel structure were first discovered in 2016. Shi et al. synthesized Ti₃C₂T_x stabilized ZnMn₂O₄ nanoparticles (ZMO@ Ti₃C₂T_x). Ti₃C₂T_x is a layered material with high conductivity. The composite materials can effectively prevent the irreversible structural degradation of ZMO and the occurrence of side reactions. Benefiting from the synergistic effect, the device can still maintain 92.4% of initial capacity after 5000 cycles [61]. Defect engineering is considered to be a suitable strategy to investigate the electrochemical activity of electrode materials [62]. It can be classified into four types: cation doping, oxygen vacancy, cation vacancy and anionic doping [63]. Recently, Zhang and colleagues reported cation-defective ZnMn₂O₄ materials as cathode for AZIBs. The device can deliver a discharge capacity of 150 mAh/g at 50 mA/g and durable long-term cycle ability. The mild synthesis conditions make the electrode structure rich in Mn ion vacancies. As shown in Fig. 8b, the formation of Mn ion vacancies reduces the electrostatic repulsion of Zn ions, leading to a rapid kinetic process [64].

Anion vacancies can also present a similar effect. The annealed ZnMn₂O₄ enriches oxygen vacancies and wraps a layer of conductive polymer PEDOT to improve conductivity. In Figs. 8c and d, DFT calculations suggest that the electrode containing oxygen defects shows a low energy barrier during the migration of zinc ions. It indicates that anion defect enhances the transfer speed of zinc ions in the structure. Therefore, the synergy of oxygen vacancies and PEDOT leads to the transition of ZnMn₂O₄ from semiconducting to conducting, which explains the significant increase in charge transport efficiency [65].

The electrochemical performance of various Mn-based compounds is listed in Table 1. It can be found the specific capacities of electrodes has been improved. Among them, MnO₂ with oxygen defects show a capacity of 345 mAh/g at 0.2 A/g [66]. The cycle number of Zn/MnO₂ batteries can reach 10000 cycles and maintain a retention of 99% [17]. In addition, these Mn-based materials show a common feature that the voltage window is basically maintained at 1–1.9 V. However, Qiao's group proposed a novel electrolytic Zn-MnO₂ batteries, which deliver a high voltage window (1.99 V) and achieve an energy density of 409 Wh/kg [67]. Energy density is a significant parameter to study the electrochemical performance of batteries. Compared to V-based compounds and Prussian blue analogs, manganese-based compounds have a high energy density. In Table 1, Zn/O_d-MnO₂ devices can exhibit an energy density of 470 Wh/kg.

3 Energy storage mechanism

Less

Mn-based compounds have obtained rapid development in the field of ZIBs, but there have been controversies on the energy storage mechanism. It is generally believed that there are four mechanisms: Zn²⁺ insertion/extraction, chemical conversion reaction, dissolution-deposition mechanism and dual-ions insertion/extraction mechanism.

3.1 Zn²⁺ insertion/extraction mechanism

Zn²⁺ is (de-)intercalated between cathode and anode. Since zinc ions are intercalated into cathode, MnO₂ is transformed into spinel structure ZnMn₂O₄ [68]. During the charge process, the new phase is transformed back into the original material. Additionally, Mn vacancies are introduced to form defects to increase the conductivity of host material. At the same time, DFT calculations show that the existence of Mn vacancies can stabilize the structure of electrode when zinc ions are intercalated as shown in Fig. 9a. It indicates that MnO materials with defects easily accommodate the transfer of Zn ion. The ex-situ XRD patterns (Fig. 9b) reveal the kinetic reaction process of battery without the appearance of other impurities. It ensures superior electrochemical performance of battery. The reaction process of Zn²⁺ (de-)intercalation can be described by following formula (Fig. 9c) [69].

(3)

(4)

3.2 Conversion reaction mechanism

Electrochemical conversion mechanism induced by hydrogen ion has also been reported recently [45, 70]. For instance, Liu's group proposed a chemical conversion reaction that effectively improves the electrochemical performance of device. And a series of characterization methods confirmed the reaction process of H⁺ insertion, which can be summarized as [45]:

(5)

(6)

The reaction also occurs in Zn/MnO₂ batteries. During the reaction, the by-product Zn(OH)₂)₃ZnSO₄·xH₂O (ZSH) is generated on the surface of cathode material due to the insertion of H⁺ (formula 7). When charging, H⁺ is released from host structure and ZSH dissolves [71].

(7)

3.3 Dissolution-deposition mechanism

Based on the above reaction process, a new type dissolution-deposition mechanism is proposed [72, 73]. Guo and co-workers studied the effect of ZHS and birnessite-MnO₂ product on the capacity loss and manganese dissolution process. In Fig. 9d, ZSH layer gradually generated during the second cycle discharging. It can effectively prevent the dissolution of Mn, thereby increasing the capacity of device. Generally speaking, the energy storage process can be divided into two parts. As shown in Fig. 9e, the formation of ZHS and the dissolution of Mn ions occur in the first cycle of discharge (formula 8). The first cycle of charge forms a new phase birnessite-MnO₂ (formula 9). In the subsequent cycles, birnessite-MnO₂ restored to the original phase, and the reaction is repeated continuously. Therefore, the high reversibility of Zn/MnO₂ battery can deliver a stable capacity [73].

(8)

(9)

3.4 Dual-ions insertion/extraction mechanism

Researchers have been developing new storage mechanisms that are conducive to enhancing the electrochemical performance of cathode. This dual ion intercalation mechanism includes two classifications: the co-intercalation and extraction of non-metallic ions or metal ions and Zn²⁺. Recently, H⁺ and Zn²⁺ co-insertion/extraction mechanism are frequently reported in Mn-based compounds for AZIBs [74-76]. Xia's group designed a PANI-intercalated MnO₂ electrode. The reaction process of device includes four processes according to charging and discharging mechanism. The initial stage of discharging is the insertion of H⁺. The second discharge plateau is related to the insertion of Zn²⁺ [75]. Similarly, Sun et al. found that GCD curves of Zn/MnO₂ @CFP battery possess two plateau regions (Fig. 10a). The capacity decay speed of these two parts is obviously different. Moreover, the charge diffusion resistance presents a significant difference (Fig. 10b). This may be caused by various ion insertions. Ex-situ XRD (Fig. 10c) further confirmed that the typical MnOOH peaks appeared after discharging to 1.3 V due to the insertion of H⁺. When the electrode was further discharged to 1.0 V, the diffraction peaks of ZnMn₂O₄ disappeared [17].

Manganate electrodes are also suitable for this charge storage mechanism. Liang's group designed K_0.8Mn₈O₁₆ electrode with oxygen defects. K⁺ is added to inhibit the dissolution of manganese, thereby ensuring the structural stability of manganese-based cathode. The introduction of oxygen defects prompts MnO₆ polyhedral wall open, which is conducive to the diffusion of H⁺ in the ab-plane (Fig. 10d). Therefore, the electrochemical reaction activity and reaction kinetics of KMO are improved. Zn/ K_0.8Mn₈O₁₆ (KMO) batteries show an energy density of 398 Wh/kg based on the intercalation mechanism of Zn²⁺ and H⁺ [37]. Zhai and co-workers prepared Na_0.55Mn₂O₄·0.57H₂O (NMOH) cathodes and proposed an electrochemical mechanism for the co-intercalation of Na⁺ and crystal water. Fig. 11 shows that Zn ion (de-)intercalated reaction mechanism. During the discharging process, H⁺ first enters NMOH structures and produces by-products Zn₄SO₄(OH)₆·0.5H₂O. Then Zn ions intercalate to replace a small part of sodium ions supporting the main structure.

This sequential embedding process indicates a two-step reaction process. Finally, Zn ions are released from layer structure during the charging state. The continuous insertion and extraction of H⁺ and Zn²⁺ are accompanied by Na⁺ desorption. This replacement/intercalation reaction mechanism makes Zn/NMOH batteries exhibit a specific capacity of 389.8 mAh/g at 0.2 A/g and excellent cycle performance [77].

Soundharrajan et al. constructed a novel Zn/MgMn₂O₄ battery, which kept a capacity retention of 80% after 500 cycles. In order to prevent the inert diffusion of magnesium ions in the crystal lattice, electrolyte is modified to a certain extent. The assembled devices confirm the existence of two pairs of redox peaks through CV curves. It could be due to the gradual insertion of Zn²⁺/Mg²⁺ into the spinel structure. The following reactions could occur during the cycle process:

(10)

(11)

Beneficial to the mechanism of Zn²⁺/Mg²⁺ co-insertion and extraction, the devices achieve an energy density of 370 Wh/kg at 70 W/kg [78].

4 Conclusion and perspective

Less

In summary, MnO₂ have become promising cathode materials for ZIBs due to their rich crystal structures. This review summarizes recent advances of manganese-based oxides electrode materials and emphasizes the effect of different synthesis strategies on performance of cathode materials. In addition, several electrochemical mechanisms of Zn/Mn-based battery are introduced. Mn-based materials have been explored for a long time, there are still some key problems that have not been resolved. Firstly, the performance of batteries is far from meeting market requirements. Therefore, it has a long way to achieve high electrochemical performance of AZIBs batteries. One should continue to develop and design some new synthetic strategies by tailoring morphology, specific surface area and crystal structure of electrode materials. Increasing ion conductivity and the surface area can promote Zn²⁺ ion diffusion coefficient and enhance the surface capacitance behavior.

Secondly, manganese dioxide is prone to irreversible structural phase change and accompanied by the dissolution of Mn ions during reaction. Thus, it leads to a decline in capacity and reduce in cyclic life. Therefore, some general strategies might be employed: (1) Adding a small amount of solution with Mn²⁺ to the electrolyte to ensure the stability of electrode. (2) The use of a weakly acidic electrolyte such as Zn(CF₃SO₃)₂ can inhibit the dissolution of Mn²⁺. Moreover, it is also a good strategy to develop new electrolyte additives to protect the electrode/electrolyte interface by forming a dense passivation film. Besides, carbon coating, defect engineering and conductive polymer coating are also used to modulate the electrode structure.

Finally, the voltage window of manganese-based battery is relatively low. Therefore, it is necessary to broaden the voltage window by optimizing cathode structure. Most of literature use novel electrolytes to achieve the purpose of increasing the voltage window, such as high-concentration salt, new electrolyte additives (0.1 mol/L H₂SO₄). Furthermore, it is also a feasible strategy to explore the redox reaction mechanism of multivalent electrons such as Mn⁴⁺/Mn²⁺.

Declaration of competing interest

Less

The authors declare no conflict of interest.

Acknowledgements

Less

This work was supported by the Opening Project of State Key Laboratory of High Performance Ceramics and Superfine Microstructure (No. SKL201904SIC), State Key Laboratory of Advanced Technology for Materials Synthesis and Processing (Wuhan University of Technology) (No. 2020-KF-12) and the Opening Project of State Key Laboratory of Metastable Materials Science and Technology (No. 202007).

References

Less

[1]

Y. Gogotsi, P. Simon, Science 334 (2011) 917-918.

[2]

D.P. Zhao, M.Z. Dai, Y. Zhao, et al., Nano Energy 72 (2020) 104715.

[3]

L.J. Su, L.Y. Liu, Y. Wang, Y.L. Lu, X.B. Yan, Chin. Chem. Lett. 31 (2020) 2358-2364.

[4]

X. Wu, S.Y. Yao, Nano Energy 42 (2017) 143-150.

[5]

J.M. Tarascon, M. Armand, Nature 414 (2001) 359-367.

[6]

C. Liu, X. Wu, B. Wang, Chem. Eng. J. 392 (2020) 123651.

[7]

H. Yuan, L. Kong, T. Li, Q. Zhang, Chin. Chem. Lett. 28 (2017) 2180-2194.

[8]

M. Song, H. Tan, D. Chao, H.J. Fan, Adv. Funct. Mater. 28 (2018) 1802564.

[9]

Y.Q. Qi, Y. Yang, Q. Hou, et al., Chin. Chem. Lett. 32 (2021) 1117-1120.

[10]

W. Fang, R. Jiang, H. Zheng, et al., Rare Metals 40 (2020) 433-439.

[11]

G.A. Elia, K. Marquardt, K. Hoeppner, et al., Adv. Mater. 28 (2016) 7564-7579.

[12]

Z. Yan, Q.W. Yang, Q. Wang, J. Ma, Chin. Chem. Lett. 31 (2020) 583-588.

[13]

Y. Song, S. Jiao, J. Tu, et al., J. Mater. Chem. A 5 (2017) 1282-1291.

[14]

Y. Liu, P.F. Hu, H.Q. Liu, X. Wu, C.Y. Zhi, Mater. Today Energy 17 (2020) 100431.

[15]

B.Y. Tang, L.T. Shan, S.Q. Liang, J. Zhou, Energy Environ. Sci. 12 (2019) 3288-3304.

[16]

Y. Liu, X. Wu, J. Energy Chem. 56 (2021) 223-237.

[17]

W. Sun, F. Wang, S. Hou, et al., J Am. Chem. Soc. 139 (2017) 9775-9778.

[18]

S. Bi, Y. Wu, A. Cao, et al., Mater. Today Energy (2020) 18.

[19]

Y. Zhang, S. Deng, Y. Li, et al., Energy Storage Mater. 29 (2020) 52-59.

[20]

Y. Liu, X. Wu, Nano Energy 86 (2021) 106124.

[21]

Q. Li, X. Rui, D. Chen, et al., Nano Micro. Lett. 12 (2020) 67.

[22]

F. Liu, Z. Chen, G. Fang, et al., Nano-Micro lett. 11 (2019) 25.

[23]

D. Chen, X. Rui, Q. Zhang, et al., Nano Energy 60 (2019) 171-178.

[24]

Q. Yang, F. Mo, Z. Liu, et al., Adv. Mater. 31 (2019) e1901521.

[25]

G. Kasiri, J. Glenneberg, A. Bani Hashemi, R. Kun, F. La Mantia, Energy Storage Mater. 19 (2019) 360-369.

[26]

P. Hu, T. Zhu, X. Wang, et al., Nano Energy 58 (2019) 492-498.

[27]

V. Verma, S. Kumar, W. Manalastas, et al., ACS Appl. Energy Mater. 2 (2019) 8667-8674.

[28]

T. Yamamoto, T. Shoji, Inorg. Chim. Acta 117 (1986) L27-L28.

[29]

X. Zeng, J. Hao, Z. Wang, J. Mao, Z. Guo, Energy Storage Mater. 20 (2019) 410-437.

[30]

J. Huang, J. Zeng, K. Zhu, R. Zhang, J. Liu, Nano-Micro Lett. 12 (2020) 110.

[31]

M.H. Alfaruqi, S. Islam, V. Mathew, et al., Appl. Surf. Sci. 404 (2017) 435-442.

[32]

B. Jiang, C. Xu, C. Wu, et al., Electrochim. Acta 229 (2017) 422-428.

[33]

D. Xu, B. Li, C. Wei, et al., Electrochim. Acta 133 (2014) 254-261.

[34]

J. Ming, J. Guo, C. Xia, W. Wang, H.N. Alshareef, Mater. Sci. Eng. R: Rep. 135 (2019) 58-84.

[35]

V. Soundharrajan, B. Sambandam, S. Kim, et al., Energy Storage Mater. 28 (2020) 407-417.

[36]

X. Wu, Y. Li, C. Li, et al., J. Power Sources 300 (2015) 453-459.

[37]

G. Fang, C. Zhu, M. Chen, et al., Adv. Funct. Mater. 29 (2019) 1808375.

[38]

W. Liu, X. Zhang, Y. Huang, et al., J. Energy Chem. 56 (2021) 365-373.

[39]

Y. Huang, W. He, P. Zhang, X. Lu, Funct. Mater. Lett. 11 (2018) 1840006.

[40]

N. Zhang, X. Li, H. Ye, et al., J. Am. Chem. Soc. 138 (2016) 8928-8935.

[41]

M. Han, J. Huang, S. Liang, et al., iScience 23 (2020) 100797.

[42]

Y. Zou, W. Zhang, N. Chen, et al., ACS Nano 13 (2019) 2062-2071.

[43]

M.H. Alfaruqi, V. Mathew, J. Gim, et al., Chem. Mater. 27 (2015) 3609-3620.

[44]

C. Wang, Y.X. Zeng, X. Xiao, et al., J. Energy Chem. 43 (2020) 182-187.

[45]

H.L. Pan, Y.Y. Shao, P.F. Yan, et al., Nat. Energy 1 (2016) 16039.

[46]

B.K. Wu, G.B. Zhang, M.Y. Yan, et al., Small 14 (2018) 1703850.

[47]

G. Liu, H. Huang, R. Bi, et al., J. Mater. Chem. A 7 (2019) 20806-20812.

[48]

J. Lee, J.B. Ju, W.I. Cho, B.W. Cho, S.H. Oh, Electrochim. Acta 112 (2013) 138-143.

[49]

M. Nakayama, T. Kanaya, J.W. Lee, B.N. Popov, J. Power Sources 179 (2008) 361-366.

[50]

A.A. Voskanyan, C.K. Ho, K.Y. Chan, J. Power Sources 421 (2019) 162-168.

[51]

M.H. Alfaruqi, J. Gim, S. Kim, et al., Electrochem. Commun. 60 (2015) 121-125.

[52]

Y. Jin, L. Zou, L. Liu, et al., Adv. Mater. 31 (2019) e1900567.

[53]

D. Wang, L. Wang, G. Liang, et al., ACS Nano 13 (2019) 10643-10652.

[54]

H. Zhang, Q. Liu, J. Wang, et al., J. Mater. Chem. A 7 (2019) 22079-22083.

[55]

Y. Zhong, X. Xu, J.P. Veder, Z. Shao, iScience 23 (2020) 100943.

[56]

T. Sun, Q. Nian, S. Zheng, J. Shi, Z. Tao, Small 16 (2020) e2000597.

[57]

J. Wang, X. Sun, H. Zhao, et al., J. Phys. Chem. C 123 (2019) 22735-22741.

[58]

W. Xu, Y. Wang, Nano-Micro Lett. 11 (2019) 90.

[59]

S. Kim, K.W. Nam, S. Lee, et al., Angew. Chem. Int. Ed. 54 (2015) 15094-15099.

[60]

C. Zhu, G. Fang, J. Zhou, et al., J. Mater. Chem. A 6 (2018) 9677-9683.

[61]

M. Shi, B. Wang, Y. Shen, et al., Chem. Eng. J. 399 (2020) 125627.

[62]

C. Xie, D. Yan, W. Chen, et al., Mater. Today 31 (2019) 47-68.

[63]

T. Xiong, Y. Zhang, W.S.V. Lee, J. Xue, Adv. Energy Mater. 10 (2020) 2001769.

[64]

N. Zhang, F. Cheng, Y. Liu, et al., J. Am. Chem. Soc. 138 (2016) 12894-12901.

[65]

H. Zhang, J. Wang, Q. Liu, et al., Energy Storage Mater. 21 (2019) 154-161.

[66]

T. Xiong, Z.G. Yu, H. Wu, et al., Adv. Energy Mater. 9 (2019) 1803815.

[67]

D.L. Chao, W.H. Zhou, C. Ye, et al., Angew. Chem. Int. Ed. 58 (2019) 7823-7828.

[68]

M.H. Alfaruqi, J. Gim, S. Kim, et al., J. Power Sources 288 (2015) 320-327.

[69]

C. Zhu, G. Fang, S. Liang, et al., Energy Storage Mater. 24 (2020) 394-401.

[70]

B. Lee, H.R. Seo, H.R. Lee, et al., ChemSusChem 9 (2016) 2948-2956.

[71]

J. Wang, J.G. Wang, H. Liu, C. Wei, F. Kang, J. Mater. Chem. A 7 (2019) 13727-13735.

[72]

G. Liang, F. Mo, H. Li, et al., A, Adv. Energy Mater. 9 (2019) 1901838.

[73]

X. Guo, J. Zhou, C. Bai, et al., Mater. Today Energy 16 (2020) 100396.

[74]

X. Gao, H. Wu, W. Li, et al., Small 16 (2020) e1905842.

[75]

J. Huang, Z. Wang, M. Hou, et al., Nat. Commun. 9 (2018) 2906.

[76]

C. Guo, Q.H. Zhou, H.M. Liu, et al., Electrochim. Acta 324 (2019) 134867.

[77]

X.Z. Zhai, J. Qu, S.M. Hao, et al., Nano-Micro Lett. 12 (2020) 56.

[78]

V. Soundharrajan, B. Sambandam, S. Kim, et al., ACS Energy Lett. 3 (2018) 1998-2004.

Appendix

Less

Year 2022 volume 33 Issue 3

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1016/j.cclet.2021.08.081

Receive Date：2021-07-17
Online Date：2025-12-12
Published：2022-03-15

Article Data

Affiliations

History

Received：2021-07-17
Revised：2021-08-12
Accepted：2021-08-18

Affiliations

^a School of Materials Science and Engineering, Shenyang University of Technology, Shenyang 110870, China

^b State Key Laboratory of High-Performance Ceramics and Superfine Microstructure, Shanghai Institute of Ceramics, Chinese Academy of Sciences, Shanghai 200050, China

^c State Key Laboratory of Metastable Materials Science and Technology, Yanshan University, Qinhuangdao 066004, China

References

Share

https://castjournals.cast.org.cn/joweb/ccl/EN/10.1016/j.cclet.2021.08.081

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

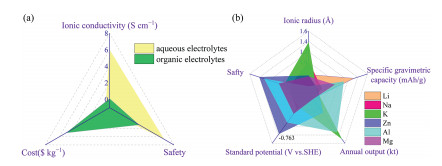

Fig. 1 (a) The advantages of organic and aqueous electrolyte in metal ion batteries.(b) Radar diagram of various metal ions.

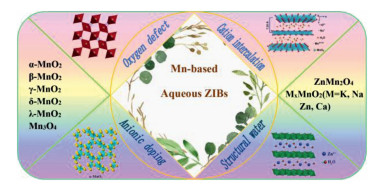

Fig. 2 Classification and synthesized strategies of Mn-based cathode for aqueous zinc ion batteries.

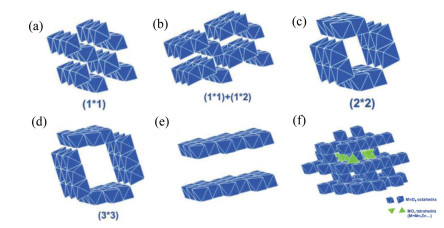

Fig. 3 Manganese oxide crystal structures (a) β-MnO₂ (pyrolusite-type), (b) γ - MnO₂(nsutite-type), (c) α-MnO₂ (hollandite-type), (d) todorokite-type MnO₂, (e) δ-MnO₂ (birnessite-type), (f) λ-MnO₂ (spinel-type). Reproduced with permission [8]. Copyright 2018, Wiley-VCH.

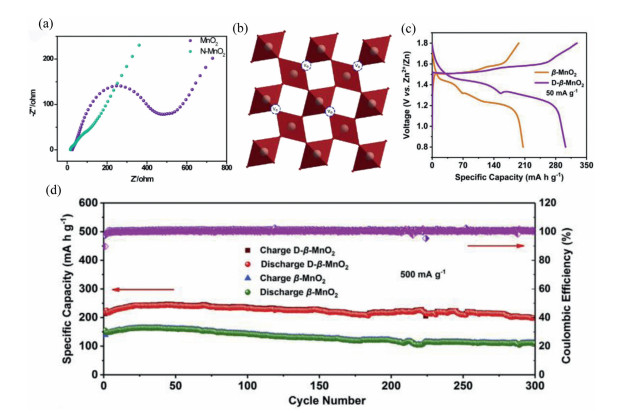

Fig. 4 (a) Nyquist plots for Zn/MnO₂ and Zn/N-MnO₂ battery. Reproduced with permission [39]. Copyright 2018, World Scientific Publishing. (b) Crystal structure of rutiletype β-MnO₂. (c) GCD profiles at 50 mA/g. (d) Cycling performances at 500 mA/g. Reproduced with permission [41]. Copyright 2020, Elsevier B.V.

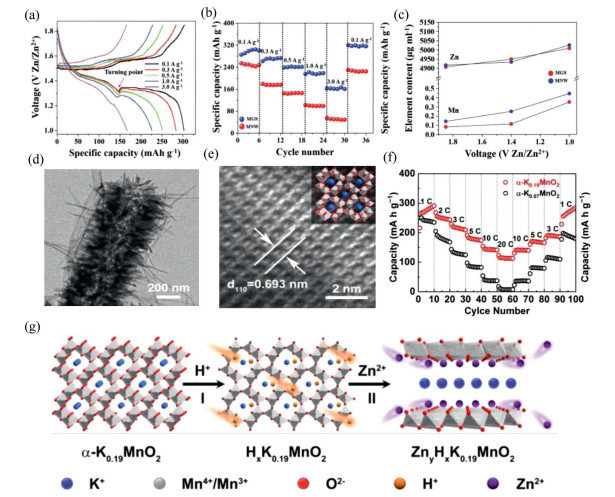

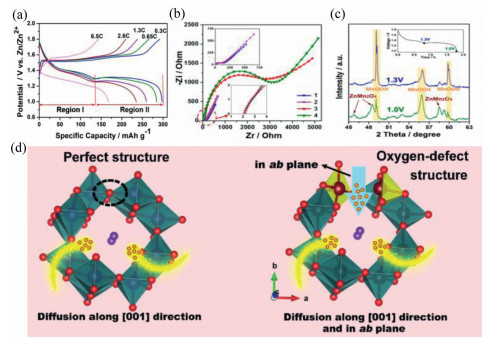

Fig. 6 (a) GCD curves of sample at current densities ranging from 0.1 A/g to 3 A/g. (b) Rate performances of samples. (c) Element analysis of Zn²⁺ and dissolved Mn²⁺ in a 2 mol/L ZnSO₄ aqueous electrolyte during the discharge process of first cycle. Reproduced with permission [46]. Copyright 2018 Wiely-VCH. (d) TEM images, (e) HRTEM image, (f) rate performance, (g) schematic of H⁺/Zn²⁺ intercalation processes in α-K_0.19MnO₂ nanotubes. Reproduced with permission [47]. Copyright 2019, The Royal Society of Chemistry.

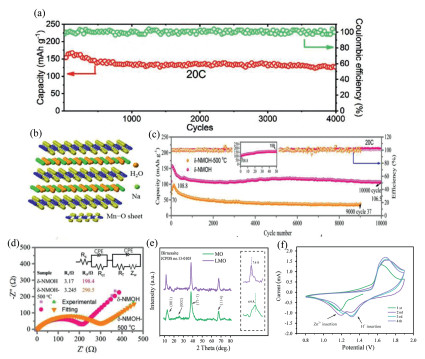

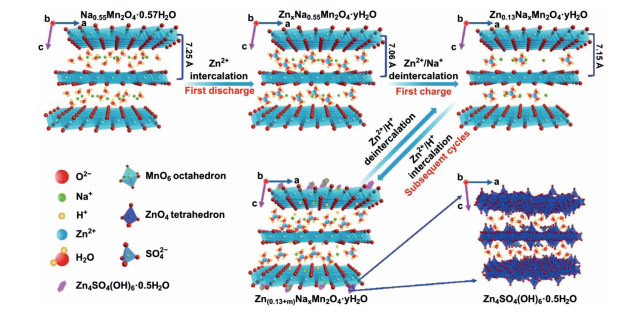

Fig. 7 (a) The cycle performance of Zn-δ-MnO₂ battery. Reproduced with permission [52]. Copyright 2019, Wiely-VCH. (b) Structural illustration of the as-prepared Na ion and water molecule intercalated layered δ-MnO₂ electrode. (c) The longterm cycling stability of electrodes at 20 C, with the inset showing the activation process within 50 cycles. (d) EIS curves. Reproduced with permission [53]. Copyright 2019, American Chemical Society. (e) XRD patterns. (f) CV curves at 1 mV/s. Reproduced with permission [54]. Copyright 2019, The Royal Society of Chemistry.

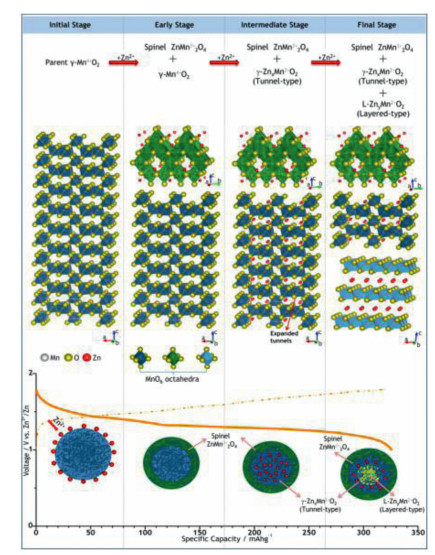

Fig. 8 (a) The crystal structure of Mn₃O₄ (spinel), LiMnO₂ (layered structure) and MnO₂·γ H₂O (Birnessite). Reproduced with permission [59]. Copyright 2015, Wiley-VCH.(b) Zn²⁺ diffusion pathway in ZMO spinel without and with Mn vacancies. Reproduced with permission [64]. Copyright 2016, American Chemical Society. (c) Calculated structures of Zn vacancy formation energies (E_vac) of ZMO and OD-ZMO. (d) Energy profiles of Zn diffusion within ZMO and OD-ZMO. Reproduced with permission [65]. Copyright 2018, Elsevier B.V.

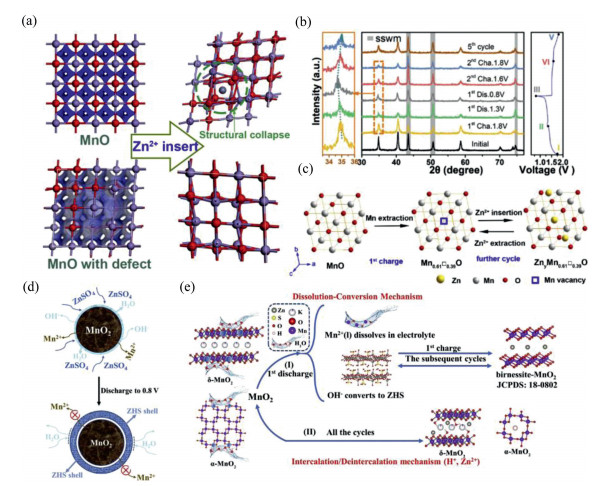

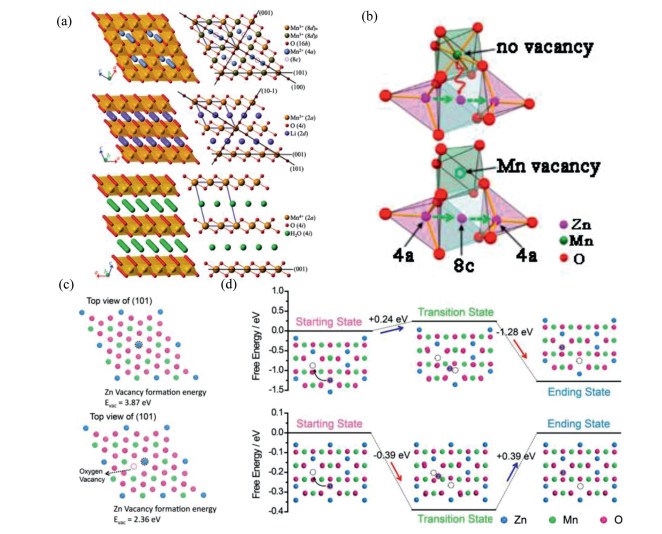

Fig. 9 (a) Charge distribution of MnO and Mn_0.61□_0.39O, and the structures after Zn²⁺ insertion. (b) The ex-situ XRD patterns and corresponding GCD curves at 0.1 A/g. (c) Schematic of Zn²⁺ insertion/extraction in a MnO framework. Reproduced with permission [69]. Copyright 2019, Elsevier B.V. (d) The schematic of the role of ZHS in the discharge process. (e) The schematic of energy storage mechanism in Zn/MnO₂ battery. Reproduced with permission [73]. Copyright 2020, Elsevier B.V.

Fig. 10 (a) GCD curves of MnO₂@CFP at different rates in first cycle. (b) EIS curves. (c) Ex-situ XRD patterns at depth of discharge at 1.3 and 1.0 V, respectively. Reproduced with permission [17]. Copyright 2017, American Chemical Society. (d) Schematic of H+ diffusion into KMO with perfect structure and oxygen-defect structure. Reproduced with permission [37]. Copyright 2019, Wiley-VCH.

Fig. 11 Schematic of the displacement/intercalation reaction mechanism in the first cycle, and the insertion/extraction mechanism of zinc ions in subsequent electrochemical discharge/charge processes. Reproduced with permission [77]. Copyright 2020, Springer.

Articles: Latest Articles; Most Read; Collections

Updates: Events; News; Multimedia

About: About Us

Contact

No. 86 Xueyuan South Road, Haidian District, Beijing

100081

010-62199257

qkjq@cast.org.cn

Copyright © 2025 China Association for Science and Technology. All rights reserved. For all open access content, the relevant licensing terms apply.
Sponsored by the Office of the Leading Group for Cybersecurity and Informatization of CAST, and supported by Science and Technology Review Publishing House
