Rational design of shortwave infrared (SWIR) fluorescence probe: Cooperation of ICT and ESIPT processes for sensing endogenous cysteine
收藏切换
PDF
Maoju Chang, Chenxu Yan*, Lei Shi, Dan Li, Wei Fu, Zhiqian Guo*
Chinese Chemical Letters | 2022, 33(2) : 762 - 766
Less
收藏切换
Chinese Chemical Letters | 2022, 33(2): 762-766
• Communication •
Rational design of shortwave infrared (SWIR) fluorescence probe: Cooperation of ICT and ESIPT processes for sensing endogenous cysteine
Full
Maoju Chang, Chenxu Yan*, Lei Shi, Dan Li, Wei Fu, Zhiqian Guo*
Affiliations
  • Shanghai Key Laboratory of Functional Materials Chemistry, Key Laboratory for Advanced Materials and Institute of Fine Chemicals, Joint International Research Laboratory of Precision Chemistry and Molecular Engineering, Feringa Nobel Prize Scientist Joint Research Center, Frontiers Science Center for Materiobiology and Dynamic Chemistry, School of Chemistry and Molecular Engineering, East China University of Science and Technology, Shanghai 200237, China
Published: 2022-02-15 doi: 10.1016/j.cclet.2021.08.015
Outline
收藏切换

Cysteine is well-known to be an important biothiol and related to many diseases. However, the in vivo detection of endogenous cysteine still suffers from lacking small-molecule fluorophores with both excitation and emission in the near-infrared (650-900 nm)/shortwave-infrared region. Herein, we report a molecular engineering strategy for shortwave infrared (SWIR, 900-1700 nm) sensing of cysteine, which integrated an excited-state intermolecular proton transfer (ESIPT) building block into the intramolecular charge transfer (ICT) scaffold. The obtained novel fluorophore SH-OH displays a maximum absorption at the NIR region, and emission at the SWIR region. We introduce the cysteine-recognition moiety to SH-OH structure, and demonstrate sensing of endogenous cysteine in living animals, using the SWIR emission as a reliable off-on fluorescence signal. This fluorophore design strategy of cooperation of ICT and ESIPT processes expands the in vivo sensing toolbox for accurate analysis in clinical applications.

Fluorescence probe  /  Shortwave infrared  /  Intramolecular charge transfer  /  Excited-state intermolecular proton transfer  /  Near-infrared
Maoju Chang, Chenxu Yan, Lei Shi, Dan Li, Wei Fu, Zhiqian Guo. Rational design of shortwave infrared (SWIR) fluorescence probe: Cooperation of ICT and ESIPT processes for sensing endogenous cysteine[J]. Chinese Chemical Letters, 2022 , 33 (2) : 762 -766 . DOI: 10.1016/j.cclet.2021.08.015
Full Text
Less
Biothiols, including glutathione (GSH) [1-3], cysteine (Cys) [4-6], and homocysteine (Hcy) [4], play essential and pervasive roles in physiology, nutrition, and metabolism system [7-10]. Especially, Cys is known to be related to many diseases, including neurotoxicity [11-13], decreased hematopoiesis [14-16], psoriasis, edema, liver damage [17, 18], and so on [16-20]. Therefore, in vivo sensing of Cys at high spatiotemporal resolution holds the key to the fundamental understanding of its physiological function. Compared to visible (400-600 nm) and near-infrared (NIR, 650-900 nm) light [21-25], shortwave infrared (SWIR, 900-1700 nm) imaging [26-28] allows non-invasive, real-time analysis of biological processes due to low photon scattering, autofluorescence, deeper tissue penetration, and improved signal-background ratio. Thus, there is a desperate need to develop SWIR fluorescence probes that enable high-fidelity in vivo sensing of Cys.
Over the last two decades, intramolecular charge transfer (ICT) molecules have been receiving widespread attention for developing activatable fluorophores [29-33]. The ICT reaction can often generate large Stokes shift [34-36] in aromatic dyes possessing strong electron-donor and electron-acceptor substituents, contributing to achieve long-wavelength emission [37, 38]. However, the excitations of these ICT fluorophores are still restricted to the visible region. To the best of our knowledge, few studies have been exploited in the small-molecule ICT fluorophores with both excitation and emission in the NIR/SWIR region for in vivo imaging. We envision that fluorescence probes uniting ICT and excited-state intermolecular proton transfer (ESIPT) processes [39-42] can realize real-time tracking Cys in the SWIR region.

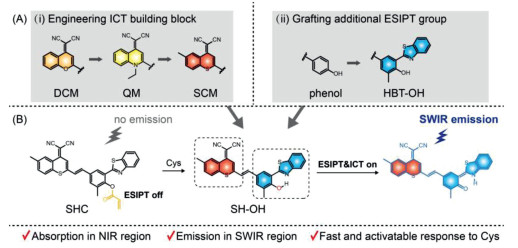

Herein, we describe a molecular rational design strategy to create activatable off-on SWIR probes for Cys, relying on the cooperation of ICT and ESIPT processes. We employed the "step-by-step" strategy for extending both excitation and emission wavelength: (i) heteroatom substitution (from DCM to SCM building block) for narrowing the energy bandgap in ICT fluorophore scaffold; (ii) employing HBT as an additional ESIPT group [43] for further extending emission wavelength to SWIR region (Fig. 1A). By virtue of harnessing this strategy, a novel small-molecule fluorophore SH-OH was developed with maximum absorption at the NIR region, and emission at the SWIR region. Using the designed probe SHC, we were able to conduct in vivo sensing of endogenous Cys via the off-on SWIR fluorescence signal (Fig. 1B). This de novo strategy for activatable SWIR fluorophores would greatly facilitate the advancement of in vivo fluorescence imaging.
We take full advantage of the "step-by-step" strategy to achieve both excitation and emission in the NIR/SWIR region. Above all, we estimated the structure-function relationship between electron-withdrawing building block and emission wavelength. As well known, the DCM group [44-46] has been widely used to construct ICT fluorophores with multiple photophysical advantages, such as adjustable and NIR emission, large Stokes shift, and good photostability [47-49]. In order to further extend the emission wavelength, we replaced the electron-withdrawing building block from QM and DCM to benzothiopyran-malononitrile (SCM) (i.e., replacing the oxygen atom in DCM with sulfur atom). To our delight, the heteroatom substitution led to a significant red-shift in fluorescence spectra. Specifically, QM-OH, DCM-OH, and SCM-OH displayed emission maximums at 560, 685, and 750 nm, respectively (Figs. 2A-C). These results clearly indicated that engineering the SCM as the electron-withdrawing building block could effectively extend the emission wavelength in ICT fluorophores.

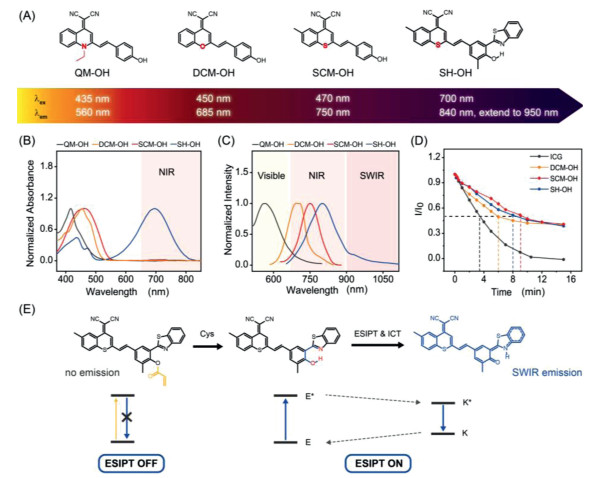

To clarify the relationship between the electron-withdrawing building block and fluorescence properties of DCM-OH and SCM-OH, we further carried out density functional theory (DFT) calculation. As determined in Fig. S3 (Supporting information), the energy bandgap (ΔES1-S0) of SCM-OH (2.95 eV) is much narrower than that of DCM-OH (3.07 eV), resulting in lower energy for electronic transition and red-shift emission [50]. Simultaneously, the energy of the highest occupied molecular orbital (HOMO) of SCM-OH (–6.070 eV) is higher than that of DCM-OH (–6.108 eV), which means the excited electrons would return to a higher energy state accordingly with a larger Stokes shift [51]. As a consequence, SCM-OH displayed much longer emission and larger Stokes shift than that of DCM-OH (Figs. 2A-C, Fig S1 in Supporting information). Although SCM-OH showed extended emission wavelength in the NIR region, SCM-OH still suffered from the short excitation wavelength (λex < 600 nm, Fig. 2B). In order to develop small-molecule fluorophores with both excitation and emission in the NIR/SWIR region, we then envisioned that fluorescence probes uniting ICT and ESIPT processes could make a breakthrough to further extend the excitation/emission wavelength (Fig. 1B).
To validate the feasibility of this method, we designed and synthesized a novel fluorophore SH-OH by grafting HBT (a typical ESIPT building block) in the SCM-OH scaffold to extend the total π-conjugation system. Notably, SH-OH showed an obvious absorption peak in the NIR region at 700 nm (Fig. 2B, Fig. S2 in Supporting information). More importantly, SH-OH could emit light in a broad range of 700-1000 nm with a high quantum yield of 2.3 times higher than that of DCM-OH [52] (a NIR fluorophore with high quantum yield, Table S1 in Supporting information), and also exhibited bright emission in the SWIR region (> 900 nm). Taken together, our strategy of uniting ICT and ESIPT mechanism could successfully exploit fluorophores with both excitation and emission wavelength in the NIR/SWIR region.
To further investigate the bio-applicability of SH-OH, we subsequently examined the photostability under physiological conditions, and the results were compared with the commercially available ICG (FDA-proved NIR fluorophore). As depicted in Fig. 2D, the fluorescence intensity of commercial dye ICG dropped rapidly to 1% after irradiation for 10 min under stable light irradiation, indicating that ICG was photobleached. Meanwhile, the fluorescence intensity of SH-OH, SCM-OH, and DCM-OH decreased to 47%, 48%, and 42%, respectively. Clearly, SH-OH exhibited higher photostability than ICG, enabling its much longer time-lapse imaging [53]. All these data demonstrated that SH-OH could be utilized as an excellent SWIR fluorophore for in vivo bioimaging applications.
As well known, the fluorescence intensities of ICT chromophores are extremely sensitive to electronic disturbance [29, 30]. For an example of SCM-OH, after masking the hydroxyl group with electron-withdrawing acryloyl group, the NIR fluorescence intensity of SCM-OH was effectively quenched (Figs. 3A and B). In the presence of Cys, the acryloyl group of SOC was cleavaged, and the released SCM-O− could lead to a significant fluorescence enhancement (Figs. 3A-E, Figs. S5 and S6 in Supporting information). Encouraged by this fluorescence response, we further explored the feasibility to employ SH-OH (fluorophore uniting ICT and ESIPT) as an activatable SWIR fluorophore.
We subsequently evaluated the pH dependence of the emission profiles of SH-OH and acryloyl group masked SHC. As shown in Fig. S4 (Supporting information), the SWIR fluorescence of SHC remained silent over the physiological pH range. Importantly, the pKa of SH-OH was measured to be ca. 7.8 (Fig. S4), which allowed SHC to favorably exploit the physiological conditions of living systems.
The pH-insensitivity of SHC and pH-sensitivity of SH-OH inspired us to further test the validity of this probe in vitro and in vivo. As demonstrated in Figs. 3F and G. The probe SHC performed an obvious fluorescence signal in the SWIR region in the presence of Cys as the acryloyl group of SHC was cleavage and SH-O− was released (Fig. S7 in Supporting information). This Cys-triggered reaction reached equilibrium in only 5 min (Fig. 3G), indicating a very fast response toward Cys. Notably, the plots of the I950 nm against the concentrations of Cys ranging from 0 to 100 µm displayed a good linear relationship (Figs. 3I and J). Hence, the linear curve of the I950 nm allowed for the convenient quantitative detection of Cys over this concentration range. Besides, the detection limit of the probe SHC was 4 µmol/L, indicating excellent sensitivity of SHC toward Cys (Table S2 in Supporting information). Consequently, SHC enabled the fast and quantitative SWIR fluorescence detection of Cys.

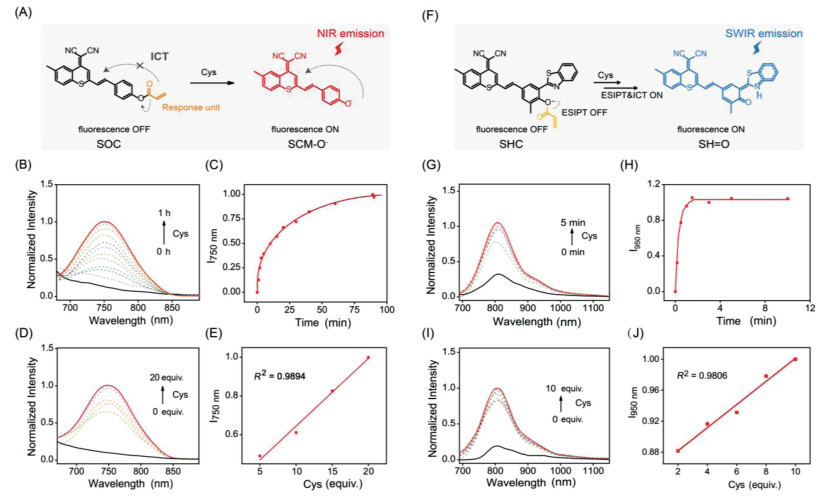

The complex microenvironment in vivo could affect the recognition and efficiency of fluorescence probes on the target analyte. Hence, the selectivity of the probe is one of the key indicators to evaluate the application in biological samples. To our satisfaction, both SOC and SHC exhibited a significantly higher selectivity toward Cys than any other biothiols such as glutathione (Figs. S8 and S9 in Supporting information). When glutamic or other amino acids were added to the solution, the fluorescence intensity of SHC showed little change. In contrast, the signal at 950 nm apparently increased after incubating with Cys for 5 min, thereby verifying that probe SHC exerted outstanding selectivity to Cys. Overall, we have successfully developed and demonstrated a viable strategy for the SWIR fluorescence analysis of Cys.
As demonstrated, SHC exhibited activatable SWIR fluorescence toward Cys, while SOC displayed an activatable NIR fluorescence. This SWIR imaging has advantages over NIR imaging in vivo due to deeper tissue penetration. Therefore, SOC/SHC has great potential for in vitro and in vivo bioimaging, respectively. Subsequently, HeLa cells were selected to evaluate the response of the probe SOC to exogenous and endogenous Cys in vitro. Compared to the HeLa cells incubated with SCM-OH for 1 h at 37 ℃, the NIR signal in the 740-760 nm fluorescence channel exhibited observable signal when treated with SOC (Fig. 4A). It suggested that SOC could sense endogenous Cys in cells. Besides, when pretreated with exogenous Cys for promotion intracellular Cys concentration, the signal was observed obviously. On the other hand, in order to verify the specific recognition of Cys by SOC, we pretreated HeLa cells with NEM, the Cys inhibitor, to inhibit the expression of Cys in cells [54]. As expected, the confocal laser scanning microscope (CLSM) image revealed a negligible detection signal in cells. The above results demonstrated effective fluorescence "turn-on" detection of probe SOC in the presence of either exogenous or endogenous Cys in vitro. Therefore, we have successfully achieved a light-up NIR probe SOC for the detection and imaging of Cys in living cells.

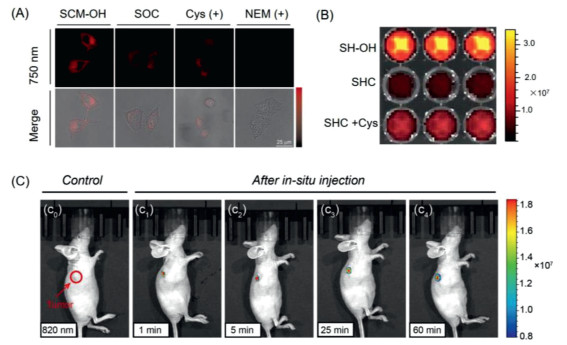

Considered that the SWIR signal possesses deeper tissue penetration, and improved signal-background ratio than that of the NIR signal, the PerkinElmer IVIS spectrum was executed to assess the in vivo performance of SHC as a Cys-triggered SWIR probe. As shown in Fig. 4B, the fluorescence signal at the SWIR region of the plate with SHC could be negligible in PBS/DMSO mixture solution. In contrast, when treated with Cys for 5 min, the signal emerged and could clearly be observed. Afterward, we investigated the capability of SHC for real-time in vivo visualization of Cys activity in tumors (Fig. 4C). When the nude mice were intratumor injected with probe SHC, SHC displayed a remarkable fluorescence signal at SWIR region immediately, indicated that SHC was activated rapidly by endogenous Cys. Furthermore, the SWIR fluorescence signal could still be observed after injecting 1 h (Fig. S10 in Supporting information), which demonstrated SHC could achieve long-term tracking of endogenous Cys activity in vivo. These imaging results further highlight the potential of SHC for in vivo sensing of Cys in the SWIR region.
In summary, we focused on engineering long-wavelength fluorophores for reliable SWIR imaging of Cys in vivo. We have successfully developed a molecular engineering strategy with the cooperation of ICT and ESIPT processes that enabled to construct chromophores with both excitation and emission in the NIR/SWIR region. By employing the "step-by-step" strategy, we rationally engineered the electron-withdrawing building block from DCM to SCM, and grafted HBT in the SCM-based ICT scaffold. The obtained SH-OH displayed a maximum absorption at the NIR region, emission at the SWIR region, large Stokes shift, and excellent photostability. The combination of the SWIR emission and activatable response allows construction of fluorescence probe SHC that can be applied for reliable sensing of Cys both in vitro and in vivo. We anticipate that our strategy of uniting ICT and ESIPT processes would inspire the creation of a generation of quantitative SWIR fluorescence assays for clinical applications.
