Label-free photoelectrochemical sensor based on 2D/2D ZnIn₂S₄/g-C₃N₄ heterojunction for the efficient and sensitive detection of bisphenol A

Full

Qiaowei Chen, Chen Yuan, Chunyang Zhai^*

Affiliations

School of Materials Science and Chemical Engineering, Ningbo University, Ningbo 315211, China

Published: 2022-02-15 doi: 10.1016/j.cclet.2021.07.047

Outline

Abstract

Less

Photoelectrochemical (PEC) sensor is an emerging technology in analysis as the advantage of fast response, high sensitivity and uncomplicated operation. In this study, an effective label-free PEC sensor for bisphenol A (BPA) detecting is constructed, in which ZnIn₂S₄/g-C₃N₄ heterojunction is prepared via a simple hydrothermal method. The characterization outcomes display that the formation of p-n heterojunction helps for promoting the separation efficiency of photo-generated carrier. Under visible light irradiation, the ZnIn₂S₄/g-C₃N₄ modified electrode exhibits broader liner range from 0.05 mmol/L to 30 mmol/L and lower detection limit of 0.016 µmol/L (S/N = 3) with remarkable stability and reproducibility of detection BPA under visible light irradiation. Furthermore, the constructed PEC sensor displays favorable potential for detection of BPA in practical applications.

Key words

Bisphenol A / ZnIn₂S₄/g-C₃N₄ / Heterojunction / Photoelectrochemical sensor

Cite this Article

Qiaowei Chen, Chen Yuan, Chunyang Zhai. Label-free photoelectrochemical sensor based on 2D/2D ZnIn₂S₄/g-C₃N₄ heterojunction for the efficient and sensitive detection of bisphenol A[J]. Chinese Chemical Letters, 2022 , 33 (2) : 983 -986 . DOI: 10.1016/j.cclet.2021.07.047

Full Text

Less

Bisphenol A (BPA, 2,2-bis(4-hydroxyphenyl)propane), an important organic chemical raw material, is always found in much food and drink packaging products [1]. A small amount of BPA could release into food or drink water from food or drink containers due to its high temperature intolerance [2]. However, as an estrogen mimic, BPA may cause imbalance in the endocrine system, immune system and nervous system even at a lower dose of exposure [3]. So that, it is extremely urgent to establish rapid, reliable and simple analytical method to detect BPA in an aquatic environment.

Recently, photoelectrochemical (PEC) sensors, due to the unique separation process of input (light source) and output (electrical) signals, which is given many advantages of almost inappreciable background signals, cheap devices and rapidly high sensitivity, have developed into an effective analytical technology to detect BPA [4-6]. It is noteworthy that the reasoning design and synthesis of photoanode material is considered as a committed step in the process of PEC detecting BPA. Diverse types of photoactive materials, including carbon materials [7, 8], noble metal nanoparticles [9, 10] and semiconductor materials [11-13], have been used as photoanode in PEC sensor for determining BPA. Among them, semiconductor heterojunction has won great attention for its efficient photoelectron/hole pair migration, broadened light absorption range and excellent PEC performance, which shown charming potential in photocatalytic hydrogen generation [14-17], photocatalytic degradation of pollutants [18-22] and PEC detection [4, 23, 24]. For instance, Zhang et al. [13] successfully designed a novel hierarchical hollow ZnCdS@MoS2 heterostructured cages and then used it as PEC aptasensor for lincomycin detection. The result displayed that the PEC aptasensor exhibited a wide liner work range response with a low detection limit for lincomycin detection, which attributed to the synergy between tailored hierarchical hollow structure and close contact heterojunction interface.

Recently, as an important member of ternary chalcogenide, ZnIn₂S₄ with two-dimensional (2D) flower-like structures has triggered wide attention in photocatalysis thanks to its excellent optical and electrical performance, perfect chemical stability and extremely high specific surface area. What is more, ZnIn₂S₄ has an appropriate band gap, which not only endows it strong visible light harvesting ability, but also can make it match with g-C₃N₄. This is benefited to construct the binary ZnIn₂S₄/g-C₃N₄ heterojunction to enhance the photogenerated electron/hole separation and migration efficiency [25-27]. In recent reports, ZnIn₂S₄/g-C₃N₄ heterojunction has been synthesized and applied to photocatalytic H₂ production [26] and photodegradation pollution [27]. However, there were rarely reports that ZnIn₂S₄/g-C₃N₄ heterojunction was used as PEC sensor.

Herein, binary 2D/2D ZnIn₂S₄/g-C₃N₄ heterojunction was easily obtained via a simple hydrothermal method. The scanning electronic microscopy (SEM), transmission electron microscopy (TEM) and high-resolution transmission electron microscopy (HRTEM) were offered to survey the morphology of ZnIn₂S₄ and ZnIn₂S₄/g-C₃N₄. Fig. 1A displays that pure ZnIn₂S₄ exhibits globular flower-like structure with multiple nanosheets and the TEM image of ZnIn₂S₄ (Fig. 1B) is in good agreement with it. Fig. 1C shows the high-resolution (HR-TEM) image of ZnIn₂S₄, in which the lattice spacing (~0.32 nm) is ascribed to (102) crystal plane of ZnIn₂S₄. Fig. 1D shows that ZnIn₂S₄/g-C₃N₄ heterojunction inherits the flower-like structure of ZnIn₂S₄ and g-C₃N₄ nanosheets attach to the surface visually in addition. The TEM and HR-TEM (Figs. 1E and F) further testify that ZnIn₂S₄ and g-C₃N₄ have been in sufficient contacted and formed an effective heterogeneous junction interface.

The crystal structure of samples was investigated by X-ray powder diffraction (XRD) as revealed in Fig. 2A. One can see that the characteristic diffraction peaks in ZnIn₂S₄/g-C₃N₄ are great correspondence relations with the hexagonal ZnIn₂S₄ (JCPDS No. 65-2023), implying that crystalline structure of ZnIn₂S₄ is not be noticeably affected by the introduction of g-C₃N₄ [28, 29]. However, the coincidence of (002) crystal plane of g-C₃N₄ and (102) crystal plane of ZnIn₂S₄ may render us uncertain whether g-C₃N₄ has been correctly introduced. To deeply verify the presence of g-C₃N₄ in ZnIn₂S₄/g-C₃N₄, Fourier transform infrared spectroscope (FT-IR) test was performed (Fig. 2B). For pure ZnIn₂S₄, two adsorption peaks appear at 1398 cm⁻¹ and 1624 cm⁻¹ are associated with the physical absorption of water molecules and hydroxyl groups [30]. For pure g-C₃N₄, several strong peaks found within the limit of 1200-1650 cm⁻¹ are ascribed to the typical stretching modes of g-C₃N₄ heterocycles. The board band in 3000–3500 cm⁻¹ region is attributed to the stretching modes of NH heterocycles and the strong characteristic vibration mode derives from the triazine units results in the sharp peak at 810 cm⁻¹ [31, 32]. Compare with pure g-C₃N₄, all main adsorption peaks emerge in the FT-IR spectra of ZnIn₂S₄/g-C₃N₄, which verify that the successful preparation of the heterojunction.

The optical properties of the samples were characterized by the UV-Vis diffuse reflectance spectra (DRS) (Fig. 2C). The absorption edge of pure g-C₃N₄ is around 460 nm and pure ZnIn₂S₄ shows about 550 nm. For ZnIn₂S₄/g-C₃N₄ heterojunction, the absorption edge extends to 580 nm, guessing that the interaction of ZnIn₂S₄ and g-C₃N₄ made an essential contribution to broaden the absorption in the visible range [33]. The bandgap energy (E_g) could be determined by the following equation: αhv = A(hv − E_g)^n/2, in which α, hv, A represent the absorption coefficient, light frequency and a constant, respectively. The index n is decided by the type of semiconductor (n = 1 for direct transition and n = 4 for indirect transition) and ZnIn₂S₄ and g-C₃N₄ are both the direct-transition type in terms of previously reports [34]. Combine the above-mentioned with Fig. 2D, the E_g of ZnIn₂S₄ and g-C₃N₄ is denoted as 2.5 eV and 2.8 eV, which is close to the literature value [35, 36]. Besides, the equations of E_VB = χ − E_e + 0.5 E_g and E_CB = E_VB − E_g are used to calculate the valence band (VB) and conduction band (CB) energy levels of semiconductors, where E_VB and E_CB are the energy of VB and CB, E_e (~ 4.5 eV) is the energy of free electrons on the hydrogen scale, χ is the geometric mean of the absolute electronegativity of the constituent atoms (4.86 eV for ZnIn₂S₄, 4.63 eV for g-C₃N₄) [37, 38]. Accordingly, the E_VB of ZnIn₂S₄ and g-C₃N₄ is assigned to be + 1.61 eV and + 1.53 eV, and the E_CB of ZnIn₂S₄ and g-C₃N₄ was -0.89 eV and -1.27 eV, respectively.

The X-ray photoelectron spectroscopy (XPS) analysis was conducted to probe the elemental valence state and composition of samples in depth. Fig. S1A (Supporting information) checks all characteristic peaks entailed by C, N, Zn, In, S elements, indicating ZnIn₂S₄ and g-C₃N₄ have already presented in the heterojunction. As shown in Fig. S1B (Supporting information), three peaks of the C 1s spectrum, which center at 288.4 eV and 284.9 eV, are attributed to N–C=N bonds and C-C bonds, and 285.9 eV is interpreted as defect-containing sp²-hybridized carbon in g-C₃N₄ surface [39]. For the N 1s spectrum (Fig. S1C in Supporting information), three peaks refer to C-N-H bonds (401.2 eV), N–C₃ bonds (400.1 eV) and C–N=C bonds (398.8 eV) [30, 40]. By contrast, the peaks negatively shift to 0.2 and 0.4 eV in the C 1s and N 1s spectrum of the binary systems respectively. Nevertheless, the Zn 2p, In 3d and S 2p spectrum underwent an opposite shift between ZnIn₂S₄ and ZnIn₂S₄/g-C₃N₄. Figs. S1D-F (Supporting information) depicts that Zn 2p_1/2 (1021.5 eV) and Zn 2p_3/2 (1044.3 eV), In 3d_3/2 (452.3 eV) and In 3d_5/2 (444.5 eV), S 2p_3/2 (162.78 eV) and S 2p_1/2 (161.88 eV) in g-C₃N₄ increase to Zn 2p_1/2 (1022.5 eV) and Zn 2p_3/2 (1045.6 eV), In 3d_3/2 (452.5 eV) and In 3d_5/2 (444.88 eV), S 2p_3/2 (162.96 eV) and S 2p_1/2 (161.92 eV) in ZnIn₂S₄/g-C₃N₄, respectively [41]. Theoretically, the changes of binding energy are related to the gain and loss of electrons, which not only prove the successfully synthesis of target heterojunction, but also substantiate the existence of active surface electron transfer between the two materials [42, 43].

Electrochemical impedance spectroscopy (EIS) is the best appropriate method to study the electron transfer of different materials. In Nyquist diagram, the smaller the semicircle diameter, the smaller the impedance, implying the faster the electron transfer rate [44]. Distinctly, the electron-transfer resistances (R_ct) of the samples in owning of visible light are smallest (Fig. S2A in Supporting information), which is probably interpreted that the heterojunction interface can act as a connecting bridge to accelerate electron transfer rate, which accelerates the separation rate of photogenic electron/hole pairs with the assistance of visible light [45, 46]. Additionally, differential pulse voltammetry (DPV) determination was carried out in phosphate buffered solution (PBS) containing 50 mmol/L BPA to demonstrate the photo-electrocatalytic performance of the ZnIn₂S₄/g-C₃N₄ modified electrode. Fig. S2B (Supporting information) displays that there has little difference in current density for pure ZnIn₂S₄, however, there exists a relatively large otherness of current density to ZnIn₂S₄/g-C₃N₄ heterojunction with or without visible light. As shown in Fig. S2C, the peak current density of ZnIn₂S₄/g-C₃N₄ (36.57 mA/cm²) with visible-light irradiation is 1.88 times more than that without visible-light. Moreover, the oxidation peak potential slightly shifts negatively, speculating that the formation of heterojunction works positively.

For further understanding the electrocatalytic mechanism of BPA on ZnIn₂S₄/g-C₃N₄ modified electrode, Cyclic Voltammetry (CV) was employed at different scan rates (40–240 mV/s). Figs. S3A-C (Supporting information) displays that the oxidation peak shifts gradually towards positive potential and the peak current (I_p) increases linearly with the scan rate (v) (R² = 0.99914), which demonstrates that the process is controlled by absorption [47]. According to the Laviron's equation (

where E^θ, k^θ, α, n, v, R, T and F mean formal redox potential, (standard rate constant of the reaction, transfer coefficient, electron transfer number, scan rate, gas constant, absolute temperature and Faraday's constant, respectively), it can be calculated that n ≈ 2 (taking α = 0.5, T = 298 K, R = 8.314 J K^-1 mol^-1, and F = 96480 C/mol). Thus, it can be speculated that the electrocatalytic oxidation of BPA might be a two-electron and two-proton process [48-50].

The influence of PBS pH value was investigated in the range of 5.0-10.0. As illustrated in Figs. S3D-F (Supporting information), the current density shows a trend of increasing first and then decreasing, reaching the maximum value at 8.0. The pH of maximal current response is lower than the pK_a of BPA (pK_a = 9.73), indicating the undissociated BPA molecules could be adsorbed better than the dissociated ionic BPA on the ZnIn₂S₄/g-C₃N₄ modified electrode surface [9]. So that, the optimal pH value of 8.0 is chosen in the subsequent experiments. In addition, the linear relation of the oxidation potential (E_p) and pH is expressed as: E_p = – 0.06194pH + 0.97524 (R² = 0.99327) in Fig. S3F and by which, the obtained slope approximate to the theoretical value (57.6 mV per pH) [9, 51]. It indicates that the electron transfer was accompanied by an equal number of protons in electrode reaction, further certifying that the oxidation process would be a two-electron and two-proton process. As can be seen from Fig. S4A (Supporting information), the longer the deposition time, the greater the measured current, and the oxidation peak current density levels off after 240 s, meaning that the adsorbance tends to saturation at 240 s. Furthermore, in order to investigate the effect of current response of the coating amount of ZnIn₂S₄/g-C₃N₄ on electrode, different amount of the samples are coated on the electrode surface. It is clearly shown that 5 mL is the optimum (Fig. S4B in Supporting information), which supposes that the appropriate accumulation of coating volume is responsible to improve the abilities of conductivity and adsorption, while excessive thickness of the electrode surface may impede the electron transfer rate, thus resulting in the dropping of current density.

DPV determination was also seized to evaluate the analytical performance of ZnIn₂S₄/g-C₃N₄ modified electrode under the optimal conditions (pH 8.0 of PBS, 240 s of deposition time, 5 mL of coating amount) and the concentration of BPA from 0.05 mmol/L to 30 mmol/L. Fig. 3A displays that the oxidation peak current density is enhanced continuously with increasing the BPA concentration. Moreover, the oxidation potential shifts negatively with the advancing of concentration, indicating that the oxidation enhanced accordingly. As depicted in Fig. 3B, the two regression curves could be received: I = 0.14514c + 0.00544 (R² = 0.99333) in the range of 0.05 mmol/L to 2 mmol/L; I = 0.0514 c + 0.18823 (R² = 0.99717) in the range of 2 mmol/L to 30 mmol/L. On account of the signal-to-noise ratio is equal to 3 (S/N = 3), the detection limit was estimated to be 0.016 mmol/L. As depicted in Table S1 (Supporting information), which demonstrates the desired results such as detection limits obtained by the proposed sensing system are superior or comparable with others. It also denotes that the ZnIn₂S₄/g-C₃N₄ heterojunction has a bright application prospect in PEC detecting BPA.

The reproducibility and stability of the ZnIn₂S₄/g-C₃N₄ modified electrode (Figs. S5A and B in Supporting information) are investigated by DPV determination in PBS with 5 mmol/L BPA. Firstly, six individual electrodes are utilized to measure the reproducibility and the relative standard deviation (RSD) is 3.07%. Then, stability is estimated every two days. After two weeks, the result displays that the current responses of seven times stay over 90% and the RSD is 4.60%. Based on the above tests, the ZnIn₂S₄/g-C₃N₄ modified electrode has well reproducibility and stability. It is indispensable to study the interference test due to the complexity of the real environment. Some possible interfering substances including inorganic ions (Cl⁻, Na⁺, Cu²⁺, SO₄²⁻) and organic compounds (glucose, p-acetamidophenol, catechol) were selected to examine in 5 mmol/L BPA-contained PBS. The validation results as described in Fig. S5C (Supporting information) reveals that both inorganic ions and organic compounds have slight influence on the BPA detection. For chasing the applicability and sensitivity of as-synthesized material in real sample, the ZnIn₂S₄/g-C₃N₄ modified electrode was used to detect BPA in the real water samples. Table S2 (Supporting information) shows that the average recovery rates of BPA in real water samples including river water, tap water and seawater are in the scope of 92.6% to 104.7%, signifying that as a novel PEC sensor, the ZnIn₂S₄/g-C₃N₄ modified electrode is feasible for the detection of BPA in real samples.

The possible mechanism to use ZnIn₂S₄/g-C₃N₄ modified electrode for photoelectrochemical detection of BPA is proposed and presented in Scheme 1. Thanks to the special flower-like structures of ZnIn₂S₄, large amounts of BPA are adsorbed on the surface of ZnIn₂S₄/g-C₃N₄ heterojunction. As a typical electrochemical (EC) sensor of ZnIn₂S₄/g-C₃N₄, BPA is easily oxidized and loses two electrons through the DPV method, resulting in a corresponding current response. Under the visible-light irradiation, ZnIn₂S₄/g-C₃N₄ is excited to generate electrons and holes in the conduction band and valence band, respectively. Due to the E_CB of g-C₃N₄ being more negative than that of ZnIn₂S₄, the light-generated electrons could move from the conduction band of g-C₃N₄ to ZnIn₂S₄ on the action of ZnIn₂S₄/g-C₃N₄ heterojunction. At the same time, because of the smaller E_VB of g-C₃N₄, the photo-generated holes can transfer from the valence band of ZnIn₂S₄ to g-C₃N₄. The above process can help to promote the separation efficiency of light-generated electrons/hole pairs. More importantly, the photo-generated holes with strong oxidation ability can directly oxidize H₂O/OH⁻ to ^•OH. Both ^•OH and photo-generated holes can oxidize the BPA adsorbing on the surface of ZnIn₂S₄/g-C₃N₄ heterojunction, which further enhances the corresponding current response signal during electrochemical detection.

In summary, a binary PEC sensor has been prepared to detect BPA on the basis of ZnIn₂S₄/g-C₃N₄ heterojunction. The PEC conversion efficiency improved remarkably because of the matched band structures of ZnIn₂S₄ and g-C₃N₄ and the photoelectric synergistic effect, leading to an obviously amplified photocurrent response signal of BPA detection when ZnIn₂S₄/g-C₃N₄ modified electrode was used as a sensor. In other words, the PEC sensor displayed an appreciable detection sensitivity, remarkable stability and reproducibility, low detection limit, and wide liner range for the determination of BPA. These results provide a novel facile strategy for the establishment of sensitive BPA photoelectrochemical sensors.

Declaration of competing interest

Less

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Acknowledgment

Less

The present study was supported by the Key Laboratory of Resource Chemistry, Ministry of Education (No. KLRC_ME2002).

Supplementary materials

Less

Supplementary material associated with this article can be found, in the online version, at doi:10.1016/j.cclet.2021.07.047

References

Less

[1]

L.J. Ling, J.P. Xu, Y.H. Deng, et al., Anal. Methods 10 (2018) 2722-2730.

[2]

P. Jing, X.M. Zhang, Z.X. Wu, et al., Talanta 141 (2015) 41-46.

[3]

S.J. Hu, Y.J. Yu, Y. Guan, et al., Chin. Chem. Lett. 31 (2020) 2839-2842.

[4]

L. Shi, Y. Yin, L.C. Zhang, et al., Appl. Catal. B: Environ. (2019) 405-422.

[5]

J. Shu, D.P. Tang, Anal. Chem. 92 (2020) 363-377.

[6]

L.W. Yang, S. Zhang, X.Q. Liu, et al., J. Mater. Chem. B 8 (2020) 7880-7893.

[7]

A. Thamilselvan, V. Rajagopal, V. Suryanarayanan, J. Alloy. Compd. 786 (2019) 698-706.

[8]

P.C. Yan, Z. Mo, L. Xu, et al., Electrochim. Acta 319 (2019) 10-17.

[9]

B.Y. Su, H.L. Shao, N. Li, et al., Talanta 166 (2017) 126-132.

[10]

N.B. Messaoud, M.E. Ghica, C. Dridi, M.B. Ali, C.M.A. Brett, Sensor. Actuat. B: Chem. 253 (2017) 513-522.

[11]

D.N. Pei, A.Y. Zhang, X.Q. Pan, Y. Si, H.Q. Yu, Anal. Chem. 90 (2018) 3165-3173.

[12]

X.Y. Bai, Y. Zhang, W.K. Gao, et al., Biosens. Bioelectron. 168 (2020) 112522.

[13]

X. Zhang, J.J. Peng, Y.P. Ding, et al., Sensor. Actuat. B: Chem. 306 (2020) 127552.

[14]

Y.S. Chang, P.Y. Hsieh, T.F.M. Chang, et al., J. Mater. Chem. A 8 (2020) 13971-13979.

[15]

L.N. Wang, X.Q. Shi, Y.F. Jia, et al., Chin. Chem. Lett. 32 (2021) 1869-1878.

[16]

Y.F. Li, M. Zhang, L. Zhou, et al., Acta. Phys-Chim. Sin. 37 (2021) 2009030.

[17]

S.J. Sun, H. Ding, L.F. Mei, et al., Chin. Chem. Lett. 31 (2020) 2287-2294.

[18]

M. Ismael, J. Alloy. Compd. 846 (2020) 156446.

[19]

Z.D. Wei, J.Y. Liu, W. Shangguan, Chin. J. Catal. 41 (2020) 1440-1450.

[20]

Z.R. Zhou, Y.N. Li, M.M. Li, Y. Li, S.H. Zhan, Chin. Chem. Lett. 31 (2020) 2698-2740.

[21]

M.C. Yu, H.J. Liang, R.N. Zhan, L. Xu, J.F. Niu, Chin. Chem. Lett. 32 (2021) 2155-2158.

[22]

L.Y. Meng, Y. Qu, L.Q. Jing, Chin. Chem. Lett. 32 (2021) 3265-3276.

[23]

S.Y. Yu, L. Zhang, L.B. Zhu, et al., Coordin. Chem. Rev. 393 (2019) 9-20.

[24]

Z.G. Wu, J.L. Zhao, Z.K. Yin, et al., Sensor. Actuat. B: Chem. 312 (2020) 127978.

[25]

W. Chen, T.Y. Liu, T. Huang, X.H. Liu, X.J. Yang, Nanoscale 8 (2016) 3711-3719.

[26]

B. Lin, H. Li, H. An, et al., Appl. Catal. B: Environ. 220 (2018) 542-552.

[27]

H.C. Yang, R.Y. Cao, P.X. Sun, et al., Appl. Catal. B: Environ. 256 (2019) 117862.

[28]

T.M. Su, Z.D. Hood, M. Naguib, et al., Nanoscale 11 (2019) 8138-8149.

[29]

Y.J. Chen, S.W. Hu, W.J. Liu, et al., Dalton. T 40 (2011) 2607-2613.

[30]

Z. Zhang, K. Liu, Z. Feng, Y. Bao, B. Dong, Sci. Rep. 6 (2016) 19221.

[31]

S.C. Yan, Z.S. Li, Z.G. Zou, Langmuir 25 (2009) 10397-10401.

[32]

L.S. Jiang, Y. Xie, F. He, et al., Chin. Chem. Lett. 32 (2021) 2187-2191.

[33]

B. Zhang, H. Wang, J. Xi, F. Zhao, B. Zeng, Sensor. Actuat. B: Chem. 298 (2019) 126835.

[34]

H. Liu, Z.T. Jin, Z.Z. Xu, Z. Zhang, D. Ao, RSC. Adv. 5 (2015) 97951-97961.

[35]

S.B. Wang, B.Y. Guan, X.W.D. Lou, J. Am. Chem. Soc. 140 (2018) 5037-5040.

[36]

J.W. Fu, J.G. Yu, C.J. Jiang, B. Cheng, Adv. Energy Mater. 8 (2018) 1701503.

[37]

Q. Zhu, Y. Sun, S. Xu, et al., J. Hazard. Mater. 382 (2020) 121098.

[38]

W.K. Jo, T.S. Natarajan, J. Colloid. Interf. Sci. 482 (2016) 58-72.

[39]

Y.X. Wang, F.T. He, L. Chen, et al., Chin. Chem. Lett. 31 (2020) 2668-2672.

[40]

C.S. Lei, W. Zhou, L.J. Shen, et al., ACS Sustain. Chem. Eng. 7 (2019) 16257-16263.

[41]

D.X. Yang, J.L. Liang, L. Luo, et al., Chin. Chem. Lett. 32 (2021) 2534-2538.

[42]

S. Tonda, S. Kumar, M. Bhardwaj, P. Yadav, S. Ogale, ACS Appl. Mater. Inter. 10 (2018) 2667-2678.

[43]

Y.Y. Qin, H. Li, J. Lu, et al., Appl. Catal. B: Environ. 277 (2020) 119254.

[44]

P.C. Yan, L. Xu, D.S. Jiang, et al., Electrochim. Acta 259 (2018) 873-881.

[45]

Z. Li, H.M. Zhang, Q.B. Zha, et al., Microchim. Acta 187 (2020) 526.

[46]

D.L. Yuan, M.T. Sun, S.F. Tang, et al., Chin. Chem. Lett. 31 (2020) 547-550.

[47]

Y.H. Pang, Y.Y. Huang, L. Wang, X.F. Shen, Y.Y. Wang, Environ. Pollut. 263 (2020) 114616.

[48]

Y.Z. Zhou, L.Y. Yang, S.L. Li, Y. Dang, Sensor. Actuat. B: Chem. 245 (2017) 238-246.

[49]

D.N. Pei, A.Y. Zhang, X.Q. Pan, Y. Si, H.Q. Yu, Anal. Chem. 90 (2018) 3165-3173.

[50]

Y.H. Pang, L. Wang. Y.Y. Huang, X.F. Shen, Y.Y. Wang, Environ. Pollut. 263 (2020) 114616.

[51]

Y.Z. Zhou, L.H. Yang, S.H. Li, Y. Dang, Sensor. Actuat. B: Chem. 245 (2017) 238-246.

Appendix

Less

Year 2022 volume 33 Issue 2

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1016/j.cclet.2021.07.047

Receive Date：2021-04-30
Online Date：2025-12-12
Published：2022-02-15

Article Data

Affiliations

History

Received：2021-04-30
Revised：2021-06-28
Accepted：2021-07-19

Affiliations

School of Materials Science and Chemical Engineering, Ningbo University, Ningbo 315211, China

References

Share

https://castjournals.cast.org.cn/joweb/ccl/EN/10.1016/j.cclet.2021.07.047

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

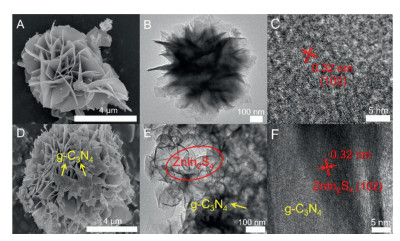

Fig. 1 SEM (A, D), TEM (B, E) and HRTEM (C, F) images of ZnIn₂S₄ (A-C) and ZnIn₂S₄/g-C₃N₄ (D-F).

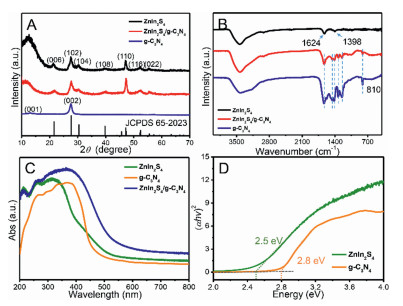

Fig. 2 XRD patterns (A), FT-IR spectra (B) and UV-vis diffuse reflection spectra (C) of samples. Plot (D) of (αhv)² vs. hv for the band gap energy of ZnIn₂S₄ and g-C₃N₄.

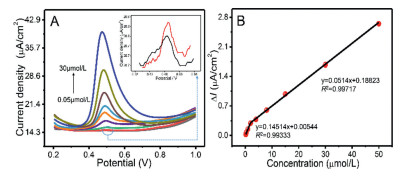

Fig. 3 DPV (A) of ZnIn₂S₄/g-C₃N₄ modified electrode in PBS (pH 8.0) possessing different concentration of BPA (0.05, 0.06, 0.1, 0.4, 1, 2, 4, 8, 15, 30 mmol/L) with visible-light irradiation, insert: DPV of 0.05 and 0.06 mmol/L BPA concentration. The linear relationship (B) of various concentrations vs. current response.

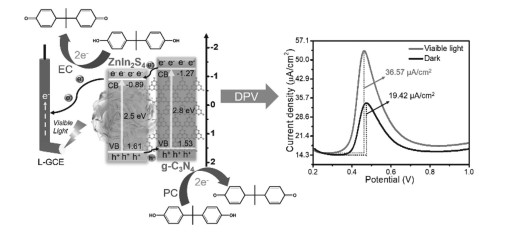

Scheme 1 The mechanism of photoelectrochemical detection for BPA on the ZnIn₂S₄/g-C₃N₄ modified electrode.
