Conductance of a single molecule C₆₀-SnPc heterojunction

Full

Yifan Wang^a, Mingjun Zhong^a, Jie Li^a, Hao Tang^b, Richard Berndt^c, Yajie Zhang^*^,^a, Shimin Hou^*^,^a, Yongfeng Wang^**^,^a^,^d^,^e

Affiliations

^a Key Laboratory for the Physics and Chemistry of Nanodevices and Center for Carbon-based Electronics, Department of Electronics, Peking University, Beijing 100871, China

^b CEMES-CNRS, Boîte Postale 94347, Toulouse 31055, France

^c Institut für Experimentelle und Angewandte Physik, Christian-Albrechts-Universität zu Kiel, Kiel D-24098, Germany

^d Beijing Academy of Quantum Information Sciences, Beijing 100193, China

^e Institute of Spin Science and Technology, South China University of Technology, Guangzhou 511442, China

Published: 2022-02-15 doi: 10.1016/j.cclet.2021.05.060

Outline

Abstract

Less

Geometries of molecule-molecule interfaces strongly influence the current passing from one molecule to another. The contact conductance of molecule-molecule junctions which consist of fullerene and tin phthalocyanine molecules is investigated with a low-temperature scanning tunneling microscope. Two types of molecules are deposited onto Cu(111). Fullerene molecules are transferred to tips through controlled contact of STM tips on molecules. The molecule-molecule junctions are formed by approaching fullerene-terminated tips to tin phthalocyanine molecules on Cu(111). Our experimental method can be extended to study the intermolecular charge transport of a range of molecular junctions.

Key words

Single-molecule electronics / Switch / C₆₀ / Phthalocyanine / STM

Cite this Article

Yifan Wang, Mingjun Zhong, Jie Li, Hao Tang, Richard Berndt, Yajie Zhang, Shimin Hou, Yongfeng Wang. Conductance of a single molecule C₆₀-SnPc heterojunction[J]. Chinese Chemical Letters, 2022 , 33 (2) : 1074 -1076 . DOI: 10.1016/j.cclet.2021.05.060

Full Text

Less

Molecular electronics can be served as a promising choice to utilize single molecules as building blocks for constructing functional components in electronic circuitry [1-5]. Understanding electron transfer at the single-molecule level is indispensable for the construction of electronic devices. A tremendous amount of efforts has been put into investigate the transport of electrons through single molecules. The low-temperature scanning tunneling microscope (STM) is a powerful tool to investigate single molecules on surfaces [6-16]. When approaching STM tips to molecules on surfaces, single-molecule junctions with definite geometries can be formed [17]. The influence of molecular configuration and orientation on the contact conductance has been well established by this way [18-20].

Not only single molcecules, charge transfer between two fullerene (C₆₀) molecules was thoroughly investigated by cryogenic STM [21]. In organic devices, understanding transport properties of organic heterostructures at the single-molecule level plays a more important role in improving their performance. The bulk heterojunction formed by p-type tin phthalocyanine (SnPc) and n-type C₆₀ molecules has been used to fabricate infrared sensitive molecule organic photovoltaic cells [22]. The single molecule C₆₀-SnPc junction can be a model system to study properties of organic hetero-interfaces. In this work, the electron conductance between C₆₀ on STM tip and SnPc on Cu(111) is measured. Our results visualize the charge transfer channels in the molecule junction and demonstrate the influence of the contact geometry on the conductivity of molecule junction.

The experiments were performed with a low temperature STM at 9 K with a base pressure of 10^-9 Pa. The Cu(111) surfaces are prepared by repetitive cycles of Ar ion sputtering and annealing. The etched W tips are indented into Cu(111) in a controlled way to get single-atom tips. C₆₀ and SnPc molecules are evaporated from a heated crucible and deposited onto Cu(111) at room temperature. All images were recorded in a constant height mode and processed with the software WSxM [23].

The Sn atom of SnPc does not lie in the molecular plane, as shown in Fig. 1a. Therefore, SnPc molecules take two different adsorption geometries on metal surfaces with the central Sn atom either below or above the phthalocyanine plane. They are named by Sn-up or Sn-down molecules and can be easily distinguished by STM images. Fig. 1b is the constant current STM image including both Sn-up and Sn-down molecules which exhibit a protrusion or a depression, respectively.

We deposit C₆₀ molecules on the Cu(111) substrate partially covered by SnPc molecules. The C₆₀-terminated STM tip is prepared by contacting a metallic tip to a target C₆₀ molecule and transferring the C₆₀ molecule onto the apex of the tip [24]. And then, the C₆₀-tip is used to contact SnPc to form C₆₀-SnPc heterojunction (Fig. 1c). During the tip approaching, the tunneling current I is recorded. Typical traces of the conductance (G) as a function of the C₆₀-tip displacement (Δz) are described in Figs. 2a and b for Sn-up and Sn-down configuration, respectively.

As the C₆₀-tip approaches towards the center of a SnPc molecule, the conductance rises exponentially in the tunneling region, as shown in Fig. 2. The tip displacements Δz corresponds to the approaching distance from the position opening the feedback loop. The conductance curve changes smoothly from tunneling to contact, similar to that of C₆₀-C₆₀ junction. The contact position is defined as the intersection of the fitted exponential conductance curves in the tunneling and contact regions. The obtained contact conductance of the C₆₀-SnPc junction is 0.0038 G (conductance quantum G₀ = 2e²/h [25]), which is around two order of magnitude smaller than that of single SnPc or C₆₀. For the SnPc-down molecule, the measured contact conductance using the same C₆₀-tip is 0.0070 G₀, much larger that of the SnPc-up molecule. Although the contact conductance of C₆₀-SnPc is slightly different for different C₆₀-tips it is always larger for SnPc-up molecules than that of SnPc-down molecules. Sn-down configuration results in a stronger coupling with metal surface states, which enables a more efficient charge transfer at the substrate-molecule interface owing to an extra channel provided by the Sn ion.

For contact curves shown in Fig. 2, only the conductance of one C₆₀-SnPc geometry is measured. It is desirable to contact SnPc at different position to compare their transport properties. Therefore, we acquire constant-height STM images of SnPc molecules with the C₆₀ modified tip at contact regions to visualize the conductance at various molecular positions. Constant-current STM images of SnPc-up and -down molecules shown in Figs. 3a and e are acquired via metal tip for comparison. Using the C₆₀-tip, constant-height STM images of SnPc-up measured at the tunneling, transition and contact regions are shown in Figs. 3b–d, respectively. Notably, the Sn atom of SnPc-up can be considered as probe for "reverse" imaging of the tip-C₆₀ molecule. Fig. 3b shows a uniformly bright dot that corresponds to a pentagon of the C₆₀ cage. Same to the metallic tip, the Sn atom is brighter than lobes in Fig. 3b. It means that the geometric structure plays a dominant role for the image contrast. At the transition region, the brightness (conductance) of Sn and lobes looks similar (Fig. 3c). At the contact region, the conductance of the C₆₀-SnPc-up junction at lobes of SnPc becomes larger than that at the central Sn region. In contrast, conductance images do not change clearly for the C₆₀-SnPc-down junction from tunneling to contact regions (Figs. 3f–h).

It is known that the molecular orbitals close to the Fermi level has a strong influence on the single molecule conductance. To understand conductance maps shown in Fig. 3, density functional theory (DFT) calculations are used to calculate orbitals of SnPc and the method has been reported previously [26]. The calculated molecular orbitals for SnPc molecules in vacuum are shown in Fig. 4 where the upper part shows the orbitals of SnPc-up molecule and the lower part displays those of SnPc-down molecule. The molecular LUMO and LUMO + 1 are degenerated. This means that their energies are at the same level.

For the single-molecule conductance maps, the transport properties of C₆₀-SnPc junctions at various positions are measured. To compare the conductance difference between two SnPc configurations, we perform experiments on the SnPc molecules in the self-assembled monolayer. Fig. 5 displays the STM images acquired before and after contact. The molecules in the film adsorb partly with the Sn-up and Sn-down configurations, which are marked by the red and green boxes. At the tunneling region, the image shows a bright protrusion at molecular center for SnPc-up, indicating larger conductivity. At the contact region, the contrast reversal demonstrates that the C₆₀-SnPc-down junction is more conductive compared to the C₆₀-SnPc-up junction, which is consistent with the result of single molecules.

In conclusion, a single molecule C₆₀-SnPc heterojunction has been systematically studies using low-temperature STM and DFT calculation. The influence of contact geometry on the local conductance of the single molecule p-n junction has been well established. Qualitative study of single molecule p-n junction is beneficial for both the construction of single-molecule devices and understanding the relation between structures and performances of the bulk heterojunction layers.

Declaration of competing interest

Less

The authors report no declarations of interest.

Acknowledgments

Less

This work is supported by the Ministry of Science and Technology (Nos. 2018YFA0306003, 2017YFA0205003) and National Natural Science Foundation of China (Nos. 21972002, 21902003). DFT calculations are carried out on TianHe-1A at National Supercomputer Center in Tianjin and supported by High-performance Computing Platform of Peking University.

References

Less

[1]

P. Hellmann, G., E., et al. Nature 559 (2018) 232–235.

[2]

C.C. Huang, A.V. Rudnev, W.J. Hong, T. Wandlowskia, Chem. Soc. Rev. 44 (2015) 889–901.

[3]

N. Xin, X.F. Guo, Chem 3 (2017) 373–376.

[4]

T.A. Su, M. Neupane, M.L. Steigerwald, L. Venkataraman, C. Nuckolls, Nat. Rev. Mater. 1 (2016) 16002.

[5]

M.S. Inkpen, M. Lemmer, T. Albrecht, et al., J. Am. Chem. Soc. 137 (2015) 9971–9981.

[6]

J. Schöneberg, N.M. Caffrey, P. Ferriani, S. Heinze, R. Berndt, Phys. Rev. B 94 (2016) 115418.

[7]

N. Hauptmann, K. Scheil, R. Berndt, et al., J. Am. Chem. Soc. 135 (2013) 8814–8817.

[8]

H. Zheng, A. Weismann, R. Berndt, Phys. Rev. Lett. 110 (2013) 226101.

[9]

C. Li, X. Zhang, Y.F. Wang, et al., J. Am. Chem. Soc. 139 (2017) 13749–13753.

[10]

Y.J. Zhang, X. Zhang, Y.F. Wang, et al., J. Am. Chem. Soc. 142 (2020) 17928–17932.

[11]

X. Zhang, N. Xue, Y.F. Wang, et al., ACS Nano 13 (2019) 1385–1393.

[12]

J. Liu, J. Li, Y.F. Wang, et al. Nat. Commun. 12 (2021) 1–10.

[13]

Q. Xue, Y.J. Zhang, Y.F. Wang, Chin. Chem. Lett. 30 (2019) 384–387.

[14]

R.N. Li, X. Zhang, Y.F. Wang, Acta Phys. Chim. Sin. 37 (2021) 2011060.

[15]

Z.C. Huang, Y.Z. Dai, Kai Wu, et al., Acta Phys. Chim. Sin. 36 (2020) 1907043.

[16]

W.Y. Wang, J.F. Zhang, Z. Li, X. Shao, Acta Phys. Chim. Sin. 36 (2020) 1911035.

[17]

N. Néel, J. Kröger, R. Berndt et al., Phys. Rev. Lett. 98 (2007) 065502.

[18]

Y.F. Wang, J. Kröger, R. Berndt, et al., Phys. Rev. Lett. 104 (2010) 176802.

[19]

N. Néel, J. Kröger, L. Limot†, R. Berndt, Nano Lett. 8 (2005) 1291–1295.

[20]

G. Schull1, T. Frederiksen, A. Arnau, D. Sánchez-Portal, R. Berndt, Nat. Nanotechnol. 6 (2010) 23–27.

[21]

G. Schull, T. Frederiksen, M. Brandbyge, R. Berndt, Phys. Rev. Lett. 103 (2009) 206803.

[22]

T. Mouhib, C. Poleunis, R. Möllers, et al., Surf. Interface. Anal. 45 (2013) 163–166.

[23]

I. Horcas, R. Fernández, J.M. Gómez-Rodríguez, et al., A. Rev. Sci. Instrum. 78 (2007) 013705.

[24]

Y.J. Zhang, Y.F. Wang, J.T. Lü, M. Brandbyge, R. Berndt, Angew. Chem. Int. Ed. 129 (2017) 11931–11935.

[25]

J. Kröger, N. Néel, A. Sperl, Y.F. Wang, R. Berndt, New J. Phys. 11 (2009) 125006.

[26]

Y.F. Wang, J. Kröger, R. Berndt, W. r Hofer, Angew. Chem. Int. Ed. 48 (2009) 1261–1265.

Appendix

Less

Year 2022 volume 33 Issue 2

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1016/j.cclet.2021.05.060

Receive Date：2021-05-17
Online Date：2025-12-12
Published：2022-02-15

Article Data

Affiliations

History

Received：2021-05-17
Revised：2021-05-24
Accepted：2021-05-26

Affiliations

^a Key Laboratory for the Physics and Chemistry of Nanodevices and Center for Carbon-based Electronics, Department of Electronics, Peking University, Beijing 100871, China

^b CEMES-CNRS, Boîte Postale 94347, Toulouse 31055, France

^c Institut für Experimentelle und Angewandte Physik, Christian-Albrechts-Universität zu Kiel, Kiel D-24098, Germany

^d Beijing Academy of Quantum Information Sciences, Beijing 100193, China

^e Institute of Spin Science and Technology, South China University of Technology, Guangzhou 511442, China

References

Share

https://castjournals.cast.org.cn/joweb/ccl/EN/10.1016/j.cclet.2021.05.060

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

Fig. 1 (a) Top view and side view of SnPc. (b) Constant-current STM image of SnPc on Cu (111) obtained with a metallic tip (4.0 × 4.0 nm²; -0.1 V, 0.1 nA). Red and green boxes mark the SnPc-up and SnPc-down molecules, respectively. (c) The schematic diagram of the molecule p-n junction constructed by STM.

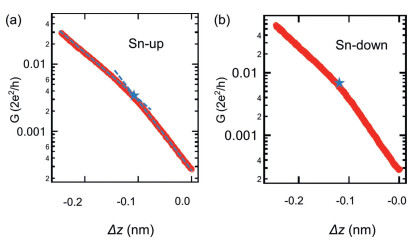

Fig. 2 (a) Conductance versus tip displacement of a SnPc-up molecule. (b) Conductance versus tip displacement of a Sn-down molecule. Blue stars in both (a) and (b) represent the positions where the contact is formed.

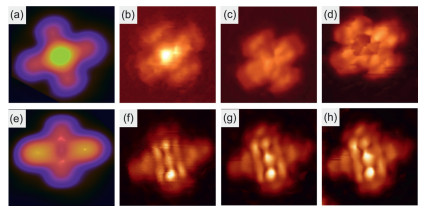

Fig. 3 (a) Constant-current STM image of a SnPc-up molecule on Cu(111) obtained with a metallic tip (-0.01 V, 0.1 nA). (b–d) Constant-height STM images of a Sn-up molecule recorded with a C60-tip from tunneling to contact (-0.01 V). (e) Constant-current STM image of a SnPc-down molecule on Cu(111) obtained with a metallic tip (-0.01 V, 0.1 nA). (f–h) Constant-high STM images of identical Sn-down molecule recorded with a C₆₀ tip from tunneling to contact (-0.01 V). The size for all images are 4.0 × 4.0 nm².

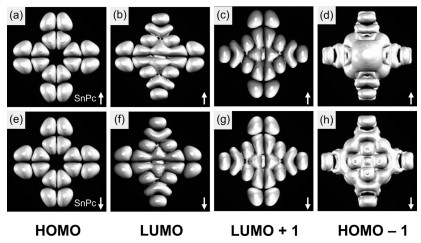

Fig. 4 Calculated molecular orbitals of SnPc in vacuum. (a, e) HOMO, (b, f) LUMO, (c, g) LUMO + 1, (d, h) HOMO - 1. The white arrows in the figure represent the Sn down or up with respect the molecular plane.

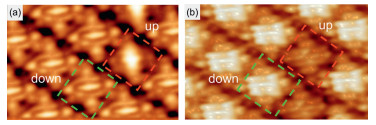

Fig. 5 Constant-height STM image of SnPc on Cu(111) obtained via a C₆₀-tip at the (a) tunneling and (b) contact regions. The sample voltage is -0.01 V. Red and green boxes marked the Sn-up and Sn-down molecules, respectively.
