(±)-Pyriindolin with a 2, 2′-bipyridine-spiro[furan-3, 3′-indoline] chimeric skeleton from the endophytic <i>Streptomyces albolongus</i> EA12432

(±)-Pyriindolin with a 2, 2′-bipyridine-spiro[furan-3, 3′-indoline] chimeric skeleton from the endophytic Streptomyces albolongus EA12432

PDF

Mengmeng Lan^a^,¹, Tongxu Cui^a^,¹, Kaichun Xia^a, Guodong Cui^a, Yiwen Chu^c, Peng Fu^a^,^b^,^*, Weiming Zhu^a^,^b^,^*

Chinese Chemical Letters | 2022, 33(1) : 508 - 510

Less

Chinese Chemical Letters | 2022, 33(1): 508-510

• Communication •

(±)-Pyriindolin with a 2, 2′-bipyridine-spiro[furan-3, 3′-indoline] chimeric skeleton from the endophytic Streptomyces albolongus EA12432

Full

Mengmeng Lan^a^,¹, Tongxu Cui^a^,¹, Kaichun Xia^a, Guodong Cui^a, Yiwen Chu^c, Peng Fu^a^,^b^,^*, Weiming Zhu^a^,^b^,^*

Affiliations

^a Key Laboratory of Marine Drugs, Ministry of Education of China, School of Medicine and Pharmacy, Ocean University of China, Qingdao 266003, China

^b Laboratory for Marine Drugs and Bioproducts, Pilot National Laboratory for Marine Science and Technology (Qingdao), Qingdao 266237, China

^c School of Pharmacy, Chengdu University, Chengdu 610106, China

Published: 2022-01-15 doi: 10.1016/j.cclet.2021.05.028

Outline

Abstract

Less

(±)-Pyriindolin (1) with a rare molecular backbone formed by fusing a 2, 2′-bipyridine nucleus into a spiro[furan-3, 3′-indoline] skeleton, was isolated from the Streptomyces albolongus EA12432. The constitution and the relative configuration of (±)-1 were determined by extensive spectroscopic analyses, ¹³C calculation and DP4+ probability analysis. The absolute configurations of optically pure (+)-1 and (−)-1 which were obtained after a chiral high performance liquid chromatography (HPLC) separation were further identified by electronic circular dichroism (ECD) calculations. (+)- and (−)-Pyriindolins displayed moderate cytotoxicity against HCT-116 cell line with the half-maximal inhibitory concentration (IC₅₀) values of 2.89 ± 0.17 µmol/L and 4.47 ± 0.26 µmol/L, respectively.

Key words

Pyrisulfoxins / Spiroindolone / Streptomyces sp. / Endophyte / Cytotoxicity

Cite this Article

Mengmeng Lan, Tongxu Cui, Kaichun Xia, Guodong Cui, Yiwen Chu, Peng Fu, Weiming Zhu. (±)-Pyriindolin with a 2, 2′-bipyridine-spiro[furan-3, 3′-indoline] chimeric skeleton from the endophytic Streptomyces albolongus EA12432[J]. Chinese Chemical Letters, 2022 , 33 (1) : 508 -510 . DOI: 10.1016/j.cclet.2021.05.028

Full Text

Less

Natural 2, 2′-bipyridine alkaloids, represented by caerulomycins, are a class of secondary metabolites with distinctive characteristics produced by actinomycetes [1]. Since the first example, caerulomycin A, was discovered from a Streptomyces strain in 1959 [2], a great number of analogs with different structural features have been isolated from actinomycetes, such as collismycins [3], pyrisulfoxins [4] and cyanogrisides [5]. These compounds generally possess favorable bioactivities, including cytotoxic, antimicrobial, immunosuppressive, neuroprotective and anti-inflammatory activities [1−5]. Our group has isolated dozens of 2, 2′-bipyridine alkaloids from the actinomycete strain Actinoalloteichus cyanogriseus WH1–2216–6 and its mutants, some of which showed significant anti-cancer activity [4b, 5a, 5b, 5c, 6]. As part of our ongoing research on new bioactive 2, 2′-bipyridine alkaloids from actinomycetes, Streptomyces albolongus EA12432 was obtained. This strain was isolated from the Chinese medicinal plant Aconitum carmichaeli (Ranunculaceae) [7]. From the culture of EA12432, we previously identified the new compounds pyrisulfoxin C, (±)-pyrisulfoxin D, pyrisulfoxin E and (±)-pyrisulfoxin F (Fig. S2 in Supporting information), among which (±)-pyrisulfoxin D exhibited significant cytotoxicity against a series of cancer cell lines [4b]. To obtain new pyrisulfoxin analogs with small amounts, we re-fermented the strain EA12432 in corn solid media in a large-scale and investigated the different secondary metabolites. As a result, we identified a pair of enantiomers, (±)-pyriindolin (1) (Fig. 1) possess a novel 2, 2′-bipyridine-spiro[furan-3, 3′-indoline] chimeric skeleton formed from 2, 2′-bipyridine-6-carbaldehyde and 2-(7-hydroxy-2-oxoindolin-3-yl)acetic acid.

(±)-Pyriindolin (1) was obtained as a yellow amorphous powder. The molecular formula was established as C₂₃H₁₉N₃O₅S according to its high resolution electrospray ionization mass spectroscopy (HRESIMS) peak (Fig. S3 in Supporting information) at m/z 450.1107 [M + H]⁺ (calcd. for C₂₃H₂₀N₃O₅S, 450.1118). The ¹³C nuclear magnetic resonance (NMR) spectra (Figs. S6 and S7 in Supporting information) showed 23 carbon signals which were classified by heteronuclear single quantum correlation (HSQC) (Fig. S8 in Supporting information) as two carbonyls, nine non-protonated carbons (one sp³ and eight sp² ones), eight sp²-methines, one sp³-methine, one methylene and two methyls (one methoxyl). The ¹H NMR spectra (Figs. S4 and S5 in Supporting information) showed four coupled signals at δ_H 8.35 (H-3′, d, J = 8.0 Hz), 8.04 (H-4′, dd, J = 8.0, 7.7 Hz), 7.54 (H-5′, dd, J = 7.7, 4.7 Hz) and 8.76 (H-6′, d, J = 4.7 Hz) (Table 1), suggesting the presence of a 2-substituted pyridine ring system. One methoxy signal (δ_H 4.02, s) and one methylthio signal (δ_H 1.77, s) were observed in the ¹H NMR spectra (Figs. S4 and S5). Careful comparison of the NMR data with those of pyrisulfoxins E and F [4b] indicated that pyriindolin (1) also contained a 4-methoxy-5-methylthio-2, 2′-bipyridine structure, which could be confirmed by the key correlation spectroscopy (COSY) correlations of H-3′/H-4′/H-5′/H-6′ (Fig. 2 and Fig. S9 in Supporting information), and the key heteronuclear multiple bond correlation (HMBC) correlations of H-4′ to C-2′ (δ_C 154.1), H-3 to C-2′/C-5 (δ_C 120.6), 4–OCH₃ to C-4 (δ_C 166.9) and 5-SCH₃ to C-5 (Fig. 2 and Fig. S10 in Supporting information). In addition, the proton signals at δ_H 5.19 (H-4′′, d, J = 7.6 Hz), 6.40 (H-5′′, dd, J = 7.6, 8.2 Hz) and 6.61 (H-6′′, d, J = 8.2 Hz) (Table 1) were assigned to a vicinal trisubstituted benzene ring, which was further supported by the COSY correlations of H-4′′/H-5′′/H-6′′ (Fig. 2 and Fig. S9), and the key HMBC correlations of H-4′′ to C-7′′a (δ_C 130.3) and H-5′′ to C-3′′a (δ_C 126.6) and C-7′′ (δ_C 141.5) (Fig. 2 and Fig. S10). The HMBC correlations of H-7 (δ_H 6.40, s) to C-2′′ (δ_C 175.7)/C-3′′a/C-9′′ (δ_C 179.1) and H-8′′ to C-7 (δ_C 79.7)/C-2′′/C-3′′ (δ_C 54.1)/C-3′′a/C-9′′ (Fig. 2 and Fig. S10) indicated that the vicinal trisubstituted benzene ring was further fused to form a 7′′-hydroxy-7H-spiro[furan-3′′, 3′′-indoline]−2′′, 9′′ (4H)-dione skeleton moiety. This moiety and the 2, 2ʹ-bipyridine unit were connected to form compound 1 through the C-C sigma bond between C-6 and C-7, confirmed by the HMBC correlation of H-7 to C-5 (Fig. 2 and Fig. S10).

The relative configuration of 1 was assigned by the NOESY correlations of H-8′′a (δ_H 3.20, d) to H-3′ and H-4′′ (Fig. 2 and Fig. S11 in Supporting information). Furthermore, δ_C values of two plausible epimers, (7S, 3′′R)-1 and (7R, 3′′R)-1 (Fig. S12 in Supporting information), were calculated at the B3LYP/6–311++G(2d, p) level [8]. The DP4+ probability analysis (Fig. S12) [9] supported the relative configuration of 1 as (7S*, 3′′R*). To determine its absolute configuration, we measured the electronic circular dichroism (ECD) spectrum. The result showed that compound 1 was not optically active, indicating pyriindolin (1) as a racemic mixture. This was supported by a chiral high performance liquid chromatography (HPLC) analysis (Fig. S1 in Supporting information). Then (±)-1 was successfully resolved via a chiral HPLC separation into two optically pure enantiomers, (+)-1 and (−)-1. To determine their absolute configurations, the predicted ECD spectrum was obtained by the TDDFT [B3LYP/6–31G(d)] method [10]. The measured ECD spectrum of (+)-1 matched well with the calculated ECD curve of (7S, 3′′R)-1 (Fig. 3). Thus, the absolute configurations of (+)- and (−)-pyriindolins were unambiguously assigned as (7S, 3′′R) and (7R, 3′′S).

The plausible biosynthetic pathways for (±)-1 were postulated (Scheme 1). Tryptophan was utilized to form the intermediate, indole-3-acetic acid (a), which further underwent oxidation to form intermediate, 2-(7-hydroxy-2-oxoindolin-3-yl)acetic acid (b). Meanwhile, another biosynthetic precursor, 4-methoxy-5-methylthio-2, 2′-bipyridine-6-carbaldehyde (c) was formed from lysine, malonyl-CoA, cysteine and leucine [11]. The two precursors b and c underwent an intermolecular aldol condensation followed by an intramolecular esterification to generate the racemic products, (±)-pyriindolin (1).

Compounds (+)-1 and (−)-1 were evaluated for cytotoxicity against the cancer cell lines HCT-116, A549, Hela and K562. (+)-1 and (−)-1 exhibited inhibitory activity against HCT-116 cell line with the IC₅₀ values of 2.89 ± 0.17 µmol/L and 4.47 ± 0.26 µmol/L, respectively, while no obvious cytotoxic activity was observed for other cell lines at the concentration of 10 µmol/L.

In summary, we identified a pair of enantiomers containing a novel 2, 2′-bipyridine-spiro[furan-3, 3′-indoline]chimeric skeleton, (+)- and (−)-pyriindolins. The formation mechanism of this spirocyclic scaffold could provide objects for the study of condensation reactions involving aldehyde in the biosynthesis of chimeric natural products.

Declaration of competing interest

Less

The authors declare no competing financial interest.

Acknowledgments

Less

This work was financially supported by the National Key Research and Development Program of China (No. 2019YFC0312504) and the National Natural Science Foundation of China (Nos. 41876172, U1906213).

Supplementary materials

Less

Supplementary material associated with this article can be found, in the online version, at doi:10.1016/j.cclet.2021.05.028

References

Less

[1]

X. Mei, M. Lan, Y. Jin, W. Zhu, Chin. J. Mar. Drugs. 36 (2017) 83–92.

[2]

A. Funk, P.V. Divekar, Can. J. Microbiol. 5 (1959) 317–321.

[3]

(a) K. Shindo, Y. Yamagishi, Y. Okada, H. Kawai, J. Antibiot. 47 (1994) 1072–1074;(b)S. Gomi, S. Amano, E. Sato, et al., J. Antibiot. 47 (1994) 1385–1394.

[4]

(a) N. Tsuge, K. Furihata, K. Shin-Ya, et al., J. Antibiot. 52 (1999) 505–507;(b) Y. Du, C. Wang, G. Cui, et al., Front. Chem. 8 (2020) 248.

[5]

(a) P. Fu, P. Liu, X. Li, et al., Org. Lett. 13 (2011) 5948–5951;(b) P. Fu, Y. Zhu, X. Mei, et al., Org. Lett. 16 (2014) 4264–4267;(c) X. Mei, M. Lan, G. Cui, et al., Org. Chem. Front. 6 (2019) 3566–3574;(d) A. Lahoum, N. Sabaou, C. Bijani, et al., Saudi Pharm. J. 27 (2019) 56–65.

[6]

P. Fu, S. Wang, K. Hong, et al., J. Nat. Prod. 74 (2011) 1751–1756.

[7]

H. Yin, J. Lin, Y. Chu, Chin. J. Antibiot. 41 (2016) 653–657.

[8]

(a) P. Fu, C. Yang, Y. Wang, et al., Org. Lett. 14 (2012) 2422–2425;(b) P. Fu, F. Kong, X. Li, et al., Org. Lett. 16 (2014) 3708–3711.

[9]

N. Grimblat, M.M. Zanardi, A.M. Sarotti, J. Org. Chem. 80 (2015) 12526–12534.

[10]

P.J. Stephens, J. Pan, F.J. Devlin, et al., J. Org. Chem. 72 (2007) 2508–2524.

[11]

Y. Zhu, P. Fu, Q. Lin, et al., Org. Lett. 14 (2012) 2666–2669.

Appendix

Less

Year 2022 volume 33 Issue 1

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1016/j.cclet.2021.05.028

Receive Date：2021-03-16
Online Date：2025-12-12
Published：2022-01-15

Article Data

Affiliations

History

Received：2021-03-16
Revised：2021-04-28
Accepted：2021-05-12

Affiliations

^a Key Laboratory of Marine Drugs, Ministry of Education of China, School of Medicine and Pharmacy, Ocean University of China, Qingdao 266003, China

^b Laboratory for Marine Drugs and Bioproducts, Pilot National Laboratory for Marine Science and Technology (Qingdao), Qingdao 266237, China

^c School of Pharmacy, Chengdu University, Chengdu 610106, China

References

Share

https://castjournals.cast.org.cn/joweb/ccl/EN/10.1016/j.cclet.2021.05.028

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

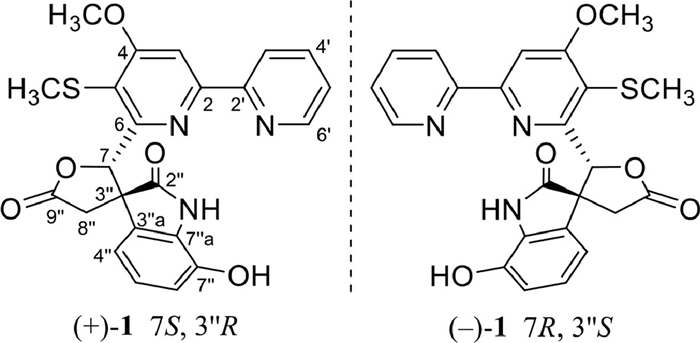

Fig. 1 Structures of compounds (±)-1.

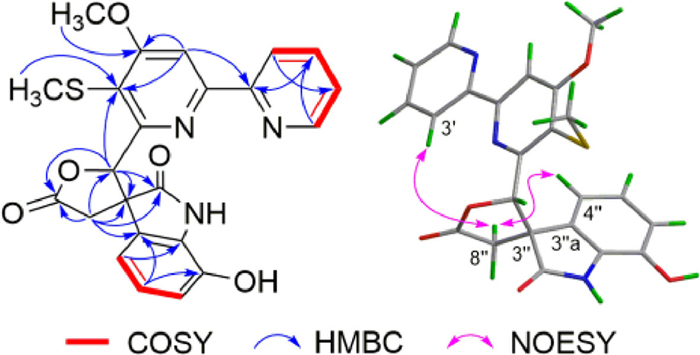

Fig. 2 Key 2D NMR correlations of 1.

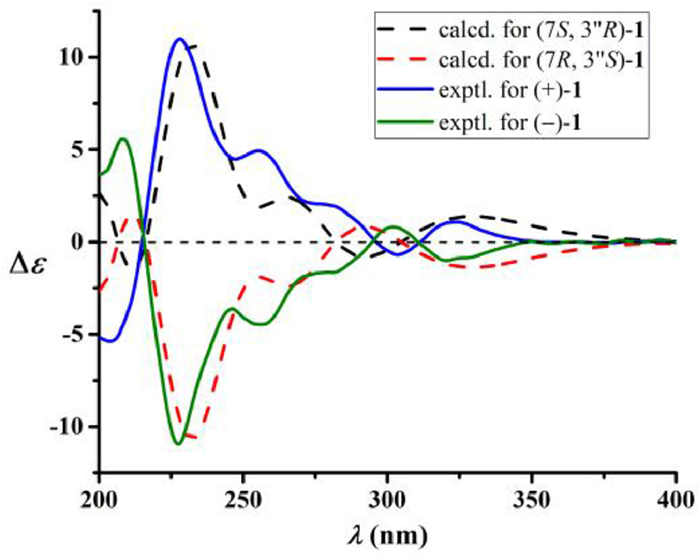

Fig. 3 Experimental and calculated ECD curves for (±)-1.

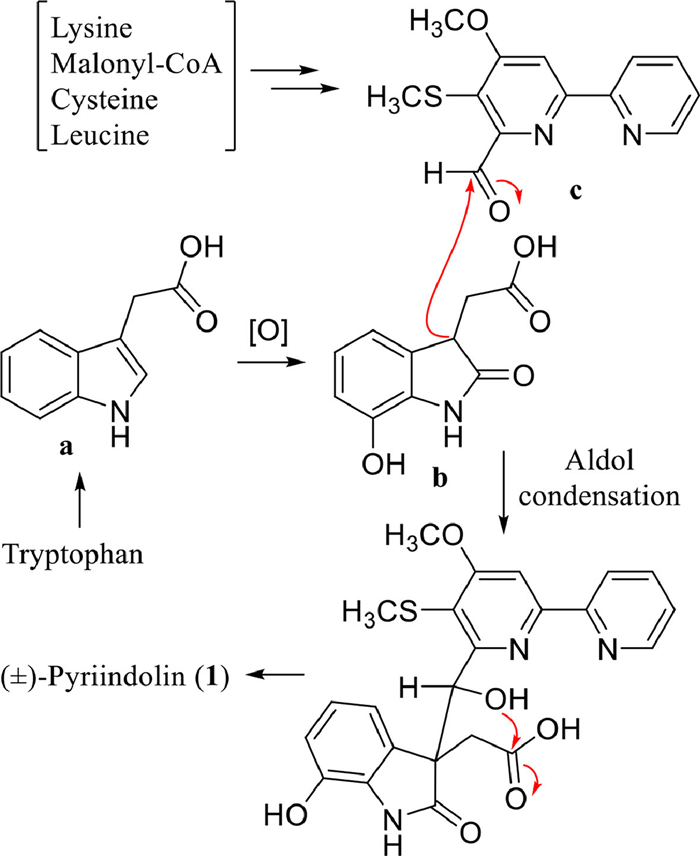

Scheme 1 The postulated biosynthesis of (±)-1.
