Low-overpotential electrochemical ammonia synthesis using BiOCl-modified 2D titanium carbide MXene

Full

Yu Wang^a^,¹, Munkhbayar Batmunkh^b^,¹, Hui Mao^a^,¹, Hui Li^a, Baohua Jia^c, Shuyao Wu^a, Daliang Liu^a, Ximing Song^a, Ying Sun^a^,^*, Tianyi Ma^c^,^*

Affiliations

^a Key Laboratory for Green Synthesis and Preparative Chemistry of Advanced Materials of Liaoning Province, College of Chemistry, Liaoning University, Institute of Clean Energy Chemistry, Shenyang 110036, China

^b Centre for Catalysis and Clean Energy, School of Environment and Science, Griffith University, Gold Coast, Queensland 4222, Australia

^c Centre for Translational Atomaterials, School of Science, Swinburne University of Technology, Hawthorn VIC 3122, Australia

Published: 2022-01-15 doi: 10.1016/j.cclet.2021.05.025

Outline

Abstract

Less

Electrochemical synthesis of ammonia has the advantages of low energy consumption and promising environmental protection, as compared to the traditional Haber-Bosch process. However, the commercial utilization of this novel system is limited by the low Faradaic efficiency, poor ammonia yield and high overpotential due to the strong N≡N bond and the dominant competing reaction of hydrogen evolution reaction (HER). Herein, a BiOCl-modified two-dimensional (2D) titanium carbide MXenes nanocomposite (BiOCl@Ti₃C₂T_x) is proposed as a promising electrocatalyst for ambient nitrogen (N₂) reduction reaction with excellent catalytic performance and superior long-term stability at low overpotential. In 0.1 mol/L HCl, this catalyst attains a high Faradic efficiency of 11.98% and a NH₃ yield of 4.06 µg h⁻¹ cm⁻² at −0.10 V (vs. RHE), benefiting from its strong interaction of Bi 6p band with the N 2p orbitals, combined with its large specific surface area and the facile electron transfer.

Key words

BiOCl / Ti₃C₂T_x / Electrocatalytic / Ammonia / N₂ reduction reaction

Cite this Article

Yu Wang, Munkhbayar Batmunkh, Hui Mao, Hui Li, Baohua Jia, Shuyao Wu, Daliang Liu, Ximing Song, Ying Sun, Tianyi Ma. Low-overpotential electrochemical ammonia synthesis using BiOCl-modified 2D titanium carbide MXene[J]. Chinese Chemical Letters, 2022 , 33 (1) : 394 -398 . DOI: 10.1016/j.cclet.2021.05.025

Full Text

Less

Ammonia (NH₃) is an important industrial raw material, which has been widely used in agriculture, industry, energy storage and other fields [1-3]. At present, approximately 160 million metric tons of NH₃ is produced by using the traditional Haber-Bosch process, which converts high purity N₂ and H₂ to NH₃ under high temperatures (400–600 ℃) and high pressures (200–300 atm), leading to significant energy consumption and CO₂ emissions [4, 5]. Therefore, the energy crisis and man-made climate change warn us to explore more sustainable and economical techniques for NH₃ production.

Electrochemical N₂ reduction reaction (NRR) is a promising alternative method that can potentially synthesize NH₃ under ambient conditions [6-8]. However, the robust N≡N bond, the extremely weak N₂ adsorption and the dominant competing reaction of hydrogen evolution reaction (HER) lead to low Faradaic efficiency (FE), unsatisfied ammonia yield and high overpotential, which limit this novel system from its possible commercial utilization [9]. Although substantial progress has been made in this cutting-edge research field, efficient electrocatalysts for NRR are still in demand [10-16]. Bi-based materials, including metal Bi nanoparticles [17], Bi ultrathin nanosheets [18], bismuth oxide [19] and Bi₄V₂O₁₁/CeO₂ hybrid [20], exhibit many promising features such as non-toxic, environment-friendly and unique electronic structure [21], endowing them with attractive electrochemical and photocatalytic N₂ reduction potential [22, 23]. Studies have shown that the excellent NRR performance of bismuth is attributed to its strong interaction of Bi 6p band with the N 2p orbitals, which facilitates the N₂ adsorption and activation [24, 25]. As an important bismuth-based halide, BiOCl has widely been used in photochemistry fields due to its remarkable electrical, optical and catalytic properties, as well as excellent stability [26], but it has been rarely used in electrocatalytic NRR partly due to the inconvenient electrons and protons transformation. Among diversified catalytic performance improvement strategies [27-29], multicomponent strategy is expected to be a simple and effective method, which can enhance the NRR performance of electrocatalysts through reasonable combination of diverse functional components.

In this communication, BiOCl-modified Ti₃C₂T_x MXene (BiOCl@Ti₃C₂T_x) was synthesized as a highly efficient electrochemical nitrogen fixation material via in-situ hydrothermal growth of BiOCl on the Ti₃C₂T_x (see Supporting information for preparation details). The as-obtained BiOCl@Ti₃C₂T_x is superior in NRR activity to its two components under ambient conditions. Ti₃C₂T_x, as a new kind of two-dimensional (2D) materials, has been widely used in batteries [30], supercapacitors [31], solar cells [32] and other fields due to its excellent conductivity, stability and large specific surface area [33-36] As reported, Ti₃C₂T_x also has NRR activity, which could enhance the electron transfer of BiOCl and serve as a robust support to prevent structural changes during electrochemical processes. The NH₃ yield and Faradaic efficiency (FE) of BiOCl@Ti₃C₂T_x at −0.10 V versus reversible hydrogen electrode (RHE) were 4.06 µg h⁻¹ cm⁻² and 11.98% in 0.1 mol/L HCl, respectively, which are significantly higher than those obtained by BiOCl (1.05 µg h⁻¹ cm⁻² and 1.88%) and Ti₃C₂T_x (2.26 µg h⁻¹ cm⁻² and 2.43%). Remarkably, this newly designed catalyst also showed good selectivity and electrochemical stability.

The crystalline phase of the obtained BiOCl@Ti₃C₂T_x was studied using an X-ray diffraction (XRD). As shown in Fig. 1a, the characteristic diffraction peak at 9.0° can be assigned to the (002) crystal plane of Ti₃C₂T_x [37], and the peaks appearing at 12.0°, 25.9°, 32.5°, 33.4°, 40.9°, 46.6°, 49.7°, 54.1° and 58.6° are indexed to the (001), (101), (110), (102), (112), (200), (113), (211) and (212) planes of BiOCl (JCPDS No. 06–0249) [38], respectively, indicating the successful preparation of BiOCl@Ti₃C₂T_x.

A typical scanning electron microscopy (SEM) image (Fig. 1b) shows the etched Ti₃C₂T_x flakes with a distinct accordion shape and smooth layers separated mostly from each other, indicating the successful removal of Al layer from the Ti₃AlC₂ (MAX) phase. After the hydrothermal reaction, the surface of the as-synthesized BiOCl@Ti₃C₂T_x becomes rough due to the coating of BiOCl nanoparticles as shown in Fig. 1c. The BiOCl nanoparticles, with the particle size of approximately 20 nm, uniformly deposited on the surface of the layered Ti₃C₂T_x. This layered structure enables sufficient infiltration of the electrolyte and better exposure of active sites to N₂, and thus yielding a satisfactory electrocatalytic NRR activity. Moreover, the high-resolution transmission electron microscopy (HRTEM) image (Fig. 1d) shows an interplanar spacing of 0.274 nm, indexed to the (110) plane of BiOCl. Furthermore, the energy dispersive X-ray spectroscopy (EDS) elemental mapping analysis of BiOCl@Ti₃C₂T_x further confirms the uniform distribution of Bi, Ti, C, O and Cl elements throughout the catalyst (Fig. 1e). The loading contents of Bi and Ti were 6.47 wt% and 21.78 wt%, respectively, as measured by inductively coupled plasma atomic emission spectrometry (ICP-AES).

X-ray photoelectron spectroscopy (XPS) was employed to study the elemental composition and chemical state of the materials. All binding energies were calibrated against C 1s at 284.8 eV. The survey spectrum of BiOCl@Ti₃C₂T_x composites suggest that the Ti, C, O, Bi and Cl elements exist in the composite (Fig. 2a), which is in excellent agreement with the XRD and EDS mapping. The high-resolution Ti 2p spectrum of BiOCl@Ti₃C₂T_x (Fig. 2b) could be fitted with three doublets (Ti 2p_3/2–Ti 2p_1/2) [39]. The peaks located at 454.7 eV and 455.9 eV correspond to Ti 2p_3/2 binding energies of Ti–C and Ti(II) bond, respectively. The Ti 2p_1/2 of the BiOCl@Ti₃C₂T_x lied in 460.6 eV and 461.5 eV are consistent with the bonds of Ti–C and Ti(II), respectively. While the peaks at 458.9 eV and 465.0 eV correspond to the Ti 2p_3/2 and Ti 2p_1/2 binding energies of the Ti–O bonds, which are due to the presence of abundant hydrophilic functionalities (–O and –OH) after etching by HF [40-42]. In addition, Fig. 2c shows the XPS spectrum of the C 1s region, where the peaks of 281.5, 284.8, 286.4 and 288.1 eV can be associated with the Ti–C, C–C, C–O and HO–C=O bonds, respectively [43-45]. The three peaks at 529.9, 530.9 and 532.6 eV in the O 1s region (Fig. 2d) can be attributed to the Bi–O, Ti–O, and the oxygen containing components (H₂O and –OH) adsorbed on the surface of BiOCl and Ti₃C₂, respectively [46, 47]. In Fig. 2e, the peaks at 164.8 and 159.5 eV can be assigned to Bi 4f_5/2 and Bi 4f_7/2, respectively, which can be attributed to Bi³⁺ [43, 48]. In Fig. 2f, two peaks at 199.7 and 198.1 eV belong to Cl 2p_1/2 and Cl 2p_3/2, respectively, confirming the existence of Cl^- [49, 50]. The SEM, EDS, TEM, ICP-AES and XPS results confirm that the layered 2D composite, BiOCl@Ti₃C₂T_x, was successfully prepared.

Electrocatalytic NRR experiments were conducted in a two-compartment electrochemical cell separated by a Nafion membrane (Fig. S2 in Supporting information). The catalysts, BiOCl@Ti₃C₂T_x, BiOCl, Ti₃C₂T_x, were coated on carbon cloth (CC) (1 cm × 1 cm) (BiOCl@Ti₃C₂T_x/CC, BiOCl/CC, Ti₃C₂T_x/CC) with a loading of 0.1 mg as the working electrode. The NRR tests were conducted in 0.1 mol/L HCl under ambient conditions. All potentials were reported on the RHE scale. The produced NH₃ were determined by the indophenol blue method [51] and ammonia-sensitive selecting electrode method [52]. The possible by-products (N₂H₄) were tested by the method of Watt and Chrisp [53]. Figs. S3, S4, and S6 (Supporting information) display the calibration curves for the NH₃ concentrations. Fig. S7 (Supporting information) shows the linear sweep voltammetry (LSV) curves for BiOCl@Ti₃C₂T_x/CC in Ar- and N₂-saturated 0.1 mol/L HCl solution. It is clearly seen that the BiOCl@Ti₃C₂T_x/CC achieved a high current density in N₂-saturated solution, indicating the NRR process on the electrode. A series of potentials from −0.20 V to 0.00 V (vs. RHE) were applied to evaluate the NH₃ yields and FEs. Fig. 3a shows the time-dependent current density curves of BiOCl@Ti₃C₂T_x/CC at different potentials in N₂-saturated 0.1 mol/L HCl. The ultraviolet-visible (UV-vis) absorption spectra of various electrolytes (Fig. S8 in Supporting information) indicates that the NRR is produced at various potentials. In addition, the concentrations of the NH₃ were also determined by ammonia-sensitive selecting electrode method to confirm the reliability of colorimetric method. As shown in Fig. 3b, the NH₃ yields are very close to those obtained by indophenol blue method, indicating that it is reliable to use the indophenol blue method for the quantitative analysis of the produced NH₃.

The NH₃ yields and FEs of the BiOCl@Ti₃C₂T_x/CC at various potentials are calculated and have been summarized in Fig. 3c. As observed, the maximum values of NH₃ yield and FE were determined to be 4.06 µg h⁻¹ cm⁻² and 11.98% at −0.10 V (vs. RHE), respectively. This NRR catalytic performance of the as-prepared BiOCl@Ti₃C₂T_x nanocomposite can even be comparable to the yields achieved by some metal-MXene hybrid nanocatalysts at higher overpotential (e.g., Ru@MXene (NH₃ yield rate of 2.3 µmol h⁻¹ cm⁻² at −0.4 V (vs. RHE) in 0.1 mol/L KOH electrolyte) [54], Mo₂C/C (NH₃ yield rate of 11.3 µg h⁻¹ mg⁻¹ at −0.3 V (vs. RHE) in 0.5 M Li₂SO₄ electrolyte) [55] and Ti₃C₂T_x/FeOOH (NH₃ yield rate of 0.53 µg h⁻¹ cm⁻² at −0.5 V (vs. RHE) in 0.5 mol/L Li₂SO₄ electrolyte) [56]). In addition, it should be noted that this work realized the high efficiency ammonia production catalyzed by bismuth-based materials at a low potential of −0.1 V for the first time. It can be observed that when the applied potential becomes more negative, the NH₃ yield and FE decrease owing to the competitive HER [57, 58]. Notably, the by-product N₂H₄ was hardly detected (Fig. S9 in Supporting information), indicating that the BiOCl@Ti₃C₂T_x possessed excellent selectivity toward NH₃ production. We further quantified the amount of NH₃ produced on blank CC, BiOCl/CC, Ti₃C₂T_x/CC and BiOCl@Ti₃C₂T_x/CC to verify the activity of BiOCl@Ti₃C₂T_x. As shown in Fig. 3d, the bare CC has necessitous electrocatalytic NRR activity, while the BiOCl/CC and Ti₃C₂T_x/CC are active for the NRR, producing 1.05 and 2.26 µg h⁻¹ cm⁻² of NH₃, respectively. Indeed, the BiOCl@Ti₃C₂T_x/CC exhibited greatly enhanced electrocatalytic NRR activity producing 8.12 µg h⁻¹ cm⁻² of NH₃, which is about 3.9 times higher than that of BiOCl/CC and 1.8 times greater than that of Ti₃C₂T_x/CC, suggesting that both BiOCl and Ti₃C₂T_x work synergistically to catalyze the N₂ fixation.

The superior NRR activity of BiOCl@Ti₃C₂T_x nanocomposites is attributed to the following points: (1) MXene as an ideal support owing to its large specific surface area can fully load BiOCl and avoid aggregation of BiOCl, thus exposing more active sites; (2) The strong interaction between the Bi 6p band of semiconducting BiOCl and the N 2p orbitals can effectively restrain the HER activity of Ti₃C₂T_x, and thereby achieving high FEs; (3) The double-layer capacitance measurement demonstrates that the BiOCl@Ti₃C₂T_x possesses a much larger capacitance and thus exposes more electrochemically active surface area (Fig. S10 in Supporting information). Finally, Ti₃C₂T_x substrate has an excellent electrical conductivity favoring for rapid electron transport in the NRR process, resulting in a higher NH₃ yield rate.

To confirm that the produced NH₃ was generated via NRR, we executed control experiments in an Ar- and N₂-saturated solution at −0.10 V for 2 h, as well as in N₂-saturated solution at open circuit potential for 2 h, respectively. The UV-vis absorption spectra show that the NH₃ was produced only in the N₂-saturated solution (Fig. 4a). We also carried out 12 h cycling test with an interval of 2 h in N₂- and Ar-saturated solution at −0.10 V (Fig. 4b). Fig. 4b further confirms that the produced NH₃ primarily generated from the catalysis of N₂. The durability and stability are also crucial indicator to estimate the performance of electrocatalysts. As shown in Fig. 4c, the current density shows no obvious difference during 12 h catalysis at −0.10 V. During cycling test over five times, both the NH₃ yield and FE show negligible change (Fig. 4d). Both the compositions and BiOCl nature of the BiOCl@Ti₃C₂T_x could be well maintained after the long-term electrocatalysis reaction when comparing SEM, TEM (Fig. S11 in Supporting information) and XPS images (Fig. S12 in Supporting information) before and after the reaction, demonstrating the excellent electrochemical durability of the BiOCl@Ti₃C₂T_x for the NRR, which is another crucial factor for the enhancement of NRR performances.

In conclusion, BiOCl-modified Ti₃C₂T_x MXene is used as an efficient electrocatalyst for N₂-to-NH₃ with a high FE at a low overpotential. In 0.1 mol/L HCl, the BiOCl@Ti₃C₂T_x nanocomposite can achieve a NH₃ yield rate of 4.06 µg h⁻¹ cm⁻² with FEs of 11.98% at −0.10 V vs. RHE. Meanwhile, BiOCl@Ti₃C₂T_x shows superior stability and high selectivity. The high performance of the obtained BiOCl@Ti₃C₂T_x toward NRR could be ascribed to the sufficient exposure of active catalytic sites of Bi and Ti, the inhibition of HER by Bi. Both BiOCl and Ti₃C₂T_x synergistically enhance the NRR performance. This study provides a new avenue for the development and design of Bi-based catalysts as advanced electrocatalysts for artificial N₂ reduction.

Declaration of competing interest

Less

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Acknowledgments

Less

This work was supported by the National Natural Science Foundation of China (No. 52071171), the Liaoning Revitalization Talents Program - Pan Deng Scholars (No. XLYC1802005), the Liaoning BaiQianWan Talents Program (No. LNBQW2018B0048), Natural Science Fund of Liaoning Province for Excellent Young Scholars (No. 2019-YQ-04), the Key Project of Scientific Research of the Education Department of Liaoning Province (No. LZD201902), the Young Scientific and Technological Talents Project of the Department of Education of Liaoning Province (Nos. LQN201903 and LQN202008), the Foundation for Young Scholars of Liaoning University (No. LDQN2019007).

Supplementary materials

Less

Supplementary material associated with this article can be found, in the online version, at doi:10.1016/j.cclet.2021.05.025

References

Less

[1]

H.K. Lee, C.S.L. Koh, Y.H. Lee, et al., Sci. Adv.4 (2018) eaar3208.

[2]

B.M. Hoffman, D. Lukoyanov, Z.Y. Yang, et al., Chem. Rev. 114 (2014) 4041-4062.

[3]

I. Coric, B.Q. Mercado, E. Bill, et al., Nature526 (2015) 96-99.

[4]

C.J.M. van der Ham, M.T. Koper, D.G. Hetterscheid, Chem. Soc. Rev. 43 (2014) 5183-5191.

[5]

M. Kitano, Y. Inoue, Y. Yamazaki, et al., Nat. Chem. 4 (2012) 934-940.

[6]

Y. Yao, S. Zhu, H. Wang, et al., J. Am. Chem. Soc. 140 (2018) 1496-1501.

[7]

D. Bao, Q. Zhang, F.L. Meng, et al., Adv. Mater. 29 (2017) 1604799.

[8]

M. Bat-Erdene, G. Xu, M. Batmunkh, et al., J. Mater. Chem. A8 (2020) 4735-4739.

[9]

G.F. Chen, X. Cao, S. Wu, et al., J. Am. Chem. Soc. 139 (2017) 9771-9774.

[10]

G.F. Chen, S. Ren, L. Zhang, et al., Small Methods3 (2018) 1800337.

[11]

Y. Sun, Y. Wang, H. Li, et al., J. Energy Chem. 62 (2021) 51-70.

[12]

G. Xu, H. Li, A.S.R. Bati, et al., J. Mater. Chem. A8 (2020) 15875-15883.

[13]

T. Wang, Q. Liu, T. Li, et al., J. Mater. Chem. A9 (2021) 884-888.

[14]

T. Wang, S. Li, B. He, et al., Chin. J. Catal. 42 (2021) 1024-1029.

[15]

S. Li, Y. Wang, J. Liang, et al., Mater. Today Phys. 18 (2021) 100396.

[16]

F. Wang, L. Mao, H. Xie, et al., Small Struct. 2 (2021) 2000075.

[17]

D. Yao, C. Tang, L. Li, et al., Adv. Energy Mater. 10 (2020) 2001289.

[18]

Y. Xu, T. Ren, S. Yu, et al., Sustain. Energy Fuels4 (2020) 3334-3339.

[19]

B. Chang, Q. Liu, N. Chen, et al., ChemCatChem11 (2019) 1884-1888.

[20]

C. Lv, C. Yan, G. Chen, et al., Angew. Chem. Int. Ed. 57 (2018) 6073-6076.

[21]

M. Huang, B. Xi, N. Shi, et al., Small Struct. 2 (2021) 2000085.

[22]

L. Li, C. Tang, B. Xia, et al., ACS Catal. 9 (2019) 2902-2908.

[23]

Y. Bi, Y. Wang, X. Dong, et al., RSC Adv. 8 (2018) 21871-21878.

[24]

Y.C. Hao, Y. Guo, L.W. Chen, et al., Nat. Catal. 2 (2019) 448-456.

[25]

Y. Sun, Z. Deng, X.M. Song, et al., Nanomicro Lett. 12 (2020) 133.

[26]

P. M. Jahani, H. A. Javar, H. Mahmoudi-Moghaddam, J. Mater. Sci. Mater. El. 31(2020) 14022–14034.

[27]

Y. Fu, P. Richardson, K. Li, et al., Nanomicro Lett. 12 (2020) 65-77.

[28]

T Xu, B Ma, J Liang, et al., Acta Phys. -Chim. Sin. 37 (2021) 2009043.

[29]

B. Ma, H. Zhao, T. Li, et al., Nano Res. 14 (2020) 555-569.

[30]

C. Chen, X. Xie, B. Anasori, et al., Angew. Chem. Int. Ed. 57 (2018) 1846-1850.

[31]

C. Zhang, L. McKeon, M.P. Kremer, et al., Nat. Commun. 10 (2019) 1795.

[32]

L. Yu, A.S.R. Bati, T.S.L. Grace, et al., Adv. Energy Mater. 9 (2019) 1901063.

[33]

X. Hui, X. Ge, R. Zhao, et al., Adv. Funct. Mater. 30 (2020) 2005190.

[34]

A. Liu, X. Liang, X. Ren, et al., Adv. Funct. Mater. 30 (2020) 2003437.

[35]

R.A. Soomro, S. Jawaid, Q. Zhu, et al., Chin. Chem. Lett. 31 (2020) 922-930.

[36]

J. Tan, S. Li, B. Liu, et al., Small Struct. 2 (2021) 2000093.

[37]

T. Li, X. Yan, L. Huang, et al., J. Mater. Chem. A7 (2019) 14462-14465.

[38]

W. Hou, C. Deng, H. Xu, et al., ChemistrySelect5 (2020) 2767-2777.

[39]

R. Zhao, H. Di, X. Hui, et al., Energ. Environ. Sci. 13 (2020) 246-257.

[40]

J. Xia, S.Z. Yang, B. Wang, et al., Nano Energy72 (2020) 104681.

[41]

J. Zhang, M. Liu, Y. Wang, et al., CrystEngComm22 (2020) 3683-3691.

[42]

X. Lu, Q. Zhang, J. Liao, et al., Adv. Energy Mater. 10 (2019) 1902986.

[43]

S. Cao, B. Shen, T. Tong, et al., Adv. Funct. Mater. 28 (2018) 1800136.

[44]

H. Chen, G. Ke, X. Wu, et al., Chem. Eng. J. 406 (2021) 126775.

[45]

Q. Liu, L. Ai, J. Jiang, J. Mater. Chem. A6 (2018) 4102-4110.

[46]

Q. Xi, X. Yue, J. Feng, et al., J. Solid State Chem. 289 (2020) 121470.

[47]

S. Wu, Y. Su, Y. Zhu, et al., Appl. Surf. Sci. 520 (2020) 146339.

[48]

Y. Chen, F. Wang, Y. Cao, et al., ACS Appl. Energy Mater. 3 (2020) 4610-4618.

[49]

W. He, Y. Wang, C. Fan, et al., RSC Adv. 9 (2019) 14286-14295.

[50]

Y. Cai, D. Li, J. Sun, et al., Appl. Surf. Sci. 439 (2018) 697-704.

[51]

D. Zhu, L. Zhang, R.E. Ruther, et al., Nat. Mater. 12 (2013) 836-841.

[52]

B. Yu, H. Li, J. White, et al., Adv. Funct. Mater. 30 (2019) 1905665.

[53]

G.W. Watt, J.D. Chrisp, Anal. Chem. 24 (1952) 2006-2008.

[54]

A. Liu, M. Gao, X. Ren, et al., Nanoscale12 (2020) 10933-10938.

[55]

H. Cheng, L.X. Ding, G.F. Chen, et al., Adv Mater30 (2018) e1803694.

[56]

Y. Luo, G.F. Chen, L. Ding, et al., Joule3 (2019) 279-289.

[57]

X. Ren, J. Zhao, Q. Wei, et al., ACS Cent. Sci. 5 (2019) 116-121.

[58]

W. Qiu, X.Y. Xie, J. Qiu, et al., Nat. Commun. 9 (2018) 3485.

Appendix

Less

Year 2022 volume 33 Issue 1

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1016/j.cclet.2021.05.025

Receive Date：2021-04-24
Online Date：2025-12-12
Published：2022-01-15

Article Data

Affiliations

History

Received：2021-04-24
Revised：2021-05-13
Accepted：2021-05-14

Affiliations

^b Centre for Catalysis and Clean Energy, School of Environment and Science, Griffith University, Gold Coast, Queensland 4222, Australia

^c Centre for Translational Atomaterials, School of Science, Swinburne University of Technology, Hawthorn VIC 3122, Australia

References

Share

https://castjournals.cast.org.cn/joweb/ccl/EN/10.1016/j.cclet.2021.05.025

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

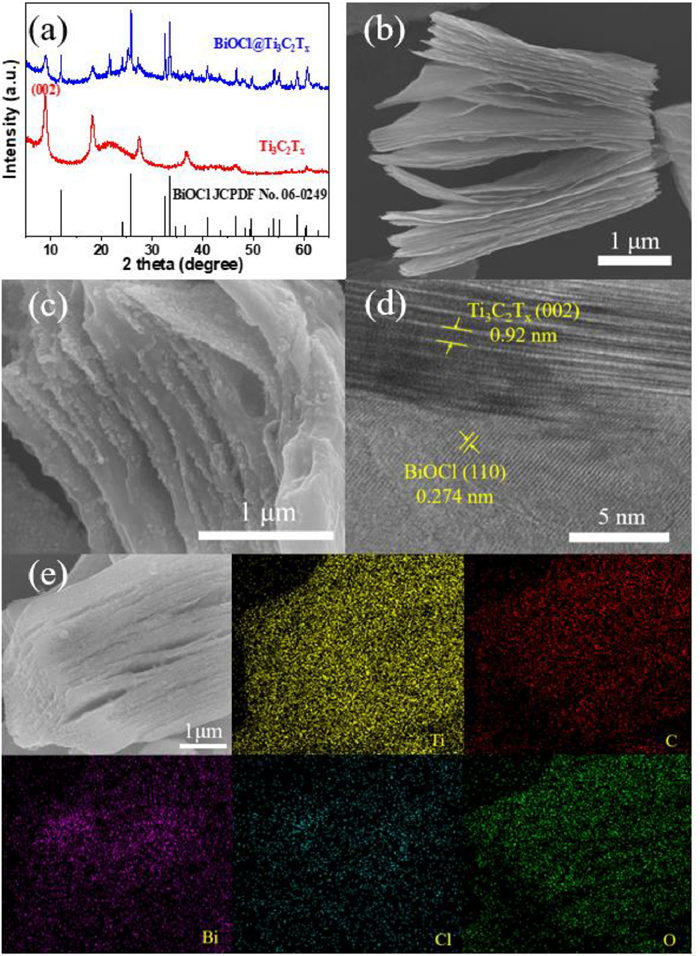

Fig. 1 (a) XRD patterns of BiOCl@Ti₃C₂T_x and Ti₃C₂T_x. SEM images of (b) Ti₃C₂T_x and (c) BiOCl@Ti₃C₂T_x. (d) HRTEM image of BiOCl@Ti₃C₂T_x; (e) EDS elemental mapping images of BiOCl@Ti₃C₂T_x.

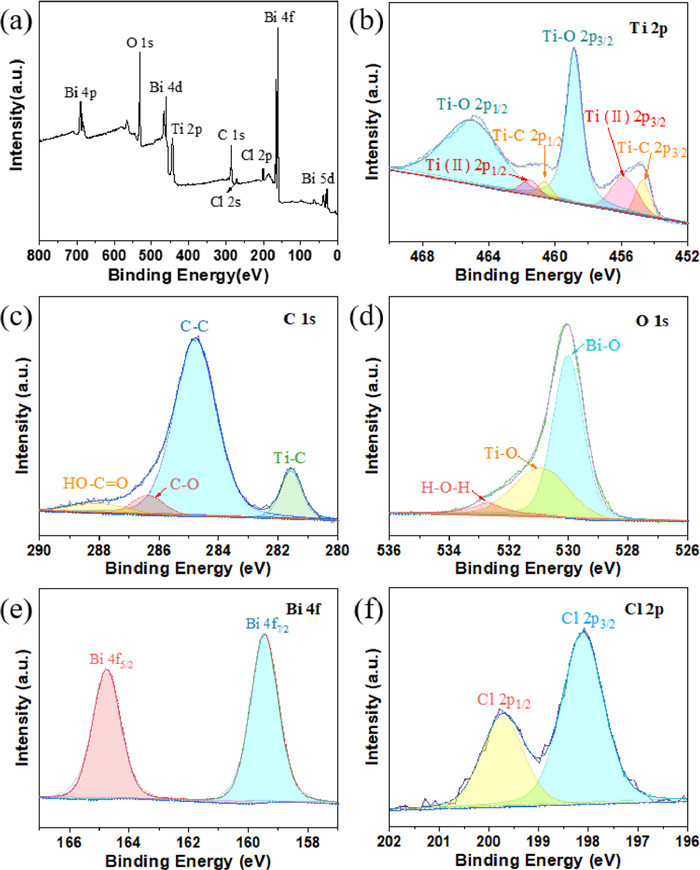

Fig. 2 (a) Survey scan, and (b–f) high-resolution XPS spectra of Ti 2p, C 1s, O 1s, Bi 4f and Cl 2p for BiOCl@Ti₃C₂T_x nanocomposites.

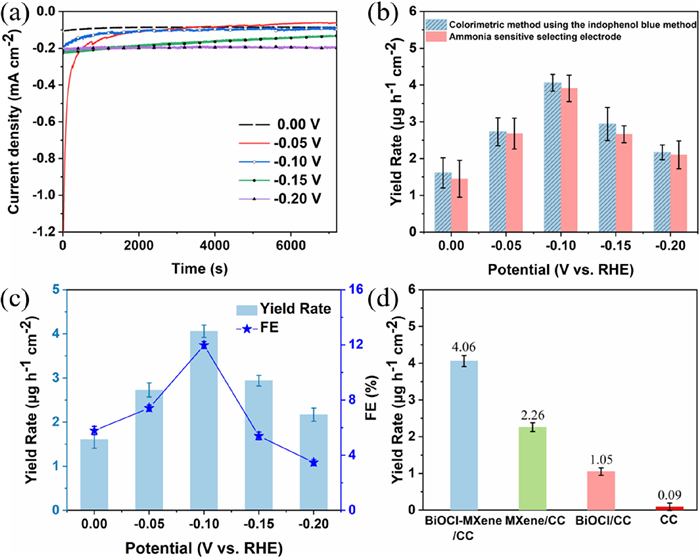

Fig. 3 (a) Time-dependent current density curves at various potentials in N₂-saturated 0.1 mol/L HCl. (b) Comparison of the ammonia-sensitive selecting electrode and indophenol blue reagent-based colorimetric method for the quantitative analysis of ammonia yield. (c) NH₃ yields and FEs of BiOCl@Ti₃C₂T_x/CC for the NRR at various potentials. (d) Amount of NH₃ with different electrodes at −0.10 V after 2 h electrolysis under ambient conditions.

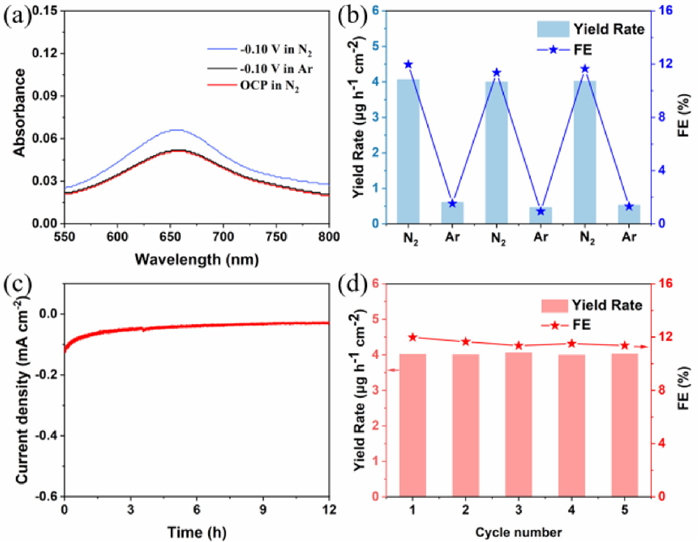

Fig. 4 (a) UV-vis absorption spectra of the electrolytes stained with the indophenol indicator after NRR electrolysis using BiOCl@Ti₃C₂T_x/CC for 2 h under different conditions. (b) NH₃ yields and FEs for BiOCl@Ti₃C₂T_x/CC with alternating 2 h cycles between Ar- and N₂-saturated electrolytes. (c) Time-dependent current density curve for the BiOCl@Ti₃C₂T_x catalyst at −0.10 V for 12 h. (d) Recycling stability tests on BiOCl@Ti₃C₂T_x/CC at −0.10 V for 5 times.
