Tuning photoresponse of graphene-black phosphorus heterostructure by electrostatic gating and photo-induced doping

Full

Affiliations

^aKey Laboratory for Intelligent Nano Materials and Devices of the Ministry of Education, State Key Laboratory of Mechanics and Control of Mechanical Structures, Nanjing University of Aeronautics and Astronautics, Nanjing 210016, China

^bDepartment of Applied Physics, The Hong Kong Polytechnic University, Hong Kong, China

^cSchool of Physics, Southeast University, Nanjing 211189, China

^dCollege of Jincheng, Nanjing University of Aeronautics and Astronautics, Nanjing 211156, China

^eSchool of Physics and Technology, Nanjing Normal University, Nanjing 210023, China

^fDepartment of Chemistry, National University of Singapore, Singapore 117543, Singapore

^gInstitute of Materials Research and Engineering, Agency for Science, Technology and Research (A*STAR), Innovis 138634, Singapore

^hGlobal Innovative Centre for Advanced Nanomaterials, College of Engineering, Science and Environment, The University of Newcastle, Newcastle NSW 2308, Australia

Published: 2022-01-15 doi: 10.1016/j.cclet.2021.06.079

Outline

Abstract

Less

Metal-semiconductor diodes constructed from two-dimensional (2D) van der Waals heterostructures show excellent gate electrostatics and a large built-in electric field at the tunnel junction, which can be exploited to make highly sensitive photodetector. Here we demonstrate a metal-semiconductor photodiode constructed by the monolayer graphene (Gr) on a few-layer black phosphorus (BP). Due to the presence of a built-in potential barrier (~0.09 ± 0.03 eV) at the Gr-BP interface, the photoresponsivity of the Gr-BP device is enhanced by a factor of 672%, and the external quantum efficiency (EQE) increases to 648% from 84% of the bare BP. Electrostatic gating allows the BP channel to be switched between p-type and n-type conduction. We further demonstrate that excitation laser power can be used to control the current polarity of the Gr-BP device due to photon-induced doping. The versatility of the Gr-BP junctions in terms of electrostatic bias-induced or light-induced switching of current polarity is potentially useful for making dynamically reconfigurable digital circuits.

Key words

Black phosphorous / Graphene / Heterostructure / Gate-tunable / Photodetector / Photoinverter

Cite this Article

Yanpeng Liu, Ming Yang, Junpeng Lu, Ying Liu, Hongwei Liu, Erwen Zhang, Wei Fu, Junyong Wang, Zhenliang Hu, Jun Yin, Goki Eda, Shijie Wang, Jiabao Yi, Ajayan Vinu, Kian Ping Loh. Tuning photoresponse of graphene-black phosphorus heterostructure by electrostatic gating and photo-induced doping[J]. Chinese Chemical Letters, 2022 , 33 (1) : 368 -373 . DOI: 10.1016/j.cclet.2021.06.079

Full Text

Less

Black phosphorus (BP) has attracted strong interests beyond graphene due to its high carrier mobility and layer-dependent bandgap (~0.3 eV for bulk and ~2.0 eV for monolayer) [1-3]. Few-layer BP has been considered as an excellent platform for phototransistors due to light-driven thermoelectric, photobolometric and photovoltaic processes [4]. Previously, few-layer BP photodetectors have been demonstrated to exhibit fast and wide-spectrum responses with a photo-responsivity up to 4.8 mA/W [3, 5]. The shortcomings of using few-layer BP as a photodetector include the unintended p-doping of BP, which reduces the photocarrier mobility through electron-electron scattering [4]. Moreover, the small bandgap of few-layer BP results in a high dark current [4, 6, 7]. To improve the photoconductive response, the barrier height at the BP-metal interface needs to be tuned by doping BP and shifting its Fermi level [4]. For instance, chemical doping and other surface modifications (photoresponsivity of 2.56 A/W after 8.0 nm MoO₃ coating and 1.88 A/W after 8.0 nm Cs₂CO₃ doping, respectively) have been applied to enhance the photoresponsivity, although chemical modifications are typically disadvantaged by their chemical instability [8, 9]. Alternatively, electrostatic doping and photo-induced doping, which are continuously tunable, non-destructive and implementable in ambient atmosphere, may be more suitable to tune both the polarity and magnitude of the photocurrent in 2D materials [10, 11]. Theoretical simulation predicts that the electrical and optical properties of ultrathin BP can be effectively tuned by electrostatic doping. Arising from the puckered honeycomb structure of BP, its band edges are mainly contributed by localized P 3p_z orbitals, which have a strong response to the external perpendicular electric field [12-14].

Recently, van der Waals (vdW) heterostructures based on 2D materials have been used to fabricate optoelectronic devices owing to the abrupt tunneling junction and strong photon-matter interactions [15-19]. A ladder-type band structure in such heterojunction can be exploited to separate photo-excited electrons and holes (e-h) pairs, thereby reducing the recombination probability. Moreover, due to the absence of Fermi pinning effect that is universally observed at the traditional metal-semiconductor interface [1, 3, 13], the weak screening effect [12] and the ultrathin nature of 2D heterostructures allow the reversible modulation of band alignment via applying a perpendicular electric field, which opens a new avenue to tune the optoelectronic properties of 2D heterostructures [20-26].

Herein, we studied the photoresponsivity of a bipolar phototransistor using a vdW-stacked monolayer graphene (Gr) on a few-layer BP flake. The photoresponsivity of the Gr-BP phototransistor is improved by a factor of 672% and its corresponding EQE is increased from 84% to 648% compared to that of a device using a bare BP. In addition, both photoresponsivity and the polarities of photocurrent of the Gr-BP heterojunction could be tuned by electrostatic gating. We further demonstrate that n- or p-type dominated transport in the device can be manipulated by laser power through photo-induced doping, which is unreachable for neither the bare BP device nor heterostructure with all Gr above BP flake in the previous reports [2, 3, 6, 8, 10, 14]. Our results suggest that Gr-BP heterostructure shows great potentials as a platform for broadband photodetectors, photoinverters and reversing commutators [6, 11, 19, 21, 25].

The exfoliations of graphene and black phosphorus were carried out in a glovebox filled with argon gas (O₂ < 0.5 ppm and H₂O < 0.5 ppm). Typically, thin BP flakes were directly mechanically exfoliated onto Si/SiO₂ (300 nm oxide layer) substrate from bulk BP crystal (HQ graphene) using blue "magic" tape. After that, the desired rectangle shape (length > 30 µm, thickness ~5–20 nm BP flakes were located under optical microscopy for further stacking. Monolayer graphene was exfoliated onto PDMS films and then partially transferred onto BP flake with a dry transfer method via a home-built transfer platform in an argon glovebox. The Gr-BP stacks were then annealing at 180 ℃ in the glovebox for 30 min to remove possible air bubbles and form good contact. After these processes, the Gr-BP heterostructure was spin-coated with a PMMA layer both as a protective layer and a photoresist layer for electrode fabrications. In this work, Cr/Au (2 nm/60 nm) was chosen as metal electrodes, respectively.

The Gr-BP heterostructure (Fig. 1a) was fabricated on a silicon wafer (with 300 nm SiO₂). Monolayer Gr and few-layer BP flake were precisely stacked together using a dry-transfer method (see Experimental section in Supporting information) [11, 25]. To avoid oxidization of BP, all the exfoliation and transfer processes were conducted in a glovebox filled with argon gas. Fig. 1b shows the atomic force microscopy (AFM) image of a completed Gr-BP device. From the topography, the BP flake is smooth, and the thicknesses of BP and Gr were determined to be ~8.0 nm and ~0.5 nm, respectively (see Fig. S1 Supporting information for height profile). To investigate the interfacial quality and charge transfer of Gr-BP heterostructure, spatially resolved Raman was employed [2]. As shown in Fig. 1c, the G peak (the high-frequency E_2g phonon at Γ point) redshifts from 1580 cm⁻¹ to 1572 cm⁻¹ and the frequency of 2D peak (second-order Raman scattering by two optical phonons) blueshifts from 2677 cm⁻¹ to 2688 cm⁻¹, a clear indication that graphene is n-doped by underlying BP flake [2, 27]. Fig. 1d displays the integrated intensity of A_g¹ peak of few-layer BP flake after measurement. The A_g¹ signal is uniform throughout the entire BP flake, and its A_g¹/A_g² intensity ratio > 0.9 is typical for a pristine BP flake [28]. It is worth noting that phosphorene oxides and suboxides (bandgap ~4.6 eV from PBE method) typically give an A_g¹/A_g² ratio < 0.6 (Fig. S2 in Supporting information), thus we can conclude that these oxides are absent in our studies [14, 29].

Fig. 2a shows the schematic illustration of the Gr-BP device. For comparison, bare BP device with similar thickness was also tested. As shown in Fig. 2a, the electrode attached with Gr was chosen as drain throughout the whole measurements unless otherwise specified. Fig. 2b shows the plot of photo-induced current density (I_ph) versus bias (V_ds) of bare BP and Gr-BP devices under global irradiation (532 nm, 1 mW/mm²). It is seen that Gr-BP devices show higher output I_ph over a V_ds range from -0.05 V to +0.05 V and fast on-off photoresponse (V_ds = +0.05 V, Fig. 2c). To assess the performance of our device, photoresponsivity (R) and external quantum efficiency (EQE), the figures of merit of photodetector devices, are calculated according to the following equations [3, 8]:

(1)

(2)

where I_ph is the photocurrent induced by incident light, P stands for the light intensity, S is the effective area under illumination, λ is the wavelength of the incident light, h, c and e represent the Plank constant, the velocity of light and the charge of the electron, respectively. Based on Eq. 1, the photoresponsivity of Gr-BP heterojunction is significantly enhanced (~672%) over the bare BP device, increasing from 3.6 × 10² mA/W to 2.8 × 10³ mA/W and the corresponding EQE increases dramatically up to 648% from 84%, which are higher than previously reported metrics of BP-based photodetectors (Table S1 in Supporting information) [3, 8].

In order to investigate if the Gr-BP interface contributes to enhanced photoresponse by charge separation or built-in potential, a scanning photocurrent microscope (SPCM) equipped with a focused laser beam was used to identify individual contribution (sketched in Fig. 2d). Fig. 2e shows the J-V (where J represents current density) curves with the laser-focused at five regions (as marked in the right insert). All five regions show photo-response but with different magnitudes (Fig. S4 in Supporting information). A weak rectifying behavior was observed with photocurrent increasing at V_ds > 0 V but decreasing at V_ds < 0 V, revealing the existence of a small potential barrier that modulates the polarity of current flow. Among the five regions, the Gr-BP junction shows the highest photocurrent of 3.4 × 10⁵ mA/cm² (J_dark ~1.96 × 10⁵ mA/cm², V_ds = +0.05 V), thus it is responsible for the dramatic differences in photocurrent between bare BP and Gr-BP devices (as exhibited in Figs. 2b and c). Notably, the output of the Gr-BP device presents photovoltaic characteristic. Fig. 2f shows the short-circuit current (I_sc) and open-circuit voltage (V_oc) acquired under light illumination with a power of ~1.2 mW. Among them, the Gr-BP heterojunction shows the highest photocurrent, especially at its edge region, might be due to energy band depletion at the edge that generates potential at the edge and contributes to the output current (Figs. S4 and S5 in Supporting information). The existence of V_oc (−0.013 V) and I_sc (0.6 µA) proves that the photoresponse behavior of the Gr-BP device is dominated by the photovoltaic effect rather than thermal driven processes [4].

To determine the band alignment between Gr and BP, ultraviolet photoelectron spectroscopy secondary electron cut-off energies of bare BP flake, bare graphene films, and Gr-BP heterostructure (Fig. 2g). Accordingly, their work functions are measured to be Ф_BP = 4.47 eV, Ф_Gr = 4.50 eV and Ф_Gr-BP = 4.37 eV (see Experimental section in Supporting information for calculation details), respectively, which are in good agreement with the previous reports [30-32]. Based on the above values, we can conclude that graphene is n-doped (~0.13 eV), and BP flake becomes highly p-doped with E_F ~0.02 eV above the valence band maximum (E_VBM). With this information, the energy band diagrams are constructed as shown in Fig. 2h. For Gr-BP device, due to the initial p-doping of BP (possibly originating from impurities and defect, Figs. S6 and S7 in Supporting information for XPS and STM data), downward band bending occurs at the interface to create a built-in potential (Ф_bi) proportional to Ф_Gr-E_VBM (~0.09 ± 0.03 eV). Due to the built-in potential, Gr-BP heterojunction shows a rectifying behavior (Fig. 2i). Upon photo-excitation, e-h pairs are generated in BP; after exciton dissociation, electrons are injected into a more conductive graphene layer, while the Schottky barrier at the interface blocks hole transport to graphene [32-34].

Next, the photoresponse of Gr-BP heterojunction is electrostatically modulated using a back gate. Fig. 3a shows the I_ds-V_g data of the Gr-BP device with and without ~1.4 mW laser illumination (V_ds = +0.1 mV). In the dark, the Gr-BP device shows ambipolar and hole-dominant characteristics with hole mobility ~1320 cm⁻² V ⁻¹ s ⁻¹ and electron mobility ~745 cm⁻² V ⁻¹ s ⁻¹. These values are two times larger than those of the bare BP device with the similar thickness (see Fig. S9 in Supporting information for bare BP device). Upon photo-irradiation, the photocurrent monotonically decreases with V_g ranging from −50 V to around +27.5 V; this is followed by a sharp decline, and then the photocurrent becomes negative when V_g > ~36.3 V. Fig. 3b shows the gate-tunability of output I-V characteristics from the same device (see the dark and illuminated current comparison in Fig. S10 in Supporting information). Fig. 3c shows that the polarities of photocurrents (I_ph, here V_ds = +0.05 V) are opposite at negative and positive gate regimes; there is a higher current at negative gate voltage compared to positive gate voltage, which allows the types and heights of Schottky barrier across the Gr-BP junction to be determined. When V_g < 0 (Fig. 3d), the accumulation of holes at BP increases the downward band bending. Therefore, the wider depletion region (W) and larger potential barrier height (Ф_bi) prevent the tunneling or thermal injection of holes from BP into graphene. In this regime, the photocurrent increases monotonically with the magnitude of the negative gate voltage. In contrast, a positive gate voltage (0 < V_g < V_critial, Fig. 3e) reduces the barrier height as well as the depletion width in the BP layer, thus allowing holes to overcome the barrier through thermal emission process and recombine with electrons, as a result, the photocurrent gradually decreases at higher positive gate voltage. At even higher positive gate voltage (V_critial < V_g, Fig. 3f), the E_F is shifted closer to the conductance band, and the band bending reverses, thus the channel becomes n-type. The Schottky barrier height (Фⁿ) at the CB and depletion region in the BP flake gradually dominates the charge transfer at the interface by suppressing photo-excited electron from BP, leading to a reversal of the direction of the photocurrent.

We performed density functional theory (DFT) calculation to investigate gate-modulated electronic properties of Gr-BP heterostructure to gain more insight. The interlayer distance between graphene and bi-layer BP (Fig. 3g) is calculated to be 3.45 Å. This vdW gap confirms the weak nature of the interfacial interaction, in good agreement with previous studies [35-37]. Fig. 3h shows the electronic band structure of Gr-BP heterostructure, from which it is clear that both the projected band structures of graphene and BP maintain the characteristics of the isolated counterparts upon their contact. The VBM of BP is close to the Fermi level of graphene and a p-type semiconductor/metal Schottky barrier is present. Due to the weak screening effect of BP and Gr, the contact barrier at the BP-Gr interface can be surmounted effectively by applying an external perpendicular electric field (E_ext) [35]. By considering Gr as the metal contact and few-layer BP as the semiconductor channel, the Schottky barrier height (SBH) could be estimated following Schottky-Mott rule, E_g = qФ^p + qФⁿ, where Ф^p and Фⁿ represent the barriers against the hole and electron flow between Gr and BP, respectively [38]. Fig. 3i depicts the evolution of the contact barriers as a function of the applied electric field strength (see Fig. S11 in Supporting information for the evolution of band structure as a function of E_ext). Subjected to a negative electric field (E_ext < 0 V), the Dirac cone of graphene shifts towards the VB of the BP, rendering the contact ohmic. In contrast, for increasing positive V_g, the Dirac cone gradually moves towards the CB of BP. When the electric field is larger than 2 eV/nm, the contact barrier Ф^p becomes smaller than Фⁿ, turning the contact into n-type. These theoretical findings agree well with our experimental observation. We would like to point out that the layer-dependent bandstructure of BP, initial p-doping level and the approximation of exchange-correlation functionals render it highly challenging to calculate the exact barrier height, but the trend of the charge transfer and barrier variation with applied electric field is valid and consistent with the experimental observation.

In Gr-BN [34], BP-ZnO [39] and BP-TiOx [40] system, a tunable photo-induced electron transfer has been reported at the interface. Spatial segregation of holes and electrons occurs at different layers, which rearranges the band alignment between two components. Similarly, we found that the Gr-BP heterostructure is capable of showing photo-induced electron transfer. Since absorbents and moisture easily contaminate graphene, all measurements were conducted in a vacuum cell, and thermal annealing was carried out to remove any impurities. Figs. 4a and b illustrate the origins of the photo-doping induced inversion. In the dark state (Fig. 4a), when BP is positively biased, the direction of the current is from BP to graphene. Upon laser illumination (Fig. 4b), electrons are photo-excited from donor-like defects in BP to the conduction band; some of these electrons compensate the holes in BP, while excess electrons created by higher laser photoexcitation migrate to graphene and gives rise to a reverse current. In addition, this migration lifts the E_F of graphene while lowering the E_F of BP, as a result, band realignment occurs. A direct proof of the photo-induced doping effect is the shifting of Dirac point of graphene in Gr-BP FET device (all graphene placed on top of BP flake, Fig. S13 in Supporting information) upon illumination, where the charge neutral point of graphene shifts to higher negative gate voltage (∆ ~6 × 10¹¹ cm⁻²), illustrating graphene becoming n-doped and the occurrence of photo-induced charge transfer. Fig. 4c shows the power-dependent J-T curves of Gr-BP heterojunction (edge region) under V_ds = −0.01 V. In the dark, a current flow from BP to Gr with the value of 9.0 × 10⁴ mA/cm² is initially observed when the BP side is positively biased; this current gradually decreases with increasing laser irradiation power and becomes closed at 2.0 mW laser exposure. Most interestingly, the direction of photocurrent reverses at higher laser power (P ≥ 2.0 mW). When the laser moves into the center region of Gr-BP heterostructure, ~3.0 mW laser power or larger is required to invert the current flow direction (see Fig. S14 in Supporting information for J-T curves) [41]. Moreover, this trend could be extended to a larger negative bias. For instance, under V_ds = −0.05 V, an excitation laser with a power larger than ~12 mW (Fig. 4d) is required to reverse the polarity of current flow. The ability to control the polarity of the current by adjusting the power of the laser is a unique feature of the Gr/BP junction, which is not shared by monolayer graphene or BP flake (Fig. S13d). For bare BP, although the photocurrent is proportional to the intensity of irradiation due to thermal driven effects, the polarity of current remains the same with the initial current flow for all laser intensity range.

There are several reasons why the Gr/BP interface is unique in terms of its gate tunability. The small band gap (~0.3 eV) and absence of interfacial pinning effect allow multilayer BP to be switched readily between the hole and electron-dominated transport under a moderate electric field, thus giving rise to ambipolar transport. In accordance with nonlinear Thomas-Fermi theory [12, 13], the electrostatic screening behavior of multilayer BP (thickness ≤ 10 nm) is intermediate, thereby allowing the electric field from the back gate penetrating BP multilayer to influence the properties of graphene in Gr-BP heterostructure. In addition to maintain similar response time (Fig. S15 in Supporting information), the encapsulation of BP flake by the graphene layer not only overcomes the air instability of BP but also increases the photoresponsivity of BP via the formation of a Schottky barrier [42].

We have demonstrated that Gr-BP heterostructures can be used as photodetectors and photoinverters. Comparing with bare BP device, the photoresponsivity increases to 672% (R ~2.8 × 10³ mA/W) due to the presence of a Schottky barrier at the interface of p-type BP and graphene. The height of the Schottky barrier can be modulated by either electrostatic doping or photo-induced doping, allowing the initial p-type conducting channel to be converted to n-type. The highly tunable nature of the Gr-BP interface suggests its potential application in future optoelectronic and logic applications.

Declaration of competing interest

Less

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Acknowledgments

Less

The authors wish to acknowledge the financial support provided by the Fundamental Research Funds for the Central Universities (Nos. NS2020008, NC2018001, NJ2020003, NZ2020001), the Program for Innovative Talents and Entrepreneur in Jiangsu, Research Fund of State Key Laboratory of Mechanics and Control of Mechanical Structures (Nos. MCMS-I-0419G02, MCMS-I-0421K01), National Key Research and Development Program of China (No. 2019YFA0705400), and Australian Research Council Future Fellowship (No. FT160100205), DECRA Fellowship (No. DE200101622).

Supplementary materials

Less

Supplementary material associated with this article can be found, in the online version, at doi:10.1016/j.cclet.2021.06.079

References

Less

[1]

Li, Y. Yu, G.J. Ye, et al., Nat. Nanotechnol. 9 (2014) 372–377.

[2]

F.N. Xia, H. Wang, Y.C. Jia, Nat. Commun. 5 (2014) 4458.

[3]

M. Buscema, D.J. Groenendijk, S.I. Blanter, et al., Nano Lett. 14 (2014), 3347–3352.

[4]

T. Low, M. Engel, M. Steiner, P. Avouris. Phys. Rev. B 90 (2014) 081408.

[5]

H. Yuan, X. Liu, F. Afshinmanesh, et al., Nat. Nanotechnol. 10 (2015) 707–713.

[6]

N. Youngblood, C. Chen, S.J. Koester, M. Li, Nat. Photon. 9 (2015) 247–252.

[7]

Q. Guo, A. Pospischil, M. Bhuiyan, et al., Nano Lett. 16 (2016) 4648–4655.

[8]

D. Xiang, C. Han, J. Wu, et al., Nat. Commun. 6 (2015) 6485.

[9]

Y.J. Xu, J. Yuan, L. Fei, et al., Small 12 (2016) 5000–5007.

[10]

M. Freitag, T. Low, F. Xia, P. Avouris, Nat. Photon. 7 (2013) 53–59.

[11]

W.J. Yu, Y. Liu, H. Zhou, et al., Nat. Nanotechnol. 8 (2013) 952–958.

[12]

T. Low, R. Roldán, H. Wang, et al., Phys. Rev. Lett. 113 (2014) 106802.

[13]

Y. Liu, Z. Qiu, A. Carvalho, et al., Nano Lett. 17 (2017) 1970–1977.

[14]

J.P. Lu, A. Carvalho, J. Wu, et al., Adv. Mater. 28 (2016) 4090–4096.

[15]

A.K. Geim, I.V. Grigorieva, Nature, 499 (2013) 419–425.

[16]

H. Fang, C. Battaglia, C. Carraro, et al., PNAS 111 (2014) 6198–6202.

[17]

Q.H. Wang, K. Kalantar-Zadeh, A. Kis, et al., Nature Nanotechnol. 7 (2012), 699–712.

[18]

S.Z. Butler, S.M. Hollen, L. Cao, et al., ACS Nano 7 (2013) 2898–2926.

[19]

F.H.L. Koppens, T. Mueller, P. Avouris, et al., Nat. Nanotechnol. 9 (2014), 780–793.

[20]

C.H. Lee, G.H. Lee, A.M. van der Zande, et al., Nat. Nanotechnol. 9 (2014) 676–681.

[21]

K. Roy, M. Padmanabhan, S. Goswami, et al., Nat. Nanotechnol. 8 (2013) 826–830.

[22]

B.W. Baugher, H.O. Churchill, Y. Yafang, P. Jarillo-Herrero, Nat. Nanotechnol. 9(2014) 262–267.

[23]

O. Lopez-Sanchez, D. Lembke, M. Kayci, A. Radenovic, A. Kis, Nat. Nanotechnol. 8 (2013) 497–501.

[24]

M. Buscema, D.J. Groenendijk, G.A. Steele, et al., Nat. Commun. 5 (2014) 4651.

[25]

W.J. Yu, Z. Li, H. Zhou, et al., Nat. Mater. 12 (2013) 246–252.

[26]

A. Favron, E. Gaufres, F. Fossard, et al., Nat. Mater. 14 (2015) 826–832.

[27]

A. Das, S. Pisana, B. Chakraborty, et al., Nat. Nanotechnol. 3 (2008) 210–215.

[28]

D. Hanlon, C. Backes, E. Doherty, et al., Nat. Commun. 6 (2015), 8563.

[29]

J. Lu, J. Wu, A. Carvalho, et al., ACS Nano 9 (2015) 10411–10421.

[30]

Y. Liu, L. Yuan, M. Yang, et al., Nat. Commun. 5(2014) 5461.

[31]

Y.J. Yu, Y. Zhao, S. Ryu, et al., Nano Lett. 9 (2009), 3430–3434.

[32]

J.E. Padilha, A. Fazzio, A.J. da Silva, Phys. Rev. Lett. 114 (2015), 066803.

[33]

L. Li, G.J. Ye, V. Tran, et al., Nat. Nanotechnol. 10 (2015), 608–613.

[34]

L. Ju, J. Velasco Jr., E. Huang, et al., Nat. Nanotechnol. 9 (2014) 348–352.

[35]

J.E. Padiha, A. Fazzio, A.J.R. da Silva, Phys. Rev. Lett. 114 (2015) 066803.

[36]

H. Guo, N. Lu, J. Dai, et al., J. Phys. Chem. C 118 (2014) 14051–14059.

[37]

Y.Q. Cai, G. Zhang, Y.W. Zhang, J. Phys. Chem. C 119 (2015) 13929–13936.

[38]

P.A. Khomyakov, G. Giovannetti, P.C. Rusu, et al., Phys. Rev. B 79 (2009) 195425.

[39]

Z. Xia, P. Li, Y. Liu, et al., Nano Res. 10 (2017) 3848–3856.

[40]

P.H. Ho, M.K. Li, R. Sankar, et al., ACS Photon. 3 (2016) 1102–1108.

[41]

M. Huang, M. Wang, C. Chen, et al., Adv. Mater. 28 (2016) 3481–3485.

[42]

Y. Huang, J. Qiao, K. He, et al., Chem. Mater. 28 (2016) 8330–8339.

Appendix

Less

Year 2022 volume 33 Issue 1

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1016/j.cclet.2021.06.079

Receive Date：2021-05-12
Online Date：2025-12-12
Published：2022-01-15

Article Data

Affiliations

History

Received：2021-05-12
Revised：2021-06-21
Accepted：2021-06-27

Affiliations

^bDepartment of Applied Physics, The Hong Kong Polytechnic University, Hong Kong, China

^cSchool of Physics, Southeast University, Nanjing 211189, China

^dCollege of Jincheng, Nanjing University of Aeronautics and Astronautics, Nanjing 211156, China

^eSchool of Physics and Technology, Nanjing Normal University, Nanjing 210023, China

^fDepartment of Chemistry, National University of Singapore, Singapore 117543, Singapore

^gInstitute of Materials Research and Engineering, Agency for Science, Technology and Research (A*STAR), Innovis 138634, Singapore

^hGlobal Innovative Centre for Advanced Nanomaterials, College of Engineering, Science and Environment, The University of Newcastle, Newcastle NSW 2308, Australia

References

Share

https://castjournals.cast.org.cn/joweb/ccl/EN/10.1016/j.cclet.2021.06.079

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

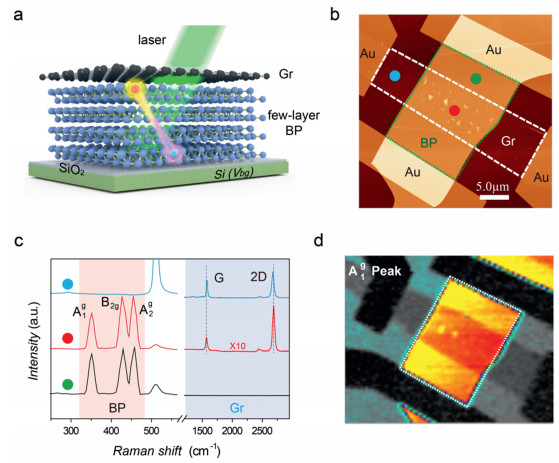

Fig. 1 Schematic drawing and characterizations of Gr-BP heterostructure device. (a) Schematic diagram of Gr-BP heterostructure. Exfoliated graphene and BP flakes are partially overlapped in order to study the origin of photoresponsive enhancement. (b) AFM image of Gr-BP device. The graphene flake is marked in a white dashed line, while BP is enclosed in a green dash line. The white spots in graphene-covered region represent air-trapped bubbles/wrinkles. The scale bar is 5 µm. (c) Corresponding Raman spectra from three selected regions marked in (b) for comparison. For visualization, the signal of Gr (on BP flake) is enlarged by a factor of 10 to cancel the intensity loss from varied interference phenomena. The bottom BP and Gr symbols represent the intrinsic signals of BP (pink region) and Gr (purple region), respectively. For clarification, the peak at ~520 cm⁻¹ origins from the underlying silicon substrate. (d) Raman spatial mappings of representative A_g¹ of black phosphorus.

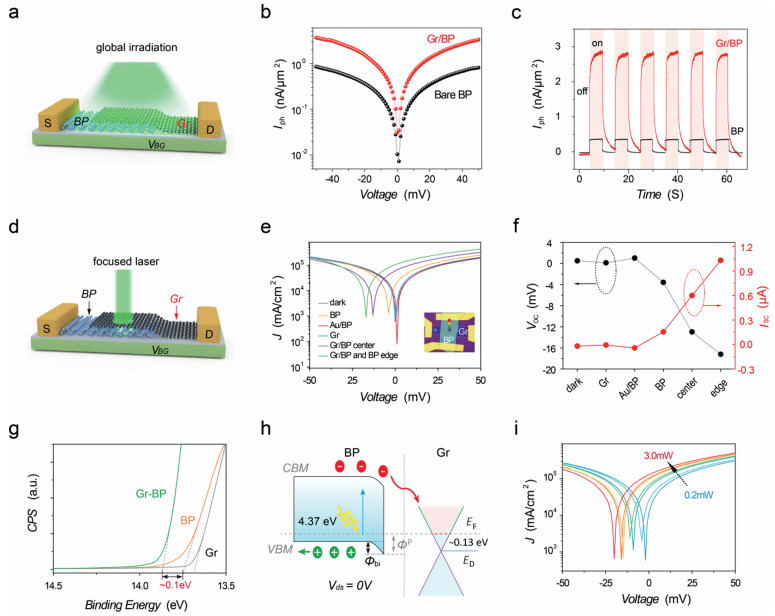

Fig. 2 Photoresponse behavior and Gr-BP heterostructure. (a) Sketches of G-BP heterostructure under global illuminations. For the Gr-BP device, single-layer graphene was used as a source electrode. (b) I_ph-V_ds characteristics of bare BP and Gr-BP device under global laser irradiation with the same laser intensity. (c) Photoresponse behavior comparison between bare BP and Gr-BP devices. (d) Schematic diagram of Gr-BP heterostructure. (e) J-V curves of Gr-BP device with laser focusing on different regions. Inset shows the optical image of the device marked with different color spots for clarification. (f) V_OC and I_SC of the Gr-BP device with various parts exposed to laser illumination. (g) UPS data of bare Gr, bare BP and Gr-BP heterostructure. (h) Thermal equilibrium energy band alignment of the separated integral parts with V_ds = 0 V. (i) Power-dependent photoelectric behavior of Gr-BP heterostructure.

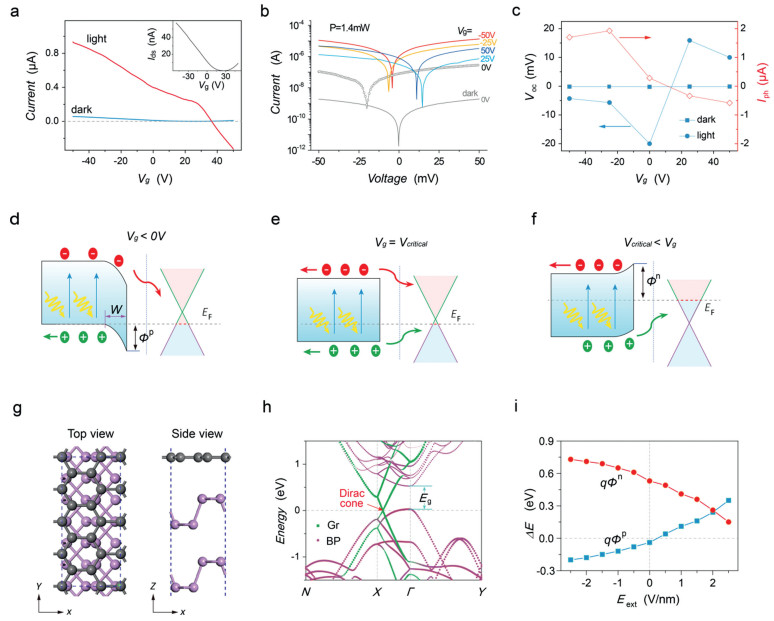

Fig. 3 Gate-dependent photoelectric behavior of Gr-BP heterostructure. (a) R(V_g) data in Gr-BP device with and without light illuminations. V_ds = +0.1 mV. Inserted is the plot of conductance vs gate curve of Gr-BP device in dark. FET mobility is given by where L and W are the length and width of the channel, respectively. C denotes the capacitance. (b) I_ds-V_ds curves measured in the dark and under light illuminations at various gate voltages. (c) Plots of V_oc and I_ph as a function of gate voltages. for I_ph, V_ds = +0.05 V. (d-f) Band alignment of BP and Gr under different gate voltages. (g, h) Lattice and electronic band structure of Gr-BP heterostructure. (i) Evolution of the band edges as a function of the electric field with respect to the Dirac point of graphene.

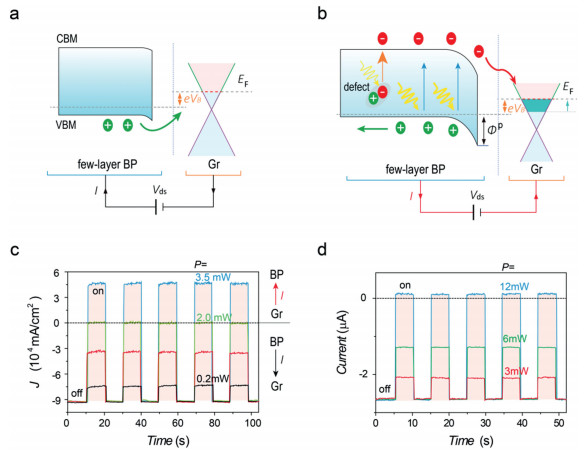

Fig. 4 Photo-inverter behavior of Gr-BP heterostructure. (a) Band alignment of BP and Gr device with a negative source-drain bias in dark. The current flow is from BP to graphene. (b) Band re-alignment of BP and Gr heterostructure due to photo-induced doping effect. Under intense light irradiation, a reverse current flow occurs from graphene to BP. (c) Photogenerated current of Gr-BP device under different laser power density at V_ds = −0.01 V. (d) Photogenerated currents of Gr-BP device with V_ds = −0.05 V under 3, 6 and 12 mW laser exposure.
