Two-dimensional (2D) transition metal dichalcogenide (TMD) nanosheets have attracted considerable attention owing to their diverse properties and great potential in a wide range of applications. In order to further tune their properties and then broaden their application domain, large efforts have been devoted into engineering the structures of 2D TMD nanosheets at atomic scale, especially the alloying technology. Alloying different 2D TMD nanosheets into 2D alloys not only offers the opportunities to fine-tune their physical/chemical properties, but also opens up some unique properties, which are highly desirable for wide applications including electronics, optoelectronics and catalysis. This review summarizes the recent progress in the preparation, characterization and applications of 2D alloyed TMD nanosheets.

Key words

Two-dimensional alloys / Transition metal dichalcogenides / Phase engineering / Electronics / Catalysis

Cite this Article

Haoxin Huang, Jiajia Zha, Shisheng Li, Chaoliang Tan. Two-dimensional alloyed transition metal dichalcogenide nanosheets: Synthesis and applications[J]. Chinese Chemical Letters, 2022 , 33 (1) : 163 -176 . DOI: 10.1016/j.cclet.2021.06.004

Full Text

Less

1 Introduction

Less

Two-dimensional (2D) transition metal dichalcogenide (TMD) nanosheets have become a hot research topic in recent years due to its diverse properties [1-7], such as topological insulator properties [8, 9], superconductivity [10, 11], valley polarization [12, 13] and enhanced catalytic activity for various chemical reactions [14-21]. Particularly, the atomically thin body and dangling-bond free surface of 2D TMD materials make them promising channel materials for high-performance field-effect transistors (FETs) [22-24]. The bulk TMDs are actually a family of materials widely studied since 1960s with various properties [25]. They are presented as MX₂, where M is the transition metal in Group 4 to Group 10 and X represents the chalcogen elements of S, Se or Te, which can crystallize in non-layer structure or graphite-like layered structure (mainly the Groups 4–7 TMDs). Typically, recent advances in sample preparation have boosted a great development of 2D layered TMD nanosheets, which not only inherit most properties of their bulk counterparts, but also present unique layer-dependent characteristics due to the electron confinement effects [26, 27]. Therefore, the preparation of 2D TMD nanosheets provides a new platform for both discovering new physical phenomena and enabling breakthrough in a variety of fields like materials science, chemistry and nanotechnology [1-7].

To further explore the potential of 2D TMD nanosheets, many compelling strategies like vacancies engineering, heteroatom doping and introducing second component into/onto 2D TMD nanosheets were put forward to tune their properties [17, 28-32]. More recently, the alloying of different 2D TMD nanosheets has emerged as an effective approach to implement such modulation mechanism [33, 34]. In 2D alloyed TMD nanosheets, one of the elements in binary TMD can be substituted by another element at an arbitrary percentage while the crystal structure remaining in a single homogeneous phase, and many 2D alloyed TMD nanosheets with miscible chalcogens (e.g., MoS_2(1-x)Se_2x, WS_2(1-x)Se_2x, ReS_2(1-x)Se_2x and WSe_2(1-x)Te_2x), or miscible transition metals (e.g., Mo_xW_1-xS₂, Mo_xRe_1-xS₂, W_1-xNb_xS₂ and V_1-xTa_xS₂) have been well-prepared with tunable composition [35-42]. Given the diverse properties of 2D TMD nanosheets, the alloying technology offers further opportunity to fine-tune their properties, e.g., bandgap/band position, charge carrier type, vibrational frequency and lattice parameter. Moreover, it shows the possibility of obtaining materials with not only enhanced electrical, optical and catalytic performance but new properties, such as magnetism [43-45]. To date, 2D alloyed TMD nanosheets can be prepared by those well-developed methods for 2D TMDs, such as exfoliation of chemical vapor transport (CVT)-grown bulk crystals, wet-chemical synthesis, and vapor synthesis method (e.g., chemical vapor deposition (CVD) and physical vapor deposition (PVD)). These prepared 2D alloyed TMD nanosheets showed tunable bandgaps and electronic structure, good scalability, and controllable high-quality exfoliation, which provide a highly promising way for functionalizing the 2D TMD nanosheets into wide applications like electronics, optoelectronics, and catalysis.

In this review, we aim to highlight the latest research progress in 2D alloyed TMD nanosheets. Firstly, the classification and advantages of 2D alloyed TMD nanosheets are introduced, followed by its preparation and characterization methods. Then the great potential of these 2D alloyed TMD nanosheets in various applications is discussed. Finally, this review is concluded with some personal discussion on the challenges and outlooks of this emerging research area based on the current research achievements.

2 The classification and advantages of 2D alloyed TMD nanosheets

Less

2.1 The classification of 2D alloyed TMD nanosheets

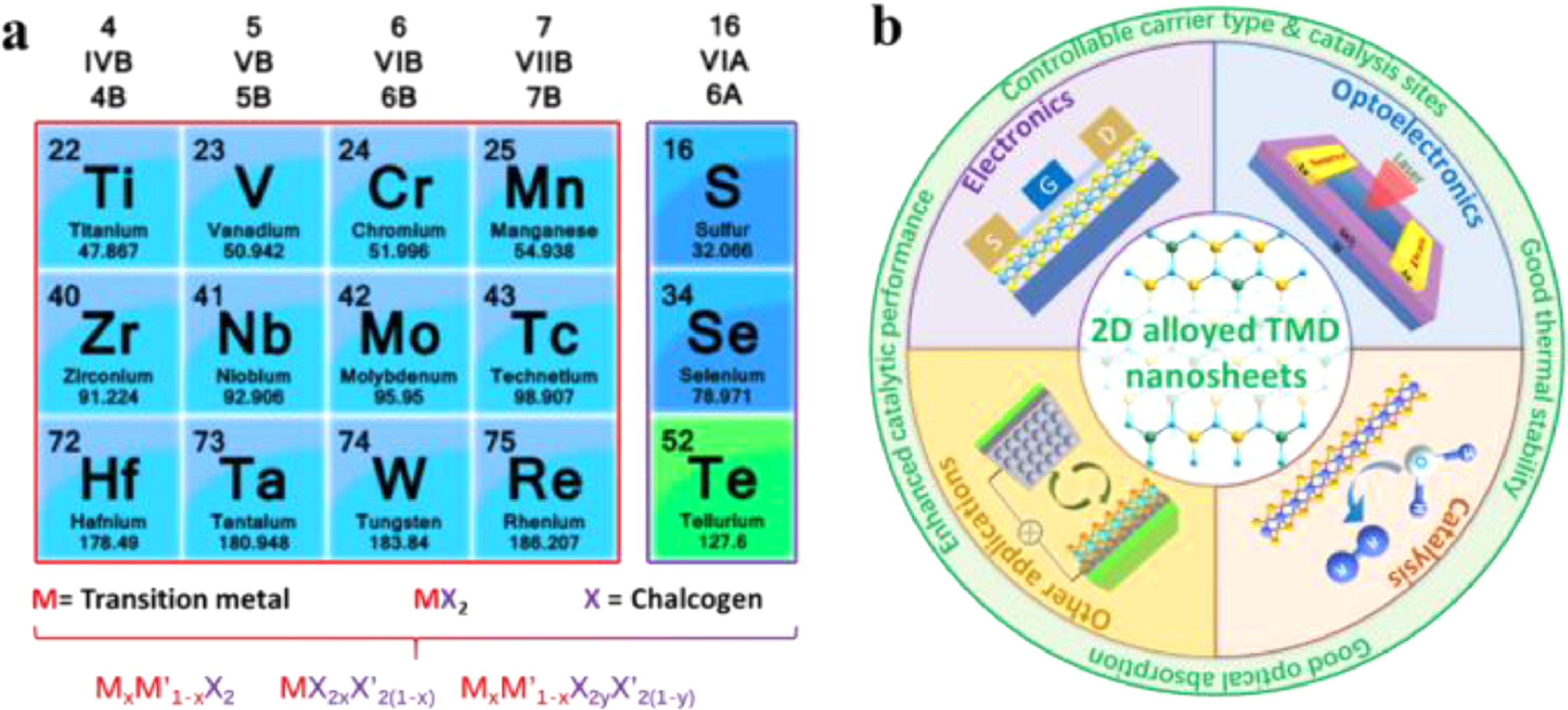

In alloyed TMD nanosheets, one of the elements in the binary TMDs is partially substituted by another element at an arbitrary percentage with the crystal structure retained. It is worth noting that this is different from the doping process in which the dopants can be any kind of element and the doping concentration is limited [30]. In principle, the choice of two materials for 2D TMD alloys follows four rules [41, 46]:

(1)

(2)

(3)

(4)

where a and E_g represent the lattice constant and bandgap of one TMD material, respectively, Δd_M−X and ΔH_mix is the bond distance difference of the metal-chalcogen atoms and mixing enthalpy of the two TMD materials, respectively. Eqs. 1 and 2 request the mismatch of the lattice constants between the two TMDs to be smaller than 3%, and the difference in their metal-chalcogen bond distance better less than 0.1 Å. Eq. 3 predicts that at least one material should be semiconductor since there will be no finite bandgap exist in the alloys based on two metallic TMDs. Meanwhile, the value of the mixing enthalpy (ΔH_mix) determines the miscibility of the two TMDs, and a negative ΔH_mix will be favorable. Generally, alloying TMD materials between the same metal group or chalcogen is feasible due to the small lattice mismatches [34]. As shown in Fig. 1a, the 2D alloyed TMD nanosheets can be divided into three types according to the alloying sites: (1) M_xM'_1-xX₂ type (transition metal (TM) site), (2) MX_2xX'_2(1-x) type (chalcogen-site), and (3) quarter-nary alloys in M_xM'_1-xX_2yX'_2(1-y) type (both TM- and chalcogen-site), where M and X denote the transition metal and chalcogen element, respectively.

2.2 The advantages of 2D alloyed TMD nanosheets

The study of alloyed TMD crystals can date back to 1960s, such as metal (e.g., Mo_xW_1-xS₂ and Mo_xW_1-xTe₂ [47, 48]) and the chalcogen sublattices (e.g., MoS_2(1-x)Se_2x) [49], these materials have been proven to be thermodynamically stable at room temperature. However, the exploration of the 2D alloyed TMD nanosheets are only conducted in recent years (Fig. 1b). One of the most unique advantages of 2D alloyed TMD is the tunable bandgap [30, 38]. For example, it was reported that the direct bandgap of WS_2(1-x)Se_2x monolayers can be fully tuned from pure WSe₂ (x = 1, E_g = 1.61 eV) to pure WS₂ (x = 0, E = 1.97 eV) by adjusting the ratio of S and Se [50]. The alloying technology is also applicable for the property integration and the electronic structure adjustment of TMD materials. As is known, the carrier types in the naturally grown TMD nanosheets are different, e.g., the MoS₂ and WS₂ are usually presented as n-type while WSe₂ and MoTe₂ nanosheets are p-type semiconductors, the carrier types can be further tuned through forming alloys [38, 40, 42]. Moreover, as 2D TMD materials have diverse polymorph structures [25, 51], e.g., 1T-MoS2 and 1T'-MoS₂ nanosheets are metallic and semi-metallic, respectively, alloying 2D TMDs with diverse phases opens a new avenue for phase control [44, 45, 52]. Another motivation to study the 2D TMD alloys is their better thermal stability induced by lower free energy and internal energy compared with the binary alloys (e.g., WS₂ and MoS₂) [36]. And from the point view of the in-plane crystal structure, the alloying of different TMD nanosheets can bring additional lattice strain in the basal plane due to the lattice mismatch [53, 54], and the incorporation of another element into the binary TMD may also increase the density of the active sites as well as the intrinsic activity. These synergistic effects could lead to the enhanced performance of alloyed TMD in electrocatalysis like hydrogen evolution reaction (HER) comparing with binary counterparts [44, 55, 56].

3 Preparation and characterization of 2D alloyed TMD nanosheets

Less

The widely used techniques for the synthesis of 2D alloyed TMD nanosheets can be classified into three categories: (1) Exfoliation of CVT-grown bulk crystals (e.g., mechanical exfoliation and liquid exfoliation), (2) Vapor synthesis (e.g., chemical/physical vapor deposition (C/PVD)), (3) Wet-chemical synthesis (e.g., hydrothermal synthesis and colloidal synthesis method). Generally, the alloying of TMD materials with similar structure (e.g., MoS₂ and MoSe₂, WS₂ and WSe₂) is favorable and shows precisely tunable bandgap, which is promising for (opto)electronic application. Alloying TMDs with lattice mismatch (e.g., MoTe₂ and MoSe₂, ReSe₂ and ReS₂) is not easy but will generate many interesting properties like phase transition and rich surface defects that are suitable for catalysis. Currently, the most widely studied 2D alloyed TMD nanosheets are from Groups 6 and 7 with M, M' = Mo, W, Re, V or Nb.

3.1 Phase structure/engineering of 2D alloyed TMD nanosheets

As is known, 2D layered TMD nanosheets contain diverse phases, e.g., 1T, distorted 1T (1T' or 1T''), T_d, 2H and 3R phases (the first digital indicates the layer number), which determine their fascinating electronic, optical and chemical properties [25, 57]. This feature can be ascribed to the different electronic structures of their transition metal atoms that depend on the different filling states of the d orbitals [57]. It is common to find the phase-dependent properties as well as appropriate application fields of 2D TMD materials. For example, single-layer 1H-MoS₂ is semiconducting and has been recognized as one of the channel materials for next-generation FETs [22], 1TMoS₂ is metallic and is promising as low-resistance contact materials for 2D FETs [58] and high-performance electrocatalyst [55], and 3R-MoS₂ is a non-centrosymmetric semiconductor that has advantages for fabricating nonlinear optic devices [59]. Therefore, precisely engineering the phase structure of 2D TMD materials is a key issue in future research and applications. Currently, 2D TMD materials with thermodynamically stable phase are widely studied, such as 1H-MoS₂ and 1H-WS₂ that exhibit semiconducting properties. Most 1T- and 1T'-phase 2D TMD materials are (semi-)metallic, and remain difficult to be synthesized because of their metastable nature [30, 51]. However, those metastable phase-based 2D TMDs can present superior performances in catalysis, energy storage and superconductivity [57, 60, 61]. Notably, high quality 1T'-MoS₂ nanosheets were prepared by Yu et al. [62], showing the best HER performance among MoS₂-based electrocatalysts. More recently, high quality 1T'-WS₂ nanosheets are reported by Lai et al. [63], presenting excellent superconductivity among reported TMD-based superconductors. These findings pave the way of phase-engineering of nanomaterials to further explore phase-dependent physicochemical properties and applications [51, 57].

Given such properties, alloying technology provides great convenience for further engineering the phase/phase structure of 2D TMD materials, which mainly includes two strategies: (1) 2D TMD alloys without phase transition: at the early stage, 2D TMD alloys were usually formed from Group 6 2D TMDs that focused on the composition modulation strategy, such as WS_2(1-x)Se_2x, MoS_2(1-x)Se_2x and Mo_xW_1-xS₂ that present in 2H phase as their precursors [50, 64, 65]. As expected, these 2D TMD alloys exhibited continuous tunability of electronic band structure, and the distribution of atoms is randomized due to the large phase miscibility. Notably, Group 7 based 2D TMD alloys such as 1T'-ReS_2(1-x)Se₂ shows unusual in-plane anisotropic optical, electrical and phonon properties, due to the lower lattice symmetry of Re-based TMDs [40]. (2) 2D TMD alloys with phase transition: in the past few years, constructing 2D alloys consisting of two materials with different phase structures has attracted great attention, such as WSe_2(1-x)Te_2x (2H-1T_d phase), WTe_2(1-x)S_2x (2H-1T' phase), Mo_xRe_1-xS (2H-1T' phase), W_xRe_1-xS (2H-1T' phase) and Re_xMo_1-xSe (2H-1T'-1T'' phase), as the phase structure provides more degree of freedom for engineering their structures and properties [38, 39, 44, 45, 66]. Such phase transition enables a wide-range tunability of electronic structures, and also give rise to extraordinary physical properties. Moreover, recent breakthrough in phase engineering [62, 63, 67] of 2D TMD offers a significant opportunity to open up a whole new class of 2D TMD family, pointing out a direction of structure and property control of 2D TMD alloys for wide applications.

3.2 Exfoliation of CVT-grown bulk crystals

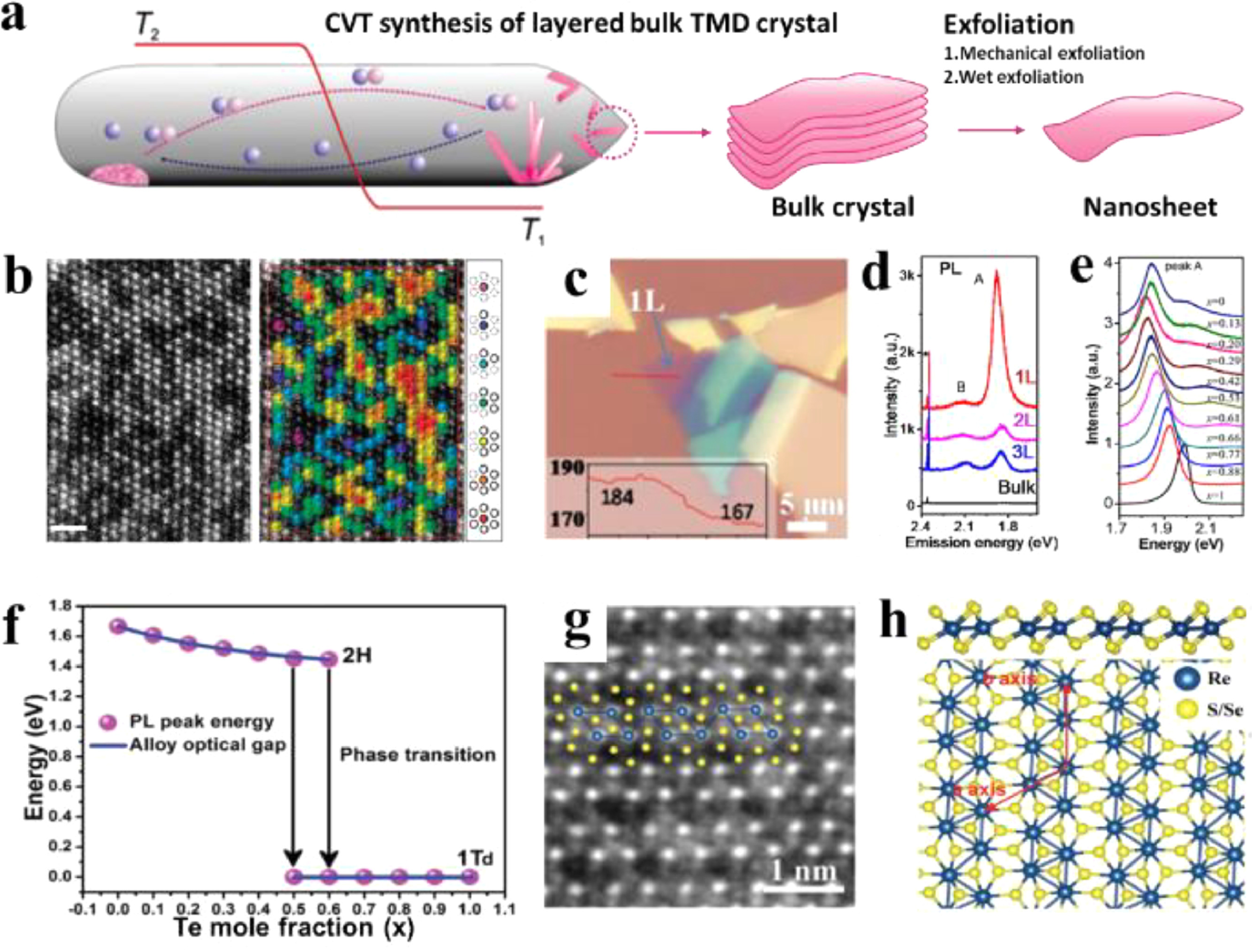

The so-called CVT reaction addresses the crystallization of nonvolatile solids, has been widely used to produce the single crystals of various TMDs since 1960s [68]. Typical process of exfoliation of CVT-grown layered TMD crystal is shown in Fig. 2a. It starts from sealing elemental powders with transport agents (e.g., I₂ and Br₂) in a quartz ampoule under high vacuum, then the sealed ampoule will be annealed under a temperature gradient. During the growth, the layered TMD crystal is carried by the gas-phase transport agent in the high temperature zone (T₂) and then released at the cold end (T₁), which is actually a formation and decomposition of the volatile intermediates through a reversible endothermic reaction that enables the crystallization of TMD in single crystal. Generally, high temperature (~1000 ℃) and long reaction time (> 10 days) are required for the reaction. The as-prepared bulk TMD crystals can be further exfoliated into single- or few-layer 2D nanosheets. Briefly, the mechanical exfoliation of crystals can produce nanosheets with high quality but low yield and controllability, and it is usually time-consuming. On the other hand, liquid exfoliation method takes less time and shows high yield, but will generate lots defects on the surface of nanosheets.

3.2.1 Mechanical exfoliation of CVT-grown bulk crystals

To date, several types of alloyed TMD nanosheets have been prepared by CVT followed by the mechanical exfoliation method. As for M_xM'_1-xX₂ type, Mo_xW_1-xS₂ was widely studied. Dumcenco et al. [69] successfully exfoliated Mo_xW_1-xS₂ monolayers (x = 0–1) from their CVT-grown bulk crystals and quantified the degree of alloying. To begin, the powdered Mo, W, and S elements were mixed in a quartz ampoule in a double heating zone furnace system, with the charge zone maintained at 1030 ℃ (T₂) and the growth zone at 980 ℃ (T₁) for 20-day reaction. Mo_xW_1-xS₂ monolayers were finally obtained through the mechanical exfoliation from the as-prepared crystals using the scotch tape. Atomically resolved electron energy loss spectroscopy (EELS) and scanning transmission electron microscope (STEM) annular dark-field (ADF) method were employed to discriminate the W and Mo metal atoms. The STEM-ADF images (Fig. 2b) showed uniform 2H phase of nanosheets, and the positions occupied by W atoms were brighter than Mo atoms due to the larger annular dark-field contrast (larger Z number, Z = atomic number). Furthermore, the quantitative simulation of the STEM-ADF images revealed a random heteroatomic distribution and the alloying degree in the single-layer Mo_xW_1-xS₂, which provided a direct method for visualizing the atomic distributions at the atomic scale. The properties of Mo_xW_1-xS₂ monolayers were further revealed by Chen et al. [70], and typical optical image of the nanosheets was shown in Fig. 2c. According to PL measurements (Figs. 2d and e), Mo_xW_1-xS₂ showed a transition phenomenon from indirect to direct bandgap after thinning its bulk counterpart to monolayer, and the bandgap of its monolayers can be continuously tuned from 1.82 eV (x = 0.2) to 1.99 eV (x = 1). Meanwhile, the bandgap values did not scale linearly with the composition but show a large bowing effect which was observed in many bulk semiconducting alloys [71, 72], due to different contribution of W atoms to the highest occupied molecular orbital (HOMO) and the lowest unoccupied molecular orbital (LUMO). Further temperature-dependent PL emission and Raman scattering studies showed that characteristic peaks would redshift as the temperature increased, attributing to the an-harmonic effects and the composition disorder [73].

Similarly, MX_2xX'_2(1-x) type alloyed TMD nanosheets such as WS_2(1-x)Se_2x and MoS_2(1-x)Se_2x can also be prepared by above-mentioned method using stoichiometric mixture of elements as precursors, which showed uniform 2H phase structure [74, 75]. Then Yu et al. [38] firstly prepared WSe_2(1-x)Te_2x monolayers (x = 0–1) that showed interesting composition-dependent phase transition. Characterization results showed that the phase of WSe_2(1-x)Te_2x monolayers can be tuned from semiconductor 1H (x = 0–0.4) to mixed 1H and 1T' (x = 0.5–0.6), and finally the metallic 1T' (x = 0.7–1) phase. The bandgap of the WSe_2(1-x)Te_2x monolayers can be tuned from 1.67 eV to 1.44 eV (1H semiconductor) and drop to 0 eV (1T' metal) as revealed by the PL spectra (Fig. 2f). Meanwhile, Wen et al. [37] prepared alloyed ReS_2(1-x)Se_2x monolayers (x = 0–1) with unique 1T' phase structure, and the bandgap can be continuously tuned from 1.62 eV (ReS₂) to 1.31 eV (ReSe₂). The 1T' structure of ReS_2(1-x)Se_2x monolayer was confirmed according to the zigzag chains of the diamond-shaped Re4 clusters shown in the STEM image (Figs. 2g and h), and the Se atoms preferentially located inside the Re4 diamonds that was different from the random atomic distribution shown in Mo_xW_1-xS₂. Typically, polarized Raman characterization of the nanosheets showed strong anisotropic angle-dependence and Raman-mode dependence. To date, the study of TMD alloys is not limited to Groups 6 and 7 TMD alloys. Recently, Hemmat et al. [41] revealed that the alloying of TMD from Group 5 or intergroups 5 and 6 was also feasible. With the prediction of miscibility temperatures calculated by density functional theory (DFT) analysis, layered TMD alloys like Mo_xNb_1-xS₂, W_1-xNb_xS₂, Nb_1-xTa_xS₂, V_1-xTa_xS₂, VS_2(1-x)Se_2x and TaS_2(1-x)Se_2x were successfully prepared by CVT method with homogeneous composition and good exfoliation capability, which boosts the further research on 2D TMD alloys.

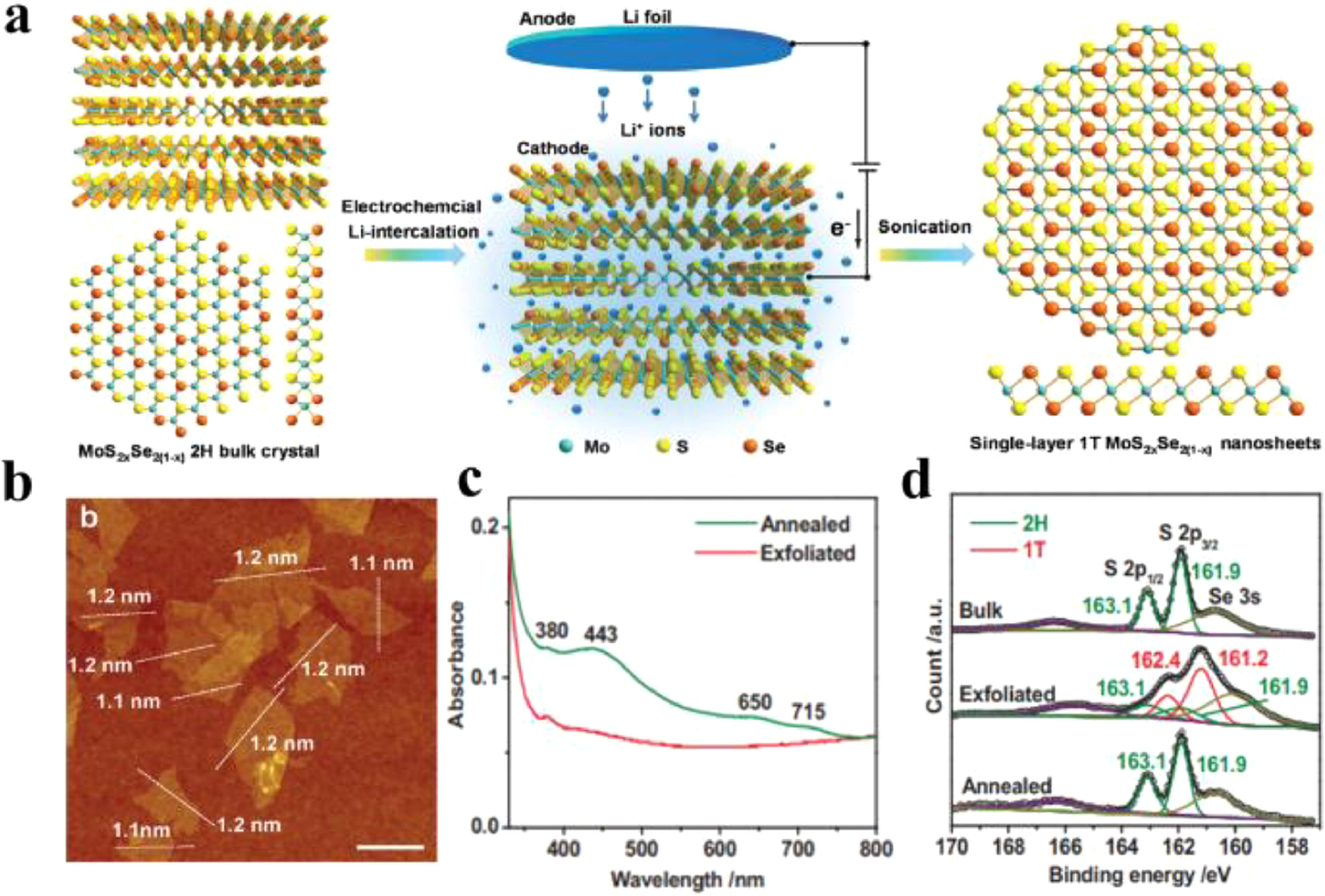

3.2.2 Liquid exfoliation of CVT-grown bulk crystals

Different from the mechanical exfoliation, liquid exfoliation offers a convenient strategy to produce alloyed TMD nanosheets with high yield, but usually showed limitation in size. The commonly used methods are sonication in organic solvent and electrochemical Li-intercalation assisted exfoliation, while the latter can induce phase transition [76, 77]. Very recently, Hu et al. [33] synthesized Mo_xW_1-xS₂ crystal (x = 0.3–0.7) via the CVT method and then exfoliated it into monolayers by dispersing it in Isopropyl Alcohol (IPA) solution, which showed 1H phase with a uniform size (175 nm in average). Kiran et al. [78] exfoliated MoS_2(1-x)Se_2x crystal (x = 0–1) into few-layer nanosheets by sonicating it in water-ethanol mixture. The characterization results confirmed its uniform dimensions (100–300 nm) and thickness (1.4–1.9 nm). Tan et al. [77] then combined the CVT and the electrochemical Li-intercalation assisted exfoliation method to prepare MoS_2(1-x)Se_2x and Mo_xW_1-xS₂ monolayers, as schematically shown in Fig. 3a. The monolayers showed a lateral size ranged from few hundred nanometers to micrometers (Fig. 3b). Interestingly, the Li-intercalation process was found to induce the phase transformation, resulting in high-concentration in metallic 1T phase (around 66%) of the monolayers comparing with the 2H phase of their bulk counterparts. The Ultraviolet and visible spectrophotometry (UV–vis) absorption spectra of MoS_2(1-x)Se_2x evidenced the absence of the 2H phase after exfoliation process (Fig. 3c), and the HAADF-STEM analysis further confirmed its 1T phase structure as Mo atoms arranged in a triangular shape and Se atoms located in the center of the triangles. 1T phase concentration was quantified by the XPS analysis (Fig. 3d). The same group also prepared some uncommon alloyed TMD nanosheets like Ti_xTa_1-xS₂O_Z (x = 0.71, 0.49 and 0.30) nanosheets from CVT-prepared Ti_xTa_1-xS₂ crystal in high yield by the similar method [79]. Although the nanosheets has been slightly oxidized, it still performed well as photothermal agent.

3.3 Vapor phase synthesis

Since the exfoliation of CVT-prepared crystal method takes long reaction time, vapor phase growth appeared to be a promising method to prepare large scale alloyed TMD nanosheets in great flexibility and high quality, mainly including CVD and PVD. The difference of these two methods is the use of precursors. Typical schematic synthesis diagram is shown in Fig. 4a, employing the furnace as reactor and inert gas as transport agent. Precursors ① and ② represent chalcogenide and metal source, respectively, and may contain more than one component. During the reaction, precursors are usually placed at different temperature zones to achieve uniform evaporation or decomposition rates, and inert gas will continuously flow through the reactor, inducing the mixing and reaction of vapors when the heating zones reach certain temperatures. Finally, the product will be carried by inert gas and deposit on certain substrate. Different types of alloyed TMD nanosheets can be obtained by changing the precursors, and the types of precursors used are shown in Fig. 4b. Typical synthesis details are shown in Table 1 [35, 40, 42, 45, 50, 66, 80-84].

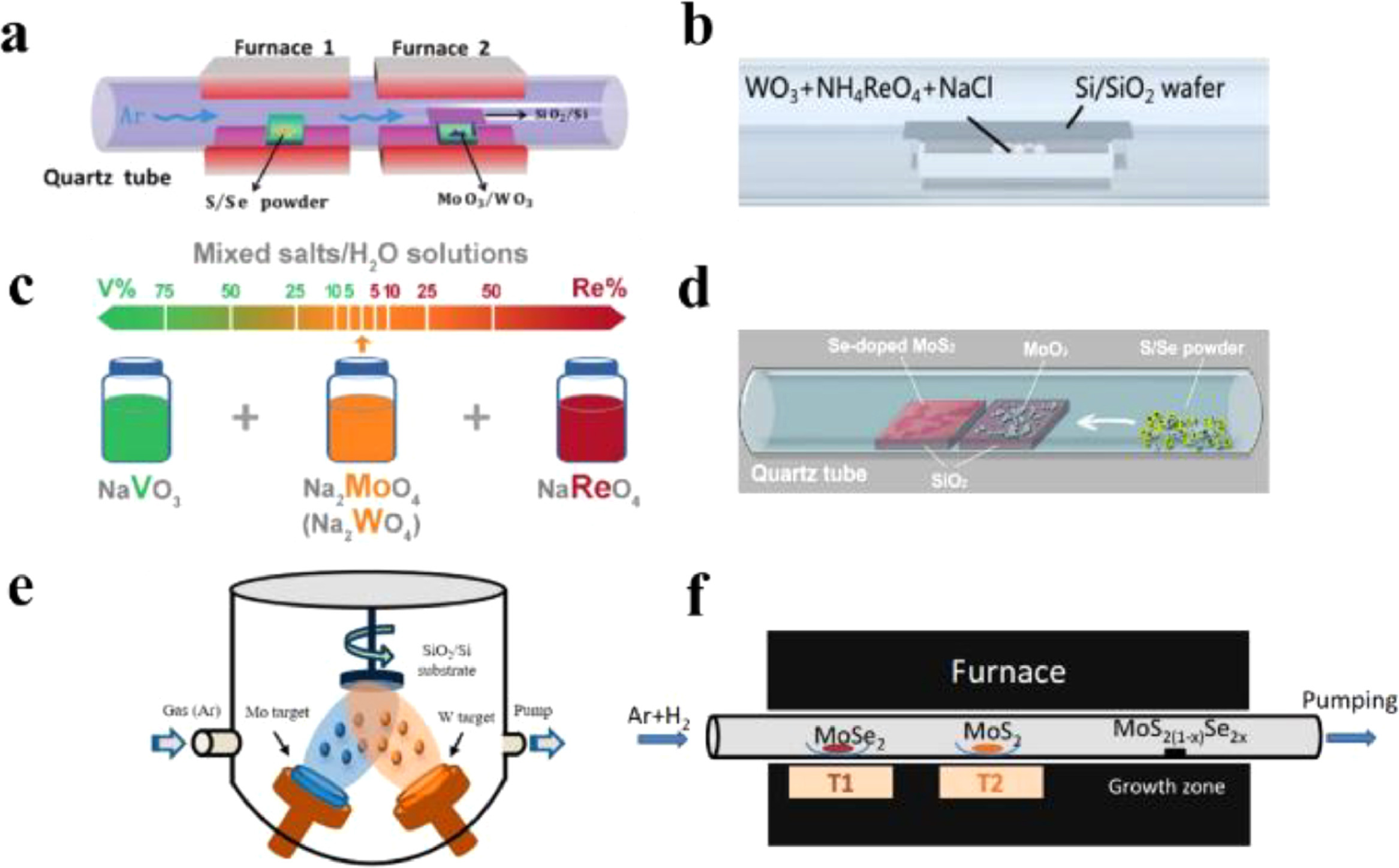

3.3.1 Chemical vapor deposition

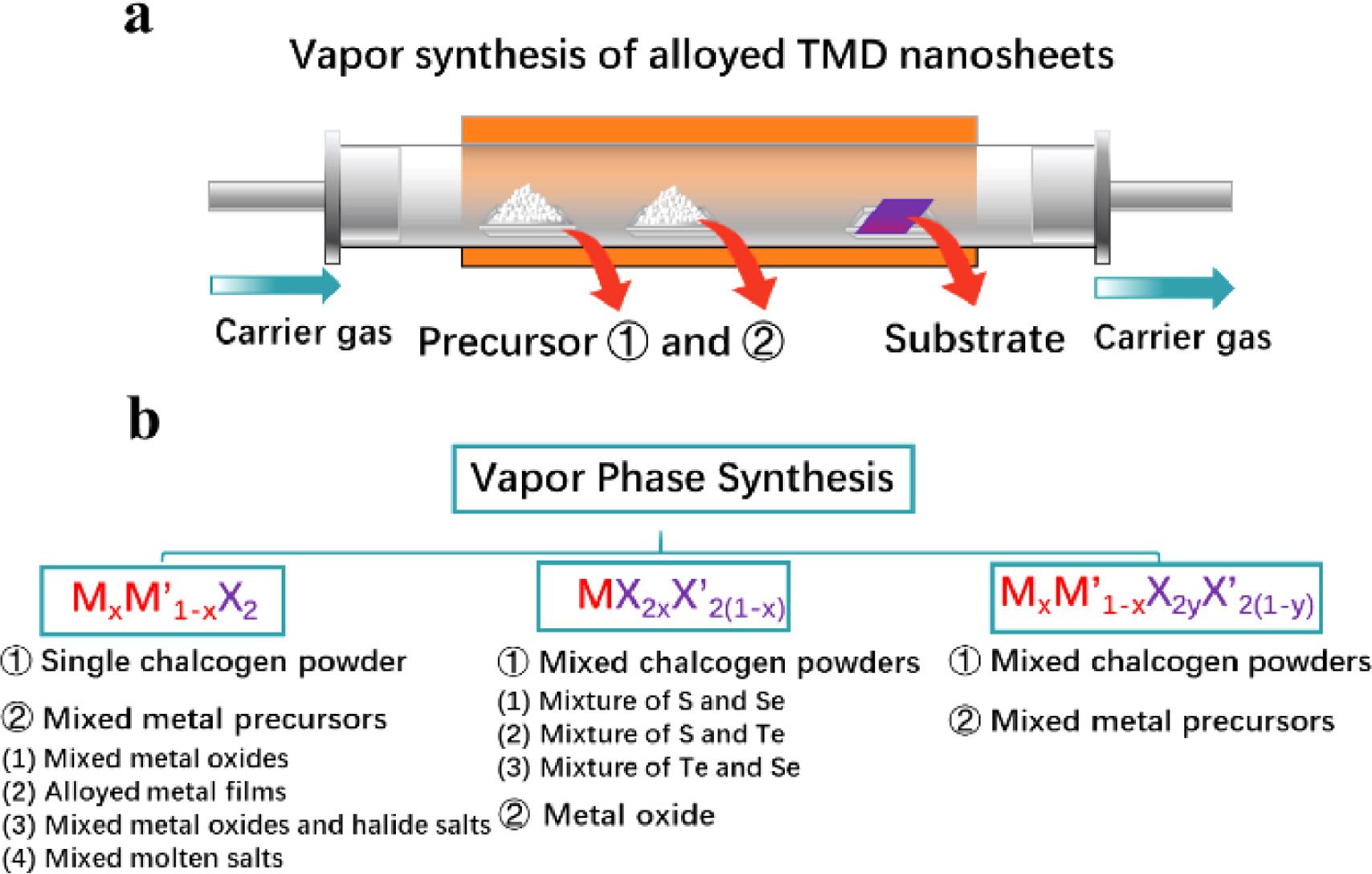

According to Fig. 4 and Table 1, CVD can be the most flexible way to prepare alloyed TMD nanosheets with uniform and large-scale morphology (comparing with exfoliation), and it can be achieved by direct reacting sole or multiple chalcogenide sources with different metal precursors. Most of the prepared nanosheets appeared to be triangle-like morphology due to energetically preferred edge [85], and can merge into film by adjusting the synthesis parameters.

As for M_xM'_1-xX₂ type alloyed TMD nanosheets, it is usually obtained by reacting single chalcogenide source with mixture of metal precursors. For example, Zhang et al. [35] firstly reported the one-step CVD strategy to grow the Mo_xW_1-xS₂ monolayers with controllable composition (x = 0–1) and tunable bandgap. As shown in Fig. 5a, the process took place in a dual-heating zone furnace under ordinary pressure with S and/or Se powder and MoO₃ and/or WO₃ powder placed at two separate heating zones. Through programmed heating, the mixture of MoO₃ and WO₃ powders would react with sulfur vapor to crystalize Mo_xW_1-xS₂ monolayers on a SiO₂/Si substrate. The synthesized Mo_xW_1-xS₂ monolayers showed triangle-like morphology, and the Raman signals revealed the superiority of CVD over mechanical exfoliation in retaining the characteristics of the parent materials. Further research conducted by Liu et al. [36] also confirmed the better thermal stability of CVD-grown Mo_xW_1-xS₂ monolayers than the binary TMDs (e.g., WS₂ and MoS₂), and the phase structure of Mo_xW_1-xS₂ can be further engineered due to the great flexibility of CVD. Wang et al. [52] prepared Mo_xW_1-xS₂ monolayers (x = 0–1) with mixed phase structure (both 1H and 1T) by using a low-pressure CVD furnace system. The XPS analysis results showed that a fast-cool rate after the growth could lead to high proportions of the 1T Mo_xW_1-xS₂. Meanwhile, substrates with larger thermal expansion coefficients (TECs) (typically, the MgO) also contributed to the formation of 1T phase. A high 1T phase fraction of 60% was achieved in Mo_0.4W_0.6S₂ at the optimized synthesis conditions. Mo_xRe_1-xS₂ monolayers have also been prepared by above-mentioned method while showed heterogeneous phase structure due to lattice mismatch. As reported by Deng et al. [39], the Mo_xRe_1-xS₂ monolayers showed two phase structures (1H or 1T') when tuning the composition, and the characteristic Raman peaks of Mo_xRe_1-xS₂ almost maintained fixed with the increase of x value, attributing to the large difference of lattice vibration modes of the two parent materials. Meanwhile, the bandgap evolution of Mo_xRe_1-xS₂ showed a strong band bowing effect with phase transition. As x changed from 0 to 0.25 (1T' phase), the bandgap decreased from 1.31 eV to 0.3 eV, while increased from 0.62 eV to 1.67 eV as x changed from 0.75 to 1 (1H phase). Since MoS₂ and ReS₂ also showed certain lattice mismatch [34], Wang et al. [45] used halide salt to promote the CVD synthesis of W_xRe_1-xS₂ monolayers (Fig. 5b). The halide salt (NaCl) was employed to promote the decomposition of NH₄ReO₄ precursor into highly volatile Re₂O₇ [40]. The 2D alloys was well characterized, and the W_0.2Re_0.8S₂ and W_0.9Re_0.1S₂ appeared to be 1T' and 1H phase, respectively. Recently, Li et al. [42] employed mixed molten salts, e.g., Na₂MoO₄, Na₂WO₄, NaReO₄ and NaVO₃ for the CVD growth of alloyed 2D TMDs, as shown in Fig. 5c. The mixed molten salt showed great feasibility in controlling the composition of TMD alloys by simply changing the ratio of mixed molten salts. And thus, tunable optical and electrical properties were achieved in these 2D TMD alloys.

As for MX_2xX'_2(1-x) type alloyed TMD nanosheets, it is usually obtained by reacting mixed chalcogenide sources with single metal precursor. For example, Gong et al. [81] reported the synthesis of MoS_2(1-x)Se_2x nanosheets with a broad range of compositions (x = 0–1) through the reaction of MoO₃ with mixed S and Se vapor at 800 ℃ in an atmospheric CVD furnace (Fig. 5d). The MoS_2(1-x)Se_2x nanosheets can also be prepared under low pressure (P = 8 torr and T = 830 ℃) as reported by Li et al. [65], showing tunable bandgaps from 1.557 eV (x = 0) to 1.856 eV (x = 1) with little bowing effect according to the PL analysis. Interestingly, the same group [86] also achieved unique bilayer MoS_2(1-x)Se₂ nanosheets with continuous lateral growth composition as well as bandgaps along its structure by changing the input sequence of the precursors. Similarly, alloyed WS_2(1-x)Se_2x monolayers (x = 0–1) were prepared by reacting WO₃ with mixed S and Se vapor as reported by Fu et al. [83]. The carrier gas flow rate has played an important role on the monolayer nucleation and growth, and the bandgaps of the samples can be continuously tuned from 1.97 eV (x = 0) to 1.61 eV (x = 1). As for TMD materials with large lattice mismatch, e.g., ReS₂ and ReSe₂, WS₂ and WTe₂, additional salts would be helpful for the alloying process. For example, Kang et al. [40] prepared ReS_2(1-x)Se_2x monolayers (x = 0–1) by reacting NH₄ReO₄/NaCl powder with S/Se vapor in an atmospheric CVD furnace. The nanosheets showed dendritic-like feature which was caused by the anisotropic growth and 1T' phase structure. The bandgaps of nanosheets showed linear dependence on the composition x in the range of 1.32 eV (ReSe₂) to 1.62 eV (ReS₂) according to PL measurements. While through similar synthesis method, alloyed WTe_2xS_2(1-x) monolayers were prepared with interesting composition-dependent bandgap and phase transition feature [66]. According to the optical microscope (OM) and TEM-ADF images, the alloyed WTe_2xS_2(1-x) monolayers showed triangular and elongated shape that correspond to 1H and 1T' phase, respectively, and its bandgaps could be tuned from 2 eV (for pure WS₂, 1H phase) to zero bandgap (for pure WTe₂, 1T' phase) as the concentration x increased, and 1H (semiconductor) to 1T' (metal) phase transition existed when x was in the range of 0.4–0.6. This phase transition was induced due to the highly deformed hexatomic rings structure of Te which would cause pairs of metal atoms to be pulled toward each other, and finally breaking the threefold symmetry of the 1H phase of WTe_2xS_2(1-x). Combing the results of CVT-exfoliation method, it could be found that alloying TMDs with smaller lattice mismatch leads to controllable tuning of bandgaps while the tuning range is limited. On the other hand, alloying TMDs with larger lattice mismatch leads to promising phase modulation but the synthesis process will be more challenging. Note that most of the synthesized alloyed TMD nanosheets showed limited size (Table 1), prefabricating alloyed metal membrane may be a promising strategy to produce alloyed TMD nanosheets with large scale (Fig. 5e) [80, 87]. For example, Liu et al. [87] firstly prepared the large scale (2-inch) Mo_xW_1-xS₂ (x = 0–1) atomic layers by sulfurizing the as-prepared Mo_xW_1-x thin films, which was pre-deposited on 2-inch c-plane sapphire substrates by co-sputtering Mo and W targets. The XPS analysis confirmed the feasibility of the method as the W content in Mo_xW_1-xS₂ increased linearly with the increase in the powder ratio of W/(Mo + W), and peak-fittings of the Raman spectra across the 2-inch wafer showed low variation (5%), revealing the uniformity of the synthesized nanosheets. Similar strategy was also reported by Park et al. [80], and an additional laser thinning process was employed to thinner the thickness of Mo_xW_1-xS₂ nanosheets.

The CVD method is also feasible to synthesize M_xM'_1-xX_2yX'_2(1-y) type TMD alloys. Susarla et al. [84] prepared alloyed Mo_xW_1-xS_2ySe'_2(1-y) nanosheets by reacting Se/S vapor with mixture of ammonium molybddate tetrahydrate (AT) and ammonium meta tungstate (AMT), which showed a wide range of bandgap tunability from 1.60 eV to 2.03 eV. Very recently, a modified sequential two-stage CVD process was employed by Zhang et al. [88] to prepare bilayer Mo_xW_1-xS_2ySe'_2(1-y) nanosheets with large size (~200 µm) and high controllability. Typically, reverse hydrogen flow was introduced during the growth stage, both to reduce the undesired nucleation centers of the first layer as well as to promote the homogeneous growth of the second monolayer.

3.3.2 Physical vapor deposition

For some TMD materials with high sublimation rate, the alloying process can be simplified by direct heating the two materials. For example, Xie's Group [82, 89] prepared the PVD-grown MoS_2(1-x)Se_2x (x = 0–1) monolayers by employing double heating zone furnace using MoSe₂ and MoS₂ as precursors (Fig. 5f). The characterization results indicated that the increase in evaporation temperature of MoSe₂ lead to a tunable growth of MoS_2(1-x)Se_2x with larger size but limited Se content (x = 0–0.40), this problem arose from the decomposition of MoSe₂ to Mo₃Se₄ at high temperatures and was solved by adding extra Se vapor during PVD. The as-prepared alloyed monolayers also showed a tunable bandgap (from 1.86 eV (x = 0) to 1.55 eV (x = 1)). WS_2(1-x)Se_2x (x = 0–1) monolayers can also be prepared by co-evaporation method. As revealed by Duan et al. [50], the PL and Raman studies of WS_2(1-x)Se_2x (x = 0–1) monolayers showed a systematic shift of PL peak position and the Raman resonance frequencies, indicating a successful chemical and structural modulation and tunable bandgaps from pure WSe₂ to pure WS₂.

Briefly, the vapor phase synthesis is convenient to obtain different types of alloyed TMD nanosheets with tunable bandgap comparing with CVT method, but many challenges remain. The adjustment range of bandgap and size of the 2D alloys are still limited, and how to precisely control its phase structure is another challenge. The uniformity and reproducibility of synthetic 2D alloys need to be carefully considered before we can generate a scalable synthesis method for future lab-to-industry application.

3.4 Wet-chemical synthesis

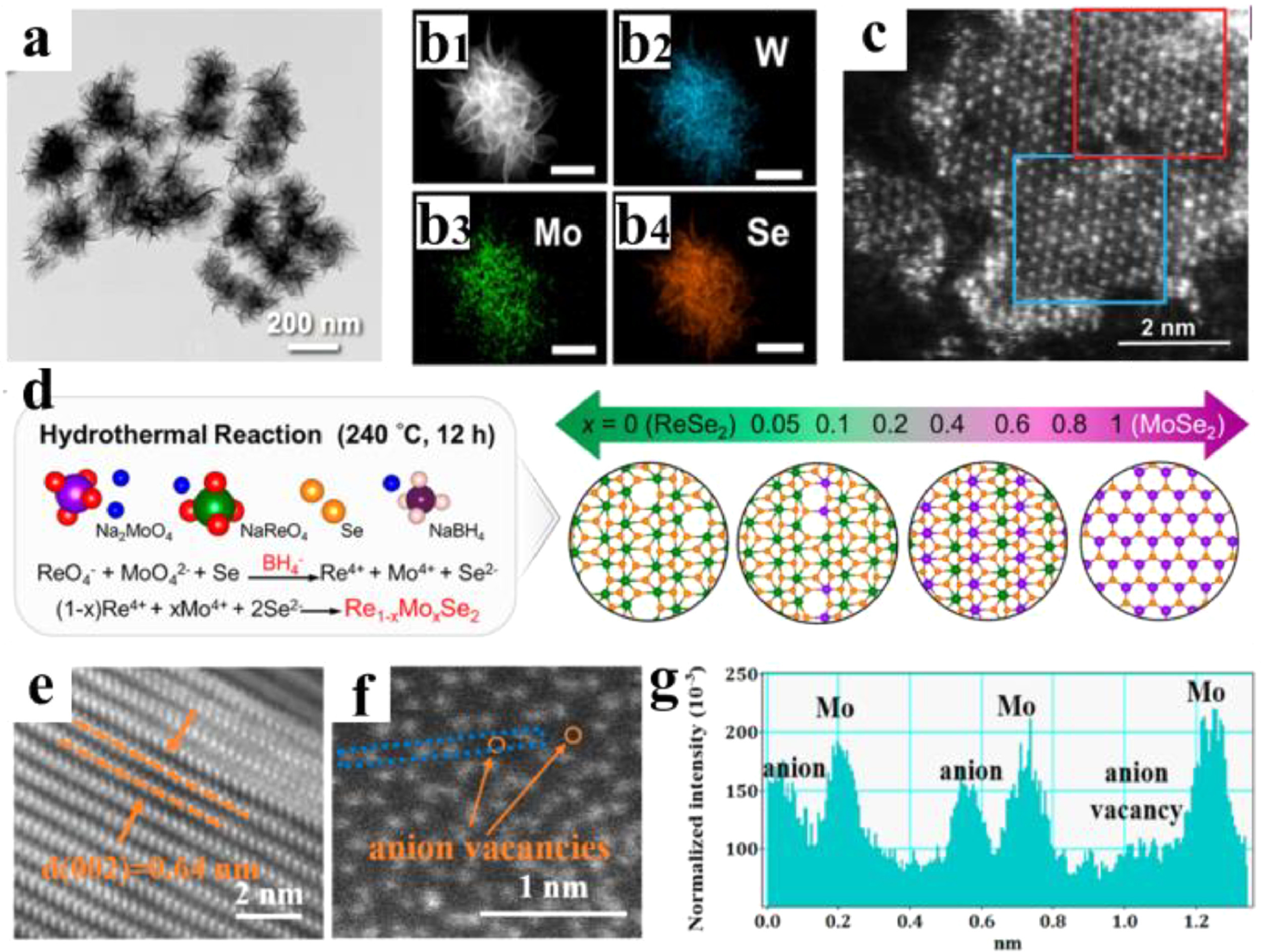

Different from the vapor synthesis method that required high temperature, hydrothermal method is carried under lower temperature, presenting an attractive alternative with the potential for higher-yield, substrate-free synthesis of larger-surface-area 2D TMD alloys as well as vacancy engineering [90]. In terms of the M_xM'_1-xX₂ type, Sun et al. [91] reported a simple colloidal synthesis method to prepare Mo_xW_1-xSe₂ nanosheets with tunable optical properties by injecting metal reagents (mixture of MoCl₅, WCl₆ and oleic acid) into as-prepared chalcogen-contained precursors (hot mixture of 300 ℃) of diphenyl diselenide, oleylamine and hexamethyldisilazane (HMDS)). As shown in Figs. 6a and b, TEM and energy dispersive spectrometer (EDS)-mapping images confirmed the buckled nanoflower structure of Mo_xW_1-xSe₂ nanosheets with uniform elemental distribution, and the ADF-STEM images of the sample presented the Mo vs. W site occupancies as well as three chalcogen configurations (namely diselenium (Se₂), monoselenium vacancy (V_Se), and diselenium vacancy (V_Se2)). The bandgaps of the samples showed a complete tunability between the two ends TMDs (1.51–1.61 eV). Phase engineering of 2D alloys can also be achieved by wet-chemical method. For example, Yang et al. [92] prepared Mo_xW_1-xS₂ nanoflowers (x = 0.04–0.13) with 1T/2H phase (Fig. 6c) by heating mixture of (NH₄)₁₀W₁₂O₄₁·xH₂O, (NH₄)₆Mo₇O₂₄·4H₂O, and thiourea under certain temperature (200 ℃, 220℃ or 240 ℃). Furthermore, Kwak et al. [44] prepared Mo_xRe_1-xSe₂ nanosheets (x = 0–1) with phase evolution. As revealed by the schematic synthesis diagram (Fig. 6d), powder precursors of Na₂MoO₄·2H₂O and NaReO₄ were dissolved in the deionized water with 4-mmol NaBH₄ as the reductant, and Mo_xRe_1-xSe₂ nanosheets were obtained under the temperature of 240 ℃. Distinct phase transition of Mo_xRe_1-xSe₂ was observed, i.e., the major phase is 1T'' (triclinic, distorted 1T) for x = 0–0.4, 1T' (monoclinic, distorted 1T) for x = 0.6, and 2H for x = 0.8–1.

As for MX_2xX'_2(1-x) type, Xu et al. [93] illustrated a novel liquid interface-mediated strategy to prepare MoSSe monolayers by direct heating the (NH₄)₆Mo₇O₂₄·4H₂O, and S/Se powder dissolved in the oleylamine/water solution in teflon-lined autoclave at 220 ℃, then MoSSe nanosheets were flexibly formed at the oil/water interface. The X-ray absorption fine structure spectroscopy (XAFS) measurements revealed the disordered structure of MoSSe with shorter Mo-S and longer Mo-Se bond comparing with the pure MoS₂ and MoSe₂ monolayers, which helped to further tailor the electronic structure of Mo atoms. More recently, inspired by the vacancy engineering, He et al. [94] reported a simple alloying reaction to prepare MoS_2(1-x)Se_2x nanosheets (x = 0–1) with tunable anion vacancies concentration. The mixture of MoSe₂ (prepared by hydrothermal method) and S powder were prepared first, then vacuum sealed and calcinated at 700 ℃ to obtain MoS_2(1-x)Se_2x nanosheets (12 nm in thickness). Defect and vacancy features of samples were revealed by STEM analysis (Figs. 6e-g), and the electron paramagnetic resonance (EPR) analysis showed that the vacancy concentration increased firstly with the increase of x value and then reduced, reaching the highest value at x = 0.25.

3.5 Other methods

The alloyed TMD nanosheets can also be prepared via other advanced methods with great potentiality. For example, Yao et al. [95] reported the growth of high-quality Mo_0.5W_0.5S₂ nanosheets with centimeter-scale and thickness of 20 nm via pulsed laser deposition (PLD). The nanosheets was highly c-axis-oriented since only one pronounced peak indexed as (0 0 2) was found in the XRD pattern. Zhang et al. [96] employed the molecular beam epitaxy (MBE) method which was widely used in the semiconductor heterostructure to fabricate V_xMo_1-xSe₂ monolayers with tunable composition (x = 0–1). The synthesis of these alloyed nanosheets was carried out under ultrahigh vacuum, and Se was evaporated from a Knudsen cell while V and Mo were co-evaporated from two electron-beam evaporators with their evaporation rates controlled by the flux current. The value of x = 0.44 acted as a critical point while below which the phase separation occurred and above which a homogeneous metallic 1H phase was favored. Most of the methods focused on TMD precursors with thermodynamically stable phase, while notably, Lai et al. [63] successfully obtained high quality and large scale metastable 1T' MoS_2(1-x)Se_2x and WS_2(1-x)Se_2x nanosheets by a multi-step thermal reaction followed by mechanical exfoliation. As an example of MoS_2(1-x)Se_2x, mixtures of K₂MoO₄ with S and Se powder were firstly grounded and sealed within a quartz ampoule under internal pressure of about 10⁻⁶–10⁻⁵ Torr. After heated at 500 ℃ for around 100 h, the as-prepared intermediate would be treated under the flow of Ar/H₂ mixed gas. Finally, the 1T'-MoS_2(1-x)Se_2x crystals were obtained by purification and drying process, and then exfoliated into single or multi-layer nanosheets.

4 Applications of 2D alloyed TMD nanosheets

Less

4.1 Electronics

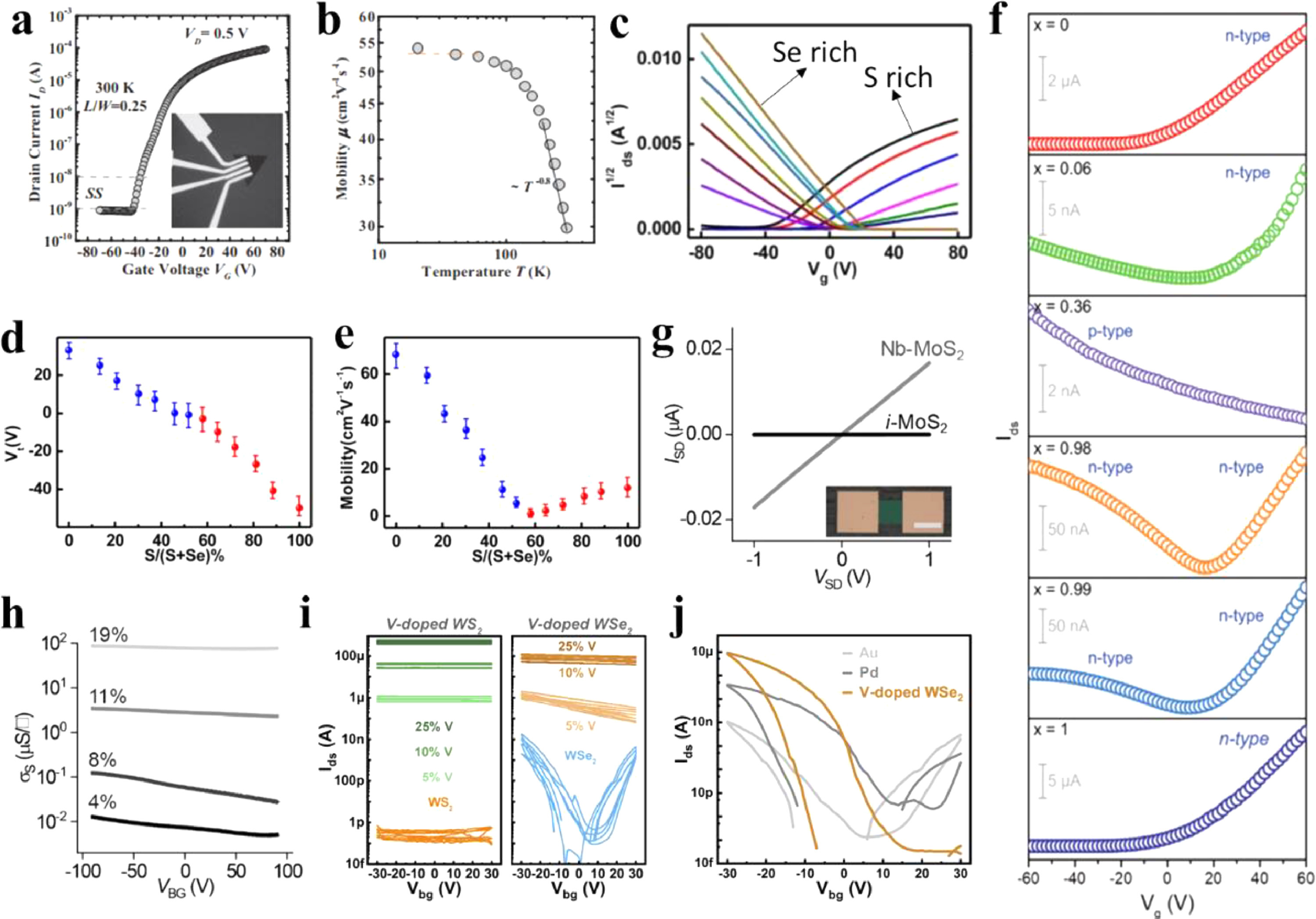

2D TMD nanosheets are widely considered as attractive semiconducting channel materials, due to their atomically thin thickness, high carrier mobility and current on/off ratio [22, 97]. Meanwhile, 2D TMD alloys have unique properties such as tunable bandgap/band position, phase structure and electrical conductivity compared with their binary counterparts, thus making them promising candidates for not only the channel materials but also the electrode materials of 2D FETs [42, 98, 99].

FETs that employ 2D TMD alloys as channel materials were studied at an early stage, more efforts are needed to seek ideal alloys with enhanced FET performance. Compared with the intrinsic 2D TMD nanosheets, most of the reported 2D TMD alloys demonstrated similar or poor FET performance. As for the M_xM'_1-xX₂ type, Liu et al. [36] reported W_xMo_1-xS₂ monolayer-based FETs on SiO₂/Si substrates for the first time. The WMoS₂-FET demonstrated typical n-type transport behavior and similar high current on/off ratio as the intrinsic MoS₂ and WS₂ monolayers (Fig. 7a). The electron mobility of WMoS₂-FET was ~54 cm² V⁻¹ s⁻¹ at 20 K and ~30 cm² V⁻¹ s⁻¹ at 300 K (Fig. 7b) which is somehow in between the MoS₂ and WS₂ monolayers. As for MX_2xX'_2(1-x) type, Duan et al. [50] demonstrated the interesting composition-dependent electronic properties of WS_2(1-x)Se_2x monolayer-based FETs. According to the evolution of electrical properties of FETs (I_sd^1/2–V_g plot, Fig. 7c), highly p-type behavior was observed in Se-rich alloy (brown curve), while gradually shifted to highly n-type in S-rich alloys (black curve). As shown in Fig. 7d, the extracted average threshold voltage (V_t) of the FETs decreased (more negative) with increasing S ratio, suggesting the reduced electron density and increased hole density. Meanwhile, the achieved mobility value (Fig. 7e) decreased firstly from the Se-rich end (68.2 cm² V⁻¹ s⁻¹ for holes), reaching a lowest value at x ≈ 0.5 and then increased to 11.8 cm² V⁻¹ s⁻¹ (electrons) at S-rich end. The low electron mobility was ascribed to the higher contact resistance due to the lower doping concentration, and also the ionized impurity scattering and alloy scattering commonly seen in Groups 3–5 alloy semiconductors [100, 101]. The WS_2(1-x)Se_2x-based FETs also presented thickness-dependent transport mechanism as revealed by Karande et al. [74], showing n-type and ambipolarity behavior in thinner and thicker samples, respectively. This FET device also showed promising performance, exhibiting a maximum electron mobility of ~50 cm² V⁻¹ s⁻¹ along with an on/off ratio > 10⁶.

In addition, the carrier type and density of Group 6 2D TMD nanosheets can be well tuned when alloying with neighboring Re (electron donor), or V and Nb (electron acceptor) in periodic table [42, 99]. And thus, their electrical properties can be tuned in a large range, from intrinsic semiconductors to heavily alloyed metals. These TMD alloys showed great potential in overcoming the high contact resistance between metal electrodes and 2D TMD nanosheets. For the M_xRe_1-xX₂ type, Deng et al. [39] fabricated the back-gated FETs based on Mo_xRe_1-xS₂ monolayers that showed conduction transition behavior from n-type to bipolar and p-type in 1T' phase, and novel "bipolar-like" conduction behavior contributed by the electron current in 2H phase alloys (Fig. 7f). Besides the M_xRe_1-xX₂, the M_xNb_1-xX₂ and the M_xV_1-xX₂ show the most impressive composition dependent electrical conductivity. Chuang et al. [98] demonstrated a unique Nb_0.005W_0.995Se₂/WSe₂ electrode contacts for WSe₂ based-FETs. The 2D/2D contacts exhibited low contact resistances of ~0.3 kΩ·µm and high on/off ratios up to > 10⁹. Gao et al. [99] reported the growth of wafer-scale Mo_xNb_1-xS₂ monolayers with tunable Nb composition via metal–organic chemical vapor deposition (MOCVD) growth. The as-grown Mo_xNb_1−xS₂ showed a dramatical increment of electrical conductivity up to 10⁷ when compare with the intrinsic MoS₂ monolayers (Figs. 7g and h). Similarly, Li et al. [42] also observed the dramatic enhancement of electrical conductivity up to 10⁸ in W_xV_1-xS₂ and W_xV_1-xSe₂ (Fig. 7i). These metallic TMD alloys were ideal van der Waals contacts for 2D FETs. They can eliminate the high contact resistance caused by Fermi level pinning effect at the interface of metal electrode and TMD nanosheets. As shown in Fig. 7j, when the metallic W_xV_1-xSe₂ monolayers were used as contacts, the on-state current and current on/off ratio of WSe₂-FETs increased 1~3 orders of magnitude when compare with the widely used Pd and Au electrodes. Using metallic 2D TMD alloys provide a practical strategy to engineer the contacts for high-performance 2D FETs.

Alternatively, tunable carrier type and density can also be achieved in MX_2xX'_2(1-x) alloys. Cui et al. [102] synthesized 1T' ReS_2xSe_2(1-x) monolayer with an interesting tunable conductivity from n-type (x = 0.6–1.0) to bipolar (x = 0.3–0.6) and p-type (x = 0–0.3). Moreover, the electrical transport properties of the 2D alloys-based FETs showed obvious lattice direction dependence, where both electron and hole mobility of the FET channel along the b-axis was larger than that perpendicular to the b-axis. Yu et al. [38] employed the bilayer WSe_2(1-x)Te_2x as the channel materials for back-gated FETs, which showed interesting phase dependent electrical properties. The calculated mobility and on/off ratio of 2H WSe_2(1-x)Te_2x (p-type) at x = 0 and 0.3 were 10 cm² V⁻¹ s⁻¹ with 10⁶, and 46 cm² V⁻¹ s⁻¹ with 10⁶, respectively, whereas no drain current dependency was found in WSe_2(1-x)Te_2x with x > 0.7, suggesting its metallic properties. This study provides a strategy to create a WSe_2(1-x)Te_2x homojunction which can work as channel and electrode materials of 2D FETs simultaneously.

4.2 Photodetectors

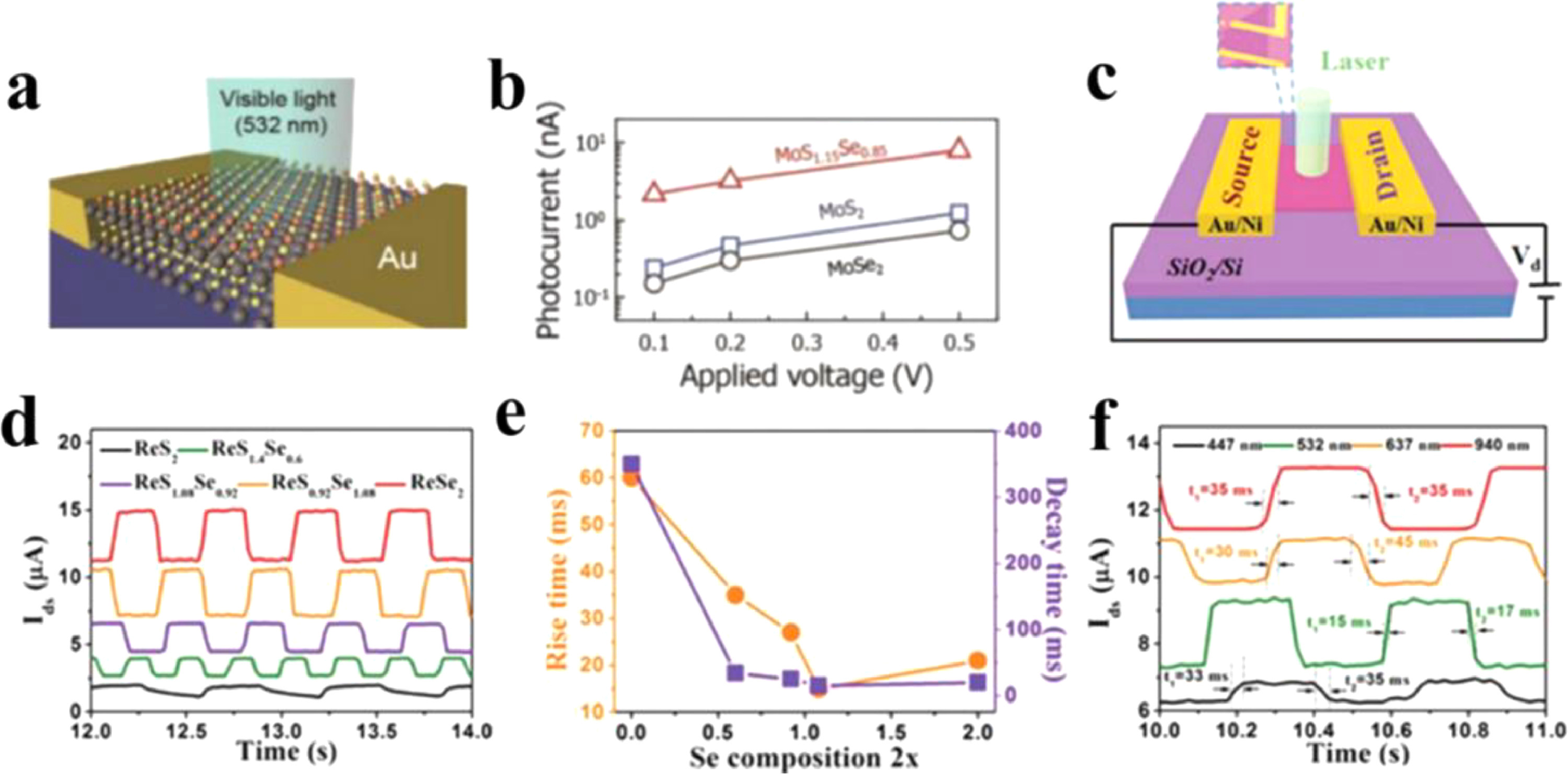

Besides the applications in FET devices, 2D alloyed TMD nanosheets have also exhibited great potential in fabricating high-performance photodetectors, due to its tunable bandgap in tuning the peak responsivity position and photo-response edge [103-106]. Yao et al. [95] demonstrated the fabrication of photodetector based on PLD-prepared alloyed Mo_0.5W_0.5S₂ nanosheets with better responsibility than PLD-prepared WS₂. The resulting photodetector possessed stable photoresponse from 370 nm to 1064 nm with a responsivity of 5.8 A/W and a response time shorter than 150 ms. The favorable results laid in the suppression of the depth and number of deep-level defect states (DLDSs) due to the alloy engineering to improve the thermodynamic stability. More recently, Wang et al. [45] employed W_xRe_1-xS₂ monolayers for photodetector and found that the device based on 1H-W_0.9Re_0.1S₂ alloy displayed a high photoresponsivity of 17 µA/W in air than WS₂ (0.2 µA/W), attributing to the existence of trap states and the absorption of light. However, it also showed a worse response time. Klee et al. [107] studied the photo-response of the CVD-grown MoS_2(1-x)Se_2x monolayers using the spatially resolved photocurrent measurement (laser powers = 190–1320 µW at λ = 633 nm). Interestingly, the author found an unusual photoresponsivity transition in the MoS_2(1-x)Se_2x-based devices from notably nonlinear to nearly linear current–voltage when increasing the Se content. It was worth noting that Lim et al. [108] prepared the large-scale MoS_2(1-x)Se_2x multilayers on a 4-inch quartz wafer through thermal decomposition method for photoelectrical application, and 20 devices were fabricated with identical geometry on a single chip to evaluate the device-to-device variations in terms of the photocurrents (Fig. 8a). As a typical example, Fig. 8b showed that the photocurrent of the MoS_1.15Se_0.85based FET was higher than those of the MoS₂ and MoSe₂based devices, which can be explained by two synergetic effects: (1) The decrease in density of localized DLDSs and (2) Deep-to-shallow level transition induced by the alloy formation. The spatial homogeneity test further revealed the excellent reproducibility of the device. Moreover, the photoresponsivity of the MoS_1.15Se_0.85-based device reached 2.06 A/W at 10 V, which was greater than those of the commercial photodetectors based on Si and GaAs. Kang et al. [40] prepared the CVD-grown ReS_2(1-x)Se_2x monolayer in high crystal quality for photodetector, and the schematic image of the device was shown in Fig. 8c. The study of the temporal time-dependent photo-response of the ReS_2(1-x)Se_2x-based devices were shown in Figs. 8d and e, revealing that the incorporation of Se within Re-based TMDs could reduce the response time, which was attributed to the modulation of the defect-induced trap states. Typically, the ReS_0.92Se_1.08-based photodetector exhibited a fast response time less than 15 ms. The ReS_0.92Se_1.08-based device also showed wide photo-response from visible (447, 532 and 637 nm) to near-infrared (940 nm) light (Fig. 8f), and the photocurrent rose gradually with the increase of the laser wavelength except for a singular point at 532 nm, which showed the highest photocurrent.

4.3 Hydrogen evolution reaction (HER)

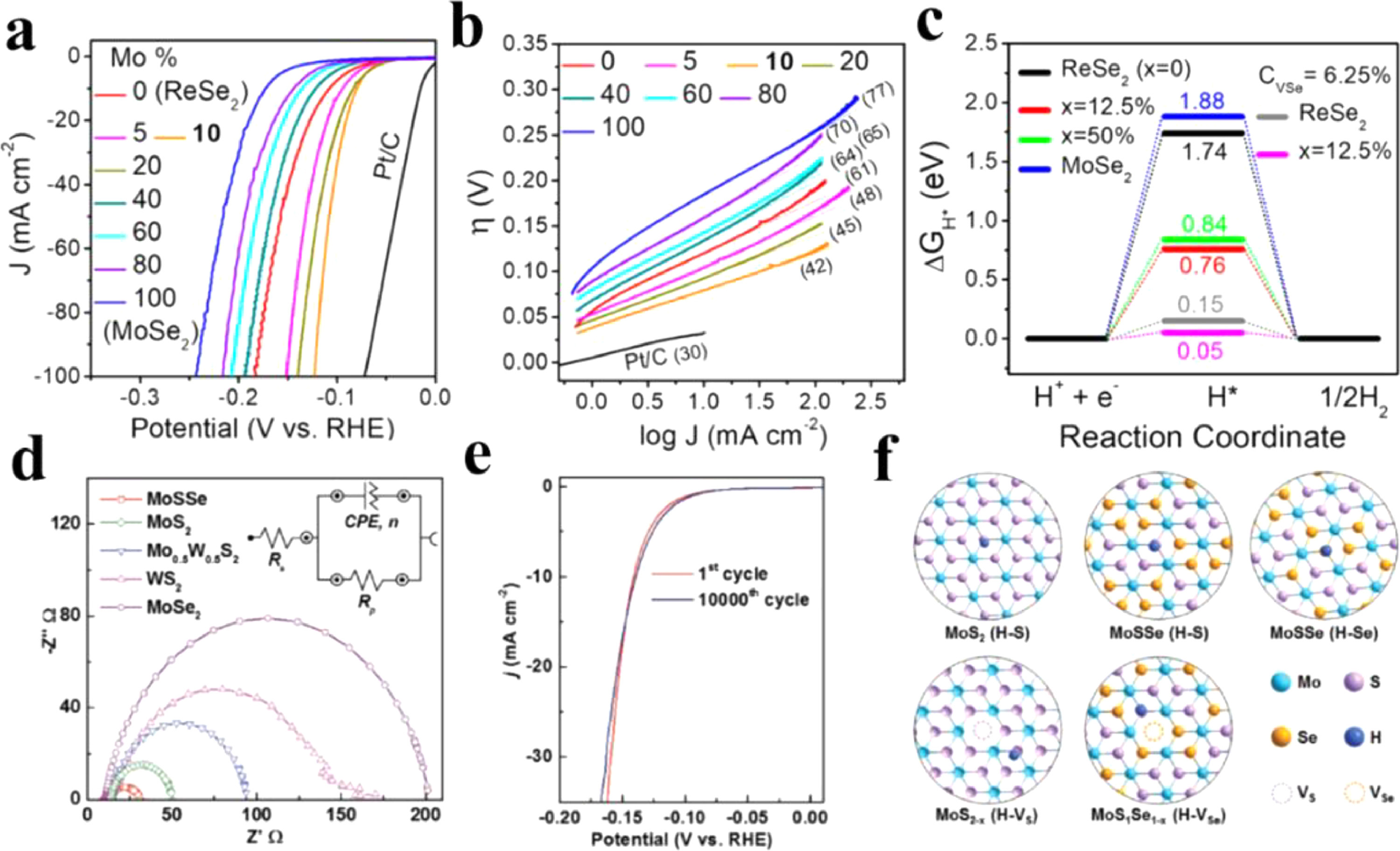

The hydrogen evolution reaction (HER), in which the molecular H₂ is formed through the reduction of the absorbed protons on the electrode, is considered as an effective route to achieve high-performance water splitting [77]. Currently, 2D TMD nanosheets have been proven to be promising catalysts, and alloying technology offers the possibility to further engineer H₂ affinity as well as defect structure in 2D TMD alloys, therefore resulting in enhanced HER performance than the binary TMD nanosheets [44, 55, 56].

For the M_xM'_1-xX₂ type, Nguyen et al. [109] prepared the MoWS₂ nanosheets coating on carbon nanotube yarn (CNTY) and carbon cloth (CC) substrates by low-temperature thermolysis method for HER. The MoWS₂/CC showed small Tafel slope and overpotential of 41.8 mV/dec and 145 mV (η₁₀, means that the overpotential values were obtained at a current density of 10 mA/cm²), respectively, which was the closest to that of Pt/C (Tafel slope of 31.4 mV/dec). Mo_xRe_1-xSe₂ nanosheets (x = 0–1) were synthesized by hydrothermal reaction for HER by Kwak et al. [44]. As shown in Figs. 9a and b, the linear sweep voltammetry (LSV) analysis and Tafel plots confirmed the better performance of Mo_xRe_1-xSe₂ compared with its binary counterparts, with an overpotential of 77 mV (η₁₀) and a Tafel slope of 42 mV/dec. Then the calculation of Gibbs free energy (Fig. 9c) along the reaction path indicated that the high activity of Mo_0.1Re_0.9Se₂ originated from the formation of the Mo-H provided the existence of the adjacent Se vacancies. For the alloyed TMDs in MX₂_xX'₂_(1-_x₎ type, similarly, Kiran et al. [78] found that the exfoliated MoS_2(1-x)Se_2x nanosheets possessed higher HER activity than pristine MoS₂ and MoSe₂ nanosheets. A high exchange current density of 320 µA/cm² for a constant loading of 180 µg/cm² and a Tafel slope of 56 mV/dec were achieved by the prepared MoSSe in N₂-saturated 0.5 mol/L H₂SO₄ electrolyte. The MoSSe also showed good stability without detectable difference between the initial voltammogram and the one after 1000 cycles. In addition, high-temperature solution prepared few-layer MoS_2(1-x)Se_2x was also applied for HER by Gong et al. [56]. The MoS_2(1-x)Se_2x nanoflakes have high activity and durability for HER electrocatalysis with small overpotentials in the range of 80–100 mV and the negligible activity loss up to 10, 000 potential cycles. Meanwhile, the alloyed MoSSe obtained the lowest overpotential of ~160 mV (η₁₀) and Tafel slope of ~48 mV/dec, with the highest TOF (turnover frequency, s⁻¹) of 150 mV. The enhanced activity was attributed to the modulation of the d-band electronic structure to tune the hydrogen adsorption free energy and the consequent electrocatalytic activity. Particularly, Tan et al. [55] prepared MoS₂, WS₂, MoSe₂, Mo_0.5W_0.5S₂ and MoSSe nanodots by Li-assisted exfoliation for HER reaction. Impressively, the obtained MoSSe achieved a low overpotential of 140 mV (η₁₀), Tafel slope of 40 mV/dec, faster Faradic process and excellent long-term durability (Figs. 9d and e). Combing the DFT calculation, the excellent catalytic activity of MoSSe nanodots was attributed to the high-density active edge sites, high-percentage metallic 1T phase (60%), alloying effect and basal-plane Se-vacancy (Fig. 9f). Wang et al. [110] then reported the CVD-grown dendritic WS_2(1-x)Se_2x monolayers for enhanced HER. The dendritic WS_2(1-x)Se_2x nanosheets revealed a much lower overpotential and Tafel plot than that of WS₂ nanosheets, suggesting that the dendritic shape of flakes provided more active edge sites than triangular flakes, thereby resulting in an improved HER performance.

4.4 Other applications

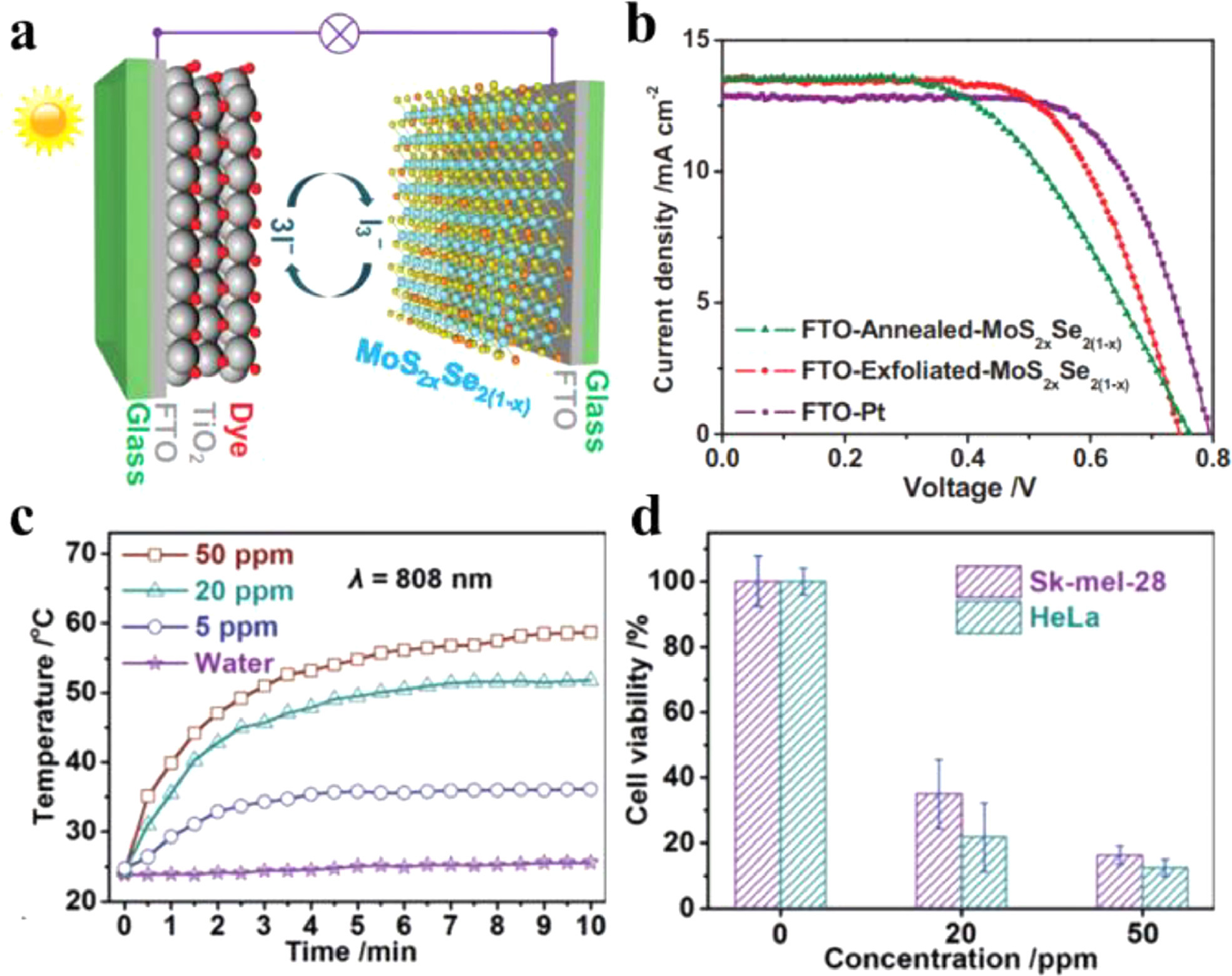

In addition to the as mentioned applications, some other promising ones involving 2D alloyed TMD nanosheets have also been reported in recent years. For example, Tan et al. [77] revealed that single-layer MoS_2(1-x)Se_2x with high 1T phase (66%) were efficient electrocatalyst for the tri-iodide reduction on the counter electrode in a dye-sensitized solar cell (DSSC). As shown in Fig. 10a, MoS_2(1-x)Se_2x nanosheets were coated on a fluorine-doped tin oxide (FTO) substrate by simple drop-coating method to form the counter electrode, and Fig. 10b further revealed that the MoS_2(1-x)Se_2x nanosheets/FTO counter electrode presented comparable photovoltaic performance (PCE) comparing with Pt/FTO. The MoS_2(1-x)Se_2x nanosheets showed a PCE of 6.5% that was higher than that of the 2H-MoS_2(1-x)Se_2x (5.4%) and MoS₂ (6.0%). They also found that Ti_xTa_1-xS₂O_z were highly effective for photothermal therapy [79]. Typically, the Ti_0.71Ta_0.29S₂O_z nanosheets exhibited strong absorption intensity in the near-infrared region (large extinction coefficient of 54.1 L g⁻¹ cm⁻¹ at 808 nm). After modified with lipoic acid-conjugated polyethylene glycol (LA-PEG) to increase the physiological stability, the modified Ti_0.71Ta_0.29S₂O_z nanosheets showed a high photothermal conversion efficiency of 39.2%, with the solution temperature increasing by 34.4 ℃ after 10 min irradiation using an 808 nm laser at a power density of 1.0 W/cm² (Fig. 10c). Notably, low viabilities of HeLa cells incubated with 20 and 50 ppm LA-PEG-modified Ti_0.71Ta_0.29S₂O_z nanosheets were obtained by irradiating the cancer cells with the 808 nm laser, further revealing its potential as photothermal agent (Fig. 10d). Meanwhile, 2D alloyed TMD nanosheets can also be attractive candidates for energy storage and conversion, due to defects or phase engineering in enhancing the activities. Cai et al. [111] reported defect-rich few-layer MoS_2(1-x)Se_2x nanocomposites for Li-ion batteries. A co-etching method was employed to increase the active edges sites, and the MoS_1.5Se_0.5 nanosheets showed best performance, e.g., special capacity of up to 500 mAh/g at the large current density of 5 C after 350 cycles, and the coulombic efficiency was close to 100%. Similarly, alloyed MoS_2(1-x)Se_2x nanosheets with anion vacancies were reported by He et al. [94] for potassium ion battery. The anion vacancies in MoS_2(1-x)Se_2x nanosheets could enhance the electronic conductivity by inducing more active sites and alleviating structural variation in the alloys. The most optimized vacancy-rich MoSSe alloy showed high reversible capacities of 517.4 and 362.4 mAh/g at 100 and 1000 mA/g, respectively. Moreover, a reversible capacity of 220.5 mAh/g could be maintained at 2000 mA/g after 1000 cycles.

5 Outlook and perspectives

Less

In this review, we have summarized the latest research progress on the preparation, characterization and applications of 2D alloyed TMD nanosheets. Different synthesis methods have their own features. For example, the exfoliation of CVT-grown crystals is a convenient way to study the thickness-dependent properties of 2D alloyed TMD nanosheets, and the CVD method appears to be the most promising and flexible way to synthesize alloyed TMD nanosheets with high quality and large area, which is suitable for electronic and optoelectronic applications. Wet-chemical synthesis, on the other hand, favors the atomic engineering (e.g., interface and defect engineering) of alloyed TMD nanosheets, is usually employed for catalytic application. Various characterization techniques like OM, AFM, HAADF-STEM, PL analysis, Raman, and XPS were employed to reveal the sizes, thicknesses, atomic arrangements, bandgaps, phase structure, and compositions of 2D alloyed TMD nanosheets. Owing to their advantages compared with 2D TMD nanosheets, 2D alloyed TMD nanosheets exhibited enhanced performance in many applications, such as electronics, optoelectronics, and catalysis.

Given the unique properties of 2D alloyed TMD nanosheets, there are still lots of challenges but also opportunities remain. Firstly, the controllable synthesis of 2D alloys with high quality, stability, and uniform large area still remains a key challenge. As is known, both CVD and CVT requires high temperature that may affect the surface properties of the prepared 2D alloys, and for the wet-chemical synthesis, it is difficult to precisely control the thickness and size of the 2D alloys. Therefore, exploring novel approaches or improving the current technique is urgently required to control and engineer the structure of the 2D alloyed TMD nanosheets, especially with large area (e.g., in centimeter level). Secondly, most of the recent works still concentrate on Groups 6 and 7 TMDs, while new 2D alloyed TMD nanosheets like W_1-xNb_xS₂, Nb_1-xTa_xS₂ and V_1-xTa_xS₂ can also be prepared by the method introduced before. Therefore, to explore novel 2D alloyed TMD nanosheets (e.g., Groups 4 and 5 TMDs) is also a promising direction. Moreover, with the development of phase-engineering of nanomaterials, alloying 2D TMDs with diverse phases is another promising and challenging topic. Thirdly, the application of 2D alloyed TMD nanosheets is still limited and its potential has not been fully explored. For example, although the 2D alloyed TMD nanosheets showed interesting tunable electronic and optoelectronic properties which are desired in making FETs or photodetectors, the performance is less than satisfactory, key factors such as high dark current and low photo-detectivity issues need to be addressed. Meanwhile, the 2D alloyed TMD nanosheets were mostly employed for HER in catalysis, while other applications like electrocatalytic CO₂ reduction, batteries, and environmental treatment are rarely explored. Therefore, the exploration of novel applications based on 2D alloyed TMD nanosheets is also a key issue.

Declaration of competing interest

Less

The authors report no declarations of interest.

Acknowledgments

Less

C.Tan thanks the funding support from the Start-Up Grant (No. 9610495) from City University of Hong Kong and National Natural Science Foundation of China (No. 22005259). S.Li acknowledges the funding support from JSPS-KAKENHI (Nos. 19K15399, 21K04839).
