Highly active electrocatalytic CO2 reduction with manganese N-heterocyclic carbene pincer by para electronic tuning
Full
Can Huang1, Jiahao Liu1, Hai-Hua Huang, Xianfang Xu, Zhuofeng Ke*
Affiliations
  • School of Materials Science & Engineering, School of Chemistry, PCFM Lab, Sun Yat-sen University, Guangzhou 510275, China
Published: 2022-01-15 doi: 10.1016/j.cclet.2021.06.046
Outline
收藏切换

Electronic tuning by para substitutions was explored to achieve a highly active manganese N-heterocyclic carbene pincer complex for the selective electrocatalytic reduction of CO2 to CO. [MnCNCOMe]BF4 (L2-Mn) bearing an electron-donating group (-OMe) showed high activity with 63×catalytic current enhancement, average Faradaic efficiency of 104%, and a TOFmax value of 26, 127 s-1, which is 127 times higher than that of unsubstituted [MnCNCH]Br (L1-Mn) reported previously. In contrast, the electron-withdrawing group (-COOMe) in [MnCNCCOOMe]PF6 (L3-Mn) inhibited the electrocatalytic activity. Ambient Brønstic acid, however, suppressed the activity of L2-Mn probably due to the protonation of the -OMe group. These findings indicate a potential electronic tuning strategy to improved manganese N-heterocyclic carbene catalysts for CO2 reduction.

Pyridine N-heterocyclic carbene  /  Electrocatalysis  /  Carbon dioxide conversion  /  Manganese  /  Substituent effect
Can Huang, Jiahao Liu, Hai-Hua Huang, Xianfang Xu, Zhuofeng Ke. Highly active electrocatalytic CO2 reduction with manganese N-heterocyclic carbene pincer by para electronic tuning[J]. Chinese Chemical Letters, 2022 , 33 (1) : 262 -265 . DOI: 10.1016/j.cclet.2021.06.046
Full Text
Less
Carbon dioxide reduction is of particular interest in terms of greenhouse alleviation and the production of carbon feedstock. Therefore, the homogeneous and heterogeneous electrocatalytic CO2 conversion is becoming more and more attractive recently [1-6]. Various electrochemical CO2 reduction can be involved in different pathways including two, four, six and eight-electron processes, leading to various carbon-based products such as, CO, HCOOH, CH3OH, HCHO, CH4, and other value-added chemicals or liquid fuels which could benefit our society sustainability [2,7,8].
Among different families of molecular catalysts for electrocatalytic CO2 reduction, earth-abundant transition metal complexes, particularly the manganese-based bipyridine complexes, have attracted many interests [9-12]. However, they displayed limited efficiency although extensive exploration has been performed on modifying pyridyl and bipyridyl ligands. N-Heterocyclic carbene (NHC) complexes exhibit unique selectivity and stability in catalysis [13-16], owing to the strong σ-donation and the weak π-back-donation properties of the NHC ligands [17]. Recently, manganese complexes supported by NHC ligands have been reported with potential electrocatalytic performances (Fig. 1a) [18-21].
In 2018, Luca et al. reported an NHC-based manganese(I) pincer complex [MnCNCH]Br (L1-Mn) for the selectively electrocatalytic reduction of CO2 to CO [22]. Inspired by this pincer framework, and guided by our previous theoretical understanding of the para electronic effect [23,24], herein, we developed new types of manganese pincer complexes to achieve highly active and selective electro-reduction of CO2 by tuning the para electronic effect (Fig. 1b).

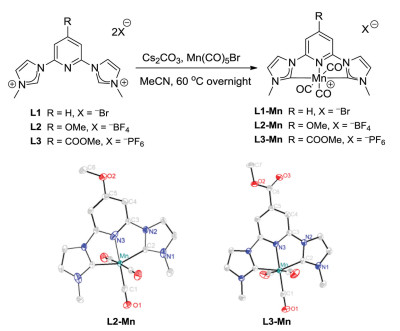

By the introduction of pyridyl para substituents on complex L1-Mn [22,25], we designed and synthesized new complexes L2-Mn and L3-Mn (Scheme 1) incorporating an electron-donating methoxy (-OMe) group and an electron-withdrawing methyl formate (-COOMe) group, respectively. Ligands L1, L2 and L3 were synthesized from dibromopyridine, 2, 4, 6-trifluoropyridine, and methyl 2, 6-dihydroxyisonicotinate, respectively (Schemes S1 and S2 in Supporting information). Complexes L1-Mn, L2-Mn and L3-Mn were obtained with conventional Mn(CO)5Br as starting materials by overnight reactions in the presence of excess Cs2CO3 in MeCN under argon atmosphere (Scheme 1). 1H NMR, 13C NMR, infrared spectroscopy and single-crystal X-ray diffraction analyses (Scheme 1,Tables S1, S2, Figs. S1-S10 in Supporting information) verified the successful synthesis of this series of complexes. Single-crystal X-ray diffraction analysis confirmed the octahedral structures of L2-Mn and L3-Mn, with Mn-CNHC bond lengths of 1.999(5), 2.009(9) Å, and Mn-N bond lengths of 2.001(0), 2.012(4) Å, respectively (Scheme 1). The structures and bond lengths of both complexes are in accordance with the previously reported L1-Mn [22] with Mn-CNHC bond length of 1.989(3) Å and Mn-N bond length of 2.017(3) Å.

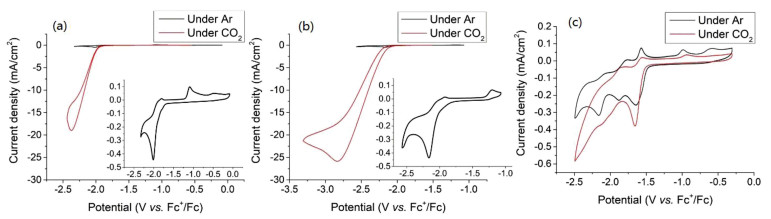

Cyclic voltammetry analyses of the series of Mn(Ⅰ) complexes were performed under argon and CO2 atmosphere, respectively (Fig. 2). Under Ar atmosphere, the cyclic voltammetry of L1-Mn showed an irreversible redox wave at Ep1 = −2.02 V (Fig. 2a, all reduction potentials are reported vs. Fc+/Fc), in agreement with previous studies [22]. The redox wave in the CV of complex L2-Mn with -OMe shifted cathodically by approximately 200 mV (Fig. 2b, Ep2 = −2.16 V under Ar atmosphere) compared to the redox waves in the CV of complex L1-Mn, reflecting the strong electron-donating ability of the -OMe group. The CV of L3-Mn with-COOMe shows three pairs of redox waves at −1.64 V, −1.86 V, and −2.14 V, respectively (Fig. 2c and Fig. S23 in Supporting information). Under CO2 atmosphere, the catalytic current in the CV of L1-Mn increased by about 40-fold with the redox wave at Ecat1 = −2.37 V. Surprisingly, the CV of L2-Mn shows a dramatic current increase (ca. 63-fold) at Ecat2 = −2.83 V, suggesting that the promising promotion of catalytic activity of complex L2-Mn for CO2 reduction caused by the influence of the electron-donating effect. However, the CV of complex L3-Mn displayed only minor catalytic current increase (Fig. 1c, ca. 1.4-fold), which is in sharp contrast to the behavior of L1-Mn, indicating the negative effect of the electron-withdrawing group on the electro-reduction.
Cyclic voltammetry analyses of complexes L1-Mn and L2-Mn at scan rates of 8–12 V/s under both CO2 and Ar atmosphere were performed (Figs. S11, S12, S17 and S18 in Supporting information). An ideally steady-state catalytic progress will lead to an S-shaped CV response, which is independent of the scan rate, with plateau current to determine the maximum turnover frequency (TOFmax). CVs of both complexes showed the S-shaped catalytic waves, indicating the ideally and purely kinetic CO2 catalytic reduction progresses (Figs. S12 and S18). We operated the icat/ip analyses to calculate the TOFmax for L1-Mn and L2-Mn from the reported equations [26-29]L1-Mn showed a TOFmax of 206 s−1 under the CO2 atmosphere in anhydrous MeCN (Fig. S40 in Supporting information). Notably, the calculated TOFmax of L2-Mn is 26, 127 s−1, which is approximately 127 times higher than the value of L1-Mn under the same conditions (Fig. S42 in Supporting information). Reduction potentials, catalytic currents, and calculated TOFmax under different conditions are summarized in Table 1.
The addition of Brønstic acid, for example, 2, 2, 2-trifluoroethanol (TFE) as the proton source, would generally result in the enhancement of catalysis, as reported previously [11,12,22,30,31]. We performed cyclic voltammetry of complexes L1-Mn and L2-Mn at incremental TFE additions until the catalytic current no longer increased to study the optimum concentration for catalytic conditions (Figs. S13 and S19 in Supporting information). The addition of TFE promoted the catalytic activity of complex L1-Mn, as shown in Fig. S13. 240 µL TFE was added to achieve the optimal catalytic conditions. Cyclic voltammetry of L1-Mn under Ar and CO2 atmosphere in 0.1 mol/L TBAPF6/MeCN with 240 µL TFE added gave a 56-fold catalytic current enhancement (Fig. S14 in Supporting information). However, complex L2-Mn displayed poor catalytic property when TFE was added as the proton source. The value of icat/ip for L2-Mn at the presence of TFE decreased to 50 × (Fig. S20 in Supporting information). This phenomenon can be attributed to the protonation of the -OMe group, which thereby suppresses its electron-donation ability. L1-Mn and L2-Mn with 240 µL TFE added display S-shaped CVs response at scan rates of 8–12 V/s, which represented an ideally steady-state catalysis (Figs. S15 and S21 in Supporting information). With 240 µL TFE added, the calculated TOFmax of L1-Mn is enhanced to 454 s−1 (Fig. S41 in Supporting information). Owing to the possible protonation of -OMe mentioned above, the calculated TOFmax value of L2-Mn decreased to 408 s−1 with 240 µL TFE addition (Fig. S43 in Supporting information). Cyclic voltammetry of L3-Mn with 240 µL TFE added showed a low value of catalytic current enhancement (icat/ip = 2.3), indicating its inefficient electrocatalytic properties for CO2 reduction. Further control experiments with tetrabutylammonium bromide (TBABr) to introduce Br− anion into the catalytic system of L2-Mn were performed (Figs. S25 and S26 in Supporting information), indicating the counter anions did not affect the electrochemical properties [32,33].
Controlled potential electrolysis (CPE) of L1-Mn, L2-Mn, and L3-Mn were performed under CO2 atmosphere at an applied potential of Eappl = −2.37 V under the conditions of anhydrous MeCN and with the addition of TFE as a proton source to study their selectivity and durability (Figs. S27–S36 in Supporting information). Quantification of the gaseous products was conducted by an online gas chromatography thermal conductivity detector (GC-TCD) analysis of the headspace. After an electrolysis over 2 h in anhydrous MeCN, approximately 40.9% current density of the starting state was retained for L1-Mn (Fig. S27), which gave an average Faradaic efficiency (FE) of 94.2% (Fig. S28). L2-Mn displayed better selectivity and durability with approximately 86.6% current density retained over 2 h (Fig. S31) and an average FE of 104.3% was obtained (Fig. S32). These results demonstrate that the electron-donating effect also enhances the selectivity and durability of the Mn NHC pincer catalyst. With 240 µL TFE added, further promotion of selectivity and durability for L1-Mn were shown by the CPE results. 77.2% current density retained over 2 h (Fig. S29) and an average FE of 94.7% was obtained (Fig. S30). Consistent with the results of CVs, L2-Mn gave a low level of current density probably because of the protonation of the -OMe. On the other hand, L3-Mn showed poor catalytic activity whether TFE was added or not (Figs. S35 and S36). Average Faradaic efficiencies are summarized in Table 1.

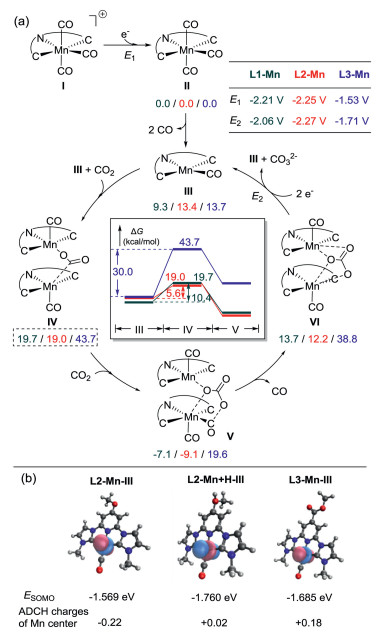

According to the studies by Musgrave and Luca et al., a binuclear proton-less reduction pathway is suggested for the [MnCNC(CO)3]Br pincer system [34]. Therefore, a comparison of the CO2 reduction cycle for L1-Mn, L2-Mn and L3-Mn based on the bimetallic mechanism using density functional study (DFT) has been conducted to reveal the effects of the para substituents (Fig. 3a). First, the Mn(Ⅰ) species I are reduced to species Ⅱ with the required potentials of −2.21 V, −2.25 V and −1.53 V for L1-Mn to L3-Mn, respectively, which are in agreement with the reduction potentials observed by the CV experiments (Fig. 2). These results reveal the increasing reduction potential of electron-richer species with the para electron-donating effect. After the loss of two CO molecules from Ⅱ, which was observed by Luca et al. in the case of L1-Mn, complexes Ⅲ adopting square planar geometry are generated with the calculated Gibbs free energies to be endergonic by 9.3–13.7 kcal/mol. Then, a complexation process of a CO2 molecule sandwiched between two Ⅲ intermediates generates complexes Ⅳ, which are calculated to be 10.4 (9.3 kcal/mol to 19.7 kcal/mol), 5.6 (13.4 kcal/mol to 19.0 kcal/mol), and 30.0 kcal/mol (13.7 kcal/mol to 43.7 kcal/mol) endergonic, respectively. Such results indicate the disfavor of the complexation for L3-Mn bearing a pyridyl para EWG. Subsequently, the insertion of a second CO2 molecule into species Ⅳ leading to species Ⅴ with effective disproportionation into a carbonate anion sandwiched between two metal centers and a CO product bounded to one of them. After the release of the CO product, complexes Ⅵ will be formed. With the calculated potentials of −2.06 V, −2.27 V and −1.71 V for L1-Mn, L2-Mn and L3-Mn, respectively. Two Ⅲ species can be regenerated with the release of the carbonate to furnish the catalytic cycle.
To further reveal the electronic effect of the pyridyl para substituents, the molecular orbital analysis and the atomic dipole moment corrected Hirshfeld (ADCH) charges [35,36] analysis of the Mn center were performed for the reduced species Ⅲ of L1-Mn (−0.19), L2-Mn (−0.22) and L3-Mn (+0.18) were analyzed with Multiwfn [36,37], as shown in Fig. 3b. The ADCH charge of the Mn center increases to −0.22 in L2-Mn-Ⅲ from −0.19 in L1-Mn-Ⅲ, indicating the profound impact of the electron-donating para pyridyl substituent on improving the nucleophilicity of the Mn center to activate the CO2 molecule. The low electron density of the Mn center (+0.18) in L3-Mn-Ⅲ and its relatively stable SOMO (−1.685 eV) can account for the low activity of L3-Mn for the electrocatalytic reduction of CO2 due to the EWG. Notably, the protonation of the -OMe (species L2-Mn+H-Ⅲ) significantly increases the ADCH charge of the Mn center to +0.02 from −0.22 in L2-Mn-Ⅲ. And the energy of the SOMO of L2-Mn+H-Ⅲ also decreases to −1.760 eV, which is in good agreement with the experimentally observed suppression of the catalysis due to the negative effect of the TFEs as a proton source.
We also performed Fourier-transform infrared reflectance spectroelectrochemistry (FTIR-SEC) to detect the main species involved in the catalytic reduction process of L2-Mn (Figs. S37 and S38 in Supporting information). Under Ar atmosphere, the spectral features at 2117 cm−1, attributing to a CO ligand released [38], corresponding to the report by Myren et al. [34]. Under the CO2 atmosphere, the bands at 1649 cm−1 and 1680 cm−1 appeared, showing the formation of CO32−/HCO3− species, which is consistent with the DFT-calculated results.

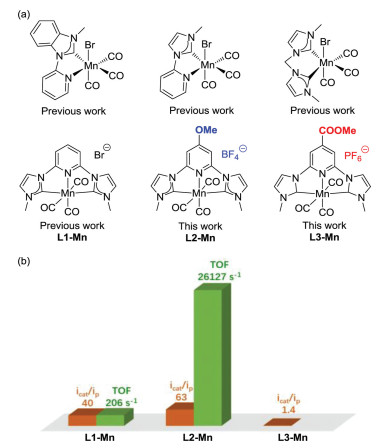

In summary, a series of manganese N-heterocyclic carbene pincer complexes were developed. The para electron-donating strategy was achieved in a highly active complex (L2-Mn) having -OME group for the selective electrocatalytic reduction of CO2 to CO, with a larger catalytic current enhancement (63 ×) and a TOFmax (26, 127 s−1, 127 times of unsubstituted L1-Mn). CPE study of L2-Mn gave an average Faradaic efficiency of 104%. While L3-Mn with electron-withdrawing -COOMe group inhibited the electrocatalytic activity. Ambient Brønstic acid suppressed the activity of L2-Mn probably due to the protonation of the –OMe group. These findings highlight the potential of electronic tuning for the design of efficient manganese NHC catalysts for CO2 reduction.
