In this contribution, as a proof of concept, we proposed a dual-drug co-assembly nanosystem (YSV/CBTM) for NIR fluorescence imaging-guided synergistic photodynamic/chemo cancer therapy (PDT/CT). As illustrated in
Scheme 1A, YSV/CBTM was fabricated
via the co-assembly of hydrophobic YSV and CBTM due to their intermolecular interactions, including
π-
π stacking and hydrogen bonding. After passive accumulation in tumors
via EPR effects, YSV/CBTM displayed NIR-Ⅰ fluorescence imaging and potent tumoricidal effects of combining CT and PDT, resulting in the remarkable image-guided chemo-photodynamic therapy (
Scheme 1B). The molecular mass of YSV was characterized by ESI-MS (Fig. S1 in Supporting information). The synthetic route of the newly designed CBTM was shown in Scheme S1 (Supporting information), in which the Suzuki coupling reaction between 4-bromo-7-(2,2-dicyanovinyl)-2,1,3-benzothiadiazole and (4-(bis(4-methoxyphenyl)amino)phenyl)boronic acid with tetrakis(triphenylphosphine)palladium(0) as the catalyst and sodium carbonate as the base in toluene/water affords the target compound. In the skeleton of NIR-emissive AIE photosensitizer (CBTM), triphenylamine (TPA) was employed as the electron donor (D), benzothiadiazole containing electron-rich heteroatoms (S, N) was used as the electron acceptor (A), carbon-carbon double bond was introduced as the
π-bridge (
π), and two cyano units were utilized as the electron acceptor (A). The molecular structure of CBTM was fully characterized by
1H NMR (Fig. S2 in Supporting information) and MALDI-TOF mass spectrometry (Fig. S3 in Supporting information), confirming the successful fabrication of CBTM. The CBTM derived from an AIE-active TPA skeleton has a high tendency to show brighter fluorescence in the aggregated state, while the boosted push-pull effect and extended
π-conjugation endow CBTM with emission to NIR-Ⅰ region (630–1000 nm). To better understand the optical properties of AIE photosensitizer, density functional theory (DFT) calculations were performed using time-dependent B3LYP/6-31G(d) method. First, the frontier molecular orbitals of the CBTM with D-A-
π-A structure show different distributions of the electron donor (D) and acceptor (A) motifs (

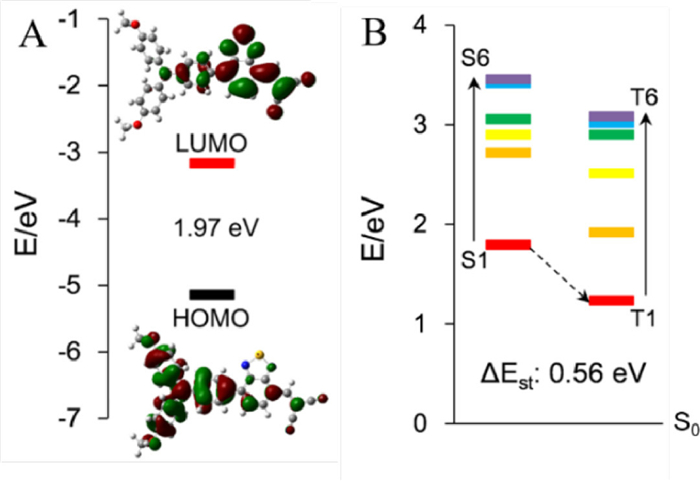

Fig. 1). The highest occupied molecular orbital (HOMO) is predominantly distributed by TPA donor motif, while the lowest unoccupied molecular orbital (LUMO) is mainly localized on the electron-deficient benzothiadiazole and cyano groups, confirming the intramolecular charge transfer characteristics
via electron excitation. As depicted in
Fig. 1A, the HOMO-LUMO gap of CBTM was calculated to be 1.97 eV, which is smaller than that (2.63, 2.52, 2.60, 2.48 eV) of triphenylamine-based D-A type AIE molecules photosensitizers (TFN, MeO-TFN, Nap-TFN, Ant-TFN) at the same theoretical level [
20]. It is widely accepted that the AIE process can be enhanced by reducing Δ
EST between the lowest singlet (S1) and triplet (T1) excited states, thus facilitating the intersystem crossing (ISC) process. Importantly, the ISC may trigger the spin crossover of triplet dioxygen (
3O
2) to produce reactive oxygen species (ROS) of
1O
2 and O
2−,
•OOH,
•OH,
etc. Besides, the experimental Δ
EST of CBTM was estimated to be 0.56 eV (
Fig. 1B), indicating the favorable ISC process and ROS production in response to light irradiation. As well known, the narrow bandgap and strong intramolecular charge transfer (ICT) effect would benefit the long-wavelength NIR-Ⅰ window of illuminators [
21]. In order to verify the photoluminescence (PL) properties of CBTM in the aggregated state, the fluorescence intensity of CBTM in acetonitrile/water mixtures with different water volume fractions (0 to 95%) were investigated. As shown in Fig. S4 (Supporting information), CBTM exhibited extremely weak fluorescence emission in pure acetonitrile, which might be due to the free rotation of TPA phenyl rings in its molecularly dissolved state [
22]. However, the PL signal of CBTM increased slightly by gradually increasing water volume fractions until 20%, ascribing to the strong ICT effect caused by the enhanced polarity of the mixture [
23]. Further increasing water volume fractions, the PL intensity was boosted evidently. The fluorescence intensity of CBTM gradually increased to a maximum at 95% water fractions, which was 22 times higher than that in 10% of water fraction. It is clear that the existence of solvent effect and the restriction of intramolecular motion (RIM) mechanism are responsible for the above AIE phenomena of CBTM.
