Alkyl chain engineering of boron dipyrromethenes for efficient photodynamic antibacterial treatment
收藏切换
PDF
Qihang Wua, b, Hui Wena, b, Wenhai Linc, *, Tingting Suna, *, Zhigang Xiea, b, *
Chinese Chemical Letters | 2024, 35(12) : 109692
Less
收藏切换
Chinese Chemical Letters | 2024, 35(12): 109692
• Communication •
Alkyl chain engineering of boron dipyrromethenes for efficient photodynamic antibacterial treatment
Full
Qihang Wua, b, Hui Wena, b, Wenhai Linc, *, Tingting Suna, *, Zhigang Xiea, b, *
Affiliations
  • a State Key Laboratory of Polymer Physics and Chemistry, Changchun Institute of Applied Chemistry, Chinese Academy of Sciences, Changchun 130022, China
  • b School of Applied Chemistry and Engineering, University of Science and Technology of China, Hefei 230026, China
  • c Biomedical Polymers Laboratory, College of Chemistry, Chemical Engineering and Materials Science, and State Key Laboratory of Radiation Medicine and Protection, Soochow University, Suzhou 215123, China
Published: 2024-12-15 doi: 10.1016/j.cclet.2024.109692
Outline
收藏切换

Photodynamic therapy has been widely employed as an alternative strategy against bacterial infection. Molecular structure has a profound effect on the antibacterial ability of photosensitizers (PSs). Herein, we designed and synthesized a series of boron dipyrromethene (BODIPY)-based photosensitizers with different alkyl chain lengths, and then their antibacterial activities were compared. Among these BODIPYs, the BODIPY with octyl (BDP-8) exhibits the best antibacterial effect, while the antibacterial performance of BODIPY with dodecyl (BDP-12) is the worst. This work provides instructive information for further development of effective photodynamic antimicrobial agents.

BODIPY  /  Alkyl chain engineering  /  Photodynamic therapy  /  Antibacterial agent  /  Photosensitizer
Qihang Wu, Hui Wen, Wenhai Lin, Tingting Sun, Zhigang Xie. Alkyl chain engineering of boron dipyrromethenes for efficient photodynamic antibacterial treatment[J]. Chinese Chemical Letters, 2024 , 35 (12) : 109692 - . DOI: 10.1016/j.cclet.2024.109692
Full Text
Less
Bacterial infection seriously threatens human health [1–3]. Particularly, the abuse of antibiotics causes bacterial drug resistance, which makes antibacterial treatment more intractable [4–6]. Therefore, it is necessary and urgent to develop alternative strategies to combat bacterial infection. As an emerging treatment strategy, photodynamic therapy (PDT) utilizes photosensitizers (PSs) under irradiation to generate reactive oxygen species (ROS) [7–10]. PDT is initially employed to kill tumor cells via the toxic ROS [11–13], but recently it has attracted great attention as an alternative antibacterial strategy [14–18]. Compared with the traditional treatments like antibiotics, PDT hardly causes bacterial drug resistance because the oxidative damage of ROS to bacteria involves a multi-target damage process [19–21]. However, the short lifespan and the limited effective distance of ROS severely restrict their antibacterial performance [22–24]. Interestingly, introducing targeting groups such as cationic groups to PSs could enhance the interactions between the PSs and bacteria, which dramatically improve their antibacterial effects [25–27].
The interactions between the antibacterial agents and bacteria can also be fine-tuned by the subtle structural differences [28–30]. For instance, the lengths of alkyl chains of molecules play an important role in tuning their hydrophobic interactions with bacteria and other living organisms [31,32]. The influence of the lengths of alkyl chains on the performance of antibacterial agents has been explored in previous works [33–35]. For example, Xu's group has revealed the relationship between the molecular sizes of ionic liquid derivatives and their antibacterial abilities [36]. However, the effect of the alkyl chain length on the antibacterial ability of PSs has less been studied.
Boron dipyrromethene (BODIPY), as a promising PS, has been widely studied for photodynamic anticancer and antibacterial treatments due to its high extinction coefficient, satisfactory photostability and chemical stability, as well as high tunability of photophysical properties [37–39]. In this work, BODIPY is selected as the PS, and alkyl chains with different lengths (ethyl, butyl, hexyl, octyl, and dodecyl) are introduced to the pyridyl on the meso position of BODIPYs, which are named BDP-2, BDP-4, BDP-6, BDP-8, and BDP-12, respectively (Scheme 1). Under green light irradiation, these BODIPYs possess nearly the same ability of ROS generation. However, their antibacterial performance is not stronger and stronger with the lengths of alkyl chains increased as we expect. The BODIPY with octyl (BDP-8) exhibits the best antibacterial effect against either Staphylococcus aureus (S. aureus) or Escherichia coli (E. coli).

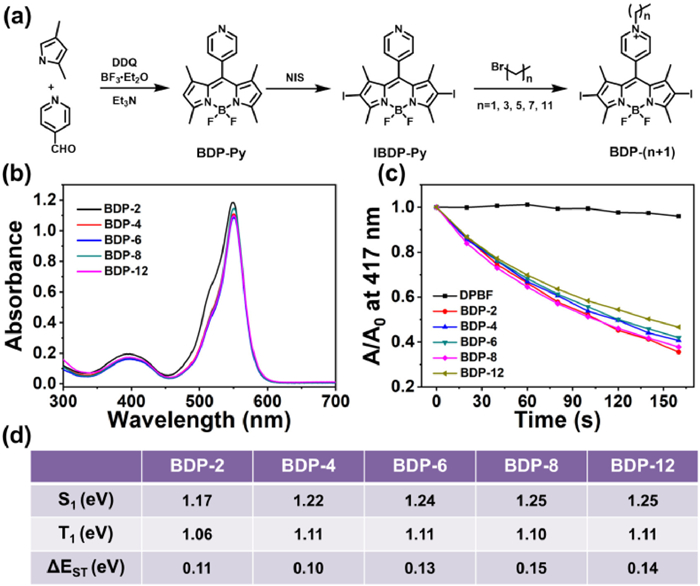

The synthetic route of BODIPYs with different alkyl chain lengths are shown in Fig. 1a. The synthesis of BDP-Py and IBDP-Py refers to the reported methods [40,41]. The molecular structures of BDP-2, BDP-4, BDP-6, BDP-8, and BDP-12 are validated by nuclear magnetic resonance (1H and 13C NMR) spectroscopy (Figs. S1-S5 in Supporting information) and mass spectrometry (Figs. S6-S10 in Supporting information). Besides, the C—H vibration bands of –CH2 at 2853 cm−1 are observed in the Fourier-transform infrared (FTIR) spectra of BDP-2, BDP-4, BDP-6, BDP-8, and BDP-12, further implying the successful synthesis of BODIPYs with different alkyl chain lengths (Fig. S11 in Supporting information).
Next, the absorption and emission spectra of these BODIPYs were measured. As shown in Fig. 1b and Fig. S12 (Supporting information), similar absorption and emission spectra at the same concentration were observed. To compare their photodynamic activities, 1,3-diphenylisobenzofuran (DPBF) was employed to detect the production of ROS upon green light irradiation. As displayed in Fig. 1c and Fig. S13 (Supporting information), the absorbance at 417 nm of DPBF incubated with BDP-2, BDP-4, BDP-6, BDP-8, and BDP-12 decreases rapidly with the increase of irradiation time, while that of DPBF alone changes slightly. More importantly, there is no obvious difference among the variation ranges of their absorbance, showing that these BODIPYs possess similar ability of ROS generation. Besides, the singlet-triplet energy gaps (ΔEST) of BDP-2, BDP-4, BDP-6, BDP-8, and BDP-12 are calculated via density functional theory (DFT). As shown in Fig. 1d, there is not much difference in their ΔEST, which further suggests that the lengths of the introduced alkyl chains have insignificant influence on the ability of ROS generation of the BODIPY agents.
To compare the ROS generation efficiency of BODIPYs, we chose BDP-8 as a representative and Rose Bengal (a commercial photosensitizer similar to Acid Red 94) for comparison. As shown in Fig. S14 (Supporting information), under the same conditions, the absorbance of DPBF incubated with BDP-8 decreases at a similar rate with that treated with Rose Bengal with the increase of irradiation time, indicating that they possess similar ROS generation efficiency. Furthermore, to investigate the specific type of ROS generated by these BODIPYs (BDP-8 as a representative), 9,10-anthracenediyl-bis(methylene)-dimalonic acid (ABDA) and dihydrorhodamine 123 (DHR 123) were selected as the indicators of singlet oxygen (1O2) and superoxide anion radicals (O2.−) respectively. As shown in Fig. S15 (Supporting information), the absorbance of ABDA incubated with BDP-8 decreases rapidly with the increase of irradiation time, indicating that BDP-8 exposed to light irradiation could generate 1O2. Meanwhile, the FL intensity of DHR 123 treated with BDP-8 increased rapidly with prolonged irradiation time (Fig. S16 in Supporting information), indicating the generation of O2.− by BDP-8. Results above suggest these BODIPYs could generate both 1O2 and O2.− under light irradiation.

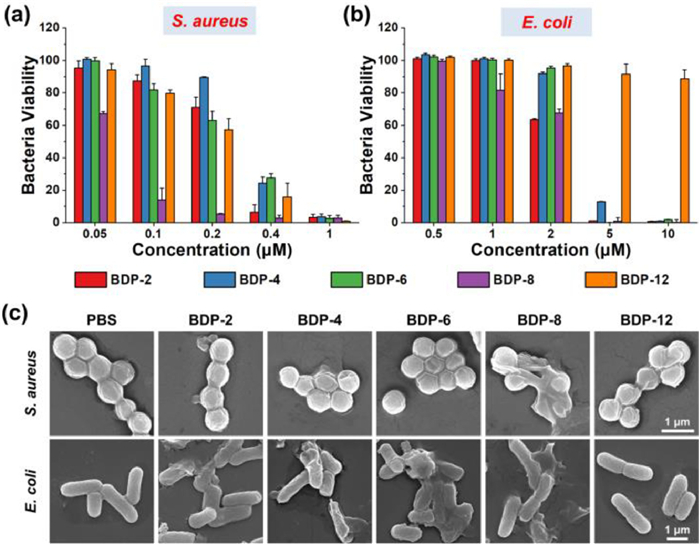

To compare their antibacterial performance, S. aureus and E. coli were chosen as the representatives of Gram-positive and Gram-negative bacteria respectively. Surprisingly, under light irradiation, BDP-8 exhibits the best antibacterial performance against S. aureus, and the antibacterial effect of BDP-2 against S. aureus is second to that of BDP-8. While BDP-4, BDP-6, and BDP-12 show similar antibacterial ability, which is lower than that of BDP-2 and BDP-8 (Fig. 2a). For E. coli, BDP-2 and BDP-8 possess the best antibacterial effect under light irradiation, while BDP-12 exhibits the worst antibacterial performance. The antibacterial effect of BDP-4 and BDP-6 is second to that of BDP-2 and BDP-8 (Fig. 2b). Above all, among the 5 BODIPYs under irradiation, BDP-8 exerts the best antibacterial ability against either S. aureus or E. coli. Furthermore, the antibacterial performance of these BODIPYs under dark condition was further investigated. As shown in Fig. S17a (Supporting information), these BODIPYs at a low concentration (1 µmol/L) in the absence of light irradiation exhibit insignificant toxicity against S. aureus, though different degrees of dark toxicity can be observed for BODIPYs at higher concentrations. As for E. coli, these BODIPYs at a high concentration of 10 µmol/L without irradiation still exhibit insignificant toxicity (Fig. S17b in Supporting information).
To further compare their bactericidal effect, we observed the morphology changes of bacteria treated with BODIPYs and light irradiation via scanning electron microscopy (SEM). As displayed in Fig. 2c, the membranes of the S. aureus treated with BDP-8 or BDP-2 are damaged, while those treated with BDP-4, BDP-6, or BDP-12 are still intact. Similarly, the E. coli treated with BDP-8 show the most severe membrane lysis and leakage of cytoplasm. These results further verify that there is obvious difference among the antibacterial activities of different BODIPYs. Since the BODIPYs possess the same fluorophore core and positive charge, we speculate that the distinctions in antibacterial effect mainly attribute to the hydrophobic interactions between BODIPYs with different alkyl chain lengths and bacteria. Long alkyl chain could cause physical damage of bacteria by inserting into the bacterial membrane, while too long alkyl chain such as that of BDP-12 may curl and thus cover the positive charge located in the pyridyl group, which may block the electrostatic interaction between the PS and bacteria [42].
Due to the protection of extracellular polymeric substances, biofilm is more difficult to be eliminated than bacterioplankton. Therefore, the antibiofilm ability of BODIPYs toward S. aureus and E. coli biofilms was investigated. First, we studied the ROS generation of BODIPYs in the biofilms with 2′, 7′-dichlorodihydrofluorescein diacetate (DCFH-DA, 10 µmol/L) as the fluorescence probe. As shown in Fig. S18 (Supporting information), the biofilms incubated with BODIPYs under light irradiation exhibit strong green fluorescence, implying that all of these BODIPYs could generate ROS in the biofilms. There is no significant difference in the fluorescence intensity among these green images, which suggests that the BODIPYs have similar ability of ROS generation in biofilms.

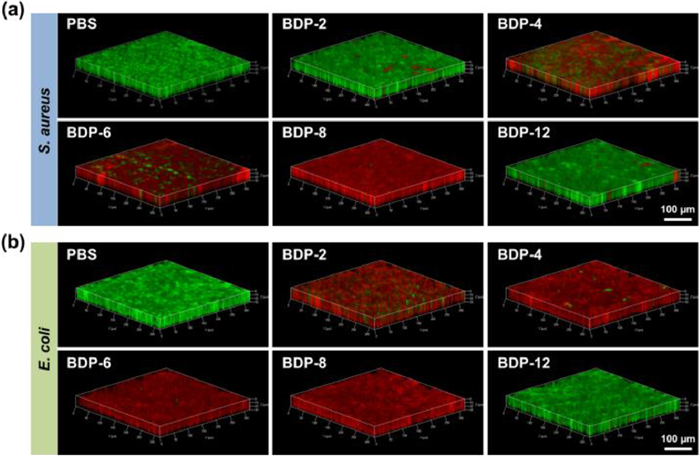

Then, the eradication effect of BODIPYs under light irradiation toward biofilms was investigated via three-dimensional confocal laser scanning microscopy (3D CLSM). As displayed in Fig. 3a, the S. aureus biofilm incubated with BDP-8 exhibits strong red fluorescence (dead bacteria stained with PI), while that treated with BDP-2 or BDP-12 shows bright green fluorescence (live bacteria stained with SYTO). For the E. coli biofilms, after incubation with BDP-6 or BDP-8, similar and strong red fluorescence was observed, while intense green fluorescence was presented for that treated with BDP-12 (Fig. 3b). The above results indicate that BDP-8 could almost completely kill the bacteria in the biofilms, while BDP-12 possesses negligible toxicity to the bacteria in the biofilms. The antibiofilm ability of the other three BODIPYs is between that of BDP-8 and BDP-12.

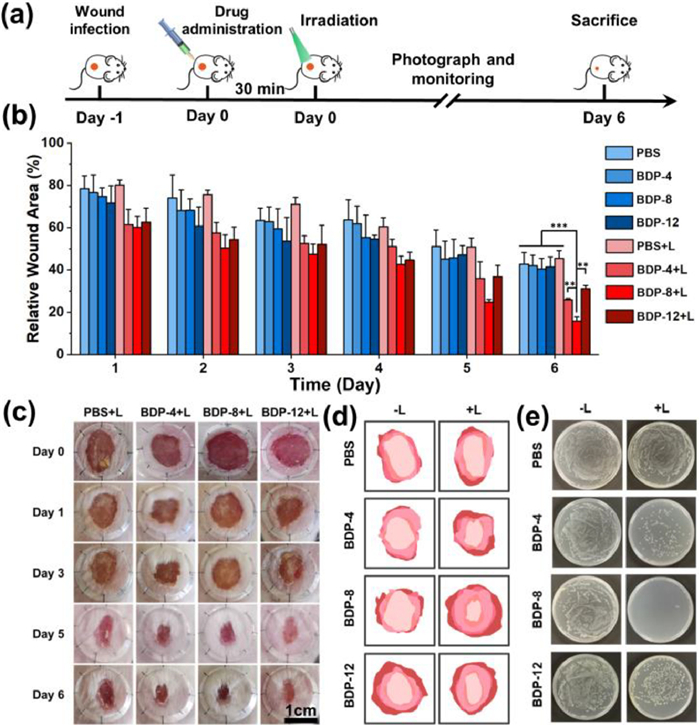

To compare the antibacterial effect of BODIPYs in vivo, we established wound infection model of female Kunming mice and selected BDP-4, BDP-8, as well as BDP-12 as the representatives. The whole experimental process is illustrated in Fig. 4a. 24 h after being infected with E. coli, the wounds were treated with BODIPYs and then irradiated with green light. The wound healing of the mice was monitored by photographing the wounds and calculating the wound sizes. As shown in Fig. 4b, the wound areas gradually decrease over time, and the wounds treated with BDP-8 and light irradiation (BDP-8 + L) possess the minimum relative wound area on the 6th day. Moreover, the wound healing rate of the wounds in BDP-12+L group is 68.9%, worse than that of the wounds in the groups of BDP-4 + L (74.1%) and BDP-8 + L (84.2%). As shown in the photographs of the wounds in Fig. 4c, Figs. S19 and S20 (Supporting information), the wounds in the group of BDP-8 + L exhibit the best wound healing effect. The process of wound healing in each group could be visually seen in Fig. 4d.
The mice were sacrificed after 6 days of treatments, and the wound tissues were cut off. After that, the bacteria were separated from the wound tissues via ultrasonication, and then cultured on the agar plates. As shown in Fig. 4e, there are a lot of bacterial colonies in the groups of PBS, PBS+L, BDP-4, BDP-8, and BDP-12, while few bacteria exist in BDP-8 + L group. Moreover, the number of bacteria colonies in BDP-8 + L group is much less than that in BDP-4 + L and BDP-12+L groups. The wound tissues were also stained with hematoxylin and eosin (H&E). There are a mass of inflammatory cells and incomplete epidermis in PBS group, while newly grown epidermis and few inflammatory cells are observed in BDP-8 + L group (Fig. S21 in Supporting information). Results above indicate that the combination of BDP-8 and light irradiation exhibit the best antibacterial effect and wound healing performance.

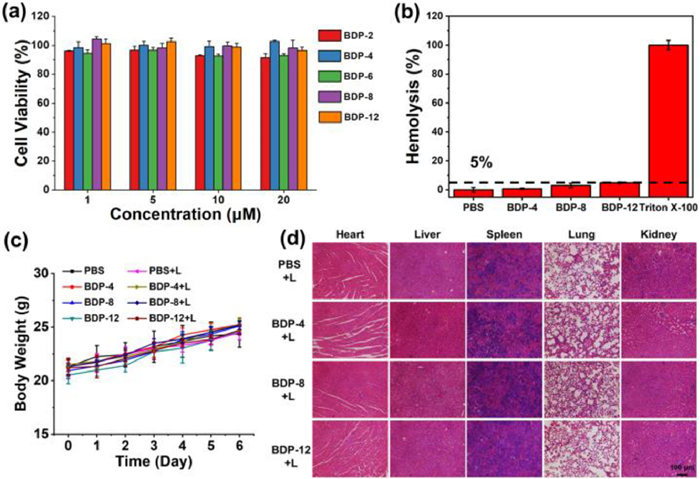

To study the cytotoxicity of BODIPYs, mouse fibroblast (L929) and mouse embryonic fibroblast (NIH 3T3) cells were employed to conduct 3-(4,5-dimethylthiazol-2-yl)−2,5-diphenyltetrazolium bromide (MTT) assays. As shown in Fig. 5a and Fig. S22 (Supporting information), 5 BODIPYs possess insignificant cytotoxicity even at a high concentration (20 µmol/L). Next, hemolysis test of BDP-4, BDP-8, and BDP-12 was carried out. Their hemolysis ratios gradually increase with the lengths of alkyl chains increased (Fig. 5b), but they are all at a safe level (below 5%) [43]. In the wound healing experiment, the mice in all groups kept gaining weight steadily during the treatments (Fig. 5c), suggesting that these BODIPYs have no obvious systemic toxicity in the therapeutic concentration range. Besides, their major organs were stained with H&E after the mice were sacrificed. As displayed in Fig. 5d, no significant abnormity of organ sections is found in the groups of BDP-4 + L, BDP-8 + L, and BDP-12+L, indicating their good biosafety.
To conclude, we designed and synthesized a series of BODIPY-based PSs with different alkyl chain lengths. These BODIPYs exhibit similar ability of ROS generation. Surprisingly, their antibacterial ability does not get stronger and stronger with the alkyl chain length increased. Among the 5 BODIPYs, BDP-8 with octyl exhibits the best antibacterial effect against both gram-positive (S. aureus) and gram-negative (E. coli) bacteria in vitro experiments, while BDP-12 with dodecyl exhibits the worst antibacterial effect, probably because the long alkyl chain curls and thus covers the positive charge located in the pyridyl group. The experiment of wound infection further verifies the admirable antibacterial ability and effect of BDP-8 in promoting wound healing. This work provides a new perspective on the influence of the alkyl chain lengths on the antibacterial effect of PSs and useful information toward further exploration of antimicrobial agents.
Declaration of competing interest
Less
The authors declare no conflict of interest.
Acknowledgment
Less
The authors greatly acknowledge the financial support from the National Natural Science Foundation of China (Nos. 52003267 and 51973214).
Supplementary materials
Less
Supplementary material associated with this article can be found, in the online version, at doi:10.1016/j.cclet.2024.109692.
References
Less
[1]
A. Cassini, L.D. Högberg, D. Plachouras, et al., Lancet Infect. Dis. 19 (2019) 56–66.
[2]
P.C. Ray, S.A. Khan, A.K. Singh, D. Senapati, Z. Fan, Chem. Soc. Rev. 41 (2012) 3193–3209.
[3]
D.L. Heymann, Cell 124 (2006) 671–675.
[4]
M.F. Richter, B.S. Drown, A.P. Riley, et al., Nature 545 (2017) 299–304.
[5]
B. Tse Sum Bui, T. Auroy, K. Haupt, Angew. Chem. Int. Ed. 61 (2022) e202106493.
[6]
B. Hu, C. Owh, P.L. Chee, et al., Chem. Soc. Rev. 47 (2018) 6917–6929.
[7]
J. Xu, Y. Lai, F. Wang, et al., Chin. Chem. Lett. 34 (2023) 108332.
[8]
Z. Wang, Y. Jiang, Q. Zhang, et al., Sens. Actuator. B 401 (2024) 135072.
[9]
W. Zhu, Y. Li, S. Guo, et al., Nat. Commun. 13 (2022) 7046.
[10]
B. Zhang, L. Lin, J. Mao, et al., Chin. Chem. Lett. 34 (2023) 108518.
[11]
J.C.H. Chu, C.T.T. Wong, D.K.P. Ng, Angew. Chem. Int. Ed. 62 (2023) e202214473.
[12]
Q. Sun, Q. Su, Y. Gao, et al., Aggregate 4 (2023) e298.
[13]
L. Wang, A. Mei, N. Li, et al., Chin. Chem. Lett. 35 (2024) 108974.
[14]
M.L. Agazzi, M.B. Ballatore, A.M. Durantini, E.N. Durantini, A.C. Tomé, J. Photochem. Photobiol. C 40 (2019) 21–48.
[15]
J. Gong, L. Liu, C. Li, et al., Chem. Sci. 14 (2023) 4863–4871.
[16]
C. Li, Y. Li, Q. Wu, T. Sun, Z. Xie, Biomater. Sci. 9 (2021) 7648–7654.
[17]
K. Cheng, H. Wang, S. Sun, et al., Small 19 (2023) 2207868.
[18]
H. Zhang, C. He, L. Shen, et al., Chin. Chem. Lett. 34 (2023) 108160.
[19]
F. Cieplik, D. Deng, W. Crielaard, et al., Crit. Rev. Microbiol. 44 (2018) 571–589.
[20]
B. Ran, Y. Yuan, W. Xia, et al., Chem. Sci. 12 (2020) 1054–1061.
[21]
E. Alves, M.A.F. Faustino, M.G. Neves, et al., Future Med. Chem. 6 (2014) 141–164.
[22]
L. Jiang, C.R.R. Gan, J. Gao, X.J. Loh, Small 12 (2016) 3609–3644.
[23]
C. Hopper, Lancet Oncol. 1 (2000) 212–219.
[24]
P. Du, Y. Shen, B. Zhang, et al., Adv. Sci. 10 (2023) 2206851.
[25]
H. Zhang, Q. Li, X. Qi, et al., Chem. Eng. J. 451 (2023) 138261.
[26]
H. Chen, S. Li, M. Wu, et al., Angew. Chem. Int. Ed. 59 (2020) 632–636.
[27]
Y. Yu, Y. Liu, Y. Chen, et al., J. Mater. Chem. Front. 7 (2023) 96–105.
[28]
R.J. Bingham, P. Ballone, J. Phys. Chem. B 116 (2012) 11205–11216.
[29]
Z. Zheng, Q. Xu, J. Guo, et al., ACS Appl. Mater. Interfaces 8 (2016) 12684–12692.
[30]
N. Nikfarjam, M. Ghomi, T. Agarwal, et al., Adv. Funct. Mater. 31 (2021) 2104148.
[31]
A. Busetti, D.E. Crawford, M.J. Earle, et al., Green Chem. 12 (2010) 420–425.
[32]
L. Guo, C. Li, H. Shang, R. Zhang, et al., Chem. Sci. 11 (2020) 661–670.
[33]
T. Guo, X. Wang, Y. Shu, J. Wang, J. Mol. Liq. (2021) 339.
[34]
Z. Zhuang, Z. Meng, J. Li, et al., ACS Nano 16 (2022) 11912–11930.
[35]
N. Li, Y.Y. Liu, Y. Li, et al., ACS Appl. Mater. Interfaces 10 (2018) 24249–24257.
[36]
L. Zheng, J. Li, M. Yu, et al., J. Am. Chem. Soc. 142 (2020) 20257–20269.
[37]
H.B. Cheng, X. Cao, S. Zhang, et al., Adv. Mater. 35 (2023) 2207546.
[38]
X. Xing, E. Pang, S. Zhao, et al., Chin. Chem. Lett. 35 (2024) 108467.
[39]
X. Chen, B.B. Mendes, Y. Zhuang, et al., J. Am. Chem. Soc. 146 (2024) 1644–1656.
[40]
S. Banfi, G. Nasini, S. Zaza, E. Caruso, Tetrahedron 69 (2013) 4845–4856.
[41]
M.K. Raza, S. Gautam, P. Howlader, et al., Inorg. Chem. 57 (2018) 14374–14385.
[42]
F. Li, M.D. Weir, H.H. Xu, J. Dent. Res. 92 (2013) 932–938.
[43]
G.P. Yang, X.L. Meng, S.J. Xiao, et al., ACS Appl. Mater. Interfaces 14 (2022) 28289–28300.
