Asymmetric macrocyclization enabled by Rh(Ⅲ)-catalyzed CH activation: Enantioenriched macrocyclic inhibitor of Zika virus infection

Asymmetric macrocyclization enabled by Rh(Ⅲ)-catalyzed CH activation: Enantioenriched macrocyclic inhibitor of Zika virus infection

PDF

Chao Chen^a^,^b^,^c^,^g^,¹, Wenwen Yu^b^,^f^,¹, Guangen Huang^d^,¹, Xuelian Ren^e^,¹, Xiangli Chen^d, Yixin Li^a^,^f, Shenggui Liang^a^,^f, Mengmeng Xu^d, Mingyue Zheng^a^,^b, Yaxi Yang^a^,^b^,^c^,^f^,^*, He Huang^a^,^e^,^*, Wei Tang^d^,^e^,^*, Bing Zhou^a^,^b^,^c^,^d^,^f^,^g^,^*

Chinese Chemical Letters | 2024, 35(11) : 109574

Less

Chinese Chemical Letters | 2024, 35(11): 109574

• Communication •

Asymmetric macrocyclization enabled by Rh(Ⅲ)-catalyzed CH activation: Enantioenriched macrocyclic inhibitor of Zika virus infection

Full

Affiliations

^a School of Pharmaceutical Science and Technology, Hangzhou Institute for Advanced Study, University of Chinese Academy of Sciences, Hangzhou 310024, China

^b State Key Laboratory of Drug Research, Shanghai Institute of Materia Medica, Chinese Academy of Sciences, Shanghai 201203, China

^c Shandong Laboratory of Yantai Drug Discovery, Bohai Rim Advanced Research Institute for Drug Discovery, Yantai 264117, China

^d School of Chinese Materia Medica, Nanjing University of Chinese Medicine, Nanjing 210023, China

^e State Key Laboratory of Chemical Biology, Shanghai Institute of Materia Medica, Chinese Academy of Sciences, Shanghai 201203, China

^f University of Chinese Academy of Sciences, Beijing 100049, China

^g Department of Medicinal Chemistry, School of Pharmacy, Fudan University, Shanghai 201203, China

Published: 2024-11-15 doi: 10.1016/j.cclet.2024.109574

Outline

Abstract

Less

The development of enantioselective C-H macrocyclizations to efficiently access structurally diversified macrocycles is highly desirable, but remain a big challenge. Herein, we reported the first rhodium(Ⅲ)-catalyzed asymmetric intramolecular C-H macrocyclization, enabling the efficient synthesis of structurally diverse enantioenriched macrocycles. This robust enantioselective C-H macrocyclization has a broad functional group tolerance, excellent enantioselectivities (up to 98.5:1.5 e.r.) and a mild reaction condition, releasing CO₂ as the single by-product. More significantly, the resulting unique enantioenriched 19-membered macrocycle 2f was found to demonstrate a potent in vitro anti-Zika virus (ZIKV) activity without obvious cytotoxicity. Further investigation revealed that the anti-ZIKV activity is presumably attributed to an autophagy inhibition in the early stage of viral infection by down-regulating the expression of autophagy related gene Atg12.

Key words

C-H activation / Carboamidation / Enantioselective macrocyclization / Anti-Zika virus activity

Cite this Article

Chao Chen, Wenwen Yu, Guangen Huang, Xuelian Ren, Xiangli Chen, Yixin Li, Shenggui Liang, Mengmeng Xu, Mingyue Zheng, Yaxi Yang, He Huang, Wei Tang, Bing Zhou. Asymmetric macrocyclization enabled by Rh(Ⅲ)-catalyzed CH activation: Enantioenriched macrocyclic inhibitor of Zika virus infection[J]. Chinese Chemical Letters, 2024 , 35 (11) : 109574 - . DOI: 10.1016/j.cclet.2024.109574

Full Text

Less

Macrocycles widely exist in natural products, biologically active compounds and marketed drugs, and macrocyclic compounds have their advantages, such as the ability to selectively bind to undruggable targets, improved metabolic stability and passive membrane permeability [1-7]. Among them, macrocycles bearing an enantioenriched dihydrobenzofuran scaffold are an important class of compounds and exhibit a wide range of biological activities, such as anti-cancer, antivirus, anti-inflammatory, and antimicrobial (Fig. 1) [8-11]. Despite these valuable functions, the difficulty of resupply and synthesis largely hampers the sustainability, the exploration of the chemical space and the systematic structure-activity relationship investigations. Thus, the development of efficient synthetic strategies to expeditiously access and enrich diverse enantioenriched dihydrobenzofuran-based macrocycles is highly desirable.

So far, several elegant macrocyclizations such as macrolactonization, lactamization, transition-metal-catalyzed cross-coupling reactions, and ring-closing metathesis (RCM) have been developed (Scheme 1a) [12-19]. Despite great progress, the majority of macrocyclizations rely on cyclizations of linear precursors possessing two terminal reactive functional groups. Macrocyclization through a direct C–H activation approach would be very desirable in terms of atom-and step-economy. Recently, several elegant macrocyclizations via a transition-metal-catalyzed C–H activation have been developed (Scheme 1b) [20-31]. Despite considerable efforts in this area, all these protocols are non-enantioselective and limited to synthesis of racemic macrocycles. Therefore, the development of enantioselective C–H macrocyclizations to access enantioenriched macrocycles remain a big challenge but is highly desirable.

Alkene is an important prochiral functional group and 1,2-difunctionalization of alkenes, especially in a catalytic and enantioselective fashion, is a highly efficient and attractive method, enabling fast increase in molecular complexity and direct access to a series of densely functionalized chiral building blocks from simple starting materials [32-41]. Recently, some elegant examples of transition-metal-catalyzed asymmetric 1,2-difunctionalization of O-tethered-alkenes have been reported to access enantioenriched 2,3-dihydrobenzofurans [42-53]. Stimulated by those pioneering studies and our interest in developing C–H functionalizations [54-56], we envisioned that a "an asymmetric intramolecular 1,2-carboamination of a O-bearing olefin-tethered arenes via a C–H activation strategy" strategy could hold promise for a new approach to access structurally diverse enantioenriched dihydrobenzofuran-based macrocycles (Scheme 1c).

However, besides the optimization of the chiral catalysts, there are four challenging issues to be addressed in these scenarios: (a) The intramolecular annulative C–H arylation must be faster than the undesired intramolecular competitive C–H amidation. (b) There are two ortho C–H bonds that can be activated. Activation of another undesired C–H bond followed by an intramolecular or intermolecular amidation would provide several undesired byproducts. (c) The C(alkyl)-M intermediate resulting from intramolecular annulative C–H arylation is liable to undergo protonation [44,51]. Thus, the subsequent intramolecular amidation of the C(alkyl)-M intermediate must be faster than protonation. (d) The C(alkyl)-M intermediate can also be trapped through a competitive undesired intermolecular amidation reaction.

Herein, we report the first rhodium(Ⅲ)-catalyzed enantioselective intramolecular 1,2-carboamidation of aromatic tethered alkenes, enabling the efficient synthesis of structurally diverse enantioenriched dihydrobenzofuran-based macrocycles (Scheme 1c). More significantly, the enantioenriched 19-membered macrocycle 2f was found to exhibit decent in vitro anti-Zika virus (ZIKV) activity without obvious cytotoxicity, which can be attributed to an autophagy inhibition.

To examine the feasibility of this reaction, amide 1a was chosen as the model substrate. Chiral cyclopentadienyl Rh(Ⅲ) catalysts have emerged as one of the most powerful catalysts in asymmetric C–H functionalization [57-62] as pioneered by Cramer [60] and Rovis [61]. We first investigated the effect of a famous chiral rhodium catalyst Rh1 (R = OMe) in the presence of various additives in DCE at 60 ℃ (Table 1, entries 1–4). The acetate additives were shown to play a critical role to afford the desired macrocyclic product 2a and Cu(OAc)₂ was identified as the superior additive, providing the 2a in 58% yield (entry 4) with a low enantioselectivity (75:25 e.r.). A further screen of previously reported chiral catalysts Rh2–5 (entries 5–8) revealed that a 3,3′-phenyl substitution was crucial to offer a good enantioselectivity (93:7 e.r.) (entry 8). Considering that the benzene ring of the Rh5 can form a vertical surface with the BINOL skeleton, we reasonably designed and synthesized a series of new chiral ligands with further substitution on the phenyl ring (Rh6, Rh7 and Rh8) (entries 9–11). The novel catalyst Rh8 provided the best enantioselectivity (98:2 e.r.) also with an accepted yield of 68% at 60 ℃ (entries 11–13). This macrocyclization reaction does not proceed in 1,4-dioxane, toluene and CH₃CN.

Under the optimal reaction conditions, the substrate scope was investigated (Scheme 2). This reaction could allow to access even larger 15- to 20-membered macrocycles (2b–g) with good yields and excellent enantioselectivities (up to 98:2 e.r.). The reaction of substrate 1a bearing various electron-donating or electron-withdrawing substituents at para or meta position of the arene ring proceeded smoothly, affording compounds 2h–p with good yields and excellent enantioselectivities (97:3–98.5:1.5 e.r.). The absolute configuration of the product 2p was established by X-ray crystallographic analysis (CCDC: 2059282). When 2-naphthalenecarboxamide was used, the corresponding product 2q was generated in good yield with excellent enantiomeric ratios (98:2 e.r.). Various substituted allyl groups such as ethyl, bulky cyclopentyl, phenyl, and phenoxymethyl groups also afford the corresponding product (2r–u) with excellent enantioselectivities (up to 98:2 e.r.).

To evaluate the degree of the overall structural diversity of our macrocyclic library, we compared these macrocycles with approved market drugs: (1) 21 synthesized macrocycles, (2) 21 macrocycles with opposite configuration, and (3) 2388 known drugs. Based on the calculations of the lowest energy conformations of these compounds, normalized ratios of principal moment-of-inactiveia (PMI) molecular shape descriptors were drawn on a two-dimensional triangular graph [63]. As shown in Fig. 2, all of the compounds were classified as rods, discs, and spheres to characterize the shape and the distribution of this library around the triangle exhibited the molecular structural diversity. The result demonstrated that most of approved drugs are either disklike or rodlike [64], while these macrocyclic compounds show a considerably higher number of dislike and spherical molecules that are rare in conventional compound libraries, highlighting the advantage of this synthetic method in terms of product diversity.

ZIKV is an emerging flavivirus that causes microcephaly and other severe brain injury in fetuses during pregnancy and also causes neuroinflammatory Guillain-Barré syndrome, neuropathy and myelitis in adults [65]. In 2016, ZIKV outbreak was declared as a public health emergency of international concern by the World Health Organization (WHO), and over 2 billion people were threatened by ZIKV infection globally [66]. Despite a huge threaten, there are currently no approved treatments or vaccines for ZIKV [67]. Therefore, there is an urgent need for the development of anti-ZIKV drug.

Applying the above method, we created a screening library of various macrocycles and these macrocycles were further evaluated by using various phenotypic assays, including a cytopathic protection assay to investigate the anti-ZIKV activity. To our delight, the results revealed that 19-memebered macrocycle 2f exhibited a decent cytopathic protection of ZIKV infection in Vero (African green monkey kidney) cell and the ring size of macrocycles is crucial to the inhibitory effect (Table S1 in Supporting information).

Encouraged by the preliminary results, the antiviral activity and mechanism of compound 2f were further investigated. First, macrocycle 2f showed no cytotoxicity at the concentration up to 50 µmol/L after 24 h treatment (Fig. 3A). To further evaluate the antiviral activity of 2f, we next examined the inhibition of ZIKV infection in Vero cells with multiplicity of infection (MOI) = 1 under the treatment of 2f for 24 h. Intracellular viral RNA levels, viral protein expression levels and virus progeny in supernatants were determined by quantitative real-time PCR polymerase chain reaction (qRT-PCR), Western blot and plaque assay respectively. Compound 2f decreased viral RNA expression with 50% effective concentration (EC₅₀) of 20.67 µmol/L (Fig. 3B). The genome of ZIKV encodes 10 genes that are translated into three structural proteins (C, prM, and E) and seven non-structural proteins (NS1, NS2A, NS2B, NS3, NS4A, NS4B, and NS5). The real-time PCR revealed that 2f decreased ZIKV NS1 gene (Fig. 3C) and Western blot showed that 2f decreased ZIKV NS1 and NS3 protein expression (Figs. 3D and E). Meanwhile, Plaque assay directly reflected the reduction of progeny yield by 2f treatment (Figs. 3F and G). More importantly, these results showed that 2f was more potent than ribavirin, a broad-spectrum antiviral drug that has good anti-ZIKV activity and suppresses viremia in ZIKV-infected signal transducer and activator of transcription 1 (STAT1)-deficient mice [68]. Immunofluorescence assay also showed that 2f inhibited anti-flavivirus group antigen (4G2) expression in a dose-dependent manner (Fig. 3H). Collectively, our data clearly demonstrated that 2f inhibited ZIKV infection presented by the reduced production of viral RNA and viral protein and the decreased virion yield in vitro.

To further explore the underlying mechanism of the inhibitory action of 2f on ZIKV infection, we performed a quantitative comparison for the Vero cells treated and untreated with compound 2f by a high-sensitivity label-free quantitative proteomics mass spectrometry approach. In this study, four biological replicates were conducted for each group (control and treat) to ensure the reliability of the results (Figs. S1A and B in Supporting information). The results showed that a total of 8879 proteins were preliminary monitored, among which 8513 proteins with quantitative information were identified. Interestingly, the expression of protein p62 (SQSTM1), an important selective autophagy receptor, increased by 134% with a P-value of 2.28E-7 in response to 2f treatment (Fig. S1C in Supporting information). The deposition of p62 has been widely utilized as a marker for autophagy inhibition or abnormalities in autophagic degradation [69], suggesting that the stimulation from compound 2f could influence the physiological processes involved in autophagy.

Autophagy, which is involved in the degradation and recycling of cellular components, was reported to promote the replication of ZIKV and dengue virus [70-72]. In autophagy, cytoplasmic components are engulfed by autophagosomes and delivered to lysosomes for degradation. Microtubule-associated proteins light chain 3 (LC3) is considered as indicators of autophagy when LC3 Ⅰ converses to LC3 Ⅱ [73]. Encouraged by the above findings, we further detected LC3 Ⅱ/Ⅰ and p62 protein involved in autophagy. As shown in Figs. 4A–C, LC3 Ⅱ level was decreased and autophagy substrates p62 expression level was increased with the treatment of 2f in a dose-dependent manner, indicating that the cell autophagy was inhibited. The Atg12 ubiquitin-like binding system plays an important role in the formation of autophagosomes. It has also been shown that the complex may contribute to the initial tethering of vesicle precursors during autophagosome formation. To examine whether 2f affects the activity of Atg5–Atg12 complex to inhibit the autophagy process, we examined the protein expression level of the Atg5–Atg12 complex and its monomers (Figs. 4D–F). The results showed that 2f significantly down-regulated the protein expression level of Atg5–Atg12 complex and its monomer, especially for Atg12. Taken together, these results demonstrated that during the infection of ZIKV in Vero cells, 2f inhibited the lipidation of LC3 by down-regulating the expression of Atg12, preventing the process of autophagy and inhibiting the replication of the ZIKV on Vero cell.

In summary, we have demonstrated for the first time that an enantioselective intramolecular 1,2-carboamidation of alkenes is a feasible enantioselective macrocyclization leading to enantioenriched macrocycles. This robust asymmetric C–H macrocyclization proceeds with a broad functional group tolerance under mild reaction conditions, affording structurally diverse dihydrobenzofuran-based macrocycles with excellent enantioselectivity (up to 98.5:1.5 e.r.). The synthesized compounds were more dislike and spherical in shape than previous macrocyclic drugs, thus expanding the chemical space of macrocycles. More significantly, the unique enantioenriched 19-memebered macrocycle 2f was found to potently inhibit ZIKV infection in Vero cells without obvious cytotoxicity. Further mechanism investigation revealed that 2f could inhibit the occurrence of autophagy in the early stage of viral infection by down-regulating the expression of autophagy related gene Atg12, which provides a new idea and experimental basis for anti-ZIKV drug development.

Declaration of competing interest

Less

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Acknowledgments

Less

This work was supported by National Natural Science Foundation of China (No. 81973166), Science and Technology Commission of Shanghai Municipality (No. 22XD1424600), Natural Science Foundation of Shanghai Municipality (No. 22ZR1474100), Taishan Scholar Foundation of Shandong Province (No. tsqn202306322), National Key R&D Program of China (No. 2021YFC2300700), Shandong Laboratory Program (No. SYS202205), Shandong Provincial Natural Science Foundation (Nos. ZR2023LSW003 and ZR2023JQ028).

Supplementary materials

Less

Supplementary material associated with this article can be found, in the online version, at doi:10.1016/j.cclet.2024.109574.

References

Less

[1]

E.M. Driggers, S.P. Hale, J. Lee, N.K. Terrett, Nat. Rev. Drug Discov. 7 (2008) 608–624.

[2]

E.A. Crane, K.A. Scheidt, Angew. Chem. Int. Ed. 49 (2010) 8316–8326.

[3]

J. Mallinson, I. Collins, Future Med. Chem. 4 (2012) 1409–1438.

[4]

D.J. Newman, G.M. Cragg, Bioactive macrocycles from nature, in: J. Levin (Ed. ), Macrocycles in Drug Discovery, Royal Soc. Chem., Cambridge, 2015, pp. 1–36.

[5]

E. Marsault, M.L. Peterson, J. Med. Chem. 54 (2011) 1961–2004.

[6]

P. Ermert, Chimia 71 (2017) 678–702.

[7]

H. Itoh, M. Inoue, Chem. Rev. 119 (2019) 10002–10031.

[8]

C.J. Hamilton, A. Saravanamuthu, C. Poupat, A.H. Fairlamb, I.M. Eggleston, Bioorg. Med. Chem. 14 (2006) 2266–2278.

[9]

N. Lindquist, W. Fenical, G.D. Van Duyne, J. Clardy, J. Am. Chem. Soc. 113 (1991) 2303–2304.

[10]

Q.X. Wu, M.S. Crews, M. Draskovic, et al., Org. Lett. 12 (2010) 4458–4461.

[11]

J.C. Gillis, R.N. Brogden, Rifaximin. Drugs 49 (1995) 467–484.

[12]

R.H. Grubbs, S.J. Miller, G.C. Fu, Acc. Chem. Res. 28 (1995) 446–452.

[13]

G.S.C. Srikanth, S.L. Castle, Tetrahedron 61 (2005) 10377–10441.

[14]

A. Gradillas, J. Pérez-Castells, Angew. Chem. Int. Ed. 45 (2006) 6086–6101.

[15]

A.H. Hoveyda, A.R. Zhugralin, Nature 450 (2007) 243–251.

[16]

A. Parenty, X. Moreau, G. Niel, J.M. Campagne, Chem. Rev. 113 (2013) PR1–PR40.

[17]

Y. Li, X. Yin, M. Dai, Nat. Prod. Rep. 34 (2017) 1185–1192.

[18]

C.A.G.N. Montalbetti, V. Falque, Tetrahedron 61 (2005) 10827–10852.

[19]

R. Peng, Y. Xu, Q. Cao, Chin. Chem. Lett. 29 (2018) 1465–1474.

[20]

K.J. Fraunhoffer, P. Narayanasamy, L.E. Sirois, M.C. White, J. Am. Chem. Soc. 128 (2006) 9032–9033.

[21]

E.M. Stang, M.C. White, Nat. Chem. 1 (2009) 547–551.

[22]

E.M. Stang, M.C. White, Angew. Chem. Int. Ed. 50 (2011) 2094–2097.

[23]

J.P. Krieger, G. Ricci, D. Lesuisse, C. Meyer, J. Cossy, Eur. J. Org. Chem. 22 (2016) 13469–13473.

[24]

H. Kim, S. Chang, Angew. Chem. Int. Ed. 56 (2017) 3344–3348.

[25]

A. Lumbroso, N. Abermil, B. Breit, Chem. Sci. 3 (2012) 789–793.

[26]

M.P. Doyle, M.N. Protopopova, C.D. Poulter, D.H. Rogers, J. Am. Chem. Soc. 117 (1995) 7281–7282.

[27]

W. Liu, Z. Ren, A.T. Bosse, et al., J. Am. Chem. Soc. 140 (2018) 12247–12255.

[28]

B. Jiang, M. Zhao, S.S. Li, Y.H. Xu, T.P. Loh, Angew. Chem. Int. Ed. 57 (2018) 555–559.

[29]

X. Lu, S.J. He, W.M. Cheng, J. Shi, Chin. Chem. Lett. 29 (2018) 1001–1008.

[30]

T. Bi, Y. Xu, X. Xu, et al., Chin. Chem. Lett. 33 (2022) 2015–2020.

[31]

S. Hu, Y. Zhang, X. Xie, et al., Chin. Chem. Lett. 35 (2024) 109408.

[32]

W. Zeng, S.R. Chemler, J. Am. Chem. Soc. 129 (2007) 12948–12949.

[33]

D.N. Mai, J.P. Wolfe, J. Am. Chem. Soc. 132 (2010) 12157–12159.

[34]

B.A. Hopkins, J.P. Wolfe, Angew. Chem. Int. Ed. 51 (2012) 9886–9890.

[35]

T. Piou, T. Rovis, Nature 527 (2015) 86–90.

[36]

D.R. White, J.T. Hutt, J.P. Wolfe, J. Am. Chem. Soc. 137 (2015) 11246–11249.

[37]

V. Bizet, G.M. Borrajo-Calleja, C. Besnard, C. Mazet, ACS Catal. 6 (2016) 7183–7187.

[38]

Z. Liu, Y. Wang, Z. Wang, et al., J. Am. Chem. Soc. 139 (2017) 11261–11270.

[39]

D.S. Brandes, A. Sirvent, B.Q. Mercado, J.A. Ellman, Org. Lett. 23 (2021) 2836–2840.

[40]

K. Ozols, S. Onodera, Ł. Wozniak, N. Cramer, Angew. Chem. Int. Ed. 60 (2021) ´ 655–659.

[41]

S. Maity, T.J. Potter, J.A. Ellman, Nat. Catal. 2 (2019) 756–762.

[42]

S.G. Newman, J.K. Howell, N. Nicolaus, M. Lautens, J. Am. Chem. Soc. 133 (2011) 14916–14919.

[43]

H. Cong, G.C. Fu, J. Am. Chem. Soc. 136 (2014) 3788–3791.

[44]

B. Ye, P.A. Donets, N. Cramer, Angew. Chem. Int. Ed. 53 (2014) 507–511.

[45]

W. You, M.K. Brown, J. Am. Chem. Soc. 137 (2015) 14578–14581.

[46]

Z.M. Zhang, B. Xu, Y. Qian, et al., Angew. Chem. Int. Ed. 57 (2018) 10373–10377.

[47]

Z.M. Zhang, B. Xu, L. Wu, et al., J. Am. Chem. Soc. 141 (2019) 8110–8115.

[48]

R.C. Carmona, O.D. Köster, C.R.D. Correia, Angew. Chem. Int. Ed. 57 (2018) 12067–12070.

[49]

Z.X. Tian, J.B. Qiao, G.L. Xu, et al., J. Am. Chem. Soc. 141 (2019) 7637–7643.

[50]

Z.M. Zhang, B. Xu, L. Wu, et al., Angew. Chem. Int. Ed. 58 (2019) 14653–14659.

[51]

G. Li, Q. Liu, L. Vasamsetty, W. Guo, J. Wang, Angew. Chem. Int. Ed. 59 (2020) 3475–3479.

[52]

J. He, Y. Xue, B. Han, et al., Angew. Chem. Int. Ed. 59 (2020) 2328–2332.

[53]

W. Yu, C. Chen, L. Feng, et al., Org. Lett. 24 (2022) 1762–1767.

[54]

Y. Wu, Z. Chen, Y. Yang, W. Zhu, B. Zhou, J. Am. Chem. Soc. 140 (2018) 42–45.

[55]

B. Zhou, Z. Chen, Y. Yang, et al., Angew. Chem. Int. Ed. 54 (2015) 12121–12126.

[56]

Y. Yang, X. Wang, Y. Li, B. Zhou, Angew. Chem. Int. Ed. 54 (2015) 15400–15404.

[57]

B. Ye, N. Cramer, Acc. Chem. Res. 48 (2015) 1308–1318.

[58]

C.G. Newton, D. Kossler, N. Cramer, J. Am. Chem. Soc. 138 (2016) 3935–3941.

[59]

C.G. Newton, S.G. Wang, C.C. Oliveira, N. Cramer, Chem. Rev. 117 (2017) 8908–8976.

[60]

B. Ye, N. Cramer, Science 338 (2012) 504–506.

[61]

T.K. Hyster, L. Knörr, T.R. Ward, T. Rovis, Science 338 (2012) 500–503.

[62]

S. Satake, T. Kurihara, K. Nishikawa, et al., Nat. Catal. 1 (2018) 585–591.

[63]

W.H.B. Sauer, M.K. Schwarz, J. Chem. Inf. Comput. Sci. 43 (2003) 987–1003.

[64]

T. Yang, Z. Li, Y. Chen, et al., Nucleic Acids Res. 49 (2021) D1170–D1178.

[65]

C. Li, D. Xu, Q. Ye, et al., Cell Stem Cell 19 (2016) 120–126.

[66]

J.P. Messina, M.U. Kraemer, O.J. Brady, et al., eLife 5 (2016) e15272.

[67]

J.A. Bernatchez, L.T. Tran, J. Li, et al., J. Med. Chem. 63 (2020) 470–489.

[68]

N. Kamiyama, R. Soma, S. Hidano, Antiviral Res. 146 (2017) 1–11.

[69]

G. Bjørkøy, T. Lamark, A. Brech, et al., J. Cell Biol. 171 (2005) 603–614.

[70]

R. Hamel, O. Dejarnac, S. Wichit, et al., J. Virol. 89 (2015) 8880–8896.

[71]

Q. Liang, Z. Luo, J. Zeng, et al., Cell Stem Cell 19 (2016) 663–671.

[72]

Y.R. Lee, H.Y. Lei, M.T. Liu, et al., Virology 374 (2008) 240–248.

[73]

Y. Kabeya, N. Mizushima, A. Yamamoto, et al., J. Cell Sci. 117 (2004) 2805–2812.

Appendix

Less

Year 2024 volume 35 Issue 11

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1016/j.cclet.2024.109574

Receive Date：2023-12-10
Online Date：2025-11-26
Published：2024-11-15

Article Data

Affiliations

History

Received：2023-12-10
Revised：2024-01-24
Accepted：2024-01-26

Affiliations

^a School of Pharmaceutical Science and Technology, Hangzhou Institute for Advanced Study, University of Chinese Academy of Sciences, Hangzhou 310024, China

^b State Key Laboratory of Drug Research, Shanghai Institute of Materia Medica, Chinese Academy of Sciences, Shanghai 201203, China

^c Shandong Laboratory of Yantai Drug Discovery, Bohai Rim Advanced Research Institute for Drug Discovery, Yantai 264117, China

^d School of Chinese Materia Medica, Nanjing University of Chinese Medicine, Nanjing 210023, China

^e State Key Laboratory of Chemical Biology, Shanghai Institute of Materia Medica, Chinese Academy of Sciences, Shanghai 201203, China

^f University of Chinese Academy of Sciences, Beijing 100049, China

^g Department of Medicinal Chemistry, School of Pharmacy, Fudan University, Shanghai 201203, China

References

Share

https://castjournals.cast.org.cn/joweb/ccl/EN/10.1016/j.cclet.2024.109574

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

Fig. 1 Representative bioactive macrocycles bearing an enantioenriched dihydrobenzofuran scaffold.

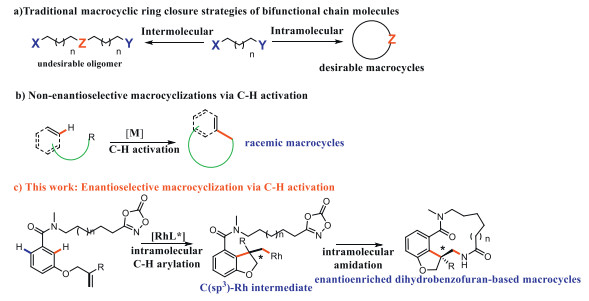

Scheme 1 Synthesis of macrocyclic compounds.

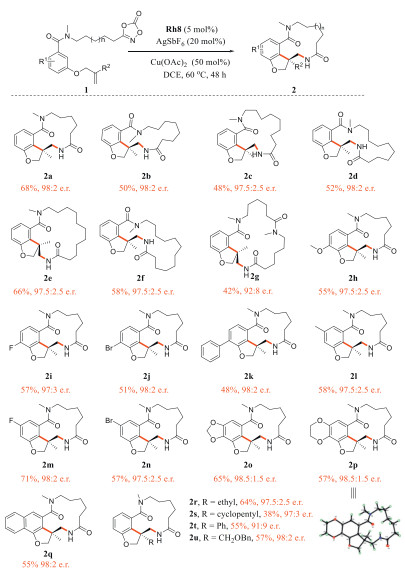

Scheme 2 Substrate scope. Conditions: 1 (0.1 mmol), Rh8 (5 mol%), AgSbF₆ (20 mol%), Cu(OAc)₂ (50 mol%) in DCE (1 mL) at 60 ℃ for 48 h. Isolated yield. The enantiomeric ratio (e.r.) of the products were determined by chiral HPLC in comparison with the authentic racemate.

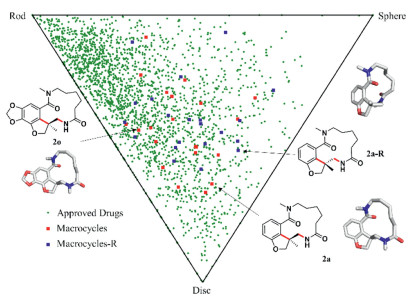

Fig. 2 The molecular shape diversity of the macrocyclic library.

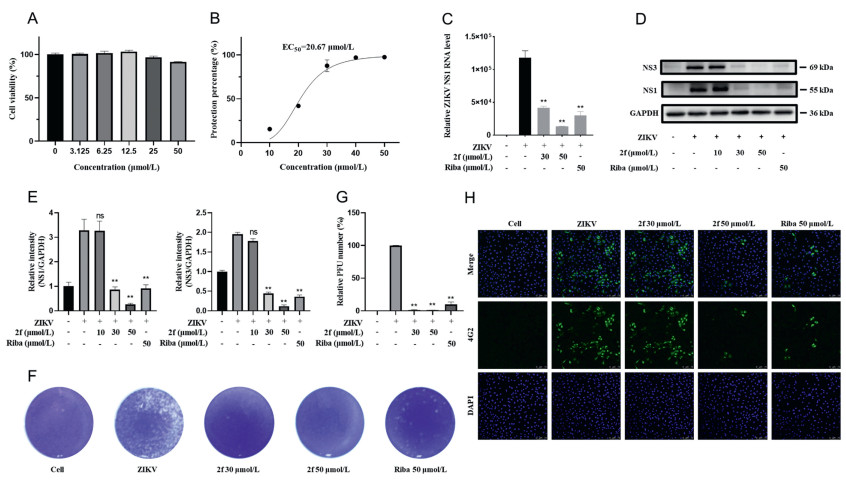

Fig. 3 2f Inhibits ZIKV infection in Vero cells. (A) Cytotoxicity of 2f in Vero cells. Vero cells were treated with different concentrations of 2f for 24 h, and viability was determined by cell counting kit-8 (CCK8) assays. (B) Antiviral activity of the 2f against ZIKV. Vero cells were treated with 2f at different concentrations and were infected with ZIKV at an MOI = 1. The anti-ZIKV activity of 2f was quantified by qRT-PCR with a primer designed for the NS1 gene. Percentage (%) were calculated as the 2f treatment viral genome load vs. the virus control. (C) Viral RNA was measured by qRT-PCR with a positive control ribavirin (Riba) at 50 µmol/L as well. (D) Western blot analyzed the expression of ZIKV-NS1, ZIKV-NS3 after infection for 24 h with or without 2f. (E) Image analysis and quantitation for Western blot by using ImageJ software. (F) ZIKV titers from cell supernatants were determined by infecting Vero cells for 4 days with an agarose overlay and the plate was photographed. The plates were analyzed for plaque-forming units per mL (PFU/mL). (G) Virus yield was assessed by plaque-forming unit assay. (H) Immunofluorescent staining for 4G2 in Vero cells. Scale bar: 75 µm. Data are shown as the (means ± SD) of three independent experiments. Statistical significance was analyzed from one-way-ANOVA compared with the ZIKV group. **P < 0.01 vs. the virus control. GAPDH, glyceraldehyde-3-phosphate dehydrogenase; DAPI, 4′, 6-diamidino-2-phenylindole; ns, no significance.

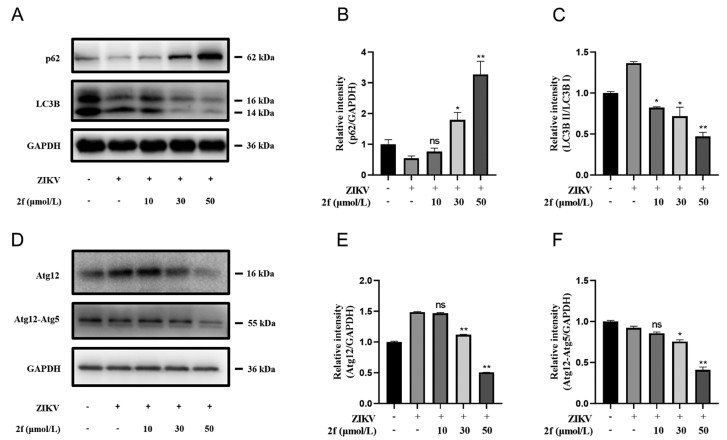

Fig. 4 2f Suppresses autophagy by reducing Atg12 expression. (A) Western blot analysis of p62 and LC3B expression levels in Vero cells infected with ZIKV and treated with 2f. (B, C) Quantification results of p62 protein expression, LC3B-Ⅱ: I ratio levels (n = 3 independent experiments). (D) Western blot analysis of Atg12, Atg12–Atg5 complex protein expression levels in Vero cells infected with ZIKV and treated with 2f. (E, F) Quantification results of Atg12 protein expression, Atg12–Atg5 levels (n = 3 independent experiments). Data are shown as the means ± SD of three independent experiments. Statistical significance was analyzed from one-way-ANOVA compared with the ZIKV group, P < 0.05, **P < 0.01 vs. the virus control.
