The strategies to improve TMDs represented by MoS₂ electrocatalytic oxygen evolution reaction

Full

Junan Pan^a, Xinyi Liu^a, Huachao Ji^a, Yanwei Zhu^b^,^*, Yanling Zhuang^a, Kang Chen^a, Ning Sun^a, Yongqi Liu^a, Yunchao Lei^a, Kun Wang^a, Bao Zang^a, Longlu Wang^a^,^*

Affiliations

^a State Key Laboratory of Organic Electronics and Information Displays & Jiangsu Key Laboratory for Biosensors, College of Electronic and Optical Engineering & College of Flexible Electronics (Future Technology), Nanjing 210023, China

^b State Key Laboratory of Chemo/Bio-Sensing and Chemometrics, College of Chemistry and Chemical Engineering, Advanced Catalytic Engineering Research Center of the Ministry of Education, Hunan University, Changsha 410082, China

Published: 2024-11-15 doi: 10.1016/j.cclet.2024.109515

Outline

Abstract

Less

The hydrogen evolution reaction (HER) and the oxygen evolution reaction (OER) are the two half reactions that make up the over water splitting reaction. Increasing oxygen evolution reaction rate wound immensely raise the efficiency of over water splitting reaction because it is the rate limiting reaction in water splitting reaction. The key to improve OER performance is the development and utilization of advanced catalysts. As one of the most potential catalysts for HER, it has gradually attracted the attention of researchers in the aspect of catalytic OER. It is very necessary to review the research progress of Transition metal dichalcogenides (TMDs) in catalytic OER to promote the research process in the field. In this review, we comprehensively and systematically summarized the strategies to improve TMDs electrocatalytic OER. First of all, structural regulation of TMDs-based electrocatalyst was summarized in detail, mainly including size engineering, defect engineering, doping engineering, phase engineering and heterojunction engineering. Once more, magnetic field regulation as a representative of external field regulation to improve TMDs electrocatalytic OER performance was discussed in depth. Last but not least, the strategies to improve TMDs electrocatalytic OER is prospected and some views on the development of this field are also put forward, which are expected to enhance the catalytic efficiency of TMDs for OER.

Key words

Oxygen evolution reaction / Transition metal dichalcogenides / Structural regulation / External field regulation / Electrocatalyst

Cite this Article

Junan Pan, Xinyi Liu, Huachao Ji, Yanwei Zhu, Yanling Zhuang, Kang Chen, Ning Sun, Yongqi Liu, Yunchao Lei, Kun Wang, Bao Zang, Longlu Wang. The strategies to improve TMDs represented by MoS₂ electrocatalytic oxygen evolution reaction[J]. Chinese Chemical Letters, 2024 , 35 (11) : 109515 - . DOI: 10.1016/j.cclet.2024.109515

Full Text

Less

1 Introduction

Less

Transition metal dichalcogenides (TMDs) typically represented by MoS₂ have been widely studied in the field of electrocatalytic hydrogen evolution reaction (HER), which have enormous potential in replacing precious metal commercial Pt/C [1–6]. It is expected to reduce the cost of electrocatalytic HER, thus promoting the development of hydrogen energy. Nevertheless, for the overall water splitting, the oxygen evolution reaction (OER) is the rate limiting reaction, which determines the overall water splitting performance [7–11]. Therefore, it is necessary to explore some strategies to enhance the performance of OER, thus to accelerate overall water splitting.

In terms of OER, the reaction process involved a four electron transfer, which is much more complicated than hydrogen evolution reaction (HER) with two electron transfer process [12–15]. In recent years, some outstanding progress has been made for the application of TMDs in oxygen evolution reactions [16–20]. The catalytic OER efficiency is mainly determined by the structure of the catalyst. It is acknowledged that the number of active sites, the intrinsic activity of each active site, and the conductivity of the catalyst are the main effective factors of catalytic performance for OER [21–26]. At present, researchers mainly regulate the structure of catalysts through size engineering [27,28], defect engineering [29,30], doping engineering [31,32], phase engineering [33,34] heterojunction engineering [35–38] and so on. It is necessary to review above structural regulation of TMDs electrocatalyst represented by MoS₂ to improve electrocatalytic OER performance and to revisit the corresponding catalytic mechanism [39–43]. It is also worth noted that the structure of the catalyst is easily reconstructed during the OER process. In other words, the atomic structure of the active sites would dynamically evolve during the catalytic reaction process, which makes the true active sites difficult to determine [44–50]. The external field assisted OER strategies represented by magnetic field regulation are also worth attention [51,52]. Yuan et al. design a catalytic model in which anchored single cobalt atoms to the Mo vertex of MoS₂ by laser molecular beam epitaxy to research the external field regulation for OER [53]. Single Co atom as the active site not only improves the OER performance of MoS₂, but also induces the in-plane room temperature ferromagnetic properties through hybridization with nearby S and Mo atoms. On this basis, the OER performance of the magnetic monatomic catalyst has been significantly soared by using the magnetothermal effect caused by the continuous spin reversal of the magnetic monatomic catalyst under the high-frequency alternating magnetic field. At present, the research about TMDs electrocatalytic OER is still in the embryonic stage. It is urgent to summarize the recent progress on TMDs catalytic OER to promote the development of this field.

In this review, we comprehensively and systematically summarized the strategies to improve TMDs electrocatalytic OER as shown in Fig. 1. First of all, structural regulation of MoS₂-based electrocatalyst was summarized in detail, mainly including size engineering, defect engineering, doping engineering, phase engineering and heterojunction engineering. Once more, external field regulation to improve MoS₂ electrocatalytic OER performance was discussed in depth. Last but not least, the strategies to improve MoS₂ electrocatalytic oxygen evolution is prospected and some views on the development of this field is outlined.

2 Structural regulation of TMDs-based electrocatalyst

Less

There are many ways to improve the properties of catalysts, among which the regulation of catalyst structure is one of the common methods [16–20]. By adjusting the structure of the catalyst, the surface active site density, adsorption capacity of reactant molecules, surface acidity and alkalinity can be changed, so as to achieve fine control of the reaction [21–26]. At present, the common methods to regulate the MoS₂ structure to promote its OER performance include: size engineering, defect engineering, doping engineering, phase change engineering and heterojunction engineering [27–38].

2.1 Size engineering

The active sites are significant parts of the catalyst with extraordinary catalytic effect [1,2]. The active sites tend to exist in low-coordination atoms, and from a geometric point of view, the active sites tend to be concentrated at the vertex and edge of the material [54–58]. Then, if the bulk catalytic material is divided into small sized catalytic materials by certain means, more active sites can be exposed, which can produce a breakthrough increase in the original performance of the catalyst [16,17]. For this reason, nano-sized materials such as quantum dots will be preferred over their bulk counterparts [59–64]. Study the related catalytic properties of nano-sized catalysts such as quantum dots and the catalytic activity of active sites at the edges, vertices and surfaces should also be taken.

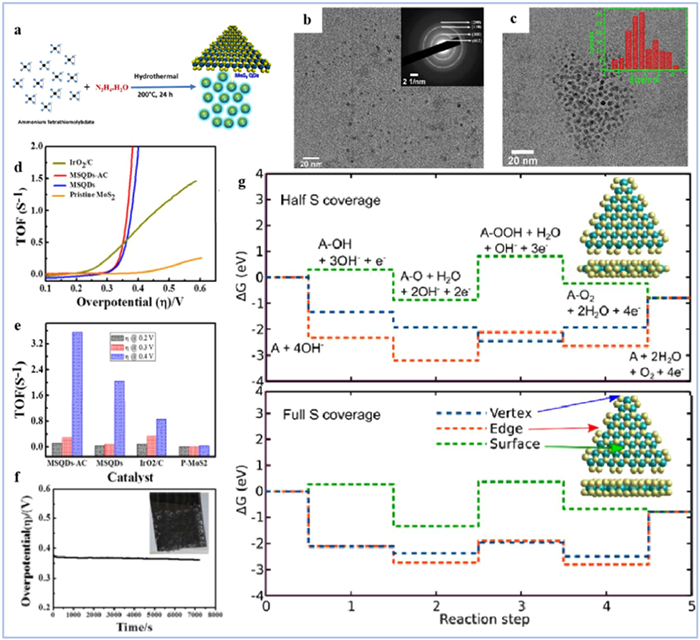

MoS₂ quantum dots (MSQDs) are also demonstrated to have promising applications in OER [59,63,64]. Mohanty et al. uses (NH₄)₂MoS₄ and hydrazide to obtain MSQDs through hydrothermal synthesis technology, which avoids the formation of carbon quantum dots (CQDs) caused by the use of carbon organic solution, and thus avoids the impact of CQDs on the performance of MSQDs (Fig. 2a) [59]. Based on the analysis of TEM images and the histogram of the size distribution, it can be observed that the synthesized MSQDs particles exhibit a size below 7 nm and demonstrate well-defined lattice fringes (Figs. 2b and c). Subsequently, the number of active sites and turn over frequency of MSQDs were estimated to test their OER performance. As shown in Figs. 2d and e, in the case of high overpotential, the TOF value of MSQDs-AC is higher than that of commercial IrO₂/C, indicating that the OER performance of MSQDs-AC at this time has exceeded that of commercial IrO₂/C. It also shows that MSQDs after activation cycle has more superb catalytic activity, which may be due to the increase of the number of active sites. Additionally, MSQDs also have excellent stability. After continuous electrolysis for 2 h at the current density of 10 mA/cm², almost no change in overpotential is observed, which can be applied to long-term electrolysis applications (Fig. 2f). In order to further study the catalytic mechanism, the authors used DFT to calculate the OER free energy distribution at different positions of the catalyst under the condition of half S coverage and full S coverage (Fig. 2g). The results show that the catalytic activity at the vertex and edge is more superior than that at the surface. This work provides a profound insight into the synthesis method and catalytic properties of MSQDs, which is conducive to the further application of MSQDs in OER, and the structure can also be applied to other transition metals for catalytic production of related energy sources.

2.2 Defect engineering

Different characteristics of crystal materials, including their electrical, optical, thermal, magnetic, and mechanical attributes, are linked to the presence of defects in their structure [29,30,65–68]. Defects usually exist in the preparation and application of materials, which serve as active sites for the synthesis of target catalyst materials and promote the occurrence of catalytic reactions [44,45]. Defect engineering offers a viable approach for regulating the surface physicochemical properties of catalytic materials. The existence of defects plays a crucial role in regulating its electronic structure and chemical properties, thereby facilitating the emergence of novel physical and chemical properties or fostering robust synergistic effects to enhance the catalytic efficiency of electrocatalysts [36,59,69–73].

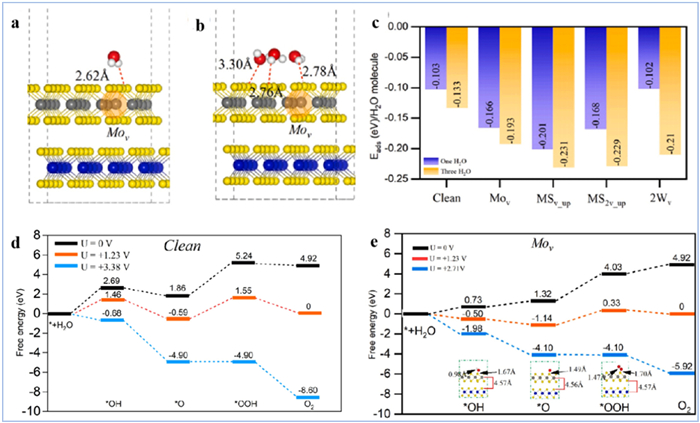

Asad Mahmood et al. investigated the effect of various defects on the OER catalysis of WS₂/MoS₂ heterojunction [69]. The bond length and the vacancy formation energy of WS₂/MoS₂ heterojunction material for clean (no vacancy) and other vacant WS₂/MoS₂ heterojunctionare calculated. The calculation results of the bond length show that the introduction of defects changes the layer spacing and interface distance of the material, and indeed enhances the interaction between WS₂ and MoS₂. The low formation energy and stability of the S defect can be inferred from the vacancy formation energy. In order to further study the OER properties of WS₂/MoS₂ heterojunction, the adsorption of one and three water molecules was simulated and the corresponding adsorption energy was calculated (Figs. 3a–c). The results show that the adsorption energy of three water molecules is greater than that of one water molecule, and the adsorption energy of clean WS₂/MoS₂ is smaller than that of other WS₂/MoS₂ with vacancy except for 2W_v WS₂/MoS₂. The greater degree degrader of OER free energy and the overpotential could be observed in the images of free energy of OER due to the introduction of Mo defects (Figs. 3d and e), which proves that the addition of defects could induce outstanding OER activity. This work provides a feasible approach for changing the structure of related materials including heterojunctions, and enhancing chemical properties such as the catalytic performance of OER. Expanding its application to other materials may further promote the development of OER catalytic material.

2.3 Doping engineering

As a semiconductor material, 2H-MoS₂ has poor intrinsic conductivity and its active sites only concentrated at the edge of the nanosheets, which leads to poor OER performance [33,74–77]. Doping engineering is one of the effective ways to active the inert basal plane. Doping oxophilic metals (such as Co, Ni, Fe) into basal plane of MoS₂ nanosheets can regulate the electronic structure of MoS₂, thereby speeding up the transfer of electrons to its active sites. Moreover, doping can also add the quantity of active sites and boost the intrinsic activity of per active sites. This will greatly improve the catalytic OER performance and the overall water splitting performance. At present, a lot of researches has been focus on metal doping including single metal doping engineering and bimetal doping engineering to facilitate the OER performance of MoS₂ [78–81].

2.3.1 Single metal doping engineering

Single metal doping refers to the substitution of transition metals (such as Co, Ni) for the position of some Mo atoms in MoS₂. Because the atomic radius size of doped metal atom’s, element type and coordination mode are different from Mo, it will cause the change of coordination valence and the formation of new defect forms and strains on the surface, thus further changing the electronic structure and then affect its catalytic activity [32,78–82].

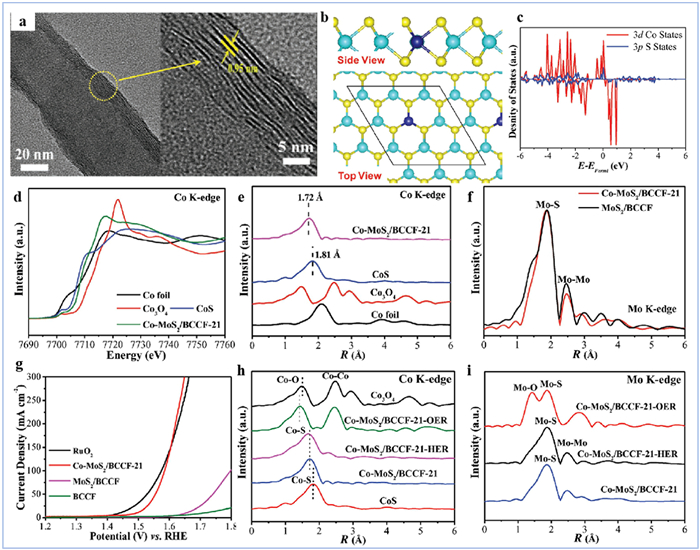

It has been reported that Co covalent doping in MoS₂ can effectively solve the problem of poor catalytic effect of OER. Xiong et al. reported on a bifunctional Co covalently doped MoS₂ catalyst, which can enhance the catalytic performance of both HER and OER [78]. They first prepared Co-Mo₂C/BCCF-X (X represents the Mo/Co molar ratio in the adsorption solution) by using bacterial cellulose as an adsorption regulator, combined with (NH₄)₆Mo₇O₂₄ and Co(NO₃)₂ solutions. Then it is further converted to Co-MoS₂/BCCF-X by vapor phase hydrothermal method. The TEM image of Co-MoS₂/BCCF-21 is shown in Fig. 4a, it is composed of internal carbon cellulose and external layers of MoS₂ shells with a layer spacing of about 10 nm. DFT calculations show that Co doped into MoS₂ in the form of replacing Mo atoms in MoS₂, forming a stable structure with a Mo/Co ratio of 8:1 (Fig. 4b). Additionally, Fig. 4c shows the formation of C_O-S bond after Co doping. The Co valence state in Co-MoS₂ /BCCF-21 exhibits dissimilarity compared to that in Co foil, Co₃O₄, and CoS (Fig. 4d), and the length of the Co-S bond formed is also 0.09 Å shorter than that in CoS, which indicates that Co is covalently doped into MoS₂, not to form metal Co or CoO_x (Fig. 4e). In addition, the decrease of Mo–Mo coordination from Co-MoS₂/BCCF-21 is also proving this (Fig. 4f). Meanwhile, these results also confirm the change of electronic structure after Co covalently doped MoS₂. Co doping significantly boost the activity of OER (Fig. 4g), the performance of Co MoS₂/BCCF-21 and related materials, as well as commercial RuO₂ electrodes were investigated. It can be found that the initial potential of Co-MoS₂/BCCF-21 is only 1.45 V (vs. RHE), which is only 6 mV higher than RuO₂. Besides, when the potential exceeds 1.6 V, the OER performance of Co-MoS₂/BCCF-21 will exceed that of RuO₂: A greater current density will occur at the same potential. However, the origin of the OER activity of Co covalently doped MoS₂ remains ambiguous. In this regard, Xiong et al. compared the EXAFS spectra of the catalyst after HER and OER, and found that the catalyst after OER formed Co–O bonds and Mo-O bonds (Figs. 4h and i) [78]. In addition, considering that the OER performance of undoped MoS₂-BCCF under alkaline conditions is poor (Fig. 4e), and the newly formed Co–O bond length is shorter than that of Co₃O₄ (Fig. 4h), it is reasonable to guess that the active source of OER is the formation of high valence state Co substances under alkaline conditions and anodic potentials. In summary, the catalyst provides a new way to improve the performance of OER by doping method and to design bifunctional catalysts. At the same time, the doping method can also be applied to other transition metal catalysts. Neverthless, the exact source of OER activity remains to be further research.

2.3.2 Bimetal doping engineering

Single metal doping has relatively limited effects on the regulation of electronic structure, the increase of active site and the change of electron density of catalyst, so the improvement degree of catalyst performance still needs to be facilitated. Compared with single metal doped catalysts, some bimetal doped catalysts show better performance in the same aspect [79–81]. Appropriate doping of two metals can better alter the electronic structure and electron density of the catalyst, while achieving complementarity and mutual promotion in the improvement of related performance. Taking advantage of the synergistic effect between some bimetals and doping them into MoS₂, the electronic structure and physical and chemical properties of MoS₂ can be modified.

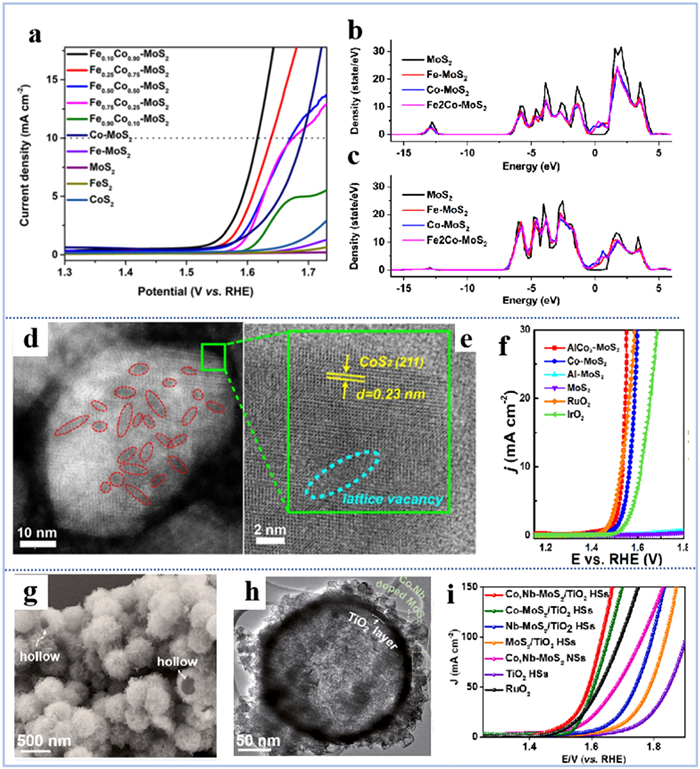

Sathiyan et al. synthesized Fe-Co doped MoS₂ products with different Co/Fe ratios by hydrothermal method [79]. The surface of the synthesized Fe_0.10Co_0.90-MoS₂ sample is rough and petal-like, which increases the active area of the catalyst, facilitates better contact with the reactants and improves catalytic activity. As shown in Fig. 5a, the OER performance of Fe and Co bimetal doped MoS₂ catalyst is much higher than that of MoS₂, and the OER performance is also improved tremendously compared with the single metal doped catalyst of Co or Fe. The doping of Fe and Co changed the binding energy of Mo and S, and the PDOS plots demonstrate doping modifies the electronic structure of the catalysts (Figs. 5b and c). This is one of the reasons for the exaltation of OER performance. Sathiyan et al. studied the difference of OER properties of catalysts doped with single-metal and bimetal in different proportions, obtained the result that the OER overpotential of bimetal doped was lower than that of single metal doped and verified the better performance of Fe-Co doped catalyst.

Al and Co doped MoS₂ catalysts have also been designed to improve the catalytic efficiency of OER [80]. The stoichiometric ratio of Al and Co doped into MoS₂ is 1:3. The HAADF image and HRTEM image of AlCo₃-MoS₂ are shown in Figs. 5d and e. The prepared AlCo₃-MoS₂ sample has a corrugated structure and lattice vacancy. It can be seen from Fig. 5f that the OER catalytic activity of Al-MoS₂ is negligible, Co-MoS₂ has relatively wonderful OER catalytic activity, and the catalytic activity of AlCo₃-MoS₂ is more splendid than that of Co-MoS₂. The reason why this phenomenon appeared is that the doping of Al causes the Co²⁺ in Co-MoS₂ to be oxidized into highly active Co³⁺, which further improves the performance of OER.

The Co and Nb doped MoS₂ nanosheet shelled micro-TiO₂ hollow spheres prepared by Nguyen et al. is also an excellent bimetal-doped OER catalyst [81]. Co and Nb doped MoS₂ nanosheets are deposited directly on PS@TiO₂ sphere by hydrothermal reaction. The obtained Co, Nb-MoS₂/PS@TiO₂ precursor is annealed at 650 ℃ in Ar atmosphere for 3 h, then it will be converted into Co, Nb-MoS₂/TiO₂ HSs. The hollow spherical structure of Co, Nb-MoS₂/TiO₂ HSs can be clearly observed from its SEM and TEM images (Figs. 5g and h). In addition, it could also indicate that the ultra-thin nanosheets are uniformly covered on the spherical surface. The results show that the catalytic performance of Co, Nb-MoS₂/TiO₂ HSs is more outstanding by testing and comparing the OER activity of correlative materials (Fig. 5i). The chemical coupling effect between Co, Nb-MoS₂ NSs and TiO₂ hollow spheres, the co-doping effect of Co and Nb is also one of the essential reasons. The electronic states of Co and Nb doped MoS₂ are in proximity to the Fermi level, and the electronic states are higher than those of single metal Co or Nb doped catalysts, which is conducive to electron transfer and adsorption of intermediates. The high efficiency and stability of the material also make it have potential for application in the case of high current density of industrial grade. These works provide a valuable insight into how to use the synergistic effect of bimetal doping to further improve catalyst performance compared with single metal doping. At the same time, as an effective means to improve the catalytic performance of OER, it is worth further research and extension.

2.4 Phase engineering

MoS₂ has a variety of phase states, which can be roughly divided into semi-conductive and metallic phases. Generally speaking, the MoS₂ semiconductor material refers to 2H-MoS₂. 2H-MoS₂ exhibits an adjustable band gap, thus it has semiconductor properties, while 1T-MoS₂ has metallic behavior due to its lack of band gap. The 1T-MoS₂ electrocatalyst has a higher conductivity, which improves the electron transport capacity and is able to enhance the contact between the electrolyte and the active site. Therefore, phase transition engineering is also an effective method that can change the properties of MoS₂. By converting 2H-MoS₂ to 1T-MoS₂, superior OER catalytic activity can be obtained [33,34,83].

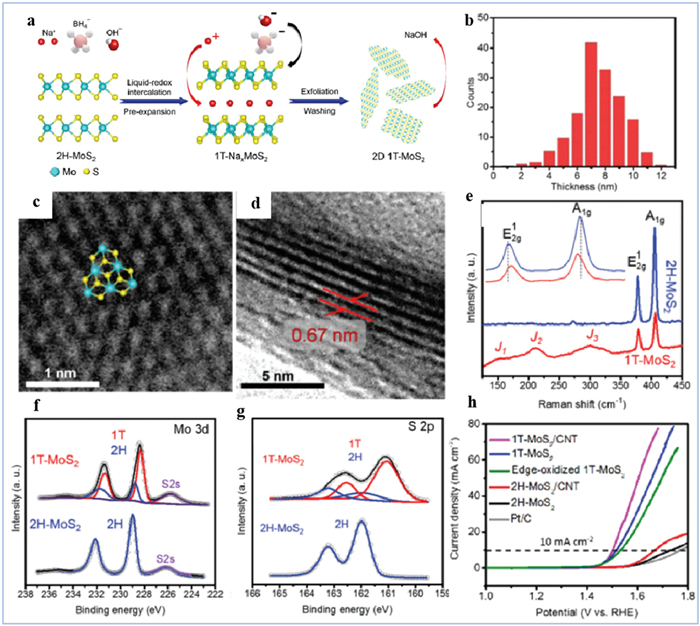

Sadighi et al. prepared 2D 1T-MoS₂ nanosheets by in situ liquid-redox intercalation and solvent exchange exfoliation [83]. At the same time, the strong reductiveness of NaBH₄ is used to stabilize the structure and transfer electrons to the S layer of 1T-Na_xMoS₂ to compensate for the charge generated by Na⁺ embedding (Fig. 6a). In addition, the gas released by NaBH₄ decomposition is used to generate stress, which makes MoS₂ pre-expand and facilitates the embedding of Na⁺. And it was hybridized with 30 wt% carbon nanorods to form a 1T-MoS₂/CNT electrode. The thickness of the generated 2D 1T-MoS₂ nanosheets with triangular pattern is mostly between 4 and 11 nm (Figs. 6b and c), and their layer spacing is 0.67 nm (Fig. 6d). 2H-MoS₂ and 1T-MoS₂ have different Raman spectra and X-ray photoelectron spectroscopy (Figs. 6e–g). Above all these indicate that 2H-MoS₂ completes the transformation to metalic 1T-MoS₂ after Na⁺ embedding. The OER performance of 1T-MoS₂, 1T-Na_xMoS₂, 1T-MoS₂/CNT, 2H-MoS₂, 2H-MoS₂/CNT and Pt/C were tested at a current density of 10 mA/cm² (Fig. 6h). The results show that the OER performance of 1T-MoS₂ series materials is much higher than that of 2H-MoS₂, which demonstrates that phase transition an greatly change the properties of MoS₂. 1T-MoS₂ is a promising catalytic material for OER due to its unique conductor-like properties. It combines with materials such as carbon nanotubes will also expand its application areas.

2.5 Heterojunction engineering

The above strategies are all aimed at improving the poor oxygen precipitation performance of MoS₂ single material by adjusting its own structure, achieving a qualitative leap in catalytic efficiency [84–88]. We can also solve this problem by forming heterojunctions with other materials with excellent OER catalytic performance [8,16,35–38,89–102]. For example, Co₃O₄ with OER catalytic performance and MoS₂ with outstanding HER catalytic performance forming heterojunction materials can effectively promote the progress of HER and OER, achieving complementary performance and multifunctional catalytic performance [91]. The heterogeneous interface formed by the effective combination of two or more materials can fully utilize the synergistic effect between the materials. The strong interactions between materials will form electron transfer, which helps to increase the electron density of the catalyst. And heterogeneous interface could expose more OER active sites, induce electron reconstruction at the interface, which can improve the limited catalytic activity [8,10,31,33–35,72,103–107].

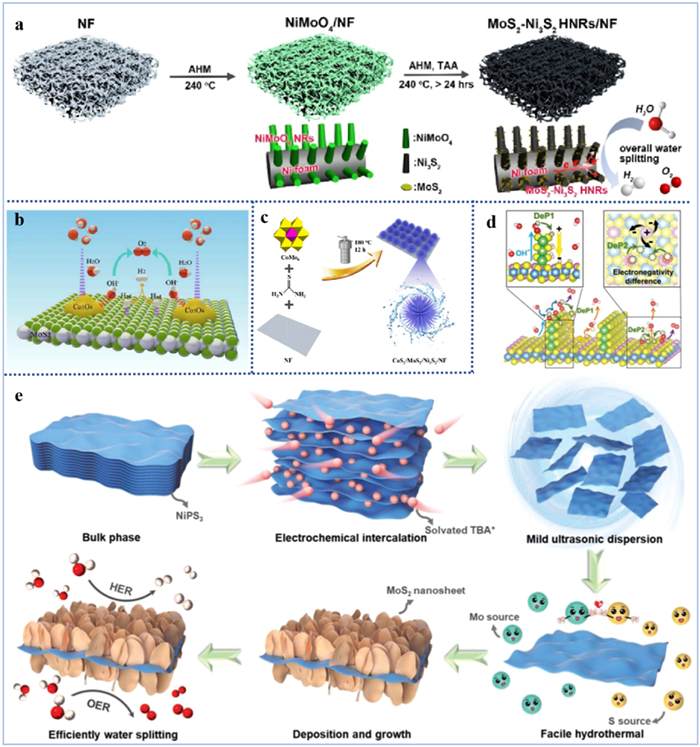

For instances, Yang et al. prepared Ni foam supported MoS₂-Ni₃S₂ heterogeneous nanorods by hydrothermal method in one pot at 240 ℃ for more than 24 h (Fig. 7a) [90]. Ni₃S₂ nanorods are uniformly integrated with MoS₂ nanomaterials, and the heterogeneous interface is also effectively exposed, which also promotes the effective transmission of electrons on the Ni₃S₂ nanorods.

Electron reconfiguration driven by heterogeneous interfaces changes the electronic structure of the catalyst, thereby altering its properties, or may lead to the formation of new substances to improve the catalytic performance of OER. As a promising OER catalyst, Co₃O₄ was also used by Liu et al. to combine with MoS₂ to form Co₃O₄@MoS₂ heterojunction (Fig. 7b) [91]. The newly constructed interface induces a redistribution of electrons, which will reduce the Gibbs free energy of the OER intermediate and accelerate the OER process. Zhang et al. prepared a CoS₂/MoS₂/Ni₃S₂/NF electrode where electrons are transferred from Ni₃S₂ to CoS₂ and then to MoS₂, which will form a high-priced Ni substance that can accelerate OER (Fig. 7c) [92]. Liu et al. prepared a vertical heterostructure of MoS₂/NiPS₃ (Fig. 7e), in which the internal electron transfer changes the electronic structure and also forms an internal polarization field [93]. This internal polarization field is conducive to the adsorption of hydroxyl, and will also accelerate the two deprotonation processes, so that the performance of OER is enhanced (Fig. 7d). The above methods provide reference ideas for us to change the active area of the catalyst through interface engineering, promote electron transfer or reconstruction, and make full use of the synergistic effect of various materials to construct MoS₂-related heterojunction to improve the performance of OER.

3 External field regulation

Less

The strategies for improving the OER performance of MoS₂ are multifaceted [108–117]. In addition to the strategy of regulating its structure, utilizing the energy provided or inducing new properties by external fields is also a fabulous way to improve the original performance [51,52]. Currently, strategies for improving the OER performance of MoS₂ related materials by applying an external magnetic field have been studied [53,118]. Research has demonstrated that the strength and direction of the external magnetic field are key factors that affecting OER performance [53,118].

3.1 Unidirectional external magnetic field regulation

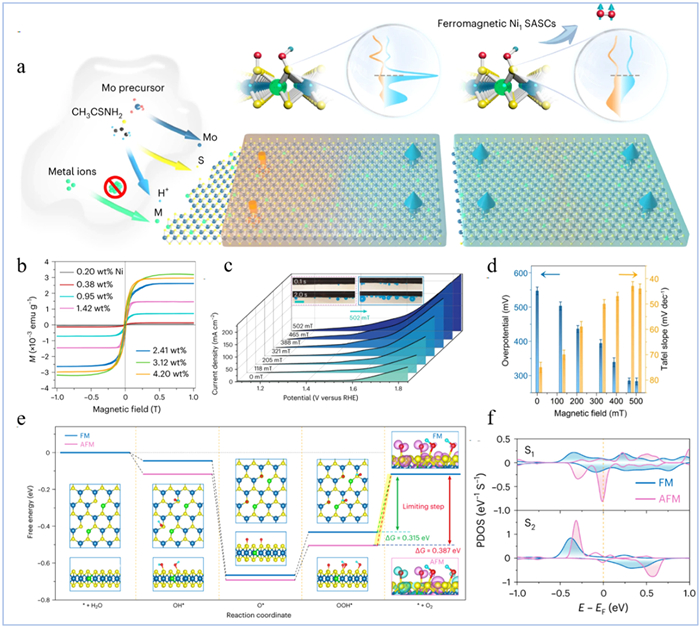

Through some methods, the original catalyst can be transformed into a ferromagnetic catalyst, and under the condition of an external magnetic field, the parallel spin arrangement of O atoms can be achieved, thus reducing the reaction barrier, optimizing the hysteresis kinetics of the reaction, accelerating the related adsorption and desorption process, leading a positive impact on the performance of OER.

Combining heterogeneous OER electrocatalysts such as ferromagnetic mixed-metal oxides/metals with external magnetic field could enhance OER performance [90,119–124]. Under acidic conditions, Sun et al. synthesized a Ni₁/MoS₂ single-atom spin catalysts (SASCs) with adjustable Ni content using nickel salt, ammonium molybdate tetrahydrate and thioacetamide by hydrothermal synthesis method (Fig. 8a) [118]. Ni₁/MoS₂ adopts a distorted tetragonally crystal structure, which induces ferromagnetic-coupled with nearby S atoms and adjacent Ni₁ sites, leading to room-temperature ferromagnetism. When the Ni content in Ni₁/MoS₂ is 0.05 wt%, only paramagnetism is displayed. Nevertheless, the Ni content increases to 0.20, 0.38, 0.95, 1.42, 2.41 and 3.12 wt%, the Ni₁/MoS₂ shows ferromagnetism, and the magnetization increased with the increase of Ni content (Fig. 8b). Under an external magnetic field (a B field), Sun et al. tested the OER performance of Ni₁/MoS₂, proving the promotion of the OER performance of Ni₁/MoS₂. As shown in Fig. 8c, as the B-field increases from 0 to 502 mT, the current density surges significantly when the voltage is higher than 1.6 V. At the same time, the enhancement of OER performance can also be directly observed from the bubbles on the electrode surface. This is also demonstrated by the decrease of overpotential and Tafel slope of Ni₁/MoS₂ at the current density of 40 mA/cm² (Fig. 8d). It can be seen from Fig. 8e that for the rate determining step of OER (the process from ^*OOH to O₂), the energy barrier of the ferromagnetic-coupled active site is lower than that of the antiferromagnetic-coupled. And Fig. 8f indicates that the near-E_F occupied spin density of S₁ of two ferromagnetic-coupled Ni_Mo sites decreased significantly compared with antiferromagnetic-coupled, but the empty state above E_F increases. So, the magnetic field enhanced OER performance on Ni₁/MoS₂ is attributed to magnetic field induced spin alignment and spin density optimization at the S active site, which in turn optimizes the adsorption energy of the radical intermediates to reduce the overall reaction barrier. This study provides a solution to solve the problem of slow kinetics of OER and the development of efficient and stable OER catalysts, and also provides powerful support for accelerating the process of water splitting and realizing efficient production of hydrogen energy.

3.2 Alternating magnetic field regulation

Sun et al. Studied the effect of external magnetic field on the OER properties of doped MoS₂, but did not research the difference of the impact of different magnetic field direction on OER performance [118]. Nevertheless, Gong et al. improved the OER performance of the catalyst through magnetic heating induced by alternating magnetic fields [53]. The effect of vertical magnetic field and parallel magnetic field of opposite direction on the OER performance of Co@MoS₂ catalyst was also compared with that of parallel magnetic field.

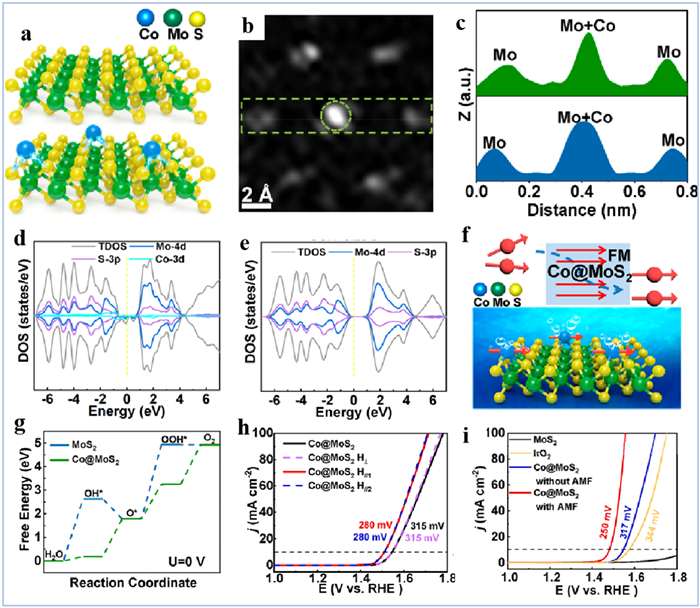

Gong et al. prepared Co@MoS₂ catalyst by directly anchoring magnetic Co single-atom (SA) at the Mo top sites of monolayer MoS₂, as shown in the lattice structure image (Fig. 9a) [53]. It is easy to observe the brighter part in the HAADF-STEM image, which is the position of the Co SA on the top of the Mo atom (Fig. 9b). The intensity spectrum analysis of HAADF-STEM images can also demonstrate that Co SA is anchored to the top of Mo atom (Fig. 9c). In addition, by calculating the spin-resolved density of states (DOS), it is found that the total density of states (TDOS) of MoS₂ is symmetric in spin-down and spin-up, while for Co@MoS₂, there is a significant asymmetry between the spin-down and spin-up TDOS near the Fermi level, indicating that Co@MoS₂ is magnetic but MoS₂ is not (Figs. 9d and e). The catalytic performance of OER can be improved by taking advantage of its room temperature ferromagnetism. The application of alternating magnetic field can induce the parallel spin arrangement of O atoms, thus reducing the dynamic barrier of O—O bond, and the alternating magnetic field could also generate local magnetic heating, heating the active site to further accelerate its adsorption and desorption process, which will drastically enhance the catalytic efficiency of OER (Fig. 9f). The performance optimization of Co@MoS₂ catalyst can be learned from the Gibbs free energy images of the four basic reactions in the OER process (Fig. 9g). Further experiments show that when the magnetic field is applied in parallel direction (H_//1), the OER performance is significantly improved; however, when the magnetic field is applied in vertical direction (H_⊥), it can be seen that the OER performance is basically the same as that without the magnetic field. This may be due to the absence of out-of-plane ferromagnetism of the catalyst. If the parallel magnetic field is changed in the opposite direction (H_//2), the improvement effect will not change compared with that before changing the direction. (Fig. 9h), which indicates that the magnetic field in the opposite direction will not have additional impact on the performance of OER. A comparison with commercial IrO₂ is also shown in Fig. 9i, Co@MoS₂ exhibits superior OER catalytic activity at the laboratory level with or without the addition of a magnetic field.

In general, it is an effective means to improve the poor OER performance of the original catalyst by constructing the catalyst with room temperature ferromagnetism in combination with the external magnetic field, and the direction of the magnetic field may also be a key factor affecting the performance improvement. At the same time, this method is not only suitable for the research and development of OER catalyst, but also can be extended to other catalytic fields.

4 Conclusion and outlooks

Less

TMDs has received extensive attention in the field of electrocatalytic hydrogen evolution. In spite of this, OER efficiency is the decisive factor affecting the speed of water splitting reaction, so how to enhance the catalytic efficiency of OER of TMDs is also an urgent problem to be solved. In recent years, strategies to improve TMDs OER performance have been studied and made great progress. In this paper, taking MoS₂ as an example, the improvement strategies to improve its OER electrocatalytic performance are reviewed. Firstly, the structural regulation strategies of catalysts are summarized in detail, which are represented by size engineering, defect engineering, doping engineering, phase engineering and heterojunction engineering. The problem of external field control represented by magnetic field to improve the performance of electrocatalytic OER is also discussed in detail. These results laid a foundation for further research to enhance the OER catalytic activity of TMDs. However, for MoS₂ catalyzed OER, its own stability needs to be paid attention to. Secondly, in the OER process, the structure of the catalyst is easy to reconstruct, which makes the real activity problem not known enough. In other words, the atomic structure of the active site also evolves dynamically during the catalytic reaction, which makes the true active site difficult to determine. In addition, even if these strategies are effective at the laboratory level, they may still face challenges at high industrial current densities, and the activity and stability of catalysts at high current densities need to be studied to provide reference for their potential industrial applications. In summary, our review is of great significance for improving the performance of MoS₂ catalytic oxygen generation, and there is still a long way to go for the actual large-scale application of TMDs electrocatalysis to OER.
