Molecular engineering of carbon nitrides for overall photosynthesis of H<sub>2</sub>O<sub>2</sub>

Molecular engineering of carbon nitrides for overall photosynthesis of H₂O₂

PDF

Jin Ma, Xiaoxiao Peng, Zhixin Zhou^*, Yanfei Shen^*, Yuanjian Zhang^*

Chinese Chemical Letters | 2023, 34(12) : 108784

Less

Chinese Chemical Letters | 2023, 34(12): 108784

• Highlight •

Molecular engineering of carbon nitrides for overall photosynthesis of H₂O₂

Full

Jin Ma, Xiaoxiao Peng, Zhixin Zhou^*, Yanfei Shen^*, Yuanjian Zhang^*

Affiliations

Jiangsu Engineering Laboratory of Smart Carbon-Rich Materials and Device, Jiangsu Province Hi-Tech Key Laboratory for Bio-Medical Research, School of Chemistry and Chemical Engineering, Medical School, Southeast University, Nanjing 211189, China

Published: 2023-12-15 doi: 10.1016/j.cclet.2023.108784

Outline

Abstract

Less

Artificial photocatalysis offers a promising strategy to sustainably produce hydrogen peroxide (H₂O₂) that is one of the most valuable multifunctional chemicals. Among various photocatalysts, polymeric carbon nitride (pCN) has drawn continuous attention in non-sacrificial H₂O₂ production. However, the poor activity of half reactions, i.e., the oxygen reduction reaction (ORR) and water oxidation reaction (WOR), greatly restricts the efficiency of photocatalytic H₂O₂ production. In this highlight, we discuss the significant advances in molecular engineering of carbon nitrides for H₂O₂ photosynthesis and the importance of the deep understanding of the photocatalysis process for rational design and reaction pathways of organic conjugated polymers to address the growing H₂O₂ demand. Furthermore, we summarize the emerging applications of photocatalytic H₂O₂ productions beyond energy and environment.

Key words

Carbon nitrides / Photocatalysts / H₂O₂ production / Oxygen reduction reaction / Water oxidation reaction

Cite this Article

Jin Ma, Xiaoxiao Peng, Zhixin Zhou, Yanfei Shen, Yuanjian Zhang. Molecular engineering of carbon nitrides for overall photosynthesis of H₂O₂[J]. Chinese Chemical Letters, 2023 , 34 (12) : 108784 - . DOI: 10.1016/j.cclet.2023.108784

Full Text

Less

Hydrogen peroxide (H₂O₂) is one of the most valuable multifunctional chemicals with widespread applications. Currently, the well-established industrial anthraquinone-based method for H₂O₂ production is energy-intensive and environmentally unfriendly [1]. In addition to eco-friendly and economical electrochemical methods [2], artificial photosynthetic H₂O₂ generation is also considered as a clean and energy-saving approach that has attracted significant interest. Substantial efforts have been devoted to developing new photocatalysts with high efficiency, good selectivity, and stability [3]. Visible-light-responsive organic polymers [4], such as polymeric carbon nitrides, have been widely investigated as potential catalysts for H₂O₂ photosynthesis because of their high physical and chemical stability, low cost, and adjustable electronic bandgaps.

In 2014, Shiraishi et al. first reported that graphitic carbon nitride (g-C₃N₄) could produce H₂O₂ under photoirradiation using alcohol as an electronic donor [5]. Inspired by this seminal work, numerous polymeric carbon nitride-based photocatalysts have emerged in recent years for the photocatalytic production of H₂O₂, especially for solar-driven H₂O₂ production without any sacrificial agents [6]. However, most carbon nitride materials cannot produce effective holes or form active surface sites to directly oxidize H₂O into H₂O₂, and tend to undergo the thermodynamically favorable 4e⁻ WOR process [7]. Molecular engineering of carbon nitrides, including heteroatom doping (e.g., P or Sb) [8], modifying heteromolecules (e.g., pyromellitic diimide or biphenyl diimide) [9], surface defect engineering (e.g., C≡N groups and N vacancies) [10], and modulating triazine/heptazine based frameworks (e.g., by spatially separated redox centers) [11,12], plays a key role in the formation of architectures with great topologies [13]. Indeed, some substantial significant advances have been made to improve the non-sacrificial ORR and WOR efficiency for H₂O₂ photosynthesis; however, the efficiency and stability of current state-of-the-art photocatalysts are still low.

Each half-reaction includes different reaction pathways determined by the electron transfer number (Fig. 1a) [14-16]. For ORR half-reaction, the direct two-electron process exhibits a thermodynamically more favorable energy level (+0.695 V vs. NHE) and the indirect stepwise single-electron reduction firstly reduce O₂ to form hydroperoxyl radicals (·OOH, −0.05 V vs. NHE) which then couple with protons to generate H₂O₂ (+1.44 V vs. NHE). For the WOR half-reaction, H₂O can be directly oxidized by two holes to form H₂O₂ (+1.76 V vs. NHE), and the stepwise single-electron WOR process requires high concentrations of hydroxyl radicals (·OH, +2.73 V vs. NHE) to form the desired H₂O₂. Theoretically, based on the combination of different ORR and WOR pathways, there are four different pathways for the overall photosynthesis of H₂O₂: 2e⁻ ORR and 4e⁻ WOR pathways [8], stepwise 1e⁻ ORR and 4e⁻ WOR pathways [10], stepwise 1e⁻ ORR and 1e⁻ WOR pathways [17], and 2e⁻ ORR and 2e⁻ WOR pathways [11,12,18,19], which provide potent guidance for the design of photocatalytic processes (Fig. 1b) [14].

The creation of heteroatom-doped photocatalysts is an essential strategy in the pursuit of advanced photocatalytic processes. In an elegant study, Ohno et al. reported a Sb single-atom carbon nitride photocatalyst (Sb-SAPC) for non-sacrificial photocatalytic H₂O₂ synthesis under ambient conditions [8]. The introduction of highly active and selective Sb sites for the 2e⁻ ORR to consume the O₂ generated from 4e⁻ WOR in the photocatalytic system offers a high yield and selectivity for H₂O₂ photosynthesis (Figs. 2a and b), with an apparent quantum yield of 17.6% at 420 nm (Fig. 2c), together with a solar-to-chemical conversion (SCC) efficiency of 0.61% (Fig. 2d) for H₂O₂ synthesis. The d¹⁰ electronic configuration of Sb single-atom sites produces a new O—O stretching mode in the Sb—OOH species with an end-on adsorption configuration appearing under photo-irradiation, which reduces the possibility of O—O bond breaking and enhances the trapping of photogenerated electrons for the 2e⁻ ORR. Moreover, these sites are energetically unfavorable for the side hydrogen evolution reactions. In contrast, the photogenerated holes were concentrated at the N atoms in the s-heptazine moiety next to the Sb site to catalyze the 4e⁻ WOR. Both the 2e⁻ ORR and 4e⁻ WOR pathways formed a prime overall photosynthesis of H₂O₂ (Fig. 2e). Further examples of Ga- and Co-doped carbon nitrides also proved that the single atoms in carbon nitride certainly tailor the electronic structure and induce charge redistribution. It was supposed to not only promote the separation/transfer of charge carriers and the absorption/activation of O₂ in the 2e⁻ ORR reaction but also effectively enhance the 2e⁻/4e⁻ WOR reaction [19,20].

In addition to heteroatom doping, incorporating heteromolecules, such as aromatic diimides, an important class of n-type organic semiconductors with high electron mobility and stability, also positively adjusts the electronic structure and shifts the oxidation and reduction potentials, owing to their high electron affinity [9]. It has been demonstrated that the VB position of g-C₃N₄ is not thermodynamically feasible for the concurrent WOR. The introduction of pyromellitic diimide (PDI, Fig. 3a) and biphenyl diimide (BDI, Fig. 3b) into the g-C₃N₄ structure can generally positively shift the CB and VB positions and improve the thermodynamic driving force for catalyzing the O₂ evolution reaction (Fig. 3c). Figs. 3d and e show the reaction pathways for the overall photosynthesis of H₂O₂ via the coupling of the 2e⁻ ORR pathway with the 4e⁻ WOR pathway on g-C₃N₄/PDI and g-C₃N₄/BDI. Accordingly, g-C₃N₄/PDI and g-C₃N₄/BDI exhibited considerable H₂O₂ production rates without sacrificial agents in a pure water system, and the average SCC efficiencies of the optimized g-C₃N₄/PDI and g-C₃N₄/BDI reached 0.10% and 0.13%, respectively (Fig. 3f).

Furthermore, engineering defects on a photocatalyst surface is a universal and powerful method for improving the photocatalytic conversion efficiency. Recently, Zheng et al. sequentially introduced the –C≡N groups and N vacancies into g-C₃N₄ (N_v—C≡N—CN, Fig. 4a) [10]. The synergistic effect of the dual defect sites enhanced the visible-light absorption (Fig. 4b) and carrier separation capabilities (Fig. 4c). Besides, it has been verified that N vacancies can effectively adsorb and activate O₂ (Fig. 4d), while the C≡N groups enhance the adsorption of H⁺ (Fig. 4e), which synergistically promotes the formation and hydrogenation of OOH* to H₂O₂ (Fig. 4f). Accordingly, the N_v—C≡N—CN group achieved overall photosynthesis of H₂O₂ in pure water via concurrent stepwise single-electron ORR and four-electron WOR pathways (Fig. 4g). Meanwhile, the N_v—C≡N—CN photocatalyst exhibited 8.5 times H₂O₂ production rates higher than pristine bulk carbon nitrides without sacrificial agents, leading to a significant SCC efficiency of 0.23% (Fig. 4h).

Expect for the above-mentioned engineering of g-C₃N₄, the modulation of triazine/heptazine-based frameworks has great potential for the photocatalytic synthesis of H₂O₂. Rationally designed monomers for pre-assembly and precise regioselective coupling polymerization play key roles in the formation of architectures with separated redox centers. Very recently, Zhang et al. modulated a triazine-based framework with spatially separated redox centers and reported well-defined C₅N₂ with a conjugated C═N linkage to photosynthesize H₂O₂ from H₂O without sacrificial agents under hypoxic conditions (Fig. 5a) [12]. Compared with the tertiary N linkage in g-C₃N₄ breaking the conjugation over the heptazine rings, the conjugated linkers were redistributed in the C₅N₂ units, resulting in the strengthened delocalization of π-electrons, which downshifted the CB and VB positions. C₅N₂ with unusually low conduction ( > 0 V vs. NHE) and valence band positions promoted realistic selectivity in thermodynamics and high activity in kinetics for overall H₂O₂ photosynthesis through synergistic 2e⁻ ORR and 2/4e⁻ WOR (Fig. 5b), and C₅N₂ demonstrated the highest H₂O₂ photocatalytic activity (698 µmol L⁻¹ h⁻¹) under hypoxic conditions among the polymeric photocatalysts (Fig. 5c). For the first time, C₅N₂ was successfully applied to hypoxic/normoxic tumor photodynamic therapy/chemodynamic therapy (PDT/CDT) (Fig. 5d) and exhibited competitive performance under hypoxic and normoxic conditions (Fig. 5e). These results indicate that C₅N₂ offers an opportunity to potentially cut the cost of H₂O₂ production in a large scale and opens new avenues for highly efficient and selective H₂O₂ photosynthesis, particularly under hypoxic conditions in biomedical therapy systems.

Although previous studies have been devoted to enhancing the SCC efficiency toward solar-driven H₂O₂ production via the design of polymer photocatalysts, the efficiency of non-sacrificial H₂O₂ generation has not yet fulfilled the industrial requirements. Thus, the technical and economic feasibility of H₂O₂ photosynthesis should be rigorously analyzed. Apart from the wide use of H₂O₂ in the energy field owing to its high energy density, its strong oxidation power, and endogenous nature may achieve a potential application in environmental and biomedical fields, such as coupling solar-driven H₂O₂ production with dye degradation [18], conversion of organic molecules [21], bacterial disinfection [22], and cancer therapy [12], which could potentially lower the cost of large-scale production of H₂O₂.

In summary, we highlight the significant advances in H₂O₂ photosynthesis in the molecular engineering of carbon nitrides, a deep understanding of the photocatalysis process for the rational design and reaction pathways of carbon nitrides, and the technical and economical emerging applications of classical examples to address the growing H₂O₂ demand. The high energy density, strong oxidation power, and endogenous nature of H₂O₂ make it potentially applicable in energy, environmental, and biomedical fields by coupling solar-powered technologies for H₂O₂ production with carbon nitride. Furthermore, other potential catalysts, such as organic conjugated polymer resorcinol formaldehyde resins with a low bandgap, also exhibit outstanding efficiency without sacrificial reagents for the overall photosynthesis of H₂O₂ [3,23].

Declaration of competing interest

Less

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Acknowledgment

Less

This research was supported by the National Natural Science Foundation of China (Nos. 22174014 and 22074015).

References

Less

[1]

C. Xia, Y. Xia, P. Zhu, L. Fan, H. Wang, Science 366 (2019) 226–231.

[2]

X. Hu, Z. Sun, G. Mei, et al., Adv. Energy Mater. 12 (2022) 2201466.

[3]

Y. Shiraishi, T. Takii, T. Hagi, et al., Nat. Mater. 18 (2019) 985–993.

[4]

H. Yang, Z. Wang, S. Liu, Y. Shen, Y. Zhang, Chin. Chem. Lett. 31 (2020) 3047–3054.

[5]

Y. Shiraishi, S. Kanazawa, Y. Kofuji, et al., Angew. Chem. Int. Ed. 53 (2014) 13454–13459.

[6]

Y. Kofuji, Y. Isobe, Y. Shiraishi, et al., J. Am. Chem. Soc. 138 (2016) 10019–10025.

[7]

H. Zhao, Q. Jin, M.A. Khan, et al., Chem. Catal. 2 (2022) 1720–1733.

[8]

Z. Teng, Q. Zhang, H. Yang, et al., Nat. Catal. 4 (2021) 374–384.

[9]

Y. Kofuji, S. Ohkita, Y. Shiraishi, et al., ACS Catal. 6 (2016) 7021–7029.

[10]

X. Zhang, P. Ma, C. Wang, et al., Energy Environ. Sci. 15 (2022) 830–842.

[11]

H. Cheng, H. Lv, J. Cheng, et al., Adv. Mater. 34 (2022) e2107480.

[12]

J. Ma, X. Peng, Z. Zhou, et al., Angew. Chem. Int. Ed. 61 (2022) e202210856.

[13]

H. Hou, X. Zeng, X. Zhang, Angew. Chem. Int. Ed. 59 (2020) 17356–17376.

[14]

H. Cheng, J. Cheng, L. Wang, H. Xu, Chem. Mater. 34 (2022) 4259–4273.

[15]

J.J. Gao, B. Liu, ACS Mater. Lett. 2 (2020) 1008–1024.

[16]

Y. Sun, L. Han, P. Strasser, Chem. Soc. Rev. 49 (2020) 6605–6631.

[17]

Y. Liu, X. Zeng, X. Hu, et al., Catal. Today 335 (2019) 243–251.

[18]

M. Kou, Y. Wang, Y. Xu, et al., Angew. Chem. Int. Ed. 61 (2022) 1521–3773.

[19]

H. Tan, P. Zhou, M. Liu, et al., Nat. Synth. 2 (2023) 557–563.

[20]

W. Wang, Q. Song, Q. Luo, et al., Nat. Commun. 14 (2023) 2493.

[21]

Y. Zhang, C. Pan, G. Bian, et al., Nat. Energy 8 (2023) 361–371.

[22]

W. Wang, H. Xie, G. Li, et al., ACS ES&T Water 1 (2021) 1483–1494.

[23]

C. Zhao, X. Wang, Y. Yin, et al., Angew. Chem. Int. Ed. 62 (2023) e202218318.

Appendix

Less

Year 2023 volume 34 Issue 12

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1016/j.cclet.2023.108784

Receive Date：2023-04-18
Online Date：2025-11-21
Published：2023-12-15

Article Data

Affiliations

History

Received：2023-04-18
Revised：2023-06-07
Accepted：2023-07-05

Affiliations

References

Share

https://castjournals.cast.org.cn/joweb/ccl/EN/10.1016/j.cclet.2023.108784

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

Fig. 1. (a) Reaction scheme for photocatalytic H₂O₂ production and the corresponding energy diagrams for the ORR and WOR pathways. (b) Four classical combinations of ORR and WOR pathways for the overall photosynthesis of H₂O₂. Reprint with permission [14,15]. Copyright 2022, ACS.

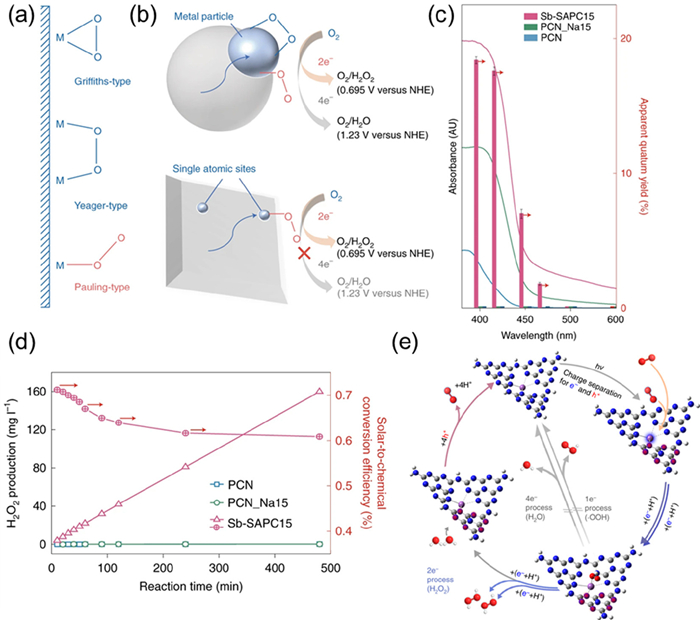

Fig. 2. (a) Schematic structures of O₂ adsorption on metal surface. (b) ORR mechanism on a metal particle (top) and isolated atomic site (bottom). (c) Action spectra of PCN, PCN_Na15, and Sb-SAPC15 towards H₂O₂ production in phosphate buffer solution. (d) Solar-to-chemical conversion efficiencies of PCN, PCN_Na15, and Sb-SAPC15 under AM 1.5, illumination in a phosphate buffer solution. (e) Reaction mechanism of CN with Sb sites for photocatalytic H₂O₂ production. The white, gray, blue, red and magenta spheres refer to hydrogen, carbon, nitrogen, oxygen and Sb atoms, respectively. Reprint with permission [8]. Copyright 2021, Nature.

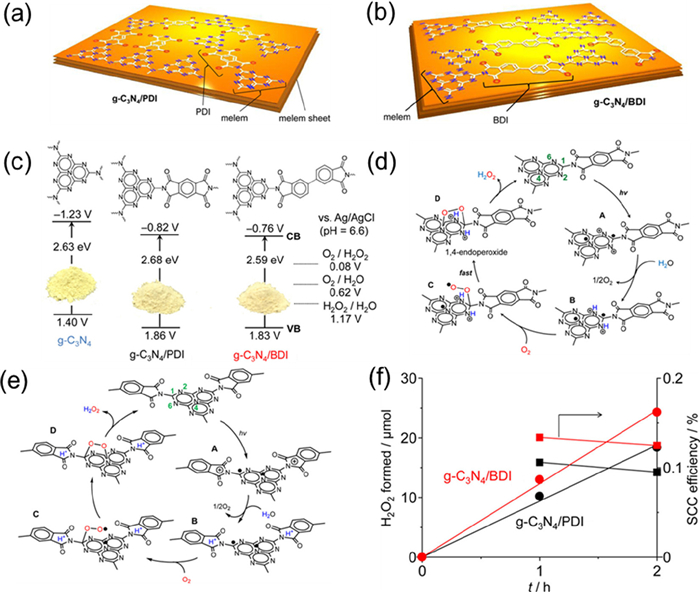

Fig. 3. (a) Molecular structure of g-C₃N₄/PDI. (b) Molecular structure of g-C₃N₄/BDI. (c) Electronic band structures of g-C₃N₄, g-C₃N₄/PDI, and g-C₃N₄/BDI. (d) Mechanism of g-C₃N₄/PDI for photocatalytic H₂O₂ production in pure water. (e) Mechanism of g-C₃N₄/BDI for photocatalytic H₂O₂ production in pure water system. (f) Change in the amount of H₂O₂ formed and SCC efficiency under simulated AM1.5 G sunlight (1 sun) with time. Reprint with permission [9]. Copyright 2016, ACS.

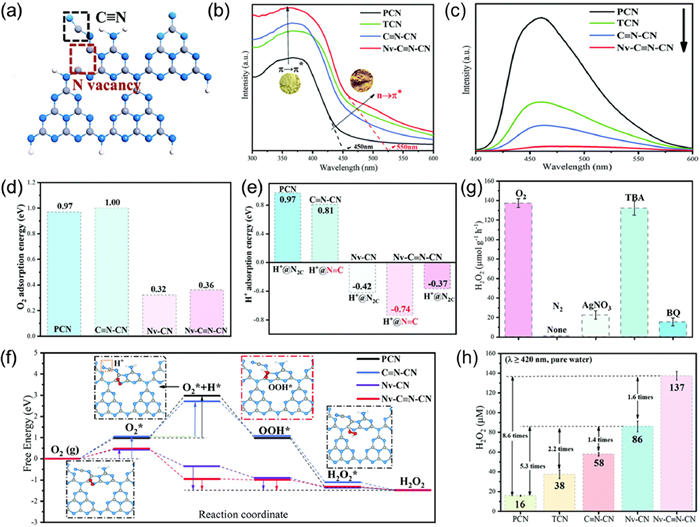

Fig. 4. (a) Defect structure in g-C₃N₄ heptazine units. Inset: C≡N groups and N vacancies. (b) UV–Vis DRS of all samples. Inset: Photographs of PCN and N_v—C≡N—CN. (c) Photoluminescence (PL) spectra of all samples. (d) O₂ adsorption energy and (e) H⁺ adsorption energy on g-C₃N₄ with different defect models. (f) Free energy profiles for photocatalytic H₂O₂ evolution reactions over PCN, C≡N—CN, N_v—CN, and N_v—C≡N—CN. (g) Photocatalytic H₂O₂ generation rates of N_v—C≡N—CN under different reaction gasses or sacrificial agents. (h) Comparison of photocatalytic H₂O₂ generation activity of different samples under the same conditions in a pure water system. Reprint with permission [10]. Copyright 2022, RSC.

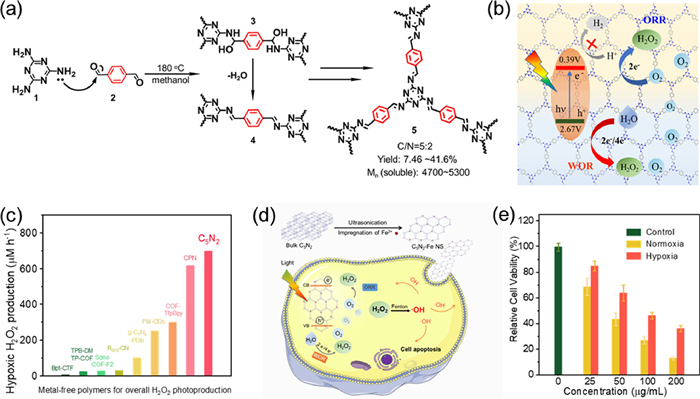

Fig. 5. (a) Conjugated linker formation in the synthesis of C₅N₂ (5) from melamine (1) and p-phthalaldehyde (2) via Schiff base reactions. (b) Bandgap position of C₅N₂ and mechanism of photocatalytic H₂O₂ production by C₅N₂. Inset: C═N linkage in C₅N₂. (c) Summary of the photocatalytic activity for H₂O₂ production in a hypoxic microenvironment using different metal-free polymers in the literature. (d) Therapeutic processes using C₅N₂ to generate ·OH via the Fenton reaction under light irradiation in hypoxic environments. (e) Cell viability assay of C₅N₂−Fe−NS-treated 4T1 cells under light irradiation in hypoxic and normoxic environments. Reprint with permission [12]. Copyright 2022, Wiley.
