Weakly solvated electrolytes conducive to uniform lithium deposition

Full

Xinhong Hu^a, Jiandong Liu^a^,^b, Yaxiong Yang^c, Yanxia Liu^c^,^*, Qibing Wu^d, Jianmin Ma^a^,^*

Affiliations

^a School of Chemistry, Tiangong University, Tianjin 300387, China

^b School of Physics and Electronics, Hunan University, Changsha 410082, China

^c Institute of Science and Technology for New Energy, Xi'an Technological University, Xi'an 710021, China

^d Guizhou Meiling Power Supply Co., Ltd., Zunyi 563000, China

Published: 2023-12-15 doi: 10.1016/j.cclet.2023.108456

Outline

Cite this Article

Xinhong Hu, Jiandong Liu, Yaxiong Yang, Yanxia Liu, Qibing Wu, Jianmin Ma. Weakly solvated electrolytes conducive to uniform lithium deposition[J]. Chinese Chemical Letters, 2023 , 34 (12) : 108456 - . DOI: 10.1016/j.cclet.2023.108456

Full Text

Less

Rechargeable lithium metal batteries (LMBs) meet the demands of high-energy applications in electric vehicles and truck transportation [1-4]. Yet, the low coulombic efficiency (CE) hinders the widespread application of Li anode, which is closely related to the electrolytes [5-7]. The CE of traditional electrolytes for Li anodes is closely related to the speciation of the plated Li during cycling, where fluorinated solvents with weakly solvated Li⁺ usually exhibit larger Li deposition particles with higher CE [8,9]. But the relationship between the morphological difference and CE in different electrolytes is less studied [10,11]. There are three relationships between the deposition kinetics of interface Li and the cycling of the battery, no correlation, positive correlation [12,13], and negative correlation [14,15] have been reported on active Li anodes, which neglects the reactivity of Li metal in kinetics. Solid electrolyte interphase (SEI) was formed by the electrolytes reacting with Li, and Li deposition can occur on the Li/SEI interface or the fresh Li/electrolyte interface [16,17]. Each pathway has different deposition kinetics. Therefore, in order to understand the relationship between electrolyte kinetics and lithium deposition morphology, it is important to solve the kinetics of the two ways in the electrolyte.

Based on this, Cui's group proposed that the thermodynamics of the solvation strength of Li⁺ in different electrolytes affects the Li deposition morphology [18]. To verify this view, Li⁺ solvation behavior, Li nucleation behavior, and plating mechanism in different electrolytes were studied. Firstly, two kinds of deposition pathways with kinetic parameters need to be considered to link interfacial dynamics and cyclability. When deposited at the Li/SEI interface, the R_SEI is used to describe the deposition kinetics of Li under this pathway. While deposition at Li/electrolyte interface, the interfacial charge transfer is important. Therefore, Cui's team developed a method called transient cyclic voltammetry. In the voltammogram, the intrinsic exchange current density of charge transfer (j₀^c.t.) is directly related to the low overvoltage slope. Li charge transfer kinetics can be parameterized by j₀^c.t. under this pathway. Deposition kinetics parameterized by R_SEI and j₀^c.t. are related to the CE of the electrolyte. The results in Figs. 1a and b show that CE is more relevant to j₀^c.t. than R_SEI. According to previous reports, weakly solvated or Li⁺-combined anions increased the j₀^c.t. [19]. Therefore, weak solvated electrolytes plate Li uniformly with higher CE. However, it is still necessary to prove the relationship between weak solvation and Li deposition morphology.

The results of the dimensionless analysis of the interface dynamics and ion transport in the electrolyte measured in Figs. 1a and b are contrary to the predictions of the gold standard model of metal deposition. As shown in Figs. 1c and d, when the interfacial resistance R_SEI is compared with the electrolyte solution impedance (R_s), there is no correlation between R_SEI/R_s and CE (Fig. 1c), while R_ct/R_s and CE are negative correlation (j₀^c.t. and R_ct can be converted by formula) (Fig. 1d). Because there is no trend in R_SEI/R_s, many fluorinated and ether electrolytes with high CE are in a state of low R_ct/R_s. Therefore, it can be ruled out that different ionic conductivities or Li concentration gradients are the main driving factors for the differences in Li deposition morphology in different electrolytes. Thus, this confirms that the conductivity of some fluorinated ether electrolytes is lower than that of ester electrolytes, but can achieve uniform Li deposition and high CE.

The weak Li⁺ solvation not only increases the j₀^c.t., but also increases the Li/Li⁺ equilibrium potential (E_eq.^Li/Li+), which can facilitate uniform Li morphology and high CE. E_eq.^Li/Li+ is related to the free energy of Li⁺ solvation, while the electrolyte of Li⁺ weak solvation makes E_eq.^Li/Li+ positive shift. This is associated with two factors as follows: Firstly, the zero-charge potential (φ_pzc) has little change in solvent, and the surface charge density (σ) in electrolytes with weak solvation of Li⁺ is bigger than that in electrolytes with stronger solvation. This can minimize surface charge fluctuation and prevent dendrite growth. Secondly, the correction of E_eq.^Li/Li+ can also regulate the surface energy (γ) to generate a thermodynamic driving force to achieve more uniform Li deposition. Figs. 1e and f represent three representative electrolytes: lithium hexafluorophosphate (LiPF₆) in ethylene carbonate/diethylcarbonate (EC/DEC), lithium bis(fluorosulfonyl)imide (LiFSI) in fluoroethylene carbonate (FEC), and LiFSI in a fluorinated derivative of 1, 2-dimethoxyethane (F5DEE). When the CE of electrolyte is high, the E_eq.^Li/Li+ value is relatively large. The results show that the F5DEE electrolyte has weak solvation and high CE, so it also has the largest positive σ, which minimizes surface charge fluctuations and increases the surface energy of uniform Li deposition.

Evaluating the early stage of Li electroplating on Cu current collectors can also confirm the main influence of surface energy on Li speciation. According to the classical nucleation theory, the surface energy depends on the nucleation critical radius (r_crit) and the nucleation overpotential (η_nuc). By measuring the radii of Li particles deposited on Cu foil in different electrolytes, it is found that the particle size of Li is about 85 nm in EC/DEC and 132 nm in F5DEE, and with a median value of 108 nm in FEC (Fig. 2a). η_nuc was calculated from the voltage curve shown in Fig. 2b. The particle radius was used as a rough estimate of r_crit trend. The results show that the relative surface energy decreases from F5DEE > FEC > EC/DEC (Fig. 2c). High γ value is favorable for coating larger Li particles, due to the overcome of large η_nuc. This indicates that the γ value is the main driving factor of Li speciation. In conclusion, weakly solvated electrolytes make E_eq.^Li/Li+ more positive, and the surface energy is increased, which favors uniform Li deposition.

To further explain the fast j₀^c.t. and high surface energy of weakly solvated electrolytes, the molecular factors are considered how to affect the charge transfer kinetics (Figs. 2d and e). The viscosity is found to have little effect on j₀^c.t.. The charge transfer reaction in battery dynamics is affected by the free energy of the solvated ion and the structure of the bilayer interface. Finally, the extremely weak Li⁺ solvation in the fluorinated ether electrolyte shows the best cycling performance. Such weak Li⁺ solvation can increase the j₀^c.t. and surface energy for favoring bulk low-surface-area Li deposition and high CE.

In short, Cui's work proposes a non-traditional view. They found that weak solvation could shift the E_eq.^Li/Li+ positively and increase the γ of Li for uniform Li deposition, which is different from the traditional view that Li deposition morphology is determined by the ionic conductivity of electrolyte/SEI. Owing to weak solvation, the thermodynamic preference for Li deposition can be adjusted. In the weakly solvated electrolyte, F⁻/anion-rich SEI could hinder the crack of the SEI. The SEI fracture as well as ionic conductivity become increasingly important when charged rapidly. Thus, it is recommended to further promote weak Li⁺ solvation while improving its ionic conductivity at the same time, by modifying membranes or adding cosolvents/additives. This work provides us insights into exploring functional electrolytes through tuning battery kinetics for future research.

References

Less

[1]

X. Li, J. Liu, J. He, et al., Adv. Funct. Mater. 31 (2021) 2104395.

[2]

D. Wu, J. He, J. Liu, et al., Adv. Energy Mater. 12 (2022) 2200337.

[3]

J. He, H. Wang, Q. Zhou, et al., Small Methods 5 (2021) 2100441.

[4]

S. Qi, J. He, J. Liu, et al., Adv. Funct. Mater. 31 (2021) 2009013.

[5]

J. Huang, J. Liu, J. He, et al., Angew. Chem. Int. Ed. 60 (2021) 20717–20722.

[6]

F. Li, J. Liu, J. He, et al., Angew. Chem. Int. Ed. 61 (2022) e202205091.

[7]

H. Wang, J. Liu, J. He, et al., eScience 2 (2022) 557–565.

[8]

R. Zhang, X. Shen, H.T. Ju, et al., J. Energy Chem. 73 (2022) 285–291.

[9]

Y. Li, Y. Li, L. Zhang, et al., J. Energy Chem. 77 (2023) 123–136.

[10]

W. Cao, W. Chen, M. Lu, et al., J. Energy Chem. 76 (2023) 648–656.

[11]

F. Katzer, P. Mößle, M. Schamel, M.A. Danzer, J. Power Sources 555 (2023) 232354.

[12]

X.R. Chen, Y.X. Yao, C. Yan, et al., Angew. Chem. Int. Ed. 59 (2020) 7743–7747.

[13]

Z. Liu, Y. Li, Y. Ji, et al., Cell Rep. Phys. Sci. 2 (2021) 100294.

[14]

X.Q. Zhang, X. Chen, L.P. Hou, et al., ACS Energy. Lett. 4 (2019) 411–416.

[15]

C.C. Su, M. He, J. Shi, et al., Angew. Chem. Int. Ed. 59 (2020) 18229–18233.

[16]

H. Wu, H. Jia, C. Wang, J.G. Zhang, W. Xu, Adv. Energy Mater. 11 (2021) 2003092.

[17]

Y. Liang, L. Dong, S. Zhong, et al., Chem. Eng. J. 451 (2023) 138599.

[18]

D.T. Boyle, S.C. Kim, S.T. Oyakhire, et al., J. Am. Chem. Soc. 144 (2022) 20717–20725.

[19]

D.T. Boyle, X. Kong, A. Pei, et al., ACS Energy Lett. 5 (2020) 701–709.

Appendix

Less

Year 2023 volume 34 Issue 12

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1016/j.cclet.2023.108456

Receive Date：2023-01-10
Online Date：2025-11-21
Published：2023-12-15

Article Data

Affiliations

History

Received：2023-01-10
Revised：2023-01-24
Accepted：2023-04-13

Affiliations

^a School of Chemistry, Tiangong University, Tianjin 300387, China

^b School of Physics and Electronics, Hunan University, Changsha 410082, China

^c Institute of Science and Technology for New Energy, Xi'an Technological University, Xi'an 710021, China

^d Guizhou Meiling Power Supply Co., Ltd., Zunyi 563000, China

References

Share

https://castjournals.cast.org.cn/joweb/ccl/EN/10.1016/j.cclet.2023.108456

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

Fig. 1. (a) Relationship between R_SEI and CE in different electrolytes. (b) Relationship between j₀^c.t. and CE in different electrolytes. (c) Relationship between the electrolyte CE and R_SEI/R_S. (d) Relationship between electrical rotor CE and R_ct/R_S. (e) Schematic of the proposed model where weak solvation in electrolytes with high j₀^c.t. induces higher surface energies of Li and favors electroplating of bulky uniform Li morphology. Schematic of the opposite case where strong solvation favors high surface area plating. (f) Comparison of E_eq.^Li/Li+ obtained from potentiometric measurements of solvation energy in three representative electrolytes: 1 mol/L LiPF₆ in EC/DEC, 1 mol/L LiFSI in FEC, and 1.2 mol/L LiFSI in F5DEE. Reprinted with permission [18]. Copyright 2022, American Chemical Society.

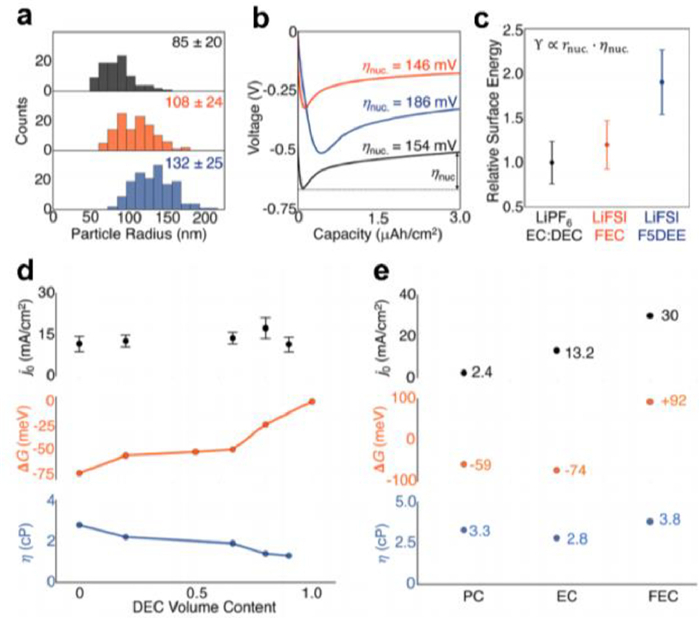

Fig. 2. (a) Distribution of Li particle size in different electrolytes. (b) Voltage distribution for the initial nucleation phase. (c) Relative surface energy is calculated from particle size and η_nuc. (d) j₀^c.t., the free energy of solvated Li⁺, and viscosity η as a function of DEC volume fraction in 1 mol/L LiFSI (EC/DEC) electrolyte. (e) Correlation of j₀^c.t., free energy of solvated Li⁺ and viscosity in different electrolytes. Reprinted with permission [18]. Copyright 2022, American Chemical Society.
