9,10-Bis(diphenylmethylene)-9,10-dihydroanthracene-based metal-organic assemblies with aggregation-induced emission for multiple sensing<sup>☆</sup>

9,10-Bis(diphenylmethylene)-9,10-dihydroanthracene-based metal-organic assemblies with aggregation-induced emission for multiple sensing^☆

PDF

Qian Feng^a^,^b, Nan Li^c, Zeyuan Zhang^a, Kai Gao^a, Kai Wang^c, Sanliang Ling^d, Hongye Yuan^*^,^a, Yanmin Zhang^*^,^b, Mingming Zhang^*^,^a

Chinese Chemical Letters | 2023, 34(12) : 108439

Less

Chinese Chemical Letters | 2023, 34(12): 108439

• Communication •

9,10-Bis(diphenylmethylene)-9,10-dihydroanthracene-based metal-organic assemblies with aggregation-induced emission for multiple sensing^☆

Full

Qian Feng^a^,^b, Nan Li^c, Zeyuan Zhang^a, Kai Gao^a, Kai Wang^c, Sanliang Ling^d, Hongye Yuan^*^,^a, Yanmin Zhang^*^,^b, Mingming Zhang^*^,^a

Affiliations

^aState Key Laboratory for Mechanical Behavior of Materials, Shaanxi International Research Center for Soft Matter, School of Materials Science and Engineering, Xi’an Jiaotong University, Xi’an 710049, China

^bSchool of Pharmacy, Health Science Center, Xi’an Jiaotong University, Xi’an 710061, China

^cState Key Laboratory of Superhard Materials, College of Physics, Jilin University, Changchun 130012, China

^dAdvanced Materials Research Group, Faculty of Engineering, University of Nottingham, Nottingham NG7 2RD, United Kingdom

Published: 2023-12-15 doi: 10.1016/j.cclet.2023.108439

Outline

Abstract

Less

Developing novel emissive supramolecular assemblies with elegant architectures and tunable performance remains highly desirable yet challenging. Herein, we report the design and synthesis of several 9,10-bis(diphenylmethylene)-9,10-dihydroanthracene-based metal-organic assembles with aggregation-induced emission characteristics. Such assemblies feature intriguing thermochromic and mechanochromic properties, i.e., distinguishable fluorescence responses in terms of emission wavelength and intensity under variable temperatures and pressures. Moreover, these assemblies can serve as excellent fluorescent sensors for the detection of polysaccharide molecules. Due to the differentiated charge type and density, the assembles display distinct sensing mechanisms toward different polysaccharide molecules. This study provides novel perspectives for the synthesis of butterfly-like platinum(Ⅱ) supramolecular coordination complexes with multistimuli-responsiveness for polysaccharide sensing, which will facilitate the development of stimuli-responsive materials

Key words

Light-emitting materials / Butterfly-like assembles / Aggregation-induced emission / Multiple sensing

Cite this Article

Qian Feng, Nan Li, Zeyuan Zhang, Kai Gao, Kai Wang, Sanliang Ling, Hongye Yuan, Yanmin Zhang, Mingming Zhang. 9,10-Bis(diphenylmethylene)-9,10-dihydroanthracene-based metal-organic assemblies with aggregation-induced emission for multiple sensing^☆[J]. Chinese Chemical Letters, 2023 , 34 (12) : 108439 - . DOI: 10.1016/j.cclet.2023.108439

Full Text

Less

Light-emitting materials have received wide-ranging attention owing to their broad application such as chemical and biological sensors [1-8], bio-imaging agents [9-15], optoelectronic devices [16-18]. However, conventional fluorophores usually show aggregation-caused quenching (ACQ) properties [19-23], which is unfavorable for bio-applications because the hydrophobic fluorophores are easily to aggregate in aqueous environments. Fluorophores with aggregation-induced emission (AIE) properties, which are weakly emissive in dissolved state and highly emissive in aggregated state, serve as alternative candidates for bio-applications [24]. The AIE fluorophores feature high signal to noise ratio, good stability, fast response, high sensitivity, and fine linear concentration dependence [25-27], meeting the requirements as ideal candidates for sensing. Moreover, the twisted aromatic rings of AIE molecules are more sensitive to external stimuli (pressure, temperature and/or light), offering them switchable luminescence [28,29]. Due to their excellent emission and diverse stimuli-responsive performance, intensive investigations are expected for the preparation of multiple-sensing materials [30,31].

Coordination-driven self-assembly provides a facile and efficient method to construct various supramolecular coordination complexes (SCCs) with elegant structures and appealing physicochemical properties [32-46]. Incorporation of AIE fluorophores into SCCs affords diverse geometries and cavities for hosting specific biomolecules, tunable optical properties as well as integration of extra functions [28,47-53]. For example, Stang and co-workers prepared a series of emissive SCCs by introducing tetraphenylethylene (TPE) groups within the SCCs and realized their application in sensing, bio-imaging and light-emitting devices [5,10,54,55]. Although great progress has been made on the design and synthesis of AIE-based SCCs, their underlining structure-property needs to be well elucidated, of course, demanding more efforts. Furthermore, multi-stimuli responsive luminescent materials based on SCCs are still in the infancy, so their applications in biosensors and smart luminescent materials are still ambiguous.

9,10-Bis(diphenylmethylene)−9,10-dihydroanthracene (BDPM-DHA) and its derivatives [56,57] possess not only a graceful butterfly-like structure but also attractive optical feature, promising for multi-stimuli-responsive light-emitting materials. Herein, we report four BDPM-DHA-based metal-organic assemblies (4, 5a-5c) via coordination-driven self-assembly (Scheme 1). Apart from 5c, the fluorescence of these assemblies increases dramatically by increasing the proportion of water, suggesting their AIE nature. Additionally, these assemblies exhibited tunable fluorescence behaviors with reduced emission intensity and red-shifted wavelength under increased temperatures and pressures. Upon the addition of negatively charged polysaccharide substances, the fluorescence of these positively charged assemblies (4, 5a and 5b) in solutions enhanced significantly owing to the formation of aggregations. This work presents the preparation of SCCs as sensitive sensors for diverse responses (temperature, pressure, polysaccharide), which paves the avenue for the development of emissive materials for multiple sensing applications.

The assemblies 4 and 5a-5c were prepared (see Supporting information for synthetic details) and characterized by ³¹P{¹H}, ¹H NMR analysis as well as electrospray ionization time-of-flight mass spectrometry (ESI-TOF-MS). The ³¹P{¹H} NMR spectrum of 4 displayed a sharp singlet (ca. −0.40 ppm) accompanied by two ¹⁹⁵Pt satellites (Fig. 1a). Two doublet peaks (ca. 5.38 and 0.00 ppm for 5a, 5.08 ppm and 0.07 ppm for 5b, 5.45 ppm and 0.09 ppm for 5c) of approximately equal intensity were observed in Figs. 1b-d, demonstrating the distinct phosphorus environment of 5a-5c, which were contributed by the coordination of N and O atoms on pyridyl and carboxylate moieties to Pt(Ⅱ) center, respectively. As shown in Figs. 1e-i, the protons of 1, 4 and 5a-5c in ¹H NMR spectra was clearly identified. Compared with the ligand 1, α-pyridyl proton (H_a) and β-pyridyl proton (H_b) of 4 split into two sets of peaks because of the protons located inside and outside of the assembly, while those of 5a-5c showed significant downfield chemical shifts due to the coordination bonds. ESI-TOF-MS data further confirmed the chemical compositions of the assemblies (Figs. 1j-m). There were groups of peaks (3+ to 6+ for 4, 2+ to 3+ for 5a, 2+ to 4+ for 5b-5c) corresponding to multi-charged species with the loss of OTf⁻ counterions. For instance, isotopically resolved peaks with m/z 761.1790 [4–5OTf]⁵⁺, 1107.8278 [5a-3OTf]³⁺, 1225.1946 [5b-3OTf]³⁺ and 1166.5105 [5c-3OTf]³⁺ were observed, whose assignments agreed well with their simulated isotopic distributions. These results jointly confirmed the successful formation of discrete supramolecular assembles [15,58-60].

Single crystals suitable for X-ray crystallographic analysis (Figs. 2a-c) of ligand 1 (CCDC: 2226633) and assemblies 4 (CCDC: 2226634) and 5a (CCDC: 2226635) were successfully obtained by slow vapor diffusion for 2 weeks at 4 ℃ (acetonitrile/isopropyl ether for 1, 4 and acetonitrile/dioxane for 5a). From the side view, two adjacent arms of ligand 1 bend with dihedral angles of 108.0°. The structure seems distorted conformationally, resembling like a butterfly, because of the obvious steric hindrance effect (Fig. 2a and Fig. S19 in Supporting information). Therefore, ligand 1 and the Pt ligand 2 are coordinated adaptively to form [2 + 4] modes during self-assembly. The two-component assembly 4 exhibits highly symmetrical geometry with a large diagonal cavity of 16.89 × 11.96 Å² (Fig. 2b), which is neatly arranged in the crystalline state to form a three-dimensional network structure (Fig. S20 in Supporting information). 3D double ring 5a holds a butterfly structure with two open windows (the diagonal cavity: 16.68 × 10.14 Å²). Interestingly, a unit cell contains two molecules that interact with each other to form a partially crossed structure (Fig. 2d and Fig. S21 in Supporting information). The attempts to obtain the crystal structures of assemblies 5b and 5c failed. Therefore, density functional theory (DFT) calculations were carried out to deeply understand the structures. Based on the mass data, both 5b and 5c were assembled by 1, 2, and 3b/3c in 1:4:1 molar ratio, forming a similar structure like 5a. The DFT calculated structures indicated that the carboxylate ligands in 5b/5c were highly twisted. The cavity of 5b was larger than that of 4, and the cavity of 5c was smaller than that of 4. These results suggested that the cavity size of the supramolecular assemblies could be finely tuned by the addition of carboxylate ligands as building blocks, showing the advantages of multicomponent coordination-driven self-assembly. However, owing to the twist aromatic groups in such assemblies, no good host-guest chemistry was observed for these metallacages.

The UV–vis absorption and fluorescence spectra of the assemblies were collected to investigate their photophysical behaviors. These assemblies were well-dissolved in CH₃CN. Their absorption was in the region of 200 nm to 400 nm. From fluorescence spectra, peaks centered at 479 nm, 483 nm, 484 nm and 511 nm were observed (Fig. 3a), corresponding to 4 and 5a-5c, respectively. It could be found that the emission of 4, 5a and 5b is mainly derived from the characteristic emission of BDPM-DHA and the emission of 5c was mainly contributed by the TPE units. The fluorescence quantum yields (Φ_F) of 1, 4 and 5a-5c were measured to be 5.7%, 24.86%, 2.46%, 7.53%, and 31.74%, respectively, in acetonitrile (Fig. 3b and Figs. S23-S32 in Supporting information). The assembly 5a displayed the highest emission intensity in solid state (Φ_F = 69.45%). Therefore, 5a was considered to be a good candidate for chemical/biosensing owing to its larger fluorescence difference upon external stimuli. The AIE characteristics of these assemblies were investigated by recording the fluorescence emission with increasing water content in the mixed solvent (acetonitrile/water) (Figs. 3c-f and Fig. S33 in Supporting information). The fluorescence intensity of 4 increased significantly once the water content was over 60%, showing typical AIE characteristics. A similar phenomenon also appeared for 5a and 5b, although the fluorescence of the two complexes was weak in acetonitrile. When the water fraction increased to 90%, the fluorescence intensity decreased slightly due to the enhanced intermolecular collisions of the assembly 5a-5b [53,61]. Interestingly, the maximum emission of 5b was significantly red-shifted, and the color gradually changed from light blue to light yellow. However, the AIE characteristic of 5c was unobvious, because the addition of water can’t improve the fluorescence dramatically.

In order to further explore the effect of external stimuli on the luminescent properties and their potential use for stimuli-responsive light-emitting materials, the fluorescence spectra of assemblies in liquid and solid state at distinct temperatures were recorded (Fig. 4a and Figs. S34-S41 in Supporting information). The emission intensity changed slightly before 273 K, while it decreased almost linearly with the increment of temperature in the solid state. In acetonitrile, as the temperature rose from −20℃ to 60 ℃, the intensity of these assemblies weakened gradually linearly, while the maximum emission wavelength hardly changed. The decrease of emission intensity is because that molecular motions are enhanced to dissipate the energy of the molecular excited state as the increase of temperature [62]. Accordingly, these assemblies can be employed for fluorescent thermometers based on AIE effects to sensitively detect temperature variation.

Mechanochromic materials represent a class of smart light-emitting materials, which respond to external force stimuli [63,64]. To explore the influence of pressure on the emission in solid state, the fluorescence spectra and images under variable pressures were collected using diamond anvil cell (DAC) technology. The photophysical behaviors of these assemblies witnessed a dramatic bathochromic shift both for absorption and emission, as well as decreases of emission intensity upon pressurization (Figs. 4b and c, Figs. S42 and S43 in Supporting information). For example, the maximum absorption of 5a shifted from 393 nm to 460 nm, and its maximum emission shifted from 511 nm to 614 nm. The fluorescent color gradually changed from blue to orange under the pressure of 10.5 GPa. The mechanochromism likely originates from the planarization of structures under the external pressure, which would also lead to the closer arrangement of molecules [28,30]. As a consequence, the butterfly wings and the cavities were flattened, affecting the π-π stacking and dipole-dipole interactions, thus influencing the fluorescence emission. Moreover, the fluorescence quenching efficiency of various assemblies was different, and 5b denotes the slowest one. Even upon the pressure of 10.4 GPa, a strong fluorescence could be observed. When the pressure was gradually released, the fluorescence continuously recovered (Figs. S44-S47 in Supporting information), and the emission was blue-shifted to the original wavelength, which further evidenced the responsive mechanochromism properties of these assemblies.

Given the existence of positive charges within these assemblies, we speculate that the addition of negatively charged biopolymers would induce emission changes, making them applied for biosensing. Therefore, we selected the sodium salts of hyaluronic acid (HA), chondroitin 4-sulfate (Chs) and heparin, which are negative polysaccharide polymers with different charge densities, as the candidates for sensing study. Fluorescence titration experiments were carried out by the addition of the three polysaccharides to assemblies 4, 5a-5c (Figs. 5a-c, and Figs. S48-S50 in Supporting information). Fluorescence intensity of 4, 5a and 5b increased gradually with the addition of polysaccharides, and the maximum emission wavelength remained nearly invariant. However, the intensity of 5c experienced a downward trend, and the wavelength was blue-shifted. To compare the sensitivity of these assemblies toward the three polysaccharides, their increased emission (I-I₀)/I₀ was plotted versus the concentration of analytes (Fig. 5d). The results implied that the fluorescence enhancement of 5a was the highest one (9.4, 6.9 and 7.6-fold, respectively), indicating a better sensitivity and signal-to-noise ratio. We hereafter utilized the assembly 5a to probe polysaccharides. The fitting linear ranges were 0–15, 0–8, 0–40 µg/mL, and the detection limit (LOD = 3σ/S) were calculated to be 0.73, 0.49 and 1.89 µg/mL for HA, Chs, heparin, respectively (Fig. 5e). To evaluate the selectivity of 5a towards polysaccharide, various potential interfering substances were added into the solution of 5a (Fig. 5f), including small molecular sodium salts (sodium sulfate, sodium acetate, sodium citrate, sodium dihydrogen phosphate), sugars (sucrose, glucose) and biological molecules (ATP, ADP, AMP). Only in the presence of polysaccharide, a significant increasement in fluorescence intensity was observed, which illustrated the high selectivity of 5a for polysaccharides.

To better understand the interplay between 5a and polysaccharides and to reveal the sensing mechanism, the morphology of 5a with polysaccharides was studied by scanning electron microscopy (SEM). Irregular aggregates were found, which were formed by the electrostatic interactions between the negatively charged polysaccharides and positively charged 5a (Fig. S51 in Supporting information), indicating that the addition of polysaccharides would force the aggregation of 5a, inducing the increase of the emission. Furthermore, the addition of polysaccharide to 5a were studied by ³¹P{¹H} and ¹H NMR spectroscopy. The proton and phosphorus NMR spectra remained almost unchanged after the addition of HA and Chs, indicating that the structure of 5a remained intact and not dissociated (Figs. S52 and S53 in Supporting information). However, as the addition of heparin to the deuterated solution of 5a, the phosphorus signal showed an apparent downfield shift and two new doublet peaks appeared. Additionally, the proton signals also underwent significant changes, such as pyridyl proton (H_a) shifted upfield by 0.16 ppm. These findings prompted us to consider the possibility of a new assembly. To validate this point, ligands 1, 2 (1:2 in molar ratio) and excessive heparin were self-assembled and their ³¹P{¹H} and ¹H spectra were obtained (Fig. S54 in Supporting information). Two new doublet peaks were observed in the ³¹P{¹H} spectra, and distinct proton signals were found in the ¹H NMR spectra. This result indicated that a new complex was formed between 1, 2 and heparin, which is probably because of the formation of new metal-coordination bonds by the pyridyl groups of 1, platinum ligand 2 and the carboxylate groups of heparins. Such complexation would also force the aggregation of 1, giving increased emission upon the addition of heparin, which has also been observed in other metal-coordination complexes [5]. Therefore, for all the assemblies, the addition of polysaccharide would force the aggregation of fluorophores in the assemblies, offering increase emission for sensing.

In conclusion, a series of 9,10-bis(diphenylmethylene)−9,10-dihydroanthracene-based assemblies with butterfly-like structures were constructed, which exhibited obvious AIE characteristics. They also show tunable fluorescence behaviors under different temperatures and applied pressures. In addition, they exhibited obvious fluorescence responses to negatively charged polysaccharides. Such properties suggest these assemblies can serve as good candidates for multiple sensing. This work not only presents the design and synthesis of novel butterfly-like emissive assemblies, but also further explores their applications as fluorescent sensors toward temperature, pressure and biomolecules.

Declaration of competing interest

Less

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Acknowledgments

Less

This work was supported by the National Natural Science Foundation of China (Nos. 22171219 and 22222112), Innovation Talent Promotion Plan of Shaanxi Province for Science and Technology Innovation Team (2023-CX-TD-51), and the Fundamental Research Funds for the Central Universities. The authors thank Dr. Gang Chang and Dan He at the Instrument Analysis Center and Dr. Aqun Zheng and Junjie Zhang at the Experimental Chemistry Center of Xi’an Jiaotong University for NMR and fluorescence measurements. We thank Menghan Sun from Shiyanjia Lab (www.shiyanjia.com) for the X-ray crystal structure analysis. We also acknowledge the mass spectrometry characterization by the Molecular Scale Laboratory at Shenzhen University.

Supplementary materials

Less

Supplementary material associated with this article can be found, in the online version, at doi:10.1016/j.cclet.2023.108439.

References

Less

[1]

L.Y. Niu, Y.Z. Chen, Q.Z. Yang, et al., Chem. Soc. Rev. 44 (2015) 6143–6160.

[2]

J. Liang, B.Z. Tang, B. Liu, Chem. Soc. Rev. 44 (2015) 2798–2811.

[3]

H.R. Xu, K. Li, X.Q. Yu, Chin. Chem. Lett. 26 (2015) 877–880.

[4]

W.P. Lustig, S. Mukherjee, S.K. Ghosh, et al., Chem. Soc. Rev. 46 (2017) 3242–3285.

[5]

M. Zhang, M.L. Saha, P.J. Stang, et al., J. Am. Chem. Soc. 139 (2017) 5067–5074.

[6]

T.L. Mako, J.M. Racicot, M. Levine, Chem. Rev. 119 (2019) 322–477.

[7]

H. Duan, F. Cao, L. Cao, et al., Chin. Chem. Lett. 33 (2022) 2459–2463.

[8]

Y. Pan, Y. Guo, X. Yan. et al., Chin. Chem. Lett. 34 (2023) 108237

[9]

H.Q. Peng, L.Y. Niu, Q.Z. Yang, et al., Chem. Rev. 115 (2015) 7502–7542.

[10]

M. Zhang, S. Li, P.J. Stang, et al., Proc. Natl. Acad. Sci. U. S. A. 113 (2016) 11100–11105.

[11]

B. Wang, C. Nie, S. Wang, et al., Chin. Chem. Lett. 28 (2017) 1975–1978.

[12]

S. Samanta, Y. He, J.S. Kim, et al., Chem 5 (2019) 1697–1726.

[13]

H.B. Cheng, Y. Li, J. Yoon, et al., Chem. Soc. Rev. 49 (2020) 21–31.

[14]

J. Dong, Y. Pan, D. Zhao, et al., Angew. Chem. Int. Ed. 59 (2020) 10151–10159.

[15]

Q. Feng, T. Yang, L. Fan, et al., ACS Appl. Mater. Interfaces 14 (2022) 38594–38603.

[16]

E. Cariati, E. Lucenti, S. Righetto, et al., Coord. Chem. Rev. 306 (2016) 566–614.

[17]

B. Pashaei, S. Karimi, F. Bonaccorso, et al., Chem. Soc. Rev. 48 (2019) 5033–5139.

[18]

C. Mu, Z. Zhang, M. Zhang, et al., Angew. Chem. Int. Ed. 60 (2021) 12293–12297.

[19]

Y. Hong, J.W.Y. Lam, B.Z. Tang, Chem. Soc. Rev. 40 (2011) 5361–5388.

[20]

J. Mei, N.L.C. Leung, B.Z. Tang, et al., Chem. Rev. 115 (2015) 11718–11940.

[21]

M. Yamashina, M.M. Sartin, M. Yoshizawa, et al., J. Am. Chem. Soc. 137 (2015) 9266–9269.

[22]

C. Qin, Y. Li, L. Cao, et al., Chin. Chem. Lett. 32 (2021) 3531–3534.

[23]

S. Qin, H. Zou, L. You, et al., Chin. Chem. Lett. 33 (2022) 3267–3271.

[24]

C. Zhou, W. Xu, B.Z. Tang, et al., Adv. Funct. Mater. 29 (2019) 1805986.

[25]

R. Hu, N.L.C. Leung, B.Z. Tang, Chem. Soc. Rev. 43 (2014) 4494–4562.

[26]

R.T.K. Kwok, C.W.T. Leung, B.Z. Tang, et al., Chem. Soc. Rev. 44 (2015) 4228–4238.

[27]

X. Jiang, H. Gao, L. Jiang, et al., Nat. Commun. 9 (2018) 3799.

[28]

Z. Zhang, Z. Zhao, M. Zhang, et al., J. Am. Chem. Soc. 142 (2020) 2592–2600.

[29]

L.X. Cai, D.N. Yan, Q.F. Sun, J. Am. Chem. Soc. 143 (2021) 2016–2024.

[30]

Y. Li, T. Yang, Y.F. Han, et al., CCS Chem. 4 (2022) 732–743.

[31]

J. Zhang, H. Shen, B.Z. Tang, et al., Angew. Chem. Int. Ed. 61 (2022) e202208460.

[32]

Y. Inokuma, M. Kawano, M. Fujita, Nat. Chem. 3 (2011) 349–358.

[33]

T.R. Cook, P.J. Stang, Chem. Rev. 115 (2015) 7001–7045.

[34]

C.J. Brown, F.D. Toste, K.N. Raymond, et al., Chem. Rev. 115 (2015) 3012–3035.

[35]

B.M. Schmidt, T. Osuga, M. Fujita, et al., Angew. Chem. Int. Ed. 55 (2016) 1561–1564.

[36]

W. Wang, Y.X. Wang, H.B. Yang, et al., Chem. Soc. Rev. 45 (2016) 2656–2693.

[37]

G.H. Clever, P. Punt, Acc. Chem. Res. 50 (2017) 2233–2243.

[38]

S. Chakraborty, G.R. Newkome, Chem. Soc. Rev. 47 (2018) 3991–4016.

[39]

G.Y. Wu, L.J. Chen, H.B. Yang, et al., Coord. Chem. Rev. 369 (2018) 39–75.

[40]

F.J. Rizzuto, L.K.S. von Krbek, J.R. Nitschke, Nat. Rev. Chem. 3 (2019) 204–222.

[41]

R. Saha, A. Devaraj, P.S. Mukherjee, et al., J. Am. Chem. Soc. 141 (2019) 8638–8645.

[42]

Y. Sun, C. Chen, P.J. Stang, et al., Chem. Soc. Rev. 49 (2020) 3889–3919.

[43]

S. Bhattacharyya, S.R. Ali, P.S. Mukherjee, J. Am. Chem. Soc. 142 (2020) 18981–18989.

[44]

P.C. Purba, M. Maity, P.S. Mukherjee, et al., Angew. Chem. Int. Ed. 60 (2021) 14109–14116.

[45]

H. Liu, Z. Zhang, M. Zhang, et al., Angew. Chem. Int. Ed. 61 (2022) e202207289.

[46]

Z. Zhang, L. Ma, M. Zhang, et al., JACS Au 2 (2022) 1479–1487.

[47]

L.J. Chen, Y.Y. Ren, H.B. Yang, et al., J. Am. Chem. Soc. 137 (2015) 11725–11735.

[48]

Y. Tian, X. Yan, P.J. Stang, et al., J. Am. Chem. Soc. 138 (2016) 12033–12036.

[49]

X. Wang, Q. Su, M. Zhang, et al., Chem. Commun. 56 (2020) 8460–8463.

[50]

Y. Hou, Z. Zhang, M. Zhang, et al., J. Am. Chem. Soc. 142 (2020) 18763–18768.

[51]

Y.X. Hu, X. Hao, H.B. Yang, et al., J. Am. Chem. Soc. 142 (2020) 6285–6294.

[52]

Y. Hou, Z. Zhang, M. Zhang, et al., CCS Chem. 4 (2022) 2604–2611.

[53]

Z. Zhang, Y. Huang, P. Wang, et al., JACS Au 2 (2022) 2809–2820.

[54]

X. Yan, T.R. Cook, P.J. Stang, et al., Nat. Chem. 7 (2015) 342–348.

[55]

X. Yan, M. Wang, P.J. Stang, et al., J. Am. Chem. Soc. 138 (2016) 4580–4588.

[56]

Z. He, L. Zhang, B.Z. Tang, et al., Chem. Mater. 27 (2015) 6601–6607.

[57]

Z. He, L. Shan, B.Z. Tang, et al., Chem. Sci. 6 (2015) 3538–3543.

[58]

L. Ma, T. Yang, M. Zhang, et al., Chin. Chem. Lett. 30 (2019) 1942–1946.

[59]

Y. Hou, R. Shi, M. Zhang, et al., Chin. Chem. Lett. 34 (2022) 107688.

[60]

K. Gao, Q. Feng, M. Zhang, et al., Angew. Chem. Int. Ed. 61 (2022) e202209958.

[61]

Z. Chi, X. Zhang, J. Xu, et al., Chem. Soc. Rev. 41 (2012) 3878–3896.

[62]

Y. Yang, S. Zhang, Y. Ji, et al., Nat. Commun. 10 (2019) 3165.

[63]

Q. Qi, J. Qian, W. Tian, et al., Adv. Funct. Mater. 25 (2015) 4171-4171.

[64]

T. Han, L. Liu, B.Z. Tang, et al., Macromol. Rapid. Commun. 42 (2021) e2000311.

Appendix

Less

Year 2023 volume 34 Issue 12

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1016/j.cclet.2023.108439

Receive Date：2023-02-21
Online Date：2025-11-21
Published：2023-12-15

Article Data

Affiliations

History

Received：2023-02-21
Revised：2023-03-30
Accepted：2023-04-07

Affiliations

^bSchool of Pharmacy, Health Science Center, Xi’an Jiaotong University, Xi’an 710061, China

^cState Key Laboratory of Superhard Materials, College of Physics, Jilin University, Changchun 130012, China

^dAdvanced Materials Research Group, Faculty of Engineering, University of Nottingham, Nottingham NG7 2RD, United Kingdom

References

Share

https://castjournals.cast.org.cn/joweb/ccl/EN/10.1016/j.cclet.2023.108439

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

Scheme 1 Graphical illustrations for self-assembly of assemblies 4, 5a-5c.

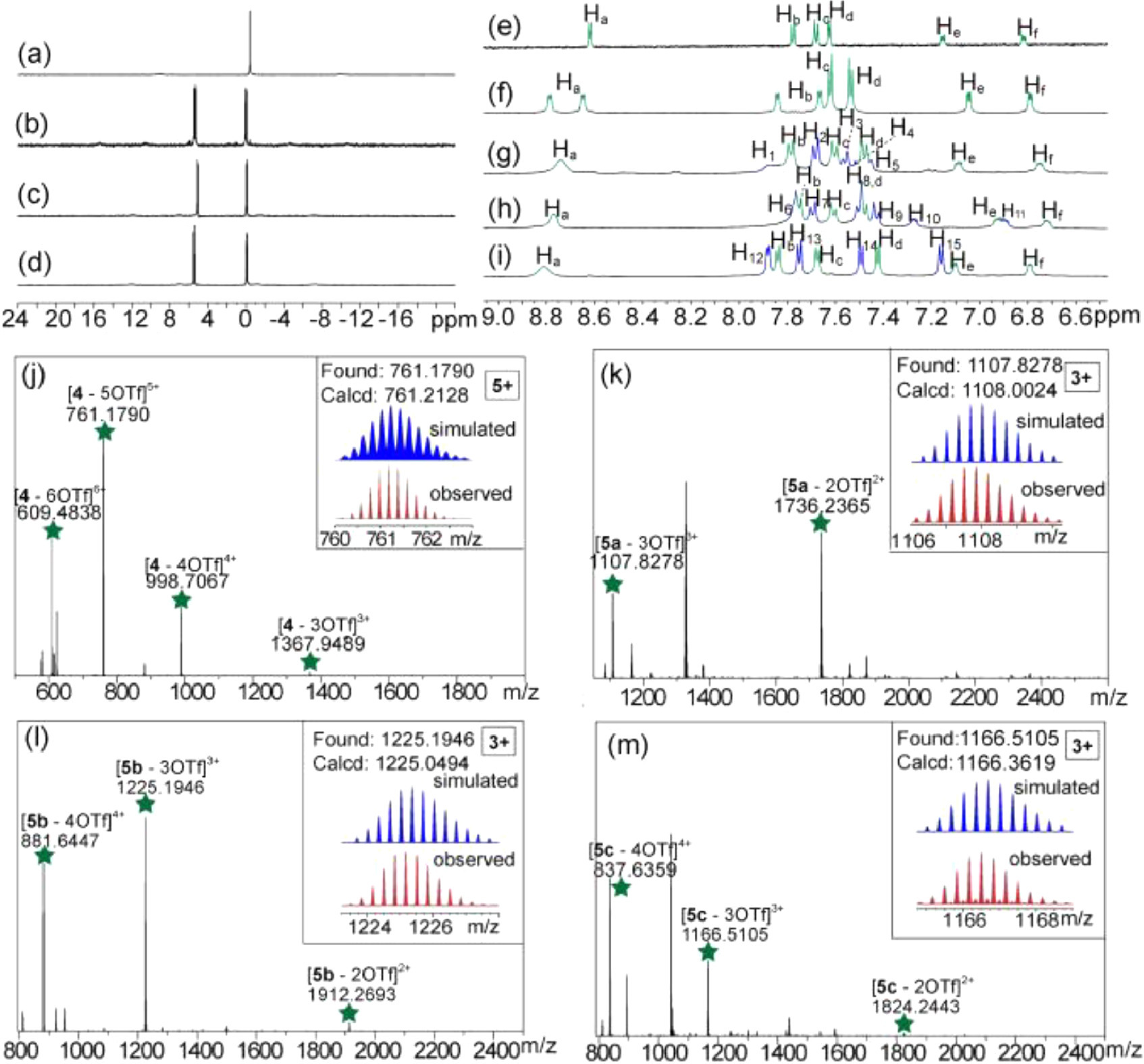

Fig. 1. Partial ³¹P{¹H} NMR spectra (162 or 243 MHz, CD₃CN, 295 K) of (a) 4, (b) 5a, (c) 5b and (d) 5c. Partial ¹H NMR spectra (400 or 600 MHz, CD₃CN, 295 K) of (e) 1, (f) 4, (g) 5a, (h) 5b and (i) 5c. ESI-TOF-MS spectra of (j) 4, (k) 5a, (l) 5b and (m) 5c.

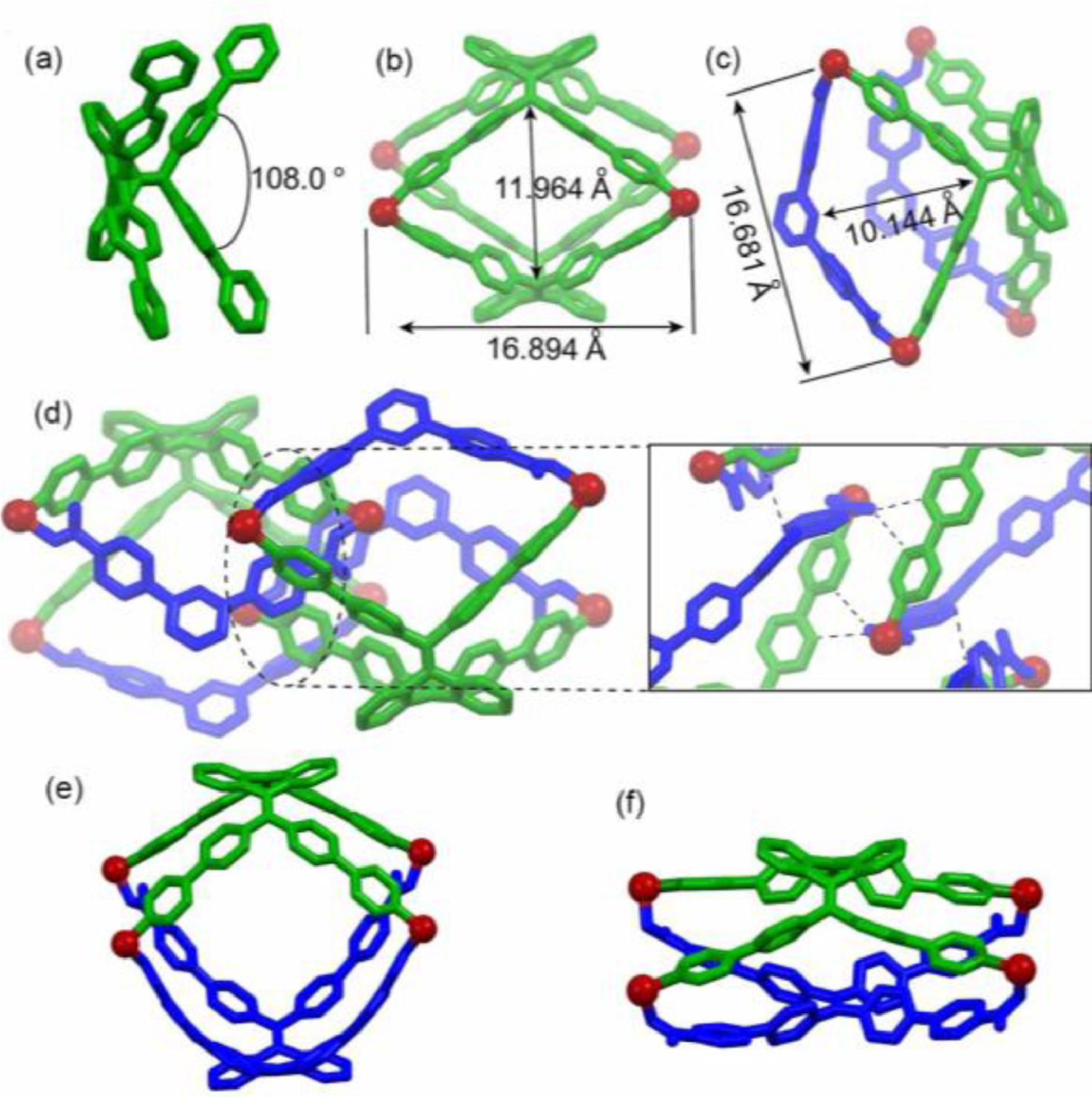

Fig. 2. Crystal structures of (a) 1, (b) 4 and (c) 5a. (d) Crystal packing of 5a. Optimized molecular structures of (e) 5b and (f) 5c by DFT calculations. Hydrogen atoms, counterions, solvent molecules and triethylphosphine units are omitted for clarity.

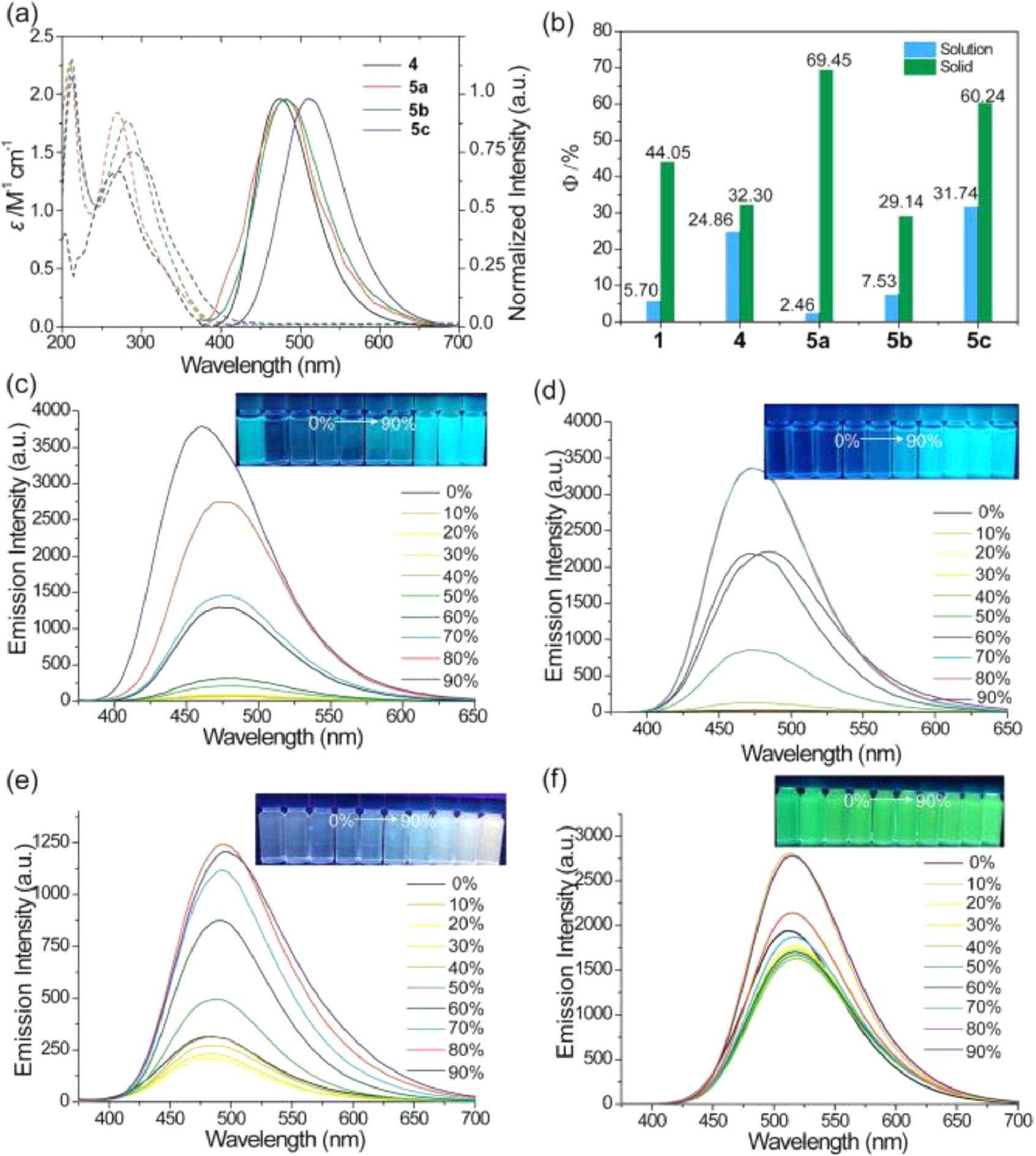

Fig. 3. (a) UV–vis absorption and normalized emission spectra of 4, 5a–5c in acetonitrile. (b) Absolute fluorescence quantum yields of 1, 4, 5a-5c in acetonitrile and solid state. Emission spectra of (c) 4, (d) 5a, (e) 5b, and (f) 5c in mixed solutions of acetonitrile and water in different volume ratios. Insets: photographs of 4, 5a–5c in different fractions of mixed solutions (λ_ex = 365 nm, c = 10.0 µmol/L).

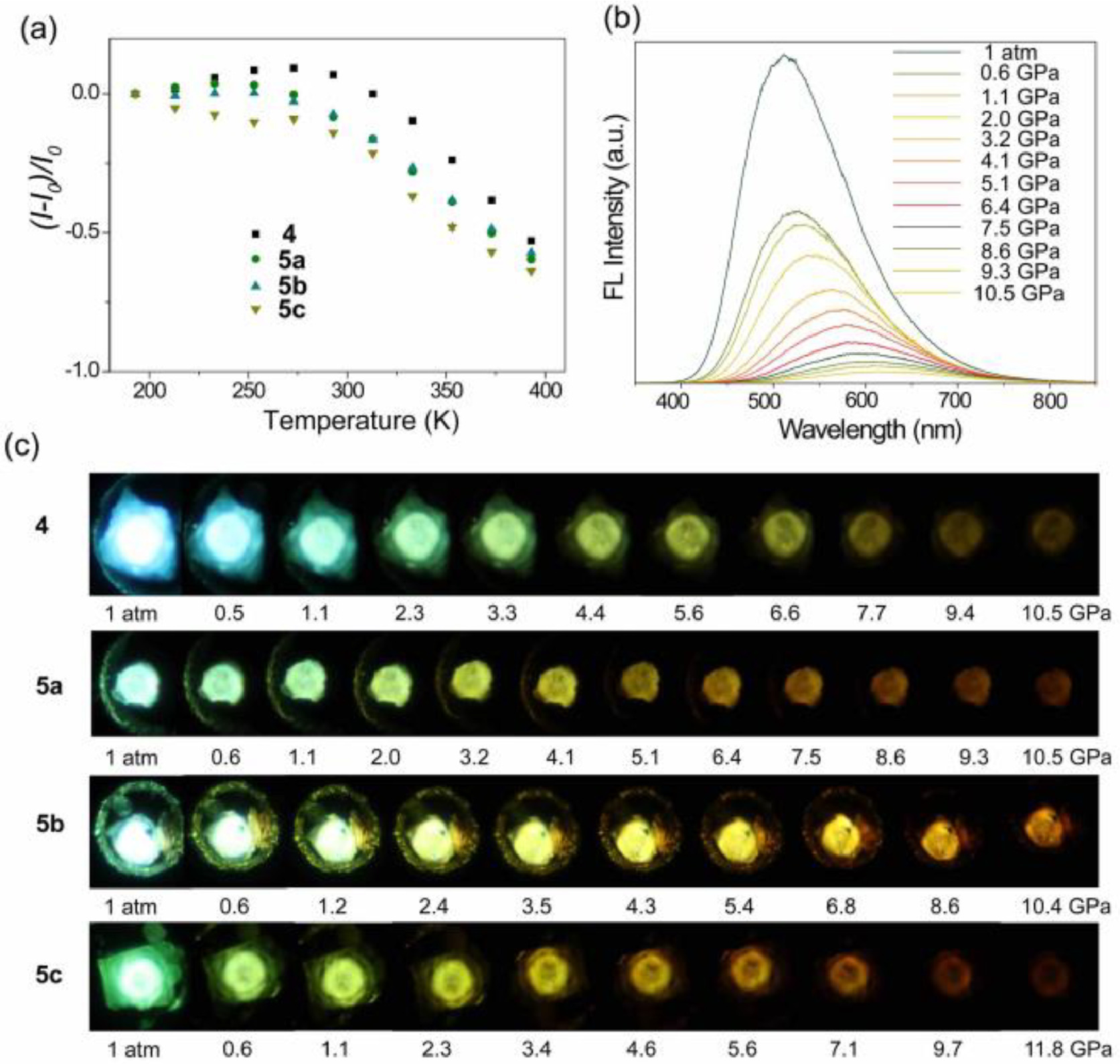

Fig. 4. (a) (I-I₀)/I₀ of 4, 5a-5c at various temperatures in solid state. (b) Emission spectra of 5a and (c) fluorescent images of 4, 5a-5c under external pressures.

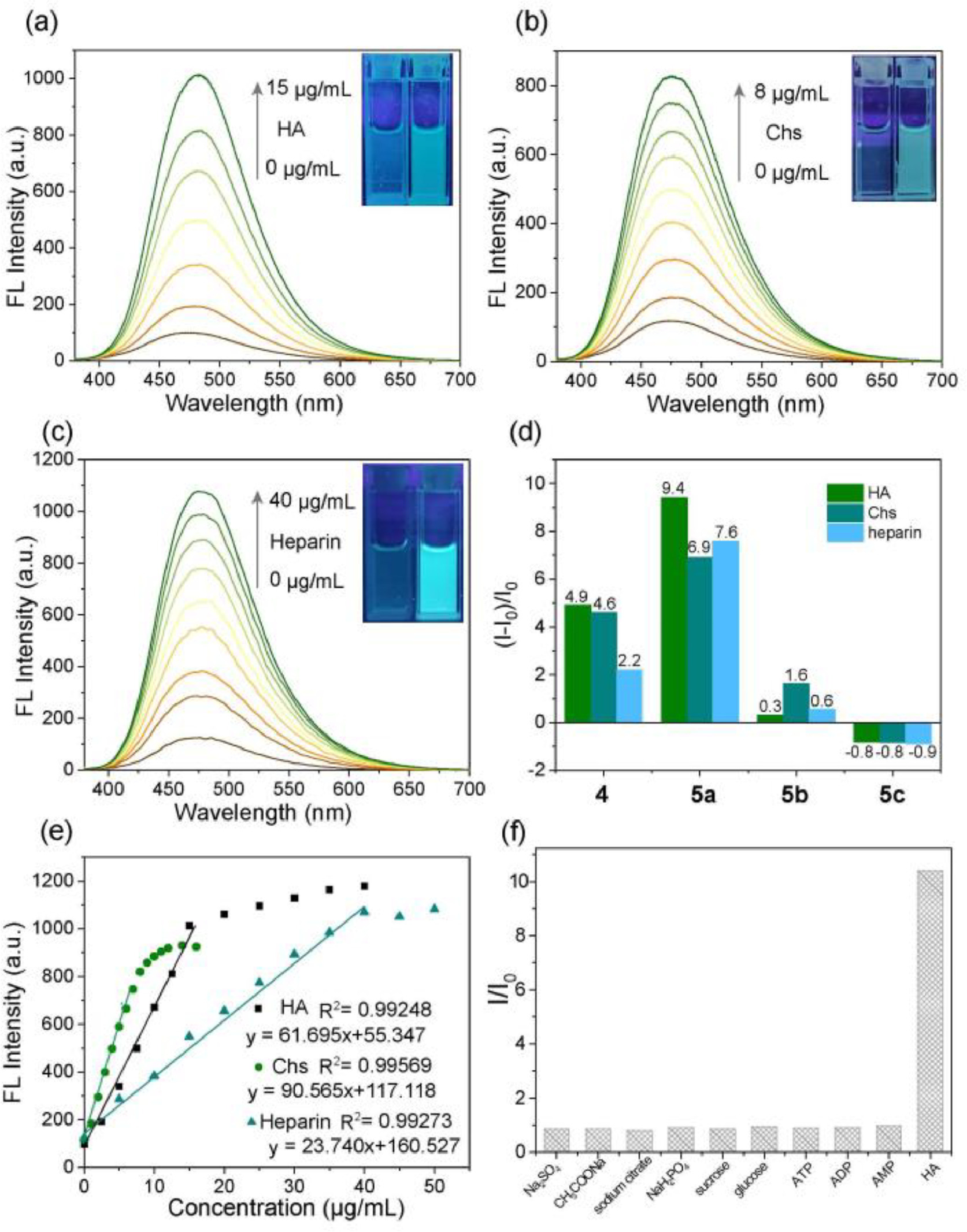

Fig. 5. Fluorescence spectra of 5a at varied amount of (a) HA, (b) Chs and (c) heparin. (d) (I-I₀)/I₀ of 4, 5a-5c for HA, Chs and heparin. (e) The plots of fluorescence intensity of 5a in the prescence of different concentrations of analytes. (f) Fluorescence responses of 5a upon the addition of 10 equiv. of interfering analytes. (λ_ex = 365 nm, c = 10 µmol/L, acetonitrile/water = 1/1, v/v).
